SBACH342/MXS-R

Electric or Glow powered

3D 70 SERIES

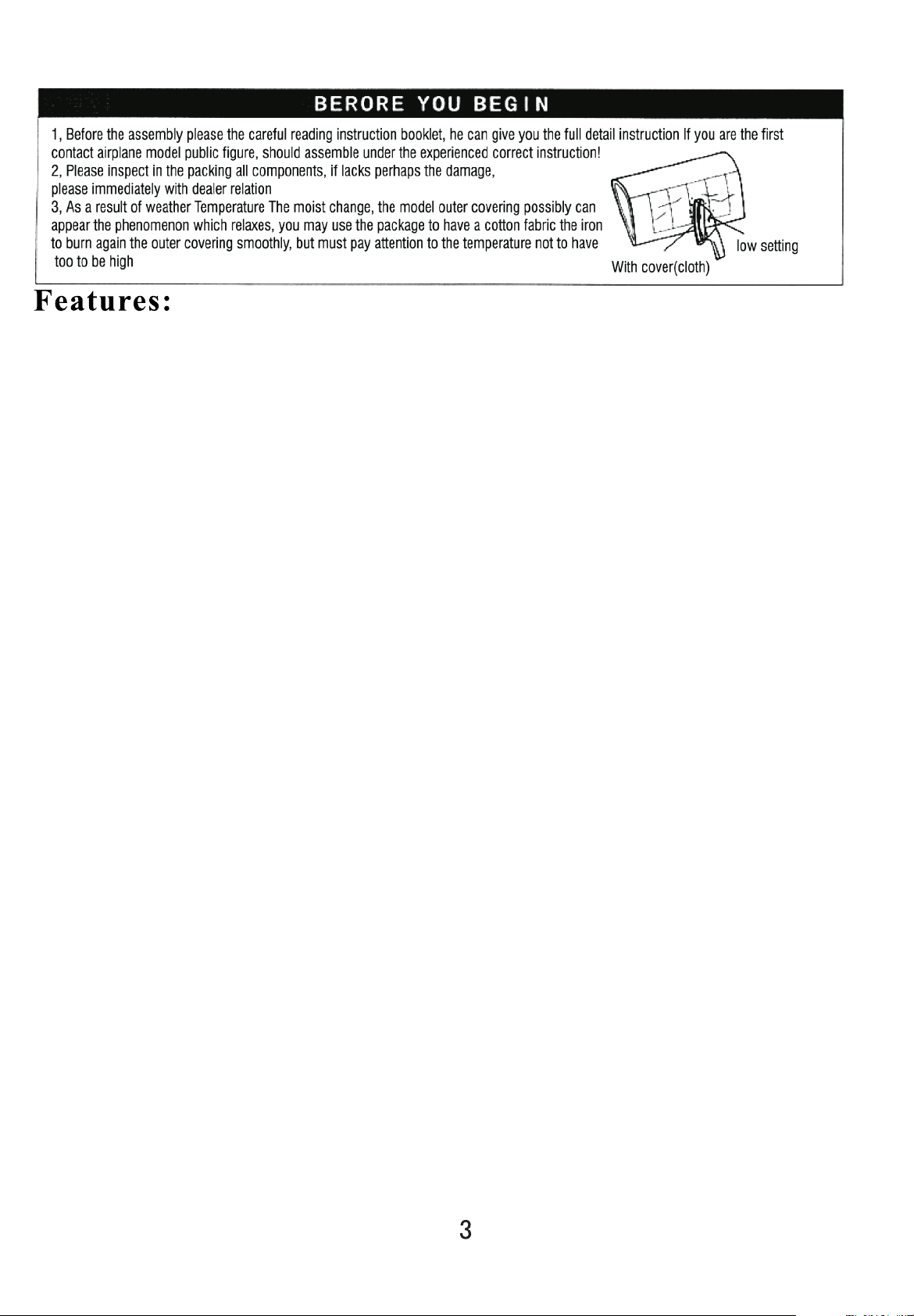

1,Latest structure

2,Light weight construction with high structural strength

3,Super quality

4,Excellent aerobatics and 3D performance

5,Easy installation

6,Two pieces removable wings fitted nylon bolts

7,High performance hardware includes:

2mm Ball linkage control system

Fiberglass long servo arms

Servo extension safety connector clips

8,Low wing loading makes it easy to fly

9,One piece 6061 T-6 Anodized Aluminum landing gear

10,Carbon fiber wing tube

11,Aerofoil tail wings

12,Canopy quick release system

13,Powered by Electric or Glow

SBACH342 70

WING SPAN:60"(1520mm)

LENGTH: 58"(1470mm)

WING AREA: 738sq.in.(47.6sq.dm.)

FLYING WEIGHT:5-5.5lbs(2300-2500g) Electric:Brushless outrunner 8Oz.

PROP: APC16x10E-17x8E LI-POLY 5-6S 3800-5000mAh

Glow:.46-.52 2C .52-.82 4C

RADIO:4CH/5S or 4s 1ESC（70A）

MXS-R 70

WING SPAN:60.3"(1530mm)

LENGTH: 58"(1470mm)

WING AREA: 740sq.in.(47.8sq.dm.)

FLYING WEIGHT:5-5.5lbs(2300-2500g) Electric:Brushless outrunner 8Oz.

PROP: APC16x10E-17x8E LI-POLY 5-6S 3800-5000mAh

Glow:.46-.52 2C .52-.82 4C

RADIO:4CH/5S or 4s 1ESC（）70A

Specification

.............

4

M4 Blind nut

Use a rotary cutting tool and sanding drum to cut out the openings in the cowl.

The shape and size of open pore depends on the type of the engine.Install the

cowl and check that everything fits correctly and nothing rubs against cowl.

If needed enlarge the cutouts and test fit again until everything fits correctly.

Drill four holes and install the engine on the engine mount with four

M4 screws. And then install the mount to the firewall board with the

screws and claw nuts.The Four screws should be secured with Blue

Loctite.Finally,install the throttle serve and the throttle pushrod.

Fuel Tank Installation

9

1.Bend two fuel tubes carffull

M2*10mm

Tapping screws

CA glue

Thick

Cut this place

2

dissipation.Drill four 1mm holes and install the cowling with four

M2*10mm screws. And then you can install the propeller and the

.It is necessery to remove a part of the cowling for OPTO heat
