Arecont Vision D4S/D4F Installation Manual

0 | Page

Arecont Vision D4S/D4F Installation Manual

1 | Page

D4S/D4F Indoor Dome Installation Manual

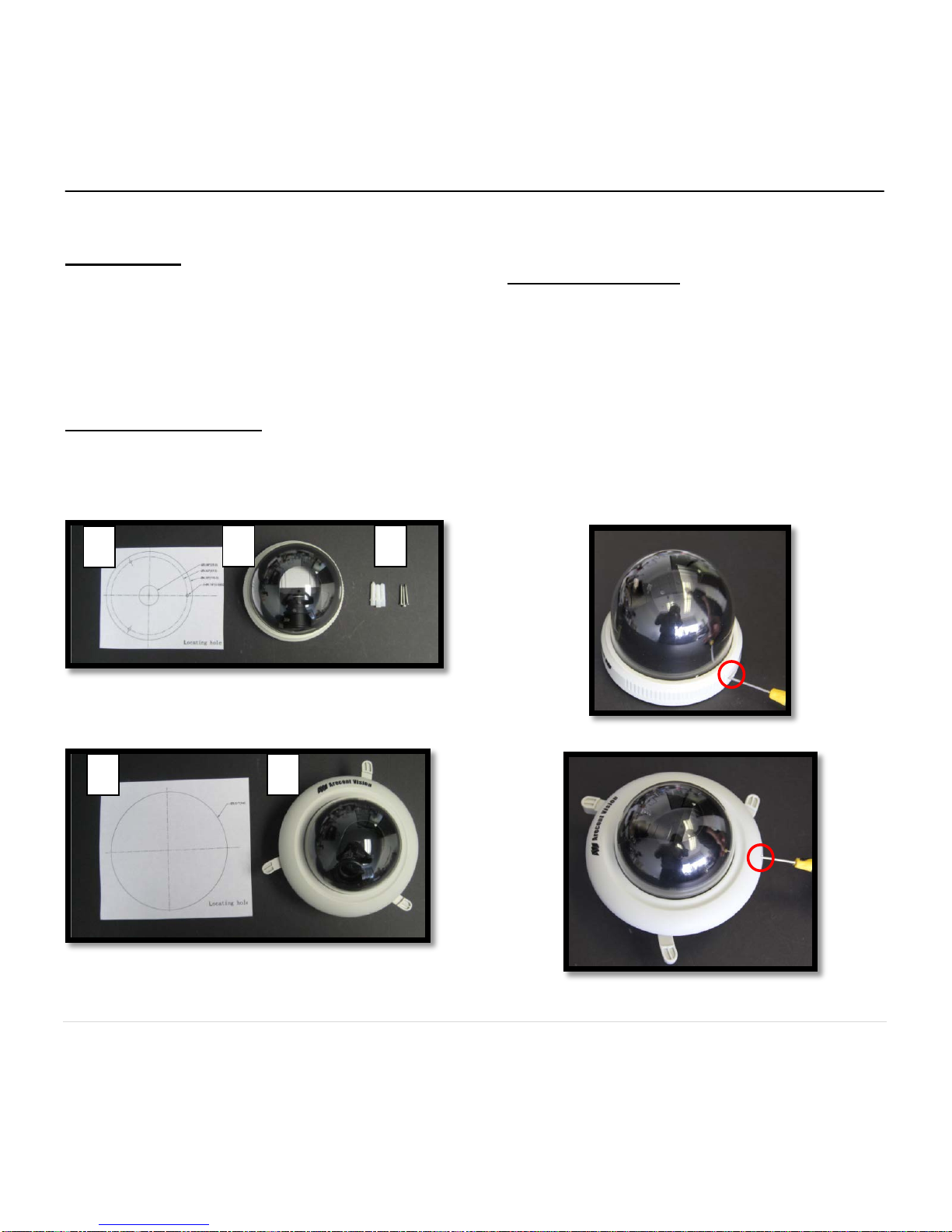

Inside the box:

A. Mounting template

B. Arecont Vision D4S (Image 1-1) or

D4F (Image 1-2)

C. Pack of three (3) wood screws and three

(3) dry wall anchors (D4S only)

Not included but needed:

•#0 Phillips head screwdriver

•#1 Phillips head screwdriver

Image 1-1 D4S Indoor Dome

Image 1-2 D4F Indoor Dome

Mounting the Camera:

1. Remove camera and hardware from the

box.

2. Use the Mounting template, prepare the

mounting provisions for camera

installation.

3. Use #0 Philips head screwdriver to

loosen the set screw to release the dome

cover (Image 2-1 and 2-2). NOTE: Do

not remove screw from the dome cover.

Image 2-1 D4S

Image 2-2 D4F

A B

Arecont Vision D4S/D4F Installation Manual

2 | Page

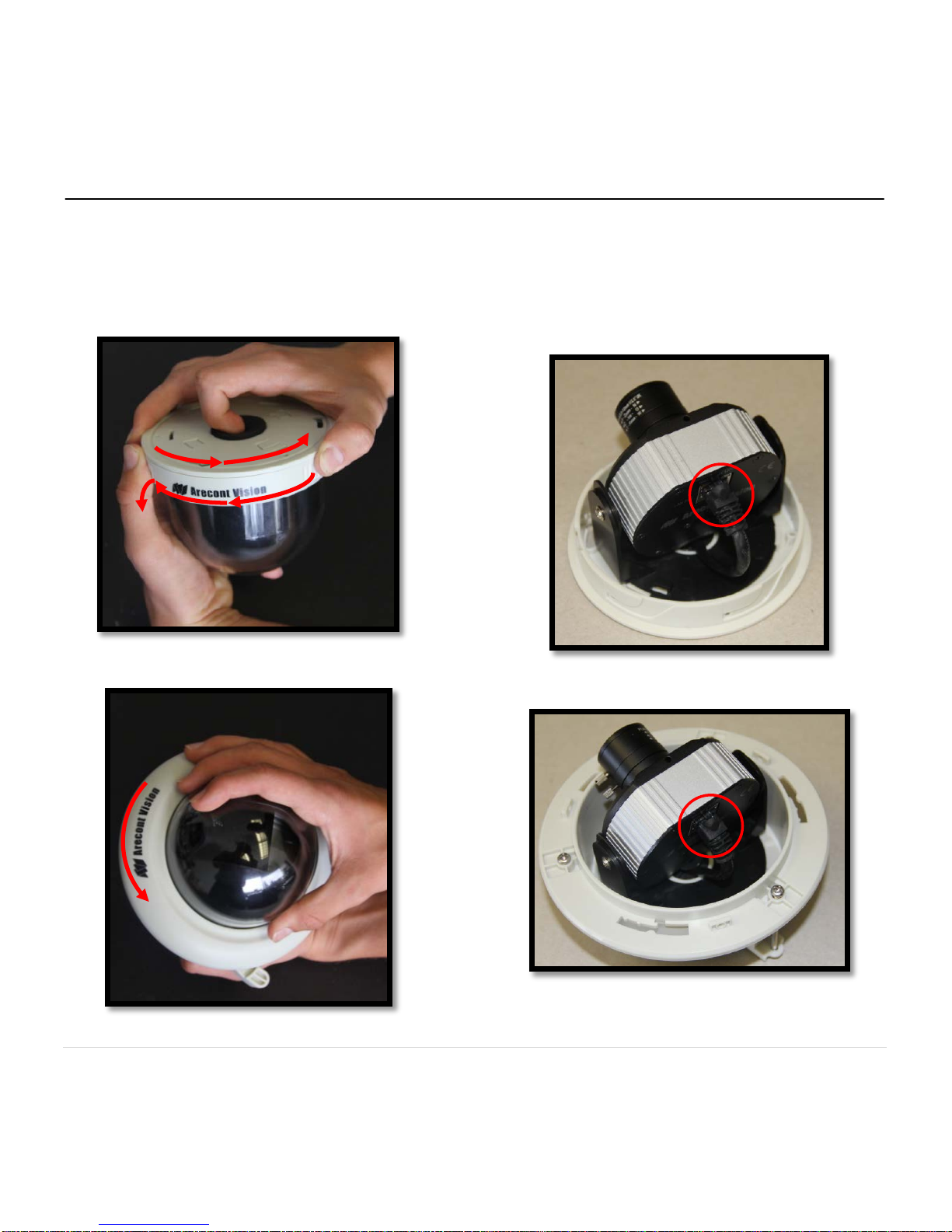

4. Remove D4S or D4F dome cover by rotating

counterclockwise as show in Image 3-1 and

3-2.

Image 3-1 D4S

Image 3-2 D4F

5. Run Ethernet cable through the hole on the

bottom of D4S or D4F and plug it into the

RJ45 port on AV’s H.264 compact

MegaVideo®camera. (Image 4-1 and 4-2)

Image 4-1 D4S

Image 4-2 D4F

Arecont Vision D4S/D4F Installation Manual

3 | Page

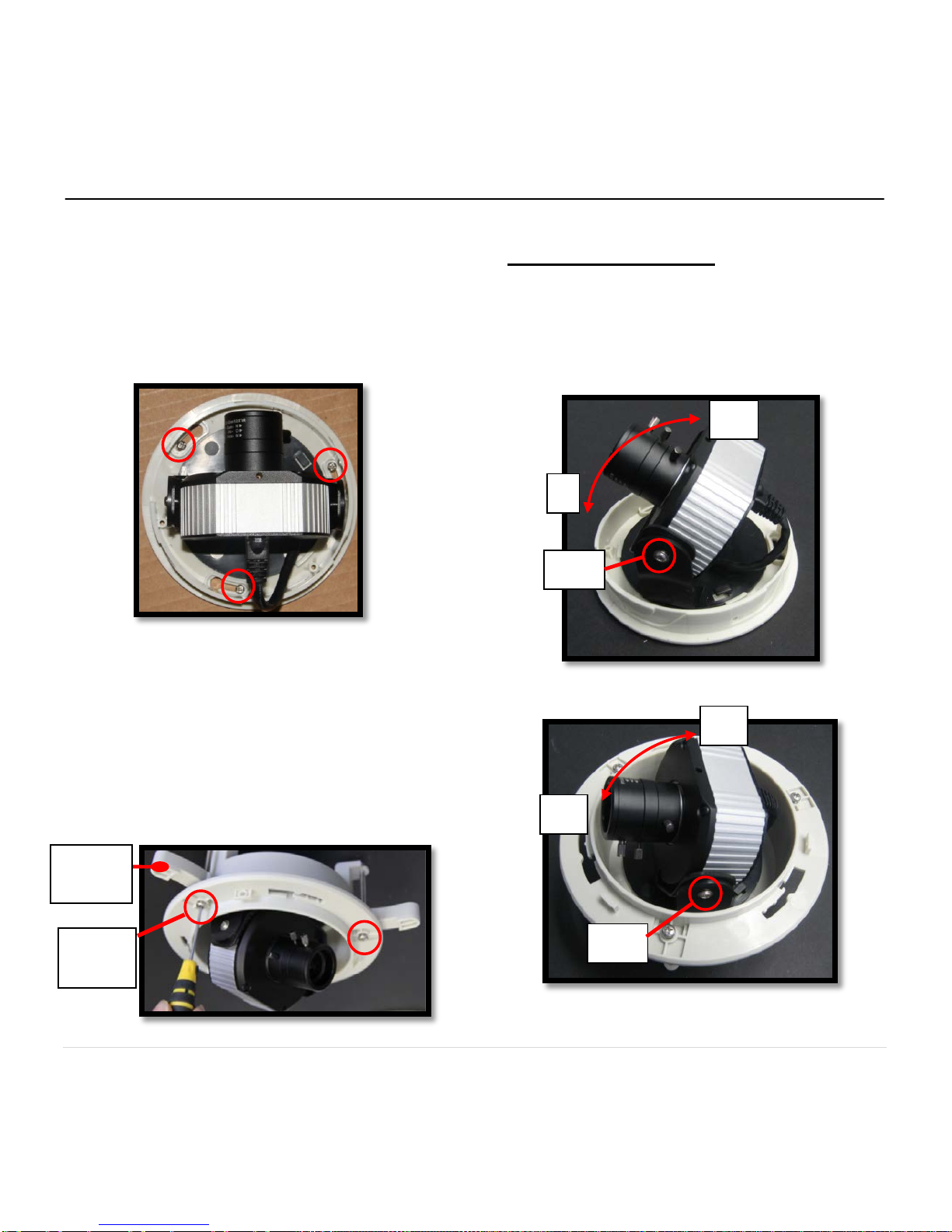

6.1 For D4S models, align the mounting holes in

the dome with the prepared holes on the

mounting surface. Attach D4S to the

mounting surface with the wood screws or

any optional hardware suitable for the

mounting surface. (Image 5)

Image 5

6.2 For D4F models, insert D4F into the prepared

hole in the ceiling or wall then tighten the

three “lever screws” by rotating clockwise until

the D4F is firmly installed, as shown in Image

6. The “Support Arm” will ride down the screw

to compress to the mounting surface.NOTE:

Do not over-torque the lever screws.

Image 6

Adjusting the Tilt and Pan:

7. To adjust the tilt, use a #1 Phillips screwdriver

to loosen the screw on the side of the plastic

U bracket 1/4 turn (Image 7-1 and 7-2).

CAUTION: Do not remove the screw!

Image 7-1 D4S

Image 7-2 D4F

Lever

screw

Support

Arm

0°

20°

90°

Screw

Arecont Vision D4S/D4F Installation Manual

4 | Page

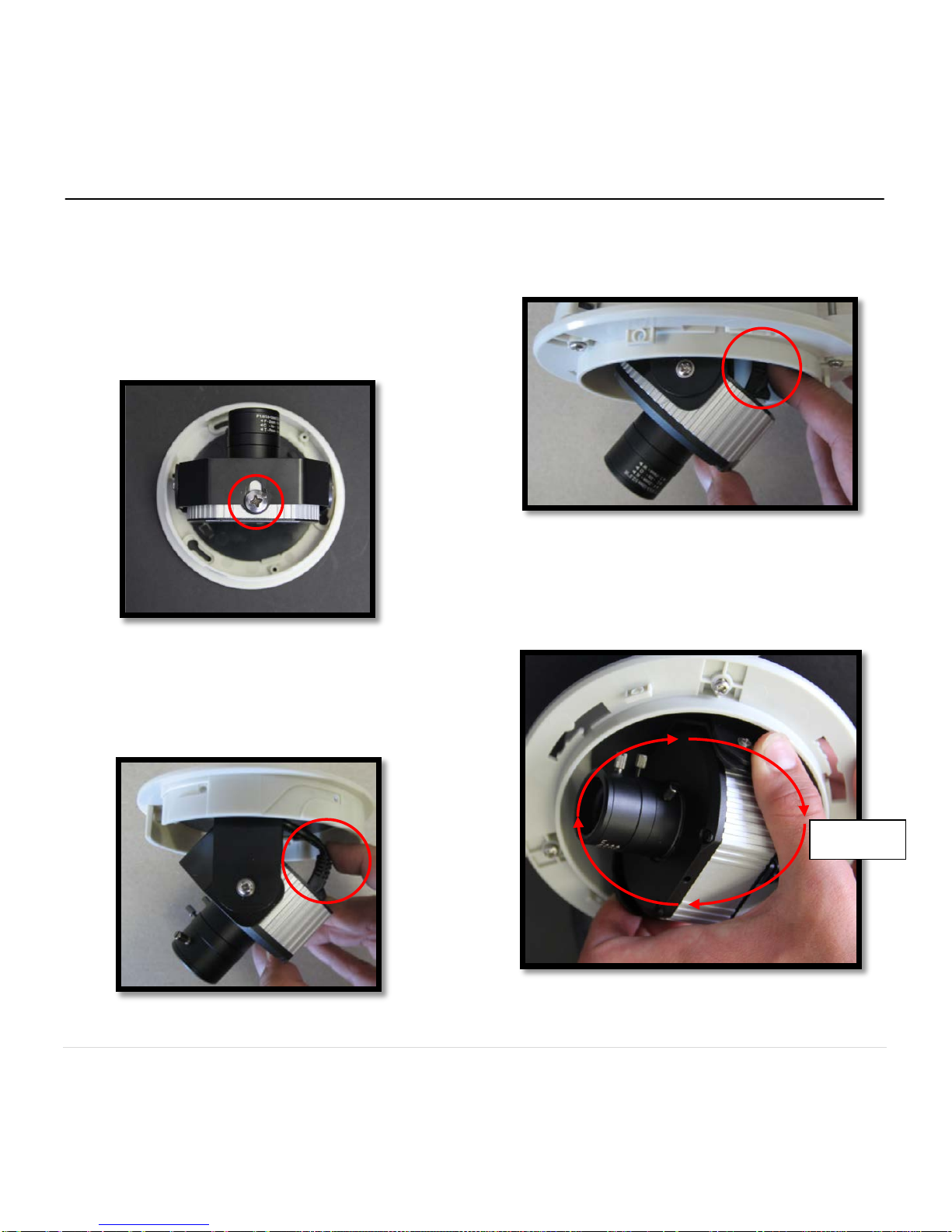

8. Adjust lens tilt as required and tighten the

screw. CAUTION: Please attach camera at

the end of the slot of U bracket to avoid

interference between bubble and lens .

(Image 8)

Image 8

NOTE: Push cable to make camera tilt easier,

if getting caught on housing plastic.

(Image9-1 and 9-2)

Image 9-1 D4S

Image 9-2 D4F

9. To adjust the pan, hold and turn the U bracket

as shown in Image 10.

Image 10

Pan=360°

Arecont Vision D4S/D4F Installation Manual

5 | Page

Adjusting the Focus:

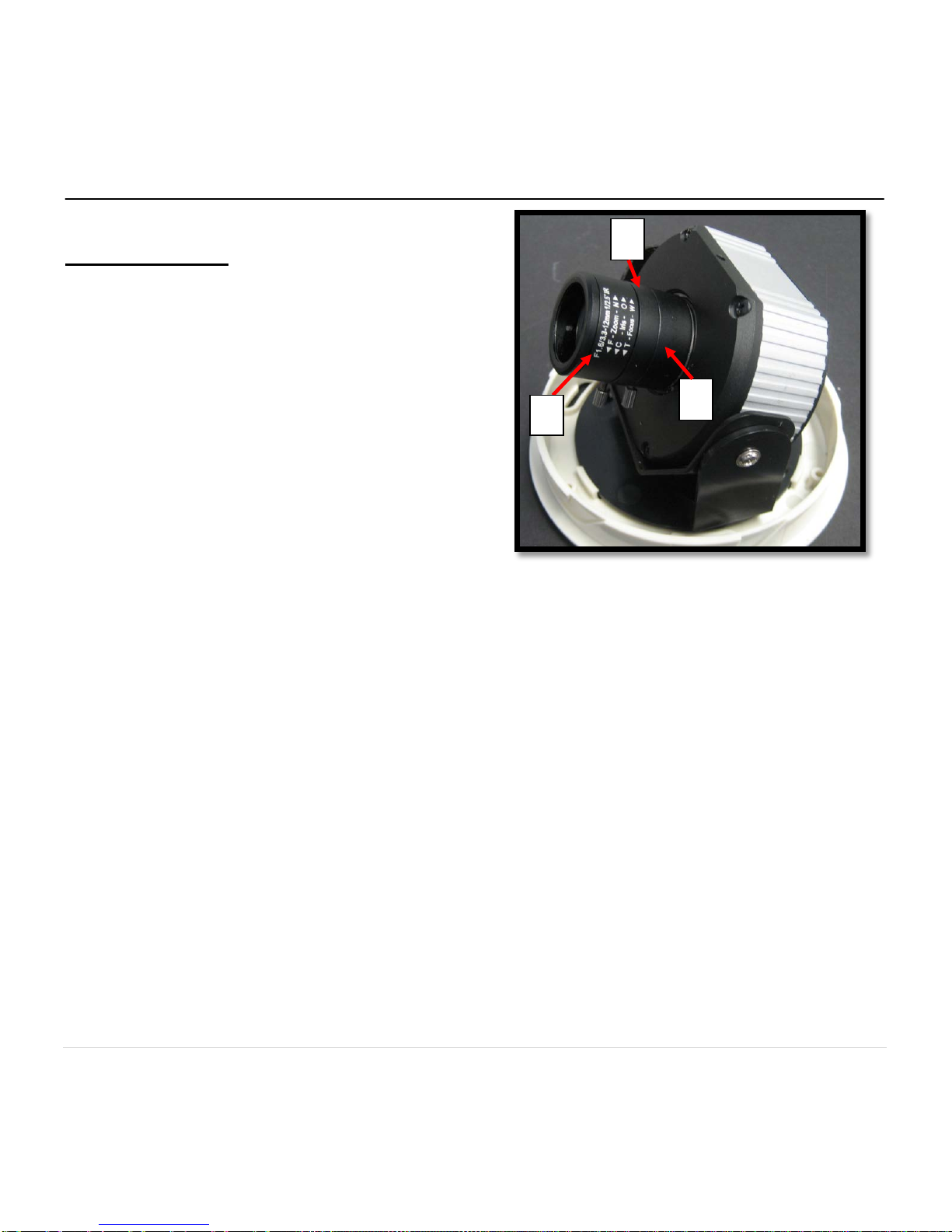

10. To focus the lens, loosen the three set screws

as shown in Image 11 and adjust each as

needed. Aadjusts the zoom, Badjusts the

iris, Cadjusts the focus.

Note: Adjust zoom first then focus!

Note: For more information on proper

focusing technique, please watch the

“Focusing Arecont Vision Megapixel

Cameras” Best Practices Training Video at

www.youtube.com/ArecontVision.

11. Secure the dome cover to the camera.

12. Tighten the set screw on the dome cover.

13. Rotate bubble to align camera with slot in

camera shield.

14. Remove the protective film from the camera

dome. NOTE: be cautious not to scratch the

vandal dome cover.

Image 11

A C

Arecont Vision D4S/D4F Installation Manual
