Aplex APC-3228A User manual
APC-3228A User Manual
1
APC-3228A
Panel PC User Manual
Release Date _ Revision
Aug. 2012 V1.0
® 2012 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
APC-3228A User Manual
2
Warning!___________________________________
This equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions manual, it may cause interference to radio communications.
It has been tested and found to comply with the limits for a ClassA computing device pursuant to
FCC Rules, which are designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a residential area is likely
to cause interference in which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.
Disclaimer
This information in this document is subject to change without notice. In no event shall Aplex
Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising
from either the use or misuse of information in this document or in any related materials.
Electric Shock Hazard –Do not operate the machine with its back cover removed. There are
dangerous high voltages inside.
APC-3228A User Manual
3
Packing List
Accessories (as ticked) included in this package are:
□AC power cable
□Driver & manual CD disc
□Other.___________________(please specify)
Safety Precautions
Follow the messages below to prevent your systems from damage:
◆Avoid your system from static electricity on all occasions.
◆Prevent electric shock. Don‘t touch any components of this card when the card is
power-on. Always disconnect power when the system is not in use.
◆Disconnect power when you change any hardware devices. For instance, when you
connect a jumper or install any cards, a surge of power may damage the electronic
components or the whole system.
APC-3228A User Manual
4
Table of Contents______________________
Warning!…………………………………………………………………………….……..….2
Disclaimer………………………………………………………………….…………………2
Packing List…………………………………………………………………………………..3
Safety Precautions…………………………………………………………………………..3
Chapter 1 Getting Started
1.1 Specifications……………………………………..….……………………..6
1.2 Dimensions………………………………...………………………….......7
1.3 Installation of HDD………………….…………………………….……….8
1.4 Installation of PCI Add-on………..……………………………………..10
1.5 Brief Description…………………………………………………….……11
1.6 Panel Mounting…………………………………………………………..12
Chapter 2 Hardware
2.1 Mainboard………………..…….……………………………………..…..13
2.2 Installations…….…………………………………….…………………...14
2.2.1 Jumpers Setting and Connectors……...………..………………….....14
Chapter 3 BIOS Setup
3.1 Operations after POST Screen.............................................................39
3.2 BIOS SETUP UTILITY..........................................................................40
3.3 System Overview..................................................................................40
3.4 Advanced Settings............................................................................... 41
3.5 Advanced PCI/PnP Settings................................................................ 50
3.6 Boot Settings....................................................................................... 52
3.7 Security Settings.................................................................................. 54
3.8 Advanced Chipset Settings.................................................................. 56
3.9 Exit Options..........................................................................................63
Chapter 4 Installation of Drivers
4.1 Intel Chipset Driver.…………………………...…………………………66
4.2 Intel Graphics Media Accelerator Driver...……………………………..69
4.3 Intel 82574L LAN Device Driver………………………………………….73
4.4 Realtek ALC662 HD Audio Driver Installation…….………….…………76
4.5 Microsoft .NET Framework 3.5 Service Installation……………………78
APC-3228A User Manual
5
Chapter 5 Touch Screen Installation
5.1 Introduction to Controller Board..…………………………..……………81
5.2 Windows 2000/XP USB Driver Installation for 5000 Boards………..….81
Figures
Figure 1.1: APC-3228A Dimensions……………………………………..…....7
Figure 1.2: Front View………………………………………………………...11
Figure 1.3: Rear View………………………………………………………..11
Figure 1.4: Panel mounting…………………………………………………..12
Figure 1.5: VESA mounting…………………………………………………..12
Figure 2.1: Mainboard Dimensions…………………………………..…….....13
Figure 2.2: Jumpers and Connectors Location_ Board Top………………...14
Figure 2.3: Jumpers and Connectors Location_ Board Bottom…………....15
Figure 5.1 Birdeye’s View of Control Board…………………………………81
APC-3228A User Manual
6
Chapter 1 System
1.1 Specifications
Specs
APC-3228A
CPU
Intel socket P, support Intel T3100 1.9GHz and up to Intel P8600
2.4GHz Processor
Chipset
Intel GM45 + ICH9M
System Memory
2 x 204 Pin SO-DIMM, up to 8GB DDR 3 800/1066MHz FSB
Display Size
1920x1080
Maximum Colors
16.7M
Viewing Angle (Degree)
H:170 / V:160
Luminance (cd/m²)
400
Backlight Lifetime
40,000 Hours
Rating
Front Panel IP65
Touch Screen Type
Resistive Type (option)
Outside I/O port
4 x USB 2.0 connectors
2 x GbE LAN connectors
1 x Audio Line out/MIC in
1 x VGA
1 x HDMI port
2 x RS-232 (COM1/COM2)
1 x DB9 RS-422/485 Default RS-485 (COM3)
1 x Terminal block for additional power switch
2 x LED light for power and HDD indication
1 x Rocker Switch for Power ON/OFF
Extension
1 x PCI Expansion Slot
Storage
1 x CF slot internal for option
1 x 2.5”SATA HDD Space
Power Supply
9~32V DC
Construction
Steel chassis
Dimensions (WxHxD)
557 x 362 x 100.3 mm
Operating Temperature
-10~50℃
Storage Temperature
-20~60℃
Relative Humidity
10%~90%@ 40℃, non-condensing
Certificate
CE / FCC Class A
APC-3228A User Manual
7
1.2 Dimensions
Figure 1.1: Dimensions of the APC-3228A
APC-3228A User Manual
8
1.3 Installation of HDD
Step 1
There are 2 screws to deal with when Installing
of HDD.
Step 2
Loosen screw and draw the HDD bracket
out as shown in the picture.
Step 3
Tighten four screws as shown in the picture
APC-3228A User Manual
9

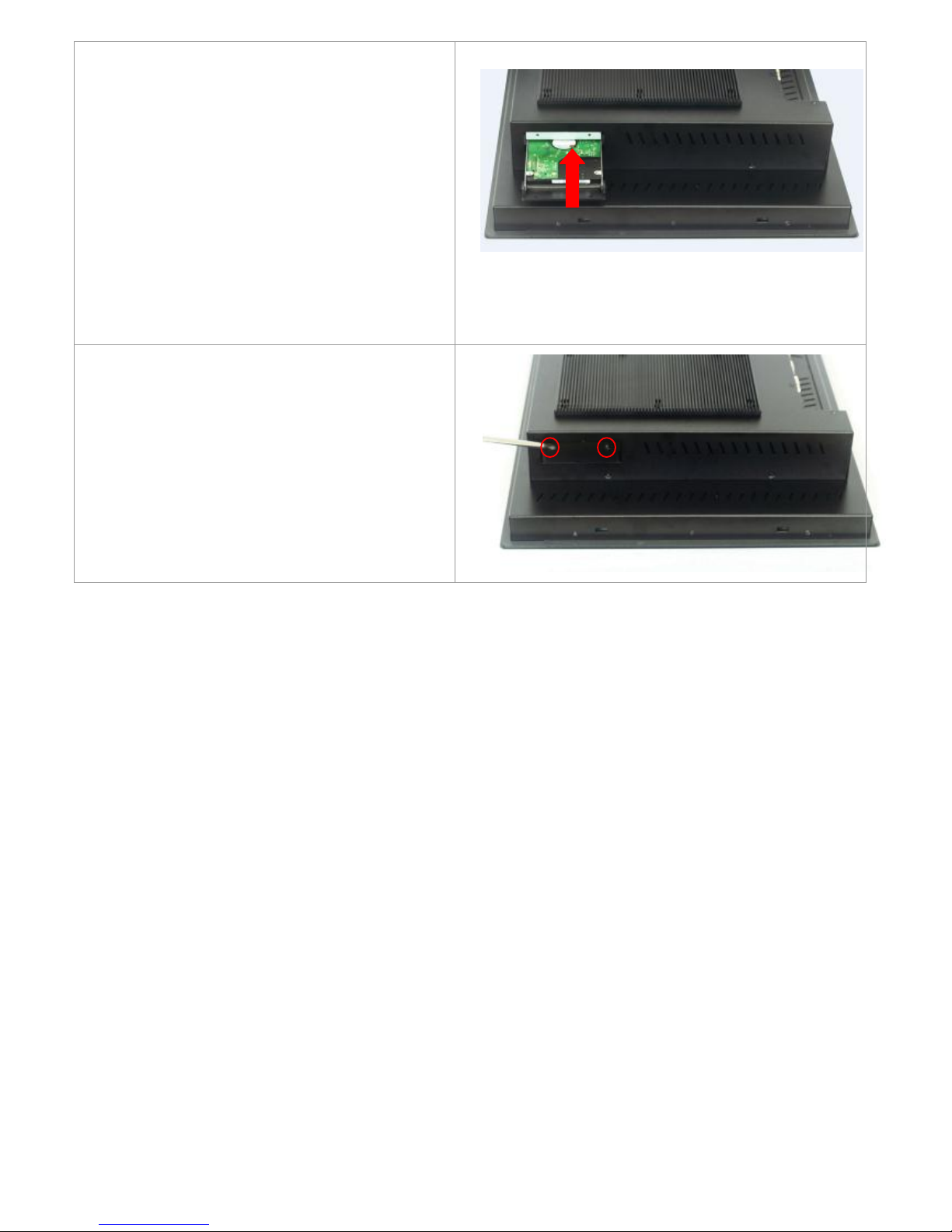

Step 4
Push into the HDD bracket as shown in the
picture.
Step 5
Tighten the 2 screws as shown in the picture.
That’s how it should look after it has been
installed.
APC-3228A User Manual
10
1.4 Installation of PCI Add-on
Step 4
To finish the job, just fasten the 2 screws as
shown in the picture.
Step 1
There are 2 screws to deal with when
enclosing or removing the chassis.
Step 2
Now slide the addon into the PCI slot, making
sure the golden part faces the slot. When the
part that is interfaced together come into the
right contact, slightly push the addon into the
rail of the slot.
Step 3
After sliding the addon into the PCI expansion
slot, get the one screw as circled tightened to
finish the connection.
