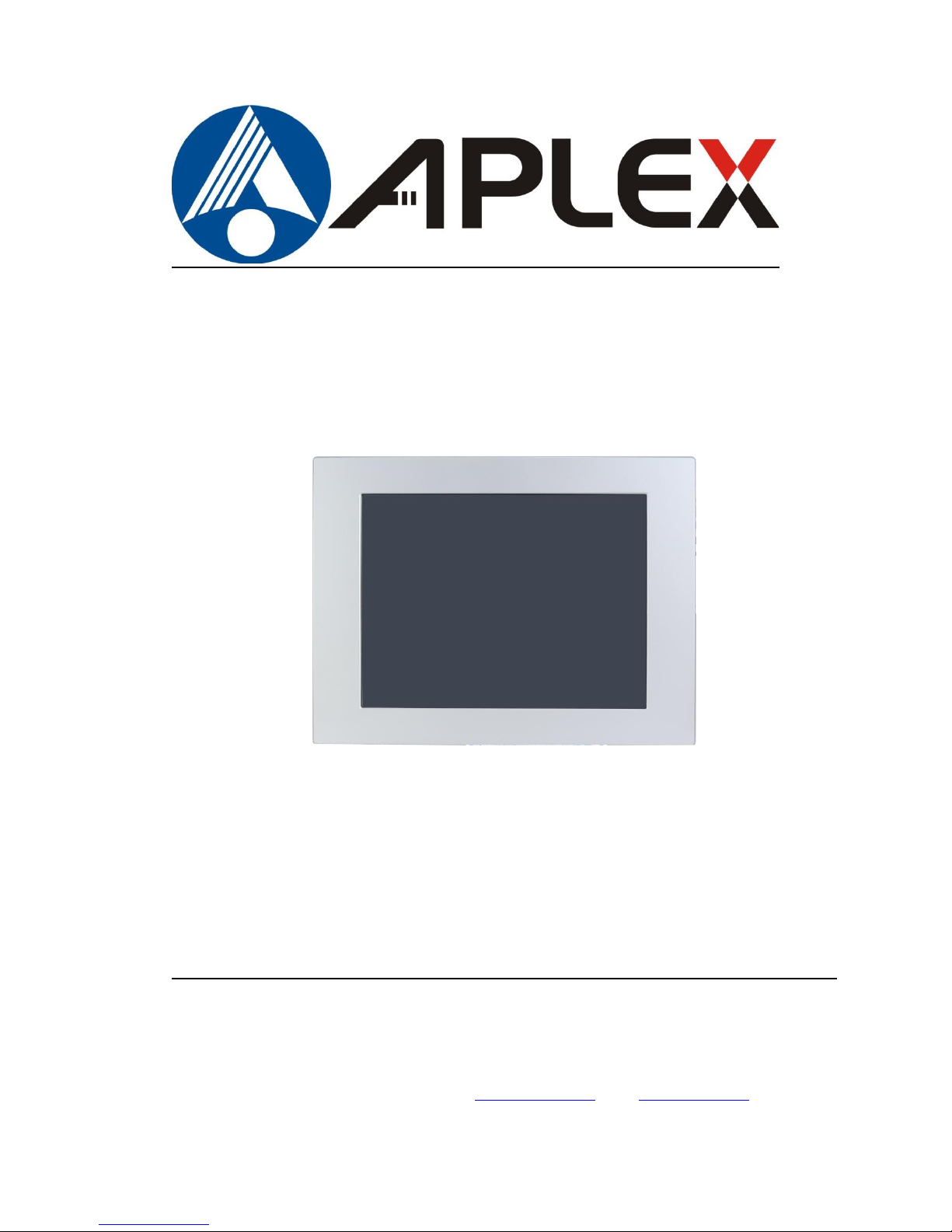

Aplex APC-3514B User manual

APC-3X14B User Manual 0

APC-3X14B

15”, 17”, and 19”Intel Bay Trail N2930 Slim Type Panel PC

User Manual

Release Date Revision

Sep. 2015 V1.0

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: [email protected].tw URL: www.aplextec.com

APC-3X14B User Manual 1

Revision History

Reversion

Date

Description

1.0

2015/09/02

Official Version

APC-3X14B User Manual 2

Warning!___________________________

Caution

Risk of explosion if the battery is replaced with an incorrect type.

Batteries should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

Electric Shock Hazard –Do not operate the machine with its back cover removed.

There are dangerous high voltages inside.

This equipment generates, uses and can radiate radio frequency energy and if

not installed and used in accordance with the instructions manual, it may cause

interference to radio communications. It has been tested and found to comply with

the limits for a Class A computing device pursuant to FCC Rules, which are designed

to provide reasonable protection against such interference when operated in a

commercial environment. Operation of this equipment in a residential area is likely

to cause interference in which case the user at his own expense will be required to

take whatever measures may be required to correct the interference.

APC-3X14B User Manual 3

Packing List

Accessories (as ticked) included in this package are:

□Adaptor

□Driver & manual CD disc

□Other.___________________(please specify)

Safety Precautions

Follow the messages below to prevent your systems from damage:

◆Avoid your system from static electricity on all occasions.

◆Prevent electric shock. Don‘t touch any components of this card when the card

is power-on. Always disconnect power when the system is not in use.

◆Disconnect power when you change any hardware devices. For instance, when

you connect a jumper or install any cards, a surge of power may damage the

electronic components or the whole system.

APC-3X14B User Manual 4

Table of Contents

Revision History…………………………………………………………………………………………….1

Warning!/Caution....………………..............................…………………………….……..….2

Packing List/Safety Precautions.....………………………………………………………………..3

Chapter 1 Getting Started

1.1 Features……………….……………………………………...………………………………….6

1.2 Specifications…………………………………………………………………………………...6

1.3 Dimensions…………………………………..………………………...………………….......8

1.4 Brief Description of APC-3X14B..………………………………………………..……11

1.5 Installation of Riser Card………………………………………………………………….14

1.6 Installation of HDD/SSD…………………………………………………………………..16

1.7 Panel Mounting of APC-3X14B…………………………………………………………17

Chapter 2 Motherboard

2.1 Motherboard Specifications………….………………….………..………………..…18

2.2 Motherboard Layout..……….....…………………….……………...……………….…20

2.3 I/O Panel……………………………………………….………………………………………..22

2.4 Installation……………………………………………………..……………………………….23

2.5 Jumpers Setup………………………………………………………………………………...26

2.6 Onboard Headers and Connectors……………………………………………….….28

Chapter 3 UEFI SETUP UTILITY

3.1 Introduction………………………………....………………….………..………………..…33

3.2 Main Screen..…………………….....…………………….……………...……………….…34

3.3 Advanced Screen……………………...........................................................34

3.4 Hardware Health Event Monitoring Screen….………………………………….43

3.5 Security Screen………………………………………………………..………………………44

3.6 Boot Screen………………………………………………………………………….…………45

3.7 Exit Screen………………………………………………………………………………..…....47

Chapter 4 Installation of Drivers

4.1 Intel AtomTM Baytrail Chipset Driver…..………………………………………….49

4.2 Intel® VGA Chipsrt Driver.....................................................................52

4.3 Realtek RTL8111G-CG LAN Driver........................................................56

APC-3X14B User Manual 5

4.4 Rearltek_Audio(R271) Driver...............................................................58

4.5 USB 3.0 Driver………………….……………………………………………………………..59

4.6 Com Driver….......................................................................................62

4.7 Intel_TXE(Win) Driver..........................................................................64

Chapter 5 Touch Screen Installation

5.1 Windows XP/2003/Vista/7 Universal Driver Installation for PenMount

6000 Series…………..……………………….…………………………………………..……68

5.2 Software Functions……………………………....……….………………………….……72

Figures

Figure 1.1: Dimensions of APC-3514B…………………….…....………………..……...8

Figure 1.2: Dimensions of APC-3714B……………………………………………………..9

Figure 1.3: Dimensions of APC-3914B……………………………………………………10

Figure 1.4: Front View of APC-3514B…....…….….....………………………………..11

Figure 1.5: Rear View of APC-3514B…….……………………………………………....11

Figure 1.6: Front View of APC-3714B………………………………………………….…12

Figure 1.7: Rear View of APC-3714B………………………………………………………12

Figure 1.8: Front View of APC-3914B…………………………………………………….13

Figure 1.9: Rear View of APC-3914B……………………………………………………..13

Figure 1.10: Panel Mounting of APC-3x14B……………………………………………17

Figure 2.1: Motherboard Layout…………………………………………..……………….20

APC-3X14B User Manual 6

Chapter 1 Getting Started

1.1 Features

15”/17”/19”TFT LED Backlight LCD

Intel Bay Trail N2930 Processor

2 x SO-DIMM DDR3 1333MHz up to 8G

1 x 2.5”HDD Space

Resistive Touch Screen

IP65 Compliant Front Bezel

DC 11~32V Wide-ranging Power Input

1.2 Specifications

System

APC-3514B

APC-3714B

APC-3914B

Processor

Intel® Bay Trail N2930 (2M Cache, 1.83GHz) Processor

System Chipset

SoC

System Memory

2 x SO-DIMM DDR3 1333MHz, up to 8G

Graphics

Integrated Intel® HD Graphics

Storage

1 x 2.5”SATA HDD Space (Easy Accessible Designed)

LVDS

1 x LVDS 24-bit Dual Channel

OS Support

Windows 7 Professional for Embedded Systems,

Windows 7 Ultimate for Embedded Systems,

Windows Embedded 8.1 Pro,

Windows Embedded 8.1 Industry Pro

I/O Ports

USB

2 x USB 2.0 type A Connector

2 x USB 3.0 type A Connector

Serial/Parallel

3 x RS-232/422/485 DB-9, COM1/COM2/COM3, Default RS-232

Audio

1 x Line out, MIC in

LAN

2 x GbE LAN RJ-45 Connector

VGA

1 x VGA

Power

1 x 3-pin DC Power Input

1 x Power Switch on/off

Digital I/O

1 x 8-pin 3in/3out/VCC/GND terminal block connector for option

Others

1 x PS2 for KB/Mouse

2 x LED Light for Power and HDD Indication

Expansion Slots

1 x PCIe x 1 slot

1 x Mini PCIe full size slot onboard for Wifi/BT/3G/GPS option

1 x mSATA slot onboard (shared with m-PCIe)

APC-3X14B User Manual 7

Power

Power Input

DC 11~32V

Power Consumption

MAX: 27.5W

MAX: 24.1W

MAX: 23.1W

LCD

Display Type

15”TFT LCD

17”TFT LCD

19”TFT LCD

Max. Resolution

1024 x 768

1280 x 1024

Max. Color

16.7M

Contrast Ratio

800 : 1

1000 : 1

1000: 1

Luminance (cd/m2)

400

350

Viewing Angle

160 (H) / 140 (V)

170 (H) / 160 (V)

Backlight Lifetime

50,000 hrs

30,000 hrs

50,000 hrs

Touch Screen

Type

Resistive Touch

Interface

USB Default, RS-232 for option

Light Transmission

80%

Mechanical

Construction

Steel Front Bezel and Chassis

Chassis Color

Silver

Mounting

Panel Mount/VESA Mount 75 x 75

Panel Mount/VESA

Mount 100 x 100

IP Rating

IP65 Compliant Front Bezel

Dimension

410 x 310 x 86.5mm

439 x 348 x 83mm

484 x 400 x 83mm

Net Weight

7.1Kg

8.1Kg

9.8Kg

Environmental

Operating

Temperature

0~50 °C

Storage Temperature

-30~70 °C

Storage Humidity

10%~90%@ 40℃, non-condensing

Certificate

Meet CE / FCC Class A

APC-3X14B User Manual 8

1.3 Dimentions

Figure 1.1: Dimensions of APC-3514B

APC-3X14B User Manual 9

Figure 1.2: Dimensions of APC-3714B
