Website: www.goboxradio.com

Contact: goboxrad[email protected]

1

______________________________________________________________________________

AnyTone 578 Go Box - DIY Kit

Thank you for purchasing a Go Box Radio.

The following parts will be needed to complete your AnyTone 578 Go

Box – DIY Kit:

Website: www.goboxradio.com

Contact: goboxrad[email protected]

2

Required Parts:

•Quanty 2 - 6ah LifePo4 baeries - Both the Feuruetc or Miady

baeries work well. Order whichever is available and cheaper at

the me.

Feuruetc baeries:

hps://www.amazon.com/gp/product/B0BHMVL4N8

Miady baeries:

hps://www.amazon.com/gp/product/B07Q7FY8CC

•Baery capacity voltage monitor

hps://powerwerx.com/baery-capacity-meter-gauge-lithium

•Blue Sea Systems water resistant black Contoura III switch

hps://www.amazon.com/dp/B000Y87W54?ref_=cm_sw_r_apin_

dp_8T7M5PG123FYNJG5MHTC

•Carbon composite Anderson Powerpole panel mount

hps://www.ebay.com/itm/255243451694

•BNC male right angle to UHF male PL259 90° pigtail jumper 20”

hps://www.ebay.com/itm/195351342055

•SMA female bulkhead mount to SMA male right angle RG316

hps://www.amazon.com/gp/product/B08139CQLG

•IP68 waterproof BNC adapter, F/F with dust cap

hps://www.pasternack.com/waterproof-75-ohm-bnc-female-to-

Website: www.goboxradio.com

Contact: goboxrad[email protected]

3

75-ohm-bnc-female-bulkhead-mount-adapter-ip68-in-series-

pead1266-p.aspx

•Plasc 0.50 caliber ammo box

hps://www.harborfreight.com/050-caliber-ammo-box-

57766.html

•Turn buon fasteners

hps://www.ebay.com/itm/324731250698

•T-Type 2 pin power connector

hps://www.amazon.com/gp/product/B08HYC49NS

Required generic parts – The following parts are generic and you may

already have some or all of them. The spade connectors listed below

are specically fully insulated, but not heat-shrink style. We don’t

recommend the heat-shrink style because they tend to be longer and

don’t allow enough clearance between the back of the power switch

and the le baery.

•4 port lever wire conductor (you will need two connectors (25

come in this pack)

hps://www.amazon.com/dp/B087PBHG9L

•6 port lever wire conductor (you will need one connector. 10

come in this pack)

hps://www.amazon.com/dp/B0B28H4SX6

•14 gauge wire (you will need approximately 6 feet of wire. 20

come on this spool)

hps://www.amazon.com/dp/B0779RCGGW

Website: www.goboxradio.com

Contact: goboxrad[email protected]

4

•Female spade connectors (you will need 7. 100 come in this

pack)

hps://www.amazon.com/gp/product/B06XCWHY1B

Assembly

Step 1 – Prepare your wires and connectors.

•Cut 6 12” lengths of black/red pair wire from your spool.

•Separate one black/red pair into a single red wire and discard the

black wire.

•Strip one end of all wires.

•Crimp spade connectors onto 3 of black/red pair secons.

Website: www.goboxradio.com

Contact: goboxrad[email protected]

5

•Crimp a spade connector onto the single red wire.

You should now have:

•3 black/red wire pairs with spade connectors on one end.

•1 red wire with a spade connector on one end.

•2 black/red pairs that are stripped on one end

Step 2 – Assemble Carbon Composite Anderson Powerpole Panel

Mount

•Crimp Powerpole contacts onto one stripped black/red wire pairs

made in previous step.

•Insert Powerpole contacts into corresponding Powerpole red and

black connectors.

oTip: It’s helpful to use a small athead screwdriver to push

on the back of the contact to seat it in the connectors. Push

unl you hear or feel it click into place.

•Connect Powerpole connectors to each other by sliding one side

dovetail into the dovetail of the other.

oTip: The red connector should be on the right as pictured

below.

•Insert the Powerpole connector pair into the carbon composite

body, with red connector on the right (as pictured below).

•Insert and insert allen screw into the carbon composite body to

lock connectors in place.

Website: www.goboxradio.com

Contact: goboxrad[email protected]

6

Step 3 – Prepare Baery Monitor Leads

•Remove Powerwerx baery monitor from package and locate the

wire leads.

•Cut a 1.5” length of wire o your spool.

•Separate the black/red pair into individual wires.

•Strip one side of each wire.

•Solder short secon of wire to the baery monitor leads, as

pictured below.

Website: www.goboxradio.com

Contact: goboxrad[email protected]

7

Step 4 – Build T-Type 2 Pin Power Connector

•Crip T-Type 2 Pin Power Connector spade connectors to stripped

black/red wire pair.

•Insert spade connectors into T-Type Connector

Step 5 – Cut BNC Passthrough Hole in Ammo Can

Your AnyTone 578 Go Box – DIY Kit comes with two sperate templates

for locang the BNC passthrough hole. One is for use with a hole saw.

The other is for using a rotary tool to cut out the hole. The second

method is preferred, as cung the hole to the exact shape of the BNC

Website: www.goboxradio.com

Contact: goboxrad[email protected]

8

passthrough will prevent the BNC passthrough from rotang. With that

said, either method is acceptable.

The BNC passthrough hole should be located at the top right of the

ammo can. As you look at the radio, the lid should open to the le. The

idea behind locang the passthrough here is that you can run the

ammo can on its side, with the antenna or antenna cable aached, as

pictured below.

•Place the ammo can on a at surface.

•Place template in upper HDPE inner frame, as pictured below.

Website: www.goboxradio.com

Contact: goboxrad[email protected]

9

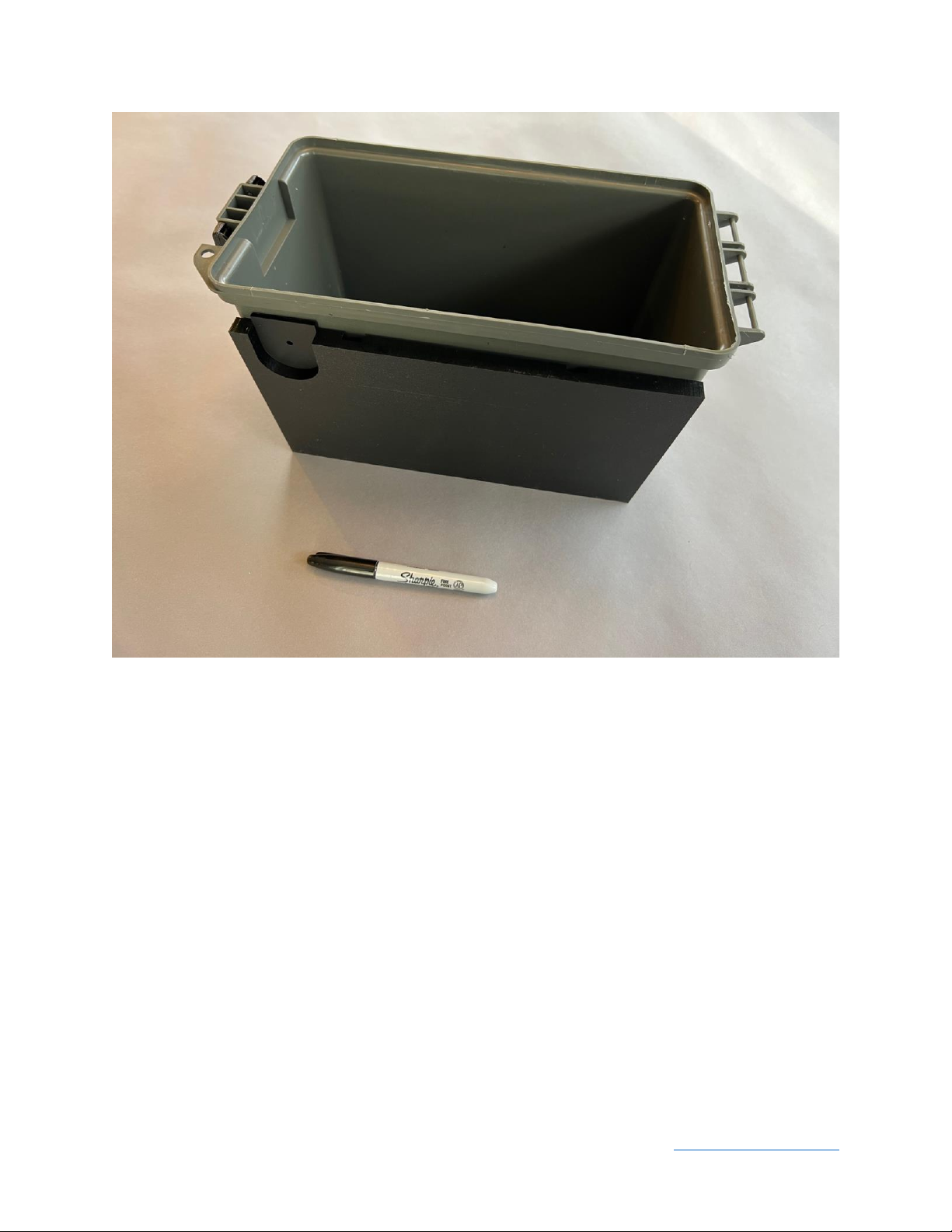

•Place upper HDPE inner frame on at surface on the outside of

the ammo can, as pictured below.

oTip: Try to center the upper HDPE inner frame to the ammo

can as much as possible.

Website: www.goboxradio.com

Contact: goboxrad[email protected]

10

•Mark the ammo can using a permanent marker.
