Ameriwood TYLER TOY STORAGE BOOKCASE User manual
B344947013COM00GO
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
WARNING
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Follow Ameriwood Home
Date of Purchase ___ / ___ / ___
Lot Number:
4947013COM
TYLER TOY STORAGE BOOKCASE
Tube
You
Assembly Difficulty Meter
Easy Tough
Do NOT return this product!
Contact our friendly customer service team first for help.
Visit ameriwoodhome.com
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a R (right) and L (left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
ameriwoodhome.com
2
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR
Contact Us!
Helpful Hints
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Tube
You
Tube
You
P
Quick
Tip
Assembly
P
P
P
ameriwoodhome.com
3
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P

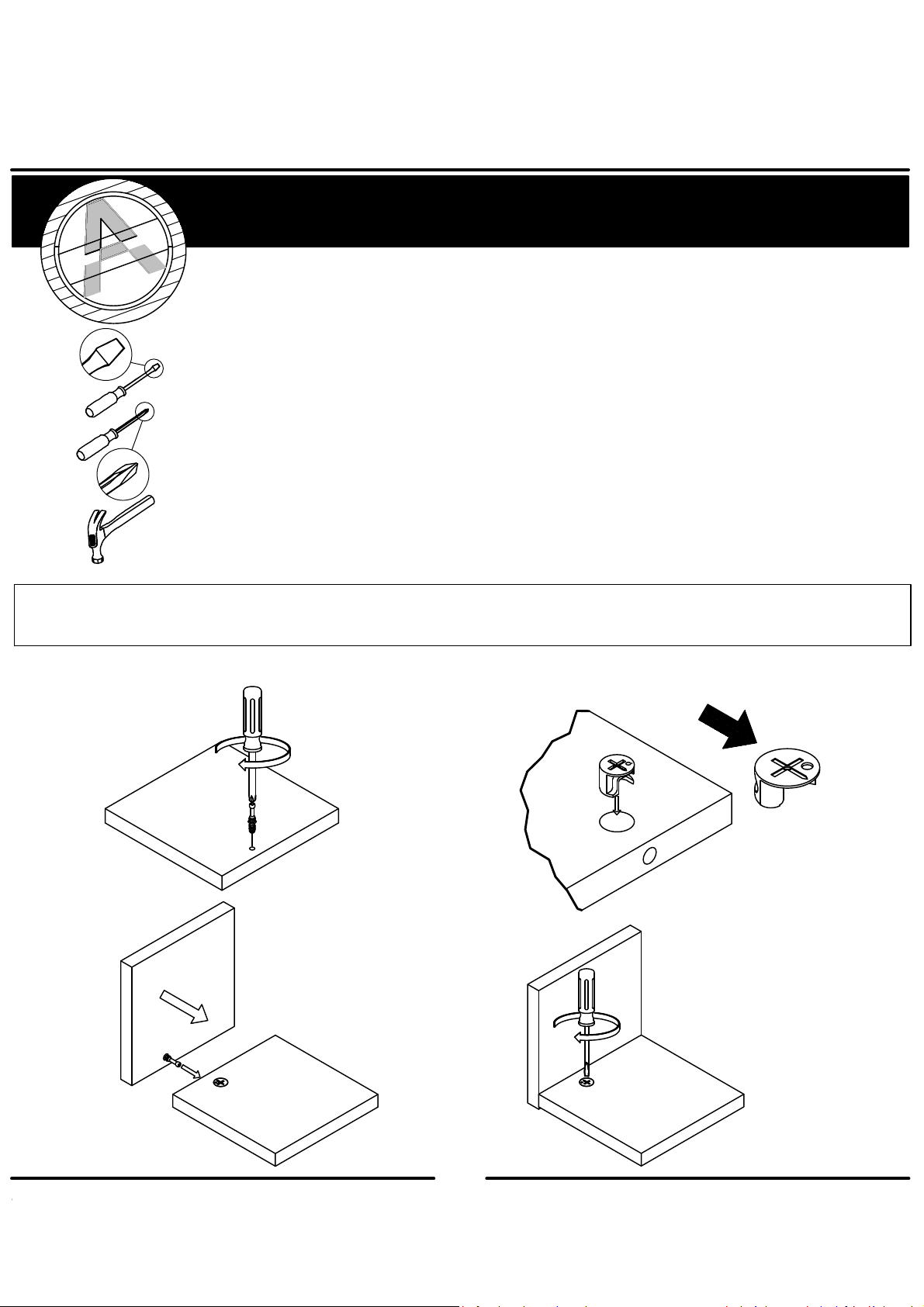

Before You Start
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
1
3
2
4
Tube
You

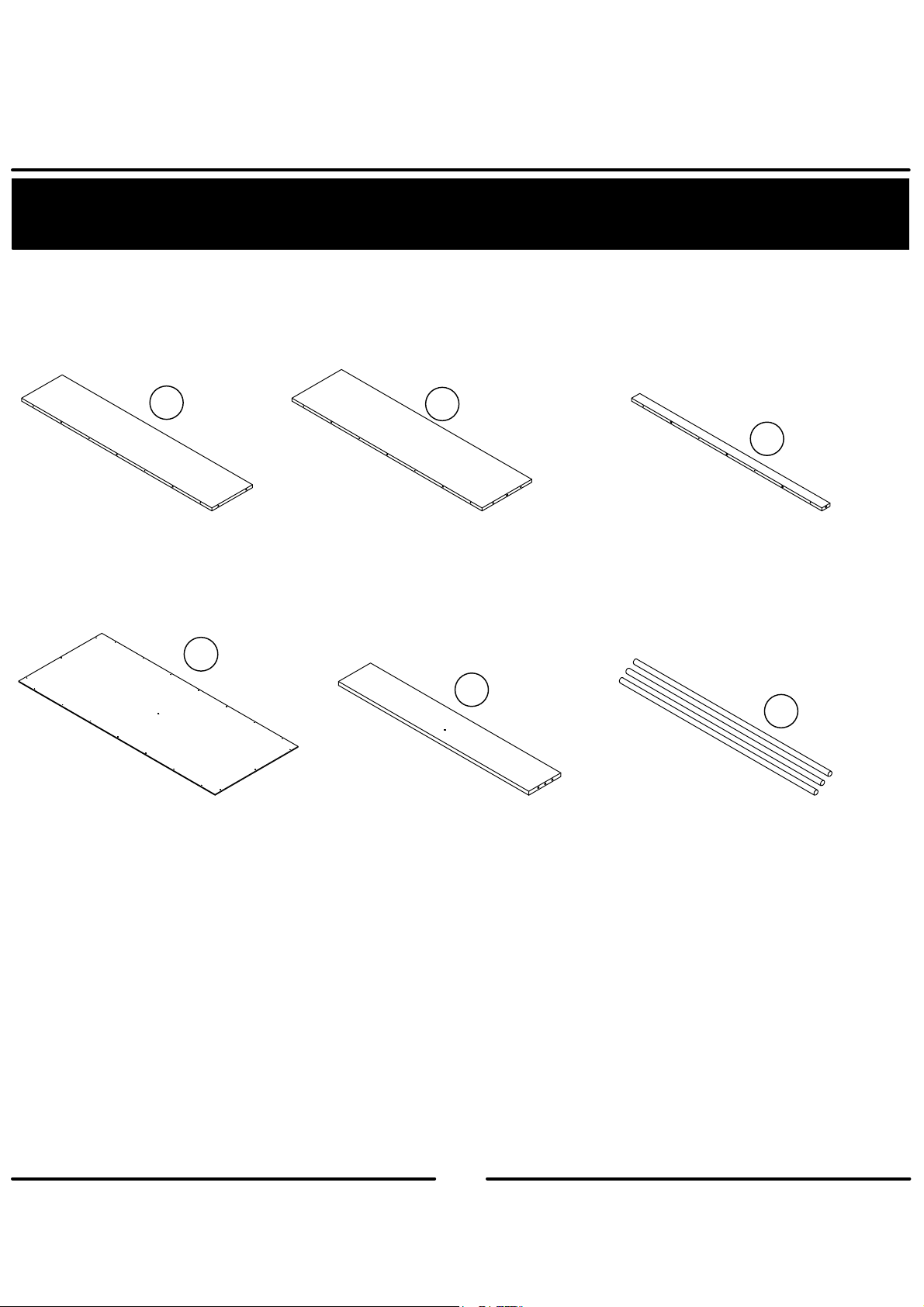

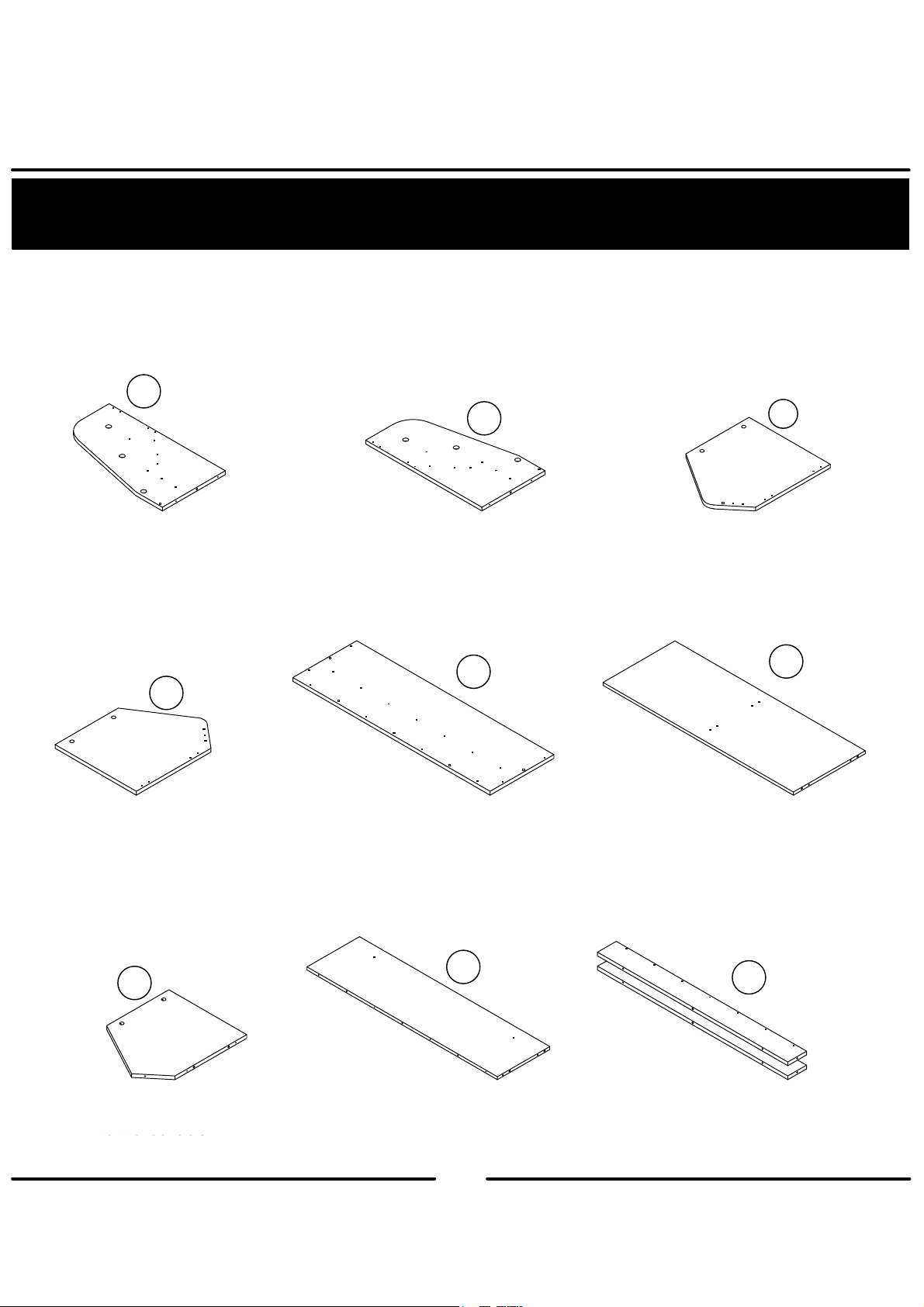

Board Identification
Not actual size
ameriwoodhome.com
4
AC
UPPER RIGHT PANEL
T4947013020GO
QTY: 1 PC
LOWER LEFT PANEL
T4947013030GO
QTY: 1 PC
D
UPPER LEFT PANEL
T4947013010GO
QTY: 1 PC
LOWER RIGHT PANEL
T4947013040GO
QTY: 1 PC
E
FIXED SHELF
T4947013050GO
QTY: 1 PC
BOTTOM
T4947013060GO
QTY: 1 PC
F
G
LOWER PARTITION
T4947013070GO
QTY: 1 PC
UPPER SOLID BACK
T4947013080GO
QTY: 1 PC
UPPER BOTTOM
T4947013090GO
QTY: 2 PCS
I
B
H
Tube
You
Board Identification
Not actual size
ameriwoodhome.com
5
MID SOLID BACK
T4947013100GO
QTY: 1 PC
J
Tube
You
LOWER SOLID BACK
T4947013110GO
QTY: 1 PC
K
RAIL
T4947013120GO
QTY: 1 PC
L
BACK PANEL
T4947013130GO
QTY: 1 PC
M
FRONT PANEL
T4947013140GO
QTY: 1 PC
N
ROD
T4947013150GO
QTY: 3 PCS
O
Board Identification
Not actual size
ameriwoodhome.com
6
Tube
You
A
B
C
D
E
F
G
H
I
I
J
K
L
N
O
O
O
M

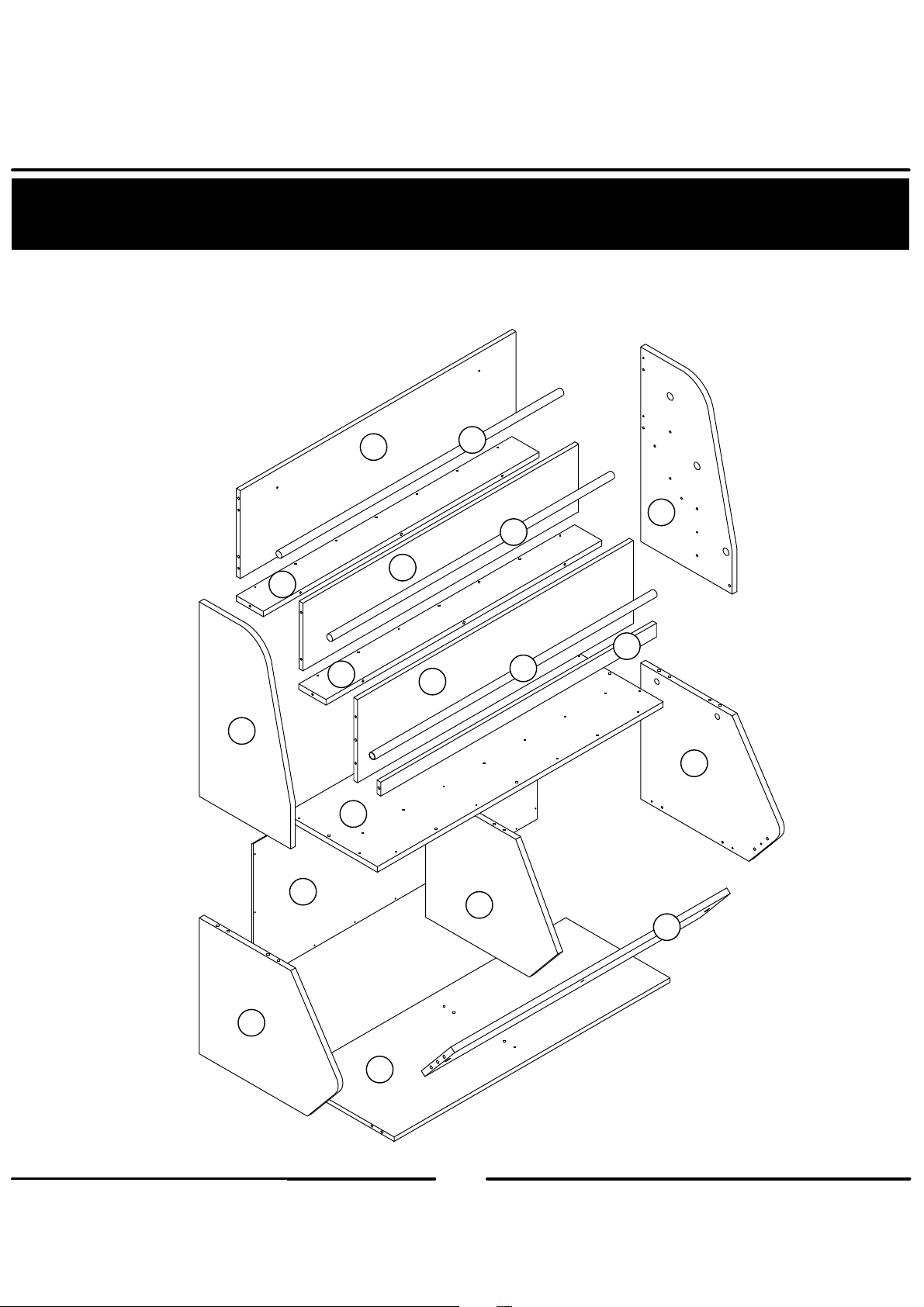

Part List
ameriwoodhome.com
7

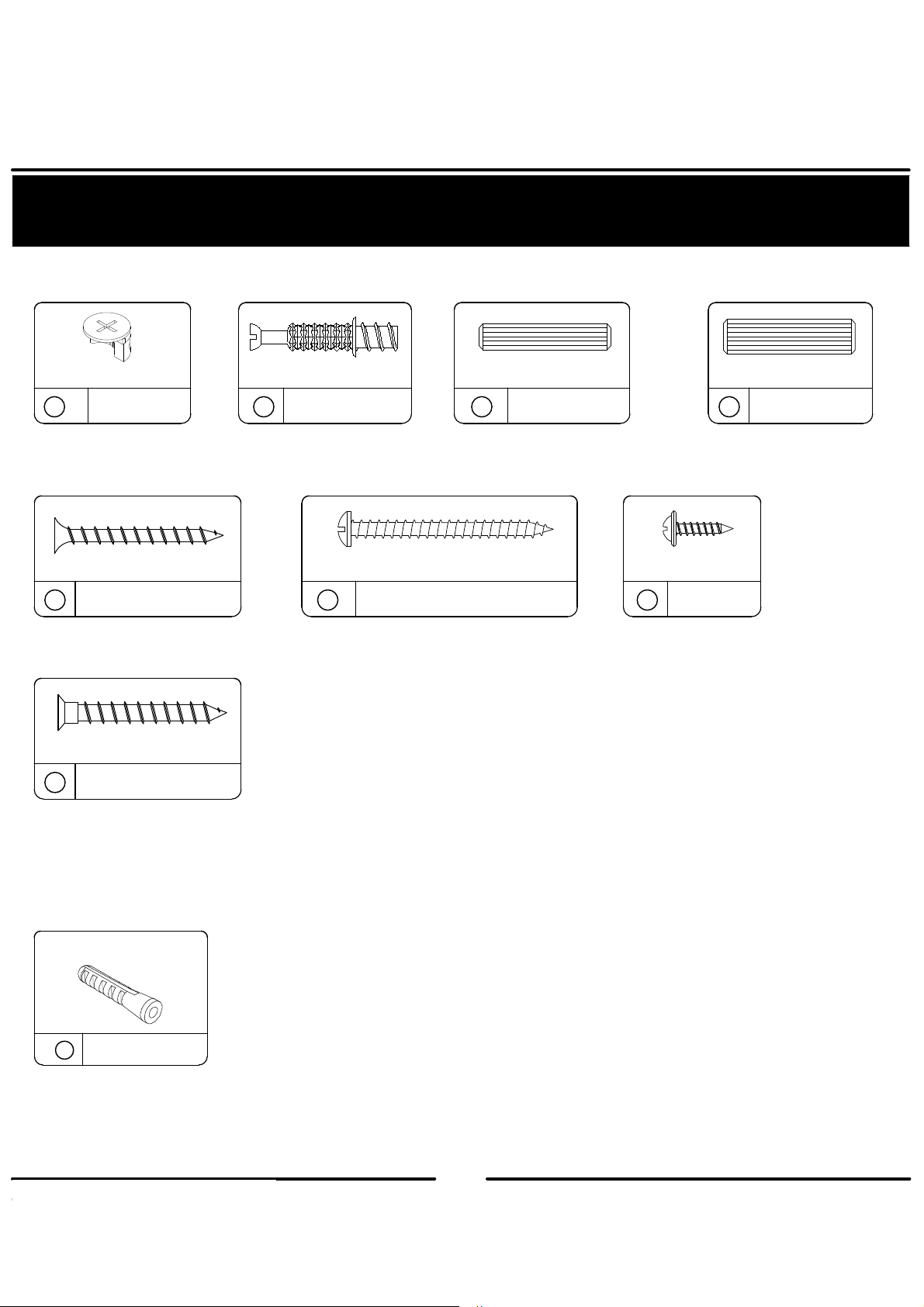

Hardware Bag Reference number:
24947013COM0GO
Actual Size
×20 ×20 ×19
×2
CAM LOCK
TGO2100
WOOD DOWEL
TGO2900
SCREW
TGO1013
Ø3 X 12mm
×21
SCREW
TGO1301
Ø4.2 X 45MM
Ø8 x 30mm
Ø15 x 10mm
1 2 4
6 7
×33
Ø6 x 25mm
CAM BOLT
TGO2001
3
×22
WOOD DOWEL
TGO2903
Ø6 x 30mm
5
Not Actual Size
×2
9
WALL ANCHOR
TGO6501
Ø6 x 30mm
Tube
You
Ø4 x 38mm
SCREW
TGO1319
×18
Ø5 x 38mm
SCREW
TGO1320
ameriwoodhome.com
STEP
8

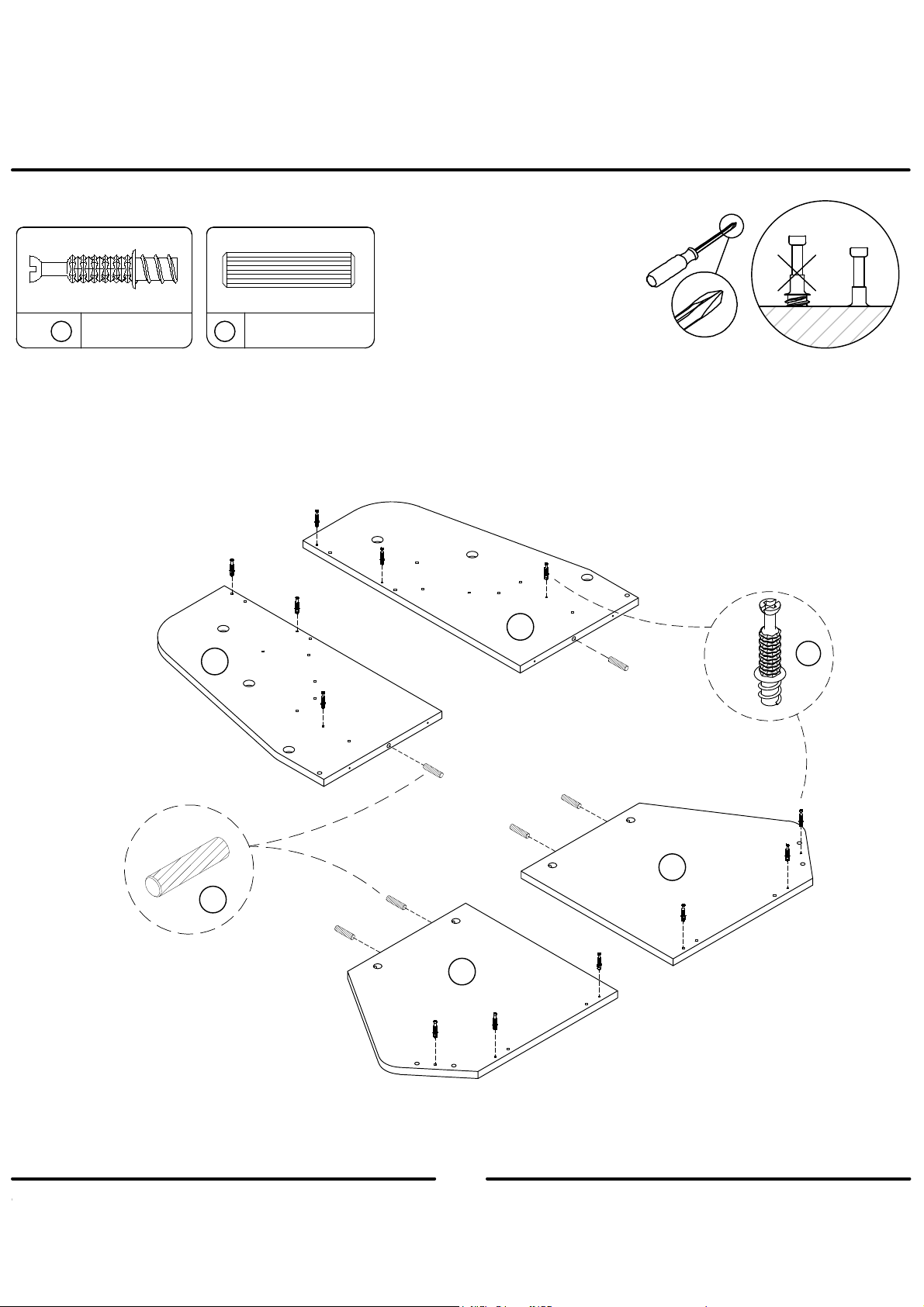

1
1.1 Cam bolt (3) into (A), (B), (C) and (D) as illustrated.
1.2 Insert (4) into (A), (B), (C) and (D) as illustrated.
×12
24 ×6
Tube
You
A
B
C
D
4
2
ameriwoodhome.com
STEP
9

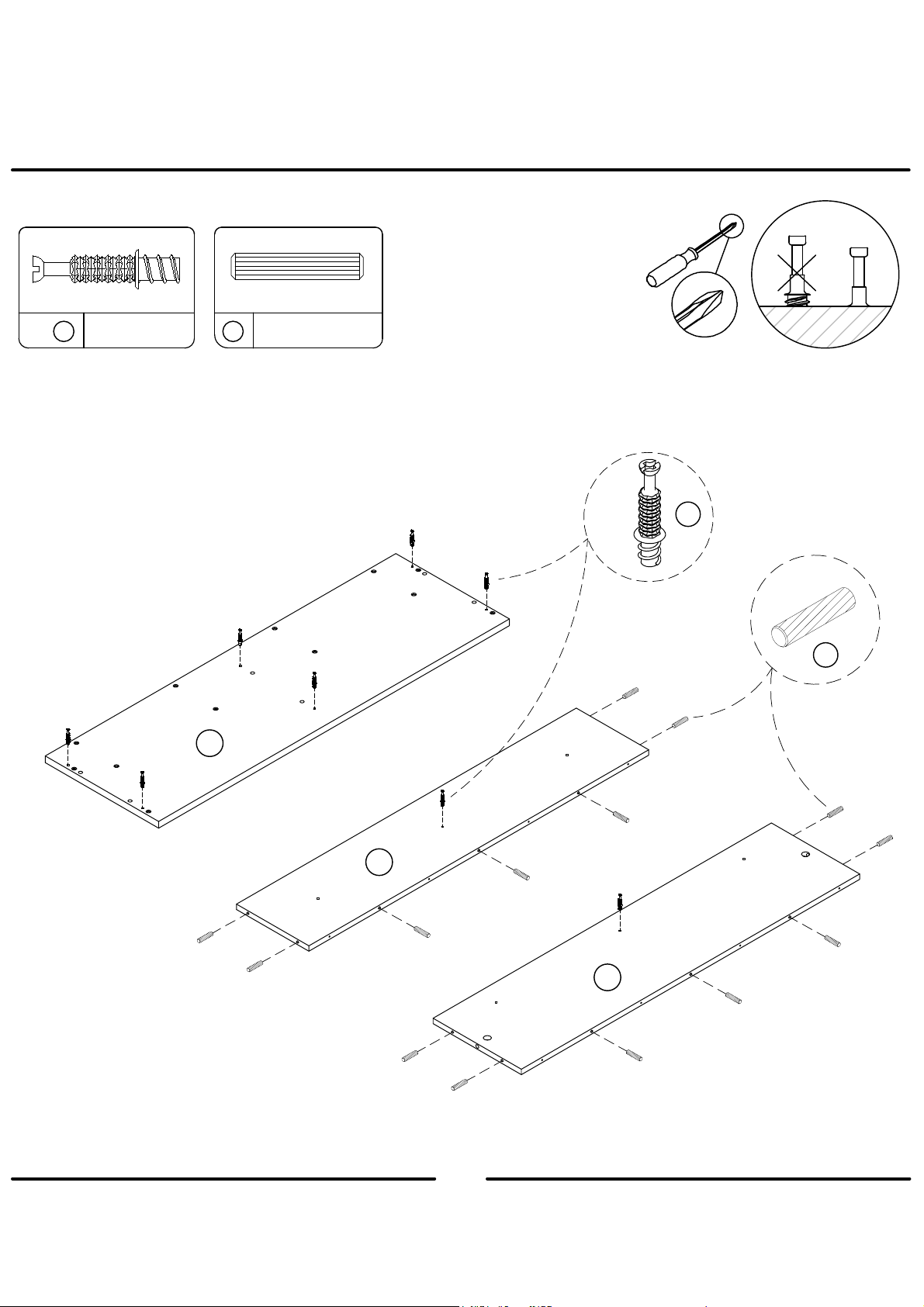

2
2.1 Insert (3) into (K) and (J) as illustrated.
2.2 Cam bolt (2) into (E), (J) and (K) as illustrated.
×8
23 ×14
Tube
You
K
J
E
3
2
ameriwoodhome.com
STEP
10
3

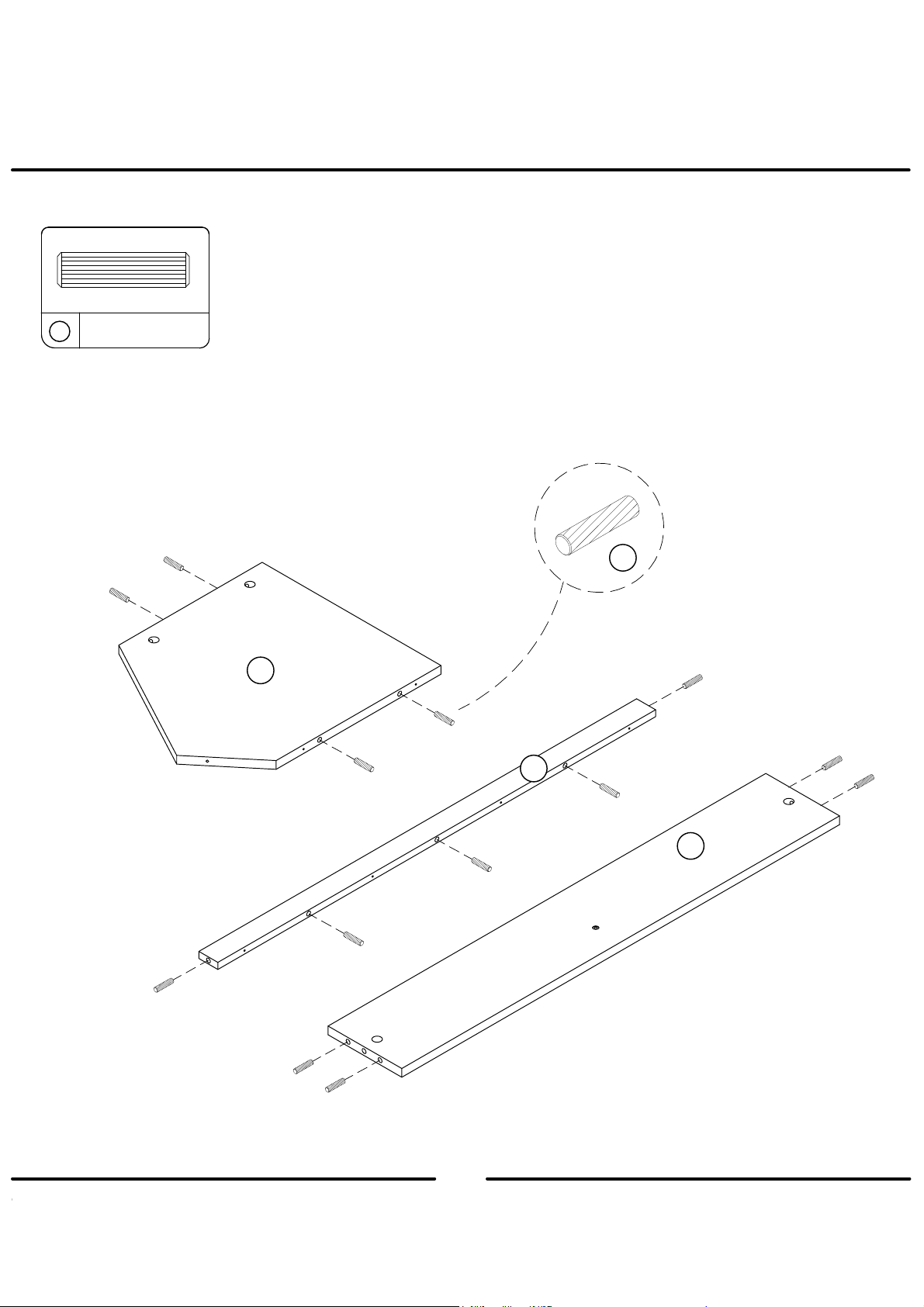

3.1 Insert (4) into (G), (L) and (N) as illustrated.
4
×13
Tube
You
G
L
N
4
