Ameriwood HOME B343533339COM2 User manual
3533339COM
TV Stand
B343533339COM2
THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT
SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Follow Ameriwood Home
Tube
You
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Assembly Difficulty Meter
Easy Tough
- Unit can tip over causing severe injury or death.
- Anchor to stud in wall Iif instructed to).
- Do Not allow children to climb on unit.
- Put heavy items in lower shelves or drawrs.
WARNING
Contact Us!
Helpful Hints
2
ameriwoodhome.com
Do NOT return this product!
Contact our friendly customer service team first for help.
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Visit ameriwoodhome.com to view the
limited warranty valid in the U.S. and Canada.
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a
R
(right) and
L
(left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 1-2
3
ameriwoodhome.com
Before You Start
P
Quick
Tip
Assembly
P
P
P
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Parts are labeled on the surface or edge of the part
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P
12
34
Press parts together so CAM BOLT inserts
into edge hole.
Press CAM BOLT into hole. Press CAM LOCK into hole.
End hole
Using a screwdriver, turn the CAM LOCK clockwise to
lock the CAM LOCK and CAM BOLT into their holes
and fastening parts together.
Arrow to point towards end
hole in edge of part.
4
ameriwoodhome.com
Before You Start
Quick
Assembly
Tip
Please Note:
You may need to lightly tap the wood dowels into the holes during
your assembly process.
5
ameriwoodhome.com

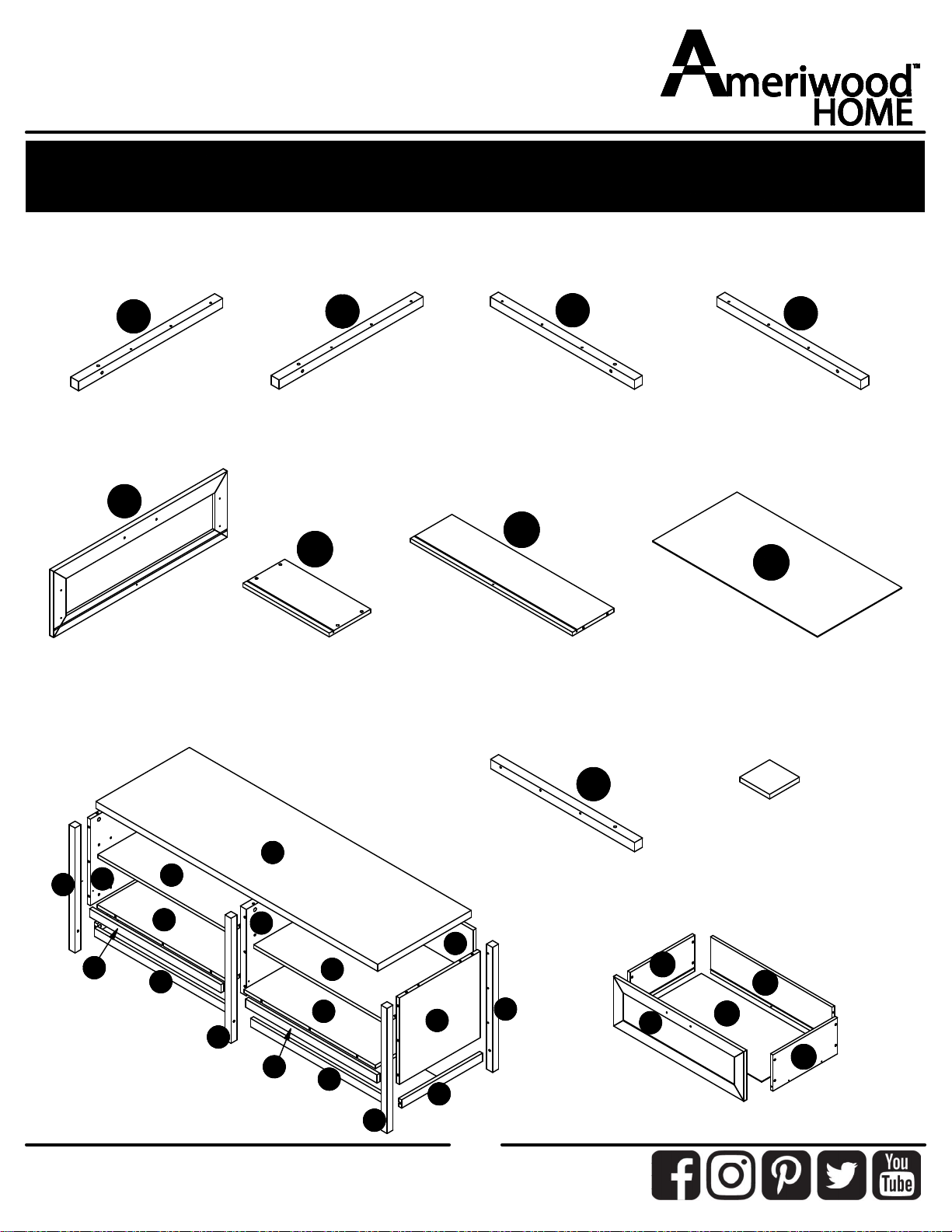

Board Identification
Not actual size
Left Panel
33533339010 Right Panel
33533339020 Partition
33533339030 Top
33533339040
(x2)
Bottom
33533339050
(x2)
Shelf
33533339060
(x2)
Back
33533339070
(x2)
Shelf Rail
33533339080
(x4)
Lower Rail
33533339090
(x2)
Side Rail
33533339100
Left Front Leg
33533339110
ABC
D
EFG
H
I
JK
6
ameriwoodhome.com
Board Identification
Not actual size
Left Rear Leg
33533339120 Right Front Leg
33533339130 Right Rear Leg
33533339140
Center Front Leg
33533339150
(x2)
Drawer Front
33533339160
(x4)
Drawer Side
39991167346200C
(x2)
Drawer Back
39991167065190B
(x2)
Drawer Bottom
39991339066210D
LMNO
P
DWR
SIDE
DWR
BACK
DWR
BTM
A
B
C
D
E
E
F
F
G
H
H
I
IJ
K
M
N
OP
DWR
SIDE
DWR
SIDE
DWR
BACK
DWR
BTM
Hammer Block
(Piece of wood to use
to attach legs)
Center Rear Leg
33533339170
Q
7
ameriwoodhome.com
Part List
Actual Size
Not Actual Size
(x22)
#A22700
cam lock
(x22)
#A22710
cam bolt
(x26)
#A21670
wood dowel
(x18)
#A22790
locking bolt
(x18)
#A22770
quick lock
123
(x20)
#8 x 7/16"
round head
#A12120
(x16)
#6 x 7/16"
flat head
#A11080
(x8)
#A21970
drive fastener
(x4)
7/8" truss
#A17400
(x4)
confirmat screw
#A23030
6
left cabinet member
right cabinet member
left drawer member
right drawer member
(x2)
drawer slide package
#A56770
16a
16b
16c
16d
(x2)
drawer brace
#A54900
(x4)
drawer bracket
#A54520
(x2)
handle
#A50385
4
5
(x18)
#A22795
locking sleeve
78
9
10 11
13
14
15
12
(x1)
#A23220
torx hex key
16
8
ameriwoodhome.com
STEP1
(x18)
K
L
M
N
O
O
10
10
10
10
10
10
10
12
(x1)
9
ameriwoodhome.com
STEP2
(x6)
A
Press locking sleeves (11) into edge holes as shown.
11
11
11
11
11
11
11
10
ameriwoodhome.com
STEP3
End View
A
K
K
A
Position and insert locking bolts (10) of left front leg (K) into edge holes of left panel (A) as shown.
Be sure both parts are positioned as shown. Place the hammer block on top of leg in each of the 3
locking bolt locations and give a firm strike to lock together. The locking bolt (10) will snap into the
locking sleeve (11).
IMPORTANT NOTICE: Once locked together, parts cannot be separated.
Note: A rubber mallet can be used in place of a hammer and hammer block.
Top edges of both
parts will be flush.
Hole(s) in
this surface.
Be sure your parts
are positioned as
illustrated.
Hammer Block
Finished Edge
