Ameriwood HOME 4076056EBL User manual

4076056EBL

LockerSideTable

B344076056EBL0

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

FollowAmeriwoodHome

Tube

You

DateofPurchase___/___/___

LotNumber:

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com AssemblyDifficultyMeter

Easy Tough

‐Unitcantipovercausingsevereinjuryordeath.

‐Anchorunittostudinwall(ifinstructedto).

‐Donotallowchildrentoclimbonunit.

‐Putheavyitemsonlowershelves

WARNING

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.comtoviewthe

limitedwarrantyvalidintheU.S.andCanada.

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.



‐Identify,sortandcountthepartsbeforeattemptingassembly.



‐Compressiondowelsarelightlytappedinwithahammer.



‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.



‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.



‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.



‐Backpanelmustbeusedtomakesureyourunitissturdy.



‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.



‐Neverpush,pull,ordragyourfurniture.

Tube

You

PEOPLENEEDEDFORASSEMBLY:1‐2

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Readthrougheachstepcarefullyandfollowtheproperorder



Separateandcountallyourpartsandhardware

Partsarelabeledonthesurfaceoredgeofthepart



Giveyourselfenoughroomfortheassemblyprocess



Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



PresspartstogethersoCAMBOLTinserts

intoedgehole.

PressCAMBOLTintohole. PressCAMLOCKintohole.

Endhole

Usingascrewdriver,turntheCAMLOCKclockwiseto

locktheCAMLOCKandCAMBOLTintotheirholes

andfasteningpartstogether.

Arrowtopointtowardsend

holeinedgeofpart.

4

ameriwoodhome.com

BeforeYouStart

Quick

Assembly

Tip

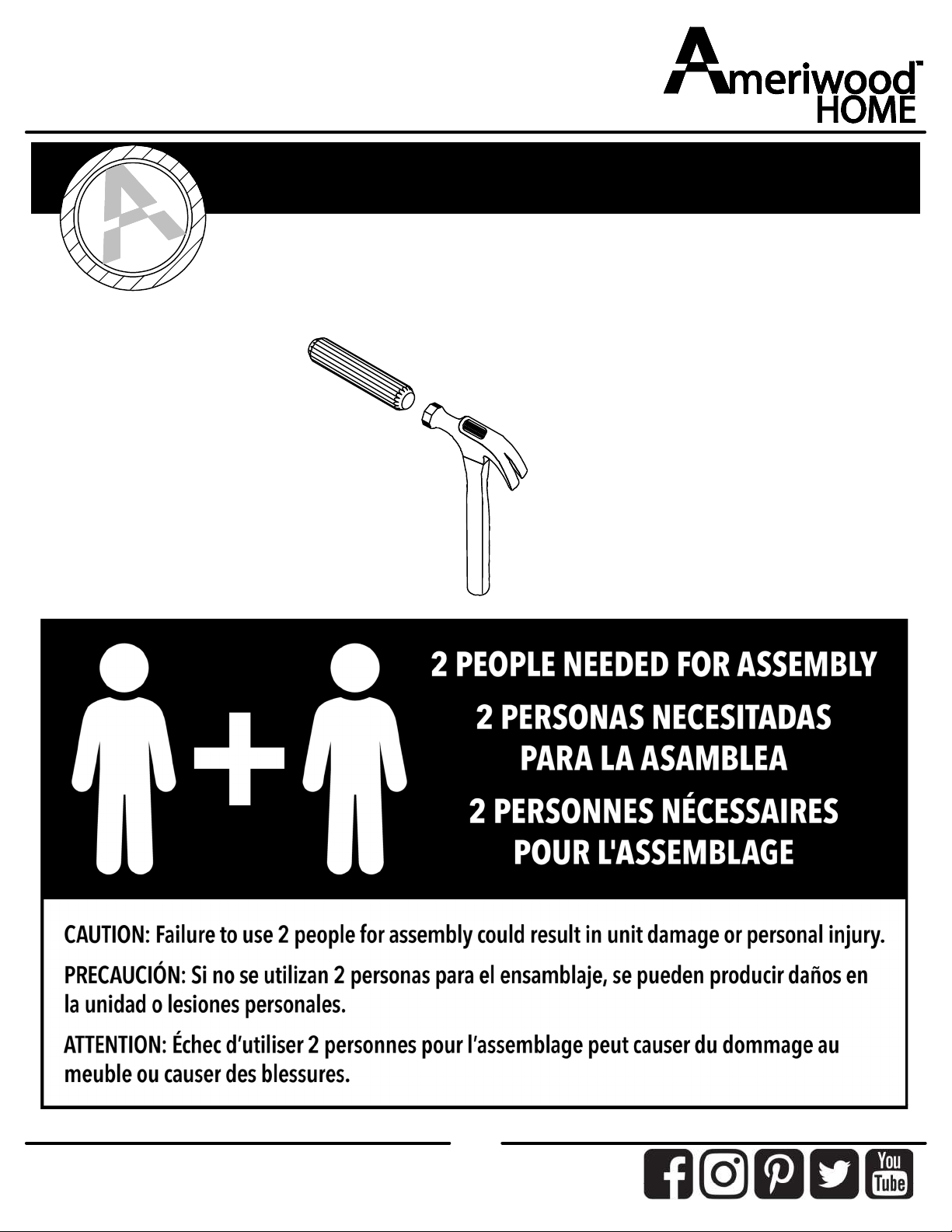

PleaseNote:

Youmayneedtolightlytapthewooddowelsintotheholesduring

yourassemblyprocess.

5

ameriwoodhome.com

BoardIdentification

Notactualsize

LeftPanel

34076056010

RightPanel

34076056020

Top

34076056030

Bottom

34076056040

AdjustableShelf

34076056050

Back

34076056060

6

ameriwoodhome.com

BoardIdentification

7

ameriwoodhome.com

PartList

ActualSize

(x4)

#A22700

cam lock

(x4)

#A22710

cam bolt

(x2)

#A21660

wood dowel

(x4)

#A23030

confirmat

(x4)

#A22760

quicklock

(x4)

#A80250

shelf support

(x2)

#A12105

#8 x 7/16" screw

(x12)

#A14220

#10 x 1/2" screw

(x1)

#A53595

bracket

(x2)

#A62020

door bushing

(x2)

#A17820

8-32 x 1/4" bolt

Please note: You

will not need these

(x1)

#A31000

magnet kit

Notethatyourunitmaycontainextrahardware

8

ameriwoodhome.com

PartList

(x1)

#A97950

metal locker door

(x1)

#A50190

handle

(x4)

#A44520

metal leg

(x1)

#A55480

lock w/keys

NotActualSize

9

ameriwoodhome.com

STEP1

(x2)

(x1)

(x2)

(x1)

Properorientation

ofCamLock

10

ameriwoodhome.com

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2) (x1)

Properorientation

ofCamLock
