Ameriwood HOME 3294013COM User manual

B343294013COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

3294013COM

DESK W/CABINET

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1.0-1.5 HOUR

Helpful Hints

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Tube

You

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

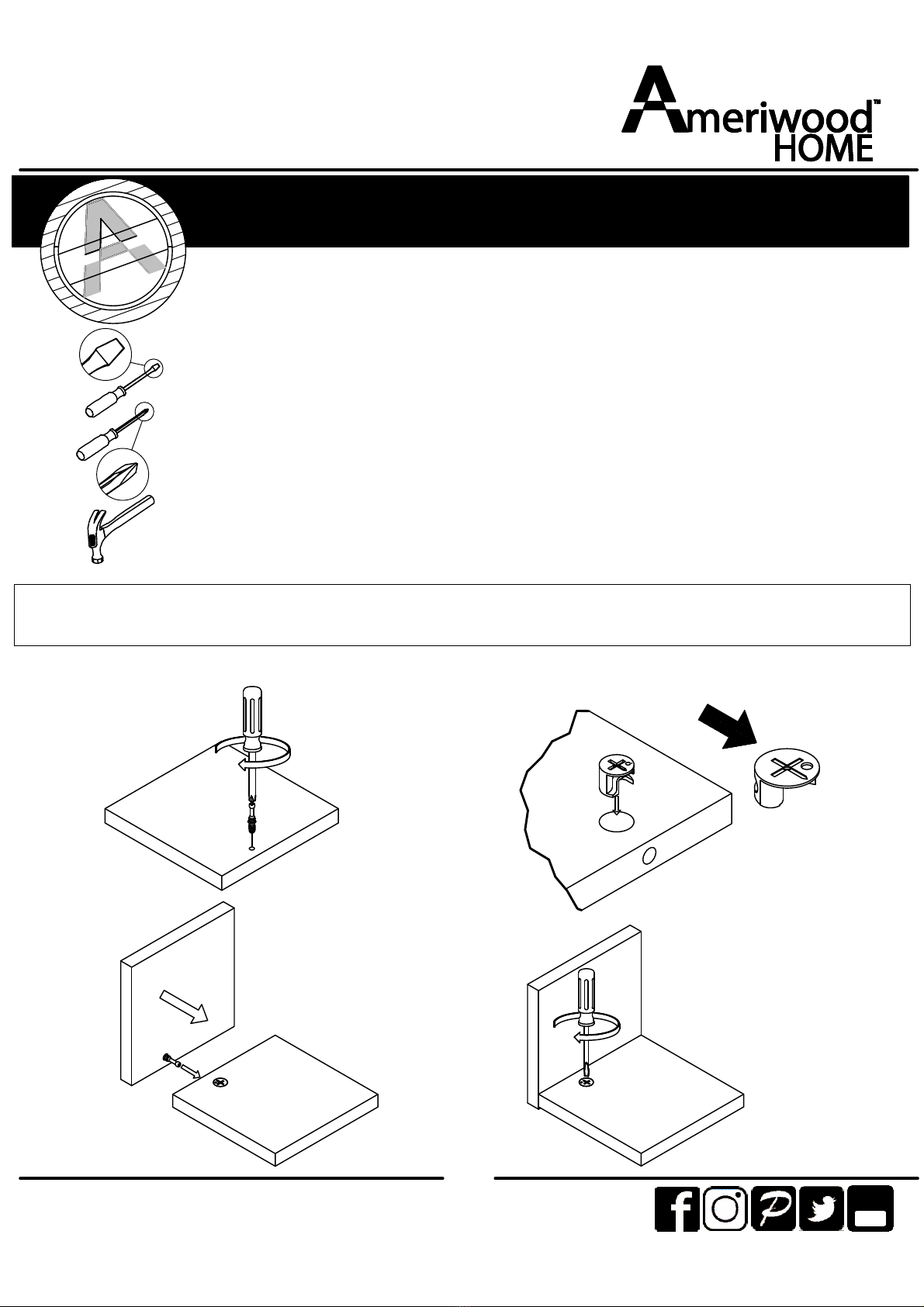

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

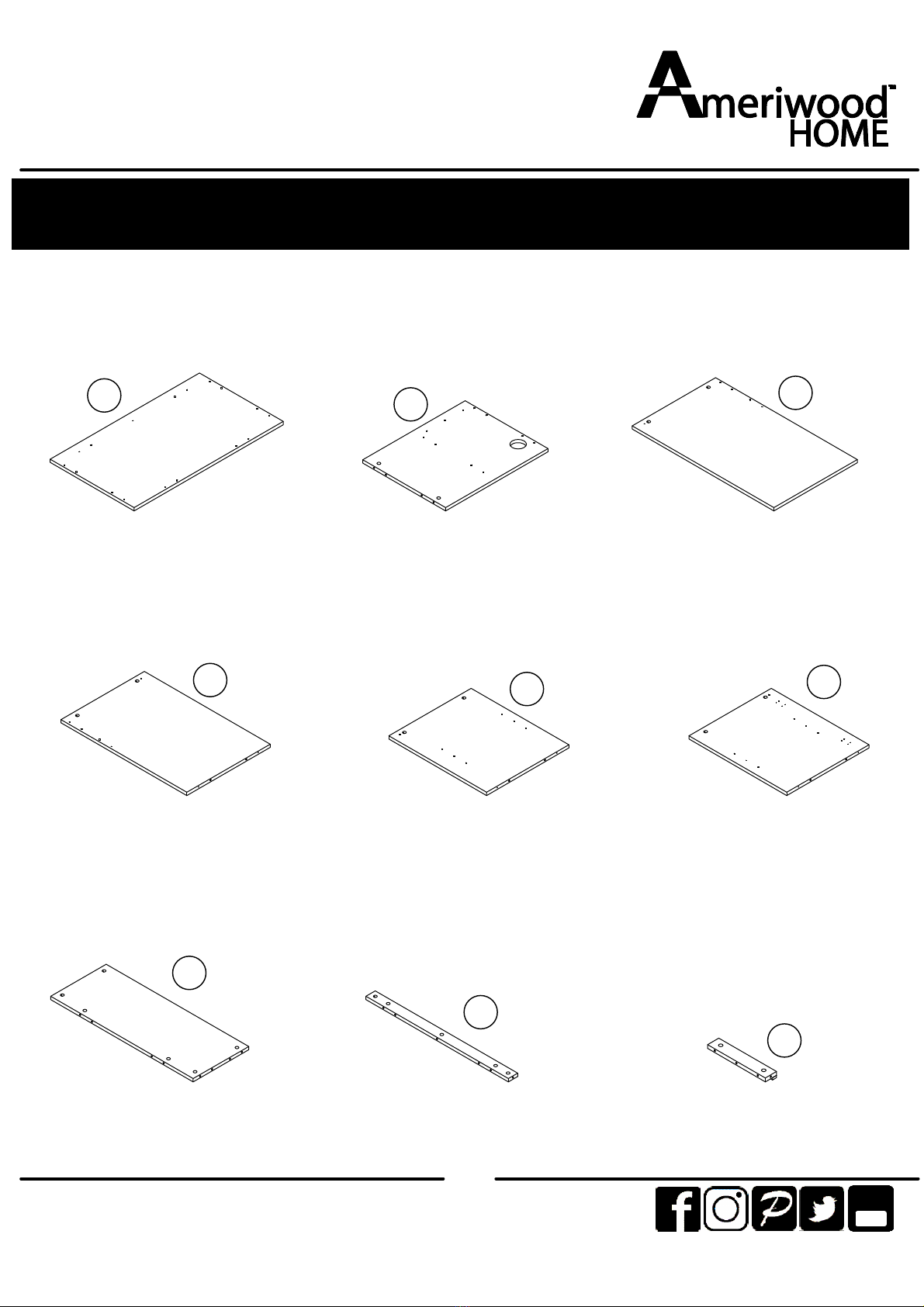

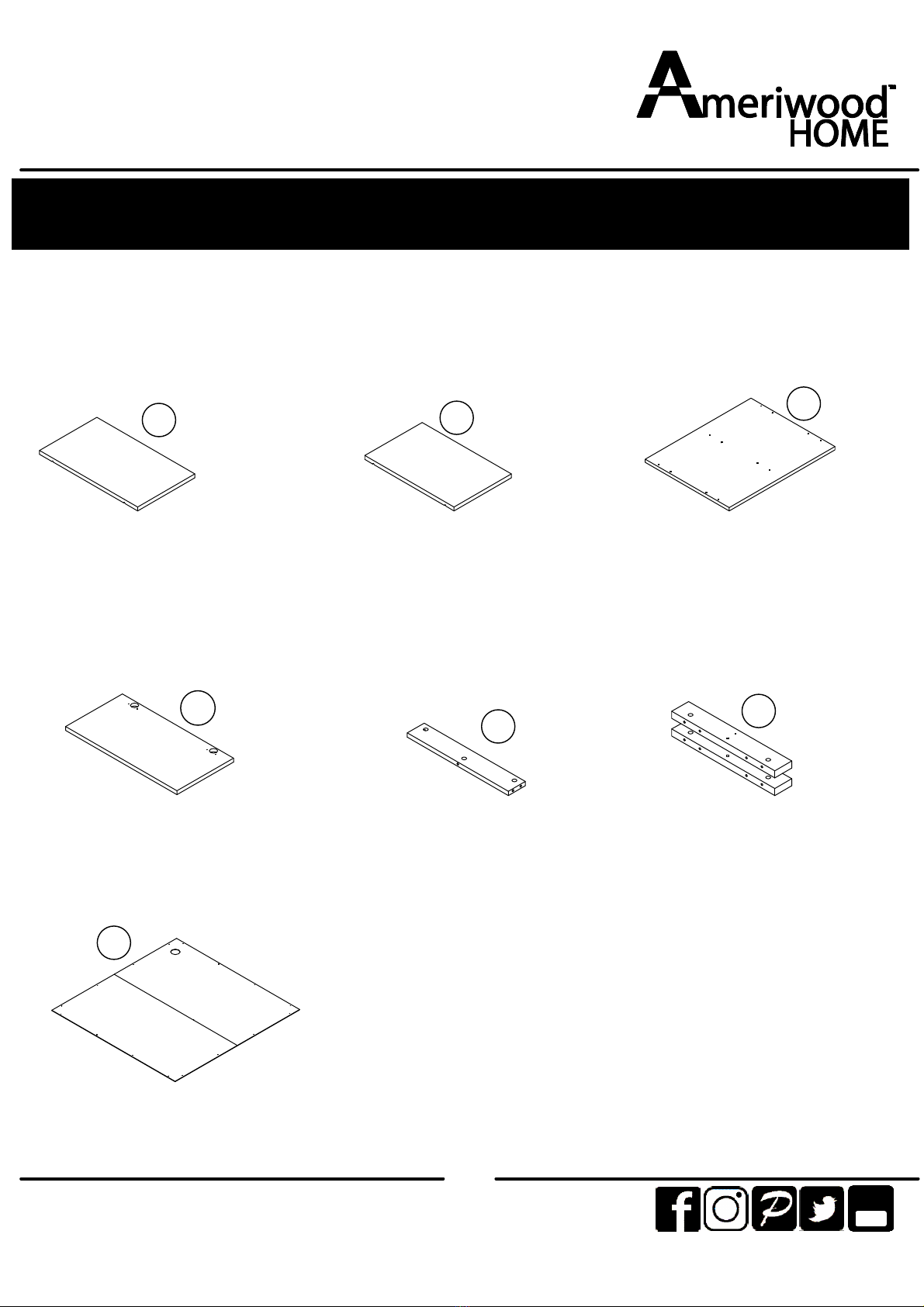

Board Identification

Not actual size

ameriwoodhome.com

DESK TOP

T3294013010GO

QTY: 1 PC

Tube

You

RIGHT TOP

T3294013020GO

QTY: 1 PC

LEFT PANEL

T3294013030GO

QTY: 1 PC

LEFT PARTITION

T3294013040GO

QTY: 1 PC

MID-RIGHT PARTITION

T3294013050GO

QTY: 1 PC

RIGHT PANEL

T3294013060GO

QTY: 1 PC

MODESTY

T3294013070GO

QTY: 1 PC

APRON LEFT

T3294013080GO

QTY: 1 PC

APRON RIGHT

T3294013090GO

QTY: 1 PC

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

ADJ SHELF - LEFT

T3294013100GO

QTY: 1 PC

ADJ SHELF - RIGHT

T3294013110GO

QTY: 1 PC

BOTTOM

T3294013120GO

QTY: 1 PC

DOOR

T3294013130GO

QTY: 1 PC

BASE CENTER

T3294013140GO

QTY: 1 PC

BASE FOOT

T3294013150GO

QTY: 2 PCS

BACK PANEL

T3294013160GO

QTY: 1 PC

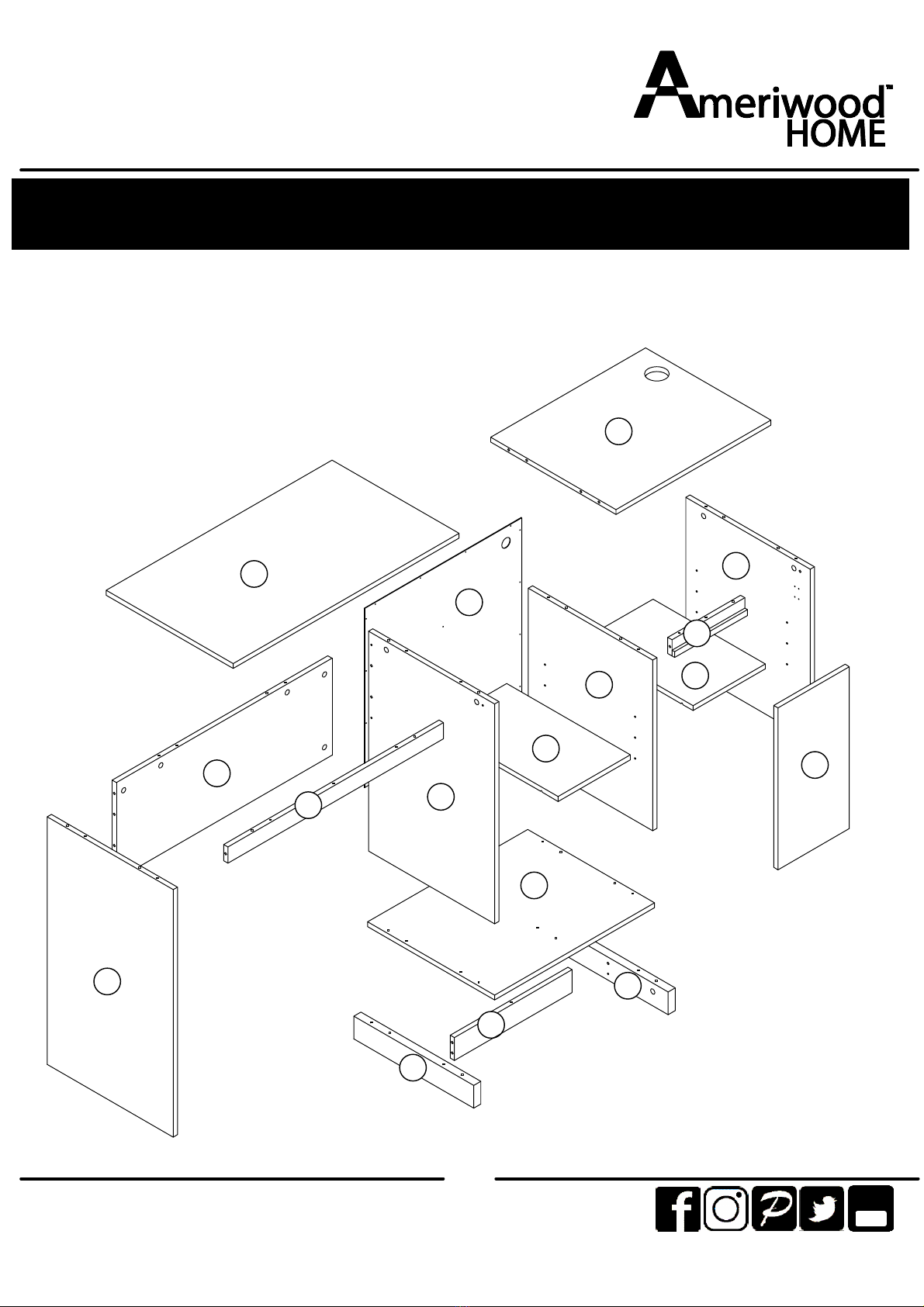

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

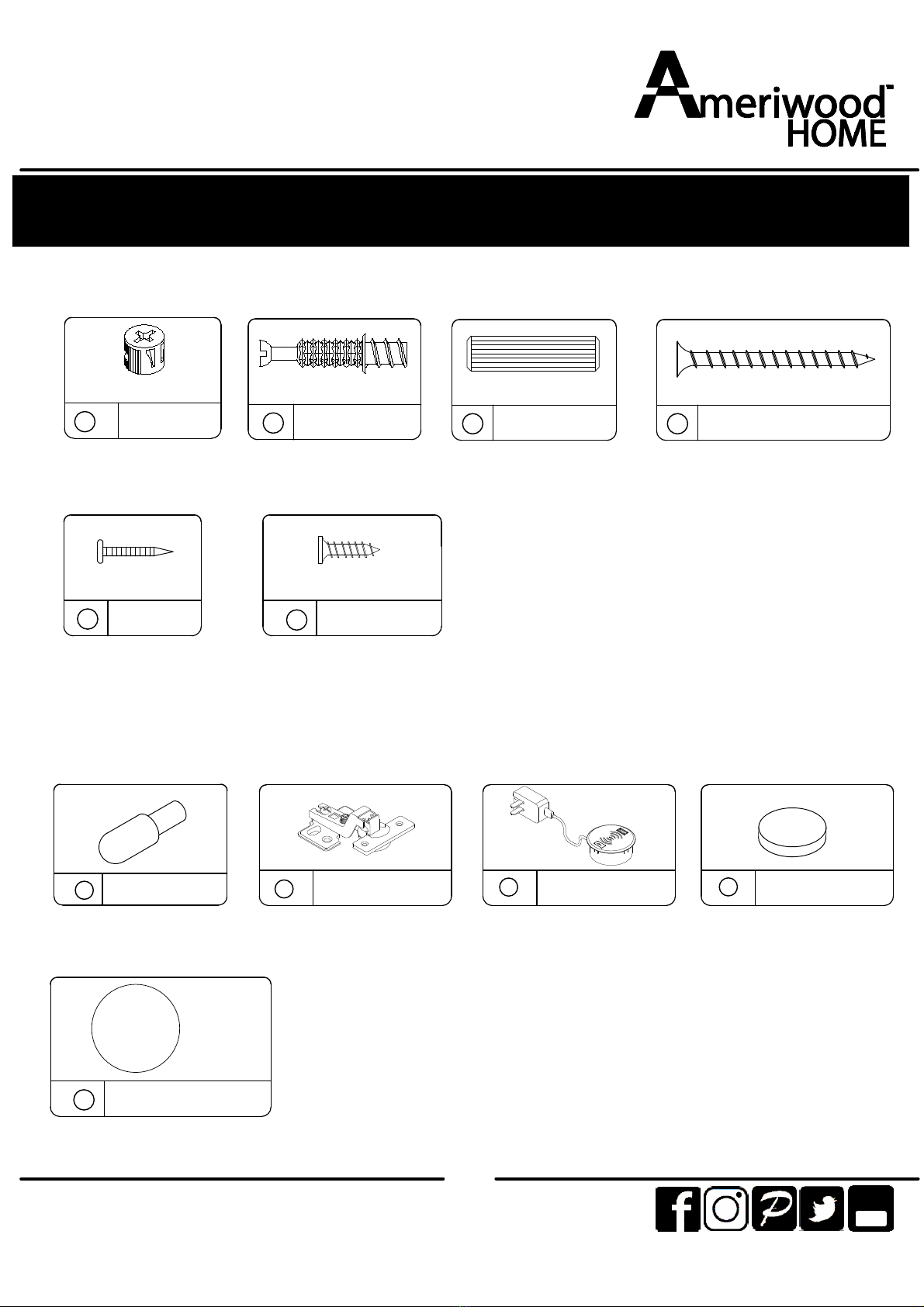

Part List

ameriwoodhome.com

Hardware Bag Reference number:

23294013COM0GO

Actual Size

×30

×30 ×33

CAM LOCK

TGO2101

WOOD DOWEL

TGO2900

Ø8 x 30mm

Ø15 x 12mm

123

Ø6 x 25mm

CAM BOLT

TGO2001

Tube

You

×12

Ø3.5 x 14mm

SCREW

TGO1005

Not Actual Size

×64

Ø4.2 x 45mm

SCREW

TGO1008

Ø1.7 x 18mm

×18

NAIL

TG06517

×8

SHELF SUPPORT

TGO2810

7 ×2

DOOR HINGE

TGO4311

×1

WIRELESS CHARGER

TGO9093

×1

PAD

TGO6514

8910

×16

COVER

TGO2219

Ø 20mm

ameriwoodhome.com

STEP

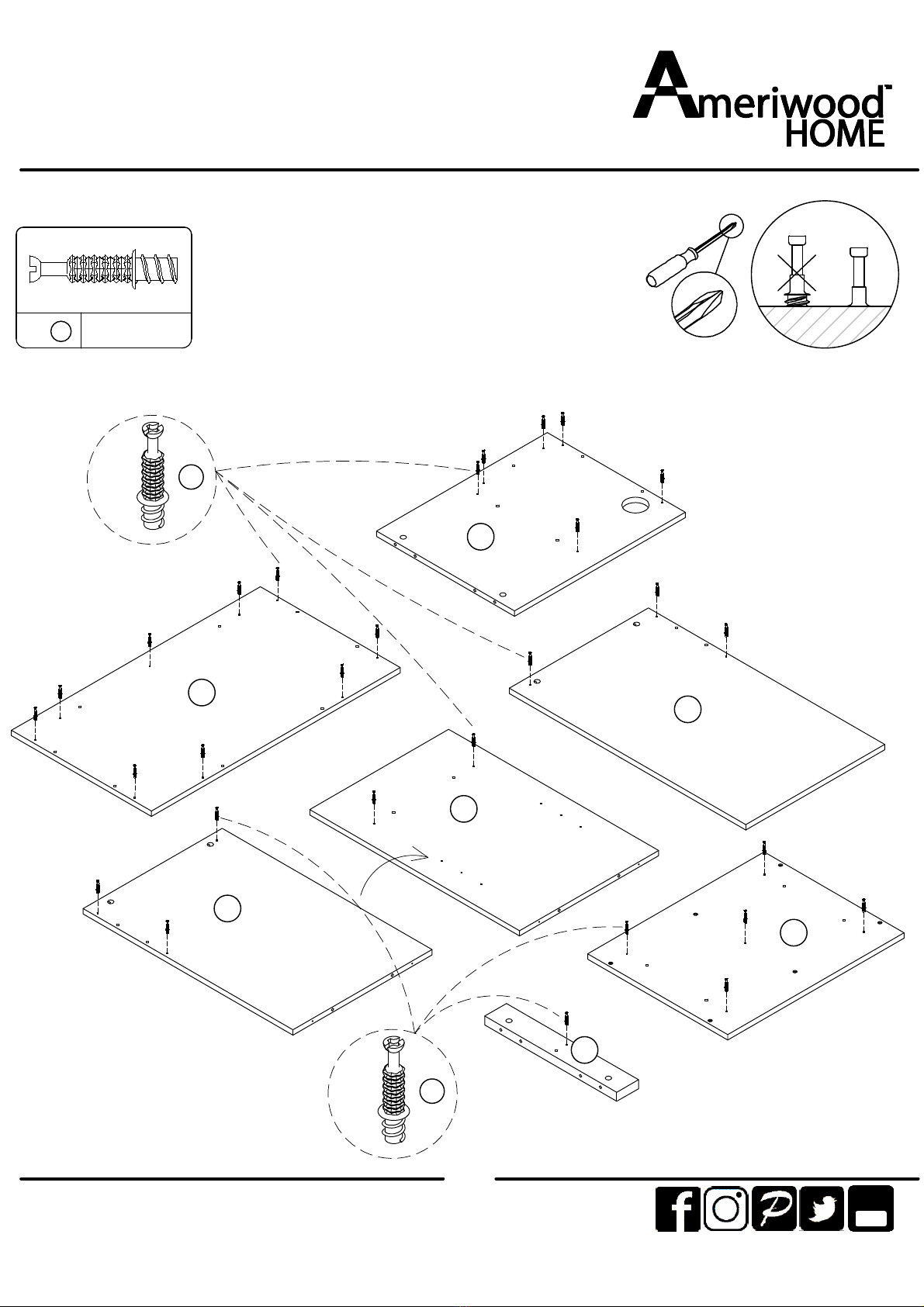

1.1 Cam bolt (2) into (A), (B), (C), (D), (L) and (O)x2 as illustrated

×30

Tube

You

O x 2

left sunface

right sunface

ameriwoodhome.com

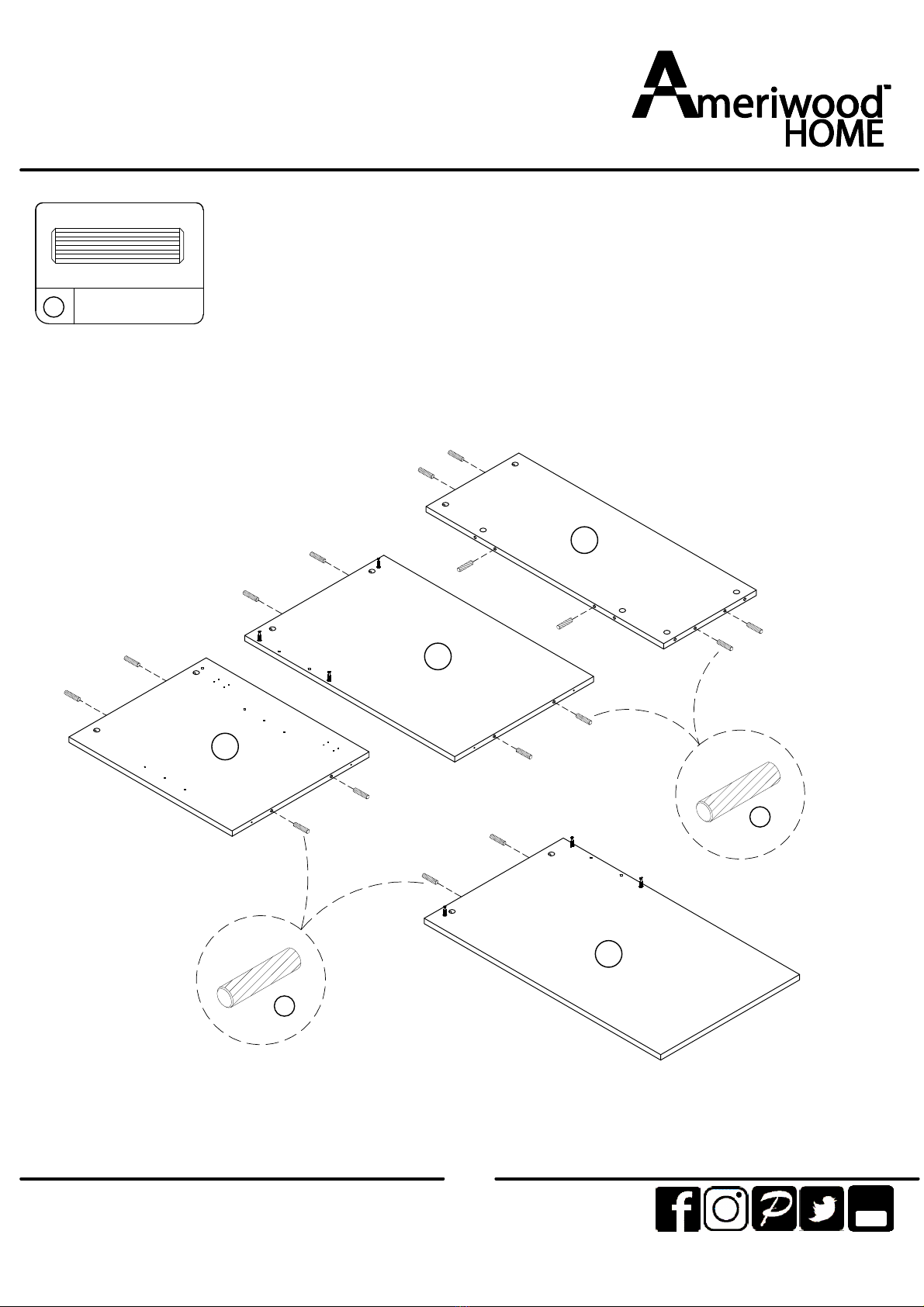

STEP

Tube

You

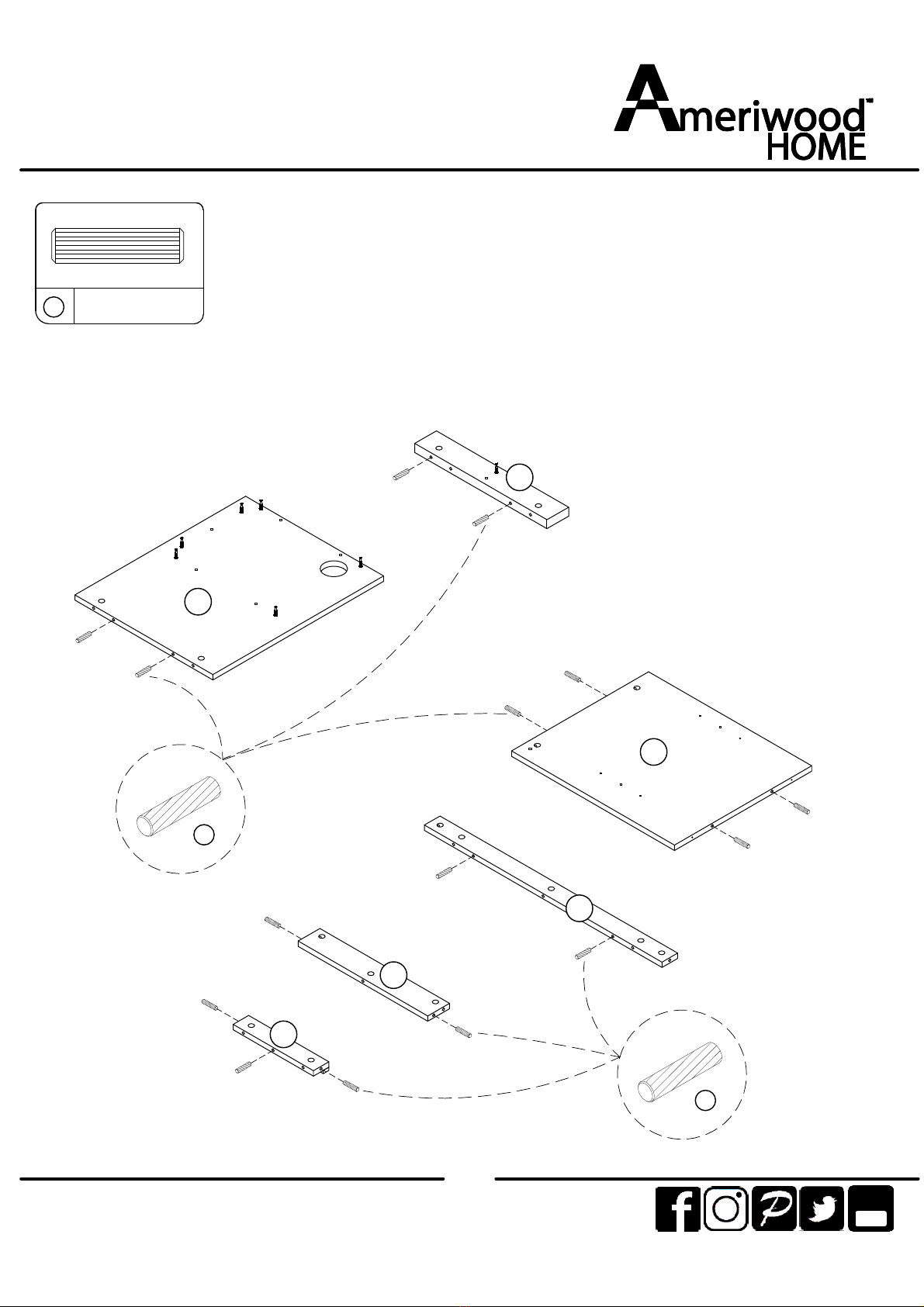

2.1 Insert (3) into (C), (D), (G) and (F) as illustrated.

3 ×16

ameriwoodhome.com

STEP

Tube

You

3 ×17

3.1 Insert (3) into (B), (E), (H), (I), (N) and (O) x 2 as illustrated.

O x 2
