American Standard 2664 User manual

754532-100 Rev. A

THANK YOU...

for selecting an American Standard bath. Your new bath is shipped to you after careful inspection. The whirlpool

and air bath versions are completely assembled with pump/blower and system piping. All you need to finish the

installation are your selected fittings and electrical connections.

To ensure maximum performance and pleasure from this product, please follow the instructions and cautions.

All product names listed herein are trademarks of AS America, Inc. unless otherwise noted.

For questions or service issues, please call Technical Support 1-(800)-442-1902.

Please do not contact or return product to the store.

MODEL 2664

MODEL 2709

MODEL 2711

MODEL 2742

MODEL 2748

MODEL 2806

MODEL 2903

MODEL 2908

MODEL 2932

MODEL 2933

MODEL 2934

MODEL 2935

MODEL 2938

MODEL 2939

MODEL 2940

MODEL 2941

MODEL 2942

MODEL 2943

MODEL 2944

MODEL 2945

MODEL 3571

MODEL 3572

MODEL 3573

MODEL 3574

MODEL 3575

MODEL 3581

MODEL 3582

MODEL 3583

MODEL 3584

MODEL 6060

MODEL 7236

INSTALLATION AND

OPERATION MANUAL

BATHTUBS, WHIRLPOOLS, AIR BATHS

AND COMBINATION TUBS WITH

OPTIONAL CHROMATHERAPY

754532-100 Rev. A

TABLE OF CONTENTS:

Cover

................................................................................................Page 1

Table of Contents

..............................................................................Page 2

Safety Instructions Notice.................................................................Page 3

Installation, Framing and Post Installation

Clean-Up Instructions.......................................................................Page 4

Roughing-in References for Recess Type Installations.....................Page 5

Roughing-in References for Pier Type Installations...........................Page 6

Under Deck Mounting Instructions....................................................Page 6

Roughing-in References for All Model Series...................................Pages 7 - 26

Electrical Installation Instructions

.....................................................Pages 27 - 32

Whirlpool Heater Operation

......

..........................................................Page 32

Remote Air Blower Location Option..................................................Pages 33 - 34

Operation: Single Speed Whirlpool...................................................Page 35

Operation: EcoSilent Whirlpool with Lights.......................................Page 36

Operation: Air Bath............................................................................Page 37

Operation: Air Bath with Lights..........................................................Pages 38 - 39

Operation: Combination Tub with Lights...........................................Pages 40 - 41

Cleaning and Maintenence...............................................................Page 42

Warranty

......................................

.....................................................Page 43

754532-100 Rev. A

IMPORTANT SAFETY

INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS!

WARNING: Risk of personal injury. Do not permit children to use this bathtub without adult supervision. Never drop or

insert any object into any opening. Do not operate this unit without the guard over the suction fitting.

WARNING: Risk of electric shock. Do not permit electrical appliances near any bathtub when bathtub contains water.

WARNING: Risk of hyperthermia and possible drowning. People using medications and/or having adverse medical

history should consult a physician before using this product.

WARNING: Risk of personal injury. Do not overfill bathtub before entering. Entering tub when filled more than 2/3 can

cause overflow and slippery conditions. Exercise caution when entering and exiting.

WARNING: No Food or Alcoholic Beverages. Use of your bathtub immediately after meals is not recommended. Avoid

alcohol consumption before or during bathing. Alcoholic beverages can cause drowsiness or hyperthermia resulting in loss of

consciousness or even drowning.

WARNING: Pregnancy. If you are or think you may be pregnant, consult your physician before using the bathtub.

Use this unit only for its intended use as described in this manual.

Do not use any attachments not recommended by American Standard.

The unit must be connected only to a supply circuit that is properly protected by a ground-fault circuit-interrupter (GFCI). Such a

GFCI should be provided by the installer and should be tested on a routine basis. To test the GFCI, push the test button. The

GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner, the

GFCI is defective. If the GFCI interrupts power to the bathtub without the test button being pushed, a ground current is flowing,

indicating the possibility of an electric shock. Do not use this air bath. Disconnect the air bath and have the problem corrected by a

licensed electrician before using.

SAVE THESE INSTRUCTIONS

754532-100 Rev. A

Each bath arrives ready for installation, completely equipped with the pump/blower electronics

and plumbing necessary for operation. However, a drain/overflow kit is required for each bath

and it is not included.

The variety of installations for this bath may require framing procedures other than those shown.

Locate studs as required. Ensure roughing-in dimensions are proper, plumb, and square.

Installation and Framing Instructions

Remove the bath from the carton. Retain the shipping carton until satisfactory

inspection of the product has been made. Do not lift the bath by the plumbing at

any time; handle by the shell only.

All bath units are factory tested for proper operation and watertight connections

prior to shipping. Prior to installation, the bath must be filled with water and

operated to check for leaks that may have resulted from shipping damage or

mishandling.

The sumps of these baths are supported by feet and no additional sump

support is required. Once the bath is in place, the feet should be shimmed and

secured accordingly so that the rim of the bath contacts the stringer or pier but

supports no weight.

Provisions must be made in all installations for an access opening for servicing the

bath pump/blower. Unless an access opening of at least 12" x 24" (305mm x 610mm)

is provided, warranty service will not be performed. It is strongly recommended that an

additional opening be provided for access to drain components.

Each bath has a nominal length (L), width (W), and Height (H) along with a rim

height. Unless otherwise noted in the following rough-in references, assume

that the nominal tolerances are as much as +/-1/4 inch (6mm). Therefore, it is

strongly recommended that the installer build the surrounding structure after

receiving the actual bath. Structural measurements should be verified against

the actual bath received to ensure proper fit.

POST INSTALLATION CLEAN-UP

Remove all construction debris from bath. Tile grout can be removed with a wooden

popsicle stick or tongue depressor.

Do not use wire brushes or any other metal implement on bath surface.

Post installation clean-up generally can be completed using warm water and liquid

dishwashing detergent.

Stubborn dirt or stains may be removed using granular Spic and Span®mixed with water.

Painter's naphtha can be used to remove excess adhesives and/or wet oil-base paint.

754532-100 Rev. A

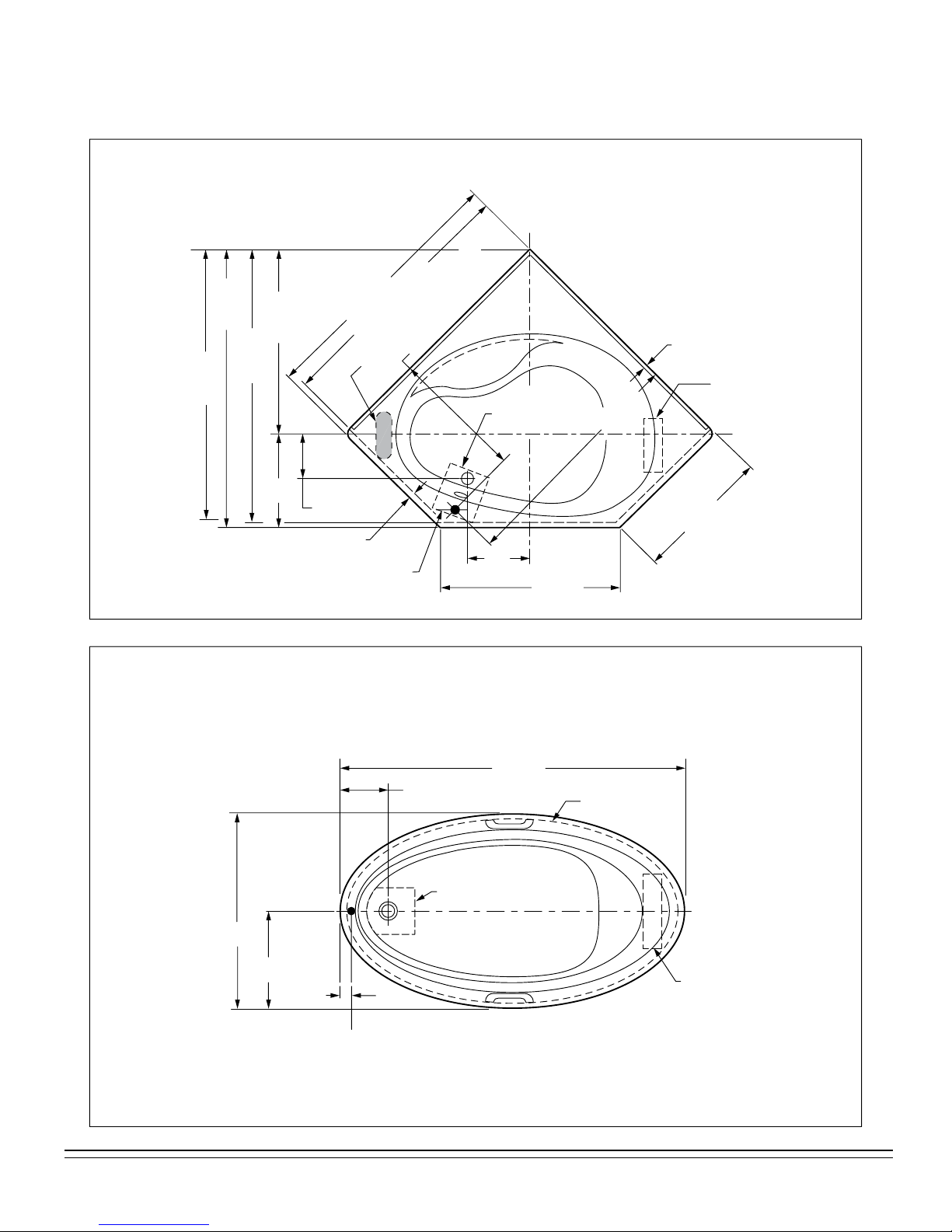

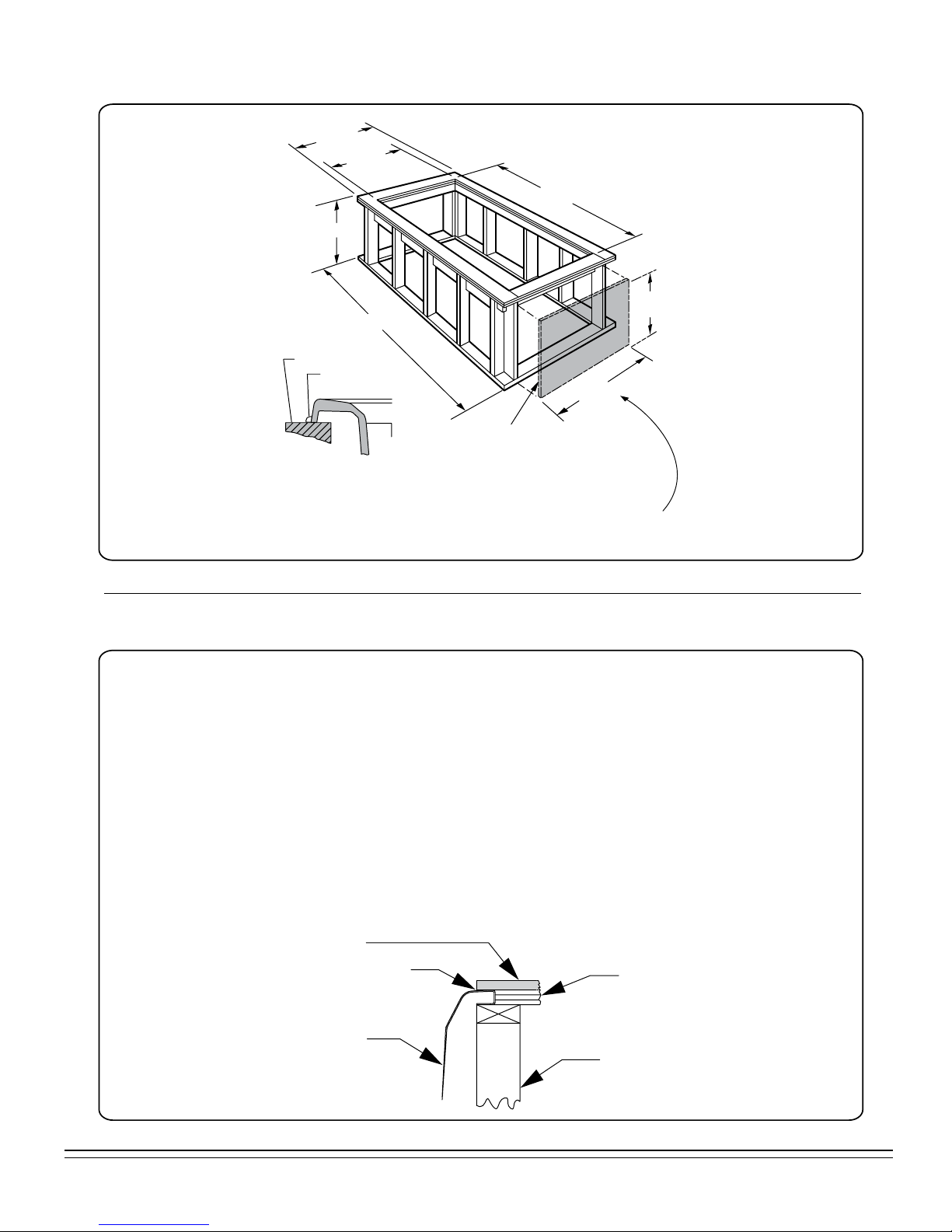

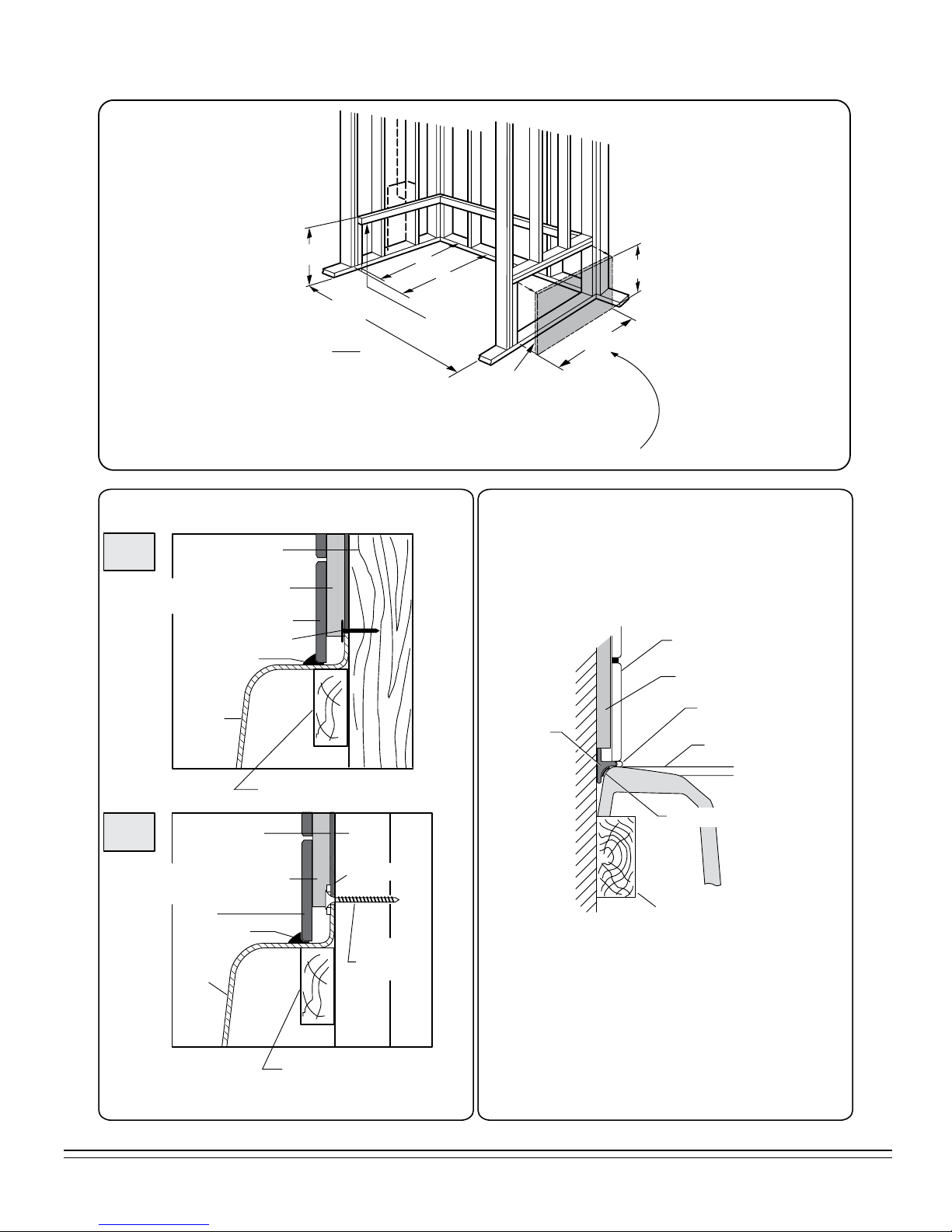

ROUGH-IN REFERENCES FOR RECESS TYPE INSTALLATIONS

TILE

BEAD

STRIP

LEVELING STRINGER

1" x 4" (25mm x 102mm) not for support

BATH

ADHESIVE

SEALANT

WALLBOARD

NOTE: Tile bead kit not included and must

be purchased separately.

SECURE THE BATH TO THE STUDS AS SHOWN

FOR WOOD OR STEEL STUD CONSTRUCTION.

TYPICAL TILE FLANGE INSTALLATION TYPICAL TILE BEAD INSTALLATION

STUD

WATERPROOF DRYWALL

OR CEMENT BOARD

WATERPROOF DRYWALL

OR CEMENT BOARD

TILE

SEALANT

TUB

ROOFING NAIL

1" x 3" (25 x 76mm) WOOD

STRINGER FULL LENGTH

1" x 3" (25 x 76mm) WOOD

STRINGER FULL LENGTH

STEEL

STUD

WASHER

TILE

SEALANT

TUB

4" (102mm)

DRYWALL

SCREW

STEEL

STUDS

WOOD

STUDS

24"

(610 mm)

12"

(305 mm)

LEVELING

STRINGERS

ACCESS PANEL MUST BE LOCATED

ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON

PUMP/MOTOR END FOR SERVICE.

UNLESS AN ACCESS OPENING OF AT LEAST 12" x 24" (305 x 610mm)

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

NOTE:

FRONT EDGE

OF BATH MUST

BE SUPPORTED

BY STUD WALL OR

AMERICAN STANDARD

APRON KIT

ACCESS PANELS NOT

REQUIRED FOR BATH TUBS

754532-100 Rev. A

Please note that care must be taken to protect the surface of the tub during all aspects of the installation.

Do not drill or cut the bath deck with the tub directly beneath it as damage to the tub may result.

1. Install the tub per the installation instructions provided with the unit.

2. Prepare the bath deck support structure per the local codes. Note - the bath deck must be self supporting.

3. Cut bath deck to your specifications.

4. Place the bath deck in position and trace the opening on the tub with a soft pencil. Do not drill or cut the bath

deck with the tub directly beneath it as damage to the tub may result.

5. Remove the bath deck and apply a generous bead of waterproof sealant on the outer edge of the traced line.

6. Replace the bath deck and secure it into place.

7. Apply additional sealant along the tub and bath deck interface as necessary to ensure a watertight seal.

8. Remove excess sealant per the manufacturer's instructions.

Finished bath deck surface material must be

self-supporting and secured per local codes

Tub support structure per installation

instructions provided with the tub

Bath deck support material

Bathtub

Waterproof

Sealant

UNDER DECK MOUNTING INSTRUCTIONS

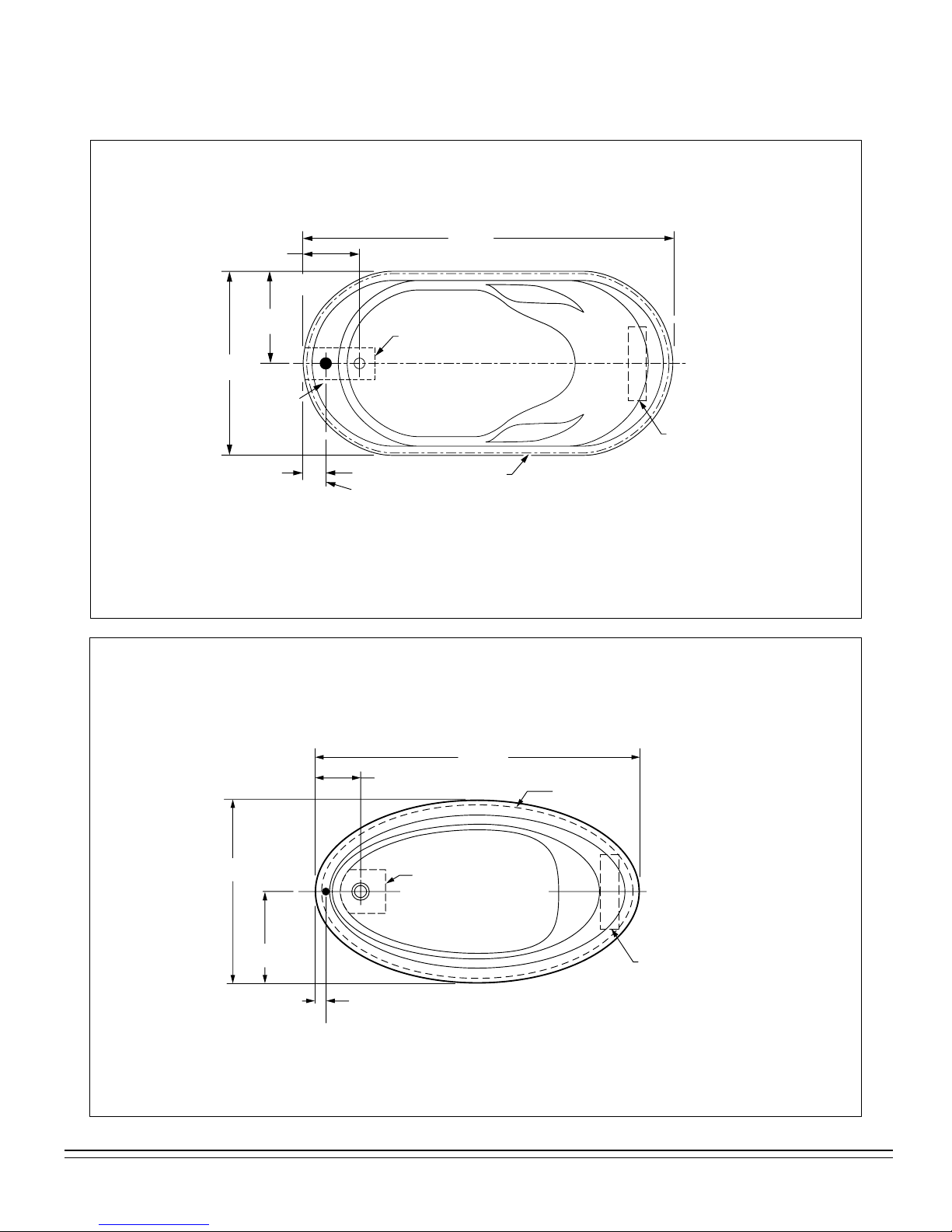

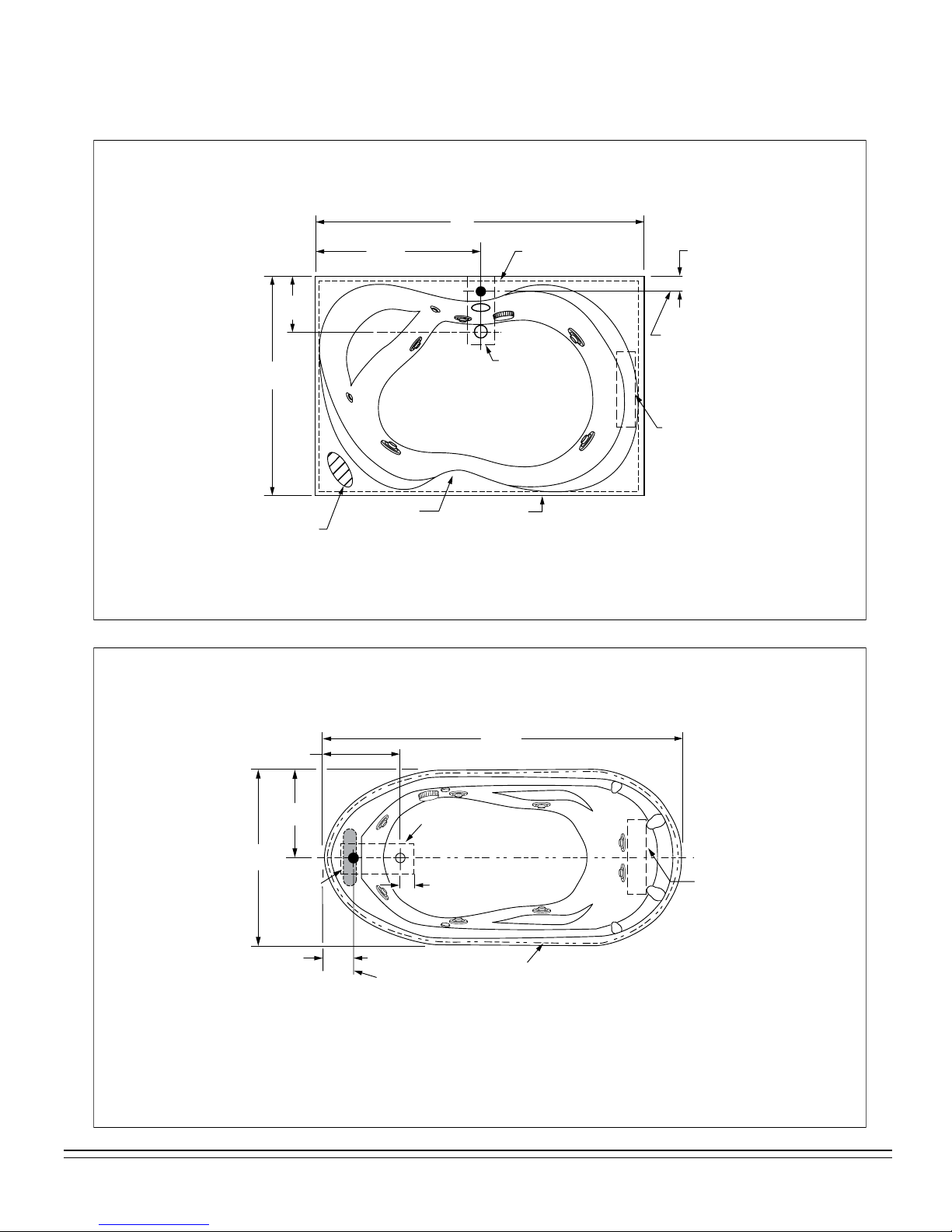

ROUGH-IN REFERENCES FOR PIER TYPE INSTALLATIONS

AS DESIRED

CUTOUT

AS DESIRED

CUTOUT

24"

(610 mm)

12"

(305 mm)

MOUNTING

SURFACE

WATERPROOF

SEALANT

BATH ACCESS PANEL MUST BE LOCATED

ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON

PUMP/MOTOR END FOR SERVICE.

ACCESS PANELS NOT REQUIRED

FOR BATH TUBS

UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

754532-100 Rev. A

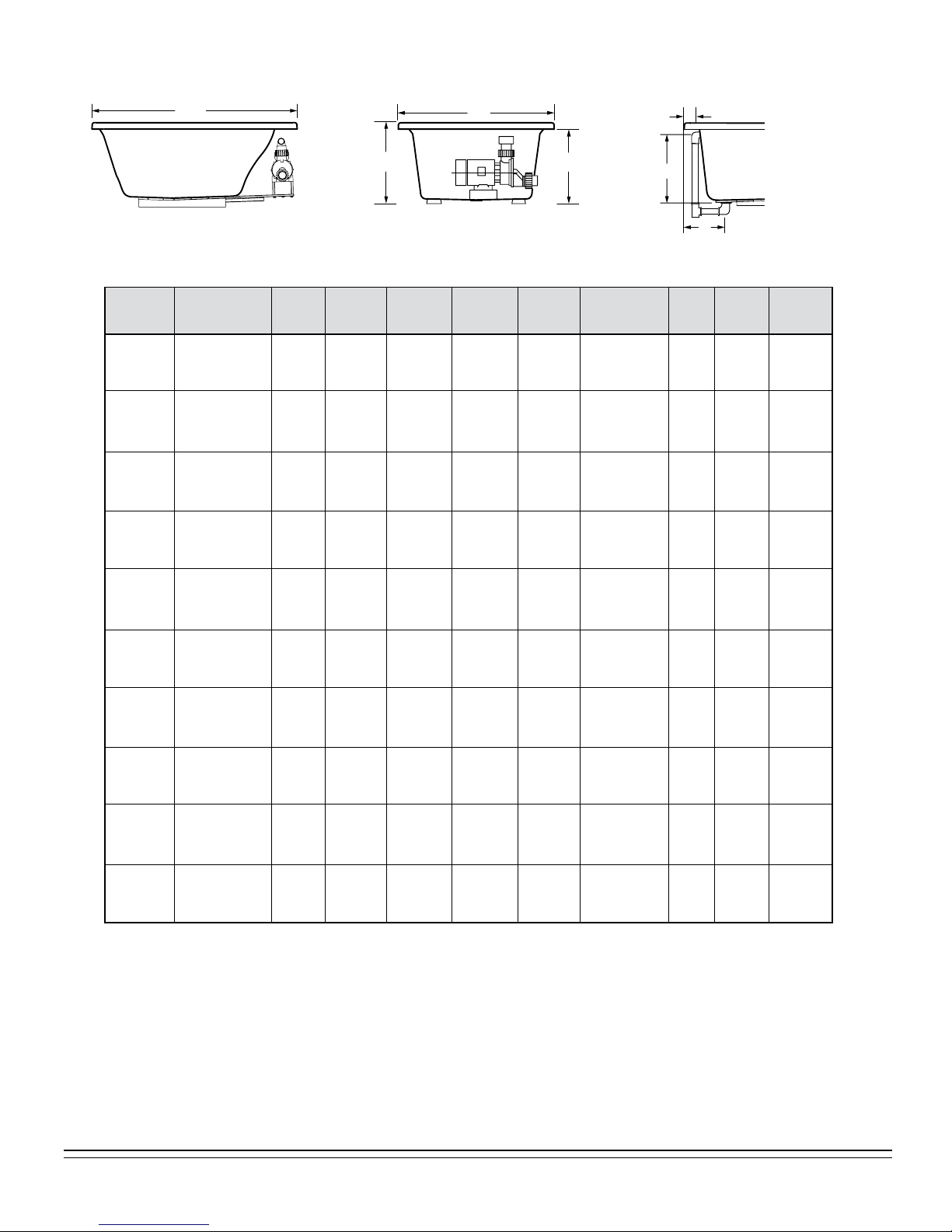

SPECIFICATIONS:

GENERAL SPECIFICATIONS FOR WHIRLPOOLS AND BATH TUBS

SIDE VIEW DRAIN / OVERFLOW

END VIEW

A 16"

(406mm)

B 13-1/4"

(337mm)

A 15"

(381mm)

B 9-7/8"

(251mm)

A 16-5/8"

(422mm)

B 12"

(305mm)

A 16-1/4"

(413mm)

B 13-1/4"

(337mm)

A 14-1/2"

(368mm)

B 14-1/2"

(368mm)

A 17"

(432mm)

B 11"

(279mm)

A 17"

(432mm)

B 9-1/2"

(241mm)

A 17"

(432mm)

B 13"

(330mm)

A 17"

(432mm)

B 13-3/4"

(349mm)

A 17-3/4"

(451mm)

B 11"

(279mm)

6-3/8"

(162mm)

(76mm)

(102mm)

5-1/4"

(133mm)

5-1/2"

(140mm)

(76mm)

(152mm)

5-5/8"

(130mm)

(102mm)

C 18-1/4"

(464mm)

C 18-1/4"

(464mm)

C 19-1/2"

(495mm)

C 20"

(508mm)

C 21"

(533mm)

C 19-1/2"

(495mm)

C 19-1/4"

(489mm)

C 18-1/4"

(464mm)

C 19-1/2"

(495mm)

C 19-1/4"

(489mm)

Template

Provided

Template

Provided

70-1/2"

(1791mm)

x 46-1/2"

(1181mm)

70"

(1778mm)

x 40-1/4"

(1022mm)

58"

(1473mm)

x 40-1/8"

(1019mm)

Template

Provided

Template

Provided

Template

Provided

Template

Provided

751680-100

70-1/2"

(1791mm)

x 34-1/2"

(876mm)

N/A

Desired

72-3/16"

(1833mm)

x 46-1/2"

(1181mm)

71-11/16"

(1821mm)

x 40-1/4"

(1022mm)

59-11/16"

(1517mm)

x 40-1/8"

(1019mm)

Desired

N/A

72-3/16"

(1833mm)

x 34-1/2"

(876mm)

L 83-1/2" (2121mm)

W 63-3/4" (1619mm)

H 19-3/4" (502mm)

L 69-1/4" (1759mm)

W 38-1/2" (978mm)

H 19-3/4" (502mm)

L 72" (1829mm)

W 48" (1219mm)

H 21-1/2" (546mm)

L 71-1/2" (1816mm)

W 41-3/4" (1060mm)

H 22" (559mm)

L 59-1/2" (1511mm)

W 41-5/8" (1057mm)

H 23" (584mm)

L 72" (1829mm)

W 35-3/4" (908mm)

H 21-1/2" (546mm)

L 60" (1524mm)

W 42-1/4" (1073mm)

H 21-1/4" (540mm)

L 66" (1676mm)

W 36" (914mm)

H 24-1/4" (616mm)

L 76-3/4" (1949mm)

W 65-3/8" (1661mm)

H 21-1/2" (546mm)

L 72" (1829mm)

W 36" (914mm)

H 21-1/4" (540mm)

94 lb.

(43 kg.)

107 lb.

(49 kg.)

133 lb.

(60 kg.)

115 lb.

(52 kg.)

110 lb.

(50 kg.)

135 lb.

(61 kg.)

107 lb.

(49 kg.)

95 lb.

(43 kg.)

108 lb.

(49 kg.)

101 lb.

(45 kg.)

781 lb. (351 kg)/

37 lb./sq.ft.

(182 kg/sq.m)

640 lb. (291 kg)/

35 lb./sq.ft.

(171 kg/sq.m)

950 lb. (431 kg)/

40 lb./sq.ft.

(196 kg/sq.m)

690 lb. (313 kg)/

33 lb./sq.ft.

(161 kg/sq.m)

611 lb. (277 kg)/

40 lb./sq.ft.

(196 kg/sq.m)

744 lb. (338 kg)/

41 lb./sq.ft.

(200 kg/sq.m)

640 lb. (291 kg)/

35 lb./sq.ft.

(171 kg/sq.m)

659 lb. (299 kg)/

40 lb./sq.ft.

(191 kg/sq.m)

824 lb. (374 kg)/

25 lb./sq.ft.

(117 kg/sq.m)

751 lb. (338 kg)/

42 lb./sq.ft.

(204 kg/sq.m)

80 gal.

(303 l.)

64 gal.

(242 l.)

95 gal.

(359 l.)

69 gal.

(261 l.)

60 gal.

(227 l.)

73 gal.

(276 l.)

64 gal.

(242 l.)

68 gal.

(257 l.)

86 gal.

(352 l.)

78 gal.

(296 l.)

58 gal.

(220 l.)

53 gal.

(200 l.)

74 gal.

(280 l.)

60 gal.

(227 l.)

55 gal.

(208 l.)

44 gal.

(166 l.)

53 gal.

(200 l.)

55 gal.

(208 l.)

71 gal.

(269 l.)

69 gal.

(262 l.)

Description

Drain /

Overflow

Cut Out

Pier

G x F

Rough-In

Recess

E x D

Tub Edge to

Centerline

Overflow: J

Weight with

Water / Floor

Product

Weight

Gallon to

Overflow

Whirlpool

Operating

Volume

Height to

Underside

of Deck: C

Dimensions

L-W-H

2664

Scala

Corner

2709

Ellisse Oval

2711

Ellisse

6' x 48"

2742

Town Square

6' x 42"

2748

Town Square

5' x 42"

2806

Heritage Oval

6' x 36"

2903

Savona Oval

5' x 42"

2908

Reminiscence

Oval

6060

Cadenza

Corner

7236

Virtuoso

6' x 36"

TABLE 1

754532-100 Rev. A

ROUGH-IN REFERENCES

41"

(1041mm)

30-1/2"

(775mm)

21-3/4"

(552mm)

63-3/4"

(1619mm)

42-1/2"

(1080mm)

60"

(1524mm)

8-1/2"

(216mm)

16"

(406mm)

1" (25mm)

INTEGRAL TILE

FLANGE (2) SIDES

3/4"(19mm)

CUTOUT DIMENSION

64-1/4"

(1632mm)

59-1/4" (1505mm)

10" x 10"

(254mm x 254mm)

DRAIN OUTLET

CUTOUT

63-1/2"

(1600mm)

53-3/8"

(1356mm)

OF DRAIN OUTLET

28-1/2" (724mm)

RECOMMENDED FITTING LOCATION

2-1/2" x 11" (64 x 279mm)

MODEL SERIES 2664

MODEL SERIES 2709

69-1/4"

(1759mm)

OUTLINE OF

CUTOUT

9-7/16"

(240mm)

38-1/2"

(978mm)

19-1/4"

(489mm)

(76mm)

LOF DRAIN

OUTLET

12" (305mm) x 9" (229mm)

CUTOUT IN FLOOR FOR DRAIN

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

754532-100 Rev. A

ROUGH-IN REFERENCES

MODEL SERIES 2711

MODEL SERIES 2908

72"

(1829mm)

36-1/2"

(927mm)

OUTLINE OF CUTOUT

70-1/2" X 46-1/2"

(1791 X 1181mm)

C/L OF

DRAIN

(102mm)

12"

(305mm)

48"

(1219mm)

9" x 14"

(229 x 356mm)

FLOOR

CUTOUT

RECOMMENDED

FITTING

LOCATION

2-1/2" X 11"

OPTIONAL

DECK FITTING

AREA

GRAB BAR

FITTING AREA

9" X 12"

(229 x 305mm)

FLOOR

CUTOUT

2-1/2" REF.

(64mm)

66"

(1676mm)

36"

(914mm)

18"

(457mm)

13"

(330mm)

INTEGRAL

FITTING

DECK

(152mm) C/L OF

DRAIN

OUTLET

OVERFLOW OUTLINE OF

CUTOUT

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

754532-100 Rev. A

INTEGRAL

FITTING

DECK

72"

(1829mm)

9" x 13"

(229 x 330mm)

FLOOR CUTOUT

11"

(279mm)

35-3/4"

(908mm)

18"

(457mm)

5-1/2"

(140mm) C/L OF DRAIN

OVERFLOW

OUTLINE

OF CUTOUT

OUTLINE OF

CUTOUT - USE

TEMPLATE

9-1/2"

(241mm)

4-1/4"

(1073mm)

21-1/8"

(537mm)

(76mm)

60"

(1524mm)

LOF DRAIN

OUTLET

12" (305mm) X 9"(229mm)

CUTOUT IN FLOOR FOR DRAIN

ROUGH-IN REFERENCES

MODEL SERIES 2806

MODEL SERIES 2903

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

This manual suits for next models

Table of contents

Other American Standard Plumbing Product manuals

American Standard

American Standard Exposed Yoke Wall-Mount Utility Faucet... Use and care manual

American Standard

American Standard Tendence 2088 User manual

American Standard

American Standard Mackenzie Recess Bath 0138.014 User manual

American Standard

American Standard 3355 User manual

American Standard

American Standard Renaissance RF Total Toilet 2444 User manual

American Standard

American Standard Huron 4' Recess Bath 0131.012 User manual

American Standard

American Standard Arch 4101.350 User manual

American Standard

American Standard 1662.601 User manual

American Standard

American Standard Copeland 7005.201 User manual

American Standard

American Standard Cadet 2898.010 User manual

American Standard

American Standard Williamsburg 2908.22 User manual

American Standard

American Standard SELECTRONIC 6065.111 User manual

American Standard

American Standard SELECTRONIC 6065.561 User manual

American Standard

American Standard Townsquare 2555.201 User manual

American Standard

American Standard PEKOE EXTENDER M968582 User manual

American Standard

American Standard Traditional Bidet 5065.010 Operating and safety instructions

American Standard

American Standard Amarilis 8871.000 User manual

American Standard

American Standard Symphony 4501S Operating and safety instructions

American Standard

American Standard Princeton T508.50X Series User manual

American Standard

American Standard One 2064.801 User manual

American Standard

American Standard Two-Handle Centerset Lavatory Faucet... User manual

American Standard

American Standard Deck-Mount Tub Filler Trim Kit T508.900 User manual

American Standard

American Standard Arch 4101.100 User manual

American Standard

American Standard Colony Soft 3875-403 User manual

Popular Plumbing Product manuals by other brands

Weka

Weka 506.2020.00E ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS

Kohler

Kohler K-6228 Installation and care guide

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Operator's manual

Uponor

Uponor Contec TS Mounting instructions

Pfister

Pfister Selia 49-SL Quick installation guide

Fortis

Fortis VITRINA 6068700 quick start guide

Fortis

Fortis MILANO 78211JS installation instructions

Kohler

Kohler K-12183 Homeowner's guide

Maxxus

Maxxus MX-M206-01 instruction manual

Moen

Moen 5922 Series installation instructions

Viega

Viega Prevista Pure 8512 Instructions for use

Kohler

Kohler Centerset K-15240 Homeowner's guide

Viega

Viega Prevista Dry 8522.33 Instructions for use

Sanela

Sanela Lema SLP 59RB Instructions for use

Elkay

Elkay EDF15AC Installation, care & use manual

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Instructions for use/assembly instructions

baliv

baliv WT-140 manual

Kohler

Kohler Mira Eco Installation & user guide
