Amana NTW4500VQ1 User manual

TOP AND CABINET PARTS

For Model: NTW4500VQ1

(White)

11−08 Litho in U.S.A. (drd)(bay) Part No. W10239510 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: NTW4500VQ1

(White)

W10239510

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

W10200331

English

W10200662

Spanish

Feature Sheet

W10192181

English/French

W10192182

Spanish

Use & Care Guide

W10192187

English/French

W10192188

Spanish

W10199994

Wiring Diagram

W10192183

Energy Guide

2 8318064 Top

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 63424 Cabinet

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3351614 Screw, Ground

8 3362952 Dispenser, Bleach

9 9724509 Bumper, Lid (2)

10 8318084 Switch, Lid

W10119872

Screw, Lid Hinge

Mounting (4)

12 8318088 Hinge, Lid (L.H.)

13 91770 Hinge, Lid (R.H.)

14 21258 Bearing, Lid

Hinge (2)

15 8541774 Lid

16 3390631 Screw,

10−16 x 3/8 (4)

CONTROLS AND REAR PANEL PARTS

For Model: NTW4500VQ1

(White)

W10239510

CONTROLS AND REAR PANEL PARTS

For Model: NTW4500VQ1

(White)

W10239510

Illus. Part

No. No. DESCRIPTION

1 388326 Screw, 8−18 x 1.25

(Panel To Top)

2 9740848 Screw, 8−18 x 1/2

3 3347868 Cable Tie

4 8577378 U−Bend,

Drain Hose

5 8568314 Strap, Console (2)

W10194450

Panel, Rear

7 62747 Pad, Rear Panel

W10189267

Drain Hose

Assembly

(Includes Item 19)

W10199989

Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8−18 x 3/8

12 8577844 Switch, Water Level

13 3948608 Bracket, Control

14 8578842 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 8271365 Cap, End (L.H.)

17 8271359 Cap, End (R.H.)

W10140917

Valve, Water Inlet

W/Vacuum Break

19 8541668 Clamp, Hose

20 8318046 Clip, Capacitor

W10196505

Knob, Timer

W10196506

Dial, Timer

W10196503

Knob, Control

24 8536939 Clip, Knob

25 3400073 Screw, Ground

26 8519200 Support, Rear

Panel

W10000080

Clip, Push−In

Retainer

28 8572717 Capacitor,

Motor Start

29 8055003 Clip, Harness

& Pressure Hose

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes Item 30)

33 3400818 Screw, Timer

Mounting

W10192130

Panel, Console

35 8578337 Switch, Rotary

36 62863 Screw, 10−16 x 3/8

W10211259

Wiring, Harness

(For Detail See

Pages 9 & 10)

AGITATOR, BASKET AND TUB PARTS

For Model: NTW4500VQ1

(White)

W10239510

AGITATOR, BASKET AND TUB PARTS

For Model: NTW4500VQ1

(White)

W10239510

Illus. Part

No. No. DESCRIPTION

1 3355758 Cap, Agitator

2 3354733 Cap, Barrier

W10072840

Seal, Inner Cap

4 358237 Screw & Washer

(5/16−24 x 1)

5 3949550 Washer

6 3348117 Agitator

(Complete)

7 3363663 Cam, Driven

8 3366877 Dog, Agitator

Clutch (4)

9 3363661 Bearing, Driven

Cam

10 3348752 Clothes Mover

11 3350389 Spacer, Thrust

12 3347288 Agitator

W10093698

Tub Ring & Gasket

14 3976308 Gasket, Tub Ring

15 21366 Nut, Spanner

16 8526016 Basket & Balance

Ring

17 387240 Balance Ring

18 63849 Tub

19 389140 Block, Basket

Drive

20 383727 Gasket, Centerpost

21 3347780 Hose, Pressure

Switch

22 2219077 Clip, Pressure

Switch Hose

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: NTW4500VQ1

(White)

W10239510

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

14 8577374 Seal

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

W10086010

Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528158 Motor, Main

Drive (Spring

P/N 388492 Must

Be Ordered When

Replacing Motor)

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

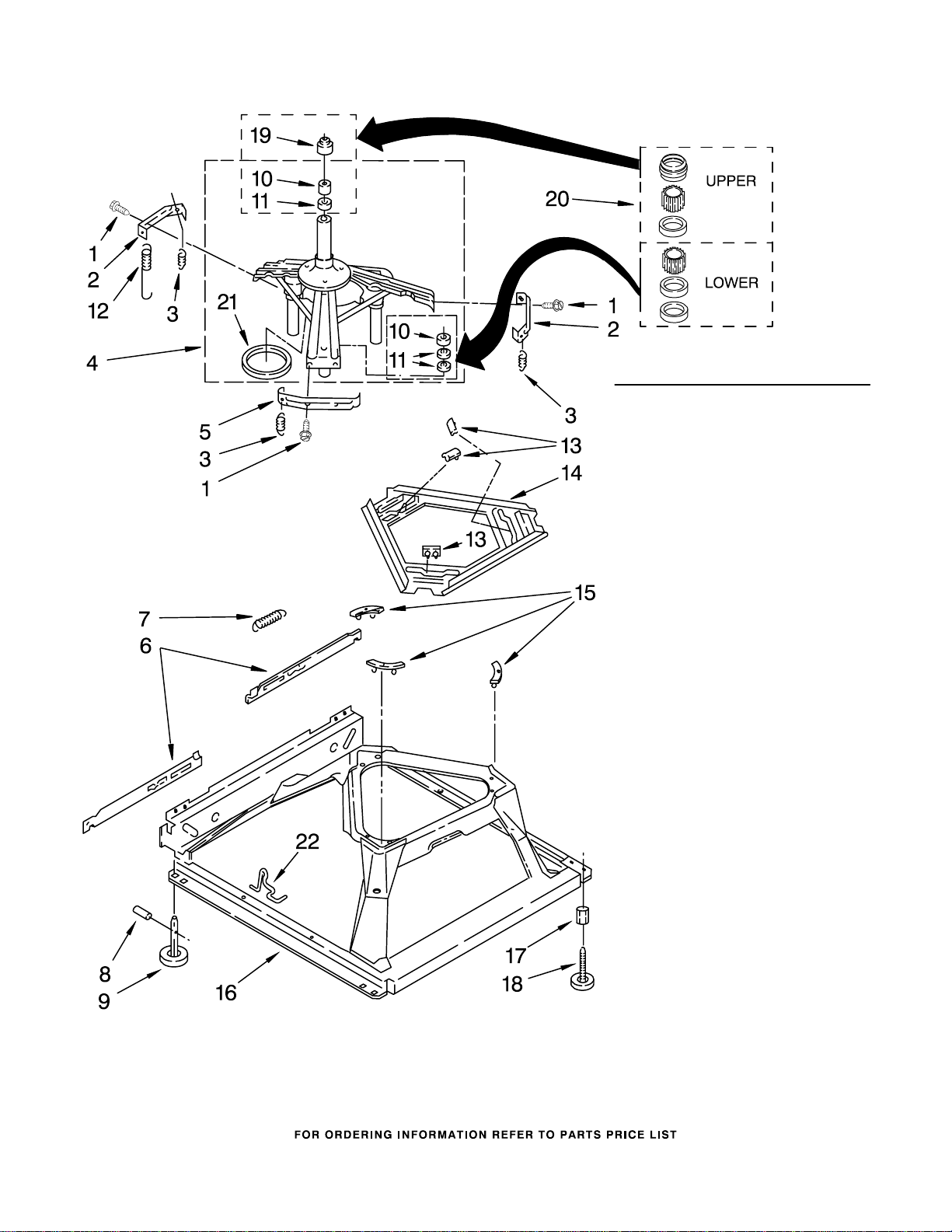

MACHINE BASE PARTS

For Model: NTW4500VQ1

(White)

W10239510

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 8534035 Spring,

Counterweight

(Must Be Ordered

When Replacing

Drive Motor)

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14,

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

W10001130

Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

W10145155

Retainer,

Suspension Spring

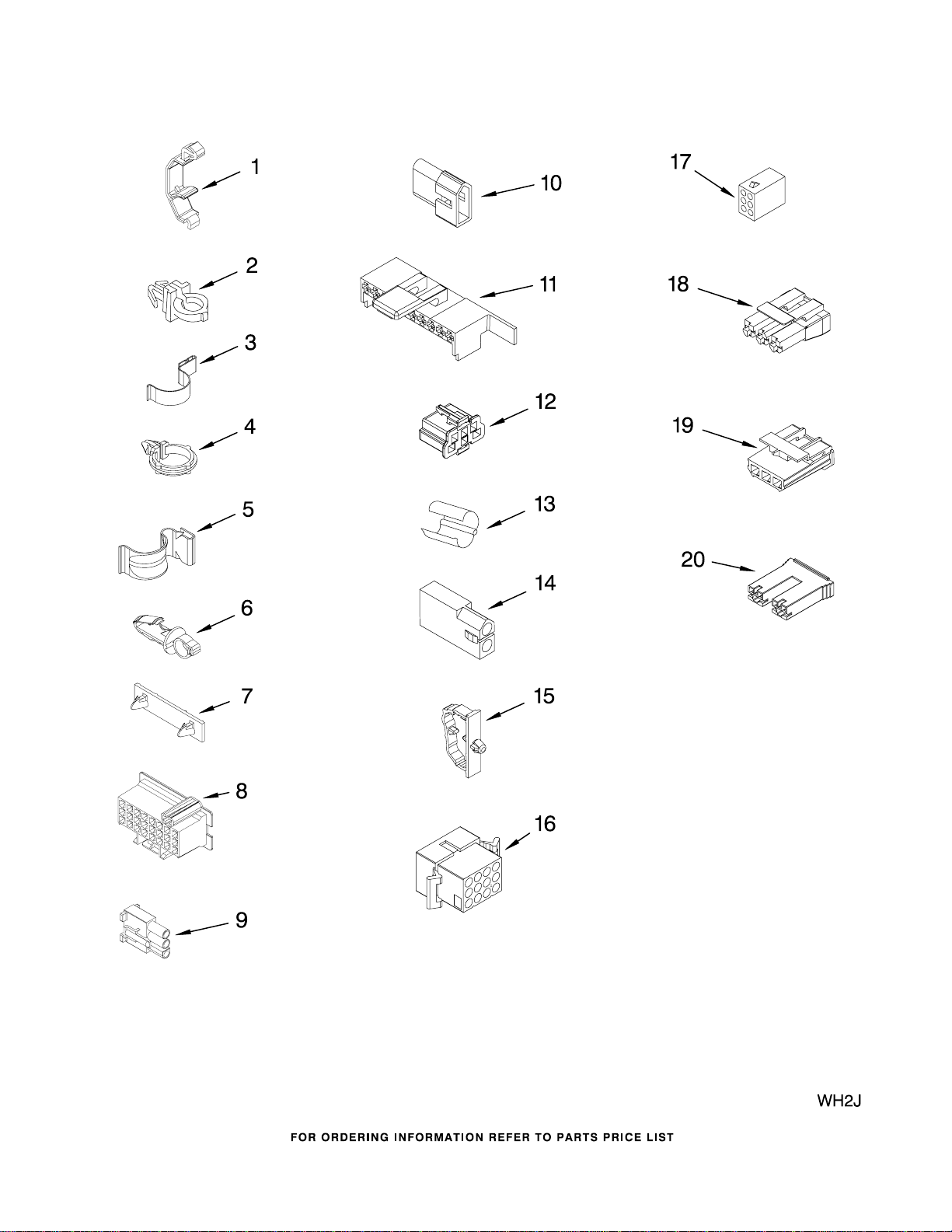

WIRING HARNESS PARTS

For Model: NTW4500VQ1

(White)

W10239510

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Model: NTW4500VQ1

(White)

W10239510
