Amana NTW5100TQ2 User manual
1
TOP AND CABINET PARTS
For Model: NTW5100TQ2
(White)
11−08 Litho in U.S.A. (drd) (eeb) Part No. W10239480 Rev. A
AUTOMATIC
WASHER
TOP AND CABINET PARTS
2
For Model: NTW5100TQ2
(White)
W10239480
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
Installation
Instructions
W10200331
English/French
W10200662
Spanish
Use & Care Guide
W10192187
English/French
W10192188
Spanish
Feature Sheet
W10192181
English/French
W10192182
Spanish
W10192186
Energy Guide
W10201449
Wiring Diagram
2 8318068 Top
3 62750 Spacer, Cabinet To
Top (4)
4 357213 Nut, Push−In (2)
5 63424 Cabinet
6 62780 Clip, Top & Cabinet
& Rear Panel (2)
7 9724509 Bumper, Lid (2)
8 3351614 Screw, Ground
9 8318084 Switch, Lid
10
W10119872
Screw, Lid Hinge
Mounting (4)
11 8318088 Hinge, Lid (L.H.)
12 54583 Hinge, Lid (R.H.)
13 19119 Bumper, Lid Hinge
14 8541774 Lid
15 21258 Bearing, Lid
Hinge (2)
16 3390631 Screw,
10−16 x 3/8 (4)

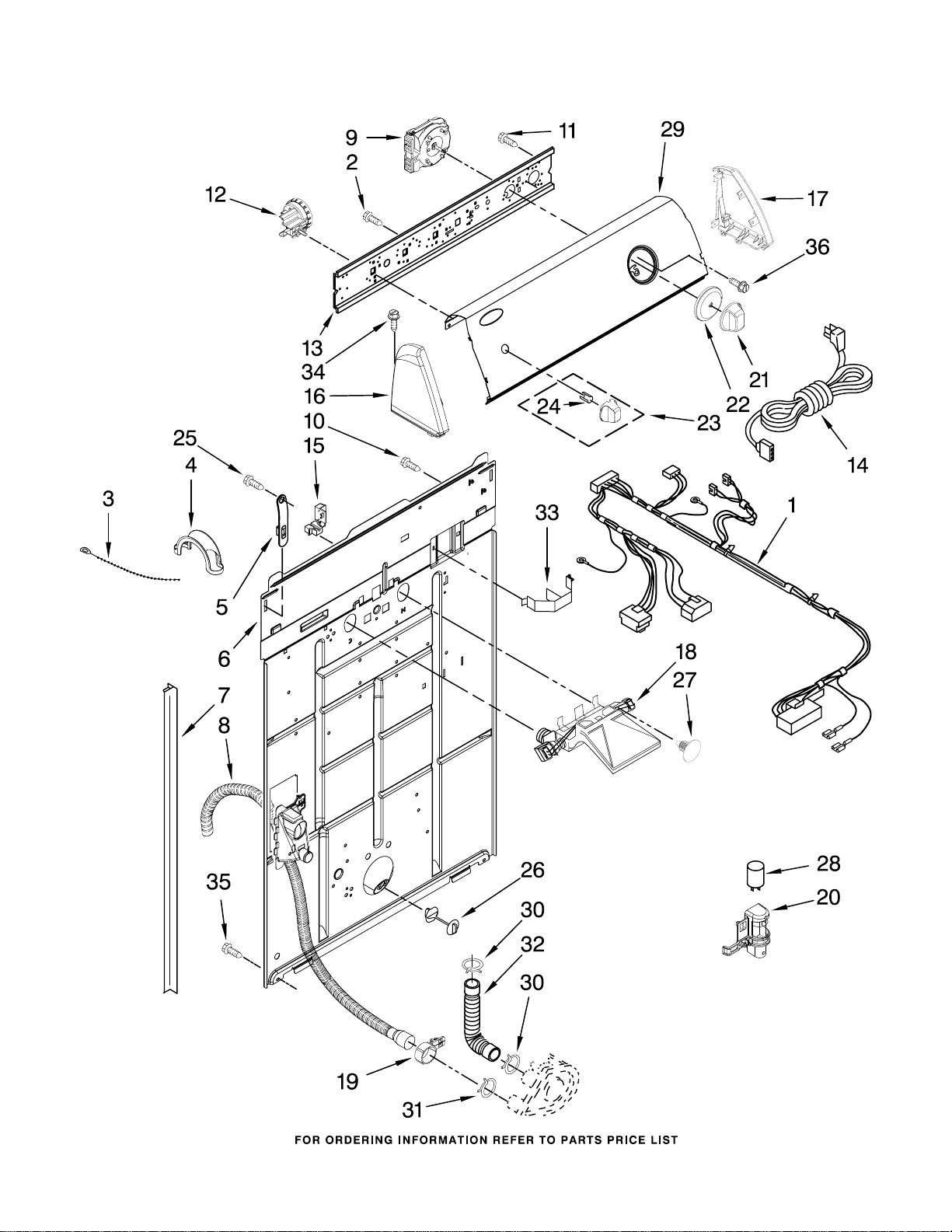

CONTROLS AND REAR PANEL PARTS
3
For Model: NTW5100TQ2
(White)
W10239480
CONTROLS AND REAR PANEL PARTS
4
For Model: NTW5100TQ2
(White)
W10239480
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10222605
Harness, Wiring
(For Detail See
Pages 9 & 10)
2 3400073 Screw, Ground
3 3347868 Cable Tie
4 8577378 U−Bend,
Drain Hose
5 8568314 Strap, Console (2)
6
W10194450
Panel, Rear
7 62747 Pad, Rear Panel
8
W10189267
Drain Hose
Assembly
(Includes Item 19)
9
W10201447
Timer, Control
(60 Hz.)
(Motor Not A
Service Part)
10 3351614 Screw, Ground
11 90767 Screw, 8−18 x 3/8
12 8577845 Switch, Water Level
13 3948608 Bracket, Control
14 8578842 Cord, Power
(Includes Item 15)
15 3952821 Strain Relief,
Power Cord
16 8271365 Cap, End (L.H.)
17 8271359 Cap, End (R.H.)
18
W10140918
Valve, Water Inlet
W/Vacuum Break
19 8541668 Clamp, Hose
20 8318046 Clip, Capacitor
21
W10110045
Knob, Timer
22
W10110046
Dial, Timer
23
W10110047
Knob, Control
24 8536939 Clip, Knob
25 9740848 Screw, 8−18 x 1/2
26 8519200 Support, Rear
Panel
27
W10000080
Clip, Push−In
Retainer
28 8572717 Capacitor,
Motor Start
29
W10192129
Panel, Console
30 3363366 Clamp, Hose
31 8317496 Clamp, Hose
32 3951449 Hose, Pump To Tub
(Includes Item 30)
33 8055003 Clip, Harness
& Pressure Hose
34 388326 Screw, 8−18 x 1.25
(Panel To Top)
35 62863 Screw, 10−16 x 3/8
36 3400818 Screw, Timer
Mounting

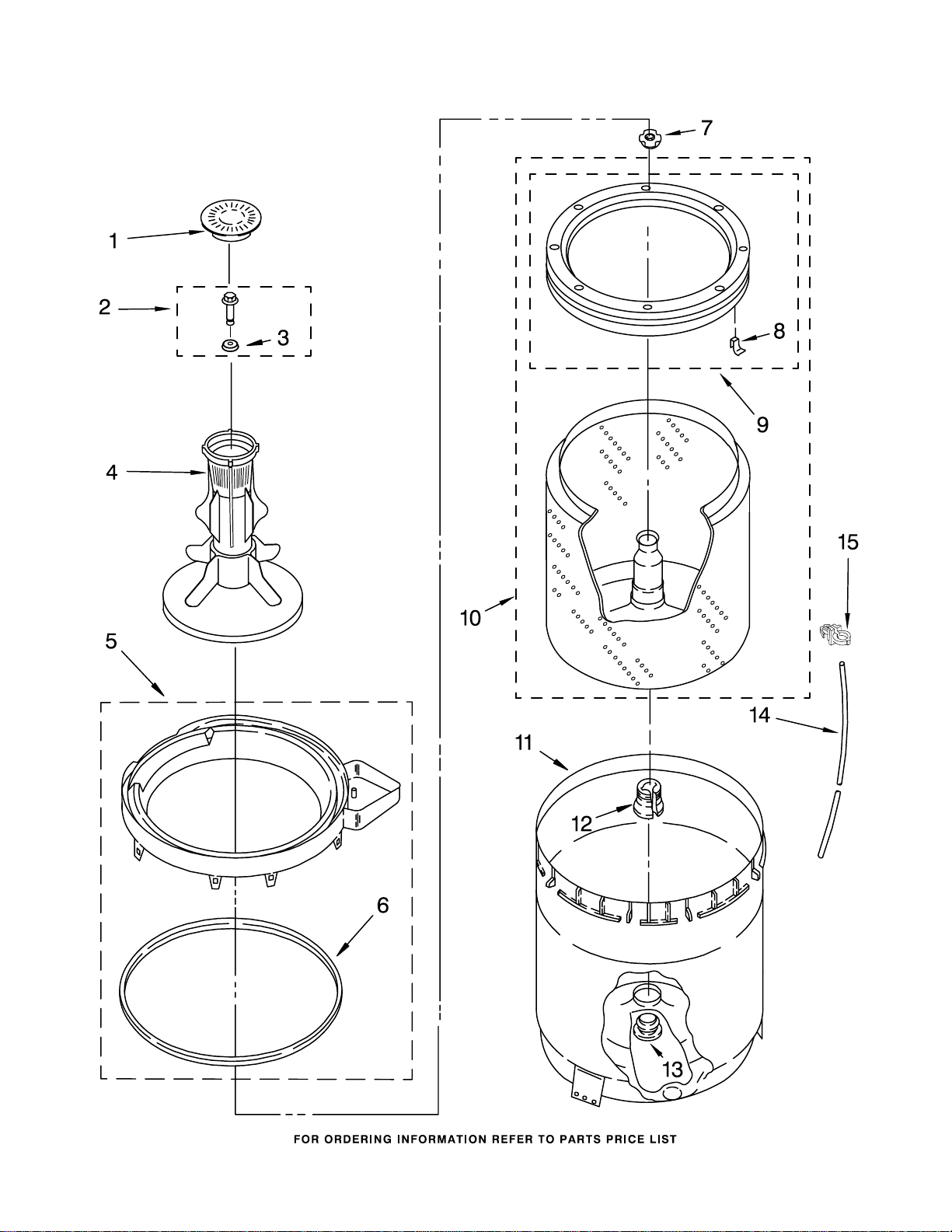

AGITATOR, BASKET AND TUB PARTS
5
For Model: NTW5100TQ2
(White)
W10239480
6
AGITATOR, BASKET AND TUB PARTS
For Model: NTW5100TQ2
(White)
W10239480
Illus. Part
No. No. DESCRIPTION
1 3352483 Cap, Agitator
2 358237 Screw & Washer
(5/16−24 x 1)
3 3949550 Washer
4 63377 Agitator
5 3360611 Tub Ring & Gasket
6 3359586 Gasket, Tub Ring
7 21366 Nut, Spanner
8 8519815 Clip, Balance
Ring (8)
9 3956205 Balance Ring
10 3956206 Basket & Balance
Ring
11 63125 Tub
12 389140 Block, Basket
Drive
13 383727 Gasket, Centerpost
14 3347780 Hose, Pressure
Switch
15 2219077 Clip, Pressure
Switch Hose
7

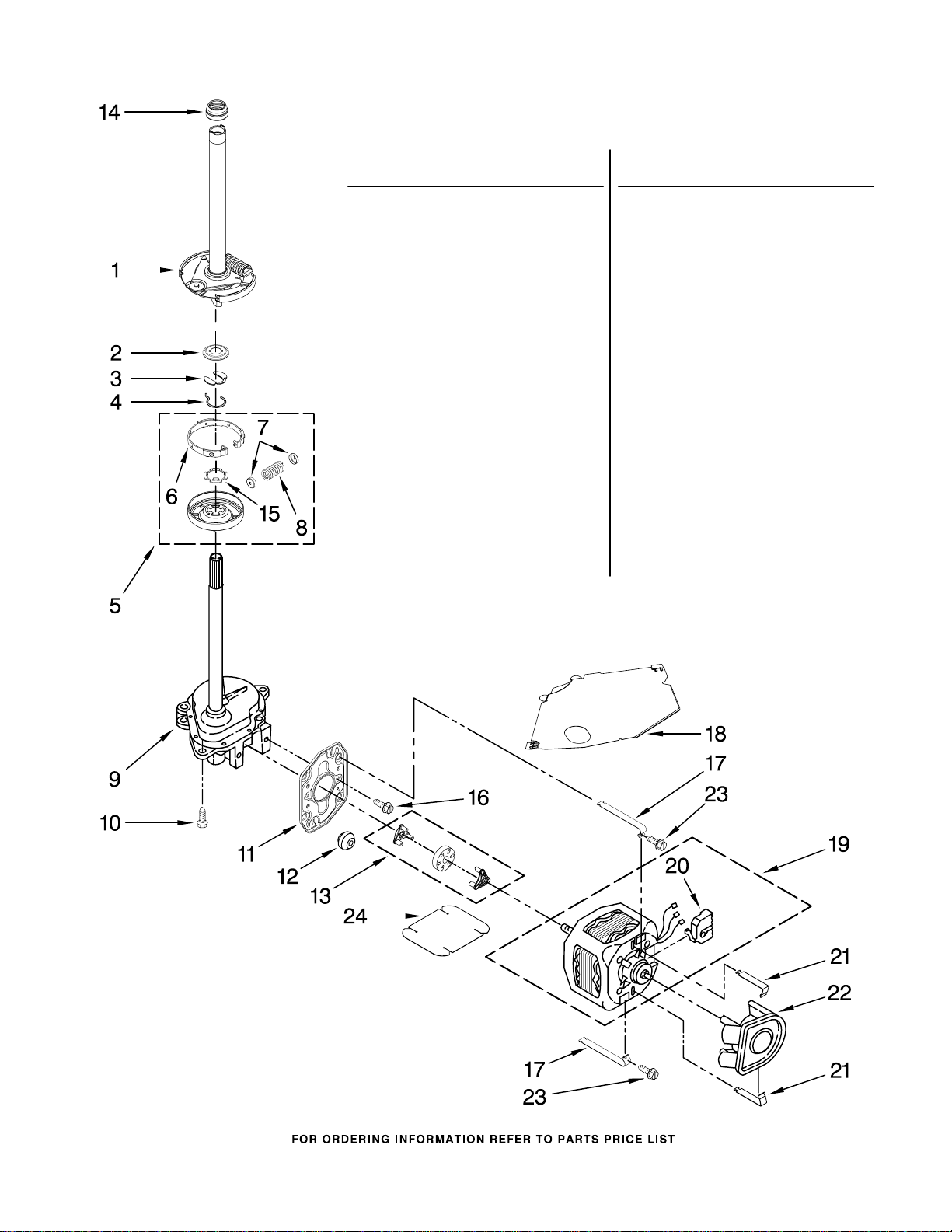

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
For Model: NTW5100TQ2
(White)
W10239480
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 388951 Brake & Drive
Tube (Complete)
(Refer to Page 11
For Further
Breakdown)
2 63292 Washer, Spin
Tube Thrust
3 62697 Ring, Spin
Tube Support
4 63283 Ring, Retainer
5 3951311 Clutch (Complete)
6 3951308 Band & Lining,
Clutch (Includes
Items 7 & 8)
7 62646 Cap, Clutch
Spring (2)
8 3946792 Spring, Clutch
9 3360630 Gearcase
(Complete)
(Refer To Page 12
For Further
Breakdown)
10 3357334 Screw, Gearcase
To Base (3)
11 62611 Plate, Motor
Mount To
Gearcase
12 62691 Grommet, Motor (4)
13 3364003 Coupling, Motor
& Isolation
14 8577374 Seal
15 3355454 Clip,
Anti−Rattle
16 3400516 Screw
17
W10086010
Retainer, Motor (2)
18 3362089 Shield, Tub
To Motor
19 8528158 Motor, Main
Drive (Spring
P/N 388492 Must
Be Ordered When
Replacing Motor)
20 3952056 Switch, Main
Drive Motor
21 8546127 Retainer, Pump (2)
22 3363394 Pump (Complete)
23 3387485 Screw, 10−16 x 5/8
24 3946532 Shield, Motor

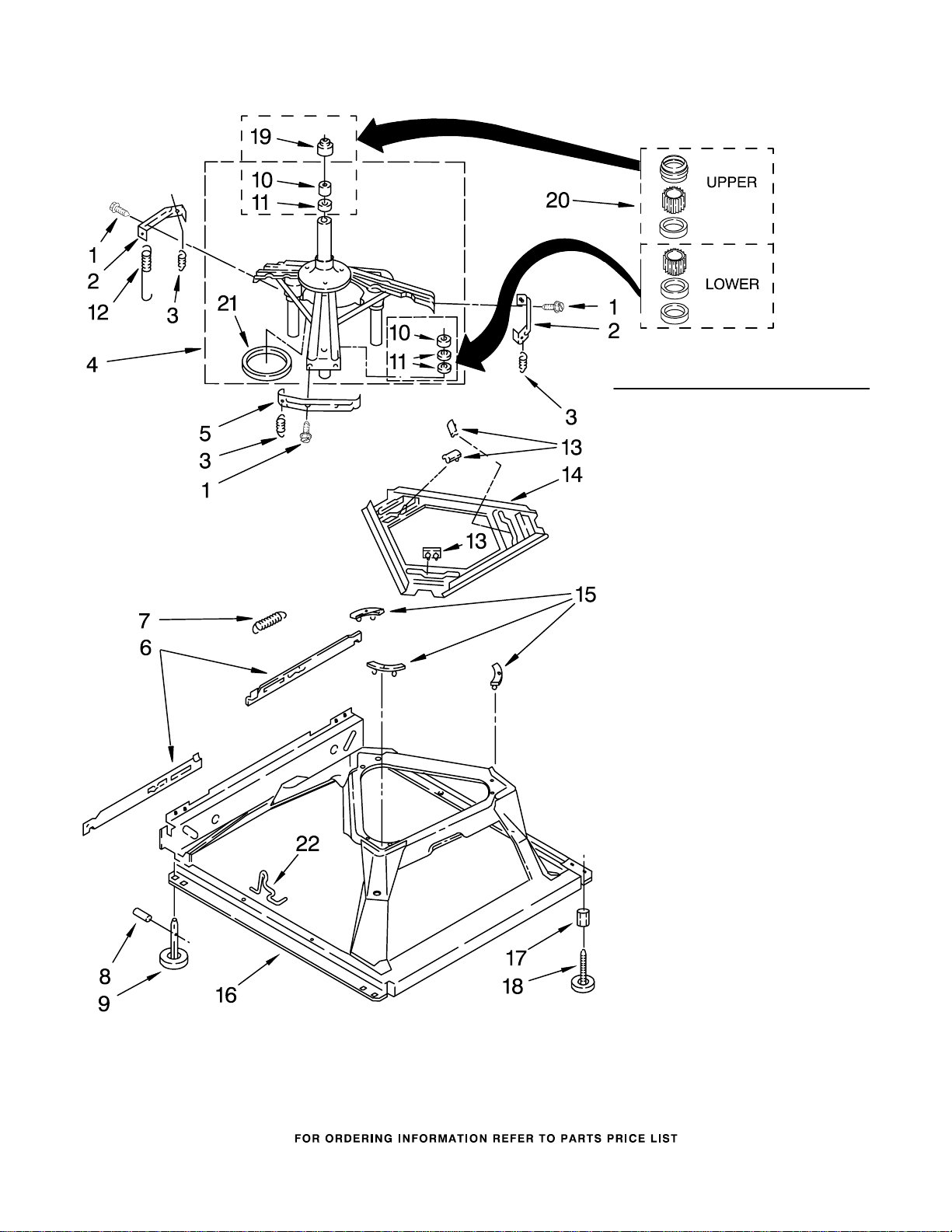

MACHINE BASE PARTS
8
For Model: NTW5100TQ2
(White)
W10239480
Illus. Part
No. No. DESCRIPTION
1 3400076 Screw, Bracket
Mounting
(10−32 x 5/8)
2 64067 Bracket, Spring
Outer (2)
3 63907 Spring
Suspension,(3)
4 8575214 Support & Brake,
Tub
5 64065 Bracket, Spring
Outer (L.F.)
6 63466 Link, Leveling
Mechanism (2)
7 62597 Spring, Leveling
Mechanism
8 62837 Pin, Knurled
9 62596 Foot, Rear (2)
10 8546455 Bearing,
Centerpost (2)
11 357409 Seal, Centerpost (3)
12 8534035 Spring,
Counterweight
(Must Be Ordered
When Replacing
Drive Motor)
13 62568 Pad, Plate
14 3946509 Plate, Suspension
(Includes Item 13)
15 3363660 Pad, Base
16 3946512 Base Assembly
(Includes Items 6,
7, 8, 9, 13, 14,
15 & 22)
17 3359452 Nut, Lock (2)
(3/8−16)
18
W10001130
Foot, Front (2)
19 8577376 Seal, Centerpost
20 285203 Centerpost
Bearing Kit
(Includes Items
10, 11 & 19)
21 63134 Ring, Sound
Deadening
22
W10145155
Retainer,
Suspension Spring
WIRING HARNESS PARTS
9
For Model: NTW5100TQ2
(White)
W10239480
WIRING HARNESS PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3349557 Retainer, Harness
2 388498 Clip, Harness
3 3347812 Clip, Harness
4 3352501 Clip, Harness
(Push−In)
5 90016 Clip, Harness
(Half−Harness)
6 3390496 Clip, Harness
7 389379 Retainer, Harness
8 Timer, Block
Disconnect
3948614 Natural
352089 Black
9 62889 Receptacle,
Terminal
(3−Way)
10 353424 Plug, Terminal
(3−Way)
11 62505 Block, Disconnect
(Motor 2 Speed)
12 3347243 Block, Disconnect
13 63523 Protector
14 717252 Connector
(2−Way)
15 3352944 Clip, Harness
16 3390423 Block, Disconnect
(12−Way)
17 3347730 Receptacle
(6−Way)
18 3948617 Connector (T.P.A.)
(3−Circuit)
19 3360056 Plug (T.P.A)
(3−Circuit)
(Pressure Switch)
20 Block, Connector
3354925 Natural
3354926 Red
FOR COMPLETE WIRING HARNESS REFER TO
CONTROL AND REAR PANEL PARTS PAGE
10
For Model: NTW5100TQ2
(White)
W10239480
