DMS 70 Service Manual General Information

1/12

DMS 70

Service Manual

09/13

AKG Service Department

Lemböckgasse 21-25

A-1230 Wien, Austria

Phone: (+431) 86654-0

Fax: (+431) 86654-1514

e-mail: service@akg.com

AKG Acoustics GmbH A-1230 Wien,

Lemböckgasse 21-25,

Tel.: +43-1-866 54-0,

Fax: +43-1-866 54-8800

www.akg.com

DMS 70 Service Manual General Information

2/12

Table of contents:

Last modification :

Add DSM70 Dual

Add antenna wdge pos 31

The complete DSM 70 family

Die komplette DMS 70 Familie

DHT 70 Digital handheld transmitter

DHT 70 Digitaler Handsender

DPT 70 Digital bodypack transmitter

DPT 70 Digitaler Taschensender

DSR 70 Digital stationary receiver

DSR 70 Digital Empfänger

DSR 70 Dual Digital stationary receiver

DSR 70 Dual Digital Empfänger

DMS 70 Service Manual General Information

3/12

DPT 70

Digital bodypack

transmitter

DHT 70

Digital handheld

transmitter

Frequency range, Mhz,

2,4Ghz

Power supply :

Quattro, SMPS 12V/2A p/n 7801H00110

Dual, SMPS 12V/0,5A p/n 7801H00130

Website links:

User manual (PDF, 4,55 MB)

Quick Start Guide (PDF, 3,61 MB)

Cut sheet (PDF, 2,12 MB)

DSR 70

Digital stationary

receiver

DSR 70 DUAL

Digital stationary

receiver

DMS 70 Service Manual DHT 70

4/12

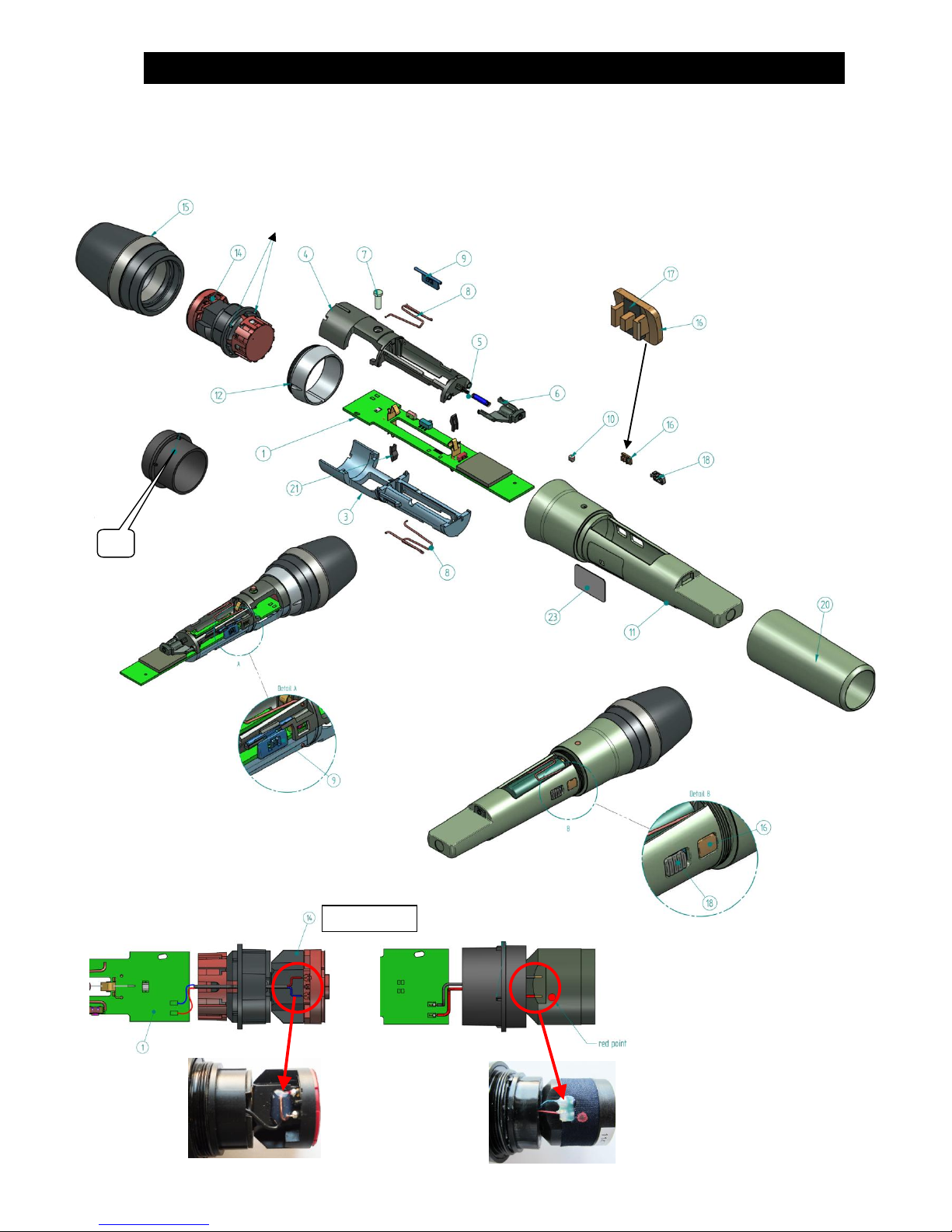

DHT 70 3257Z00010

DHT 70 P 3357X00010

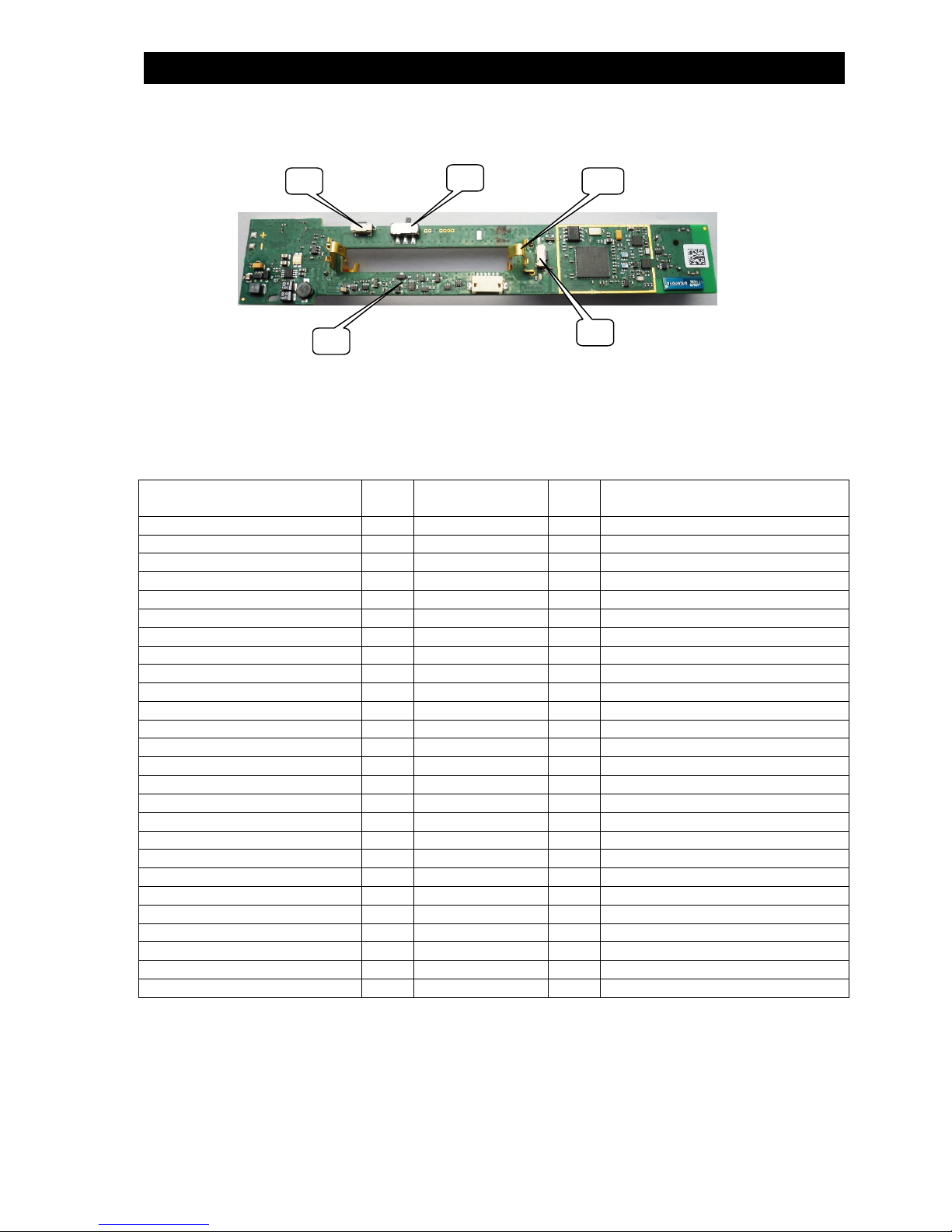

DHT70 wiring

Capsule secured with Loctite 480

DHT70 wiring

D5 capsule

Perception

capsule

DMS 70 Service Manual DHT 70

5/12

DHT 70 Parts list / Stückliste

Description

Pos.

Part number

Bestellnummer

Quantity

Stück

Bezeichnung

Mainboard

3257M01010

Print kompl.

Cage bottom

3257Z01020

Käfig Unterteil

Cage top

3257Z01030

Käfig Oberteil

Spring D-016D-1

9999N07840

Feder D-016D-1

On/Off button

3257Z01040

On/Off Knopf

Lightguide Cage Top

3257Z01050

Lichtleiter, Käfig Oberteil

Battery holder

3257Z01060

Batteriehalter

Slider

3257Z01070

Schieber

Light guide housing

3257Z01080

Lichtleiter, Gehäuse

Housing compl. (incl. 10,12)

3257M90010

Gehäuse kompl. (inkl. 10, 12)

Capsule assy. D5

2610Z00060

Kapsel kompl. D5

Capsule assy. (only for Perception)

1400M40010

Kapsel kompl. D5 (nur für Perception)

Wire mash cap

3157M12040

Gitterkappe

Wire mash cap (only for Perception)

3157M12050

Gitterkappe (nur für Perception)

Connect button*

3257Z01120

Connect Knopf*

Foam connect button

3257Z01160

Schaumeinlage, Connect Knopf

Gain button

3257Z01130

Gain Knopf

Sleeve

3257Z01140

Hülse

Battery contact support

3257Z40010

Kontaktunterlage

Device sticker

9110U39710

Typenschild

SMD side type slide switch

9040E00060

SMD Schiebeschalter

SMD side type push switch

9040E00110

SMD Druckschalter

Battery contact

3257Z01150

Batteriekontakt

Capsule bearing(only for Perception)

3357Z10010

Kapsellager (nur für Perception)

SA63 stand adapter

6001H63050

SA63 Stativadapter

*Always use a new knob for reassemble the housing.

DMS 70 Service Manual DHT 70

6/12

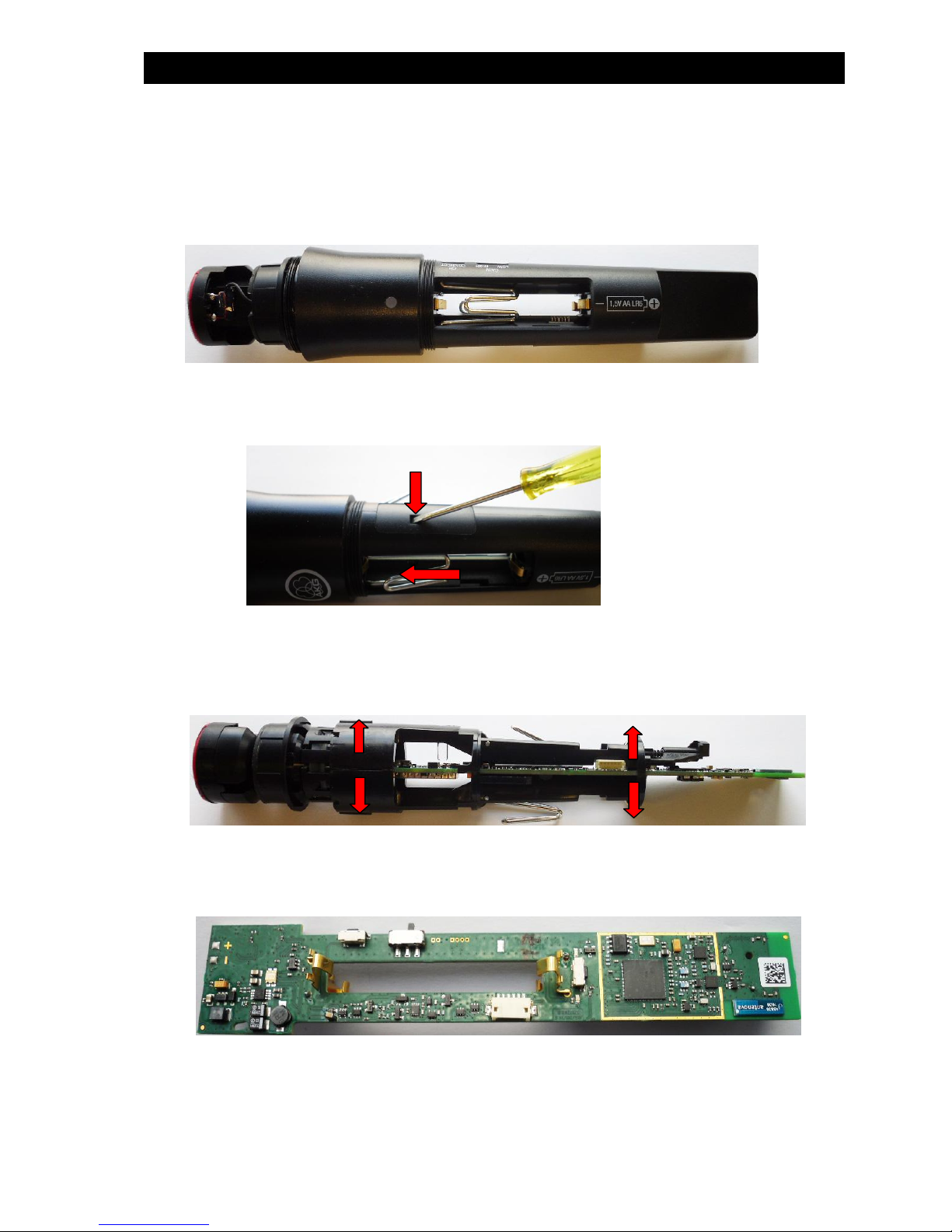

To dismantle the DHT70 proceed as follows:

1. Remove battery sleeve (20), wire mesh cap (15), connect button (16),

gain button (18), and device sticker (23);

2. Open locking mechanism with small screw driver. Push inside cage out of the housing.

3. Remove cage bottom (3) and top (4) and unsolder capsule wires.

4. Mainboard

DMS 70 Service Manual DPT 70

7/12

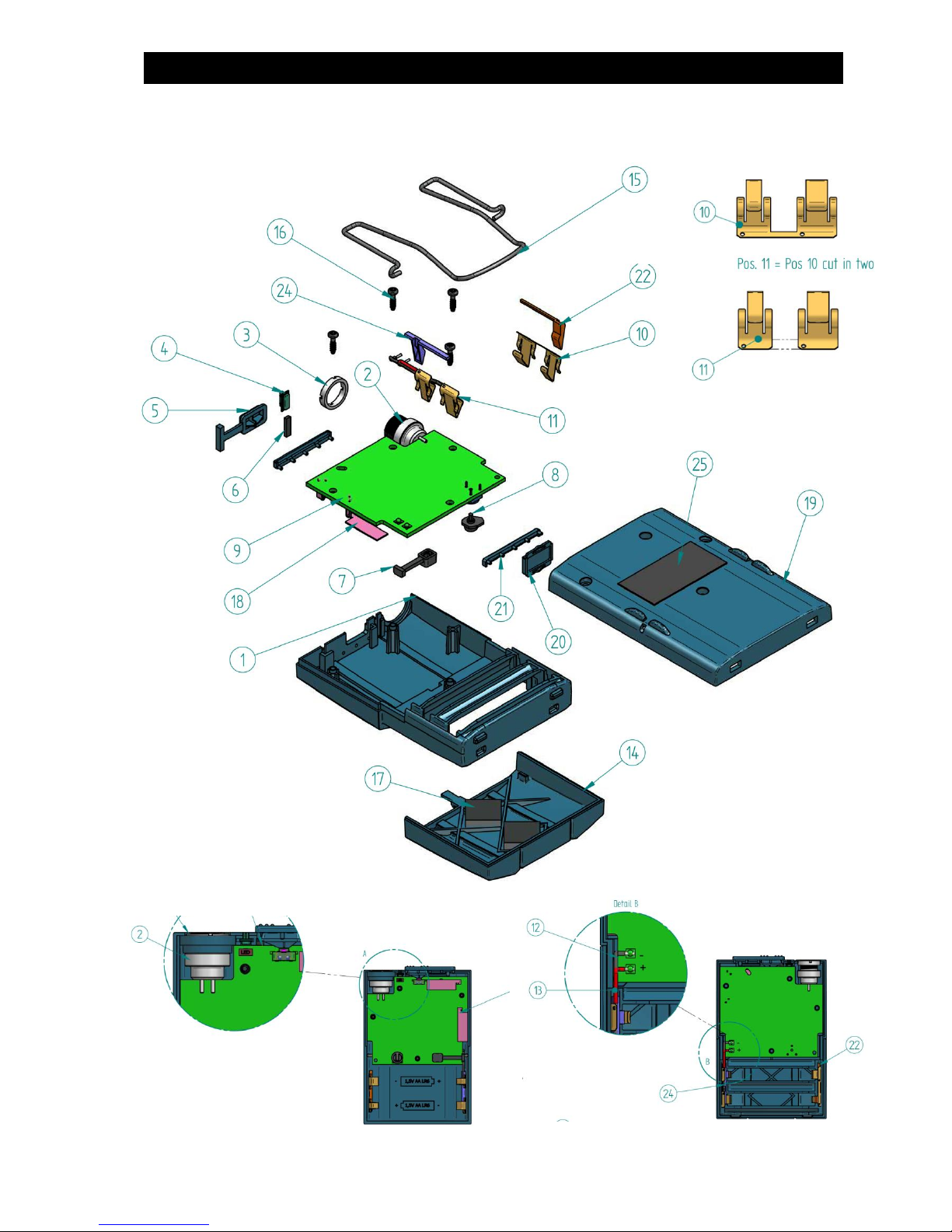

DPT 70 3256Z00010

DMS 70 Service Manual DPT 70

8/12

DPT 70 Parts list / Stückliste

Description

Pos.

Part number

Bestellnummer

Quantity

Stück

Bezeichnung

Housing top

3256Z10010

Gehäuse Oberteil

Mini XLR

0016E18290

Mini XLR Buchse

Nut groove

2781Z20020

Mutter

Light guide

3256Z13010

Lichtleiter

On/Off button

3256Z14010

On/Off Knopf

Foam

3256Z31010

Schaumeinlage

Connect button

3256Z12010

Connect Knopf

Gain control knob

3256Z21010

Gain Drehknopf

Mainboard compl.

3256M01010

Print kompl.

Battery contact

10/11

3256Z20010

Batteriekontakt

Battery contact support right

3256Z40010

Kontaktunterlage links

Battery contact support left

3256Z41010

Kontaktunterlage rechts

Battery cover

3256Z17010

Batteriedeckel

Belt clip

3156Z25010

Gürtelspange

Screw EjotPTKB 22x10

0099N22020

Schraube EjotPTKB 22x10

Foam

3256Z26010

Schaumeinlage

Antenna

3256Z30010

Antenne

Housing bottom

3256Z18010

Gehäuse Unterteil

Cover

3256Z33010

Abdeckung

Guide

3256Z32010

Schienen für Abdeckung

Device sticker

9110U39700

Typenschild

Potentiometer, 20kOhm

0021E05980

Trimmpoti

SMD side type push switch

9040E00110

SMD Tastschalter

SMD tact switch

9040E00150

SMD Tastschalter

DMS 70 Service Manual DSR70

9/12

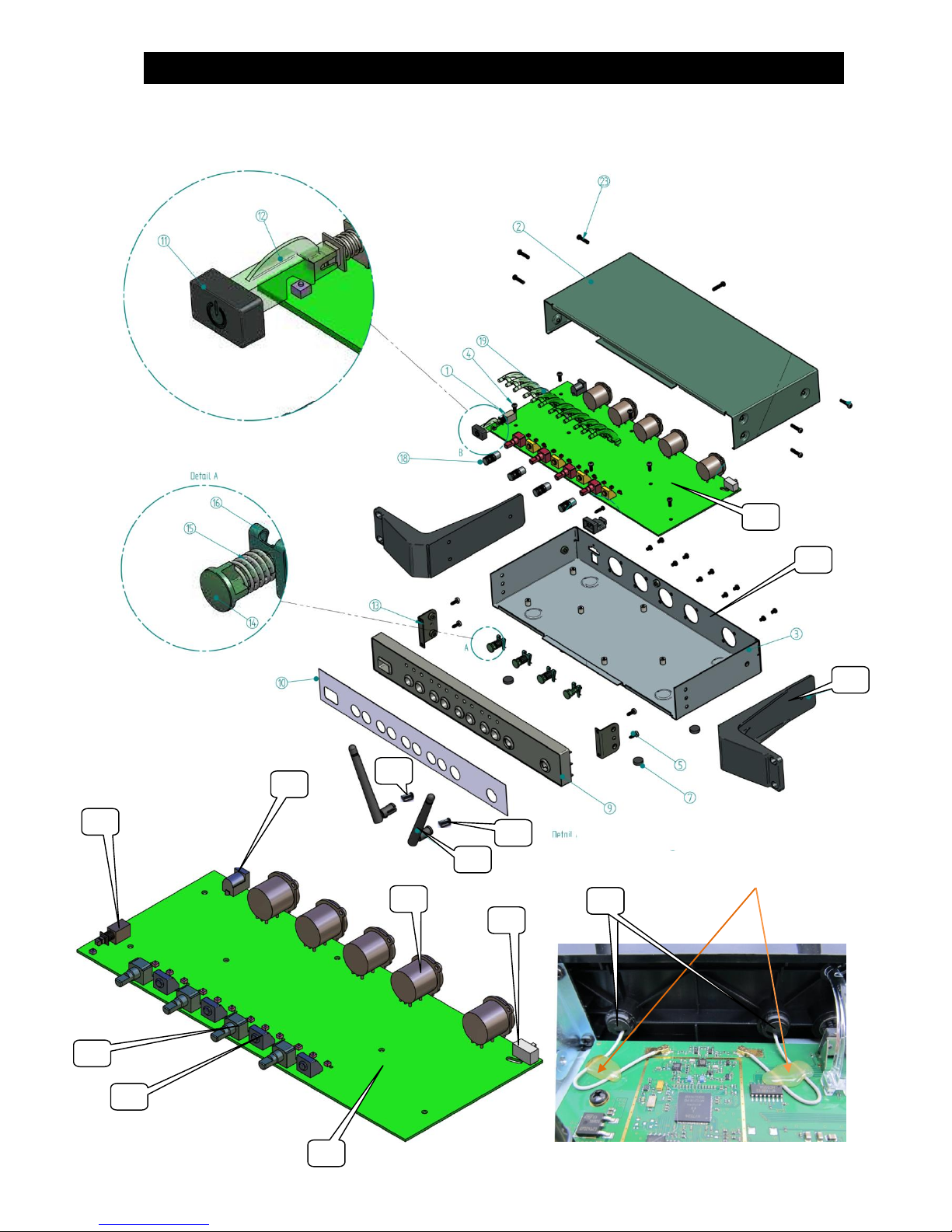

DSR 70 3255H00010

Antenne cable secured with hot melt

3131

DMS 70 Service Manual DSR70

10/12

DSR 70 Parts list / Stückliste

Description

Pos.

Part number

Bestellnummer

Quantity

Stück

Bezeichnung

Main board

3255M01010

Print kompl.

Housing top

3255Z10010

Gehäusedeckel

Housing bottom assy

3255M02010

Gehäuse Unterteil

Screw M3x8

7985D30040

Schraube M3x8

Screw EJOT PT DG 30x8

0099N30180

Schraube EJOT PTDG 30x8

Screw M3x15

7985D30010

Schraube M3x15

Housing foot

9999N06930

Gehäusefuß

Antenna

9999N07890

Antenne

Front

3255Z13010

Frontteil

Front foil

3255Z11010

Frontfolie

On/Off button

3255Z12010

On/Off Knopf

Lightguide (On/Off button)

3255Z14010

Lichtleiter (On/Off Knopf)

Angle assy

3255M03010

Winkel

Push button

3255Z15010

Druckknopf

Spring

9999N07850

Feder

Bossard clip

9999N07900

Sicherungsclip

Rack Mount

3255Z16010

Rack Winkel

Knob

3255Z17010

Knopf

Light guide status

3255Z19010

Lichtleiter

Washer

0125D03200

Scheibe

Strain relief

2889Z21010

Zugentlastung

Screw EJOT PT KB 25x6

0099N25030

Schraube EJOT PT KB 25x6

Washer

0128D03000

Scheibe

Device sticker

9110U39690

Typenschild

On/Off switch

0040E02180

ON/Off Schalter

Potentiometer, 10kOhm

0021E06000

Potentiometer, 10kOhm

Push button switch

0040E06520

Druckschalter

Slide switch 3pos

0040E01990

Schiebeschalter

3p DC Jack socket 6,4mm

0016E03730

3p DC-Buchse 6,4mm

XLR-socket

0016E03690

XLR-Buchse

Wedge for Antenna

5031647

Keil für Antenne

Power supply 12V/2A

7801H00110

Netzteil 12V/02A
