Akai APD707 User manual
APD707 Manual
Index
1. Intended use
2. Safety
o2.1. Labels in this manual
o2.2. General safety instructions
3. Preparations for use
o3.1. Unpacking
o3.2. Package contents
4. Installation
o4.1. Connections
o4.2. Connecting to the mains
o4.3. Positioning the system
o4.4. Change the battery
5. Functions
o5.1. Remote control
o5.2. APD707 Portable DVD
6. Operation
o6.1. Turning the device on and off.
o6.2. General setup menu operation
o6.3. DVD/CD functions
o6.4. USB functions
7. Cleaning and maintenance
o7.1. Handle and care of a disc
8. Technical data
9. Disposal of used electrical and electronic equipment
1.Intended use
The appliance functions as a portable media player. The screen of the appliance can be
folded up and down as well as rotated. This appliance lets you open music files (MP3/WMA),
video files (MPEG-4) and photo files (JPEG). These files can be accessed via DVD, CD and
USB. The appliance contains a built-in rechargeable battery.
Read the manual carefully before the first use.
2.Safety
2.1. Labels in this manual
WARNING A warning means that injury or death is possible if the instructions are not
obeyed.
CAUTION A caution means that damage to the equipment is possible.
A note gives additional information, e.g. for a procedure.
2.2. General safety instructions
This appliance employs a laser system. To prevent direct exposure to the laser beam, do not
open the appliance. Visible laser radiation when open and interlock defeated.
WARNING Do not put force on the appliance. The appliance can fall and can cause serious
injury.
CAUTION Do not block the ventilation holes.
CAUTION Do not expose the appliance to direct sunlight.
CAUTION Do not spill any liquid on the appliance.
3.Preparations for use
3.1. Unpacking
Unpack the appliance carefully.
Check the package contents as described below. If any item is missing, please contact
your reseller.
We recommend that you retain the original carton and packing materials in case it ever
becomes necessary to return your product for service. This is the only way to safely protect
the product against damage in transit. If you do dispose of the carton and the packing
materials, please remember to recycle with due care to the environment.
3.2. Package contents
The following items are included in the received package:
1 x APD707 Portable DVD
1 x Remote control
1 x Button cell
1 x Quick start guide
1 x 12V Car adapter
1 x A/V cable
NOTE: the button cell battery has already been inserted in your remote control
If any item is missing, please contact your reseller.
4.Installation
4.1. Connections
1. USB 2.0 slot
2. Headphone jack
3. AV OUT input
4. DC IN input
4.2. Connecting to the mains
Connect the female plug of the AC adapter to the DC IN jack
Connect the mains plug to a wall socket.
4.3. Positioning the system
Open the display
Rotating the screen
4.4. Change the battery
Remote control
Pull out the battery holder
Insert 1 lithium battery, type CR2025 3V battery
When inserting the battery observe the (+) and (-) polarity markings.
Insert the battery tray into the remote control.
5.Functions
5.1. Remote control
1. SEARCH button
2. ZOOM button
3. Digit buttons
4. ANGLE button
5. SUBTITLE button
6. TITLE button
7. ENTER button
8. Arrow buttons
9. SETUP button
10. AB button
11. REPEAT button
12. PROGRAM button
13. DISPLAY button
14. MUTE button
15. SOURCE button
16. STEP button
17. AUDIO button
18. MENU button
19. STOP button
20. PLAY/PAUSE button
21. RETURN button
22. VOLUME +/- button
23. REVERSE SKIP/FORWARD SKIP button
24. FAST FORWARD/FAST BACKWARD button
5.2. APD707 Portable DVD
1. PLAY/PAUSE, RETURN button
2. SETUP button
3. SOURCE button
4. On / Off key (POWER)
5. Screen
6. PLAY/PAUSE button
7. DVD compartment
8. Navigation button
6.Operation

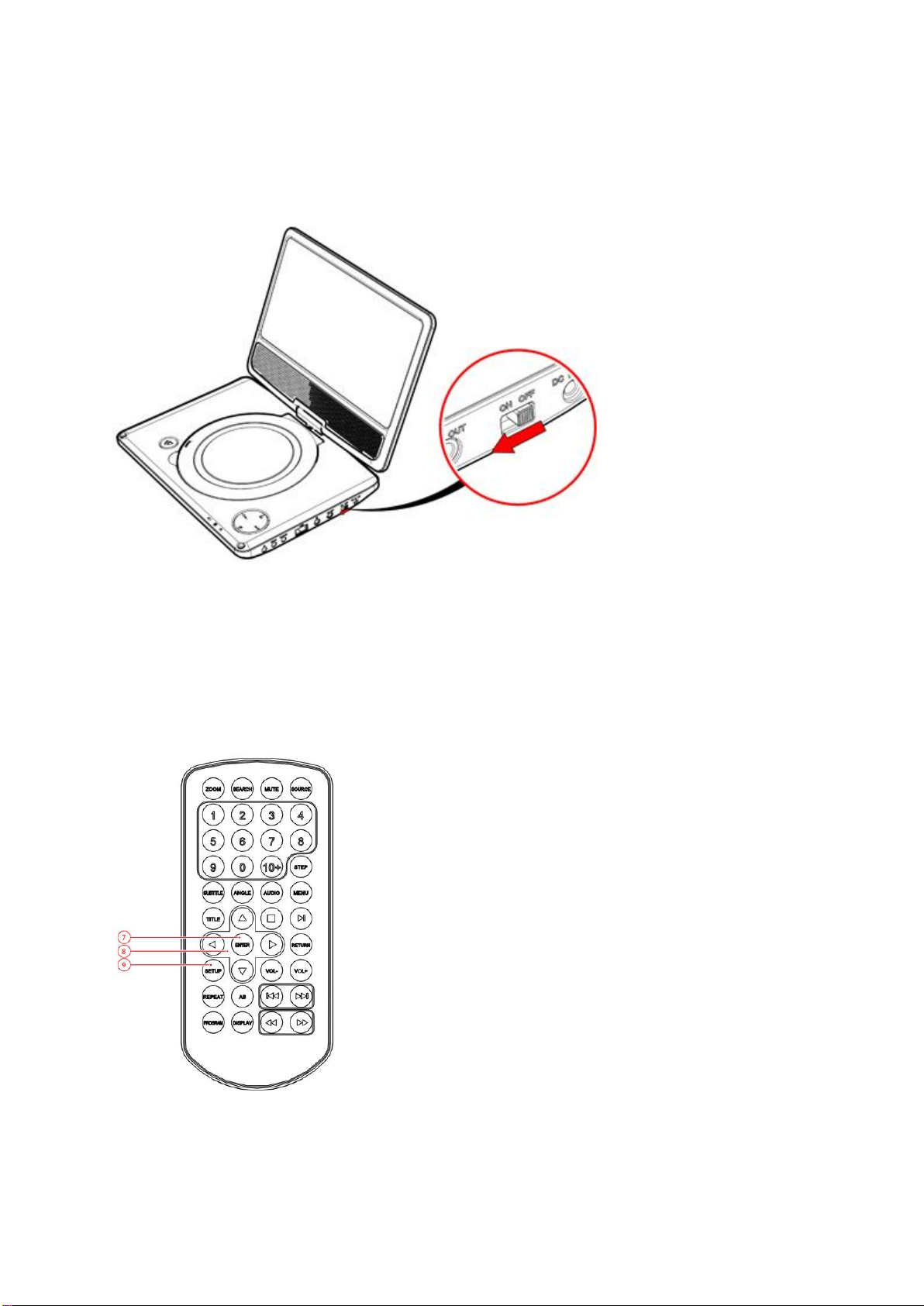

6.1. Turning the device on and off.
Set the switch in the ON position to turn the equipment on.
Set the switch in the OFF position to switch off the device.
6.2. General setup menu operation
This chapter explains a complete setup of the appliance: settings of screen display, audio
setup and video setup.
