Akai AKDVD10 User manual
10.1”Portable
DVD Player
User Manual
MODEL: AKDVD10
2
Welcome
Welcome to AKAI.
This user manual tells you all you need to know about setting up your new product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by AKAI are manufactured to the highest standards of performance and safety
and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive
1Year Warranty.
3
Welcome 2
Product Overview 4
Controls and Connections 5
Remote Control 9
Operation 12
Troubleshooting 21
Specifications 23
Compliance and Responsible Disposal 24
Contents
4 | PRODUCT OVERVIEW
Product Overview
A. 10.1” Portable DVD Player
B. Remote Control
C. AAA Batteries
D. Car Adaptor
E. AC Adaptor
F. AV Cable
G. User Manual
H. Warranty Certificate
I. General Safety Warnings
What’s in the box:
I
CONTROLS AND CONNECTIONS | 5
Controls and Connections
1. LCD screen
2. Speakers
3. Infra-red signal receiver: Accepts
remote control signal.
Left LED Indicator: Red during charging,
green when fully charged.
Right LED indicator: Green when player
is on, red when on standby.
Front view
1
3
2
6 | CONTROLS AND CONNECTIONS
Top view
15
4
5
6
7
8
9
10
11
12
13
14
4. SETUP: Access/exit the System
Setup menu.
5. LCD ON/OFF: Press to turn on/off the
display.
6. / / / : Navigate in the system
menu.
PREV: Skip to the previous title,
chapter, or track.
NEXT: Skip to the next title,
chapter, or track.
REV: Fast rewind.
FWD: Fast forward.
OK: Confirm or enter.
7. MENU: Return to disc main menu in
DVD mode. Set the PBC menu function
on/off in VCD mode.
8. SOURCE: Press repeatedly to cycle
through DVD/AV IN modes.
9. STOP: Stop media playback.
10. PLAY/PAUSE: Play and pause playback.
11. VOL - / VOL + : Decrease/Increase
volume.
12. DVD/USB/CARD: Switch between DVD,
USB and SD Card mode.
13. AUDIO: Press to select different audio
tracks.
14. MUTE: Mute or unmute the sound.
15. OPEN: Push down to open the disc
compartment cover.
CONTROLS AND CONNECTIONS | 7
More on next page.
Side view
16 17 18 19 20 21 22
16 USB
STORAGE
Insert a USB to playback your music and photos.
17 SD Card Slot
STORAGE
Insert a SD/MMC memory card to playback your multi-media
files, including videos, music and photos.
18 Headphone
Jack
SOUND
Connect to your earphones, amplifier or audio device, using
an AUX cable (not included).
16. USB Slot: See below.
1 7. SD Card Slot: See below.
18. Headphone Jack: See below
19. AV OUT Socket: See next page.
20. AV IN Socket: See next page.
21. ON/OFF Switch: Turn ON/OFF
power to the unit completely.
22. DC IN: See next page.
8 | CONTROLS AND CONNECTIONS
19 AV OUT
SOUND
Send the image from the DVD player to aTV screen using
the supplied AV cable.The AV cable must be connected to
an externalTV device and the DVD screen will be off when
viewing from aTV screen.
20 AV IN
SOUND
Send the image from another device to the DVD player using
the supplied AV cable.
22 DC IN
POWER
Connect the supplied AC adaptor or car adaptor to power and
charge the unit.
REMOTE CONTROL | 9
Setup
Insert two AAA size batteries according to the polarity
markings (+ / -) inside the compartment. Make sure
the batteries are correctly aligned and properly
pushed into place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do
not intend to use it for a long time.
• When discarding used batteries, follow any
guidelines for recycling and disposal of batteries
that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them
to extreme heat.
Remote Control
AAA size
batteries
included
1
2
3
10 | REMOTE CONTROL
POWER
VOLUME
1 2 3 +
-
4 5 6
78 9
0/10 10+
MUTE
SOURCESETUP
OK
OSD DVD/USB/SD
LCD ON/OFF
POWER
VOLUME
1 2 3 +
-
4 5 6
78 9
0/10 10+
MUTE
SOURCESETUP
OK
OSD
SUBTITLE STEP STOP TITLE/MENU
ANGLE ZOOM GOTO AUDIO
PROG A-B SLOW REPEAT
DVD/USB/SD
LCDON/OFF

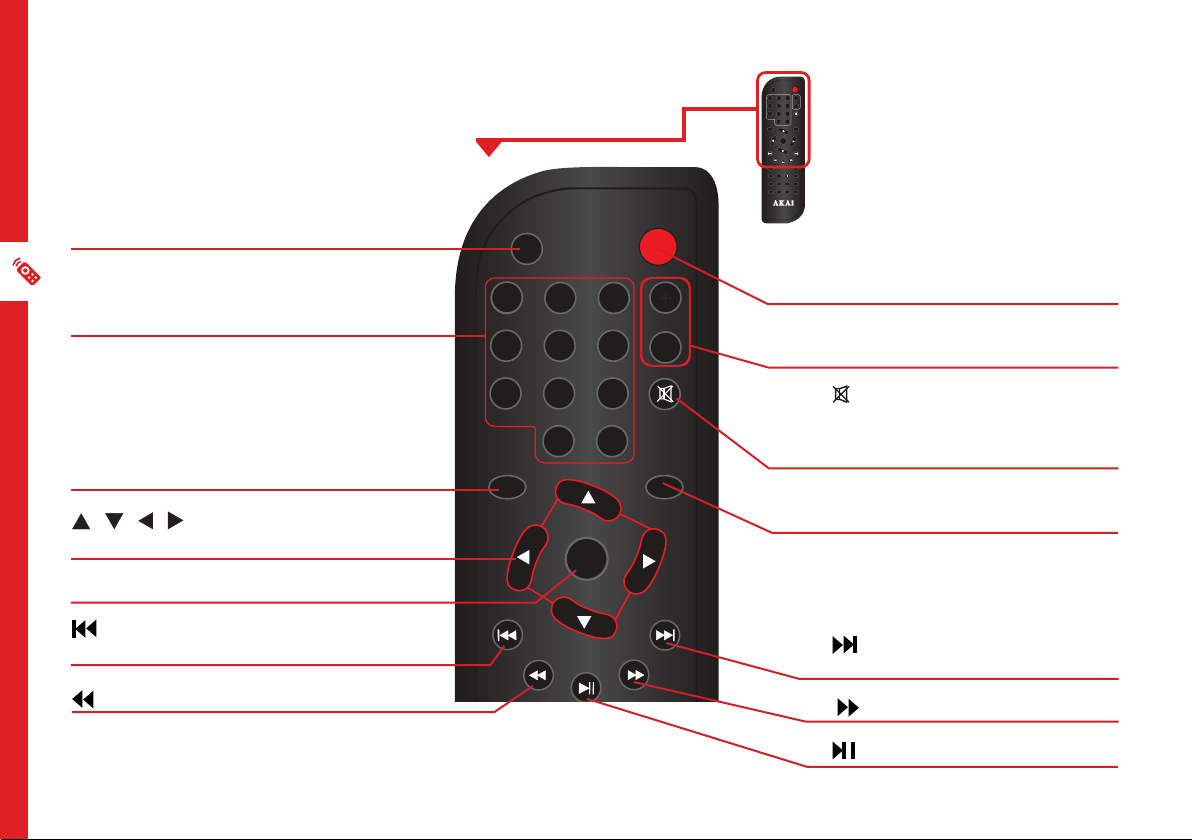

Remote Control
LCD ON/OFF:Turns off the
display while still playing audio
to help save battery life.
NUMBER BUTTONS: Numerical
input to directly access a specific
chapter or track.
SETUP: Access/exit the System
Setup menu.
/ / / : Navigate the
System menu.
OK: Confirm a selection.
: Skip to the previous title,
chapter or track.
: Fast rewind current track.
POWER: Put the DVD Player on
Standby/ON.
VOL + / VOL - : Adjust the
volume level.
/ MUTE: Mute the sound;
press again to restore the sound.
(This will mute the AV output
sound aswell).
SOURCE: Press repeatedly to
cycle through DVD/AV IN mode.
: Skip to the next title, chapter
or track.
: Fast forward current track.
: Play/pause playback.
