Akai TEM-35CHSABH User manual
After Sales Support
TEL: 1300 886 649
Reverse cycle Split
System Air Conditioner
Instruction manual
Model Number TEM-35CHSABH
N13275
PROTECT YOUR WARRANTY
This unit must be installed by a registered,
licensed installer as required by
Government regulations.
FOR THE USER
1
After Sales Support 1300 886 649
Contents
2 Safety rules and recommendations for the installer
3 Safety rules and recommendations for the user
5 Safety rules and prohibitions
6 Parts list
7 Indoor unit display
8 Emergency function and Auto-Restart function
9 Remote control and remote control display
10 Preliminary instructions How to insert the batteries
DIP switch on position function
11 Modes of operation Swing control of the air ow
13 Cooling mode
Heating mode
14 Timer mode - Timer ON
Timer mode - Timer OFF
15 Fan mode
Dry mode
16 Feel mode
Sleep mode
17 Protection
2
After Sales Support 1300 886 649
• Read this guide before installing and using the appliance.
• During the installation of the indoor and outdoor units, access to
the working area should be forbidden to children.
Unforeseeable accidents could happen.
Make sure that the base of the outdoor unit is rmly xed.
• Check that air cannot enter the refrigerant system and check for refrigerant
leaks when moving the air conditioner.
• Carry out a test cycle after installing the air conditioner and record the
operating data.
•The ratings of the fuse installed in the built in control unit are 3.15A / 250V
for 220V type and 3.15A/125V for 110V type.
• The user must protect the indoor unit with a fuse of suitable capacity for
the maximum input current or with another overload protection device.
• Ensure that the mains voltage corresponds to that stamped on the rating
plate. Keep the switch or power plug clean. Insert the power plug correctly
and rmly into the socket, thereby avoiding the risk of electric shock or re
due to insucient contact.
• Check that the socket is suitable for the plug, otherwise have the socket
changed.
• Do not install the appliance at a distance of less than 50cm from
inammable substances (alcohol, etc.). Or from pressurised containers
(e.g. spray cans).
• If the appliance is used in areas without the possibility of ventilation,
precautions must be taken to prevent any leaks of refrigerant gas
from remaining in the environment and creating a danger of re.
• The packaging materials are recyclable and should be disposed of in the
separate waste bins. Take the air conditioner at the end of its
useful life to a special waste collection centre for disposal.
• Only use the air conditioner as instructed in this booklet. These
instructions are not intended to cover every possible condition and
situation. As with any electrical household appliance, common sense and
caution are therefore always recommended for installation, operation and
maintenance.
• The appliance must be installed in accordance with applicable national
regulations.
• Before accessing the terminals, all the power circuits must be disconnected
from the power supply.
Safety rules and recommendations for the installer
3
After Sales Support 1300 886 649
Safety rules and recommendations for the user
• Do not try to install the conditioner alone; always contact specialised
technical personnel.
• Cleaning and maintenance must be carried out by specialised technical
personnel. In any case disconnect the appliance from the mains electricity
supply before carrying out any cleaning
or maintenance.
• Ensure that the mains voltage corresponds to that stamped on the rating
plate. Keep the switch or power plug clean. Insert the power plug correctly
and rmly into the socket, thereby avoiding the risk of electric shock or re
due to insucient contact.
• Do not pull out the plug to switch o the appliance when it is in operation,
since this could create a spark and cause a re, etc.
• Never remain directly exposed to the ow of cold air for a long time. The
direct and prolonged exposition to cold air could be dangerous
for your health. Particular care should be taken in the rooms where there
are children, old or sick people.
• If the appliance gives o smoke or there is a smell of burning, immediately
cut o the power supply and contact the Service Centre.
• Have repairs carried out only by an authorised Service Centre of the
manufacturer. Incorrect repair could expose the user to the risk
of electric shock, etc. The prolonged use of the device in such
conditions could cause re or electrocution.
• This appliance has been made for air conditioning domestic environments
and must not be used for any other purpose, such as for drying clothes,
cooling food, etc.
• The packaging materials are recyclable and should be disposed of in the
separate waste bins . Take the air conditioner at the end of its
useful life to a special waste collection centre for disposal.
• Always use the appliance with the air lter mounted. The use of the
conditioner without air lter could cause an excessive accumulation
of dust or waste on the inner parts of the device with possible subsequent
failures.
• The user is responsible for having the appliance installed by a qualied
technician, who must check that it is earthed in accordance with current
legislation and insert a thermomagnetic circuit breaker.
4
After Sales Support 1300 886 649
• Unhook the automatic switch if you foresee not to use the device for a
long time. The airow direction must be properly adjusted.
• The aps must be directed downwards in the heating mode and upwards
in the cooling mode.
• Only use the air conditioner as instructed in this booklet. These
instructions are not intended to cover every possible condition and
situation. As with any electrical household appliance, common sense and
caution are therefore always recommended for installation, operation and
maintenance.
• Ensure that the appliance is disconnected from the power supply when
it will remain inoperative for a long period and before carrying out any
cleaning or maintenance.
• Selecting the most suitable temperature can prevent damage to the
appliance.
5
After Sales Support 1300 886 649
Safety rules and prohibitions
• Do not bend, tug or compress the power cord as this could damage it.
Electrical shocks or re are usually due to a damaged power cord.
Only specialised technical personnel must replace a damaged power cord.
• Do not use extensions or gang modules.
• Do not touch the appliance when barefoot or parts of the body are wet or
damp.
• Do not obstruct the air inlet or outlet of the indoor or the outdoor unit.
The obstruction of these openings causes a reduction in the operative
eciency of the conditioner with possible consequent failures or
damages.
• In no way alter the characteristics of the appliance.
• Do not install the appliance in environments where the air could contain
gas, oil or sulphur or near sources of heat.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Do not climb onto or place any heavy or hot objects on top of the
appliance.
• Do not leave windows or doors open for long when the air conditioner is
operating.
• Do not direct the airow onto plants or animals.
• A long direct exposition to the ow of cold air of the conditioner could
have negative eects on plants and animals.
• Do not put the conditioner in contact with water. The electrical insulation
could be damaged and thus causing electrocution.
• Do not climb onto or place any objects on the outdoor unit.
• Never insert a stick or similar object into the appliance.
It could cause injury.
• Children should be supervised to ensure that they do not play with the
appliance. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in order to
avoid a hazard.
6
After Sales Support 1300 886 649
13
15
16
17
14

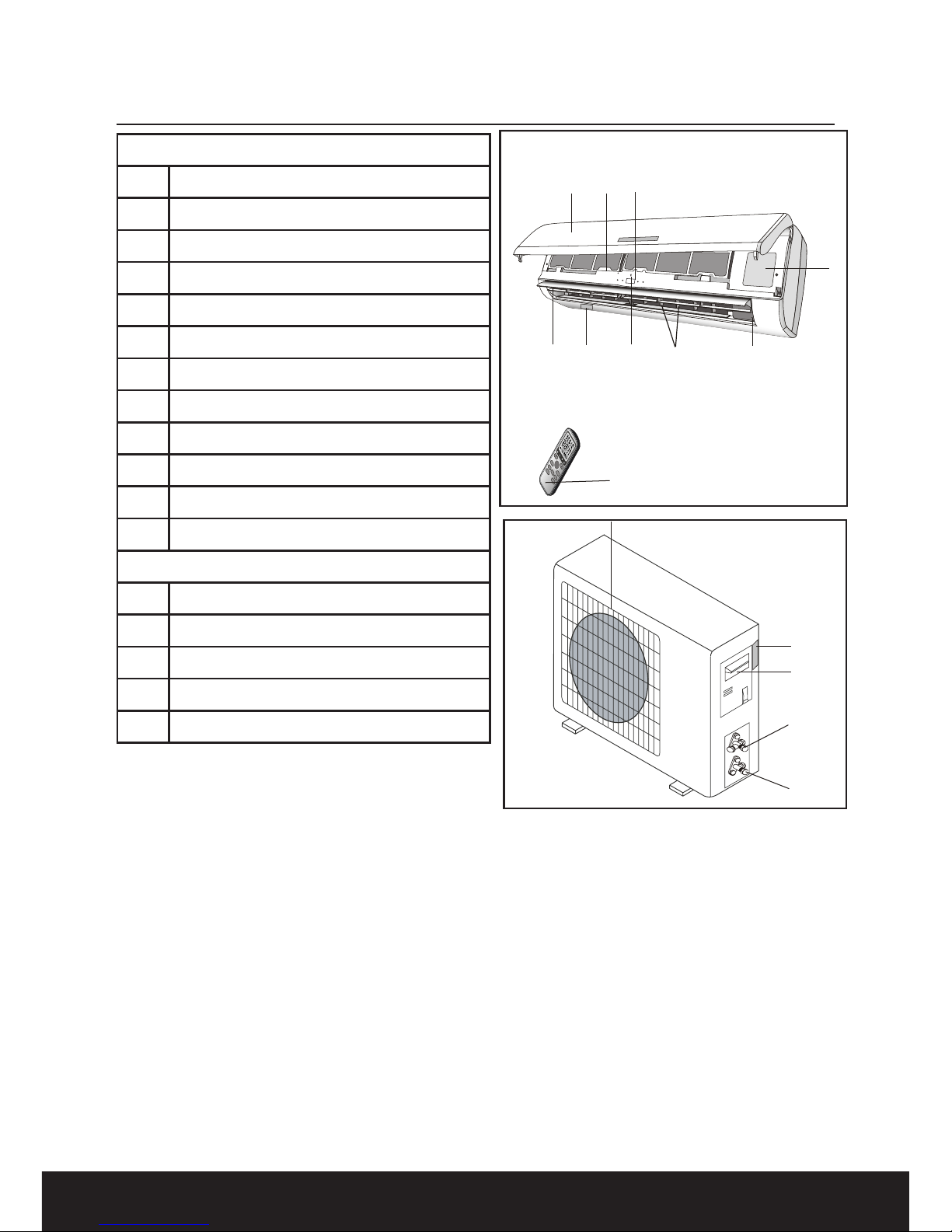

NOTE: The above gures are only intended to be a simple diagram of the appliance and may
not correspond to the appearance of the units that have been purchased.
Indoor Unit
1 Front panel
2 Air lter
3Optional lter (if installed)
4 LED Display
5 Signal receiver
6 Terminal block cover
7Ionizer generator (if installed)
8 Deectors
9 Emergency button
10 Indoor unit rating label
11 Airow direction aps
12 Remote control
Outdoor Unit
13 Air outlet grille
14 Outdoor unit rating label
15 Cover
16 gas valve
17 liquid valve
WALL AIR-CONDITIONER
• The conditioner is made up of two or more units connected between themselves
through copper pipes (properly insulated) and an electrical connecting cable.
• The indoor unit is installed on the walls of the room to be conditioned.
• The outdoor unit is installed on the oor or on the wall on suitable brackets.
• Technical data of the air conditioner are printed on the labels placed on the indoor
and outdoor units.
• The remote control has been designed for an easy and fast use.
12-3
6
4-5
9
11 8
10 7
DISPL AY HEAL TH Y
3D
ON/OFF
SWING
FAN
TIMERSUPER
SLEEP MODE
ECO
CLOCK
12
13
14
15
16
17
Parts list
7
After Sales Support 1300 886 649
1
2
5
3
4
12 345
124 5
3
1
2
3
4
5

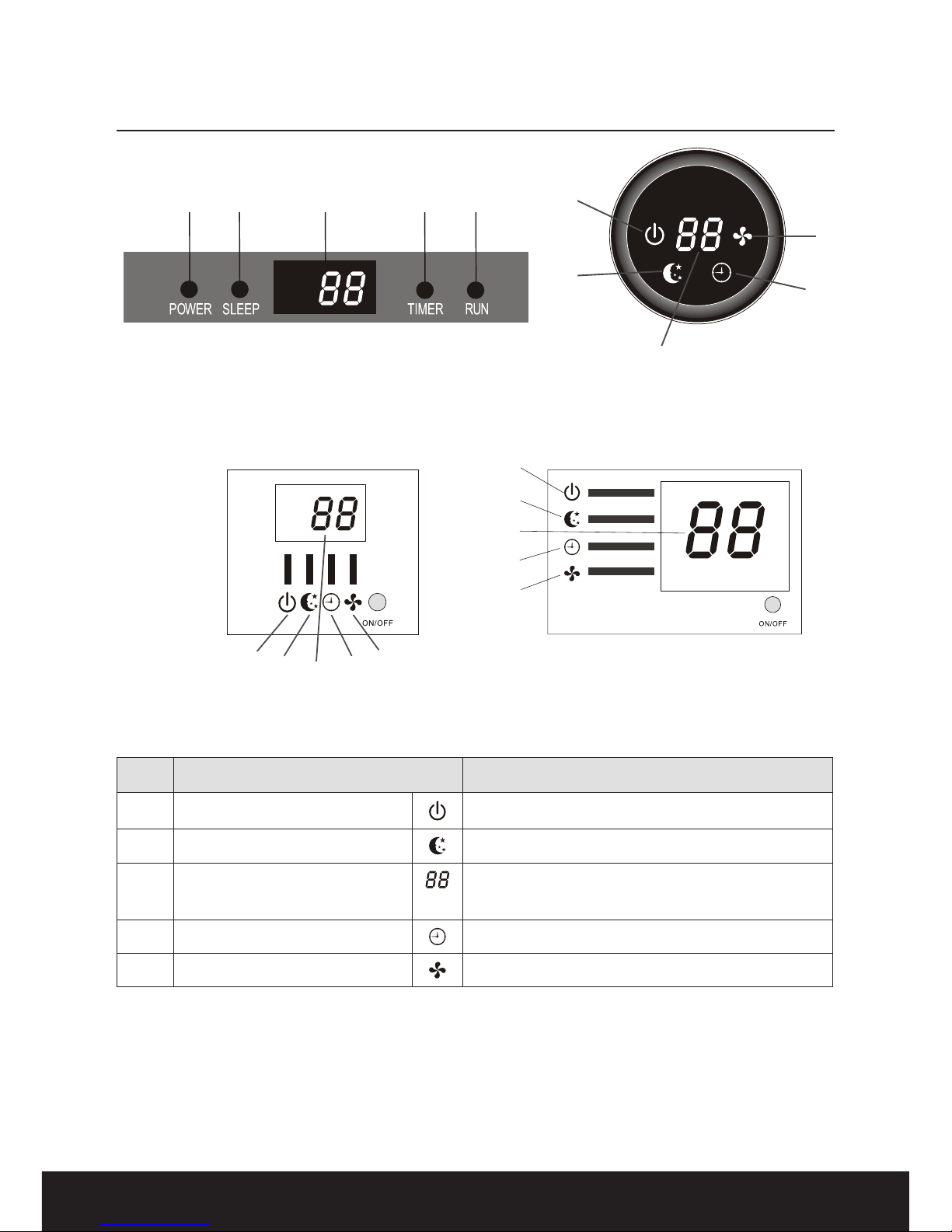

Indoor unit display
No. Led Function
1 POWER Shows that the unit is powered
2 SLEEP SLEEP mode
3 Temperature display
(if present)
Indicates the set temperature in C° or F°
4 TIMER TIMER mode
5 RUN Unit working
The shape and position of switches and indicators may vary according to
the model, but their function is the same.
8
After Sales Support 1300 886 649
Auto-restart function
The appliance is preset to auto-restart
function by manufacturer. With this
function, the air conditioner can keep
the selected settings after a blackout
or a voltage drop.
To deactivate the AUTO-RESTART
function, proceed as follows:
1. Switch the air conditioner o and
remove the plug.
2. Press the emergency button
meanwhile plug it in.
3. Keep pressing the emergency button
for more than 10 seconds until you
hear four short beeps from the unit.
The AUTO-RESTART function is o.
To activate the AUTO-RESTART
function, follow the same procedure
until you hear three short beeps from
the unit.

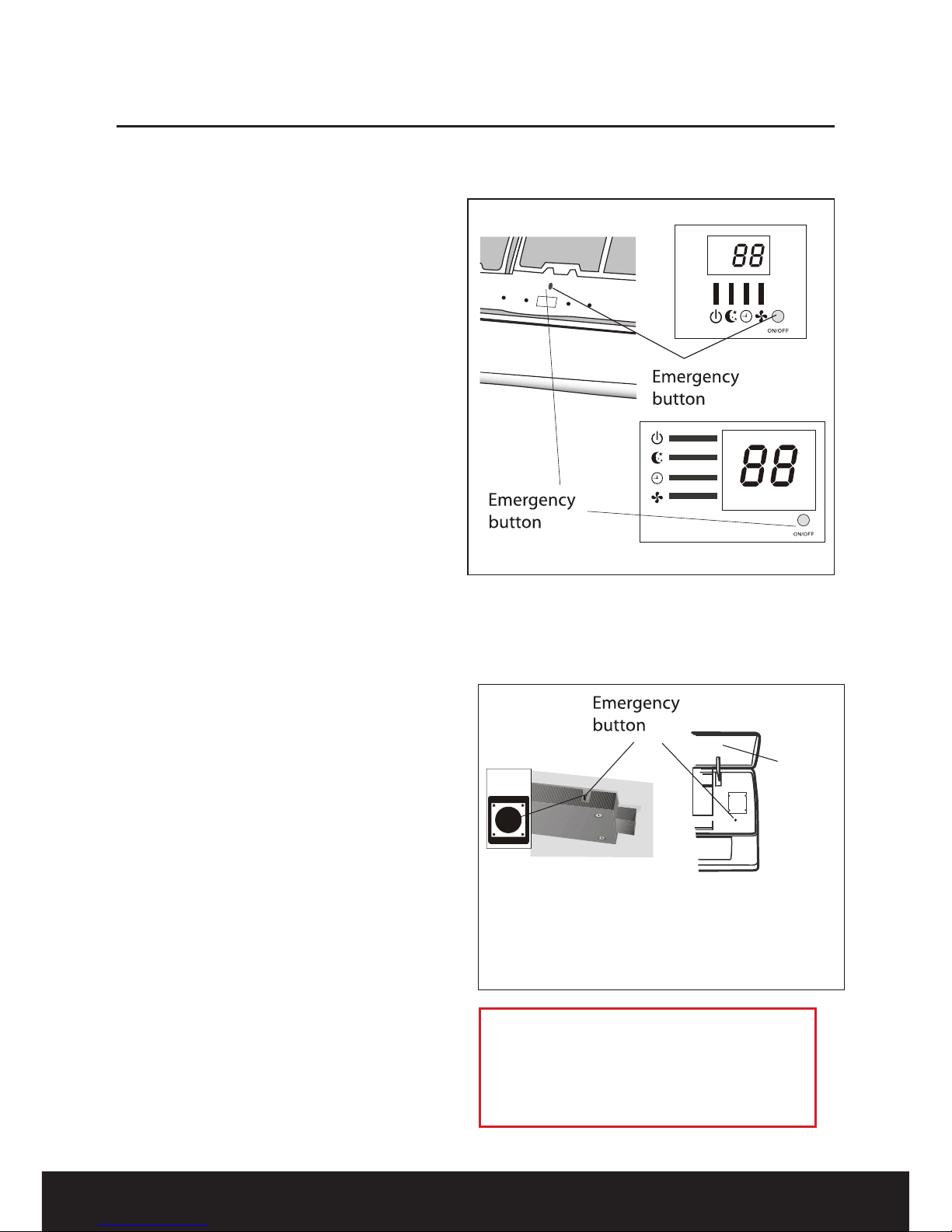

Emergency function
If the remote control is lost, proceed as
follows:
Lift the unit’s front panel to reach the
emergency button of the air conditioner
1. If you press the button once (one
beep), the air conditioner will work in
forced cooling function.
2. If you press the button twice (two
beeps), the unit will work in forced
heating function.
3. To switch o the unit , you just need
to press the button again (a single
long beep). After 30 minutes in forced
function, the air conditioner will
automatically start working in FEEL
mode. The FEEL function is described in
page 18.
ON / OFF
POWER
SLEEP
TIMER
RUN
display PCB
front panel
The emergency button in some models
could be on the right part of the unit
under the front panel.
The shape and position of the emergency
button may vary according to the model,
but their function is the same.
NOTE: The external static pressure of the
heat pumps is 0Pa for all models.
ON/OFF
Emergency function and Auto-Restart function
9
After Sales Support 1300 886 649

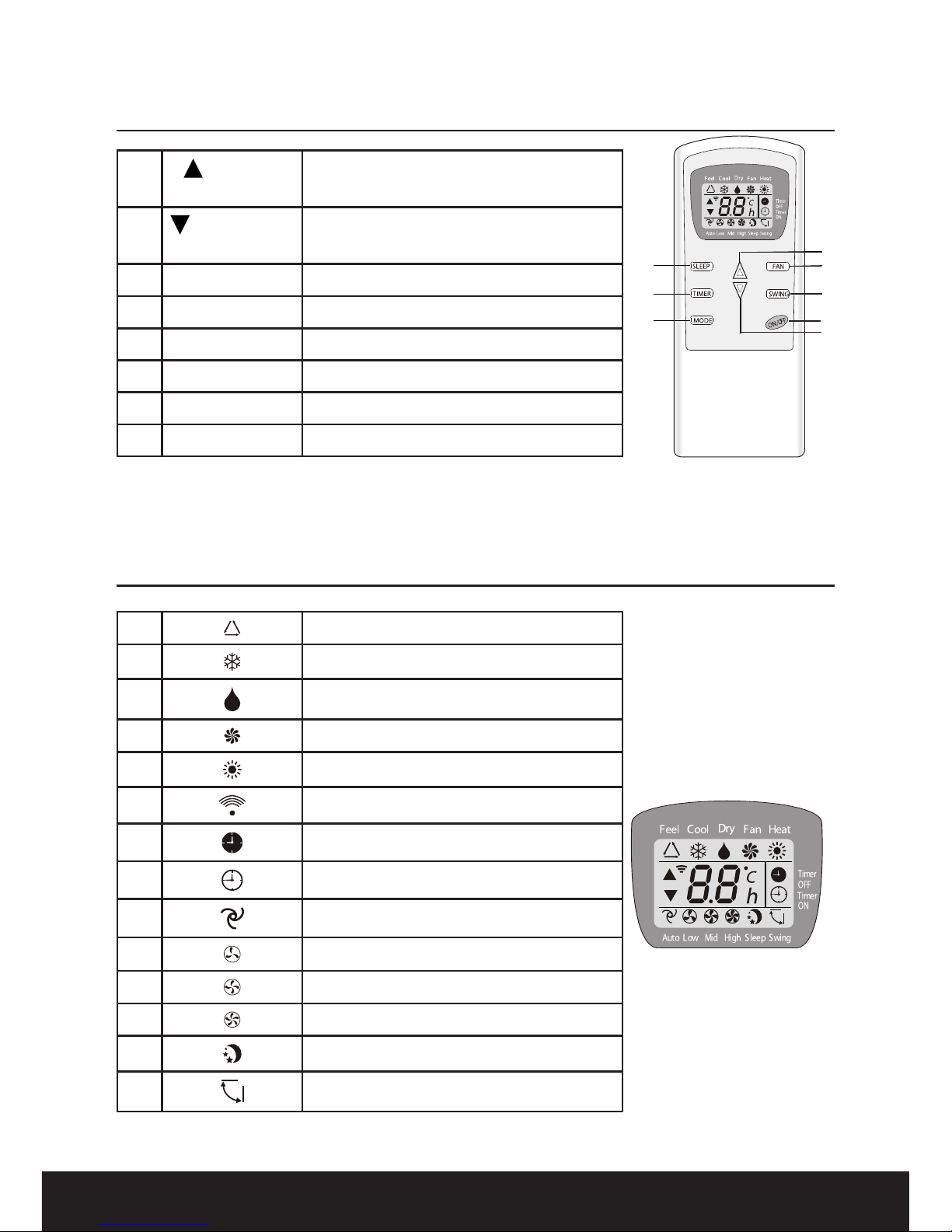

1temp up Increase the temperature or time
by 1 unit
2temp down Decrease the temperature or time
by 1 unit
3ON/OFF To switch the conditioner ON and OFF
4FAN To select the fan speed
5 TIMER To set automatic switching ON/OFF
6 SLEEP To activate the SLEEP function
7 MODE To select the mode of operation
8 SWING To control the deectors
1 FEEL mode indicator
2 COOLING indicator
3Dehumidifying indicator
4 Fan only operation indicator
5 Heating indicator
6 Signal reception
7 Timer OFF indicator
8 Timer ON indicator
9 Auto fan indicator
10 Low fan speed indicator
11 Medium fan speed indicator
12 High fan speed indicator
13 SLEEP indicator
14 Deector SWING indicator
8
5
4
61
2
3
7
Remote control
Remote control display
NOTE: The unit conrms the correct reception of each press button with a beep.
Table of contents
Other Akai Air Conditioner manuals
Akai
Akai MISTRAL912Dual-R32-K User manual
Akai
Akai AUS-12H53R150P9 User manual
Akai
Akai AUS-12H53R150P9 User manual
Akai
Akai AK-9000-RC User manual
Akai
Akai AK-T25R32 User manual
Akai
Akai AK-T51R32 User manual
Akai
Akai MWF-18CRN1-QC1G User manual
Akai
Akai AK-9000-RC User manual
Akai
Akai MWF-18CRN1-QC1G User manual
Akai
Akai AK-9000WIFI User manual
Popular Air Conditioner manuals by other brands
Fujitsu
Fujitsu Inverter ASBA30JFC operating manual
Toshiba
Toshiba RAS-M10SMUV-E installation manual
Daikin
Daikin FXLQ20MAVE Operation manual
Hitachi
Hitachi RAS-E24CAK instruction manual
CIAT
CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance
Bestron
Bestron AAC6000 instruction manual
