Airwell Flo 9 INV User manual

Wall units Flo inv

Floor/ceiling SX inv

Cassettes K inv

INDIVIDUAL COMFORT RANGE

Technical instructions manual

TM-TM-

TM-GINVGINV

GINVGINV

GINV--

-AA

A-1GB-1GB

-1GB-1GB

-1GB

Cancels and replaces :

Range INVERTER

Cooling capacity (kW) Heating capacity (kW)

Flo 9 INV 2.56 (1.3 - 3) 3.05 (1.03 - 4)

Flo 12 INV 3.4 (1.38 - 3.9) 4.25 (1.23 - 4.78)

SX 9 INV 2.5 (1.2 - 3.1) 3 (1.3 - 3.65)

SX 12 INV 3.23 (1.27 - 4.08) 3.5 (1.2 - 4.55)

K 9 INV 2.5 (1.2 - 3.1) 2.8 (1.3 - 3.65)

K 12 INV 3.2 (1.27 - 4.02) 3.95 (1.2 - 4.55)

PRESENTATION ................................................................................ 3

TECHNICAL SPECIFICATIONS ........................................................... 7

COOLING CAPACITY ....................................................................... 8

HEATING CAPACITY ......................................................................... 14

DIMENSIONS

• outdoor unit GC ........................................................................... 20

• indoor unit FLO ............................................................................ 21

• indoor unit SX ............................................................................... 22

• indoor unit K................................................................................. 23

INSTALLATION ................................................................................. 24

CONNECTIONS .............................................................................. 25

REFRIGERATION CONNECTIONS ..................................................... 26

REFRIGERANT CHARGE .................................................................... 27

ELECTRICAL SPECIFICATIONS ........................................................... 28

ELECTRICAL CONNECTIONS ........................................................... 28

RC4 INFRARED REMOTE CONTROL .................................................. 29

CONTENTS

offers numerous advantages for the residential and tertiary markets.

1. INVERTER technology

• Controlling the compressor rotational speed to adjust the capacity provided

(Both in Heating and Cooling modes) to the needs of the premises being air

conditioned.

• The extended operating range

• Incorporating capacity modulation for energy savings of up to 35% (PWM

control).

• Constant indoors temperature and regulation to within 0.5°C.

wall units

Flo inv

floor/ceiling units

SX inv

colorado cassette

K inv

PRESENTATION

These appliance have

been optimized to operate with

the R-407C coolant which

contains no chlorine and has no

effect on the ozone layer.

The range of INVERTER Heatpump splits, compatible with indoor units:

2. Air handling unit

2.1 Wall splits FLO INV

Being unobtrusive and comfortable to use, this appliance offers maximised ease

of installation allied to incomparable air quality in response to professional

installers’ and individual users’ expectations.

2.1.1 Compact, efficient

The extremely silent and compact indoors units provide effective air conditioning

for rooms of between 20 and 40 m².

Their sleek aresthetics blend discreetly into all types of interior décor.

2.1.2 Proven technology

The microprocessor controlled safety systems and operation guarantee

unequalled quality and comfort in use.

The alliance of leading edge technology with an ioniser ans an electristatic filter

for wall FLO provides for precisely controlled air conditioning comfort.

2.1.3 Total reliability

Equipped with rotary compressors with variable speed ,guaranteed for two years,

the outdoor units provide low energy consumption, low acoustic levels and high

corrosion resistance.

2.1.4 A.Q.S. 3 filtration levels for perfect air quality

In addition to the re-usaable filter, two further levels of air filtration are

incorporated in the INVERTER wall splits units:

• Active electrostatic filter neutralising odours ans capturing the finest particles

from the air.

• Photo catalytic filter breaking down the various pollutants contained in the air.

This filter automatically regeneraters itself on contact with light.

2.1.5 Ionisation

The air we breathe is electrically charged, with both positive and negative ions.

In closed and urban environments, the concentration of negative ions in the

atmosphere is reduced. The ionizer Airwell re-establishes the balance of negative

ions in our environment for optimal living comfort.

The ion generator installed on the unit generates a quantity of between 30.000

and 50.000 ions per cubic centimetre.

2.1.6 Infrared remote control with batteries.

2.1.7 Cooling connections possibilities : right, left or rear.

2.1.8 Wall mounting plate.

PRESENTATION

2.2 Floor/ceiling unit SX inv

Having reduced dimensions (only 190 mm deep), and being aesthetically

pleasing, it can be very easily installed in any residential, tertiary or industrial

location.

Supplied as standard for both wall and ceiling installation, without any on site

modifications.

It includes :

• Casing with air intake grille, filter and air distribution grille with dual motorised

flaps.

• Control panel with warning light.

• Easily accessible side mounted microprocessor controls and electrical con-

nections behind a pivoting panel, for easy commissioning and maintenance.

• Multi-speed fan with silent fan drive, mounted on flexible suspension and

equipped with internal thermal protection.

• Heat exchanger with copper pipes and treated aluminium fins for improved

efficiency.

• Condensate tray with connections for vertical and horizontal installation.

• Wall or ceiling support with fitting template, providing rapid electrical and

refrigerant connections before siting the unit.

• Infrared remote control with batteries.

• Possibility of left, right or rear refrigerant pipe connection.

2.3 Colorado cassette K inv

Allying technical quality with reliability and ease of installation.

It comprises :

• A shallow depth (287 mm) cassette unit to be built in to the ceiling, with

dimensions compatible with standard suspended ceiling panels (600 mm x

600 mm).

• Multi-speeds fan.

• Interior, slide-mounted electrical controls and safeties box including power

supply terminal block with screw-less terminals and multi output automatic

transformer for setting different operating speed (on site).

• Infrared remote control with liquid crystal display.

• Combined air distribution and intake grille with air filter, manually adjustable

blowing vents on all four sides, central air intake.

PRESENTATION

3. Condensing group GC inv

This group contains in a small volume, requiring only a small floor space, the

cooling compressor, air-cooled condenser and electric box.

It includes :

•A body especially treated to resist bad weather conditions.

•A special soundproof compartment containing the compressor.

• Two installation possibilities : floor-or wall mounted.

4. Pipe connections

Both the indoors and outdoors units are equipped with FLARE connectors, thus

enabling the use of FLARE type pipes (refrigerating quality copper piping equipped

with nuts at both ends).

5. DOCUMENTATION

Each unit is supplied with general wiring and connection diagrams and specific

installation and operation instructions.

Each accessory (or kit) is accompanied by technical specifications for fitting and

adjustment as required.

You can find all these elements on Internet site : http://www.airwell.com

Consult the correspon-

ding instructions and follow

the recommendations when

carrying out any work

PRESENTATION

Models FLO inv SX inv K inv

912912912

Powersupply~230V-50Hz ••••••

Nominal cooling capacity kW 2.55

(1.28-3.03)

3.4

(1.40-4.16)

2.5

(1.35-3)

3.5

(1.30-4.20)

2.58

(1.30-3)

3.3

(1.30-3.90)

Power input in cool kW 0.88 1.2 0.89 1.23 1.17 1.47

Nominal heating capacity kW 3.15

(1.30-4.20)

4.42

(1.33-5.21)

(1.30-4)

4.35

(1.30-5.10)

3.01

(1.30-4)

4.15

(1.30-5)

Power input in heat kW 1.12 1.62 1.06 1.54 1.07 1.47

Cœfficient of performances (COP) W/W 2.81 2.72 2.81 2.82 2.81 2.82

Noise levels

indoor unit

- low speed

- medium speed

- high speed

- maxi speed

outdoor unit

- low speed

- medium speed

- high speed

dB(A)

Airflow

- low speed

- medium speed

- high speed

- maxi speed

m³/h

300

350

400

390

480

560

420

540

580

380

520

560

420

540

580

380

520

560

Dimensions & Weight

indoor unit

Length x Depth x Height mm 810 x 190 x 285 820 x 190 x 630 571 x 571 x 287

Weight kg 10 10.5 19.5 21 26 26

Packed Length x Depth x Height mm 885 x 360 x 285 890 x 280 x 710 685 x 685 x 415

Dimensions & Weight

outdoor unit

Length x Depth x Height mm 795 x 290 x 610 795 x 290 x 610 795 x 290 x 610

Weight kg 37.5 38 37.5 38 37.5 38

Packed Length x Depth x Height mm 945 x 395 x 655 945 x 395 x 655 945 x 395 x 655

Refrigerant (see pages 26 and 27) R-407C

These characteristics are

provided for information purposes

only and are subject to change

without prior notice.

TECHNICAL

SPECIFICATIONS

NOTE :

1) Nominal cooling capacity, international conditions :

27°C/19°C wet bulb - outside air temperature 35°C/24°C wet bulb (Standards NF EN 255.2-NF EN 814.2).

2) Nominal heating capacity, international conditions :

20°C/12°C wet bulb - outside air temperature 7°C/6°C wet bulb (Standards NF EN 255.2-NF EN 814.2).

3) Global acoustic pressure in dB(A) under nominal conditions :

Indoor unit installation in an average sized room(LS - 0.5 s reverberation)

Outdoor unit in an open area against a reflective background

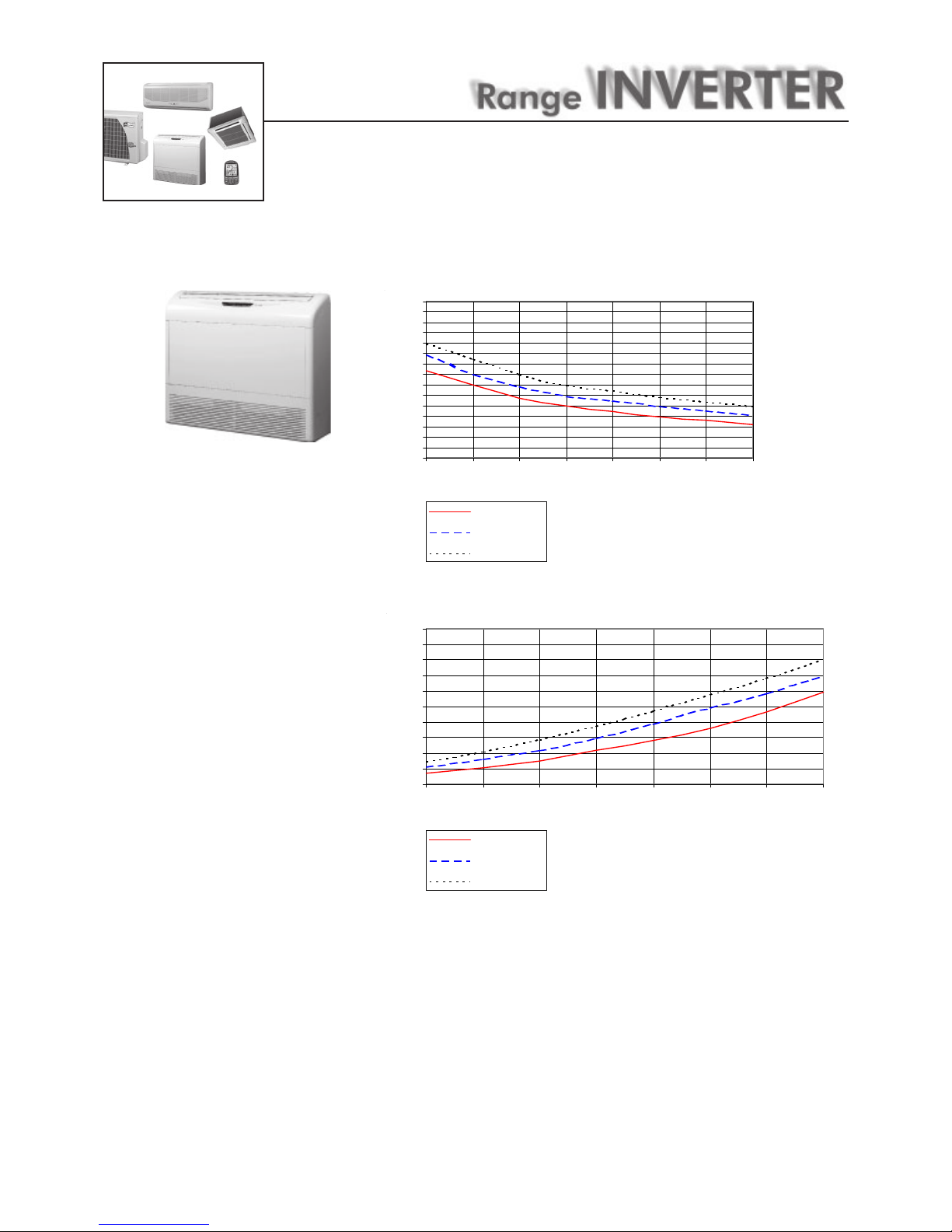

COOLING

CAPACITY

wall unit

Flo 9 inv

Cooling capacity (W)

Outdoor DB temperature

Powerconsumption (W)

Indoor WB 19°

Indoor WB 21°

Indoor WB 23°

Indoor WB 19°

Indoor WB 21°

Indoor WB 23°

COOLING

CAPACITY

wall unit

Flo 12 inv

Cooling capacity (W)

Outdoor DB temperature

Powerconsumption (W)

Outdoor DB temperature

Indoor WB 19°

Indoor WB 21°

Indoor WB 23°

Indoor WB 19°

Indoor WB 21°

Indoor WB 23°

COOLING

CAPACITY

floor/ceiling

SX 9 inv 2000

2100

2200

2300

2400

2500

2600

2700

2800

2900

3000

3100

3200

3300

3400

3500

10 15 20 25 30 35 40 45

Cooling capacity (W)

Outdoor DB temperature

500

600

700

800

900

1000

1100

1200

1300

1400

1500

10 15 20 25 30 35 40 45

Outdoor DB temperature

Powerconsumption (W)

Indoor WB 19°

Indoor WB 21°

Indoor WB 23°

Indoor WB 19°

Indoor WB 21°

Indoor WB 23°

This manual suits for next models

Table of contents

Other Airwell Air Conditioner manuals

Airwell

Airwell AWWR-WDF009-C11 User manual

Airwell

Airwell VAR 9 User manual

Airwell

Airwell MAF User manual

Airwell

Airwell GC 43 User manual

Airwell

Airwell DDMX-035N-09M25 Guide

Airwell

Airwell ZDAA-2040-09M25 User manual

Airwell

Airwell DFMD-100N-01M25 User manual

Airwell

Airwell MAY 110 User manual

Airwell

Airwell K XLN24 RC 3PH User manual

Airwell

Airwell DUO OU7-0909 User manual

Airwell

Airwell MD Series Owner's manual

Airwell

Airwell DFMD-100N-01M25 User manual

Airwell

Airwell DVHA-220N-01M22 Guide

Airwell

Airwell johnson DCH Series User manual

Airwell

Airwell VVWO Series User manual

Airwell

Airwell AWSI-DDV007-N11 User manual

Airwell

Airwell AWSI-HJD009/012-N11 User manual

Airwell

Airwell AWAU-YCVFD224-H13 User manual

Airwell

Airwell HAN 10 User manual

Airwell

Airwell CDM009X User manual

Airwell

Airwell FDM018 User manual

Airwell

Airwell AW-MFH009-C41 Guide

Airwell

Airwell YBD018 DCI User manual

Airwell

Airwell AW-FWDB018-N91 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
