Agape SEN AKIT680B User manual

GRUPPI LAVABO E ACCESSORI

WASBASIN / ACCESSORIES TAP SETS

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

Rubinetti / Taps

1/6

SEN

AKIT680B

1202 (47”21/64)

54 (2”1/8)

Barre per l’allineamento di rubinetti con interasse maggiore

di mm 1044 ﬁno a mm 1920

Rails for the alignment of taps with axial distance more than

41”1/8 up to 75”5/8.

1202 (47”21/64)

60 (2”23/64)

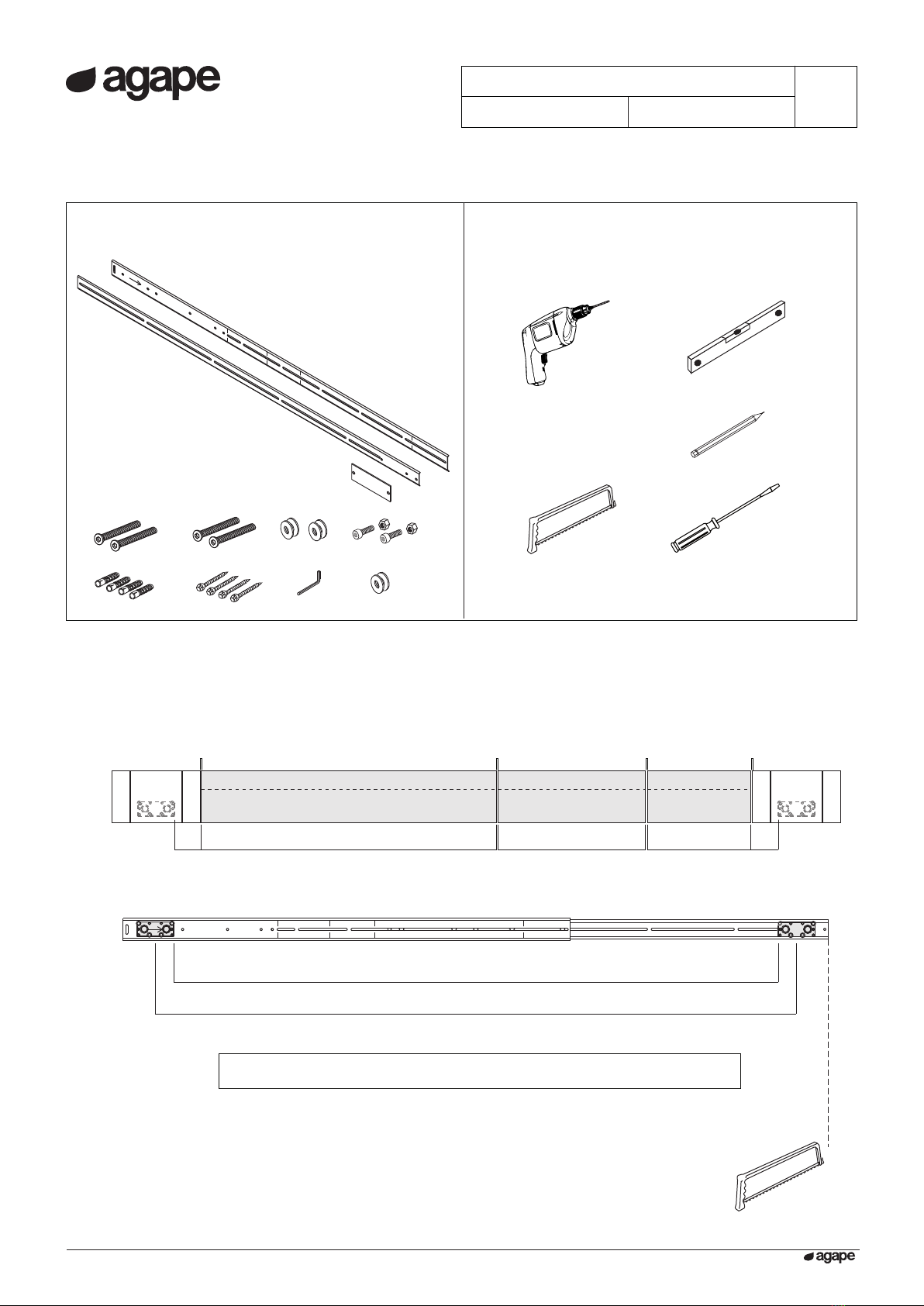

CONTENUTO DELLA CONFEZIONE

PACKAGE CONTENTS

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

SEN - AKIT680B

COD.

11233 20180208/3 - SV

VERS. 2/6

STRUMENTI/ TOOLS

FERRAMENTA/ FASTENERS

.FER0680B

.FER0680A

guida/ rail

Esempio di composizione / Example for composition

X= 800+400+280+140(70+70)+8 (4 spazi/spaces)= 1628

X = 1628

800 280

400

SEN919 SEN917

SEN923

70 70

RUB 1 RUB 2

Max 1920 75”5/8

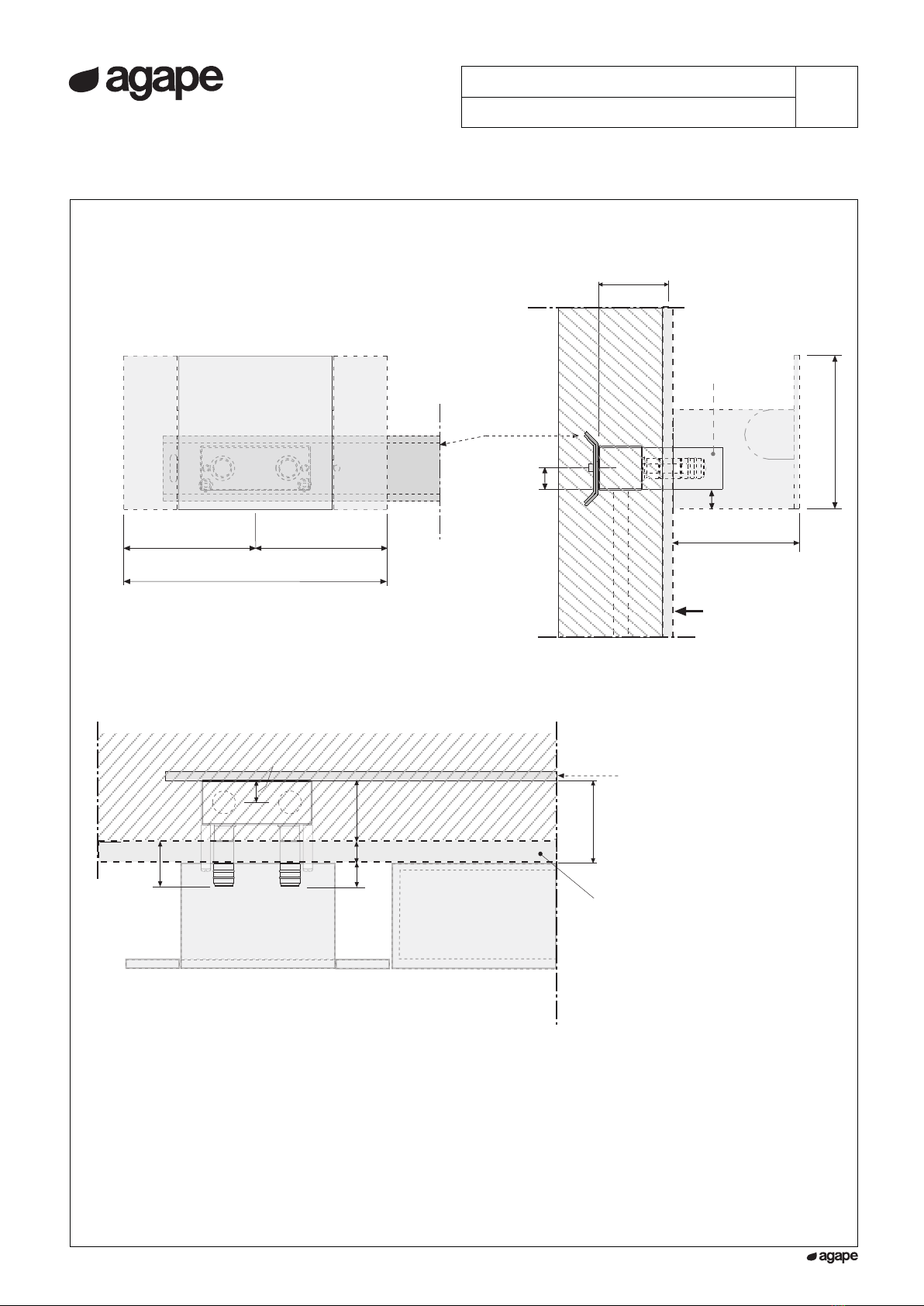

SEN - AKIT680B

Protezione

Protection

ASEN0915 . . . . . . .

ASEN912 -ASEN913 - ASEN958

20 (3/4”)

(140 5"1/2)

120 (4"3/4)

Max 77 (3"1/32)

ASEN912 -ASEN913 - ASEN958

Area posizione

filo rivestimento finito

Area for positioning of

finished wall surface

.FER0680A

Filo muro finito

finished wall surface

20 (25/32”)

120 (4"3/4) 120 (4"3/4)

240 (9"1/2)

Pianta / Plan view

min. 57 (1”3/4)

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

3/6

Max 77 (3"1/32)

.FER0680A

min 23 (7/8”)

17 (5/8”)

.FER0680B

20 (25/32”)

max 43

(1”3/4)

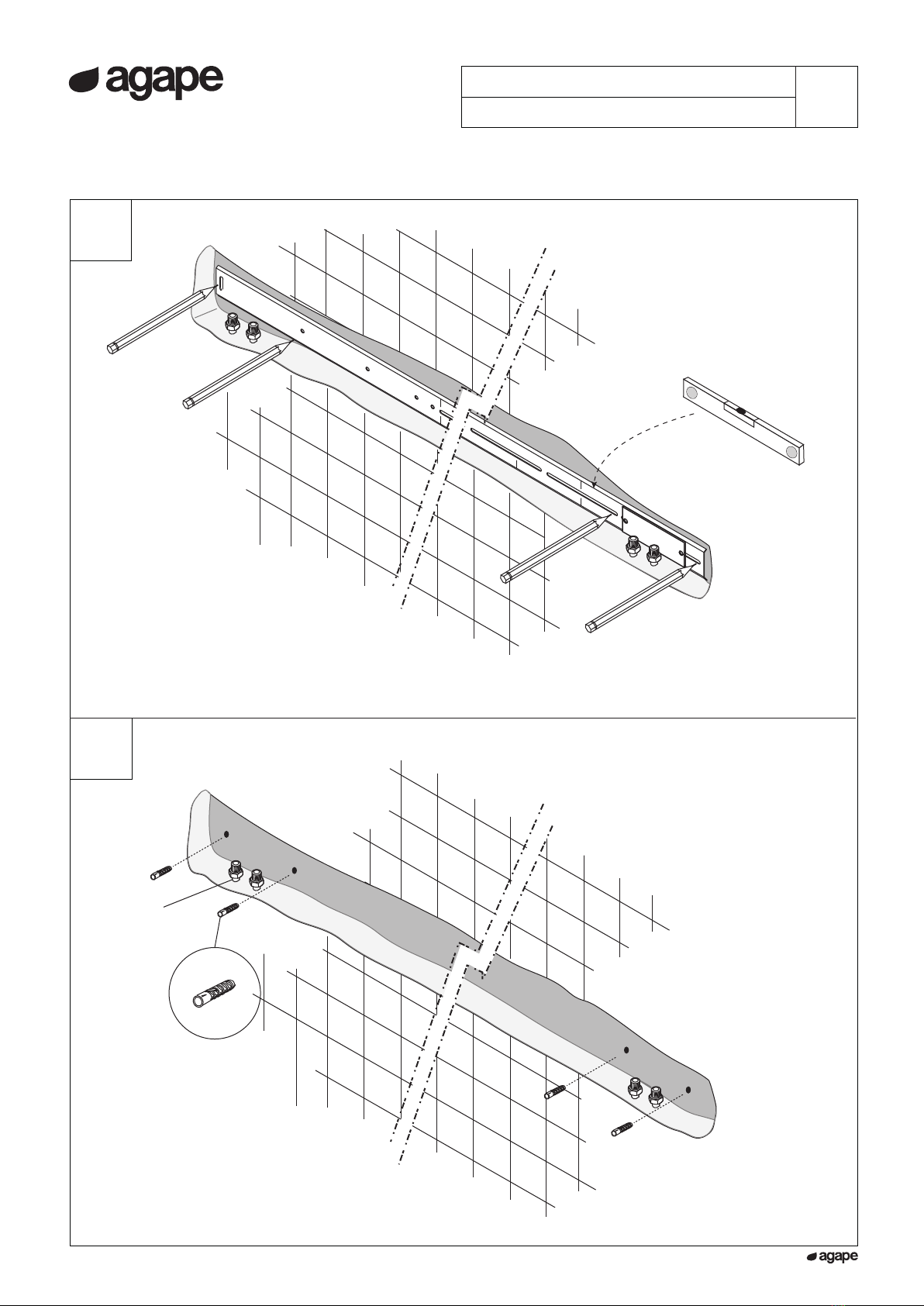

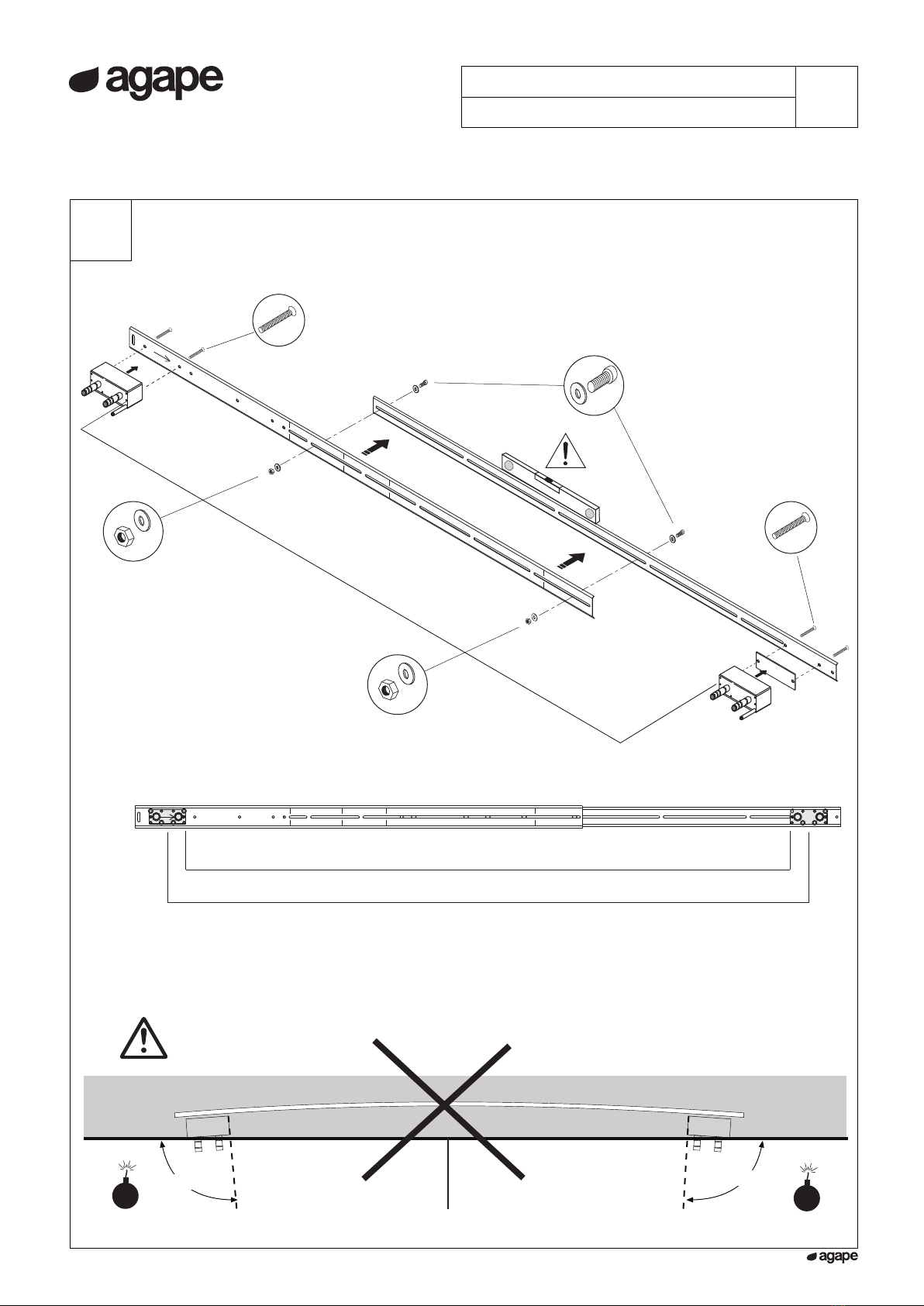

SEN - AKIT680B

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

4/6

Fissare gli incassi e unire le barre

Fix the recesses and join the bars

filo p arete finit a

finished wall surface

+ di 90° + di 90°

gui da/ rail

RUB 1 RUB 2

Max 1920 75”5/8

SEN - AKIT680B

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

5/6

G 1/2"

SEN - AKIT680B

6/6

1-2 mm.
