Agape CUBE ACER0770M User manual

400

(15” 3/4)

500

(19” 5/8)

Lavabo indipendente in Multistrato waterproof

Waterproof birch plywood indipendent washbasin

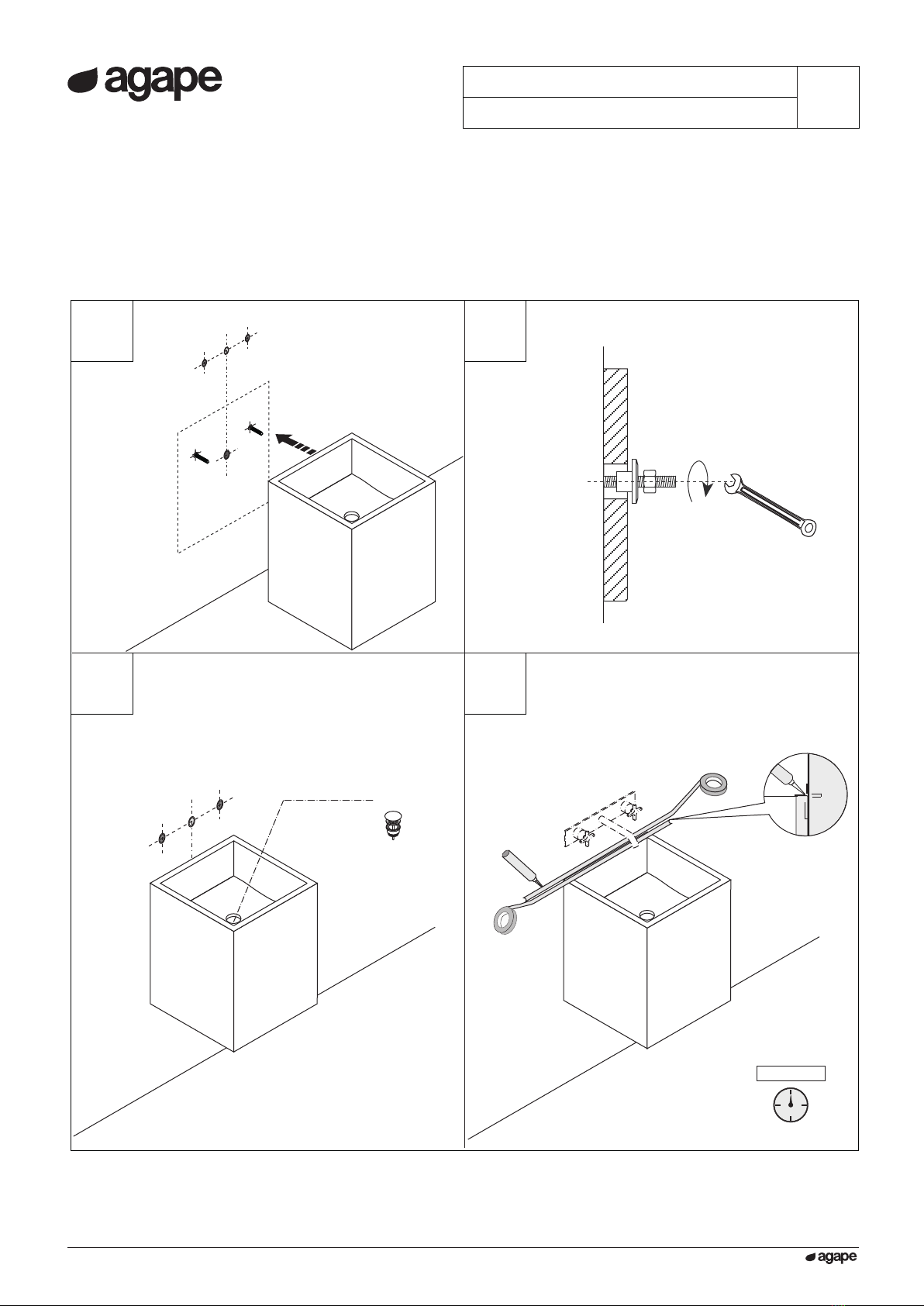

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

Lavabo / Washbasin

1/4

CUBE

ACER0770M

400

(15”3/4)

NOTA

La ferramenta in dotazione

permette Il ssaggio del

lavabo su pareti in mattoni

pieni o forati e in

calcestruzzo.

Per pareti in cartongesso è

necessario rinforzare

adeguatamente la zona

interessata ed

eventualmente adottare

sistemi di ssaggio specici.

NOTE

The assembly material

supplied allows the

installation of the washbasin

on solid and hollow brick

walls and on concrete walls.

For plasterboard walls it is

necessary to reinforce

adequately the area

concerned and to adopt

specic xing systems if

necessary.

MANUTENZIONE

Si raccomanda di utilizzare un

panno umido, preferibilmente in

cotone bianco e semplice sapone di

Marsiglia ed asciugare. Per ridurre

la manutenzione

é consigliabile asciugare le superci

dopo l’uso con panno morbido,

senza l’utilizzo di detergenti. Non

utilizzare prodotti a base di solventi

quali alcool,trielina, diluenti, acqua

ragia, ammoniaca ecc. e prodotti

abrasivi.

MAINTENANCE

We recommend using a wet cloth,

preferably a white cotton one, and

Marseilles soap for cleaning, and

drying the surface after cleaning

it. To reduce maintenance, surfaces

should be dried with a soft cloth

after use, without using detergents.

Solvent based products such

as alcohol, trichloroethylene,

thinners, turpentine, ammonia, etc.

and abrasive products should not

be used.

CONTENUTO DELLA CONFEZIONE

PACKAGE CONTENTS

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

ACER0770M - CUBE

trasparente - antimua

transparent - antimould

LAVABO INSTALLATO

WASHBASIN MOUNTED

PREDISPOSIZIONE

WASHBASIN PREDISPOSITION

RUBINETTO A PARETE

WALL MOUNTED TAP

COD.

04289 20141203/2 - SV

VERS.

STRUMENTI

TOOLS

2/4

nastro adesivo di carta.

masking tape.

n. 2 fissaggi lavabo/

fixing washbasin

silicone

ø 12 (15/32)

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

3/4

1 2

900(35”7/16)

Misurare -Measure

ø 12 (15/32)

ACER0770M - CUBE

40 (1”5/8)

Scarico al centro

Drain in the center

.MET0563

STOP 24 h.

silicone

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

4/4

5 6

Applicare un adeguato strato di silicone tra il lavabo e la parete.

Apply a suitable quantity of silicone between washbasin and wall.

ACER0770M - CUBE
