Advantech B+B SmartWorx ABDN-SE-IN5410 User manual

1-888-948-2248 | Europe: +353 91 792444

advantech-bb.com

707 Dayton Road | PO Box 1040 | Ottawa, IL 61350

Phone: 815-433-5100 | Fax: 815-433-5109

www.advantech-bb.com | E-mail: support@advantech-bb.com

Fast and easy on the web:

www.advantech-bb.com

QUICK START

GUIDE

Document Number: 710-11430-00_R0_ABDN-SE-IN54x0_0817qsg

Recommended Accessories

Model MDR-20-24

120VAC/5VDC Power Supply

Model PS-WDS

Power Supply with Appropriate

Cord (North America, EU, UK)

Serial Cables

Before you begin, be

sure you have the following:

ABDN-SE-IN5410 &

ABDN-SE-IN5420

Industrial Serial Device Server

+ Industrial Serial Device Server (included)

+ CD with Airborne Management Center

Software (included)

+ Antenna (included)

+ Power Supply (not included)

+ Ethernet Cable (not included)

If your device is connected and congured correctly, you

will see the following LED Status:

COMM: Green (ON when port is open)

LINK: Green

POST: Green

POWER: Blue

LED COLOR AIRBORNE DEVICE STATE

POWER

Off Adapter is not powered.

Blue Adapter is powered.

POST

Off Adapter is not powered.

Red Adapter failed Power On Self Test (“POST”) and is not cong-

ured for wireless communication.

Amber Adapter passed POST but is not congured for wireless network

communication.

Green Adapter passed POST and is congured for wireless com-

munication.

LINK

Off Adapter is not powered.

Red / Off (Periodic Blinking) Adapter is searching for a valid network

(Access Point) that matches device’s conguration.

Green Adapter has successfully associated with an Access Point.

COMM

Off

If Power LED is also Off, then Adapter is not powered.

If Power LED is On then, No TCP session from WLAN or

Ethernet interface has been established.

Green A TCP connection to the adapter has been established from the

Wireless or Ethernet interfaces but no trafc has been detected.

RS-232 (DTE)

Port 1 & 2

(Default)

RS-422/485

1No Connect No Connect

2RxD RxD +

3TxD TxD +

4No Connect No Connect

5GND GND

6No Connect RxD -

7RTS No Connect

8CTS No Connect

9No Connect TxD -

(Continued)

Check Your Setup

Connect the Antenna to the antenna connector located on

the side of the device.

Model C5UMB10FBG

Ethernet Cable

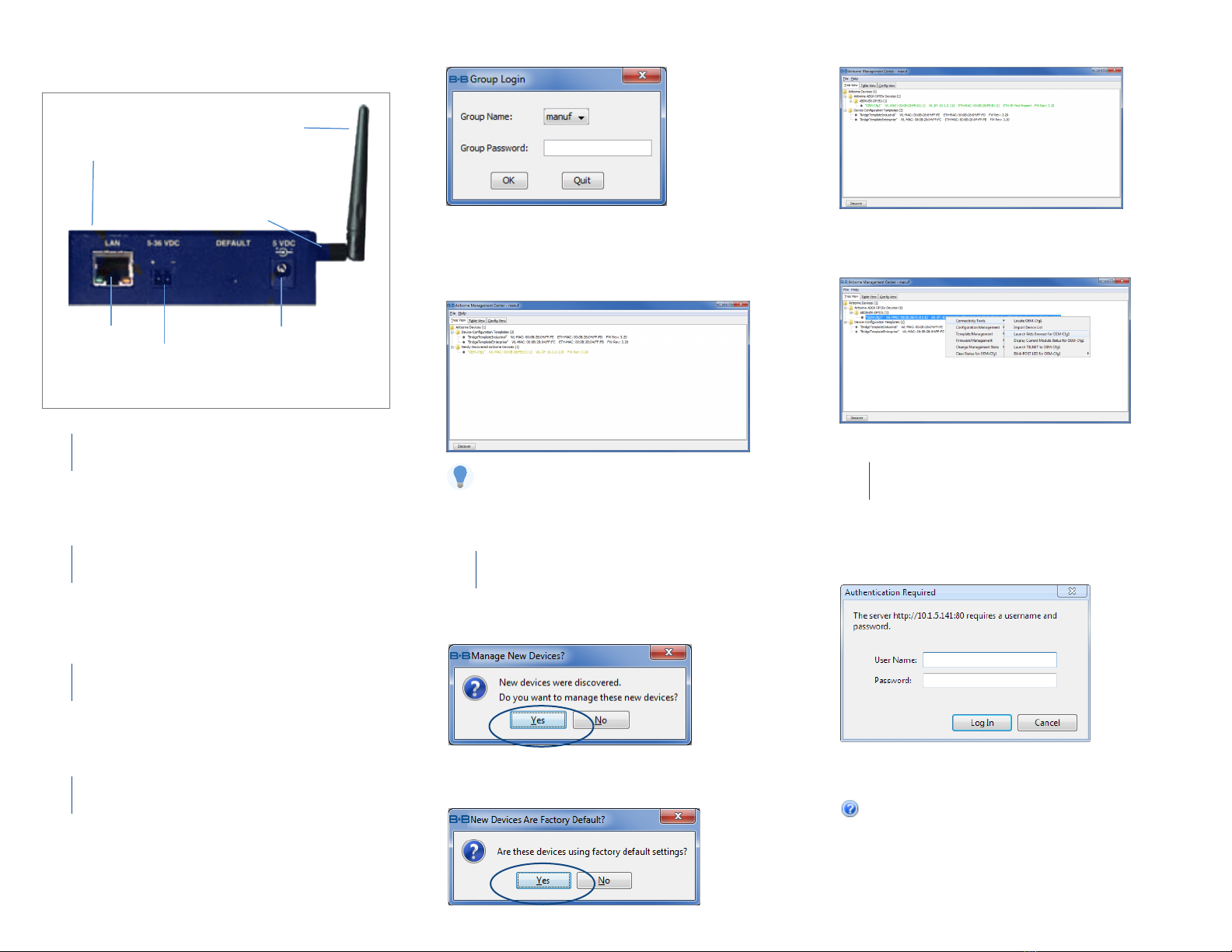

Product Overview

Attach the Antenna

Connect the Antenna to the antenna connector located on

the side of the device.

LAN

Port

Power

Port

Antenna

LEDs

Antenna

Port

Detachable

Terminal Block

Connect Ethernet

Connect a Cat5 Ethernet cable between the device and an

Ethernet port on a host computer.

Connect Power Supply

Connect the 5-36 VDC terminal block attachment or use

an AC power supply (optional).

Connect To The Device

Run the Airborne Management Center (AMC) application.

If you don’t currently have AMC installed, you can install

it from the included CD or download and install it from

the B+B SmartWorx website. Just search for the model

number and follow the links to download software from the

Downloads section of the product page.

Note: You may be required to wait up to 180 seconds before

the device is discovered and displayed.

When AMC starts, it will request a login:

Select Group Name: “manuf” and enter Group Password:

“dpac”

AMC will load and discover the attached device:

Manage The Device

AMC will ask if you want to manage the new device,

select ‘Yes’:

Select ‘Yes’ to indicate device is using Factory Default

settings:

AMC will display the found Airborne device(s):

Right click the device’s name. Under “Connectivity Tools”

choose “launch Web browser for OEM-Cfg1.” This will

open the device’s browser-based management window.

Username “dpac”

Password: “dpac”

Continue conguration via the Web interface. Start with

the Conguration -> Express Setup page.

(Continued)

Congure Your Device

Note: Use the Help features of the interface to help you

congure the device. When you are done conguring the

device, press ‘Commit’ to save the changes, then ‘Restart’ to

restart the device. You can optionally press ‘Reload’ if you have

further conguration changes to make.
