ADF Web HD67C65-B2 User manual
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 1 of 27
User Manual
Revision 1.
English

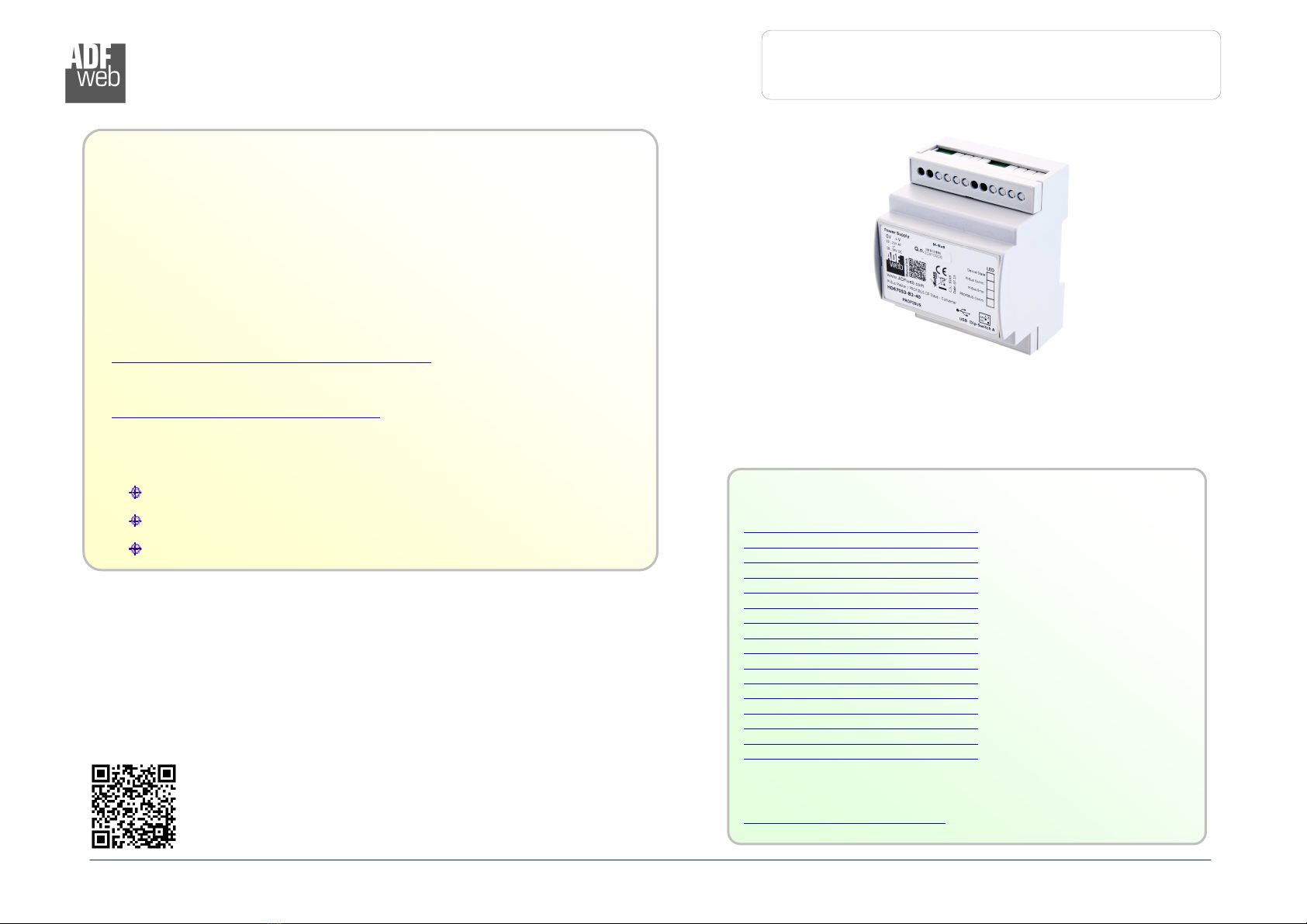

EnOcean / IEC61850 Server - Converter
(Order Code: HD67C65-B2)
For Website information:
www.adfweb.com?Product=HD67C65-B2
For Price information:
www.adfweb.com?Price=HD67C65-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For others EnOcean products, see also the following links:
Converter EnOcean to
www.adfweb.com?Product=HD67C5 (Seria )
www.adfweb.com?Product=HD67C52 (Modbus S ave)
www.adfweb.com?Product=HD67C54 (Modbus TCP S ave)
www.adfweb.com?Product=HD67C56 (BACnet S ave)
www.adfweb.com?Product=HD67C57 (CAN)
www.adfweb.com?Product=HD67C58 (CANopen)
www.adfweb.com?Product=HD67C61 (DeviceNet S ave)
www.adfweb.com?Product=HD67C63 (EtherNet/IP S ave)
www.adfweb.com?Product=HD67C66 (J1939)
www.adfweb.com?Product=HD67C67 (KNX)
www.adfweb.com?Product=HD67C7 (MQTT)
www.adfweb.com?Product=HD67C72 (NMEA 0183)
www.adfweb.com?Product=HD67C73 (NMEA 2000)
www.adfweb.com?Product=HD67C75 (PROFIBUS S ave)
www.adfweb.com?Product=HD67C77 (PROFINET S ave)
www.adfweb.com?Product=HD67C79 (SNMP Agent)
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Ma
nual
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 2 of 27
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 1
ENOCEAN 11
USE OF COMPOSITOR SW67C65 12
NEW CONFIGURATION / OPEN CONFIGURATION 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16
ENOCEAN ACCESS 17
IEC6185 ACCESS 2
TLS KNOWN CERTIFICATE 21
UPDATE DEVICE 22
MECHANICAL DIMENSIONS 24
ORDERING INFORMATIONS 25
ACCESSORIES 25
DISCLAIMER 26
OTHER REGULATIONS AND STANDARDS 26
WARRANTIES AND TECHNICAL SUPPORT 27
RETURN POLICY 27
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision
Date Author Chapter
Description
1. 5/12/2 19
Ff All First release version
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 3 of 27
SECURITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I
NTENDED
U
SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q
UALIFIED
P
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R
ESIDUAL
R
ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE
CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 4 of 27
EXAMPLE OF CONNECTION:
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 5 of 27
CONNECTION SCHEME:

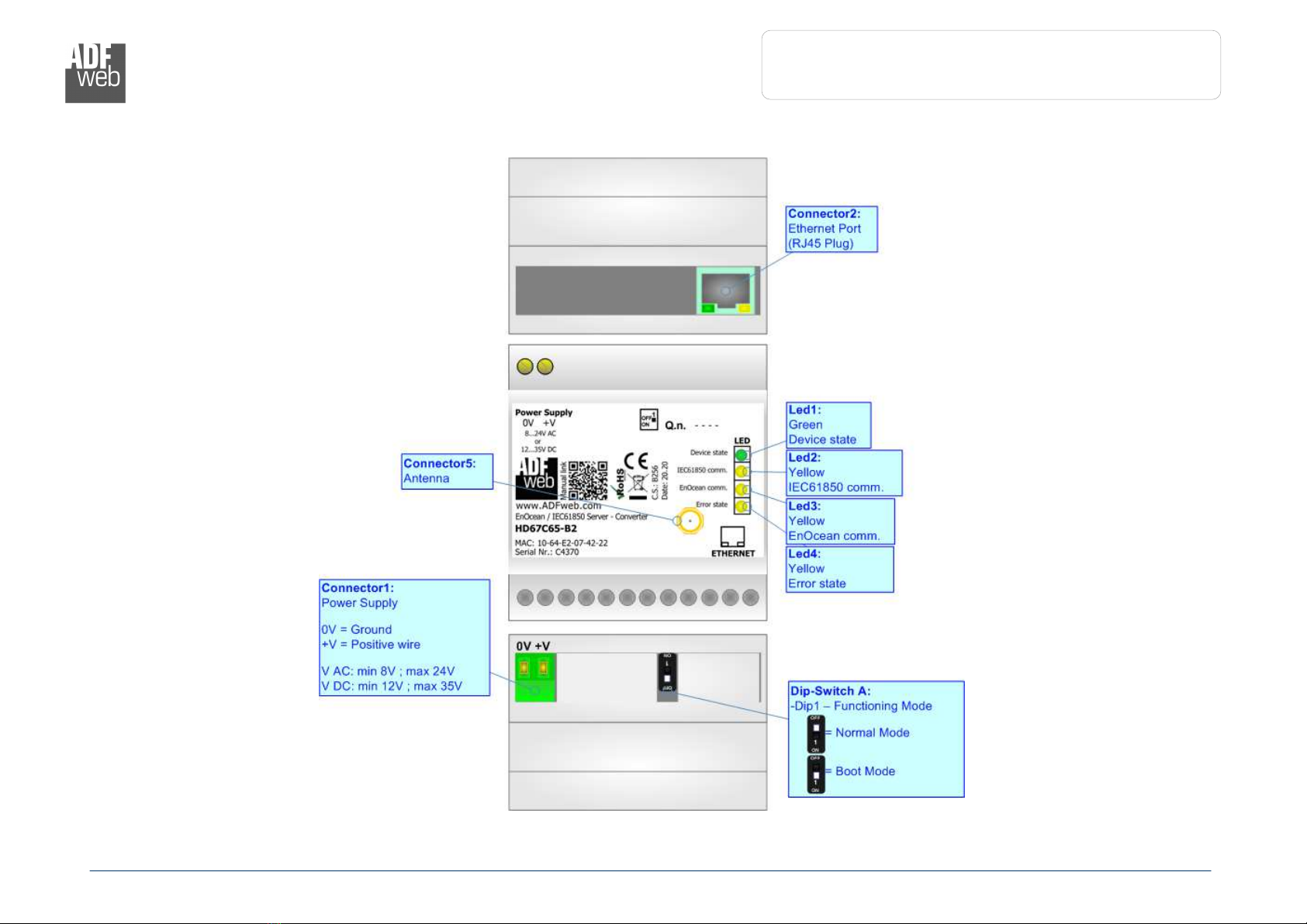

Figure 1: Connection scheme for HD67C65-B
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 6 of 27
CHARACTERISTICS:
The HD67C65-B2 is a EnOcean / IEC6185 Server Converter.
It allows the following characteristics:
Electrical isolation between Ethernet and Power Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67C65 software on your PC in order to perform the following:
Define the parameter of IEC6185 line;
Define the parameter of EnOcean line;
Define the list of IEC6185 variables available for the Client;
Update the device.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 7 of 27
POWER SUPPLY:

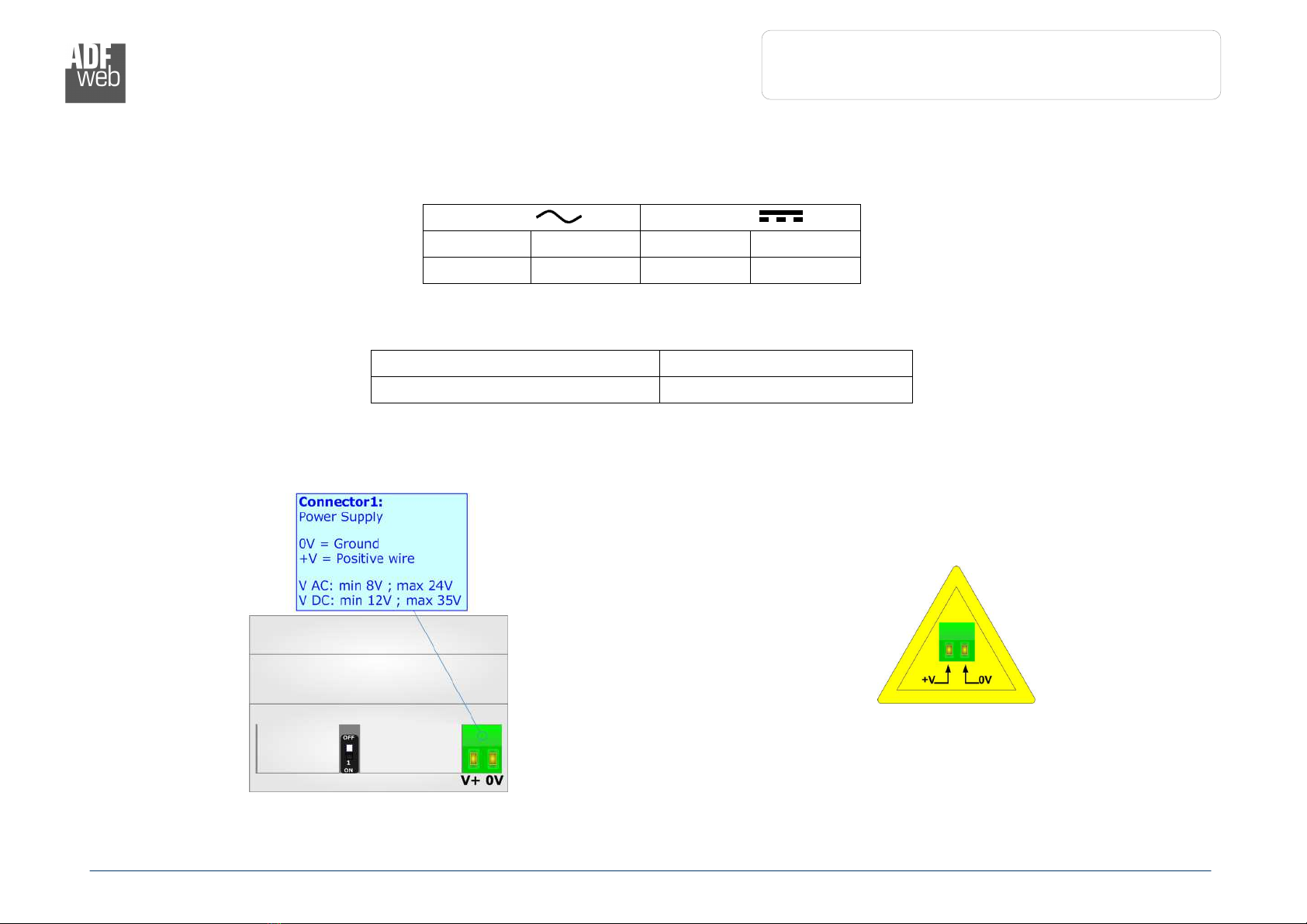

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67C65-B2 3.5
HD67C65-B2
Caution: Not reverse the po arity power
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 8 of 27
FUNCTION MODES:

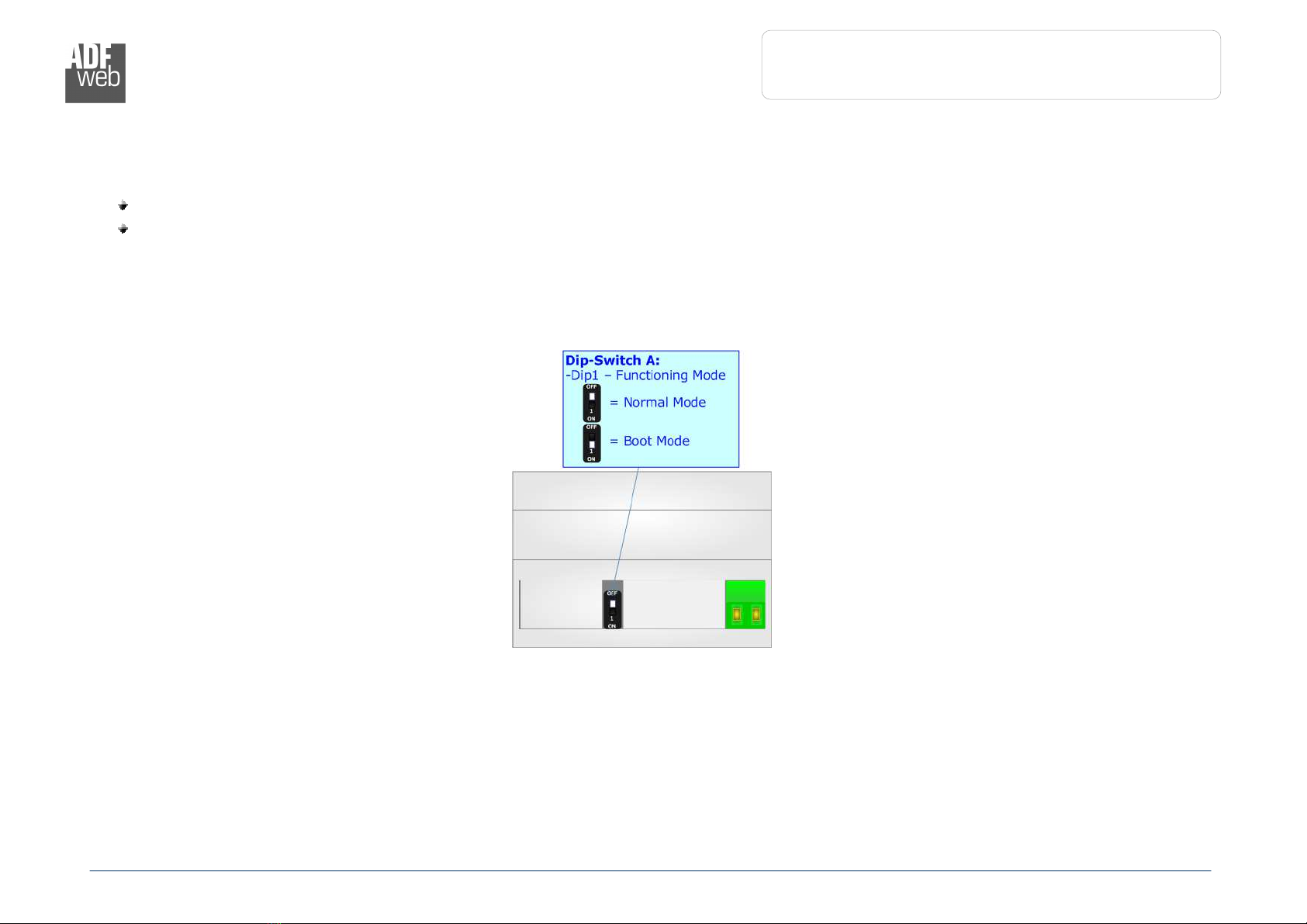

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 9 of 27
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Norma Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
2: IEC6185 communication
(yellow) Blinks when IEC6185 communication is running B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
3: EnOcean communication
(yellow) Blinks when EnOcean data is received B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 1 of 27
ETHERNET:

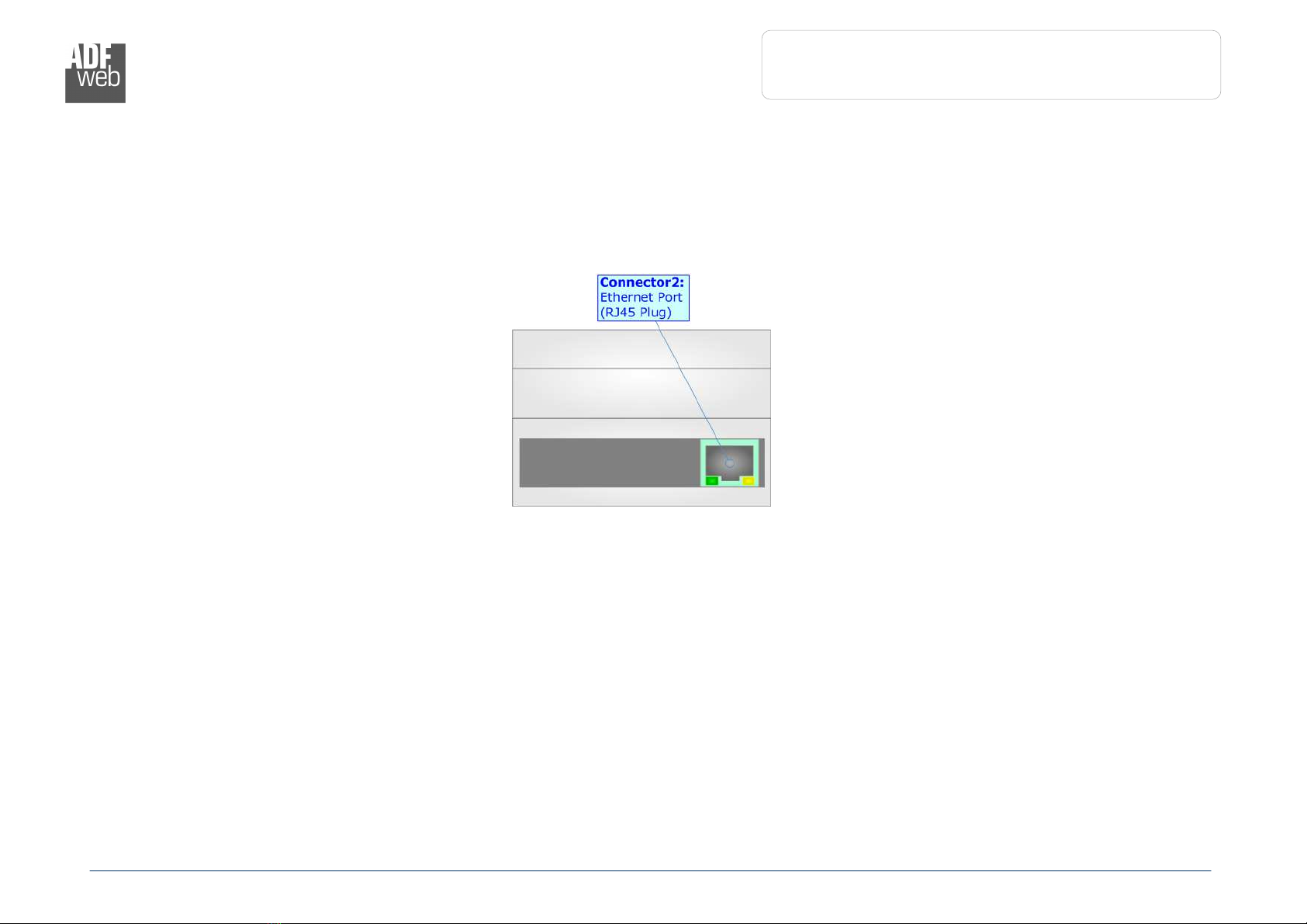

The Ethernet port is used for programming the device and for IEC6185 communication.
The Ethernet connection must be made using Connector2 of HD67C65-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable.
