ADF Web HD674-A002 User manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 1 of 28

User Manual

evision 1.000

English

Modbus TCP Slave / Modbus Master –

Converter

(Order Code: HD674-A002)

For Website information:

www.adfweb.com?Product=HD674-A002

For Price information:

www.adfweb.com?Price=HD674-A002

Benefits and Main Features:

Very easy to configure

Wide supply input range

Electrical isolation

Industrial temperature range:

-40°C / 105°C (-40°F / 221°F)

For others Gateways / Bridges:

J1939 to Modbus

See also the following links:

www.adfweb.com?Product=HD67011 (Modbus TU Slave)

www.adfweb.com?Product=HD67012 (Modbus TU Master)

www.adfweb.com?Product=HD67014 (Modbus TCP Slave)

www.adfweb.com?Product=HD67015 (Modbus TCP Master)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 2 of 28

I DEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

EVISION LIST 2

WA NING 2

T ADEMA KS 2

SECU ITY ALE T 3

EXAMPLES OF CONNECTION 4

CONNECTION SCHEME 5

CHA ACTE ISTICS 7

CONFIGU ATION 7

POWE SUPPLY 8

LEDS 9

S485 10

ETHE NET 11

USB 11

USE OF COMPOSITO SW674-A002 12

NEW P OJECT / OPEN P OJECT 13

SOFTWA E OPTIONS 14

SET COMMUNICATION 15

OPE ATION MODE 17

T ANSLATE TABLE 18

ENABLED FUNCTIONS 19

UPDATE VIA UDP 20

MECHANICAL DIMENSIONS 22

O DE CODE 26

ACCESSO IES 26

DISCLAIME 27

OTHE EGULATIONS AND STANDA DS 27

WA ANTIES AND TECHNICAL SUPPO T 28

ETU N POLICY 28

Pagina 2 di 28

UPDATED DOCUME TATIO :

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

elated to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISIO LIST:

Revision Date Author Chapter Description

1.000 11/01/2017 Ff All First released version

WAR I G:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 3 of 28

SECURITY ALERT:

E ERAL

FORMATIO

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

TE DED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSO EL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CO FORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 4 of 28

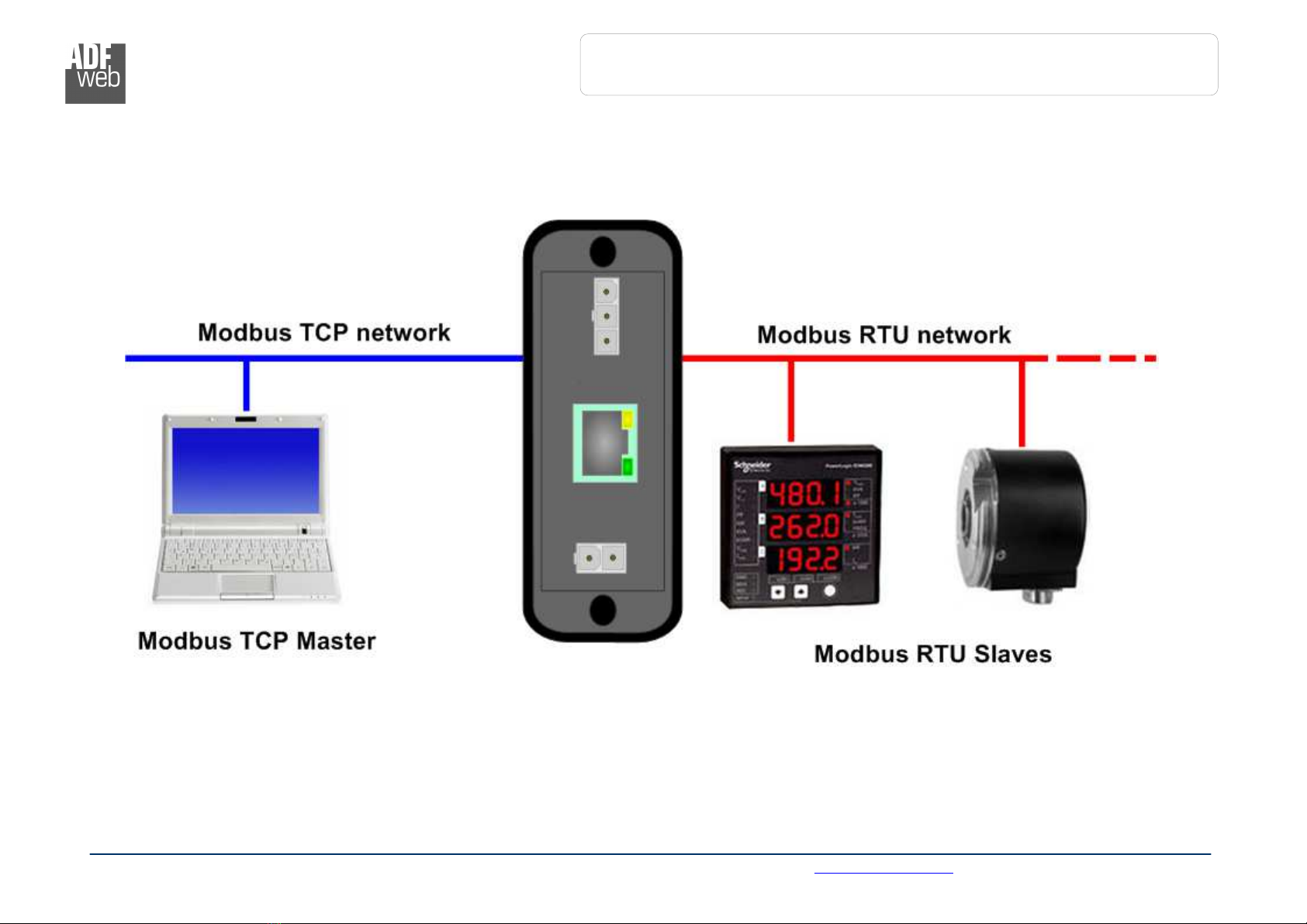

EXAMPLE OF CO ECTIO :

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 5 of 28

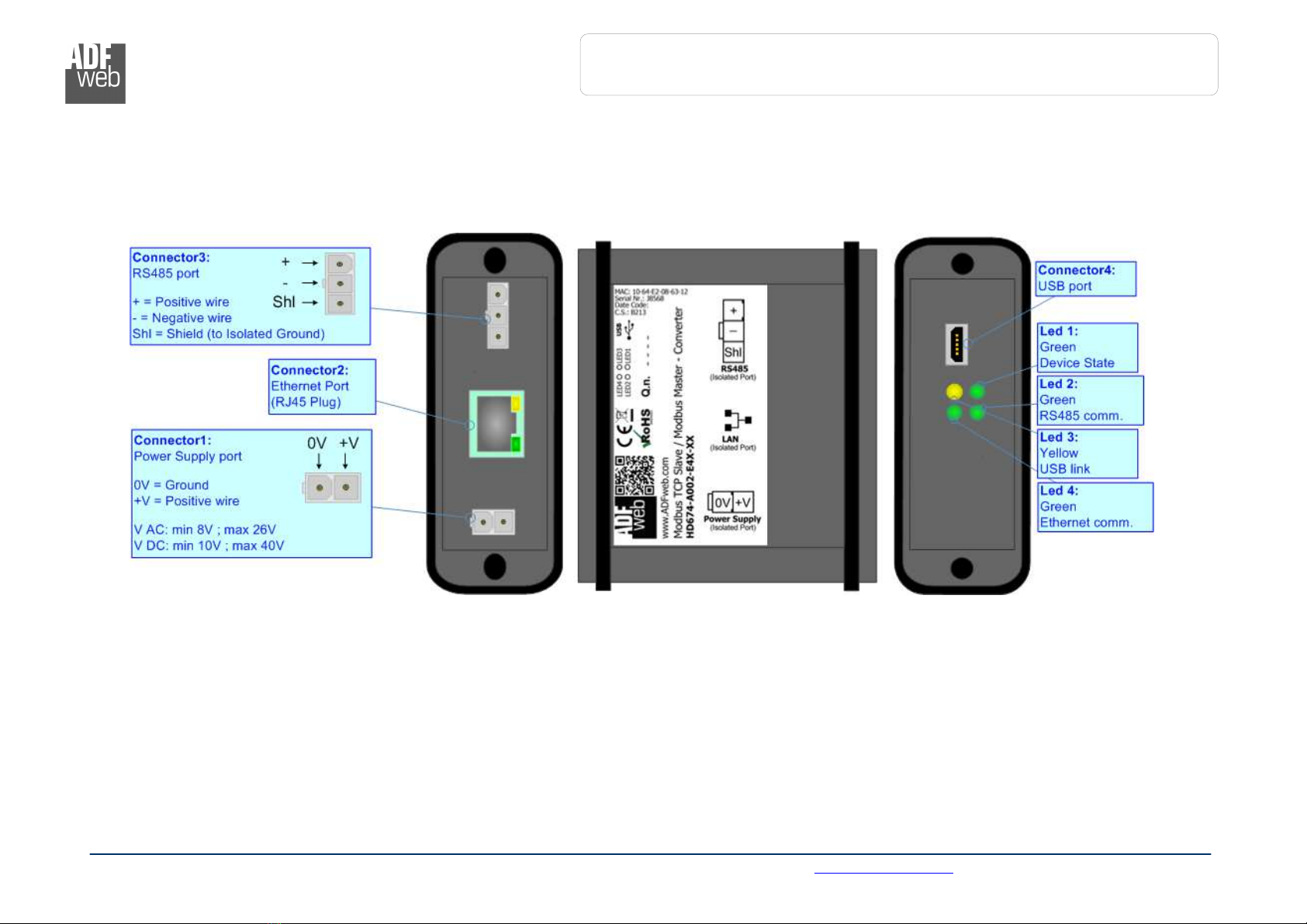

Figure

: Connection scheme

for HD674

E4x

CO ECTIO SCHEME:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 6 of 28

Figure

: Connection scheme

for HD674

E7x

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 7 of 28

CHARACTERISTICS:

The “HD674-A002” series are rugged devices used to interface Modbus TU Slave devices with Modbus TCP Master network.

With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal,

vertical, oblique).

It is possible to have the device varnished or totally resined and also in both cases with “Mini-Fit®” connectors or “AMP SuperSeal 1.5”

connectors. If is resined, the enclosure, like the “AMP SuperSeal 1.5" connectors, is waterproof.

All the four series have these characteristics:

Triple 4kV isolation between Power Supply / Modbus / Modbus TCP;

Varnished / esined (optionally);

Wide power supply input range: 8…26V AC | 10…40V DC;

Mini-Fit® / AMP SuperSeal 1.5 connectors;

Metal enclosure with fixing lugs;

Possibility to use Metal hose clamps for fixing it without using lugs;

Microprocessor for data control;

Wide temperature range: -40°C / 105°C (-40°F / 221°F).

CO FIGURATIO :

You need Compositor SW674-A002 software on your PC in order to perform the following:

Define the parameter of Modbus line;

Define the parameter of Modbus TCP line;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 8 of 28

POWER SUPPLY:

The devices can be powered between a wide range of tensions. For more details see the two

tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

HD674-A002-Exx-xx 8V 26V 10V 40V

Consumption at 24V DC:

Device W/VA

HD674-A002-Exx-xx 4

Note: It is possible to use also negative tensions. In this case the polarity must be

inverted.

Caution: ot reverse the polarity power

HD674-A002-E4x-xx HD674-A002-E7x-xx

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 9 of 28

LEDS:

The device has got four LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED ormal Mode Boot Mode

1: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: Serial Communication

(green) Blinks when Modbus messages are received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: USB Link (yellow) O : USB cable inserted

OFF: USB cable not inserted

O : USB cable inserted

OFF: USB cable not inserted

4: Ethernet communication

(green)

Blinks when Modbus TCP communication is

working

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus TCP Slave

Modbus Master

Converter

Document code: MN674-A002_ENG evision 1.000 Page 10 of 28

RS485:

The connection of the S485 in the HD674-A002-E4x-xx device must be made with a 3way

MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of

the page.

The connection of the S485 in the HD67-A002-E7x-xx device must be made with a AMP

SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of

the page.

The termination of S485 line, with a 120Ω resistor, in the HD674-A002-Exx-xx is made

internally of the device; when the order is performed. If the device have the S485 terminated

the code is the follow: HD674-A002-Exx-Yx; otherwise is this other: HD674-A002-Exx-Nx.

The maximum length of the cable should be 1200m (4000 feet).

Here some codes of cables:

Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid

shield;

Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid

shield;

Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;

Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Link for Mini-Fit® connectors: http://www.molex.com/molex/products/group?key=minifit_products&channel=products

Link for SuperSeal 1.5 connectors: http://www.te.com/catalog/cinf/en/c/10876/956
