ADF Web HD67598-A1 User manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 1 di 19

User Manual

Revision 1 000

English

Ethernet/IP / DeviceNet Slave -

Converter

(Order Code: HD67598-A1)

for Website information:

www adfweb com?Product=HD67598

for Price information:

www adfweb com?Price=HD67598-A1

Benefits and Main Features:

Very easy to configure

Electrical isolation

Two Ethernet/IP ports

For others Ethernet/IP products see also the following link:

Converter Ethernet/IP to

www adfweb com?Product=HD67077 (M-Bus)

www adfweb com?Product=HD67595 (C N)

www adfweb com?Product=HD67598 (DeviceNet Slave)

www adfweb com?Product=HD67599 (J1939)

www adfweb com?Product=HD67589 (NME 2000)

www adfweb com?Product=HD67590 (Serial RS232)

www adfweb com?Product=HD67590 (Serial RS485)

www adfweb com?Product=HD67591 (Modbus Master RS232)

www adfweb com?Product=HD67591 (Modbus Master RS485)

www adfweb com?Product=HD67592 (Modbus Slave RS232)

www adfweb com?Product=HD67592 (Modbus Slave RS485)

Do you have an your customer protocol?

www adfweb com?Product=HD67003

Do you need to choose a device? do you want help?

www adfweb com?Cmd=helpme

Other

Products

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 2 di 19

INDEX:

Page

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

INDEX 2

EXAMPLE OF CONNECTION 3

CONNECTION SCHEME 4

CHARACTERISTICS 5

CONFIGURATION 5

POWER SUPPLY 6

FUNCTION MODES 7

LEDS 8

ETHERNET/IP 9

USB 9

CAN 10

USE OF COMPOSITOR SW67598 11

NEW PROJECT / OPEN PROJECT 11

SET COMMUNICATION 12

UPDATE DEVICE VIA UDP 13

UPDATE DEVICE VIA USB 15

MECHANICAL DIMENSIONS 17

ORDERING INFORMATIONS 18

ACCESSORIES 18

WARRANTIES AND TECHNICAL SUPPORT 19

RETURN POLICY 19

PRODUCTS AND RELATED DOCUMENTS 19

UPD TED DOCUMENT TION:

Dear customer, we thank you for your attention and we remind you that you

need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code” that

appears at the top right-hand corner of each page of this document

With this “Document Code” go to web page www adfweb com/download/ and

search for the corresponding code on the page Click on the proper “Document

Code” and download the updates

To obtain the updated documentation for the product that you own, note the

“Document Code” (Abbreviated written "Doc Code" on the label on the product)

and download the updated from our web site www adfweb com/download/

REVISION LIST:

W RNING:

ADFweb com reserves the right to change information in this manual about our

product without warning

ADFweb com is not responsible for any error this manual may contain

TR DEM RKS:

All trademarks mentioned in this document belong to their respective owners

Revision

Date uthor Chapter

Description

1 000 21/06/2012 Fl All First release version

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 3 di 19

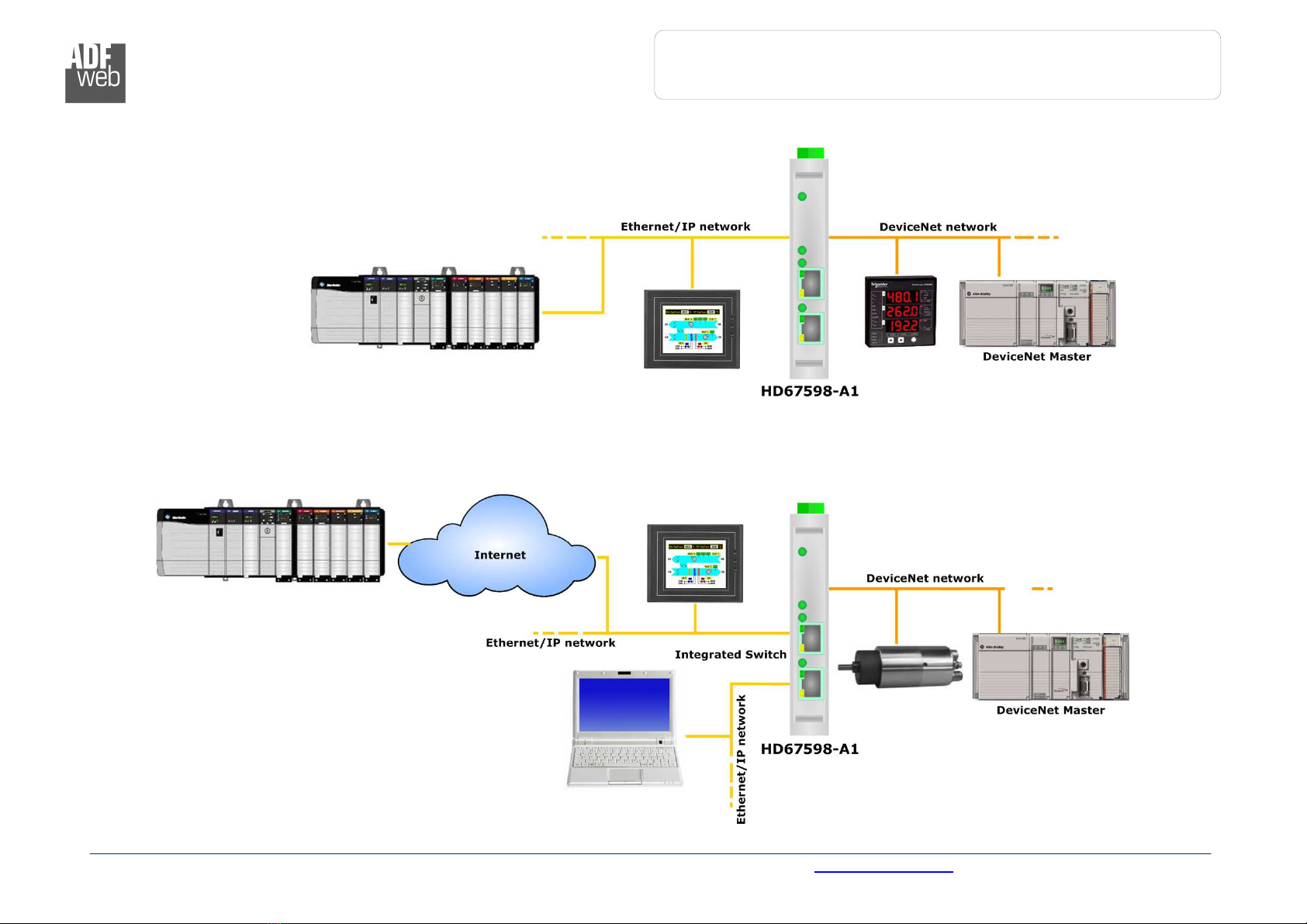

EX MPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 4 di 19

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67598-A1

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 5 di 19

CH R CTERISTICS:

The HD67598-A1 is a Ethernet/IP / DeviceNet Master Converter

It allows the following characteristics:

Up to 455 bytes in reading and 455 bytes in writing;

Two-directional information between DeviceNet bus and Ethernet/IP bus;

Mountable on 35mm Rail DIN;

Power Supply 8…24V AC or 8…35V DC;

Temperature range -40°C to 85°C

CONFIGUR TION:

You need Compositor SW67598 software on your PC in order to perform the following:

Define the parameter of Ethernet/IP line;

Define the parameter of DeviceNet line;

Update the device

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 6 di 19

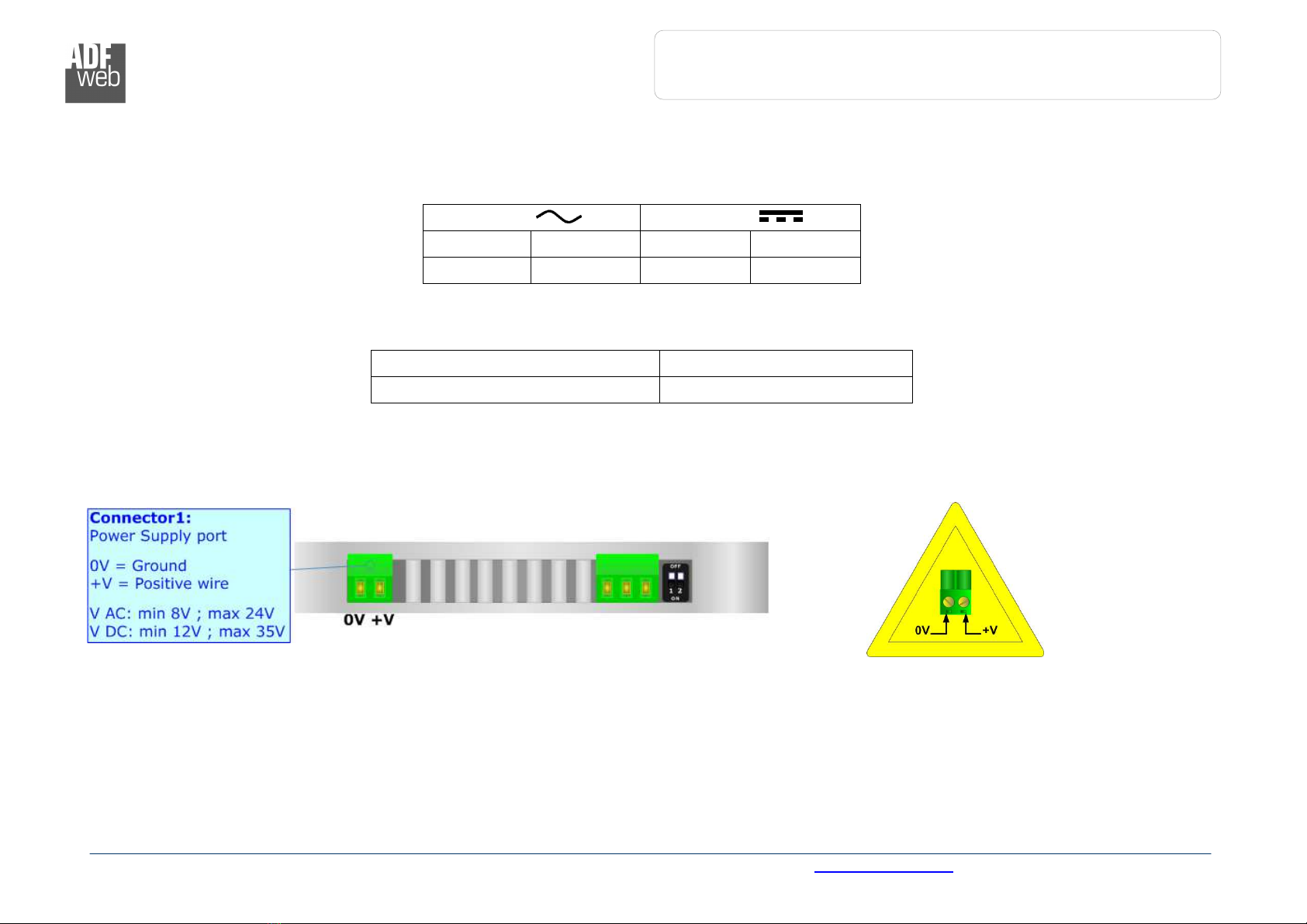

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below

V C

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/V ]

HD67598-A1 3 5

HD6759

Caution: Not reverse the polarity power

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 7 di 19

FUNCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch B’:

The first, with ‘Dip2 of Dip-Switch B’ at “OFF” position, is used for the normal working of the device

The second, with ‘Dip2 of Dip-Switch B’ at “ON” position, is used for upload the Project and/or Firmware

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Warning:

Dip1 of ‘Dip-Switch B’ must be at ON position for working even if the Ethernet cable isn’t inserted

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 8 di 19

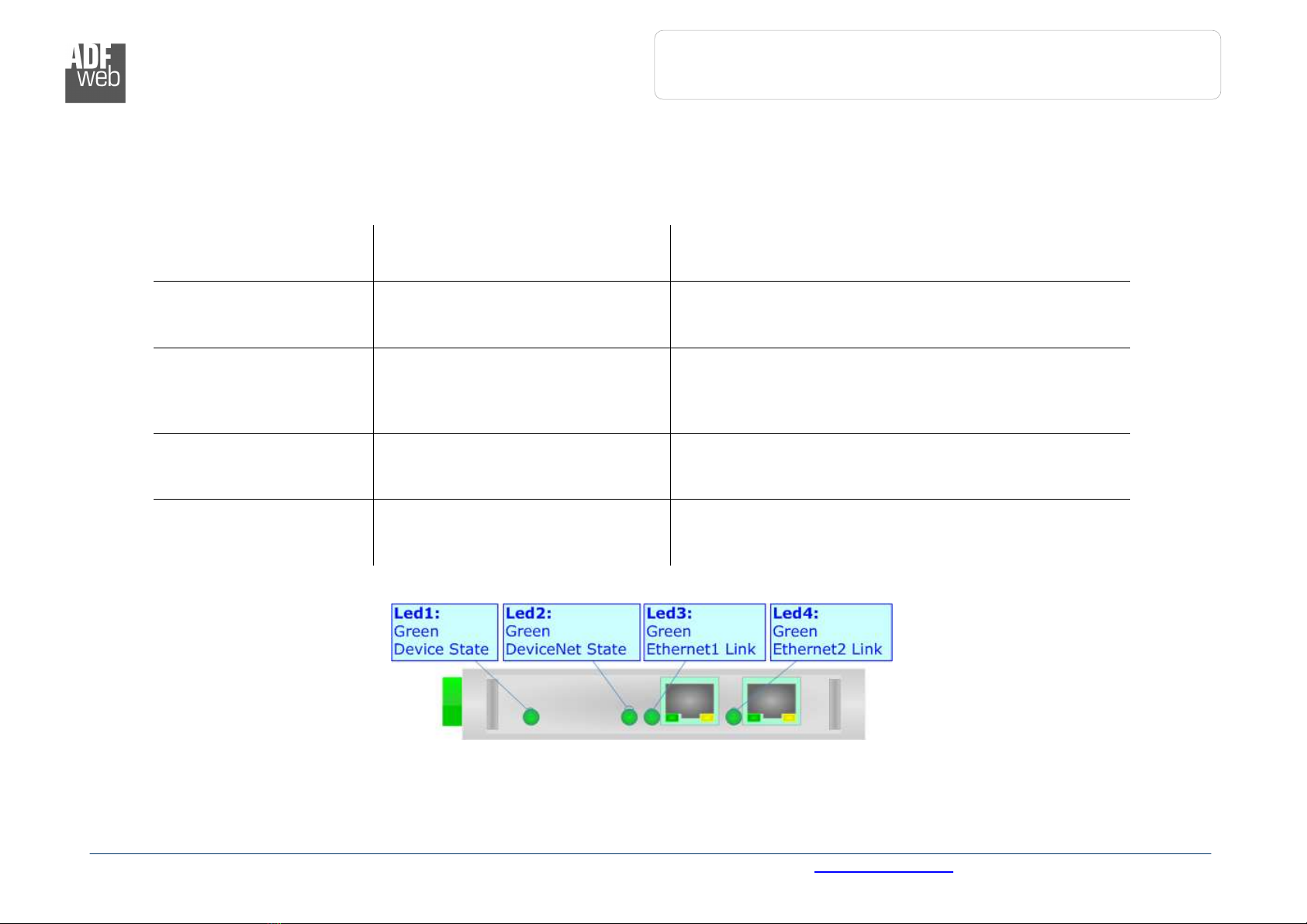

LEDS:

The device has got four LEDs that are used to give information of the functioning status

The various meanings of the LEDs are described in the table below

LED Normal Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: DeviceNet State

(green)

ON: Data exchange with a Master

OFF: No data exchange with a

Master

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: Ethernet1 Link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

4: Ethernet2 Link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 9 di 19

ETHERNET/IP:

The Ethernet/IP connection must be made using Connector3 and/or Connector4 of HD67595-A1 with at least a Category 5E cable The

maximum length of the cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to

100 Mbps To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is

recommended the use of a cross cable

USB:

The USB connection, must be made with a USB cable with a USB Mini B plug

The USB port is used for programming the device

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet/IP /

DeviceNet

lave

Converter

Document code: MN67598_ENG Revision 1 000 Pagina 10 di 19

DEVICENET:

For terminate the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch A’ is at ON position

Cable characteristics:

DC parameter: Impedance 70 Ohm/m

C parameters: Impedance 120 Ohm/m

Delay 5 ns/m

Length Baud Rate [bps] Length M X [m]

125 K 500

250 K 250

500 K 100
