ADF Web HD67459 User manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 1 of 29

User Manual

Revision 1 000

English

PROFINET / NMEA 2000 –

Converter

(Order Code: HD67459)

for Website information:

www adfweb com?Product=HD67459

for Price information:

www adfweb com?Price=HD67459

Benefits and Main Features:

Very easy to configure

Isolation between two buses

Temperature range: -40°C / +105°C (-40°F / +221°F)

For other Gateways / Bridges:

CAN fro /to Modbus

See also the following links:

www adfweb com?product=HD67001 (Modbus RTU Master)

www adfweb com?product=HD67502 (Modbus RTU Slave)

www adfweb com?product=HD67504 (Modbus TCP Master)

www adfweb com?product=HD67505 (Modbus TCP Slave)

Do you have an your customer protocol?

See the following links:

www adfweb com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the following link:

www adfweb com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 2 of 29

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 7

CONFIGURATION 7

POWER SUPPLY 8

LEDS 9

NMEA 2000 10

PROFINET 11

USB 11

USE OF COMPOSITOR SW67459 12

NEW PROJECT / OPEN PROJECT 13

SOFTWARE OPTIONS 14

SET COMMUNICATION 15

RECEIVE FRAMES 16

SEND FRAMES 17

UPDATE DEVICE 18

PLC CONFIGURATION 20

MECHANICAL DIMENSIONS 23

ORDER CODE 27

ACCESSORIES 27

DISCLAIMER 28

OTHER REGULATIONS AND STANDARDS 28

WARRANTIES AND TECHNICAL SUPPORT 29

RETURN POLICY 29

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document

With this “Document Code” go to web page www adfweb com/download/

and search for the corresponding code on the page Click on the proper

“Document Code” and download the updates

REVISION LIST:

Revision Date Author

Chapter

Description

1 000 04/09/2017

Ff All First release version

WARNING:

ADFweb com reserves the right to change information in this manual about

our product without warning

ADFweb com is not responsible for any error this manual may contain

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 3 of 29

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and

safety regulation are required for each individual application The same applies also when using accessories

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e

independent limit switches, mechanical interlocks, etc )

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job

ESIDUAL

ISKS

The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage

CONFORMITY

The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 4 of 29

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 5 of 29

CONNECTION SCHEME:

Figure 1a: Connection scheme for HD67459-E4x-xx

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 6 of 29

Figure 1b: Connection scheme for HD67459-E7x-xx

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 7 of 29

CHARACTERISTICS:

The “HD67459” series are rugged devices used to interface NMEA 2000 devices with a PROFINET Master

With his particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal,

vertical, oblique)

It is possible to have the device varnished or totally resined and also in both cases with “Mini-Fit®” connectors or “AMP SuperSeal 1 5”

connectors If is resined, the enclosure, like the “AMP SuperSeal 1 5" connectors, is waterproof (IP63)

The device have these characteristics:

Triple 4kV isolation between Power Supply / Ethernet / CAN;

Varnished / Resined (optionally);

Wide power supply input range: 8…26V AC | 10…40V DC;

Mini-Fit® / AMP SuperSeal 1 5 connectors;

Metal enclosure with fixing lugs;

Possibility to use Metal hose clamps for fixing it without using lugs;

Microprocessor for data control;

Wide temperature range: -40°C / 105°C (-40°F / 221°F)

CONFIGURATION:

You need Compositor SW67459 software on your PC in order to perform the following:

Define the parameter of the NMEA 2000 bus;

Define the parameter of the PROFINET bus;

Define a list of PGNs in reception and transmission;

Update the Firmware and/or the Project

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 8 of 29

POWER SUPPLY:

The devices can be powered between a wide range of tensions For more details see the two

tables below

VAC

VDC

V in V ax V in V ax

HD67459-Exx-xx 8V 26V 10V 40V

Consumption at 24V DC:

Device W/VA

HD67459-Exx-xx 4

Note: It is possible to use also negative tensions In this case the polarity must be

inverted

Caution: Not reverse the polarity power

HD67459-E4x-xx

HD67459-E7x-xx

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 9 of 29

LEDS:

The device has got four LEDs that are used to give information of the functioning status

The various meanings of the LEDs are described in the table below

LED Nor al Mode Boot Mode

1: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: CAN Communication

(green) Blinks when NMEA 2000 frames are received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: Boot Mode (yellow) OFF ON

4: Ethernet communication

(green)

Blinks when the PROFINET communication is

working

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / NMEA 2000

Converter

Document code: MN67459_ENG Revision 1 000 Page 10 of 29

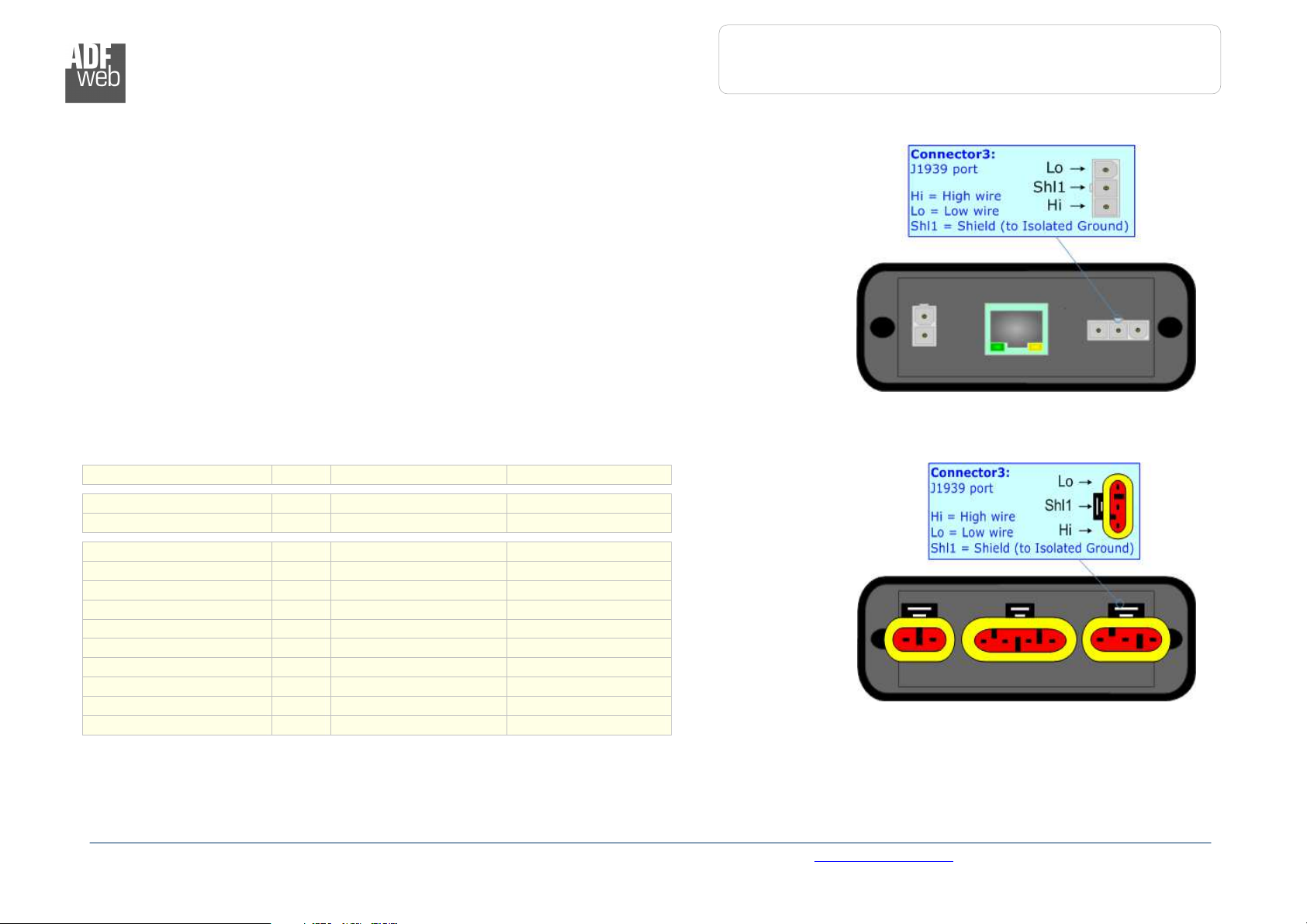

NMEA 2000:

The connection of the NMEA 2000 in the HD67459-E4x-xx device must be made with a 3way

MiniFit Female connector The pinout of Male MiniFit connector of the board is at right side of

the page

The connection of the NMEA 2000 in the HD67459-E7x-xx device must be made with a AMP

SuperSeal 1 5 Male connector The pinout of Female connector of the board is at right side of

the page

The termination of NMEA 2000 line, with a 120Ω resistor, in the HD67459-Exx-xx is made

internally of the device; when the order is performed If the device have the NMEA 2000

terminated the code is the follow: HD67459-Exx-Yx; otherwise is this other: HD67459-Exx-Nx

Cable characteristics:

DC para eter: Impedance 70 Ohm/m

AC para eters: Impedance 120 Ohm/m

Delay 5 ns/m

Length Baud Rate [bps] Length MAX [ ]

10 K 5000

20 K 2500

50 K 1000

100 K 650

125 K 500

250 K 250

500 K 100

800 K 50

1000 K 25
