ADF Web AXIS HD67614-B2 User manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 1 di 22

User Manual

Revision 1.000

English

DMX / PROFINET - Converter

(Order Code: HD67614-B2)

for Website information:

www.adfweb.com? roduct=HD67614

for rice information:

www.adfweb.com? rice=HD67614-B2

Benefits and Main Features:

Very easy to configure

Electrical isolation

Temperature range: -40°C/85°C (-40°F/185°F)

For others DMX products, see also the following links:

Converter DMX to

www.adfweb.com? roduct=HD67670 (BACnet S ave)

www.adfweb.com? roduct=HD67821 (KNX)

www.adfweb.com? roduct=HD67039 (Ethernet)

www.adfweb.com? roduct=HD67588 (EtherNet/IP)

www.adfweb.com? roduct=HD67509 (Modbus TCP S ave)

www.adfweb.com? roduct=HD67040 (SNMP)

Do you have an your customer protocol?

www.adfweb.com? roduct=HD67003

Do you need to choose a device? do you want help?

www.adfweb.com?Cmd=helpme

User Manual

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 2 di 22

INDEX:

age

INDEX 2

U DATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAM LE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

OWER SU LY 7

FUNCTION MODES 8

LEDS 9

RS485 10

ETHERNET 11

USE OF COM OSITOR SW67614 12

NEW ROJECT / O EN ROJECT 13

SOFTWARE O TIONS 14

SET COMMUNICATION 15

DMX DEFAULT VALUE 16

U DATE DEVICE 17

MECHANICAL DIMENSIONS 19

ORDERING INFORMATIONS 20

ACCESSORIES 20

DISCLAIMER 21

OTHER REGULATIONS AND STANDARDS 21

WARRANTIES AND TECHNICAL SU ORT 22

RETURN OLICY 22

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Revision

Date Author Chapter

Description

1.000 26/10/2015

Ff All First Release

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 3 di 22

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 4 di 22

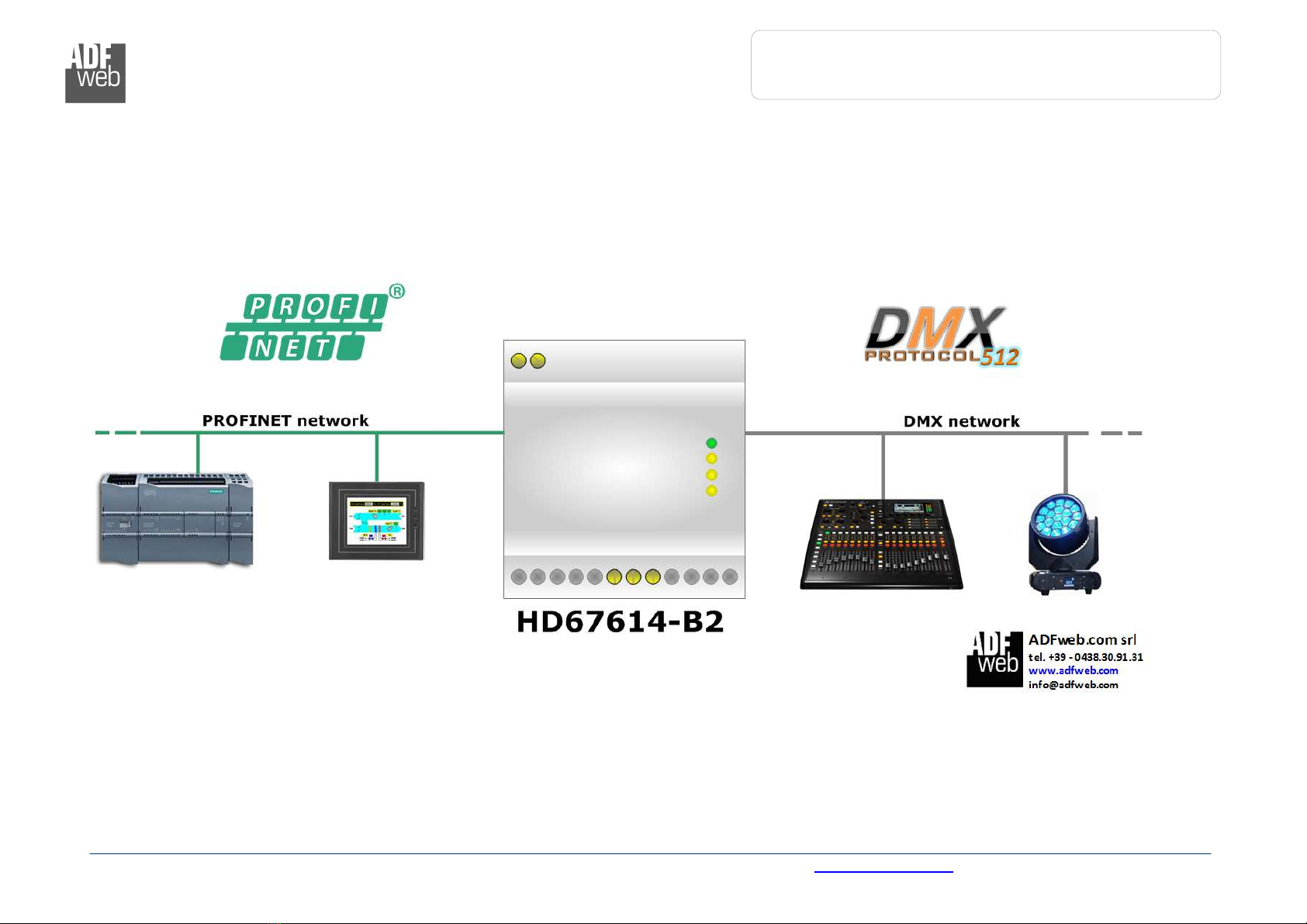

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 5 di 22

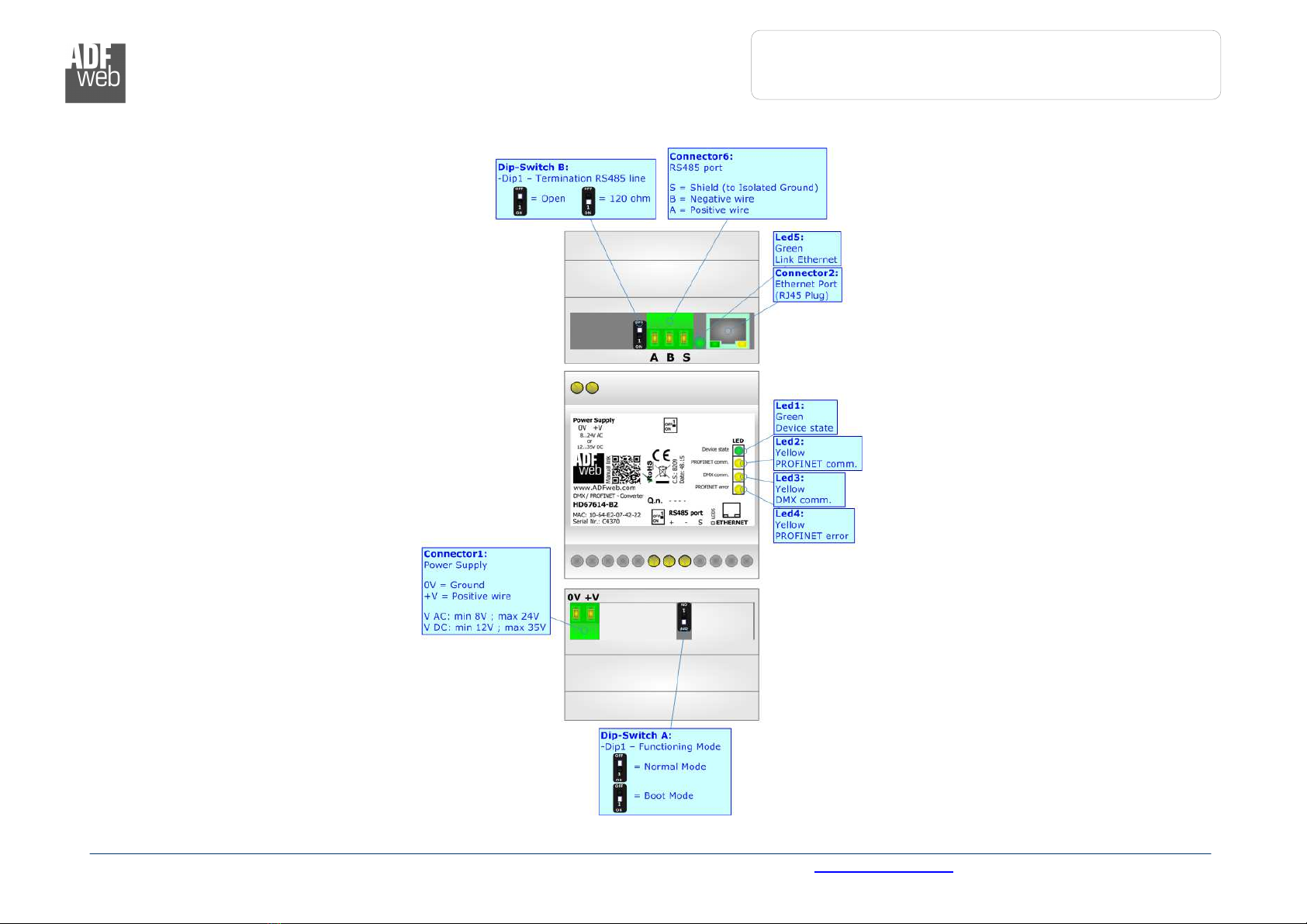

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67614-B2

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 6 di 22

CHARACTERISTICS:

The HD67614 is a DMX / ROFINET Converter.

It has the following characteristics:

Up to 512 bytes on DMX side;

Triple isolation between Ethernet - ower Supply, Ethernet – Serial, ower Supply - Serial.

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -40°C / 85°C [-40°F / +185°F].

CONFIGURATION:

You need Compositor SW67614 software on your C in order to perform the following:

Define the parameter of ROFINET line;

Define the parameter of DMX line;

Define the map of ROFINET byte that must be written in DMX side;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 7 di 22

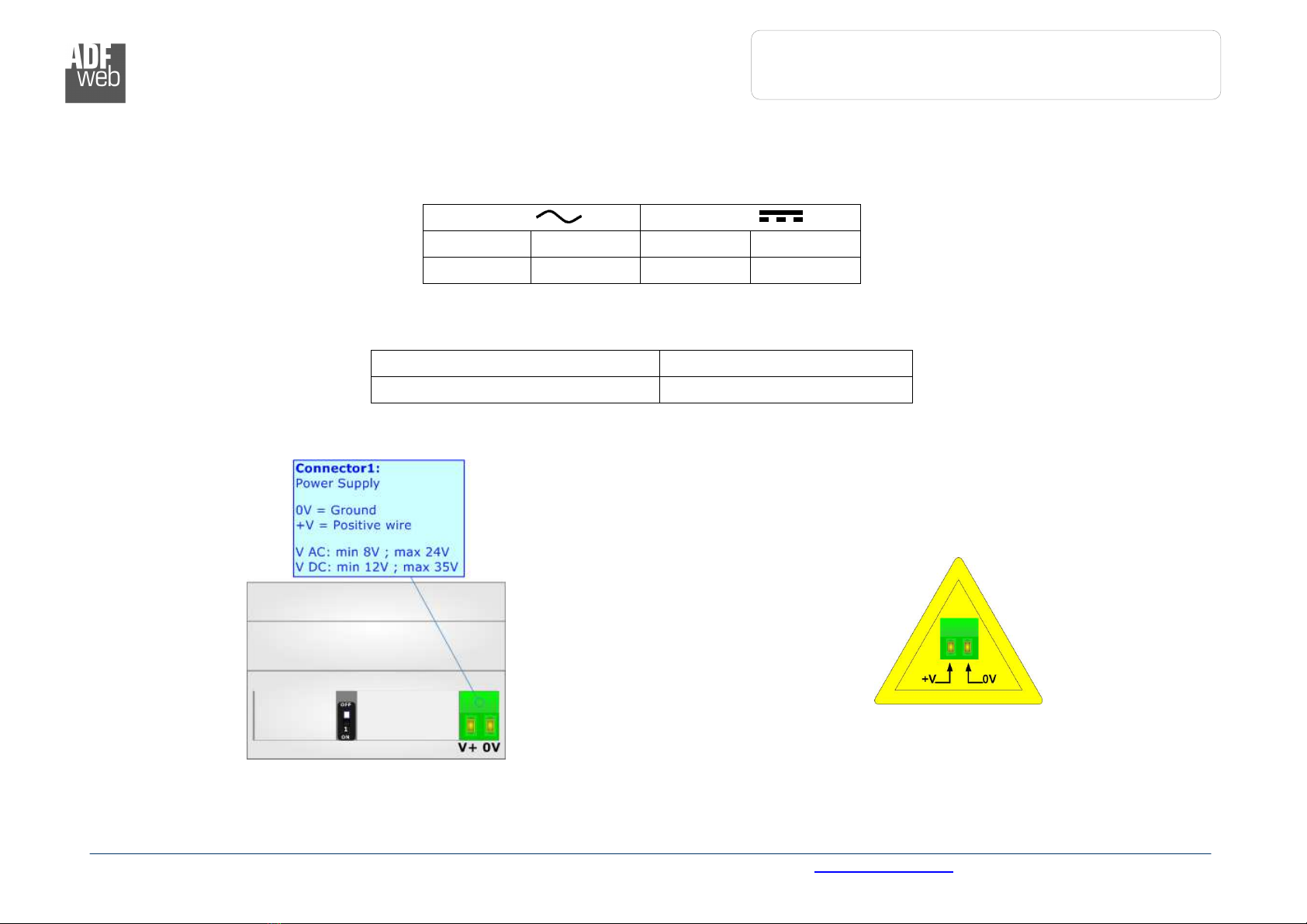

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67614-B2 3.5

HD67614

Caution: Not reverse the po arity power

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 8 di 22

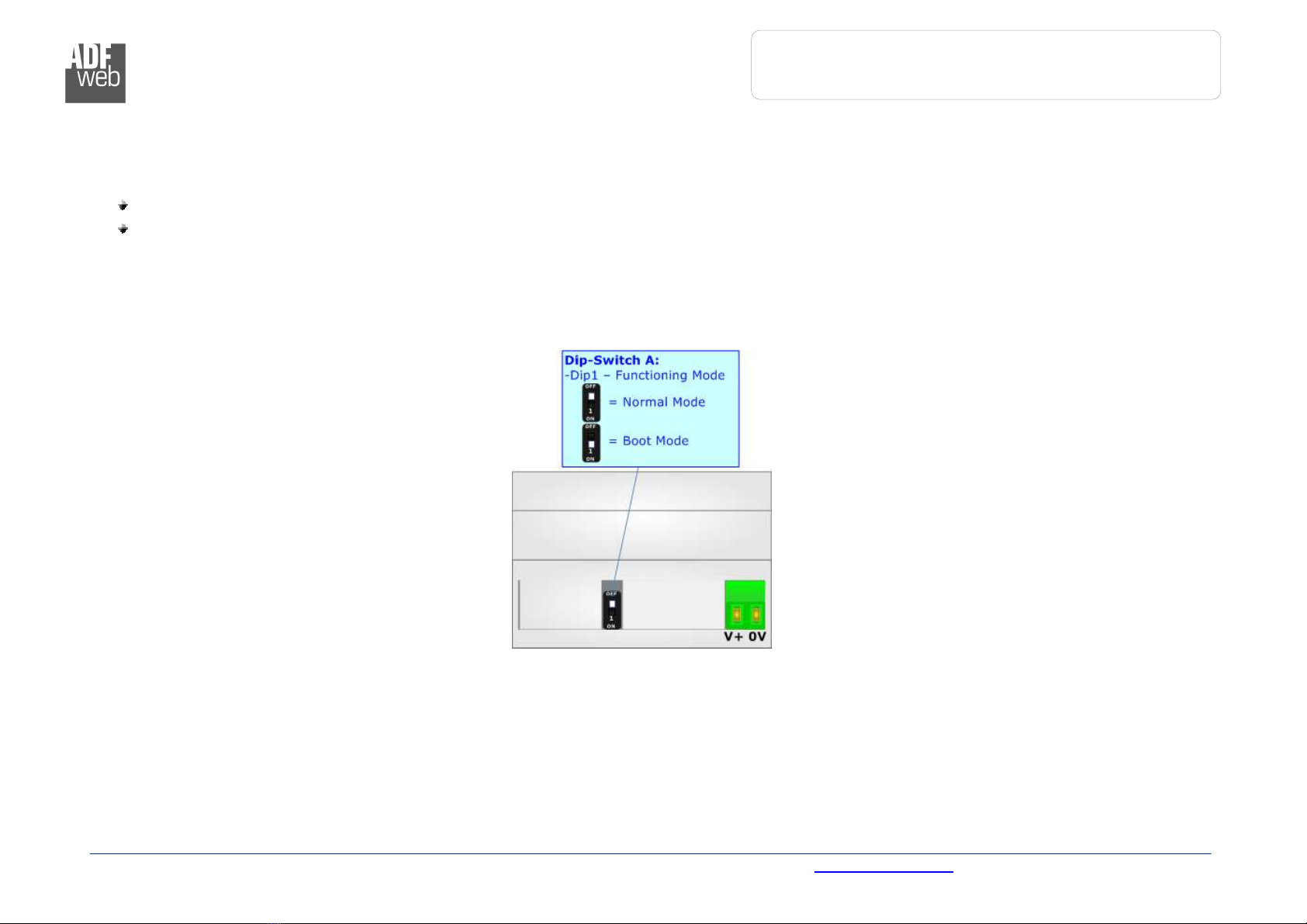

FUNCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.

For the operations to follow for the updating, see ‘U DATE DEVICE’ section.

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 9 di 22

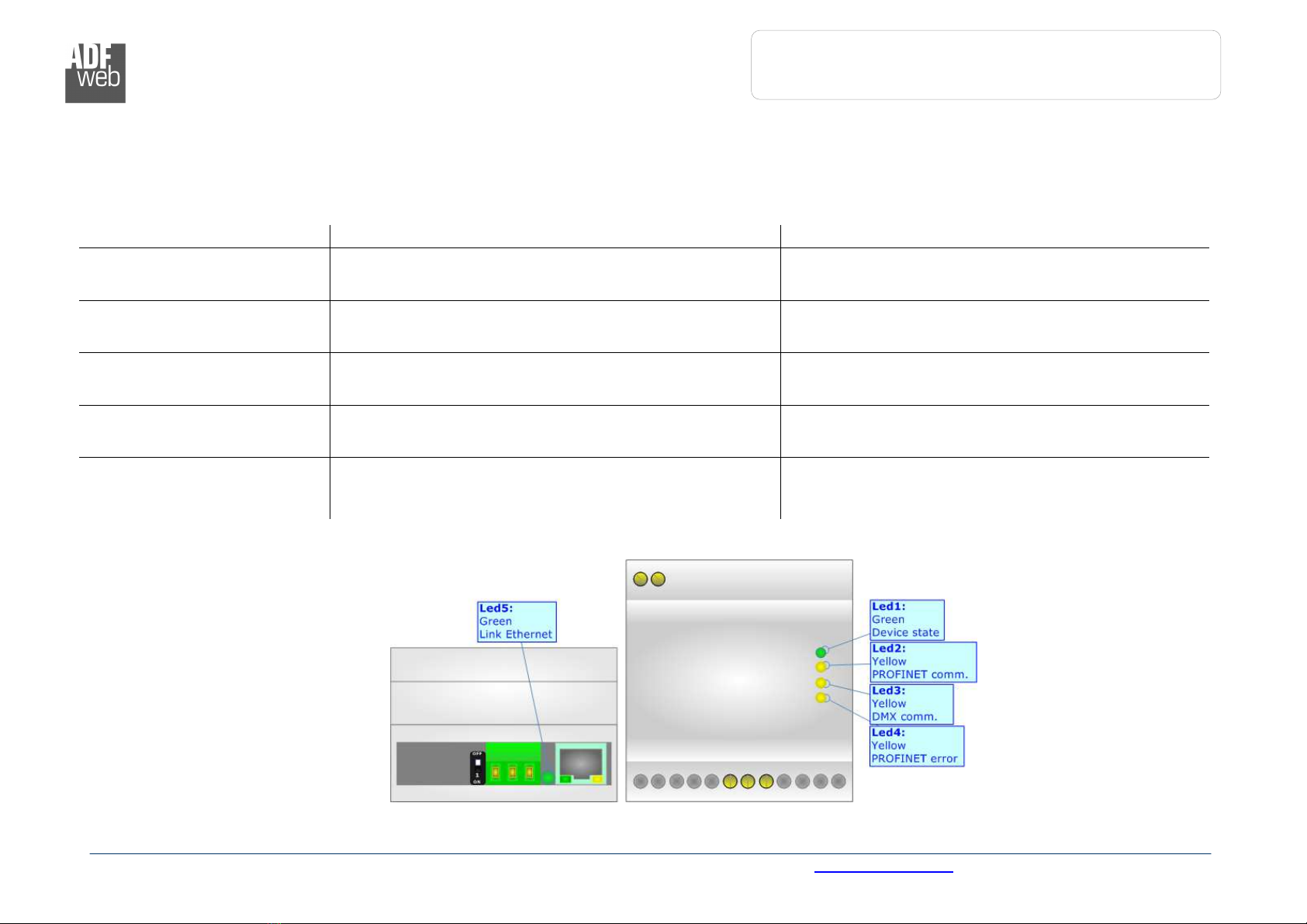

LEDS:

The device has got five LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Norma Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) ON: Device powered

OFF: Device not powered

2: ROFINET communication

(yellow)

Blinks when ROFINET communication with the Master

is running

B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in progress

3: DMX communication

(yellow) Blinks when DMX frame is received B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in progress

4: ROFINET error (yellow) ON: ROFINET communication is in fault

OFF: No faults are present

B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in progress

5: Ethernet Link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DMX / PROFINET

Document code: MN67614_ENG Revision 1.000 agina 10 di 22

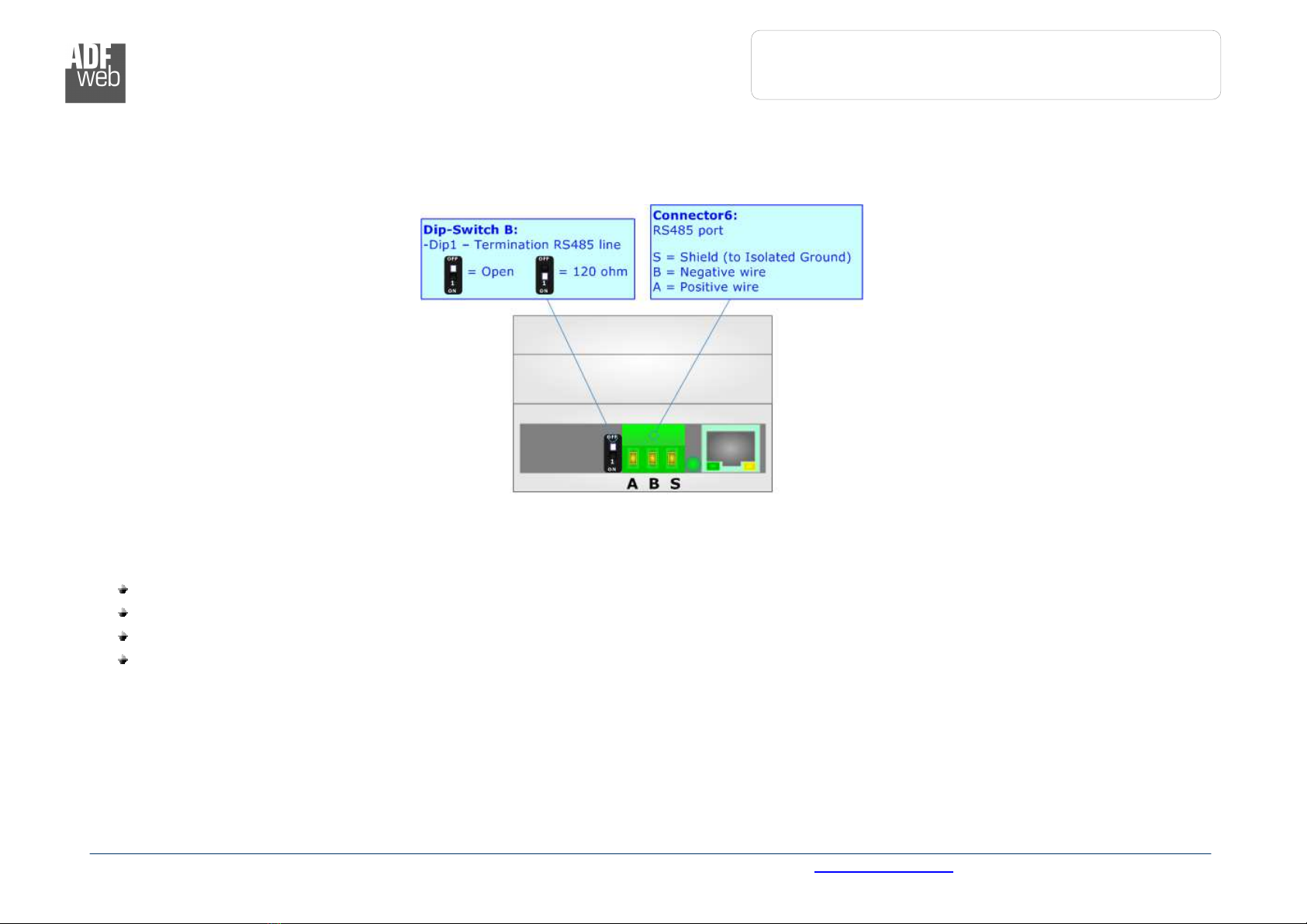

RS485:

For terminate the RS485 line with a 220Ω resistor it is necessary to put ON dip 1, like in figure.

The maximum length of the cable should be 1200m (4000 feet).

Here some codes of cables:

Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;

Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;

Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;

Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.
