ADEMCO Via30+ User manual

ABOUT THE CONSOLES

A CONSOLES STYLE CONSOLES

(SHOWN WITH KEYPAD COVER REMOVED)

5137AD ALPHA CONSOLE

4127 4137AD

6139 ALPHA CONSOLE

612716120 6137

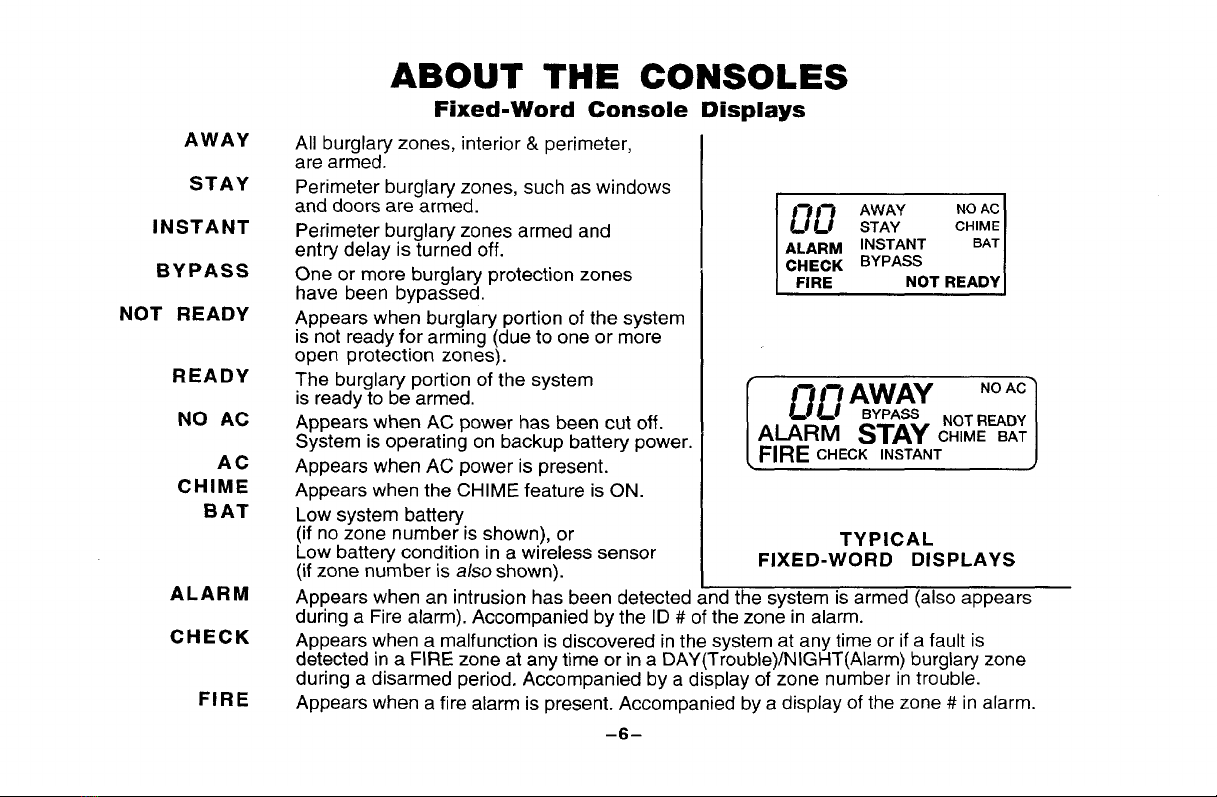

FIXED-WORD CONSOLES FIXED-WORD CONSOLES

FUNCTIONS OF THE CONSOLE

SEE TYPICAL CONSOLE ON NEXT PAGE

DISPLAY WINDOW: Displays protection zone ID and

status messaaes.

OFF KEY: burglary portion of the system,

silences alarms and audible trouble indicators. and

11.

READY KEY: Displays all open protection zones.

12. #

KEY: “Quick Arm”key permits ARMING of the system

without use of a security code (if so programmed).

13.

KEYS Used to enter your security code(s).

14. READY INDICATOR: (GREEN) Lit when the system is

ready to be armed (no faults present). While the system is

disarmed, this indicator will go on and off as protection

zones are closed and opened.

•J

10.

clears visual display after problem’s correction.

AWAY KEY: Arms the entire burglary system,

perimeter and interior.

STAY KEY: Arms perimeter portion of burglary

system only. Interior protection is not armed, which

movement within premises without causing

MAXIMUM KEY: Arms in manner similar to AWAY

mode, but without the entry delay feature! thus provid-

ing maximum protection. An alarm occur im-

mediately upon opening any protection point, including

the main door.

TEST KEY: Tests the system and alarm sounder if

disarmed. Refer to

TESTING THE SYSTEM

section for

test procedures.

BYPASS KEY: Removes individual protection zones

from being monitored by the system.

INSTANT KEY: Arms in manner similar to STAY

mode, but without the entry delay feature. Entering

via the entry/exit door will cause an instant alarm.

CODE KEY: Used to assign additional user codes for

other users of the system.

CHIME KEY: Turns CHIME mode on and off. When

on, the opening of windows or doors while the system is

disarmed will sound 3 beeps at the keypad(s).

Note: On some consoles there is, instead, a POWER

INDICATOR (GREEN) which is lit when AC power

is If the indicator is off, the svstem mav

15.

16.

17.

stili be operating, but on its backup

See

Power Failure

TROUBLE CON

section.

ARMED INDICATOR: (RED) Lit when the s stem has

been armed (STAY, AWAY, INSTANT or

INTERNAL SOUNDER: The built-in console sounder

mimics the alarm sounder during alarms, and will also “beep”

durin certain s stem functions (see

SUMMARY OF

AUDI

EMERGENCY (PANIC) KEYS:

Individual keys A, B, and C (key D not used).

On some consoles, these keys are not present and other

keys may be available for emergency functions.

For further information, refer to the

PANIC KEYS

section.

te: Keys

through

each perform their associated companion functions (OFF, AWAY, STAY, etc.)

when preceded by an entry of the security code (as described later).

KEYPAD COVER

REMOVED

TYPICAL ALPHA CONSOLE

. .

Fixed-Word Consoles are functionally similar, except for screen displays.

SECURITY CODES

General

Duress Code

Quick Arming

At the time of installation, your installer programmed a personal four-digit Master

code, known only to you and yours. This code is used to perform most system

functions, including arming and disarming of the system. As an additional safety

feature, temporary user codes can be assigned (see next page) for use by those

not having a need to know the Master code. Note that the Master code remains

in effect even when other user codes are assigned.

This feature is intended for use when you are forced to disarm or arm the system

under threat. When used, the system will act normally, but can silently notify the

central station of your situation, if that service has been provided.

The Duress code is the same as vour user code. except that the last digit is

increased bv one.

For example: If the normal security code is “1 2 3

the Duress security code is “1 2 3 5”.

Important:

This code is useful only when connected to a central station.

User codes that end in “9”(ex. 6349) cannot activate a duress

alarm (i.e., 6350 is not a duress alarm code).

If your system supports “Quick Arming”, the key can be pressed in place of

the security code when arming the system. The security code is

required, however, when disarming the system.
