ADC Fiber Optic Panel FL2000 Series User manual

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

Single Fiber Access

The FL2000 system is a flexible and modular series of

fiber products for today‘s and tomorrow‘s evolving

communications and data networks.

This product family is a complete line of modular panels

developed for rack and wall mounting. The system is

fully adaptable to small distribution frames, telephone

closet (TC) applications, or active equipment racks.

FL2000 panels are designed for both 19- and 23-inch EIA

rack or cabinet environments. FL2000 products provide

termination, splicing and storage capabilities for in-building

cables, outside plant cables and fiber optic terminal (FOT)

equipment.

FL2000’s modular design offers maximum flexibility to

satisfy current needs and future growth requirements. A

full line of options and accessories ensures compatibility

with existing optical equipment. FL2000 panels

accommodate value-added module (VAM) plug-ins, adding

flexibilty and functionality to the optical transport system.

Splitters, wavelength division multiplexers (WDMs) and

other optical components can easily be incorporated.

All FL2000 panels accommodate 6pak adapters. 6paks

are available in all connector styles and can be ordered

as needed. ADC’s removable angled retainers allow easy

access for single fiber maintenance.

FL2000 panels feature superior vertical cable protection

and management. Rack mount panels are hinged on one

side, allowing full access to the rear of the front bulkhead

plate and the interior of the panel. They come equipped

with mounting brackets to provide five-inch recess

mounting. Mounting brackets are available for virtually

any mounting application. Rack mount panels can be wall

mounted as well. The FL2000 splice wheel allows easy

storage of pigtail and buffer tube lengths and superior

bend radius protection. The FL2000 splice deck is available

to complete existing installations.

Rack Mount

Termination Panel

(With IFC)

Rack Mount

Termination/Splice Panel

(Empty)

FL2000 Series Fiber Optic Panel

Introduction

Swing-out Bulkhead

(Allows Full Access)

Rack Mount

Termination Panel

(Empty)

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

FL2000 Series Fiber Optic Panel

Introduction

Description Termination, termination/splice, storage, splice-only

Recommended

Applications

Multi-purpose modular solution ideal for cabinet, rack, wall mount or medium

size frame applications. Ideal for small to medium fiber counts.

Number of ﬁbers,

future growth

potential

12 to 96 (up to 192 with LC connectors)

Flexibility/

ability to grow

Ideal for growth

Interconnect Yes

Cross-connect Yes

Accommodates

on-frame splicing

Yes. Built-in

Accommodates

off-frame splicing

Yes. IFC cable and assembly available

Rear access Not required

All-front-access Yes

Customer premises

application

Ideal

Cabinet mount Yes

Wall mount Yes

Mix equipment with

ﬁber product?

Ideal

Use as dedicated

ﬁber frame

Up to 400-fibers only. (See ODF catalog #103742AE)

19" mounting Yes

23" mounting Yes

Optimum jumper

storage location

Can be configured with storage

Vertical cable guide Ships with every panel

VAM capabilites Yes

Product Overview

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

FL2000 Series Fiber Optic Panel

Fiber Termination/Splice Panel with Adapters or Pigtails

FL2 -

Catalog Number

Number

of Ports

Loaded Number of

Splice Decks/Wheels

19" standard

19" flush mount

23" centered

Mounting Style3

1 LC connectors and adapters double the capacity of the panel

by terminating two fibers at each adapter.

2 6-fiber softwall bundle except with LC connectors, which uses 12-fiber.

3Mounting kit shipped unattached if other than standard mounting style.

1 clamp (standard)

2 clamps

Number of Cable Clamps

Latch

K1 lock

Latch Type

Adapter-only

Singlemode or multimode 62.5/125 µm

stranded softwall bundle

Singlemode or multimode 62.5/125 µm

12-fiber ribbon

Multimode 50/125 µm

stranded softwall bundle

Pigtail or Adapter Type2

12-position 3.5" (2 RU)

24-position 5.25" (3 RU)

48-position 8.75" (5 RU)

72-position 14" (8 RU)

96-position 17.5" (10 RU)

Panel Capacity Panel Height

LC1

SC ultra polish

SC angled polish

FC ultra polish

LC ultra polish1

LC angled polish1

Multimode

Singlemode

Connector and Adapter Type

None or N/A

Mechanical

(mass fusion)-wheel

Heat shrink fusion

(single fiber fusion)-wheel

Bare fusion

Heat shrink fusion

(single fiber fusion)-deck

Mechanical

(mass fusion)-deck

Splice Type

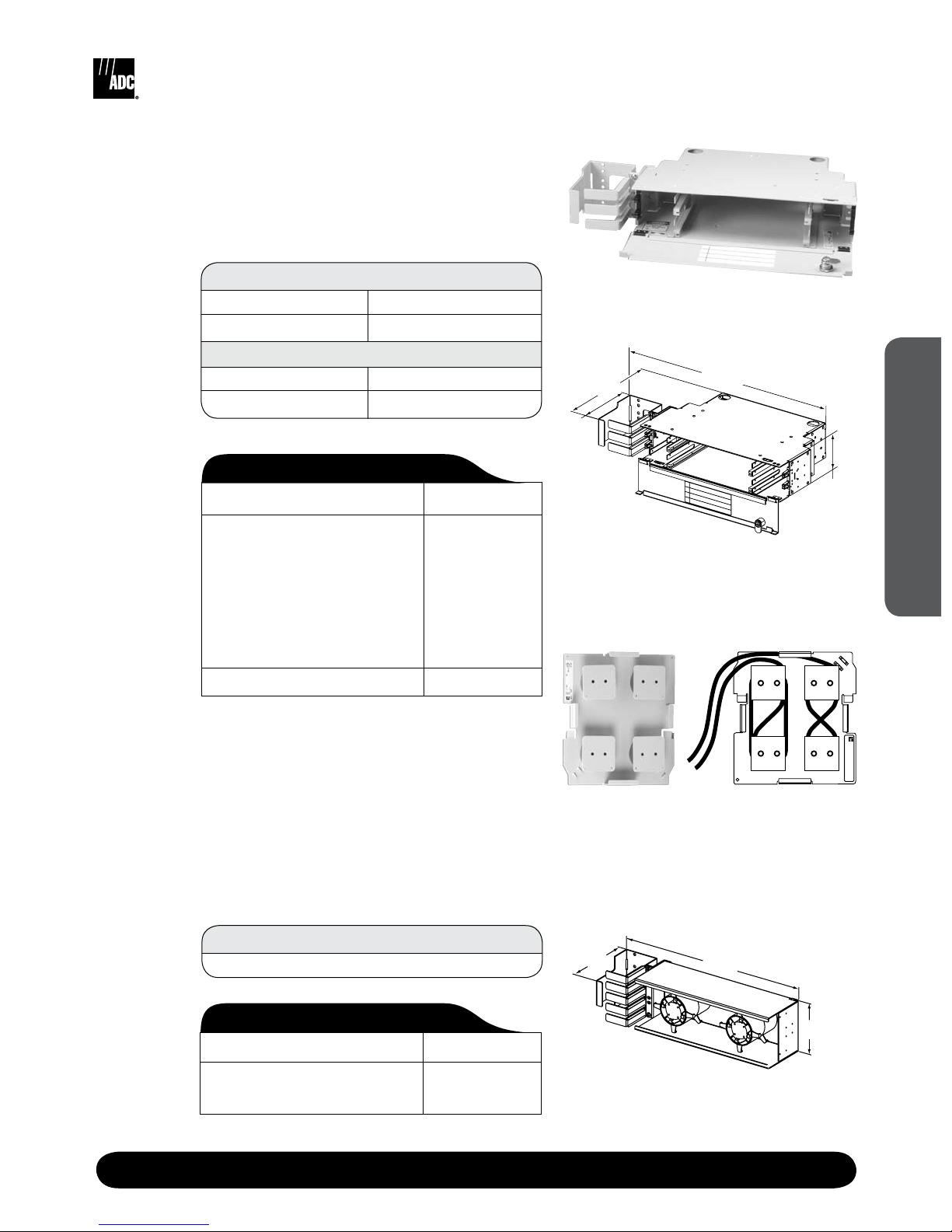

72-Position Termination/Splice Panel

(Shown Empty)

258 mm

(10.1")

126 mm

(5")

498 mm

(19.6")

133 mm

(5.25")

Other configurations are available upon request. Please contact ADC Technical Assistance Center.

Features

• Termination and splice panel • Uses ADC’s splice deck or splice wheel

• VCG ships with each panel • Uses FL2000 6paks with angled retainers

24-Position Termination/Splice Panel

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

FL2-12TS350

FL2-24TS525

FL2-48TS875

FL2-72TS140

FL2-96TS175

FST-DRS12-HS

FST-DRS12-MT

FST-DRS24-HS

FST-DRS24-FT

FL2-RSPLCE-HS

FL2-RSPLCE-MT

FL2-RSPLCE-FT

Panel Height

3.5" (2 RU)

5.25" (3 RU)

8.75" (5 RU)

14" (8 RU)

17.5" (10 RU)

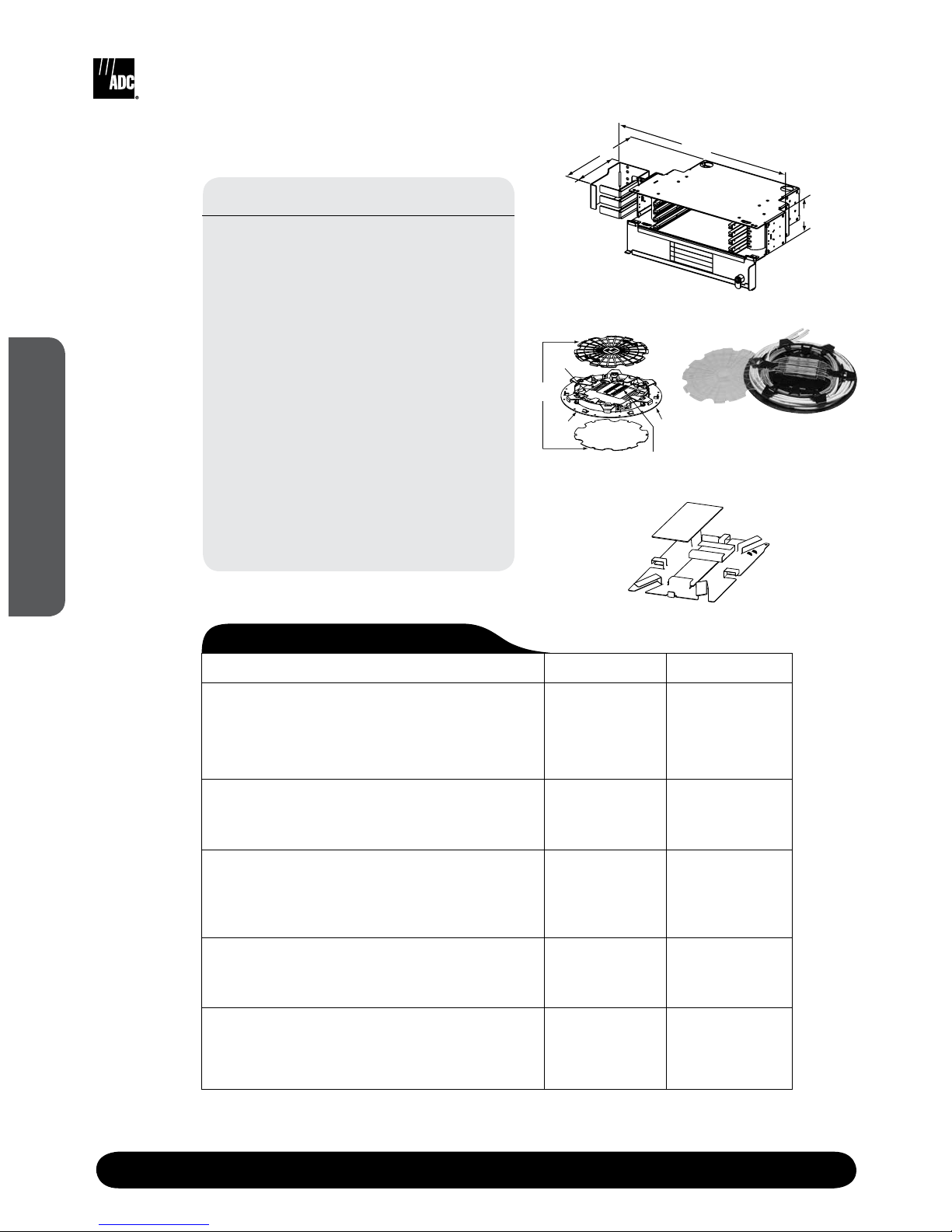

FL2000 Series Fiber Optic Panel

Empty Termination/Splice Chassis

Features

• Mounting

- 19-inch EIA racks or cabinets, standard

five-inch recess

- Wall mounting option available

- Other mounting kits available

• Hinged on left front side for complete access

to interior of termination section

• Ability to quickly and easily configure, utiliz-

ing the 6pak assemblies (ordered separately)

• Complete line of accessories including locks

for security

• Uses ADC splice wheels or splice decks

• Ships with vertical cable guide (VCG)

Fiber Chassis Data

• Fiber capacity*: 12, 24, 48, 72 & 96

• Termination

• Splice

• Pigtail storage

Description

Empty termination/splice chassis;

includes vertical cable guide (VCG)

12-position

24-position

48-position

72-position

96-position

Splice wheel

Heat shrink (single fiber fusion)

Mechanical (mass fusion)

Heat shrink (single fiber fusion)-24 fiber

Bare fusion (24-fiber)

Splice deck

Heat shrink (single fiber fusion)

Mechanical (mass fusion)

Bare fusion

48-Position Termination/Splice Chassis

96-Position Termination/Splice Chassis

24-Position Termination/Splice Chassis

*Panels can double capacity with LC adapters.

Ordering Information

Catalog Number

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

LC1

FC ultra polish

SC ultra polish

SC angled polish

LC ultra polish1

LC angled polish1

Singlemode

Multimode

Panel Type

12-position 1.75" (1 RU)

24-position 3.5" (2 RU)

48-position 5.25" (3 RU)

72-position 8.75" (5 RU)

96-position 10.5" (6 RU)

Panel Capacity Panel Height

Multimode

Singlemode

Connector and Adapter Type

8 m (25')

16 m (50')

23 m (75')

31 m (100')

39 m (125')

46 m (150')

61 m (200')

77 m (250')

92 m (300')

122 m (400')

153 m (500')

008

016

023

031

039

046

061

077

092

122

153

144 (LC connectors only with

72-position panel)

Cable Size

Multimode

Singlemode

IFC stranded 62.5/125 µm riser

IFC stranded 50/125 µm riser

IFC stranded riser

IFC ribbon riser

OSP armored ribbon (24-fibers and up)

Cable Type

Cable Length

19" standard

19" flush mount

23" centered

Mounting Style2

Down

Cable Exit Direction

FL2 - __ __ __ __ __ __ __ __ - __ __ __

Catalog Number

1LC connectors and adapters double the capacity of the

panel by terminating two fibers at each adapter.

2Mounting kit shipped unattached, if other than standard

mounting style.

Latch

K1 Lock

Latch Type

Other configurations are available upon request. Please contact ADC Technical Assistance center.

FL2000 Series Fiber Optic Panel

Fiber Termination Panels with Multifiber Cable (Preterminated)

Features

• Panels with preterminated multifiber cable

(IFC or OSP) ship as a single unit with cable

clamp installed

• Customizable panels come equipped with

customer specified number of adapters, retainers,

connectors, cable type and cable length

• Panels with multifiber cable attached save costly

installation time

Termination Panels

(With Multifiber Cable)

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

FL2000 Series Fiber Optic Panel

Fiber Termination Panels with Adapters or Pigtails

12-position 1.75" (1 RU)

24-position 3.5" (2 RU)

48-position 5.25" (3 RU)

72-position 8.75" (5 RU)

96-position 10.5" (6 RU)

Panel Capacity Panel Height

1 LC connectors and adapters double the capacity

of the panel by terminating two fibers at

each adapter.

26-fiber softwall bundle except with LC connectors,

which uses 12-fiber.

3Mounting kit shipped unattached, if other than

standard mounting style.

FL2 -

Catalog Number

000-

Latch

K1 lock

Latch Type

Number

of Ports

Loaded

19" standard

19" flush mount

23" centered

Mounting Style3

LC1

SC ultra polish

SC angled polish

FC ultra polish

LC ultra polish1

LC angled polish1

Multimode

Singlemode

Connector and Adapter Type

Adapter-only

Singlemode or multimode 62.5/125 µm

stranded softwall bundle

Singlemode or multimode 62.5/125 µm

12-fiber ribbon

Multimode 50/125 µm

stranded softwall bundle

Pigtail or Adapter Type2

126 mm

(5")

257 mm

(10.1")

498 mm

(19.6")

133 mm

(5.25")

Other configurations are available upon request. Please contact ADC Technical Assistance Center.

Features

• Termination-only panel

• VCG ships with each panel

• Uses FL2000 6paks with angled retainers

72-Position Termination Panel 48-Position Termination Panel

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

Features

• Mounting

- 19-inch EIA racks or cabinets, standard

five-inch recess

- Wall mounting option available

- Other mounting kits available

• Hinged on left front side; allows full access to

rear of front plate and interior of panel

• FL2000 6pak adapter plug-ins ordered separately

• Equipped with removable metal doors with

Plexiglass®1 windows

• Designation labels included with each panel

• Complete line of accessories including locks

for security

• Ships with vertical cable guide (VCG)

Fiber Chassis Data

• Fiber capacity*: 12, 24, 48, 72 and 96

• Termination

• Pigtail storage

FL2000 Series Fiber Optic Panel

Empty Termination Chassis

24-Position Termination Chassis

96-Position Termination Chassis

*Panels can double capacity with LC adapters.

72-Position Termination Chassis

Description

Empty termination chassis

12-position

24-position

48-position

72-position

96-position

Catalog Number

FL2-12RPNL

FL2-24RPNL

FL2-48RPNL

FL2-72RPNL

FL2-96RPNL

1.75" (1 RU)

3.5" (2 RU)

5.25" (3 RU)

8.75" (4 RU)

10.5" (5 RU)

Ordering Information

Panel Height

Plexiglass is a registered trademark of Atoglas Division

of Atofina Chemicals, Inc.

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

Horizontal Interbay Management Panel

Manages and stores fiber within the frame.

Storage Deck Chassis

Mounts with FL2000 termination panels to provide

jumper storage. May be wall, rack or cabinet mounted.

Catalog Number

FL2-2RSTORE

FL2-6RSTORE

FL2-TR2000

Description

Storage deck chassis

(storage decks ordered separately)

2 storage deck capacity;

89 mm x 483 mm x 258 mm

(3.5" x 19" x 10.2")

6 storage deck capacity;

222 mm x 483 mm x 258 mm

(8.75" x 19" x 10.2")

Storage deck

Ordering Information

Catalog Number

FL2-HZSTORE

Description

Horizontal interbay

management panel

Ordering Information

FL2000 Series Fiber Optic Panel

Slack Storage Solutions

Horizontal Interbay Management Panel

FL2-HZSTORE

498 mm

(19.6")

133 mm

(5.25")

126 mm

(5")

126 mm

(5")

258 mm

(10.1")

89 mm

(3.5")

498 mm

(19.6")

Storage Deck

(Top View)

FL-TR2000

Storage Deck Chassis

(Front View)

FL2-2RSTORE

Storage Deck

Storage Capacity (1 patch cord per deck)

1.7 mm patch cord 35 m (115') per deck

3.0 mm patch cord 20 m (66') per deck

Storage Capacity (2 to 4 patch cords per deck)

1.7 mm patch cord 39 m (128') per deck

3.0 mm patch cord 29 m (95') per deck

Storage Capacity

Stores up to 137 m (550') using oval storage method

Storage Deck Chassis

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

Splice Chip(s)

(Heat Shrink

Shown)

Splice

Deck

Top

Side

Bottom

Side

Clear

Covers

Splice Deck

Catalog Number

FL2-48SPNL2

FL2-96SPNL2

FL2-144SPNL2

FST-DRS12-HS

FST-DRS12-FT

FST-DRS12-MT

FL2-48SPNL

FL2-96SPNL

FL2-144SPNL

FL2-RSPLCE-HS

FL2-RSPLCE-FT

FL2-RSPLCE-MT

FL2-ACC007

Panel Height

3.5" (2 RU)

7" (4 RU)

8.75" (5 RU)

3.5" (2 RU)

7" (4 RU)

8.75" (5 RU)

Ordering Information

Description

Splice chassis for use with splice wheel

(Only accepts splice wheel)

48-fiber capacity

96-fiber capacity

144-fiber capacity

Splice wheel

Heat shrink (single fiber fusion)

Bare fusion

Mechanical (mass fusion)

Splice chassis for use with splice deck

(Also accepts splice wheel)

48-fiber capacity

96-fiber capacity

144-fiber capacity

Splice deck

Heat shrink (single fiber fusion)

Bare fusion

Mechanical (mass fusion)

Cable clamp kit (kit of 1)

Outer diameter 5 mm to 20 mm (0.2" to 0.8")

For mounting kits and additional

accessories, see pages 48-56.

FL2000 Series Fiber Optic Panel

Chassis Solutions

Features

• Offers a combination of splicing protection

and associated fiber/pigtail storage

• Splice chassis can be mounted in conjunction

with any FL2000 termination panel or as a

stand-alone splice panel

• Occupies same footprint and offers same

mounting options as FL2000 termination

panels

• Accepts the ADC splice wheel for efficient

management of fiber cable and splice protection

• Accepts the ADC splice deck

• Ships with vertical cable guide (VCG)

Fiber Chassis Data

• Fiber capacity: 48, 96 & 144

• Splice

• Pigtail storage

89 mm

(3.5")

258 mm

(10.1")

126 mm

(5")

498 mm

(19.6")

Splice Chassis

Splice Wheel

Splice Chassis

10/07 • 103743AE Fiber Optic Panels

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Rack Mount Panel Solutions

FL2000 Series Fiber Optic Panel

Value-Added Module (VAM) Chassis

Value-Added Module (VAM) System

ADC offers an expansive line of monitor, splitter, WDM and CWDM VAM plug-in modules designed

to meet all application needs. Please reference the Value-Added Module (VAM) System Catalog

#101663AE for details at www.adc.com or contact ADC Customer Service.

The FL2000 VAM chassis is designed to accommodate ADC VAM plug-in modules in FL2000

installations. The chassis protects and manages optical components and is purchased empty, then

loaded with various plug-in modules or blank plates, all of which can be mixed and matched. The

chassis can be mounted in 5-inch recess, 19- or 23-inch rack mount, frame and cabinet environments.

Vertical cable guides match the vertical cable management features of existing FL2000 system. The

chassis accommodates 4, 6 or 9 plug-in modules.

FL2-4VAM525

Ordering Information

Description Dimensions (HxWxD) Catalog Number

10.5" FL2000 VAM chassis, unloaded;

accommodates 9 single plug-in modules

267 mm x 483 mm x 258 mm

(10.5" x 19" x 10.1")

FL2-9VAM105

7" FL2000 VAM chassis, unloaded;

accommodates 6 single plug-in modules

152 mm x 483 mm x 258 mm

(7" x 19" x 10.1")

FL2-6VAM700

5.25" FL2000 VAM chassis, unloaded;

accommodates 4 single plug-in modules

133 mm x 483 mm x 258 mm

(5.25" x 19" x 10.1")

FL2-4VAM525

Note: The FL2000 VAM system is designed to accept only front access modules; i.e., all input

and output adapters, pigtails and/or bare fibers must be located on the front of the plug-in modules.

VAM Chassis

(Shown Unloaded)

Other manuals for Fiber Optic Panel FL2000 Series

Table of contents

Other ADC Network Hardware manuals

ADC

ADC HiGain H2TU-C-231 Original operating instructions

ADC

ADC FlexWave MMX 6000 User manual

ADC

ADC HiGain HDSL2 User manual

ADC

ADC OmniReach OFDT-24 User manual

ADC

ADC Double Pair/Line Power HDSL User manual

ADC

ADC HIGAIN H2TU-R-402-L7A1 Original operating instructions

ADC

ADC TrueNet Intelligent Patching User manual

ADC

ADC H4TU-C-319 List 1 Line Unit User manual

ADC

ADC HiGain HDSL2 User manual

ADC

ADC Migration Modules DSX-3 User manual

ADC

ADC Active Digital Signal Cross-Connect ASX User manual

ADC

ADC PG-Flex FLC-706 1A Instructions for use

ADC

ADC HIGAIN H4TU-C-388 Original operating instructions

ADC

ADC HiGain H2TU-C-319 List 4E User manual

ADC

ADC HiGain H2TU-C-231 Original operating instructions

ADC

ADC ETP-64 User manual

ADC

ADC H2TU-C-231 List 2F Original operating instructions

ADC

ADC OmniReach MDU Rapid Fiber System User manual

ADC

ADC PG-FLEXPLUS PLL-735 User manual

ADC

ADC FlexWave MMX 8000 User manual

ADC

ADC FPL Series User manual

ADC

ADC HiGain H2TU-C-231 Original operating instructions

ADC

ADC H2TU-C-388 HiGain Original operating instructions

ADC

ADC H2TU-C-202 Original operating instructions

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Allied Telesis

Allied Telesis AT-TN121-A Specifications

Arista

Arista CCA-ETM-Q12 quick start guide

Lanner

Lanner NCA-1525 user manual
