Spec Sheet

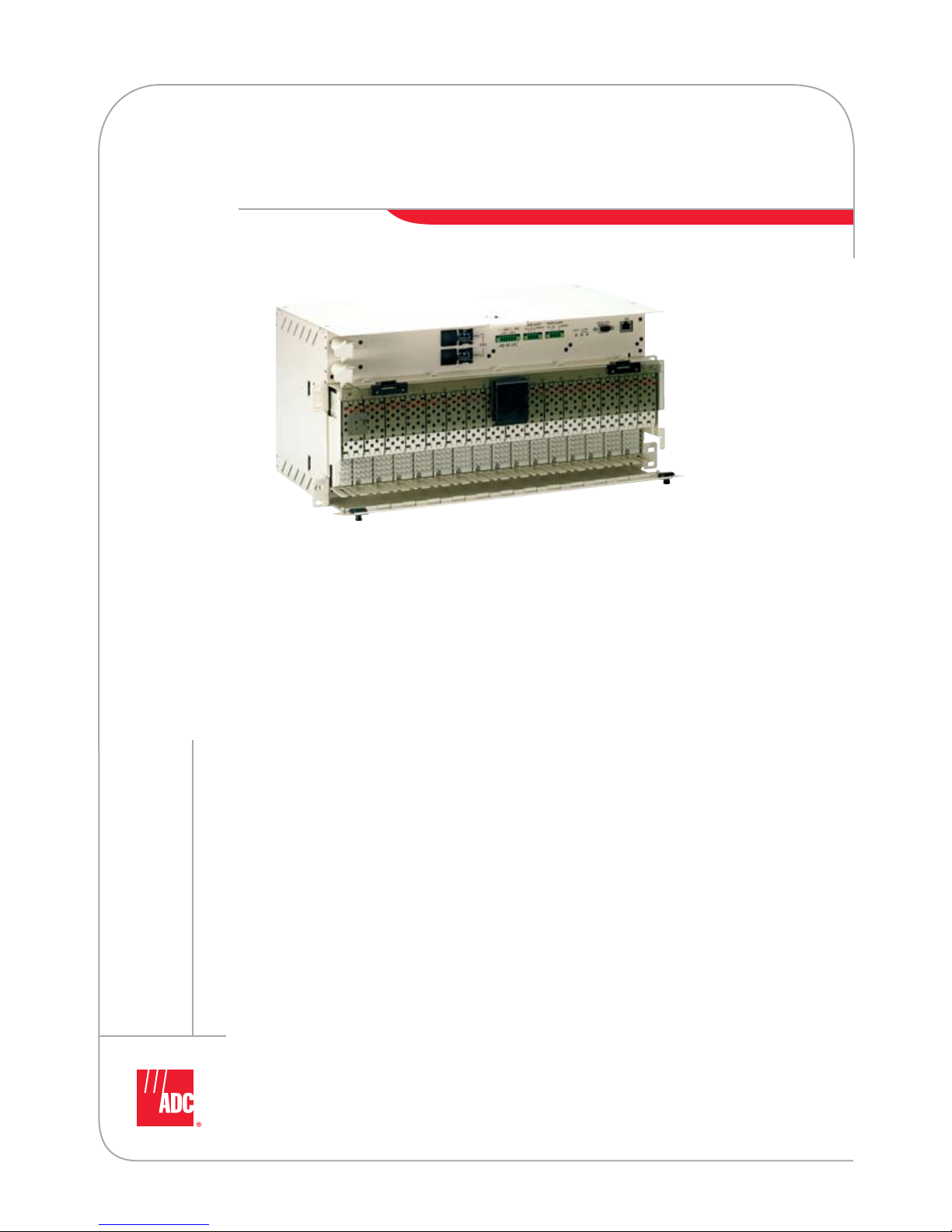

ASX Active Digital Signal Cross-Connect
Part of ADC KRONE’s innovative family of active digital signal cross-connect products, the ASX
fully integrates an SDH multiplexer with a FlexDSX®cross-connect chassis. The product allows
easy migration of 2 Mbit equipment to next generation equipment, as well as enabling additional
capacity and transition to fibre optic backhaul to support increasing data rates.
The ASX is compatible with existing DSX installations and supports standard DSX functionalities
and advantages:
Modular construction, featuring either wire-wrap or LSA-PLUS• ®punchdown cable
termination methods
Easy circuit identification through the integrated LEDs•
Four-port jack cards with dual monitoring ports enable individual circuit monitoring in•
both directions
Cross-connection and patching of circuits•
Superior, intuitive cable management•
The extremely compact STM-1 level SDH multiplexer supports 1+1 MSP on the link side and
management features are accessed via GIU interface. By fully integrating an SDH multiplexer into
the digital distribution frame, the ASX provides space savings, as well as reducing cabling and
maintenance costs.
11/07•105350AE ASX Active Digital Signal Cross-Connect
ASX Active Digital Signal Cross-Connect
2
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Features
• Allfrontaccess
• 64E1terminations
• Fourbreopticconnectors(FC,SC,LCorE2000
connectors are available) for access to two
STM-11310or1550nmshort-hauloptics
• RS232consoleport
• RJ45connectoraccesstolocalandremote
management
• Powerterminalsforredundant48VDCfeed
• SupportedbyandcompliantwithITU-TG.841/
Clause7.1andETS300417-3-1
• Visualindicators,aswellasdrycontactalarmsfor
major and minor alarms
Benefits
• Saverackandoorspace
– Requires less space than separate DSX and
MUX equipment, making it ideal for installation
in remote sites where space is limited
• Reduceinstallationtimeandcosts
– Fibre optic cable replaces large bundle of
copper cabling between the DDF and
networkelements(MUX,ADM,switch,
channel bank, DSLAM)
– Pre-conguredsystem,witheasyservice
turn-up, limits requirement for special,
highly-trained staff
• Lowerequipmentcosts
– Carrier can dedicate MUX functionality to
specicapplications
• Increaseoperationalresponsetime
– Pre-provision alternative cross-connects, which
can be automatically switched without craft
dispatch for manual re-routing
• Increasequalityofservice(QoS)
– Local or remote testing/monitoring for all
relevant test parameters
Description Catalogue Number
ASX with wire-wrap cross-connects, singlemode LC duplex fibre optic connectors, 155 Mbps
1310wavelength;distance:20km ASX-100001-LC
1310wavelength;distance:50km ASX-110001-LC
1550wavelength;distance:80km ASX-120001-LC
1550wavelength;distance:120km ASX-130001-LC
1550wavelength;distance:160km ASX-140001-LC
ASX with wire-wrap cross-connects, singlemode SC fibre optic connectors, 155 Mbps, bidirectional
Tx:1310,Rx:1550;distance:20km ASX-100001-SC
Tx:1550,Rx:1310;distance:20km ASX-110001-SC
Tx:1310,Rx:1550;distance:40km ASX-120001-SC
Tx:1550,Rx:1310;distance:40km ASX-130001-SC
Tx:1310,Rx:1550;distance:80km ASX-140001-SC
Tx:1550,Rx:1310;distance:80km ASX-150001-SC
Ordering Information
11/07•105350AE ASX Active Digital Signal Cross-Connect
ASX Active Digital Signal Cross-Connect
3
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Description Catalog Number
ASX with LSA-PLUS®cross-connects, singlemode LC duplex fibre optic connectors, 155 Mbps
1310wavelength;distance:20km ASX-100008-LC
1310wavelength;distance:50km ASX-110008-LC
1550wavelength;distance:80km ASX-120008-LC
1550wavelength;distance:120km ASX-130008-LC
1550wavelength;distance:160km ASX-140008-LC
ASX with LSA-PLUS®cross-connects, singlemode SC fibre optic connectors, 155 Mbps, bidirectional
Tx:1310,Rx:1550;distance:20km ASX-100008-SC
Tx:1550,Rx:1310;distance:20km ASX-110008-SC
Tx:1310,Rx:1550;distance:40km ASX-120008-SC
Tx:1550,Rx:1310;distance:40km ASX-130008-SC
Tx:1310,Rx:1550;distance:80km ASX-140008-SC
Tx:1550,Rx:1310;distance:80km ASX-150008-SC
ASX with STM-1 connector type: 1.6/5.6, 45° angled
Wire-wrap ASX-220001
LSA-PLUS®ASX-220008
Accessories
Three-conductor bantam patch cords for E1 jack interface
Single plug
0,3m PJ712
0,92 m PJ716
1,83m PJ722
3,05m PJ1210
3,66m PJ1212
4,58m PJ1415
6,1m PJ1420
7,63m PJ1425
9,15m PJ1430
15,25m PJ1450
Dual plug
0,3m PJ762
0,92 m PJ766
1,83m PJ772
3,05m PJ1310
3,66m PJ1312
6,1m PJ1520
7,63m PJ1525
9,15m PJ1530
15,25m PJ1550
Category 5 RJ45 to RJ45 patch cords
1 m 70632527-04
3m 70632527-10
Ordering Information
Website: www.adc.com
FromNorthAmerica,CallTollFree:1-800-366-3891•OutsideofNorthAmerica:+1-952-938-8080
Fax:+1-952-917-3237•ForalistingofADC’sglobalsalesofficelocations,pleaserefertoourwebsite.
ADCTelecommunications,Inc.,P.O.Box1101,Minneapolis,MinnesotaUSA55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may
verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features
contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer
105350AE 11/07 Original © 2007 ADC Telecommunications, Inc. All Rights Reserved
Spec Sheet
Specifications
Dimensions (W x H x D): 209x482.6x254mm
Weight: 15kg
Power: <11Watts,-48VDC;0.38WattsforeachLED
ENVIRONMENTAL
Operations: ETS300-019-2-3class3.2
Storage: ETS300-019-2-1class1.2
Transport: ETS300-019-2-2class2.3
Interfaces: 64xE1,multiplemappingschemesaresupportedincluding2Mbpsframed,
2Mbpsunframed,(2)STM-1,optical(IR/SR/LR)andelectricalviaSFPmodules
Protection: 1+1 MSP
Reliability: MTBF>30years.
Management: Web-basedintegratedcraftinterface(ICI)includingthesupportofsmartdefault
settings IP based management
Local management access via 10/100BaseT interface
SNMP with trap messages supported
Non-volatile software and database stores including back-up and restoration
Timing: E1andlinetiming(TimingMarker)support
IntegratedSDHequipmentslaveclock(SEC)accordingtoITUG.813
Re-timing option on the E1 interfaces
Standards: In compliance with the ITU, ETSI, IEC, IEEE, IETF standards for E1 and SDH equipment
Description Catalogue Number
Fibre optic patch cords
LCduplexconnector(UPC)toLCduplexconnector(UPC),2m 70661788-52
LCduplexconnector(UPC)toSCduplexconnector(UPC),2m 70661718-52
LCduplexconnector(UPC)to2FCduplexconnectors(UPC),2m 70661528-52
Universal fibre optic adapter (duplex) 70612203-00
Fibre optic attenuator, LC 15 dB FOA-INLC015
Cross-connect wire
152mroll DSX-CCW/500
305mroll DSX-CCW/1000
601mroll DSX-CCW/2000
Wire-wrap tool kits
Manual AUX-0X0165
Electronic AUX-0X0800
LSA-PLUS®insertion tool 64172055-01
Ordering Information
