Adam Equipment CQT1751GR User manual

Adam Equipment

Grain Scale

Model: CQT1751GR

pn. 9757 rev B

©Adam Equipment Company 2009

1.0 CONTENTS

1.0 CONTENTS 3

2.0 INTRODUCTION 5

3.0 SET UP 5

3.1 UNPACKING AND SETTING UP YOUR SCALE 5

3.2 INSTALLING BATTERIES 6

3.3 OVERVIEW - DISPLAY / KEY BOARD 6

3.4 LOCATING AND PROTECTING YOUR SCALE 8

3.5 STORING WHEN NOT IN USE 9

4.0 BASIC OPERATION 10

4.1 TURNING ON THE SCALE 10

4.2 ZEROING / TARE 10

4.3 WEIGHING 10

4.4 WEIGHING UNITS 10

4.5 GRAIN DETERMINING 11

5.0 PARAMETERS 14

5.1 PARAMETER SETTING 14

5.2 AUTO POWER OFF 14

5.3 SETTING THE BACKLIGHT 15

6.0 CALIBRATION 16

7.0 TROUBLE SHOOTING 17

7.1 ERROR MESSAGES 17

7.2 REPLACEMENT PARTS AND ACCESSORIES 18

8.0 SPECIFICATIONS 20

9.0 WARRANTY STATEMENT 21

©Adam Equipment Company 2009

2.0 INTRODUCTION

Thank you for purchasing your new grain scale which is based upon the Core series of

Balances. The CQT1751GR model has been specifically developed and designed to be

used to assist in the grading of grain to asses the quality of the grain as well as to give an

indication of the Kilograms per hectolitre (kg/Hl).

3.0 SET UP

3.1 UNPACKING AND SETTING UP YOUR SCALE

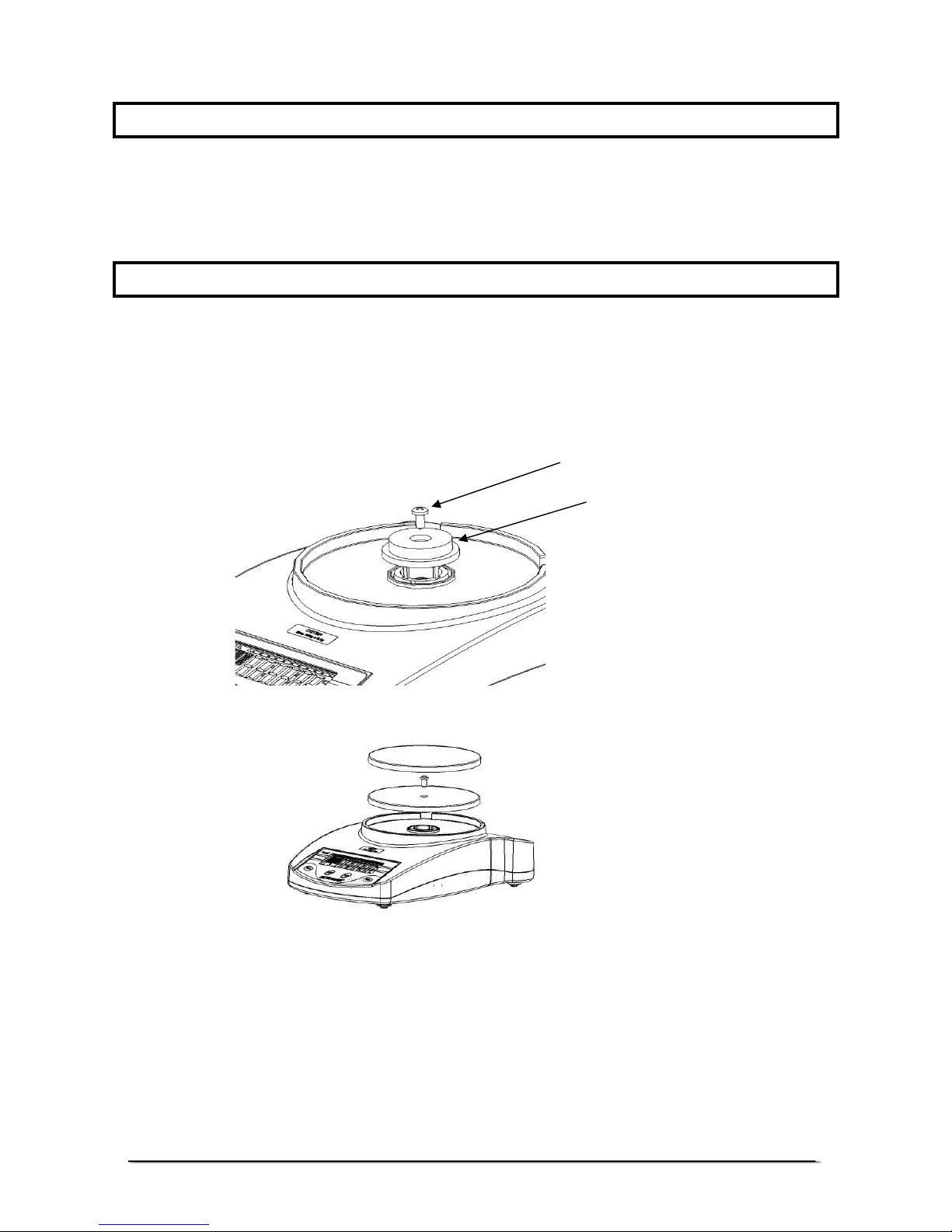

Remove the shipping protection screw and round cover as shown below using the

Allen key supplied in the box. (It is advisable to keep the shipping protection screw

and the round cover along with the packing box for using during shipping to another

location in future).

Shipping protection screw

Round cover around the screw

Place the pan (which comes separately packed) in the receptacles on the top cover.

Use the screw that you

removed to screw the plastic

pan into place. Be careful

when putting the screw in that

you do not use to much force

as it can damaged the

loadcell. You should just be

able to use light force to

secure the screw.

Place the stainless steel pan on top of the plastic pan.

Place the balance on a firm and flat surface for accurate weighing.

©Adam Equipment Company 2009

3.2 INSTALLING BATTERIES

Remove the battery compartment cover and insert six batteries (R6P/LR6 /AA size) into

the battery compartment.

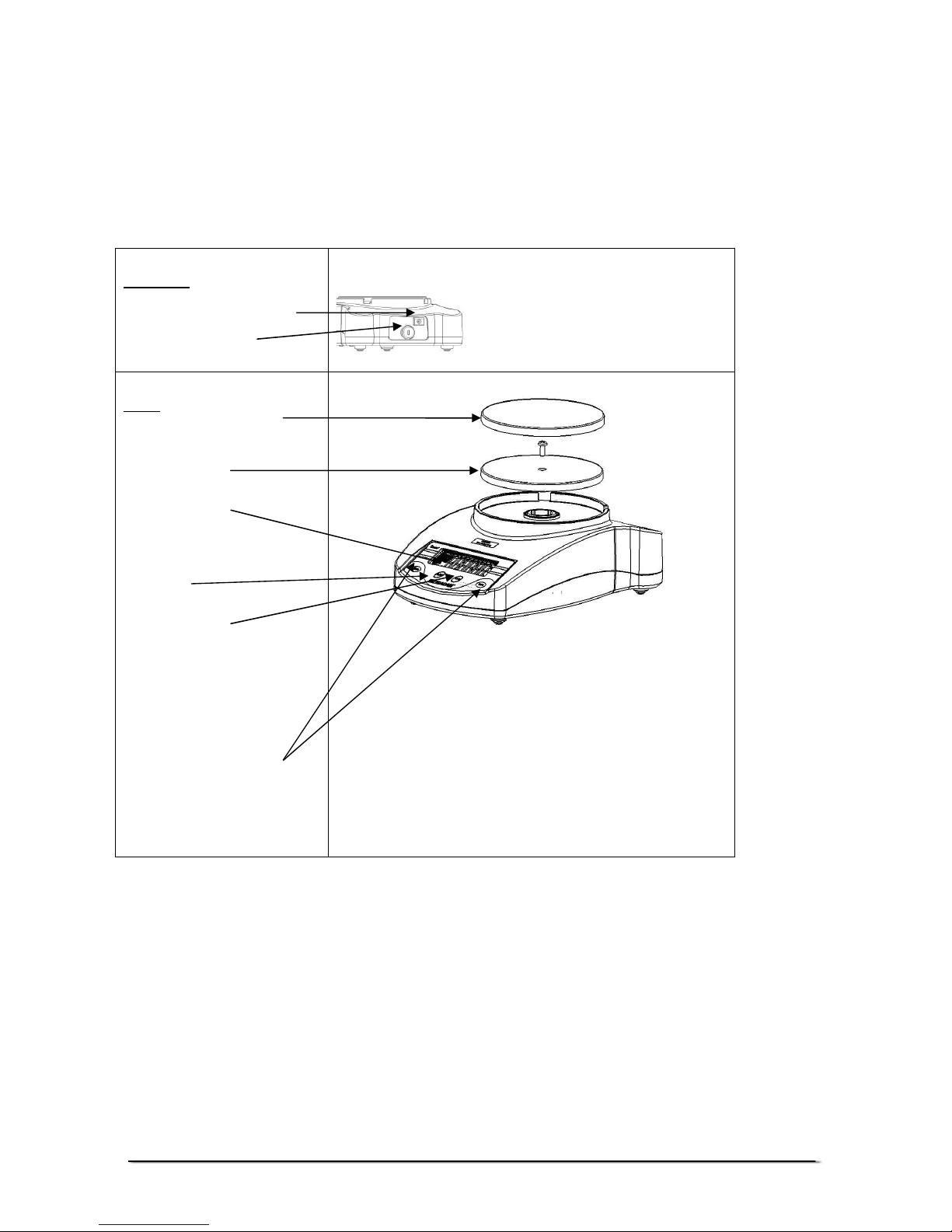

3.3 OVERVIEW - DISPLAY / KEY BOARD

BEHIND

AC adapter socket

Lock down slot

TOP

Stainless Steel pan

Plastic Pan

LCD display

[On/Off] key

Turns the balance power

on/off

[S/P CE] key

Stores weight readings

and does percentage

calculation as well as

clearing stored values.

[Recall / Tare] key

Recalls stored weighings

/ results and also to

zeros and tares the

balance

©Adam Equipment Company 2009

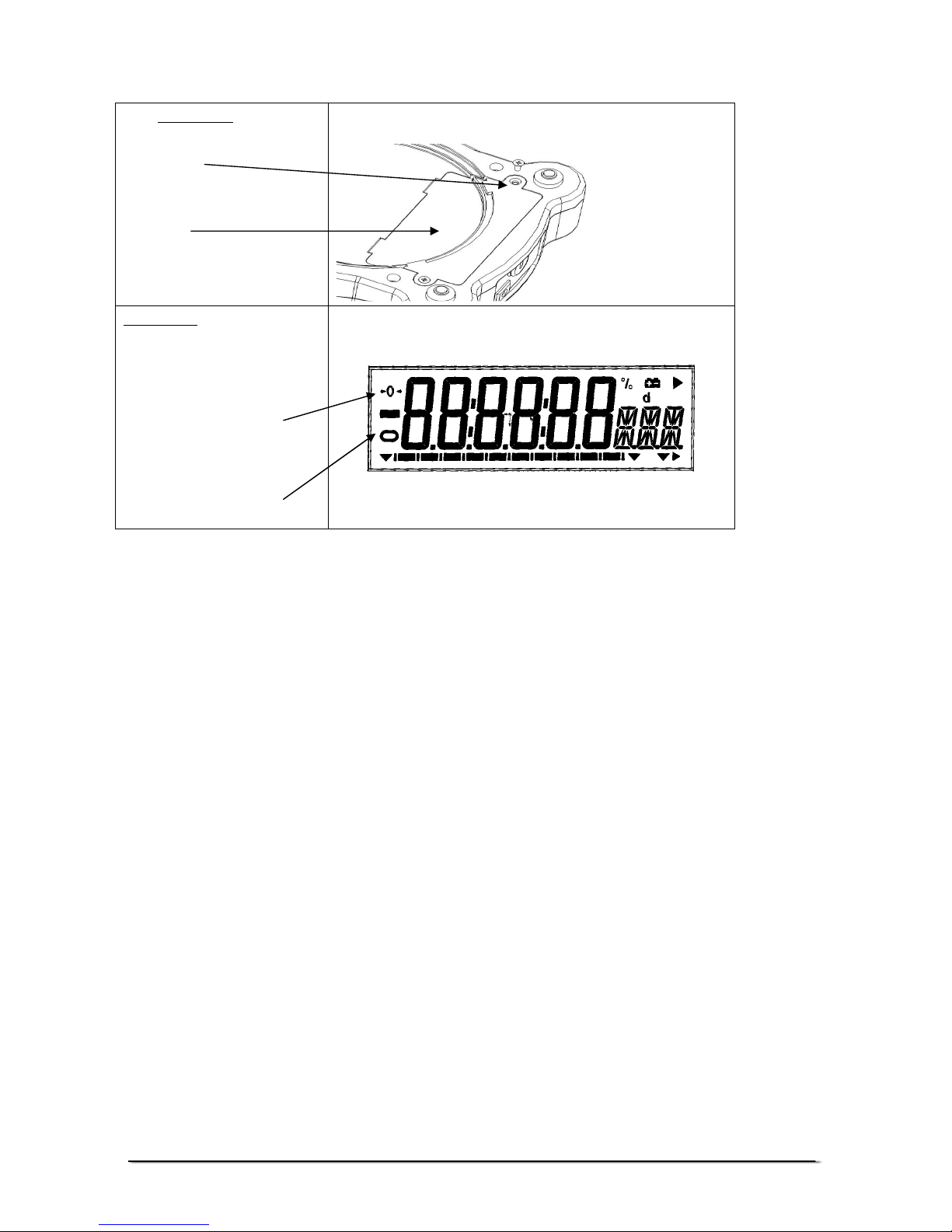

BOTTOM

Battery compartment

screws

Battery compartment

cover

Batteries are not

included

DISPLAY

ZERO indicator

Indicates when the scale

is at zero.

STABLE indicator

Indicates when the

reading is stable.

©Adam Equipment Company 2009

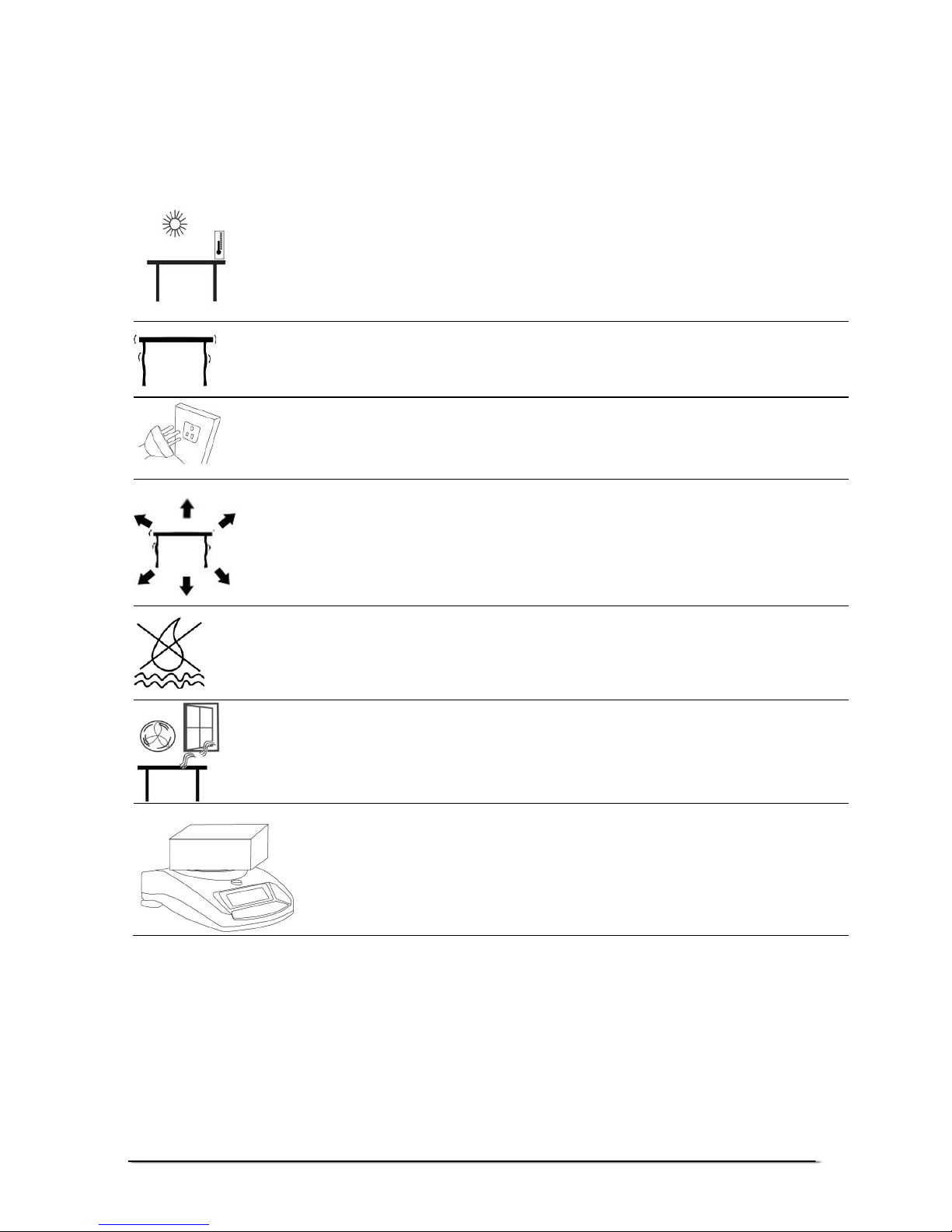

3.4 LOCATING AND PROTECTING YOUR SCALE

In order to keep your scale functioning at its best we suggest that you do the following:

Avoid extremes of temperature. Do not place in direct sunlight or

near air conditioning vents.

Make sure the scale is located on a strong table and free from

vibration.

Avoid unstable power sources. Do not operate near large users of

electricity such as welding equipment or large motors. Do not leave

the batteries inside the scale – if you are using the scale with the

AA batteries and are not using it on not using it for a long time.

Keep free from vibration. Do not place near heavy or vibrating

machinery.

Avoid high humidity that might cause condensation, and keep away

from direct contact with water.

Do not place near open windows, air-conditioning vents or fans that

may cause a draught and unstable readings.

Keep the scale clean, and do not stack material on the scale when it

is not in use. The CQT1751GR has a stacking feature allowing more

than one unit to be stacked on top of each other. For more details on

this see the section on storing.

©Adam Equipment Company 2009

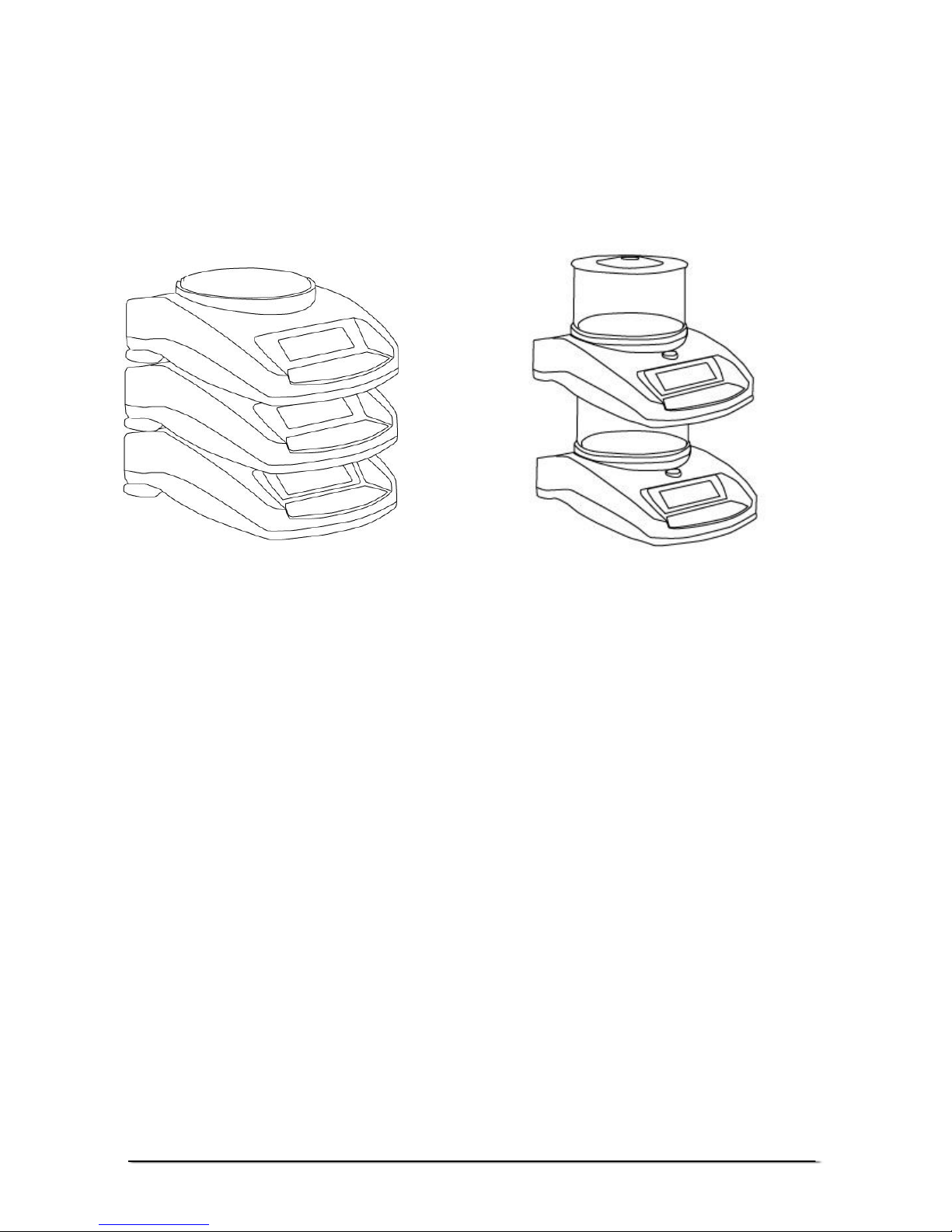

3.5 STORING WHEN NOT IN USE

If you have any of the Highland

series or Core

or Grain Scale product lines you can

store them easily on top of each other. To save space and protect them from damage.

Without Shield With Shield

©Adam Equipment Company 2009

4.0 BASIC OPERATION

4.1 TURNING ON THE SCALE

Plug in the unit using the AC adapter or power from the batteries and press the [on/off]

key.

1) The scale will show automatically grn- X.X, “XX” meaning software revision

number “grn” meaning it has grain scale software and then show the voltage X.X

Vol where “X.X” is the voltage of the batteries if being used on battery power or the

AC adapter after that the scale will then count from 0 to 9 for a few seconds. Finally

it will display "0.0g" with the Stable symbol and Zero symbols being lit up.

2) The scale is now ready to be used.

3) To turn the scale off after use press the [on/off] key again. There is an auto power-

off function that will automatically turn the unit off, this can be set in the parameters

section.

4.2 ZEROING / TARE

You can press the [Recall / Tare] key to set a new zero point. Zero will be set if the

reading on the scale is less than 70g. This may be necessary if the weight is not reading

zero with no weight on the pan. The zero indicator will show in the top left corner of the

LCD.

If you are using a container to weigh then you can place this on the platform and press the

[Recall / Tare] key, the display will show zero and NET on the display.

You can then weigh any material added to the container. Taring weight subtracts from the

scale’s total capacity.

Note: When the container is removed a negative value will be shown. If the [Recall / Tare]

is pressed when the container has been removed it will again zero the scale.

4.3 WEIGHING

To determine the weight of a sample, first tare an empty container, then place the sample

in the container. The display will show the weight and the unit of weight currently in use.

The stable indicator will light up when the reading is stable.

4.4 WEIGHING UNITS

Two units are available: grams (g) and Kilograms per Hectolitre (Kg/Hl).
