Adam Equipment HIGHLAND HCB123 User manual

©Adam Equipment Company 2016 1

Adam Equipment

HIGHLAND SERIES

(Includes HCB xxxM EU & NTEP approved models)

(HCB Software ver. 2.5 or higher – standard models)

(HCB-M Software. rev 2.38 or higher – EU ap

proved models)

(HCB-aM Software rev. 3.10 or higher – NTEP approved models)

COPY

©Adam Equipment Company 2016 2

Easy Reference:

Model name of the scale:

Serial number of the unit:

Software revision number

(Displayed when power is first turned on):

Date of Purchase:

Name of the supplier and place:

COPY

©Adam Equipment Company 2016 3

CONTENTS

(P.N. 9520, Revision G1, October 2016)

1.0 CONTENTS………………………………………………………………………………………………………………………………

2.0 INTRODUCTION…………………………………………………………………………………………….………………………..

3.0 SET UP……………………………………………………………………………………………………….……………………………

3.1 UNPACKING AND SETTING UP YOUR BALANCE……………………………...…………………………..

3.2 DISPLAY/ KEYBOARD FUNCTION…………………………………………………………………………………

3.3 INTERNAL RECHARGEABLE BATTERY…………………………………………………………………………..

3.4 LOCATING AND PROTECTING YOUR BALANCE ……………………………………………………………

3.5 STORING WHEN NOT IN USE………………………………………………………………………………………

4.0 BASIC OPERATION…………………………………………………………………………………………………………………..

4.1 TURNING ON THE BALANCE……………………………………………………………………………………….

4.2 ZEROING / TARE…………………………………………………………………………………………………………

4.3 WEIGHING ……………………………………………………………………………………………......................

4.4 WEIGING UNITS………………………………………………………………………………………………………….

5.0 FUNCTIONS ……………………………………………………………………………………………………………………………

5.1 PERCENTAGE WEIGHING ……………………………………………………………………………………………

5.2 PARTS COUNTING………………………………………………………………………………………………………

5.3 ACCUMULATION………………………………………………………………………………………………………..

6.0 PARAMETERS………………………………………………………………………………………………………....................

6.1 ENABLING WEIGHING UNITS………………………………………………………………………………………

6.2 SETTING THE BACKLIGHT AND AUDIBLE ALERT BEEP………………………………………………….

6.3 SETTING THE PRINTING PARAMETERS / ACCUMULATION………………………………………….

6.4 AUTO POWER OFF………………………………………………………………………………………………………

6.5 SELECTING THE INTERNAL OR EXTERNAL CALIBRATION……………………………………………..

6.6 ADJUST THE VALUE OF THE INTERNAL MASS……………………………………………………………..

6.7 SETTING USER PARAMETERS………………………………………………………………………………………

7.0 CALIBRATION………………………………………………………………………………………………………....................

8.0 TROUBLE SHOOTING ………………………………………………………………………………………………………………

8.1 ERROR MESSAGES ……………………………………………………………………………………………………..

8.2 REPLACEMENT PARTS AND ACCESSORIES…………………………………………………………………..

9.0 SPECIFICATIONS………………………………………………………………………………………………………………………

9.1 TECHNICAL SPECIFICATIONS……………………………………………………………………………………….

9.2 COMMON SPECIFICATIONS………………………………………………………………………………………..

9.3 RS232 / USB SPECIFICATIONS …………………………………………………………………………………….

10.0 CALIBRATION CERTIFICATE……………………………………………………………………………………………………

11.0 WARRANTY STATEMENT……………………………………………………………………………………………………….

12. WEEE DIRECTIVE…………………………………………………………………………………………………….....

2.0 INTRODUCTION

COPY

©Adam Equipment Company 2016 4

Thank you for purchasing your new HighlandTM portable balance, Every HighlandTM

balance has all the features you really need: DC adapter and internal rechargeable

battery, HandiCalTM calibration (not available on approved models), backlit display,

and ShockProtectTM with overload indicator. With RS-232 and USB interface for

communication with printers and computers, splash-proof keypad, and sturdy

plastic construction, the HighlandTM series will be a balance you can rely upon. We

hope that you enjoy using your new balance.

Before operating parts marked with a “！” symbol please read the instruction

manual and operate with caution to avoid hazard.

Note: External metal parts and connectors are not linked to earth.

3.0 SET UP

3.1 UNPACKING AND SETTING UP YOUR BALANCE

1) Remove the balance, draft shield, top pan, DC adapter and pan support from

the packaging

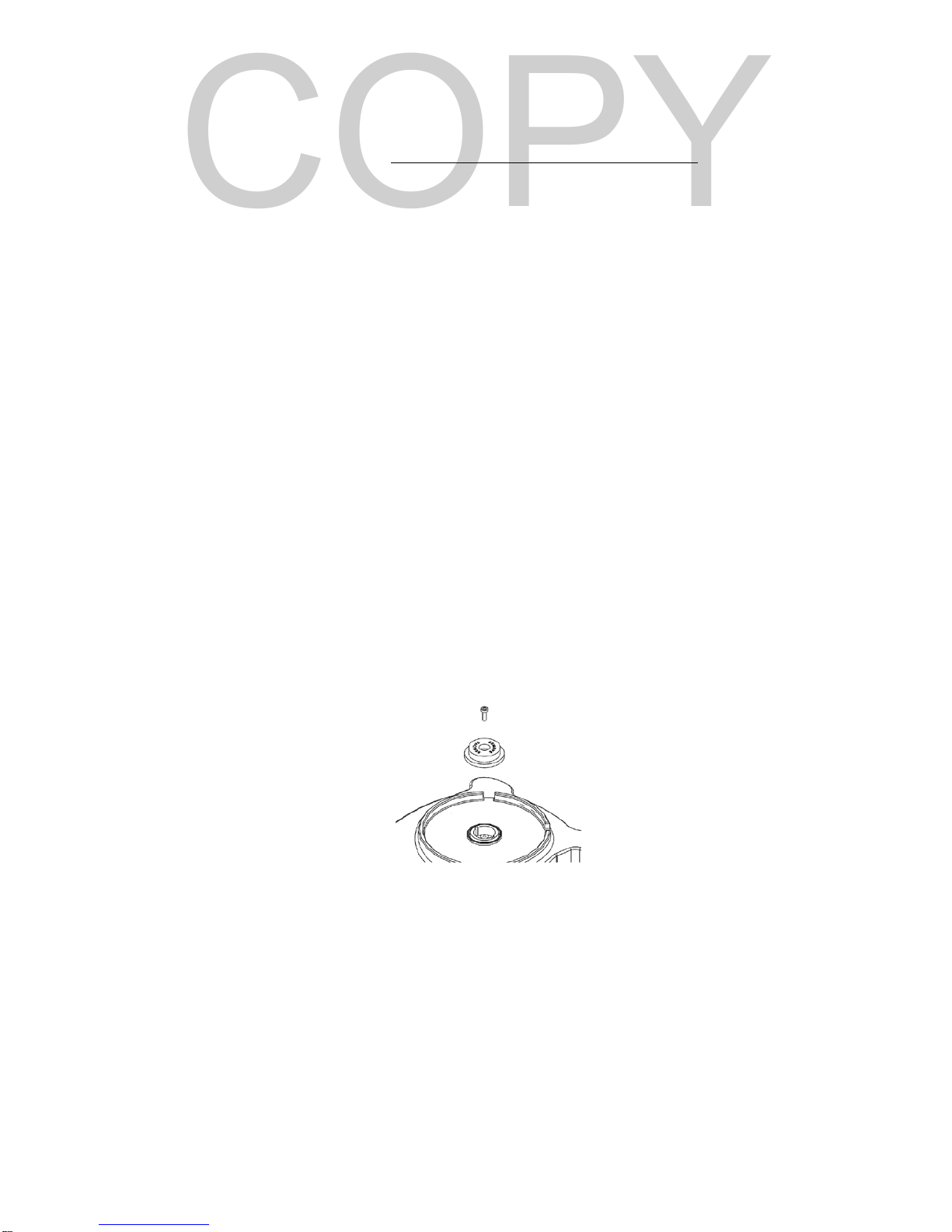

2) Remove the shipping protection screw and transit disc from the top of the

balance and place the plastic top pan support on the balance. Do not use

excessive force when removing and installing the screw.

3) Gently place the plastic pan support into the receptacle and secure with the

supplied screw. To not over-tighten the screw. It should be finger tight only.

Put the Stainless steel pan on top of the pan support

4) Place the draft shield on top of the balance, the location notches in the breeze

shield should align with the cut outs on the balance. For optimum

performance the balance should be used with the draft shield (if provided).

COPY

©Adam Equipment Company 2016 5

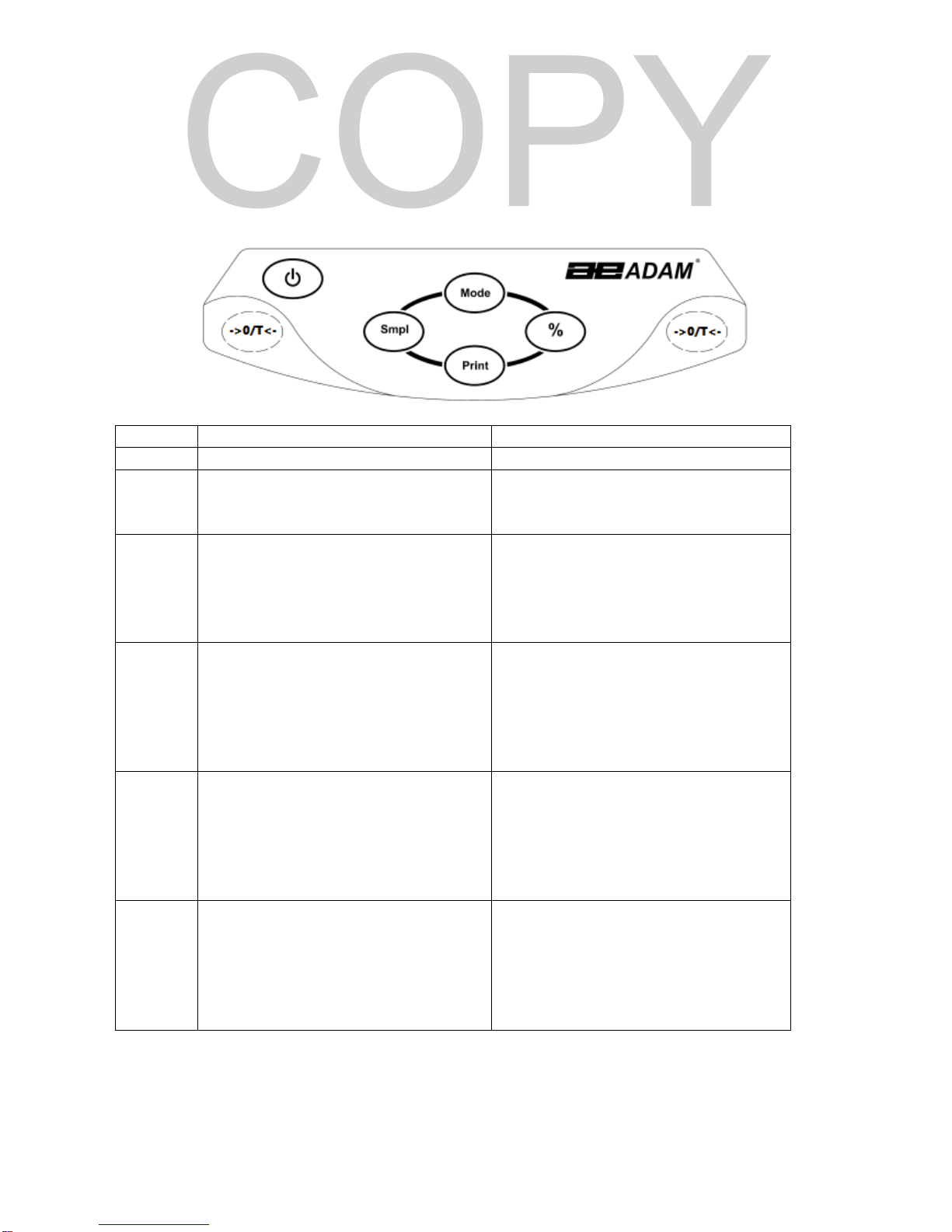

3.2 DISPLAY /KEYBOARD FUNCTION

The display and keypad have a number of features the key information is shown

below:

KEYS

PRIMARY FUNCTION

SECONDARY FUNCTION

[On/Off]

To turn the balance On or Off.

----

[->0/T<-]

Tares the balance and shows the net

weight value. Pressing the [->0/T<-]

again will reset another tare value

A secondary function of "Enter" key is

for setting parameters or other

functions.

[%]

Enters the percentage weighing

function.

When in percentage mode, press [%]

key to return to normal weighing

mode. When setting some parameters

this key will move the flashing digit to

the right.

[Smpl]

Use this key to enter parts counting

mode from the normal weighing

mode.

When in parts counting pressing the

[Smpl] will return to weighing mode.

Clears the accumulated value from the

memory when pressed during the total.

When setting some parameters this key

will move the flashing digit to the left.

[Mode]

Pressing this key will cycle through the

weighing units which are enabled.

Displays the unit weight, total weight

and the count whe

n in the parts

counting mode.

Setting parameters it will show the

next option or increase the value of a

flashing digit.

[Print]

To print the results to a PC or printer

using RS-232 or USB interface. It also

adds the value to the accumulated

memory if the accumulation function

is not automatic.

Secondary function is to return to

normal operation when the balance is

in a parameter setting mode.

Setting parameters it will show the

previous option or decrease the value

of a flashing digit.

COPY

©Adam Equipment Company 2016 6

NB:-BRACKETS ON DIPLSAY AROUND LAST DIGIT ~HCB 602M ,HCB 1002M ,HCB5001M

ONLY APPROVED MODLES

3.3 INTERNAL RECHARGEABLE BATTERY

The balance can be operated from the internal rechargeable battery or using a DC

adapter. The battery discharge time, is approximately 24 hours depending on the

usage of the backlight.

The display will show an indication when the battery needs to be charged. To charge

the battery, plug in the DC adapter at the back of the balance and attach it to the

main power supply. The charging indicator at the left top corner of the LCD will be

on.

Zero

Stable

Capacity tracker

Weighing digits

Percentage symbol

Low battery indicator

Hold symbol

Net symbol

Alpha numeric display

COPY

©Adam Equipment Company 2016 7

3.4 LOCATING AND PROTECTING YOUR BALANCE

In order to keep your balance functioning at its best we suggest that you do the

following:

void extremes of temperature. Do not place in direct sunlight or near

air conditioning vents.

Make sure the balance

is located on a strong table and free from

vibration.

Avoid unstable power sources. Do not use near large users of electricity

such as wel

ding equipment or large motors. Do not let the balance

battery go flat –

if you are not using it for a long time you should charge

the battery up periodically to make sure the battery does not lose its

charge. When you turn off the scale by pressing [ON/OFF] key, the

power is not completely isolated. You should disconnect the power

supply if it is not going to be used for an extended period.

Keep free from vibration. Do not place near heavy or vibrating

machinery.

Avoid high humidity that might c

ause condensation. Keep away from

direct contact with water. Do not spray or immerse the balance in

water.

Protection Grade: IPX0

Do not place near open windows, air-

conditioning vents or fans that

may cause a draft and unstable readings.

Keep the balance clean. Do not stack material on the balance / balance

pan when it is not in use.

The Highland has a stacking feature for

stacking more than one unit on top of each other which does not apply

weight to the pan. For more details on this see the section on storing.

Avoid operating in high static areas, or weighing high static materials,

such as plastics or powders, as this may damage electronics and affect

measurements. Use grounding mats or

bonding straps to reduce

potential

COPY

©Adam Equipment Company 2016 8

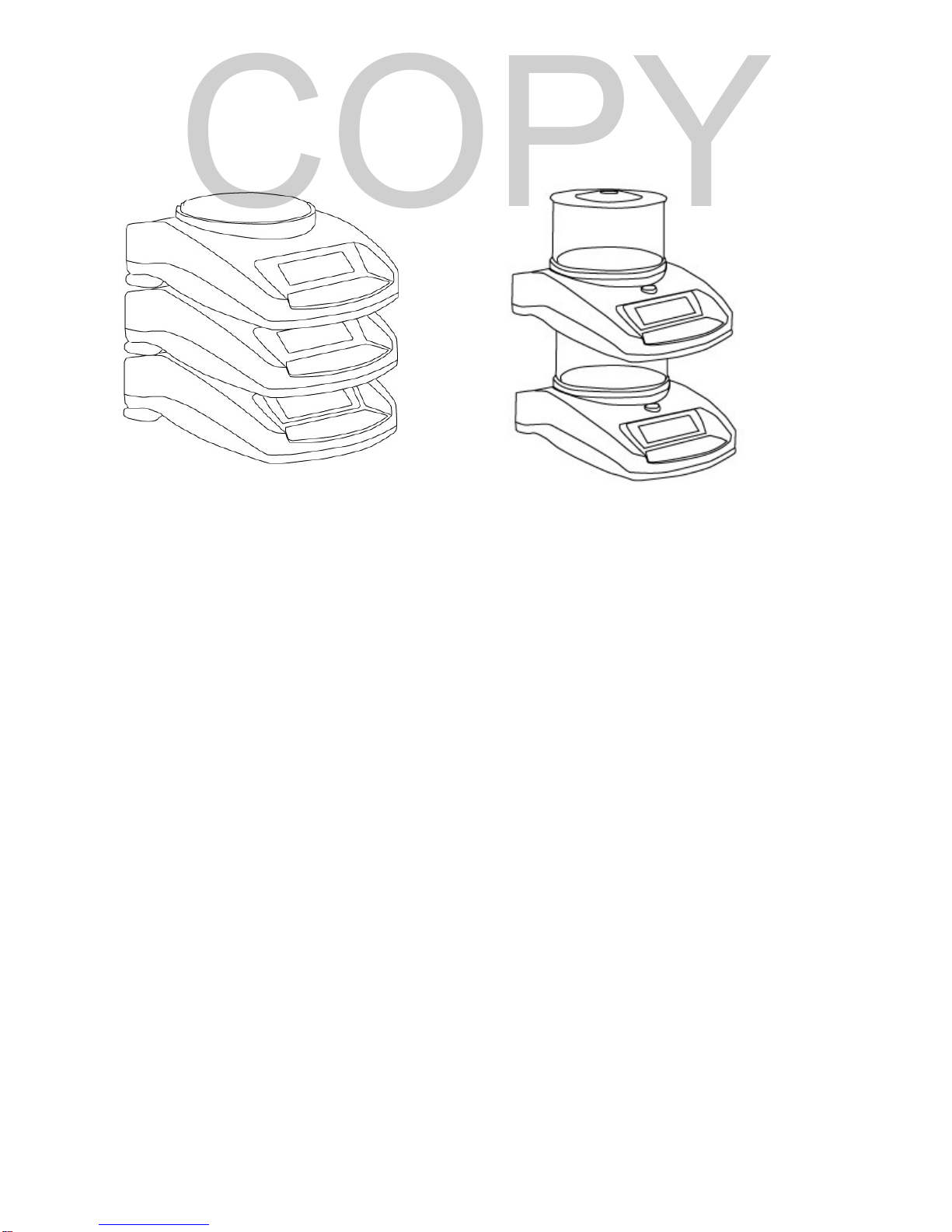

3.5 STORING WHEN NOT IN USE

If you have any of the HighlandTM series or Core BalanceTM lines you can store them

easily on top of each other. To save space and protect them from damage.

Without Shield With Shield

Note: Only models equipped with a ø 4.7” / 120mm pan, can be stacked for storage.

Core (CQT) models with the larger ø 5.7” / 145mm may be stacked at the top of the

pile but other balances should NOT be stacked on top of them due to the larger pan

size.

COPY

©Adam Equipment Company 2016 9

4.0 BASIC OPERATION

4.1 TURNING ON THE BALANCE

Plug in the unit using the DC adapter or use the internal rechargeable battery. It is

recommended that you charge the battery for at least 8 hours before first use.

1) To turn on press the [on/off] key once and release. The balance will show the

capacity and the software revision, and then self-test before showing zero on

the display and the stable sign.

2) The balance is now ready to be used.

3) To turn the balance off after use, press the [on/off] key again. There is an

auto power-off function that will automatically turn the unit off if not used for

a period of time, this can be set in the parameters section.

If an error is shown while turning on the balance check that the pan is fitted

correctly and that there is no weight on the pan or the internal calibration weight

(not approved models) has not been left in the calibrate position. Move the lever all

the way to the left. Turn off the balance and turn it back on again.

4.2 ZEROING /TARE

You can press the [->0/T<-] key to set a new zero point and show the zero reading if

the weight reading is less than 4% of the total of the maximum capacity of the

balance (+/- 2% for approved models). This may be necessary if the weight reading is

not reading zero with nothing on the pan. The zero indicator will show up in the

upper left corner of the LCD.

If you are using a container to weigh then you can place this on the platform and

press the [->0/T<-] key. Providing the container weight is more than 4% of the

maximum capacity of the balance (+/- 2% for approved models), the digits will show

zero and NET will light up on the display. You can then weigh your sample in the

container. Taring weight subtracts from the total balance capacity.

Note: When the container is removed a negative value will be shown

equivalent to the total value of the amount tared (Except on

approved models). The balance will not tare a value for a container unless the

COPY

©Adam Equipment Company 2016 10

stability light indicates that the weight is stable thus ensuring a correct taring

function

4.3WEIGHING

To determine the weight of a sample, first tare an empty container (if used), then

place the sample in the container. The display will show the weight of the sample

and the unit of weight currently in use. The stable indicator will light when the

reading is stable.

4.4WEIGHING UNITS

To change the weighing units, press [Mode] to cycle through the options of units

that are enabled. See Parameters 6.1 Enabling Weighing Units, to enable or disable

the weighing units.

Weighing Units on approved models = g , Kg, ct

COPY

This manual suits for next models

Table of contents

Other Adam Equipment Scale manuals

Adam Equipment

Adam Equipment SHS Series User manual

Adam Equipment

Adam Equipment NETS ME Price User manual

Adam Equipment

Adam Equipment MIW-20 User manual

Adam Equipment

Adam Equipment CBD Series User manual

Adam Equipment

Adam Equipment AQT Series User manual

Adam Equipment

Adam Equipment CRW Series User manual

Adam Equipment

Adam Equipment RAV Series User manual

Adam Equipment

Adam Equipment QBW Series User manual

Adam Equipment

Adam Equipment UG119 User manual

Adam Equipment

Adam Equipment AZextra 3 User manual

Adam Equipment

Adam Equipment AZplus Series User manual

Adam Equipment

Adam Equipment CBW Series User manual

Adam Equipment

Adam Equipment LHS Series User manual

Adam Equipment

Adam Equipment ECLIPSE User manual

Adam Equipment

Adam Equipment HIGHLAND SERIES User manual

Adam Equipment

Adam Equipment AGB Series User manual

Adam Equipment

Adam Equipment AEA Series User manual

Adam Equipment

Adam Equipment 700660189 User manual

Adam Equipment

Adam Equipment Warrior Series User manual

Adam Equipment

Adam Equipment ACB-600H User manual

Adam Equipment

Adam Equipment WSK 8 User manual

Adam Equipment

Adam Equipment MDW-160M User manual

Adam Equipment

Adam Equipment PTS plus Series User manual

Adam Equipment

Adam Equipment CB 501 User manual

Popular Scale manuals by other brands

AWS

AWS ZEO-50 user manual

Gima

Gima Glass Body Fat Analyzer Use and maintenance book

Seca

Seca 374 user manual

TEC

TEC TEC SL59 SERIES owner's manual

Axis

Axis B/E Series user manual

Alecto

Alecto ACW-40 user manual

Rice Lake

Rice Lake MSI-4260 IS Technical manual

IKA

IKA RCT basic safety control operating instructions

ADE

ADE M20011 operating manual

Duronic

Duronic KS3000 manual

Digi

Digi SM-720 Service manual

Cardinal

Cardinal CS Series Operation manual

Korona

Korona Kastella Instructions for use

A&D

A&D FC-50Ki instruction manual

BDA

BDA CAMARGUE installation guide

Tanita

Tanita HD-357 Instructions for use

Leifheit

Leifheit 03173 quick start guide

Lumme

Lumme LU-1340 user manual
