ActivePure Surface & Air Guardian User manual

READ MANUAL CAREFULLY FOR PROPER USE AND OPTIMAL OPERATION.

™

PRODUCT OVERVIEW

Congratulations on your purchase! Your new ActivePure®Surface & Air Guardian is designed to provide years of trouble-free,

low maintenance operation. Be sure to read and follow all service procedures outlined in this owner’s manual, and use only

genuine ActivePure replacement parts.

If you have any questions concerning this, or any ActivePure product, contact ActivePure

Customer Service at 800.572.1446 or email customerservice@ActivePure.com.

CONTENTS

Product Overview . . . . . . . . . . . . . . . . . . 2

Specifications . . . . . . . . . . . . . . . . . . . . 2

Storage and Disposal . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . 3

For Canadian Customers Only . . . . . . . . . . . . 4

Inspection & Installation . . . . . . . . . . . . . . . 5

Unit Features . . . . . . . . . . . . . . . . . . . . 5

Operation . . . . . . . . . . . . . . . . . . . . . . 6

Seings & Adjustments . . . . . . . . . . . . . . . 6

LED Display . . . . . . . . . . . . . . . . . . . . . 7

Maintenance Reminders . . . . . . . . . . . . . . . 7

General Maintenance . . . . . . . . . . . . . . . . 8

Removing the Filter Assembly . . . . . . . . . . . . 9

Optional HEPA Filter Sheet . . . . . . . . . . . . . . 10

Removing the ActivePure®Cells. . . . . . . . . . . . 11

Installing the ActivePure®Cells . . . . . . . . . . . . 11

Troubleshooting . . . . . . . . . . . . . . . . . . . 12

Replacement Parts & Service. . . . . . . . . . . . . 13

Warranty Information . . . . . . . . . . . . . . . . 14

FCC Declaration & Responsible Party. . . . . . . . . 15

ActivePure Medical, LLC reserves the right to change or modify any

specification without notice.

SPECIFICATIONS

ActivePure Surface & Air Guardian

• Model Numbers: A1040F, A1040I

• Sales Numbers: 00758, 00763

Technology:

• ActivePure® (2 Cells) — ozone-free

• HEPA Filter Screen

• Activated Carbon Filter

• Carbon Brushes

Electrical:

• Input Voltage: 100 ~ 240 VAC; 50/60 Hz

• External Power Supply: DC 24 Volts; 1.5 Amps Max

• Power Consumption: 43 Was Max

• Conforms to UL STD 867

Mechanical:

• Nominal Airflow Rate: 40-60 CFM Adjustable

Speed Fan

Sound Level:

• 45 dB(A) on low; 55 dB(A) on high

Weight & Dimensions:

• 7.6 lbs (3.45 kg)

• 11.75” H x 9.5” W x 10” D (29.8 cm x 24.1 cm x 25.4 cm)

Operating Temperature:

• 34°F – 100°F (1.6°C – 38°C)

Recommended Maximum Coverage

in a Contiguous Space:

• Up to 1,000 sq. . (93m) depending on occupant

density and other factors. High density commercial

not to exceed 500 sq. . (46m2).

• For coverage in medical or health care environments,

contact Medic[email protected].

Warranty:

• Limited three (3) year warranty

1. Assumes 8 foot ceilings. Solutions should be customized based upon a variety of factors

including HVAC system capabilities and seings, air flows taking into account walls, air

pressure, and doors, ambient air temperatures and humidities, variable density, known VOC

concentrations, and other layers of protection.

GENERAL INFORMATION

STORAGE AND DISPOSAL

Do not dispose of this product as household waste. Electrical

waste and electronic products should be appropriately

recycled as required by practices established by your

local authority.

CAUTION

Read this manual in its entirety before using your ActivePure Surface & Air Guardian

• Keep out of the reach of children

• NEVER place your unit where it may fall into a bathtub or other water container; to protect against electrical

hazards, DO NOT immerse in water or other liquids

• DO NOT touch the control panel or plug with a wet hands

• DO NOT run cord under carpeting; DO NOT cover cord with throw rugs, runners, or similar coverings; arrange

cord away from traic area and where it will not be tripped over

• DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric

shock or fire, or damage the air cleaner

• To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner; DO NOT use on so surfaces,

like a bed, where openings may become blocked

• To avoid fire or shock hazard, plug the unit directly into an electrical outlet

• To disconnect the unit, turn controls to OFF, then remove plug from outlet; pull firmly on the plug, DO NOT

unplug by pulling on the cord

• Always unplug the unit before moving or cleaning, or whenever the unit is not in use

• DO NOT use outdoors or on wet surfaces

• DO NOT aempt to repair or adjust any electrical or mechanical functions on this unit, doing so will void

your warranty

• Connect to properly grounded outlets only

• To reduce the risk of electrical shock, do not change the plug in any way; DO NOT use adapters

• Allow your ActivePure®Surface & Air Guardian to warm to room temperature before

operating; damage may result from turning on a cold unit

• Do not operate unit near heat sources, open flame, or combustible vapors or gases

• Eye damage may result from directly viewing the light produced by the lamp used in this

product; always turn o & unplug unit before removing filters or bulbs

• Do not operate this unit without the Filter Assembly and Back Cover installed

• Disconnect power cord before servicing

• When using electrical appliances, basic precautions should always be followed to reduce

risk of fire, electric shock, and injury to persons, including the following:

SAVE THESE INSTRUCTIONS

WARNING

IMPORTANT SAFETY INSTRUCTIONS

FOR CANADIAN CUSTOMERS ONLY

ACTIVEPURE®SURFACE  AIR GUARDIAN

Sales No. : 00758, 00763

This UV device helps reduce the spread of viruses in the air.

Keep out of the reach of children

Please read the label and owner's manual before using: www.activepure.com/manuals

PRECAUTIONS:

WARNING: UV radiation emied from this device. Unintended use of the device, or damage to the housing, may result in

exposure to ultraviolet radiation. Ultraviolet radiation may cause eye and skin irritation. Avoid exposing eyes and skin to

ultraviolet radiation.

FIRST AID INSTRUCTIONS: Please contact your healthcare provider in the event of injury caused by this device.

DIRECTIONS FOR USE:

Plug the cord into a working electrical outlet, leaving at least one inch of open area to allow for airflow. Please see owner's

manual for detailed instructions on using, handling, storing and disposing of the device, and procedures to mitigate any

associated risks.

The use of this device is a supplement to and not a substitute for standard infection control practices; users must continue

to follow all current infection control practices, including those related to the cleaning and disinfection of environmental

surfaces.

FOR INQUIRIES CONTACT:

AERUS CANADA, INC.

Laird Business Park

3480 Laird Road, Units 2–5

Mississauga, Ontario, Canada, L5L 5Y4

W. Parrell, Manager

(905) 569-9399

[email protected]

Aerus Canada, Inc. is ailiated with ActivePure Medical, LLC

14841 Dallas Parkway, Suite 500, Dallas, TX 75254

INSPECTION  INSTALLATION

• Exclusive ActivePure®Technology

• HEPA Filter Screen

• Activated Carbon Filter

• Multiple carbon brushes aid in the

capture of contaminants

• Five Speed Fan

• LED Display

• Maintenance Reminders

• Replaceable ActivePure®Cells

• Removable Rear Grill

• Universal Power Supply with Cords

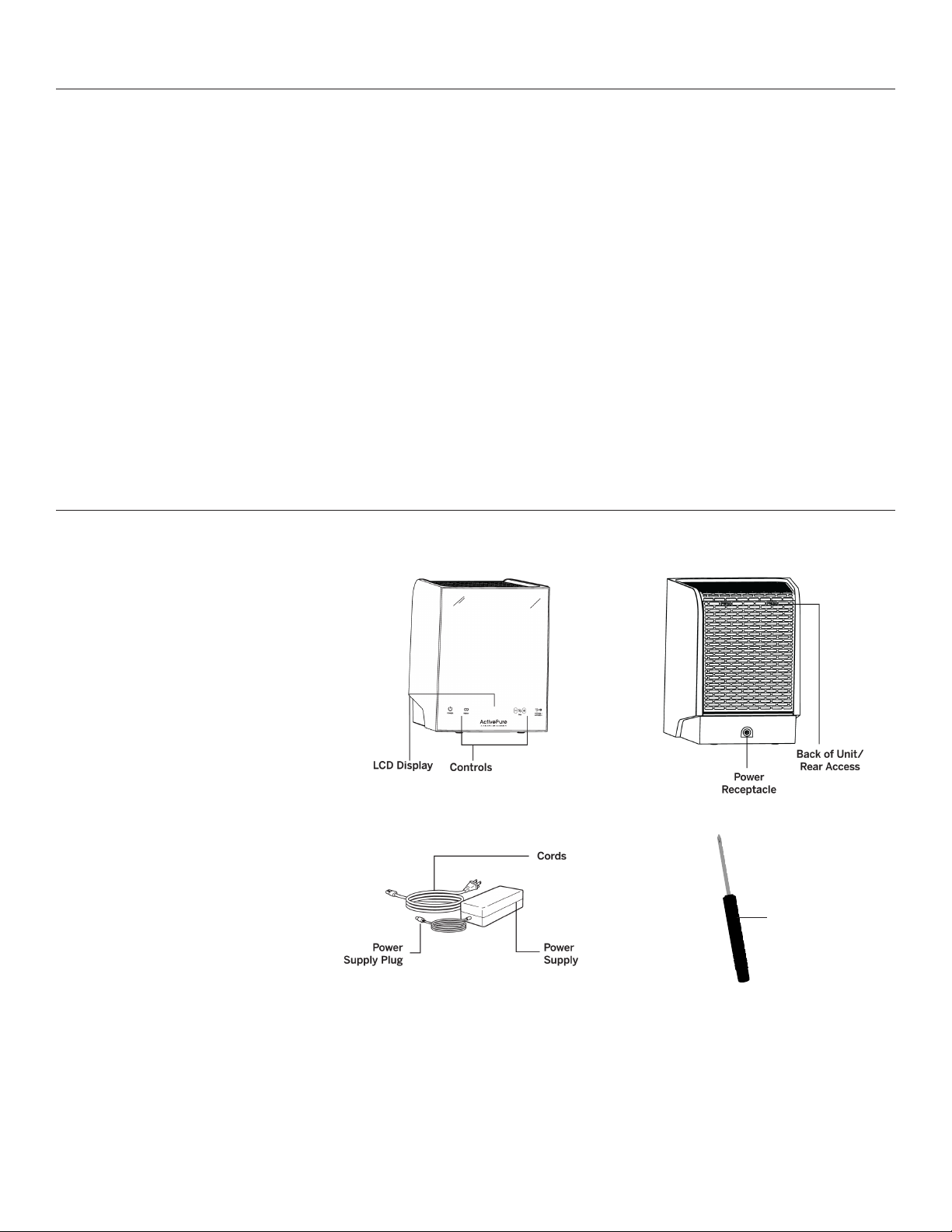

UNIT FEATURES

1. Remove protective packaging

2. Remove unit from shipping carton

3. Remove all protective materials

4. Check for shipping damage and loose or broken parts

5. Read Owner's Manual thoroughly prior to installation

6. Determine placement location for the unit (See "Operation" on page 6)

7. Insert the Power Supply Plug into the power receptacle on the rear of the unit. Plug the

appropriate cord into the Power Supply and into a working electrical outlet

8. Using the Power Buon, turn the unit ON

Screwdriver

SETTINGS  ADJUSTMENTS

OPERATION

The ActivePure Surface & Air Guardian can be turned on or o, and adjusted, using the control panel on the front of the unit.

NOTE: If you are operating your central heating and air conditioning fan or other ventilation system continuously, set

the coverage up to the total ventilated indoor area. Otherwise, set the coverage up to the size of the room.

CAUTION To prevent injury, be sure the power cord is not accessible to small children.

1. Take your ActivePure®unit out of the shipping carton

and remove all protective materials.

2. Place your unit in an appropriate location which

should be four feet or higher from the ground. Never

set it on the floor. Place in a location away from

the HVAC return duct. The rear of the unit requires

one inch or more of open area to allow unrestricted

airflow.

3. Insert the Power Supply Plug into the power

receptacle on the rear of the unit. Plug the

appropriate cord into the Power Supply and into a

working electrical outlet.

4. Push the Power button once to turn the unit on.

5. Push the A-PURE/A-PURE x2 button twice to set it

to A-PURE x2 level which will be illuminated on the

screen.

6. Push the Fan + button four times to reach the highest

speed (5th level).

• A·PURE MODE: The unit’s display shows the

fan speed (low to high) and A·PURE to indicate

that the ActivePure Cell and ionization are both

functioning normally.

• A·PURE x2 MODE: A·PURE x2 lights up, indicates

that (2) ActivePure Cells and ionization are both

functioning normally.

• ION MODE: Ion lights up, indicates only ionization

is functioning.

• CLEAN: Clean illuminates when cleaning is

required.

• RESET: Clears the maintenance reminders after

performing routine maintenance.

• CELL: The Cell light will flicker when it is time to

replace your ActivePure Cell.

For best results, run your ActivePure Surface & Air

Guardian 24 hours a day, 7 days a week, giving you

the benefits of ActivePure day and night.

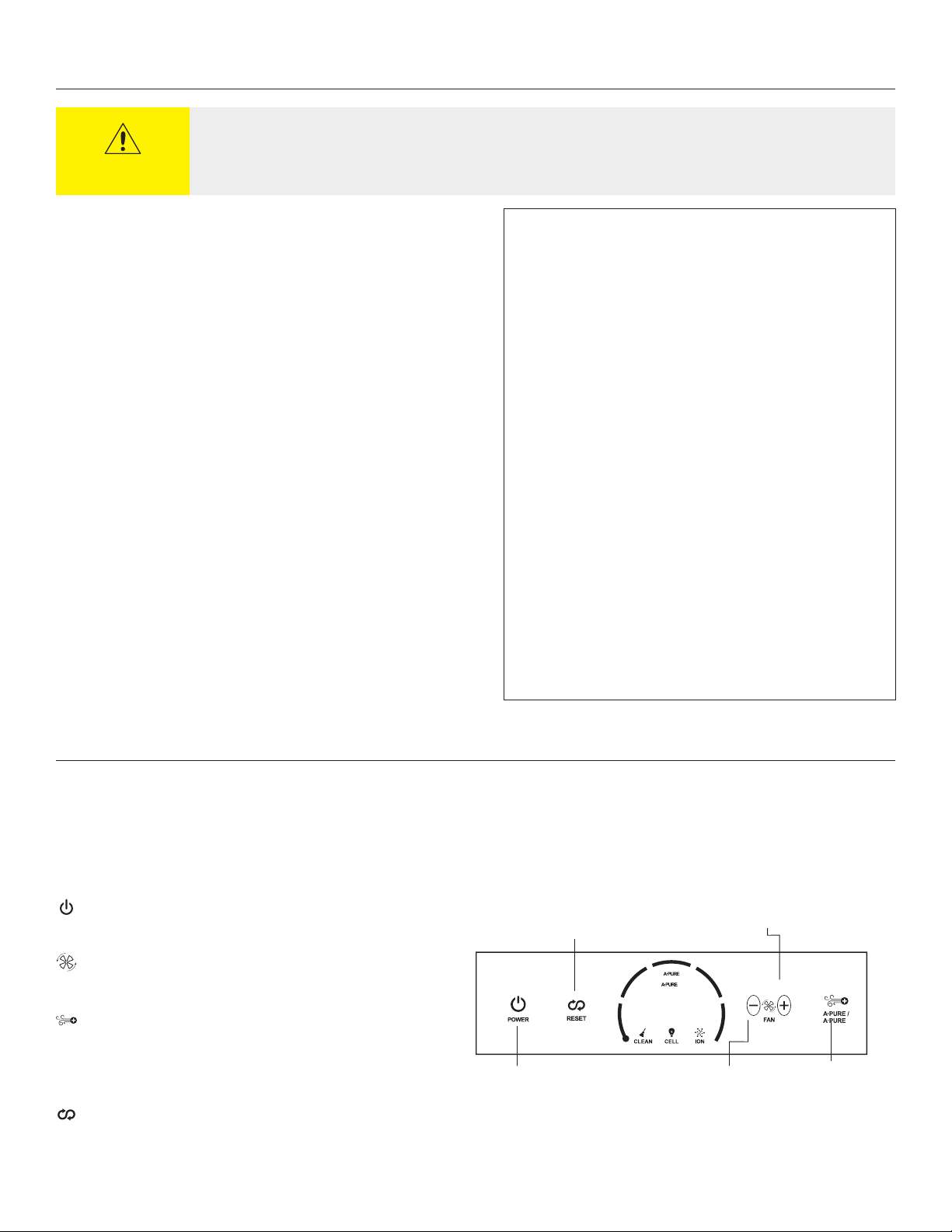

POWER (STAND BY)

Turns the unit ON and OFF.

FAN UP/FAN DOWN

Adjusts the five speed fan.

A·PURE/A·PURE x2

Toggles the unit between A·PURE Mode

(ActivePure and Ionization) and A·PURE x2

Mode (2 ActivePure Cells and Ionization).

REMINDER RESET

Clears the maintenance reminders aer

performing routine maintenance.

Power ON/OFF

Reminder Reset Fan UP

Fan

DOWN

A·PURE /

A·PURE x2

Modes (A·PURE /

A·PURE x2)

Fan Speed

(5 Levels)

Clean Filter

Assembly

Ion

Operation

Flicker: Replace ActivePure®Cell

Red Light: ActivePure®Cell Malfunction

LED DISPLAY

The LED Screen is used to display all current seings (see

page 6) as well as any maintenance reminders.

If a maintenance reminder or a service reminder appears, the

backlight will brighten and constantly flash until the Reminder

Reset icon is pressed or the service problem is corrected.

When maintenance is required, the Display Screen will brighten and flash and the Maintenance Reminder will appear.

MAINTENANCE REMINDERS

• Unplug the unit before performing any maintenance procedures

• Do not operate the ActivePure Surface & Air Guardian without the Filter Assembly and

Back Cover properly installed

WARNING

PERFORM CLEANING

• The perform cleaning CLEAN indicator will come on approximately every 180 days; for optimal performance, it is

recommended to perform cleaning on your unit every 30 days

• Clean the Filter Assembly (See Page 9)

• Vacuum the ActivePure Cells

• Vacuum Top and Rear Grill openings

NOTE: Be sure to press the Reminder Reset icon to clear the reminder following regular maintenance (See Page 6)

When the CLEAN indicator starts flashing, it reminds you to clean the filter.

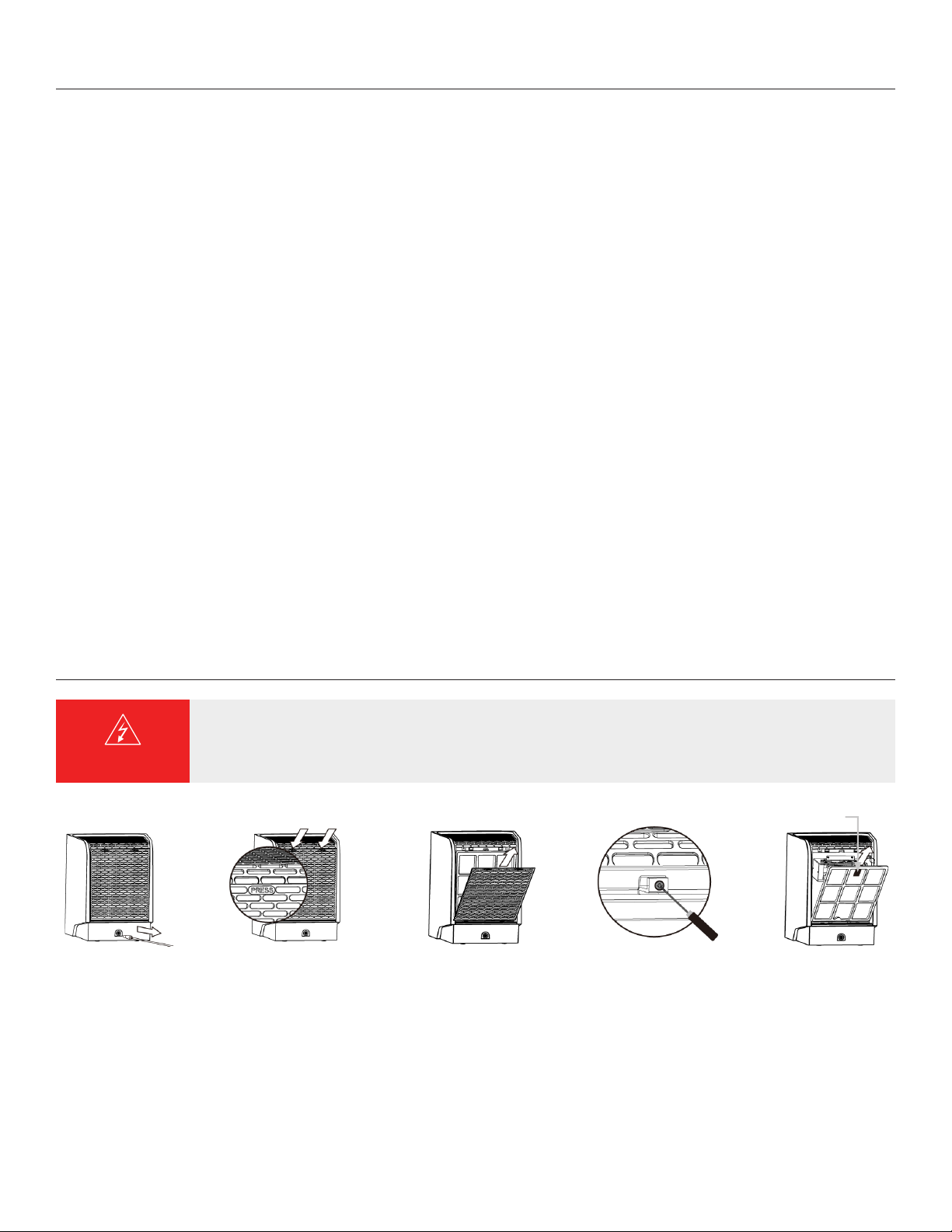

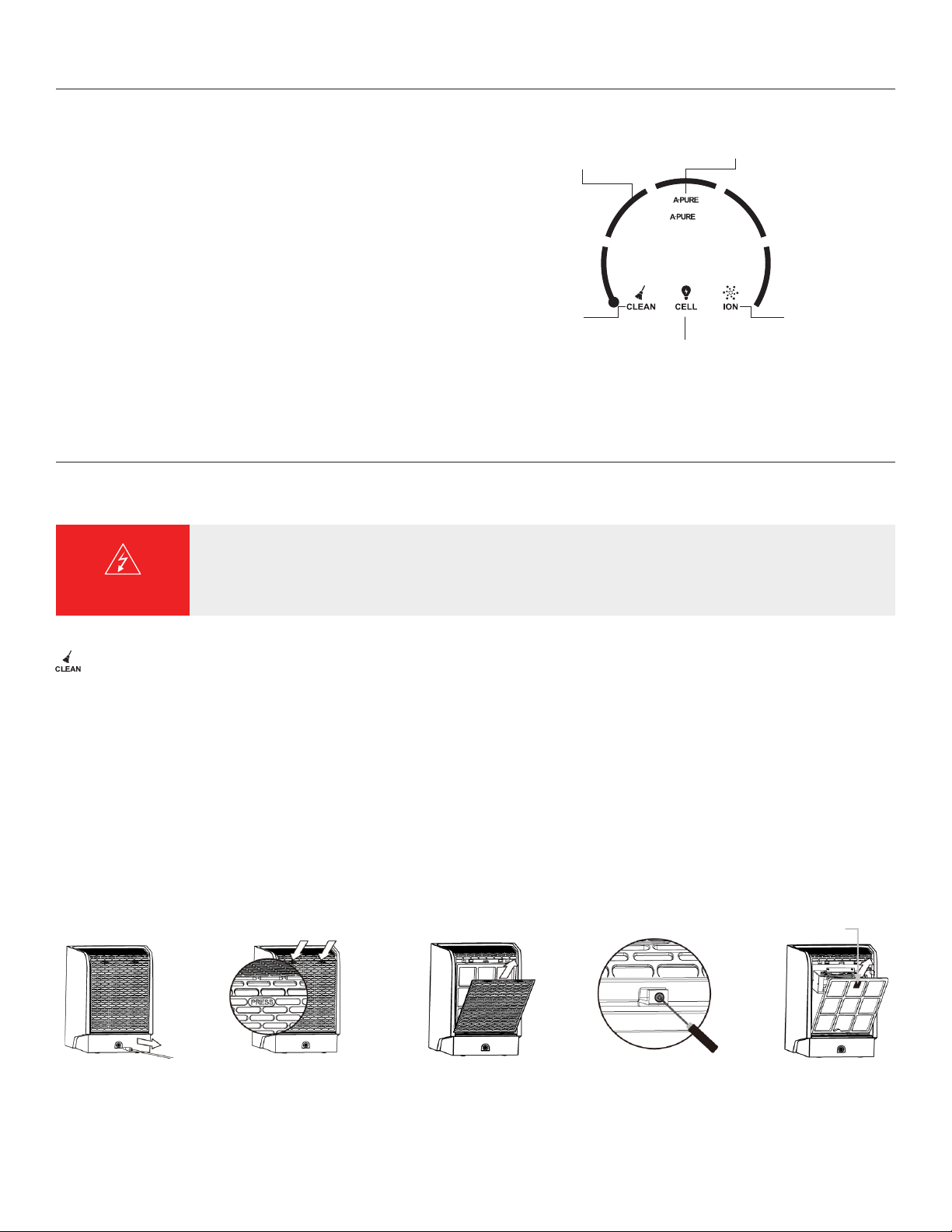

Follow the steps below to remove the filter and clean it. While powered on, hold the Reset buon, approximately

three seconds, untilyou hear a beep sound alerting you that it has been cleared.

Hand Strap

1. Unplug unit

2. Press the top of

the back cover to

release the back

panel

3. Li up to remove

the back panel

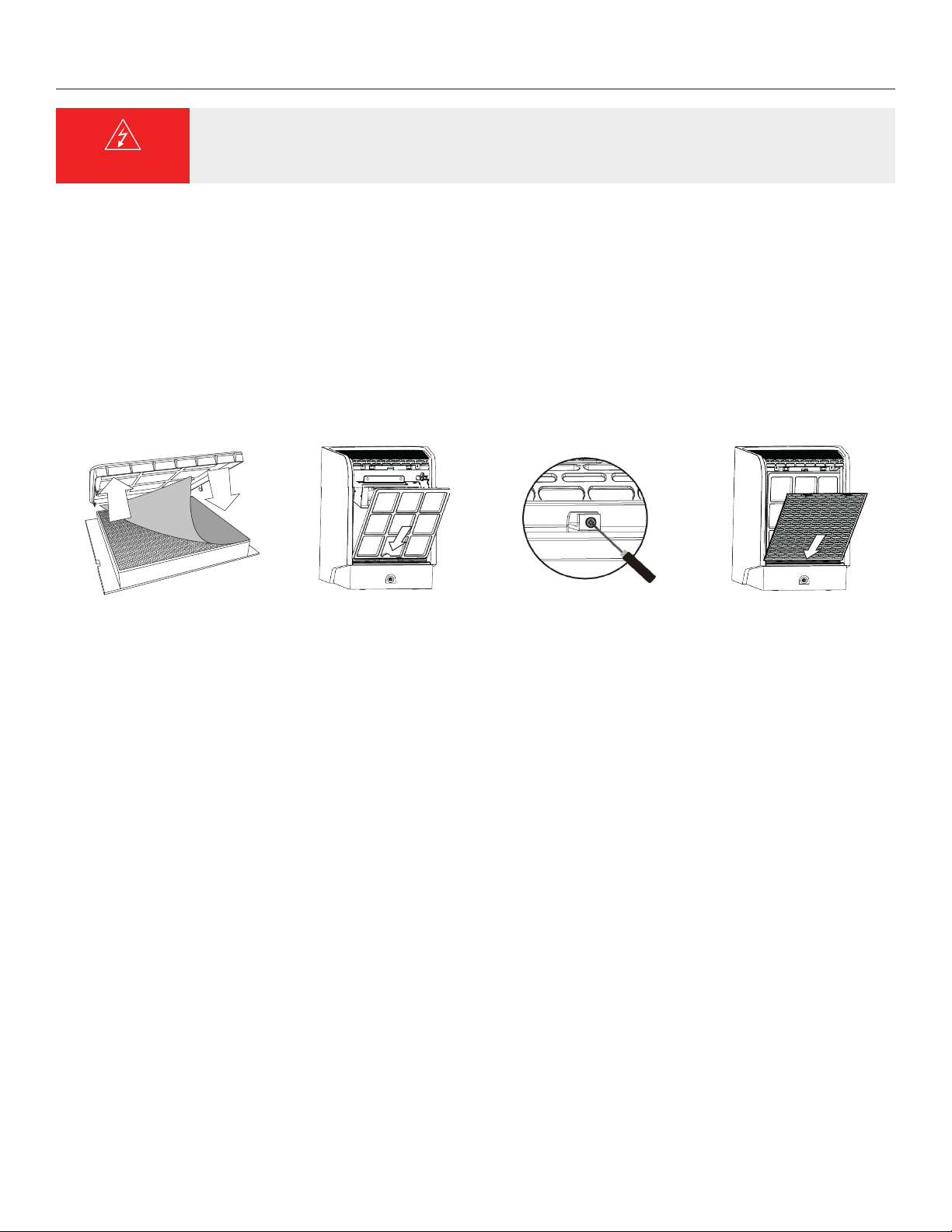

4. Use the included

screwdriver to

unscrew the Filter

Assembly

5. Li the Filter

Assembly up

and out to

remove

Do not operate the ActivePure®Surface & Air Guardian without the Filter Assembly and

Back Cover properly installed.

WARNING

REPLACE ACTIVEPURE CELL

The CELL indicator will light up if the ActivePure Cell is no longer working. To order a new ActivePure Cell, contact

your sales representative or contact our Customer Service line at 800.572.1446.

NOTE: The ActivePure Cell should be replaced every one (1) year, even if the unit does not display this message.

When the CELL indicator starts flashing, you will need to perform the following operations to reset:

• Aer 1 year of cumulative use, the CELL indicator starts flashing. Aer the user replaces the new ActivePure Cell

according to the operation steps on page 10 of the manual, long press the RESET buon for three seconds

under the power o / standby state, you will hear a beep sound to let you know the reminder has been cleared.

When the CELL indicator starts flashing in red, you will need to perform the following operations to reset:

• The CELL indicator flashes in red to remind the user that ActivePure Cell is not properly installed. Aer

disconnecting the power supply, reinstall ActivePure Cell and check whether the socket is installed properly.

Aer the installation is successful, there is no need to press the RESET icon, the red light will automatically turn

o. Aer the above operations, if the indicator remains flashing in red, ActivePure Cell is possibly damaged. In

this case, contact Customer Service at 800.572.1446.

Reseing the Reminders

The reminders you need to reset are the PERFORM CLEANING and REPLACE ACTIVEPURE CELL indicators (aer

performing maintenance, press the Reset icon and the screen will stop flashing to let you know the reminder has been

cleared, please see above instructions for each indicator).

GENERAL MAINTENANCE

Unplug the unit before performing any maintenance procedures.

WARNING

Periodic maintenance is required to ensure that your ActivePure Surface & Air Guardian operates properly. The unit will

display a PERFORM CLEANING reminder when it's time to perform regular maintenance. If you are operating your unit in a

severely polluted environment, cleaning of the unit, ActivePure Cell, and Filter Assembly should be done more frequently.

Shown here are basic procedures that should be carried out to keep your unit running at top performance.

For optimal performance, and to prevent damage not covered by your warranty, install the Optional HEPA Filter. Failure to

perform routine maintenance could adversely aect the proper function of the unit or cause it to fail prematurely.

NOTE: If a unit is returned for repair, and it is determined that neglect of the unit or unauthorized tampering with any

mechanical or electronic component of the unit caused the failure, ActivePure reserves the right to void the

product warranty. This will require the owner to pay for any required repairs.

MAINTENANCE REMINDERS CONTINUED

REMOVING THE FILTER ASSEMBLY

WARNING

• Unplug the unit before performing any maintenance procedures

• Do not operate the ActivePure Surface & Air Guardian without the Filter Assembly and

Back Cover properly installed

Cleaning the Case

Wipe the unit with a so cloth dampened (not wet) with water. Do not use chemicals or solvents. Vacuum the Top and Rear

Grills periodically to remove any lint buildup.

Cleaning the ActivePure® Cells

Remove the ActivePure Cells and carefully vacuum accumulated lint. Do not wash the ActivePure Cells. Damage from water

may result.

Filter Assembly Cleaning

1. When visibly dirty, simply remove the Rear Filter Assembly from the unit (see page 8), and with a hand-held vacuum,

remove the heavy particulate. This method will extend the life of the Filter Assembly.

2. If the Filter Assembly can’t be cleaned by vacuuming, replace the Filter Assembly.

Filter Assembly Replacement

Contact your sales representative or ActivePure Customer Service at 800.572.1446 for replacement filters (see pages 9 – 10

for removal and installation instructions).

NOTE: Filter Assembly life will vary based on the operating environment.

Changing the ActivePure Cell

The ActivePure Cell should be replaced when REPLACE ACTIVEPURE CELL appears on the display, or twelve (12) months

when used continuously To change the ActivePure Cell, follow the instructions on page 11.

GENERAL MAINTENANCE CONTINUED

Hand Strap

1. Unplug unit

2. Press the top of

the back cover to

release the back

panel

3. Li up to remove

the back panel

4. Use the included

screwdriver to

unscrew the Filter

Assembly

5. Li the Filter

Assembly up

and out to

remove

The Optional HEPA Filter Sheet is designed specifically for areas with tobacco smoke, multiple pets, or anywhere

contaminants in the air could be prevalent.

• Protects your unit from indoor contaminants, which may shorten the life of your product

• Reduces monthly maintenance and cleaning time up to 90%

• Helps reduce odors

• Great in kitchen environments

• Helps reduce VOCs and other contaminants

NOTE: Removing the Optional HEPA Filter Sheet will increase the airflow of the unit.

UNINSTALLING THE OPTIONAL HEPA FILTER SHEET

Unplug the unit before performing any maintenance procedures.

WARNING

1. Remove the Filter

Assembly

(See Page 8)

2. Remove the

Optional HEPA Filter

Sheet on top of the

Prefilter

3. Replace the Filter

Assembly, inserting

the boom of the

Filter Assembly first

4. Use the included

screwdriver to screw

in the Filter

Assembly

5. Replace the Filter

Assembly, inserting

the boom of the

Filter Assembly first

Other manuals for Surface & Air Guardian

This manual suits for next models

Table of contents

Other ActivePure Air Cleaner manuals

ActivePure

ActivePure Surface & Air Guardian User manual

ActivePure

ActivePure Induct Guardian I User manual

ActivePure

ActivePure TRANSIT GUARDIAN B101A User manual

ActivePure

ActivePure Guardian Pro User manual

ActivePure

ActivePure Transit Guardian External User manual

ActivePure

ActivePure INDUCT GUARDIA N II User manual

ActivePure

ActivePure INDUCT GUARDIAN IV User manual

ActivePure

ActivePure Induct Guardian User manual

ActivePure

ActivePure Beyond Guardian User manual

ActivePure

ActivePure GUARDIAN AIR User manual

ActivePure

ActivePure F159L User manual

Popular Air Cleaner manuals by other brands

IKEA

IKEA UPPÅTVIND quick start guide

Nash

Nash AP-1 PureSmart instruction manual

LG PH-U450 Series owner's manual

DeLonghi

DeLonghi DDSX 220WFA manual

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E instruction manual

Sharp

Sharp FU-40SE Operation manual

Philips

Philips AC2721 user manual

Hitachi

Hitachi EP-A3000 instruction manual

TruSens

TruSens Z-2000 manual

Motorola

Motorola MBP87SN quick start guide

Beko

Beko ATP 7100I instruction manual

Carrier

Carrier INFINITY 1620 installation instructions

AtmosAir

AtmosAir P2002 user guide

Winix

Winix NK300 Use & care guide

Friedrich

Friedrich C-90A Service information

Surgically Clean Air

Surgically Clean Air JADE2.0 Operation manual

Base aire

Base aire 555 Pro Installation & operation manual

Champion

Champion CP25 instructions
