Acson AWM 25GR User manual

Wall Mounted Split Systems

AWM-G-2005

AWM 07G/GR

AWM 09G/GR

AWM 10G/GR

AWM 15G/GR

A5WM 07G/GR

A5WM 10G/GR

A5WM 15G/GR

Models:

ISO 9002

REGISTERED

1. NOMENCLATURE

AWM 10 GR

Brand

A : ACSON

Capacity

10 : 9,500 Btu/h

Series

G : G series

Model Type

R : Heatpump

Omitted if Cooling

I B

AC A-

Refrigerant

5 : R410A

Omitted if R22

Model Name

WM : Wall Mounted

Electrical

A : 220 - 240V/1Ph/50Hz

Others

A : First issue

Grille Type

B : Grille B

Market Region

C : Export with CE mark

U : UTL Spec.

Air Treatment Devices & Control

I : Negative Ion with wireless controller

N : NTP with wireless controller

X : Oxygen unit

Indoor

ALC 10 CR

Brand

A : ACSON

Capacity

10 : 9,500 Btu/h

Series

C : C series

Model Type

R : Heatpump

Omitted if Cooling Only

5 P O

AC A-

Model Name

LC : Single Split Condensing Unit

Electrical

A : 220 - 240V/1Ph/50Hz

Others

A : First issue

Outdoor

Compressor

P : Matsushita Rotary T : Toshiba Rotary

M : Mitsubishi Rotary S : Samsung Rotary

Specification Variation

O : Standard Unit I : Gold Fins

B : With Contactor L : Long Piping Unit

G : Low Ambient Kit S : With H/L Pressure Switch

H : High Ambient Kit X : Oxygen Unit

Market Region

C : Export with CE marking

E : Export without marking

U : ETL Spec.

Refrigerant

5 : R410A

Omitted if R22 Model

Outdoor

ALC 30 C R

Brand

A : ACSON

Capacity

30 : 30,000 Btu/h

Model Type

R : Heatpump

Omitted if Cooling

4F FA A-

Electrical

A : 220 - 240V/1Ph/50Hz

F : 380 - 415V/3Ph/50Hz

Product Specification Variation

Series

B : B series

C : C series

Model Name

LC : Single Split Condensing

Unit

Refrigerant

4 : R410A

Omitted if R22

Type of Connection

F : For Flare

2. FEATURES

xEASY INSTALLATION

-The wall mounted fan coil unit is easily installed because of its compact size, slimness and light weight.

- Slim and short outdoor unit can be easily installed even in a narrow balcony and passageway and yet

have a stable profile.

xSPACE SAVING

- No space is required on either floor or ceiling. This newly developed super slim design for wall mounting

maximizes floor space usage and enhances ceiling appearance where ceilings are low.

xQUIET OPERATION

- Cooling comfort is improved by whisper-quiet operation which is achieved by a tangential fan.

xEXCELLENT AIR DISTRIBUTION

- Air discharge direction can be adjusted in four directions, manually or automatically by using LCD

remote control.

- The new double louver design with automatic air swing function fully optimizes the room comfort by

distributing the air evenly to the room.

- The unique skew fan design with larger diameter creates better air flow to the operating environment.

xFACILITATED MAINTENANCE ENSURED

-The new design of air discharge housing whereby the fan blower can be easily accessed by just loosing

two screws on the unit to provides a flexible, faster and easier way to clean up the fan blower and

ionizer.

- Maintenance is easy for electrical components, piping and wiring as these are all easily accessible by

merely removing front plastic panel.

xWIRELESS REMOTE CONTROL

- The compact LCD transmitter is able to operate the air conditioner unit within the distance of 9 meters.

- Fan motor speed can be set at low/medium/high or automatic.

- Sleep mode auto control will gradually increase or decrease the setting temperature to provide a

comfortable surrounding for sleeping.

- Air flow direction can be controlled automatically.

- Room temperature is controlled by electronic thermostat.

- The real time timer allows the air conditioner to be switched On and Off automatically based on user

settings.

- Turbo mode function is available to enables the required set temperature to be achieved in a short time.

- Ionizer or non-thermal plasma is available to create better air quality.

- Personalized Setting allows user to preset and store 2 groups of personal settings (including timer

setting) in the handset.

- Auto random restart is a function whereby when there is power failure occurred during operation, the

unit will automatically restart as the last setting condition once the power is resumed.

xMOISTURE REMOVAL

-Dry mode with super low indoor fan speed can achieve more affective moisture removal.

-If the room temperature is lower than the set temperature (Cooling mode only), the compressor will cut

out and force on after 9 minutes to remove moisture effectively.

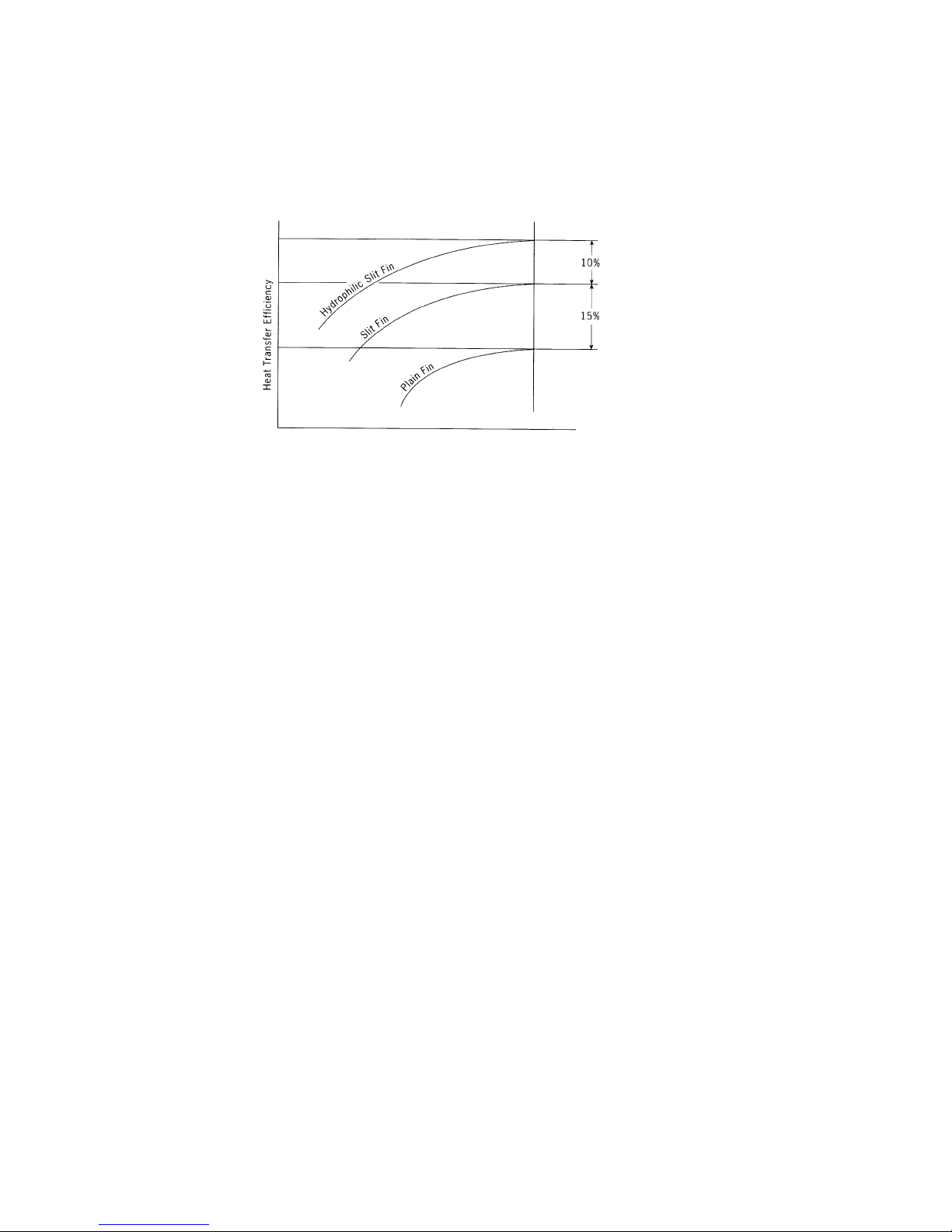

xHIGH EFFICIENCY HEAT EXCHANGER

- The compact design of the 3-fold structure heat exchanger provides a large surface are for better and

efficient heat exchange.

-The unique Hydrophilic slit fin has greatly improved the air flow and the contact surfaces with the air thus

to boost the cooling capacity.

xROTARY COMPRESSOR

-The ever popular rotary compressor is more energy efficient and has a higher output to weight ratio.

xSELF DIAGNOSIS

-This function is able to detect and to diagnose any faults occurring in the system by blinking of the LED

lights.

-Simplify and ease for troubleshooting.

INDOOR UNIT

A5WM-G SERIES PRODUCT LINE UP

Marking

Grille

ACIBC X X X X X X

ACNBC X X X X X X

ACIBC X X X X X X

ACNBC X X X X X X

ACIBC X X X X X X

ACNBC X X X X X X

ACXBCX X XXX XX

ACIBC X X X X X X

ACNBC X X X X X X

ACXBCX X XXX XX

ACIBC X X X X X X

ACNBC X X X X X X

ACIBC X X X X X X

ACNBC X X X X X X

311AFCAXXXX X

ACIBC X X X X X X

ACNBC X X X X X X

ACIBC X X X X X X

ACNBC X X X X X X

ACIBC X X X X X X

ACNBC X X X X X X

ACIBC X X X X X X

ACNBC X X X X X X

ACIBC X X X X X X

ACNBC X X X X X X

ACIBC X X X X X X

ACNBC X X X X X X

301R AFCA X X X X X

15GR

20GR

25GR

25G

07GR

09GR

10GR

CLASSIFICATIONS

Nomenclature

U1.5

Non-Thermal Plasma (NTP)

Handset

G12 (W/O Turbo mode)

D2.0

Saranet Filter

PCB

Cooling ModelHeatpump Model

A5WM

L2.0

G12

07G

09G

10G

15G

20G

O2Theraphy

Air Purification

Ionizer Filter

Nano Technology Air Filteration

Negative Ion

OUTDOOR UNIT

A5LC PRODUCT LINE UP

Special Grille Compressor Marking Others

Cap. Tube

Gold Fin

Contactor

Theraphy

Back Panel Grille

Mat. Rotary

CE Marking

Drain Elbow

07C ACPOE X X X

ACPOB X X X

ACPXB X X X X

ACPOA X X X

ACPXA X X X X

20C ACPOC X X X

25C ACPOC X X X

28C ACPOA X X X

07CR ACPOE X X X X

10CR ACPOB X X X X

15CR ACPOA X X X X

20CR ACPOC X X X X

25CR ACPOC X X X X

28CR ACPOA X X X X

Heat Pump Model

CLASSIFICATIONS

Safety Devices

15C

Refrigerant

Ctrl + Fin

A5LC

Cooling Model

Nomenclature

10C

11. CONTROLLER

G12 REMOTE CONTROLLER

Temperature Setting

xTo set the desired room

temperature, press the button to

increase or decrease the set

temperature.

xThe temperature setting range is

from 16qC to 30qC

xPress both buttons simultaneously

to toggle the temperature setting

between qC and qF

Turbo Mode

xPress the TURBO button to

achieve the required set

temperature in a short time.

ON Timer Setting

xPress the SET button will activate

the on timer function.

xSet the desired on time by pressing

the SET button continuously.

xPress the CLR button to cancel the

off timer setting

Sleep Mode

xPress the button to activate sleep

mode. This function is available

under COOL, HEAT & AUTO

mode.

xWhen it is activated in COOL

mode, the set temperature will be

increased 0.5qC after 30mins, 1qC

after 1 hour and 2qC after 2 hours.

xWhen it is activated in HEAT

mode, the set temperature will be

decreased 1qC after 30mins, 2qC

after 1 hour and 3qC after 2 hours.

Personalised Setting

xPress and hold the button for 3s to

initiate personalized setting.

xSet the individual setting e.g.

MODE, SET TEMP or FAN SPEED

and leave for 4s to save

x2 groups of settings are allowed to

stored in the handset

Fan Speed Selection

xPress the button until the desired

fan speed is achieved.

Operating Mode

xPress the MODE button to select

the type of operating mode.

xFor Cooling only unit, the available

modes are: COOL, DRY & FAN.

xFor Heatpump unit, the available

modes are: AUTO, COOL, DRY,

FAN & HEAT.

OFF Timer Setting

xPress the SET button will activate

the off timer function.

xSet the desired off time by

pressing the SET button

continuously.

xPress the CLR button to cancel the

off timer setting

Automatic Air Awing

xPress the SWING button to activate

the automatic air swing function.

xTo distribute the air to a specific

direction, press the SWING button

and wait until the louver move to

the desired direction and press the

button once again.

On/Off Button

xPress Once to start the air

conditioner

xPress again to stop the unit

Clock Time Setting

xPress button + or - to increase or

decrease the clock time.

Ionizer

xPress the button to activate the

negative Ion function, which will

refresh the indoor air effectively.

INDICATOR LIGHTS

AWM / A5WM - G SERIES

IR signal receiver

When there is infrared remote control operating

signal, the signal receiver on indoor unit will made a

(beep) for signal acceptance confirmation.

Cooling unit / Heatpump unit

The table below shows the LED indicator light for air

conditioner unit under normal operation and fault

condition. The LED indicator lights are located at the

middle of the air conditioner unit.

The heat pump units is equipped with an “auto” mode,

whereby the unit will provide reasonable room

temperature by switching the unit automatically to

either “cool” mode or “heat” mode, according to the

temperature setting set by the user.

LED Indicator Lights : Normal Operation And Faulty Indication Table

COOL/HEAT

(GREEN/RED)

Normal Operation / Fault Indication Action

|/z

Red

|/z

Green

|/z

Red

Cool mode

Heat mode

Auto mode in Heating operation

Auto mode in Cooling operation

Timer on

Sleep mode on

Ionizer on

Fan mode on

Indoor coil sensor open

Outdoor coil sensor open

Room air sensor contact Loose / Short

Call your dealer

|- ON |/z- ON or OFF - Blinking

LED Indicator Lights for Cooling Unit / Heatpump

Unit

Red

Green

|/z

Dry mode on

1 time

3 times

1 time

Compressor overload /

Indoor coil sensor short /

Outdoor coil sensor short

3 times

5 times

6 times

Defrost operation

Gas leak

Outdoor coil sensor exist (MS mode)

Hardware error (tact switch pin short)

Call your dealer
