Acer AT350 F2 Series User manual

Acer AT350 F2 specifications

Product overview

The AT350 F2 is a dual-socket, rack-mountable tower server that delivers exceptional performance,

availability, expansion capability, and flexibility. With a maximum 16-core performance along with the latest

Intel®Xeon®processors and DDR3 memory, the AT350 F2 server is perfect for high-speed, memory-

intensive and multi-threaded operations. Hot-swappable HDDs, PCIe®3.0 expansion slots and up to 24

DIMM slots give your business the power to customize and expand. This ultra-dense tower server is a

power-efficient solution for medium-sized enterprises, departments and branch offices.

Internal view

2 x 920W 80 PLUS®Platinum-level (1+1 redundant, hot-swappable)

System Fans

24 x DDR3 ECC registered / 16 x DDR3 ECC unbuffered DIMMs

6 x PCIe®3.0 expansion slots

2 x Intel®Xeon®E5-2600 family processors

N+1 redundant system fans

3 x 5.25" media bays

Up to 8 x 3.5" hot-swappable hard drive bays or

Up to 16 x 2.5" hot-swappable hard drive bays

Acer AT350 F2 specifications

Front View

Front I/O

Power Button

LED indicators: power, HDD activity, LAN

2 x USB 2.0 ports

Up to 8 x 3.5" hot-swappable hard drive bays or

Up to 16 x 2.5" hot-swappable hard drive bays

Acer AT350 F2 specifications

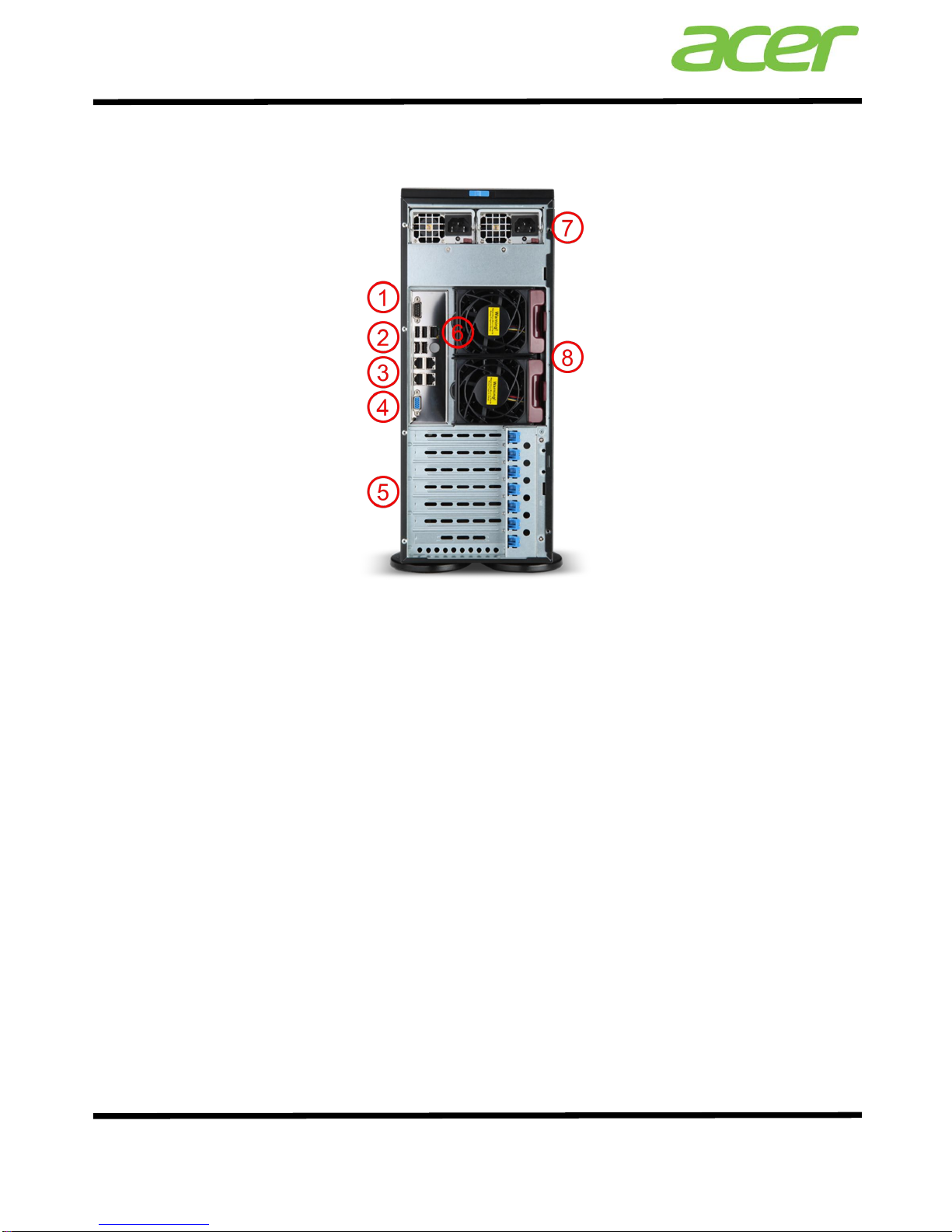

Rear View

Rear I/O

Serial port

4 x USB ports

4 x Gigabit LAN port (RJ-45)

Video port

PCIe expansion

Management port (RJ-45)

2 x 920W 80 PLUS®Platinum-level (1+1 redundant, hot-swappable)

1+1 redundant system fans

Acer AT350 F2 specifications

What's New

New Intel®Xeon®E5-2600 family processors

Hot-pluggable/redundant power supply with 80 PLUS®Platinum-level efficiency

Smart Server Manager v1.2 with improved management functionality

Product Specifications

Processors and Chipset

Up to two Intel®Xeon®E5-2600 family processors

Chipset: Intel®C606

Memory

Up to 24 x DDR3 registered DIMMs or up to 16 x DDR3 unbuffered DIMMs

Network Controllers

1 x Quad-port Intel®I350 Ethernet controller

Storage

Hard disk form factor: 2.5” or 3.5”

Type: SAS / SATA / SSD with hot-plug capability

3.5” Maximum capacity:

Up to 24 TB SATA HDD (3 TB 3.5" x 8 HDDs)

Up to 16 TB SAS (2 TB 3.5” x 8 HDDs)

2.5” Maximum capacity:

Up to 16 TB SATA HDD (1 TB 2.5" x 16 HDDs)

Up to 14.4 TB SAS (900 GB 2.5” x 16 HDDs)

Storage Controllers

Intel®606 chipset with SCU (8 x 3 Gb/s SATA / SAS ports) with RAID 0, 1, 10 support

Onboard SAS support for RAID 0, 1, 10

Optional hardware SAS RAID controller with RAID 0, 1, 10, 5, 6, 50, 60 and BBU support

Expansion slots

2 x PCIe® 3.0 x16 (x16 connector) (full-height, full-length)

2 x PCIe® 3.0 x16 (x16 connector) (full-height, full-length, CPU 2)

1 x PCIe® 3.0 x8 (x8 connector) (full-height, half-length, CPU 2)

1 x PCIe® 3.0 x4 (x8 connector) (full-height, half-length)

Management

Acer Smart Server Manager

System ID LED buttons, System Health LED

Acer Smart Console for server management and KVM over IP remote management

BIOS

UEFI BIOS

SMBIOS 2.7

Deployment/Serviceability

Acer Smart Setup

BIOS Update Tool

IPMI Firmware Update Tool

Acer AT350 F2 specifications

Operating Systems

Windows Server®2008 (includes Hyper-V™)

Windows Server®2008 R2 (includes Hyper-V™)

Red Hat Enterprise Linux 5

Red Hat Enterprise Linux 6

SUSE Linux Enterprise Server 10

SUSE Linux Enterprise Server 11

VMware ESXi™5.0

Citrix®XenServer 6.0

Input/output interface

Front

2 x USB 2.0 ports

One Power/off button

LED indicators: power, HDD activity, LAN, ID, and System status

Rear

4 x USB 2.0 ports

4 x Gigabit LAN port (RJ-45)

Video port

Serial port

System ID LED

Management port (RJ-45)

Optical drive

5.25” SATA DVD Super multi

Graphics

BMC embedded controller

128 MB shared video memory

16 MB dedicated

Chassis/Form Factor

Tower / 4U rack mountable

Power Supply

2 x 920 W 80 PLUS® Platinum-level efficient easy-swap power supply units (1+1 redundant, hot-

swappable)

Security

HDD mechanical lock

Chassis intrusion alert

Administrator/user password

Power-on password

Setup password

Device boot control

Optional TPM (v1.2-compliant)

Secure command line interface (SSH)

Secure browser interface (Secure socket layer - SSL support)

Secure IPMI LAN interface (Authentication, Integrity, and Confidentiality algorithm)

Acer AT350 F2 specifications

Regulatory Compliant Standards

EMC

FCC (Class B)

CE (Class B)

BSMI

CCC

Safety

MET

CB

Nemko/GS

Environmental Specifications

Dimensions

434 (W) x 648 (D) x 178 (H) mm (17.1 x 25.5 x 7 inches)

Weight

Maximum

40 kg (88.2 lbs)

System inlet

temperature

Operating

0°- 40°C (32°- 104°F)

Non-operating

-20° - 60°C (-4°- 140°F)

Relative

humidity

Operating

8 - 90 %

Non-operating

5 - 95 %

Acoustics

Idle

LWAd

5.0 BA

LpAm

36 dBA

Operating

LWAd

5.7 BA

LpAm

40 dBA

Power

Rated Steady –state power

920 W

Maximum Peak Power

920.28 W

BTU rating

3140.93 BTU/hr at 100 - 240 VAC

Acer AT350 F2 specifications

Technical specifications

PCIe®specifications

The primary I/O bus for the main board is PCIe®Gen3. The following table lists the characteristics of the

PCI-E bus segments. Details about each bus segment follow the table.

NOTE: The signaling bit rate of PCI Express is 8.0Gbit/s one direction per lane for Gen 3

Expansion

slot

Number

CPU

Type

Bus

width1

Voltage

Connector

Location

Length

PCIe x8

PCIe

Gen3

3.3V

Onboard

Full height

Half length

PCIe x16

PCIe

Gen3

x16

3.3V

x16

Onboard

Full height

Full length

PCIe x16

PCIe

Gen3

x16

3.3V

x16

Onboard

Full height

Full length

PCIe x16

PCIe

Gen3

x16

3.3V

x16

Onboard

Full height

Full length

PCIe x8

PCIe

Gen3

3.3V

Onboard

Full height

Half length

PCIe x16

PCIe

Gen3

x16

3.3V

x16

Onboard

Full height

Full length

NOTE:

1. Indicates the number of physical electrical lanes running to a PCIe® connector.

2. CPU 2 indicates that a second CPU is required to access that specific PCIe®slot.

3. Default bus assignment (in decimal). Inserting cards with PCI™ bridges may alter the actual bus

assignment number.

4. Slots are enumerated differently based on the operating system. Microsoft® operating systems

enumerate Device ID by bus starting from the lowest bus to the highest.

Acer AT350 F2 specifications

Onboard storage specifications

Item

Description

Controller

Intel®606 Platform Controller Hub

Simultaneous drive transfer channels

8 onboard SATA / SAS ports

Max throughput per channel

3 Gb/s

Data transfer method

Non-RAID mode

RAID mode

Drive type supported

Serial ATA; Serial Attached SCSI (SAS)

RAID levels support

RAID 0, 1, 10, (Intel software RAID)

RAID 0, 1, 10 (LSI software RAID)

NOTE: Intel software RAID only supports Windows OS

RAID function support

Supports multiple logical volumes

Setup through ROM based Array Configuration Utility

Installation scripting support

RAID OS support

Windows Server®2008

Windows Server®2008 R2

Windows Server®2003

Red Hat Enterprise Linux 5 / 6

SuSE Linux Enterprise Server 10 / 11

Additional features

NCQ (Native Command Queuing)

Onboard LAN specifications

Item

Description

Controller

1 x Quad-port Intel®I350 Ethernet controller

Network interface

10Base-T / 100Base-TX / 1000Base-T

Compatibility standards

IEEE 802.3 Ethernet interface for 10BASE-T

IEEE 802.3ab Ethernet interface for 1000BASE-T

IEEE 802.3u Ethernet interface for 100BASE-TX

Manageability

NC-SI, SMBus

PXE, iSCSI boot

Virtualization acceleration

Virtual Machine Device Queues (VMDq)

PCI-SIG SR-IOV implementation

Connector

RJ-45

Supported cable type

CAT 5e wire

Acer AT350 F2 specifications

Memory specifications and population

Item

Description

Supported memory types

Registered DDR3 800 / 1066 / 1333 / 1600 MHz

Unbuffered DDR3 800 / 1066 / 1333 MHz

NOTE: Acer does not qualify mixed memory configurations of

memory type, capacity or make.

Population

Acer’s validated memory populations are listed below.

NOTE: Support for 8 / 16 GB DIMMs may vary by regional

availability.

Supported Memory Population

•Each CPU controls twelve DIMM slots. The DIMM slots support four channel DDR3- registered /

unbuffered ECC memory modules. Each channel has three sockets. The farthest socket to CPU is

socket 1 (P1DIMMA1, P1DIMMB1, P1DIMMC1, P1DIMMD1, P2DIMME1, P2DIMMF1, P2DIMMG1,

P2DIMMH1,in blue color), while the nearest one is socket 3 (P1DIMMA3, P1DIMMB3, P1DIMMC3,

P1DIMMD3, P2DIMME3, P2DIMMF3, P2DIMMG3, P2DIMMH3 in black color). For all memory modes,

the socket 1 in each channel needs to be populated first. If socket 1 is empty, socket 2 and 3 can’t be

used. The higher rank and bigger capacity DIMM is suggested to be installed from slot 1.

•3 DIMMs per channel configuration is only supported by single rank and dual rank RDIMM. For UDIMM

and quad rank RDIMM, maximum 2 DIMMs per channel is able to be supported.

•When you are using a single-processor server, you should install the memory module into P1DIMMA1

to P1DIMMD3 slots.

•The P2DIMME1 to P2DIMMH3 slots are enabled when CPU2 is installed on the main board.

•For the system to function, DIMM modules must be installed following the population table listed below.

DIMM module of the same type, size and manufacturer is recommended to be used in a system.

Acer AT350 F2 specifications

Independent mode:

Single processor configuration guide:

DIMM

Total No. of DIMM

P1DIMMA1

P1DIMMA2

P1DIMMA3

P1DIMMB1

P1DIMMB2

P1DIMMB3

P1DIMMD3

P1DIMMD2

P1DIMMD1

P1DIMMC3

P1DIMMC2

P1DIMMC1

12*

SR,DR RDIMM only

* 3 DIMM per channel is only supported by single rank and dual rank RDIMM. For UDIMM and quad rank

RDIMM, maximum two DIMMs per channel.

NOTE: Support depends on 16GB DIMM availability

Dual processor configuration guide:

DIMM

Total No. of DIMM

P1DIMMA1

P1DIMMA2

P1DIMMA3

P1DIMMB1

P1DIMMB2

P1DIMMB3

P1DIMMD3

P1DIMMD2

P1DIMMD1

P1DIMMC3

P1DIMMC2

P1DIMMC1

P2DIMME1

P2DIMME2

P2DIMME3

P2DIMMF1

P2DIMMF2

P2DIMMF3

P2DIMMH3

P2DIMMH2

P2DIMMH1

P2DIMMG3

P2DIMMG2

P2DIMMG1

24*

SR, DR RDIMM only

* 3 DIMM per channel is only supported by single rank and dual rank RDIMM. For UDIMM and quad rank
