Abra MOD-YD-BT001 User manual
Multi-function wireless Bluetooth audio installation manual
Bluetooth reception, hands-free calls, can be forwarded back, card MP3 player, AUX function,
radio function

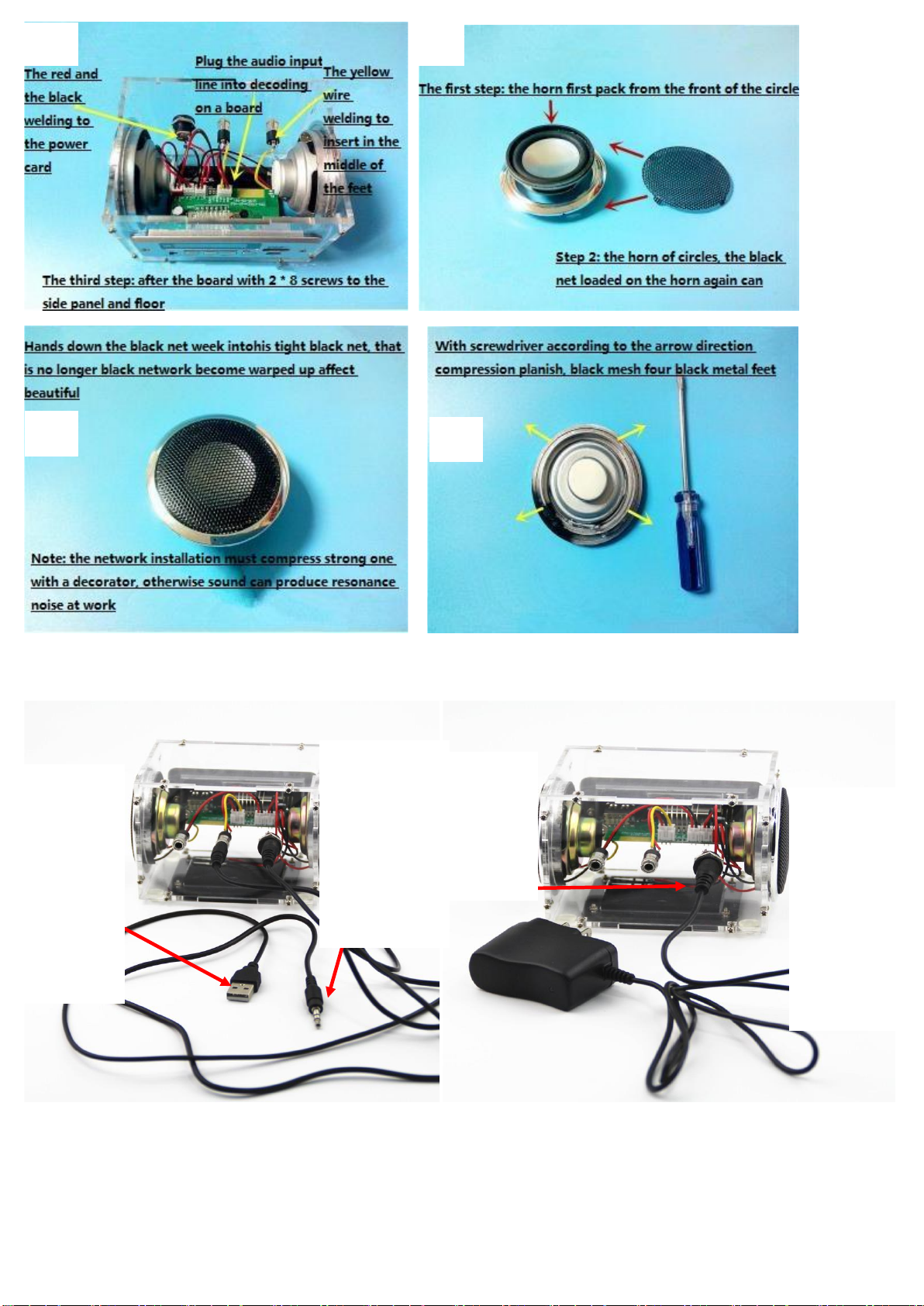

【installation】
105MM
77MM
75MM
Radio
antenna
jack
Audio
input
jack
Power
supply,
charging
jack
BL-5C lithium
battery installation
box
Metal cover 4
black
protruding
metal pieces
pressed
toward the
yellow arrows
flattened
Speaker negative
welding black
line
The positive electrode of the
torch is welded
Horn
circle
around
can add
a little
glue
fixed
more
solid
1
2
3
4
Use two 2 * 8mm screws
Yello
w
wire
solder
ing
radio
anten
na
port
The left side of
the welding
positive red line
The
right
side of
the
weldin
g
negativ
e black
line
Red, black wire
welding in the
back of the
terminal, between
the solder joints
must not be
shorted
Maximum
terminal
welding
red line
Welding
black line
The
middl
e of
the
jack
can
not be
lost
The longest
pin then red
line, yellow
and black line
arbitrary
access
The
longest
pin is
connect
ed to
the
antenna
termina
l yellow
line
Take the black line
Take the red line
5
6
7
8
9
10
00
注意事项：
3.5MM
audio head
can be an
external
audio
equipment
In the
case of
no
battery
sound,
you can
external
5V DC
power
supply
Charge
the
special
charger
when
inserted
Internal
battery
charging
must use
4.2V
dedicated
charger,
millions of
access 5V
power
supply
11
12
13
14
【Instructions for use】
1. Switch machine:
OFF / ON power switch: false shutdown (uninterruptible case, only turn off the panel switch, will maintain
low power consumption)
Power on: Turn the power switch to the "ON" position;
Shutdown: Set the power switch to the "OFF" position
2.MP3 playback:
Boot state to insert a copy of the MP3 song U disk or SD card, the machine will automatically identify and
play, play MP3 button function as follows:
"On a song": short press to play on a song, long press the volume minus;
"Play / Pause": press the first pause is playing the song, press again to restore the playback state;
"Next song": short press to play the next song, long press the volume plus;
"MODE": machine work mode selection, switch SD card, U disk, clock, FM, Bluetooth, LINE mode;
3.FM mode:
Use the "MODE" key to switch the machine to the FM state. "Play / pause": short press to automatically
search and store the radio; "next song": short press from low to high search for radio, Long press for volume
plus.
4.LINE mode:
Press "MODE" on the panel to switch the machine to "LINE". The sound source is input from "LINE / DC", the
volume is controlled by an external source device, and the volume can also be adjusted by "Previous" and
"Next". The adjustment method is also the same as the MP3 volume adjustment.
5. Clock regulation:
Press "MODE" on the panel to switch to the "clock" state, press the "Play / Pause" button to select the time
or minute, then select the part of the flash, then press "Previous" or "Next" adjustment time The (Note:
after each boot to re-adjust the time)
6. Bluetooth mode:
Press the "MODE" on the panel to switch the machine to "bLUE" state, open the audio device with Bluetooth
function, search for "ZTV-CT02EA" and connect it, the volume can be controlled by an external source device,
One "and" next "to adjust the volume; phone call short press" play / pause "to answer the phone long press
for the refusal.
When the call is on or the call is short, press "Play / Pause" to hang up.
