Prestige 642M

ADSL Bridge (PPPoE)

Quick Start Guide

Version 2.50

February 2001

Prestige 642M ADSL Bridge (PPPoE) Quick Start Guide

ii Copyright

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a

retrieval system, translated into any language, or transmitted in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written

permission of ZyXEL Communications Corporation.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software

described herein. Neither does it convey any license under its patent rights nor the patents' rights of others.

ZyXEL further reserves the right to make changes in any products described herein without notice. This

publication is subject to change without notice.

Trademarks

Trademarks mentioned in this publication are used for identification purposes only and may be properties of

their respective owners. ZyNOS is a registered trademark of ZyXEL Communications Corporation.

Prestige 642M ADSL Bridge (PPPoE) Quick Start Guide

Warranty iii

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials

or workmanship for a period of up to two (2) years from the date of purchase. During the warranty period

and upon proof of purchase, should the product have indications of failure due to faulty workmanship

and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components

without charge for either parts or labor and to whatever extent it shall deem necessary to restore the product

or components to proper operating condition. Any replacement will consist of a new or re-manufactured

functionally equivalent product of equal value, and will be solely at the discretion of ZyXEL. This warranty

shall not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected

to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This

warranty is in lieu of all other warranties, express or implied, including any implied warranty of

merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect

or consequential damages of any kind of character to the purchaser.

To obtain the services of this warranty, contact ZyXEL's Service Center for your Return Material

Authorization number (RMA). Products must be returned Postage Prepaid. It is recommended that the unit

be insured when shipped. Any returned products without proof of purchase or those with an out-dated

warranty will be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts

and labor. All repaired or replaced products will be shipped by ZyXEL to the corresponding return address,

Postage Paid. This warranty gives you specific legal rights, and you may also have other rights that vary

from country to country.

Online Registration

Don’t forget to register your ZyXEL product (fast, easy online registration at www.zyxel.com) for free

future product updates and information.

Prestige 642M ADSL Bridge (PPPoE) Quick Start Guide

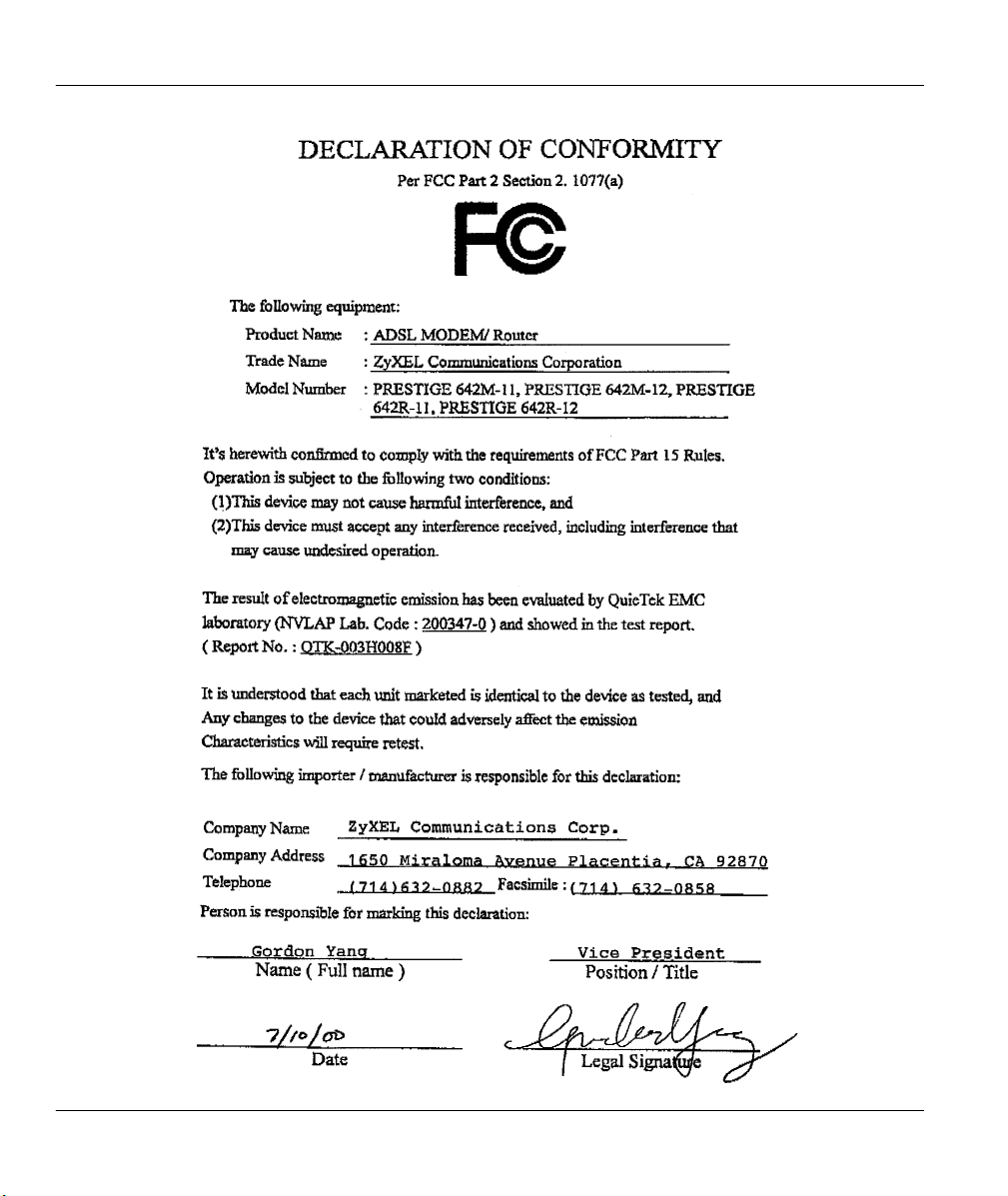

iv FCC

Prestige 642M ADSL Bridge (PPPoE) Quick Start Guide

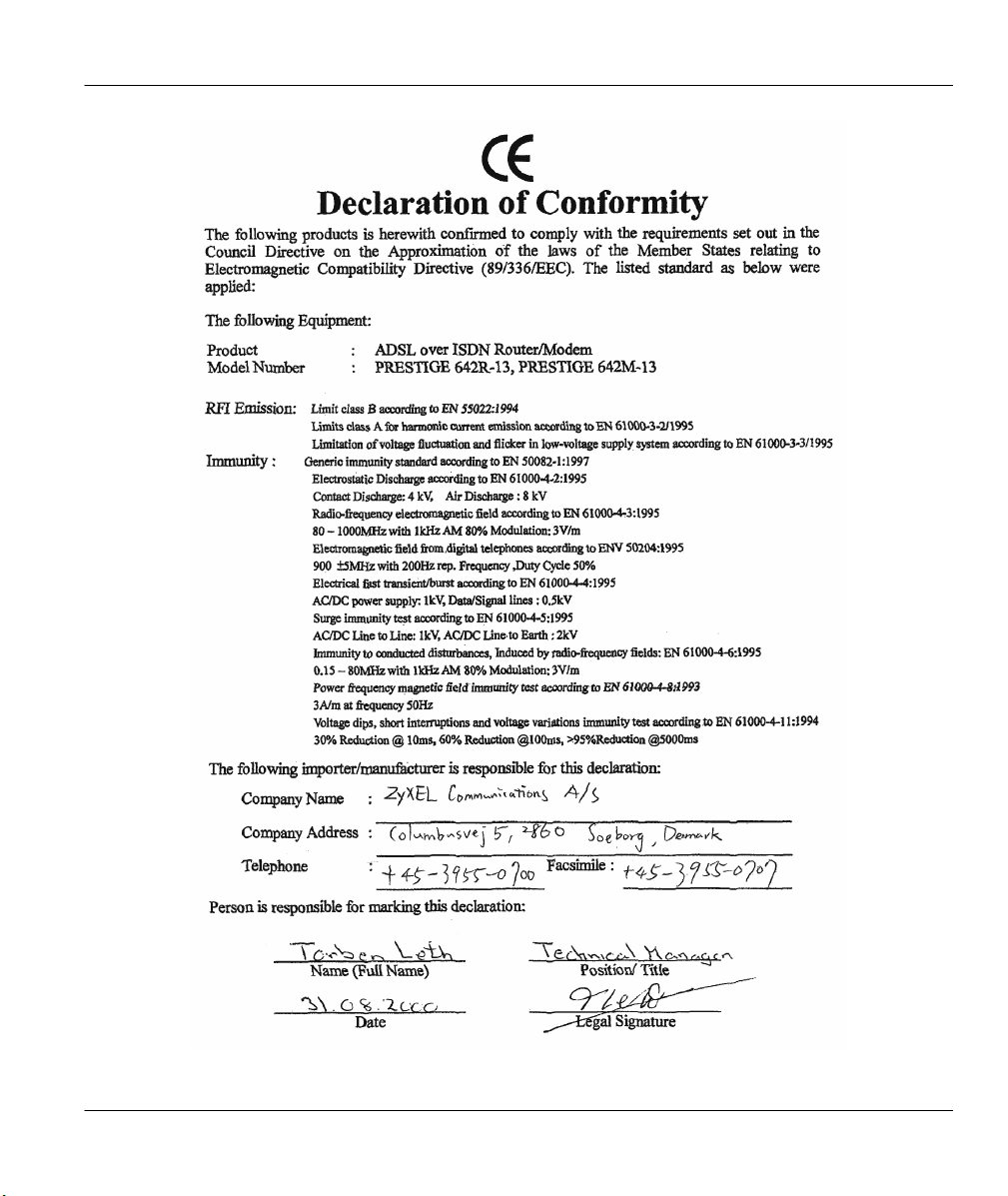

CE v

Prestige 642M ADSL Bridge (PPPoE) Quick Start Guide

vi Table of Contents

Table of Contents

Copyright ........................................................................................................................................................ ii

ZyXEL Limited Warranty.............................................................................................................................. iii

Table of Contents ........................................................................................................................................... vi

Chapter 1 Hardware Installation & Initial Setup.......................................................................................... 1-1

1.1 Front Panel LEDs of the P642M..................................................................................................... 1-1

1.2 Front Panel LED Descriptions ........................................................................................................ 1-1

1.3 Rear Panel and Connections of the P642M..................................................................................... 1-2

Chapter 2 Configure Your Computer........................................................................................................... 2-1

2.1 Automatically configure an IP address ........................................................................................... 2-2

2.2 Install a VPN Adapter..................................................................................................................... 2-5

2.3 Create a new PPPoE Connection .................................................................................................... 2-7

2.4 Connect to your ISP ...................................................................................................................... 2-10

Chapter 3 Troubleshooting........................................................................................................................... 3-1

Customer Support ...........................................................................................................................................A

Prestige 642M ADSL Bridge (PPPoE) Quick Start Guide

Hardware Installation & Initial Setup 1-1

Chapter 1

Hardware Installation & Initial Setup

This chapter familiarizes you with modem hardware.

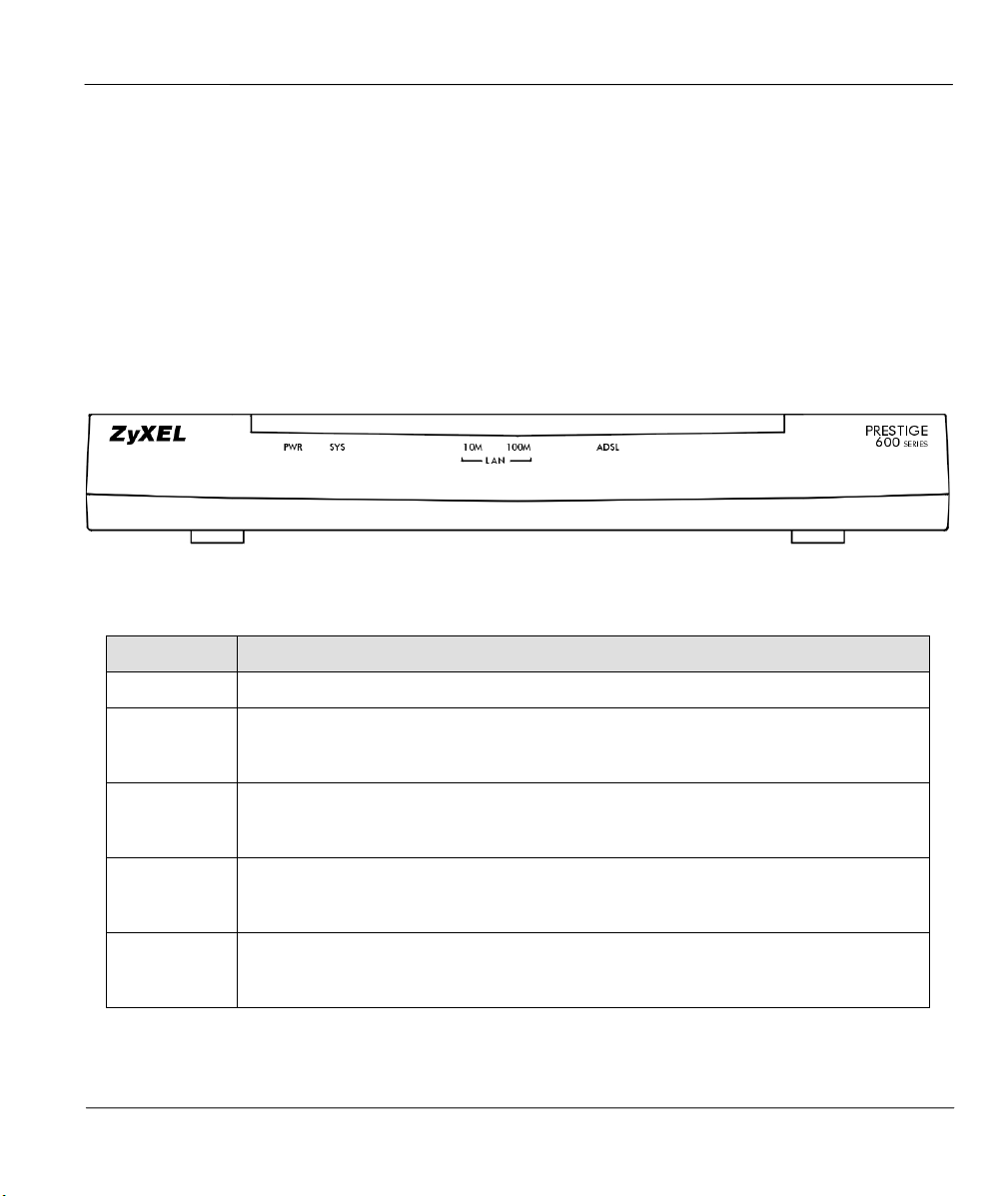

1.1 Front Panel LEDs of the P642M

The LED indicators on the front panel indicate the operational status of the Prestige 642M. The table below

the diagram describes the LED functions:

1.2 Front Panel LED Descriptions

LED DESCRIPTION

PWR The PWR (power) LED is on when power is applied to the Prestige.

SYS The SYS (system) LED is on when the Prestige is on and functioning properly.

The SYS LED is blinking when the system is rebooting.

The LED is off when the system is not ready or has malfunctioned.

LAN 10M The LAN 10M LED is on when a 10Mb Ethernet connection is successful.

The LAN 10M LED is blinking when data is sent/received.

The LED is off when the link is down.

LAN 100M The LAN 100M LED is on when a 100Mb Ethernet connection is successful.

The LAN 100M LED is blinking when data is sent/received.

The LED is off when the link is down.

ADSL The ADSL LED is on when the Prestige is successfully connected to a DSLAM.

The ADSL LED is blinking when data is sent/received.

The LED is off when the link is down.

Prestige 642M ADSL Bridge (PPPoE) Quick Start Guide

1-2 Hardware Installation & Initial Setup

1.3 Rear Panel and Connections of the P642M

The following figure shows the rear panel connectors of your Prestige.

The On/Off switch is optional with some Prestige Models

Step 1. Connecting the ADSL Line

Connect the Prestige directly to the wall jack using the included ADSL cable. OPTIONAL: connect a

microfilter between the wall jack and your telephone(s). A microfilter acts as a low pass filter (voice

transmission takes place in the 0 to 4KHz bandwidth). A telephone microfilter is an optional purchase.

Step 2. Connecting a Workstation to the Prestige 10/100M LAN port

Ethernet 10Base-T/100Base-T networks use Shielded Twisted Pair (STP) cable with RJ-45 connectors that

look like a bigger telephone plug with 8 pins. Use the crossover cable (red tag) to connect your Prestige

642M to a computer directly. Use straight through Ethernet cable (white tag) to connect to an external hub

and then connect one end of a straight through Ethernet cable (white tag) from the hub to the NIC on the

workstation.

Step 3. Connecting the Power Adapter to your Prestige

Connect the power adapter to the port labeled PWR on the rear panel of your Prestige.

Step 4. Connecting the Console Port

For the initial configuration of your Prestige, you need to use terminal emulator software on a workstation

and connect it to the Prestige through the console port. Connect the end of a console cable to the console

port of the Prestige and the 25 or 9 pin end to a serial port (COM1, COM2 or other COM port) of your

workstation. You can use an extension RS-232 cable if the cable you are using is too short.

Prestige 642M ADSL Bridge (PPPoE) Quick Start Guide

Configure Your Computer 2-1

Chapter 2

Configure Your Computer

This chapter shows you how to enable the Prestige PPPoE feature via VPN.

It is recommended that you enable the PPPoE feature of your modem before you

begin this chapter. How?

Refer to the Configure Your PPPoE Modem Appendix of the User’s Manual (make

sure that PPPoE is enabled by your service provider).

What version of Windows do you use?

Before you configure your computer check the version of Windows that you use. If you have Windows 95

then you should download the files MSDUN13.EXE and VPNUPD95.EXE from the Microsoft web site to

your computer.

Follow the four sections shown next to configure your computer.

1) Automatically configure an IP address.

2) Install a VPN Adapter.

3) Create a new PPPoE connection.

4) Connect to your ISP.

Prestige 642M ADSL Bridge (PPPoE) Quick Start Guide

2-2 Configure Your Computer

2.1 Automatically configure an IP address

Make sure your Prestige is on and properly connected to your computer before starting.

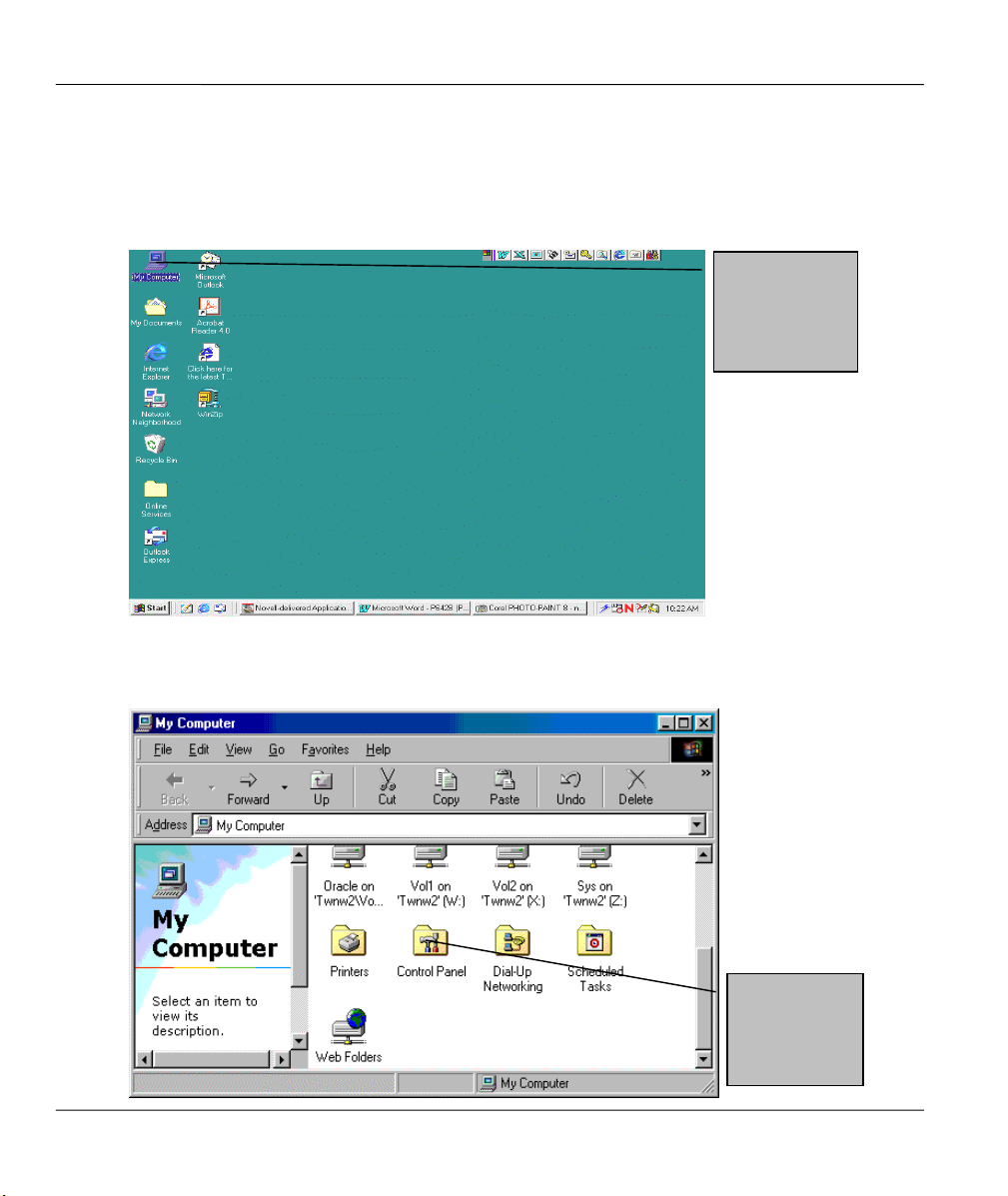

Step 1. Begin at your computer desktop.

Step 2. This screen shows the contents of My Computer.

Double-click

on the My

Computer

icon.

Double-click

on the

Control

Panel icon.
