ZyXEL Communications EM-422 User manual

EM-422

2-Slot XFP 10Gigabit Module

User’s Guide

Version 1.00

7/2007

Edition 1

EM-422 User’s Guide

Overview

The EM-422 is an uplink module with two slots for XFP (10-

Gigabit Small Form Factor Pluggable) transceivers. It is

designed for use with high-speed switches, such as the XGS-

4528F. After installing the EM-422 in a switch, the switch can

have 10 Gigabit connections to a backbone switch or other

network devices.

This guide helps you set up and use your EM-422.

This guide contains the following sections:

Section Page Description

Hardware

Installation

3How to install the EM-422 in a switch’s

expansion slot.

Transceiver

Installation

5How to install an XFP transceiver in the

EM-422.

Transceiver

Removal

6How to remove an XFP transceiver

from the EM-422.

Troubleshooting 7 Some suggestions to solve problems you

might encounter.

Specifications 7 Information about your EM-422’s

specifications

Safety Warnings 8 Using the EM-422 safely.

Legal Information 9 Certifications, warranty and customer

support information.

EM-422 User’s Guide

1 Hardware Installation

Follow these steps to install the EM-422 in a switch.

"Modules are NOT hot swappable!

1Turn off your switch and unplug all power supply cords

(including any backup power supply cords) from the

switch.

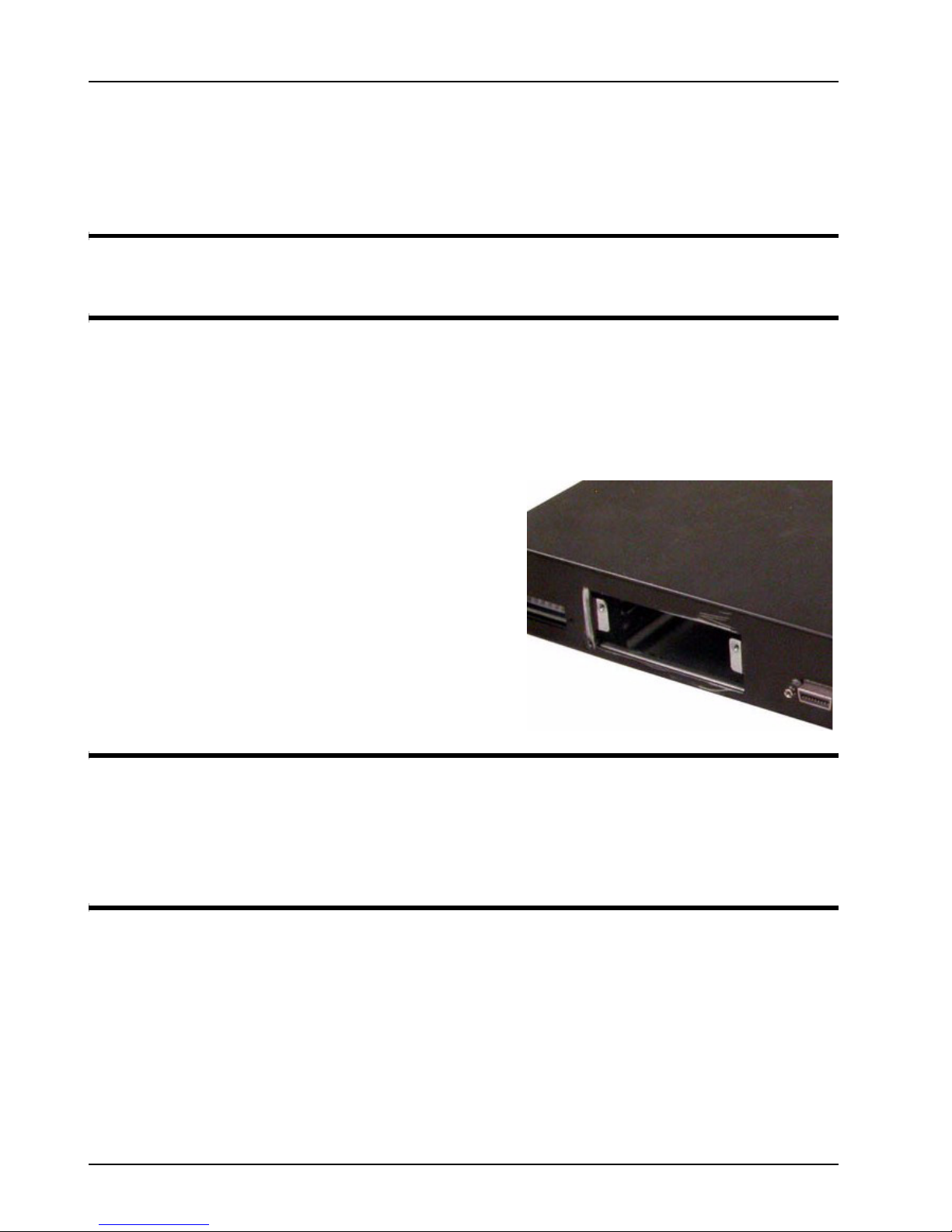

2Loosen the screws from the

cover plate and remove the

cover plate from an

expansion slot on the switch.

Do not discard the cover

plate. You can put the cover

plate back on if you remove

the new module.

"Before you continue, wear an anti-static wrist

strap or touch any grounded or metal objects to

discharge any bodily static electricity.

3Remove the EM-422 from its protective anti-static

packaging. Hold the EM-422 by its edge to avoid touching

the onboard circuit components.

EM-422 User’s Guide

4Insert the EM-422

into an available

expansion slot on the

switch. Press it firmly

until the EM-422

snaps into place.

"Never force, bend or twist the EM-422s into the

expansion slots.

5Secure it to the switch with

the retaining screws.

6Turn on the switch. The switch automatically detects the

installed EM-422. Connect any necessary network cables

to the EM-422 and check the LEDs to verify that it is

functioning properly.

EM-422 User’s Guide

2 Transceiver Installation

Use the following steps to install an XFP transceiver.

1Insert the transceiver into the slot with the exposed

section of PCB board facing down.

2Press the transceiver firmly until it clicks into place.

3The EM-422 automatically detects the installed

transceiver. Check the LEDs to verify that it is functioning

properly.

3 LEDs (Lights)

EM-422 User’s Guide

The following table describes the LEDs on the EM-422 panel.

4 Transceiver Removal

Use the following steps to remove an XFP transceiver.

1Open the transceiver’s latch (latch styles vary).

2Pull the transceiver out of the slot.

LED Color Status Description

LNK/

ACT

Blue On The port is connected to an Ethernet

device.

Blinking The port is transmitting or receiving data.

Off The port is not connected to an Ethernet

device.

EM-422 User’s Guide

5 Troubleshooting

VNone of the lights turn on after I install the EM-

422 and connect it to a network device.

• Make sure the EM-422 is properly installed in a switch.

• Make sure that you are using the XFP transceivers to con-

nect the EM-422 to other device(s).

• Make sure the power source is turned on.

• If the problem continues, contact your vendor.

6 Specifications

Specifications are accurate at the time of writing.

Feature Specification

Dimensions (mm) 80 (Wide) x 168 (Deep) x 28 (High)

Weight 175 g

Operating

Environment

Temperature: 0º C ~ 45º C

Humidity: 10% ~ 90% RH

Storage

Environment

Temperature: -10º C ~ 70º C

Humidity: 10% ~ 90% RH

Power Supply Use main board 3.3 V

10 Gigabit

Ethernet Interface

• Compliant with IEEE 802.3ae

• XFP transceiver fiber-optic uplink

EM-422 User’s Guide

7 Safety Warnings

1For your safety, be sure to read and

follow all warning notices and

instructions.

• Do NOT use this product near water, for example, in a wet basement or near a

swimming pool.

• Do NOT expose your device to dampness, dust or corrosive liquids.

• Do NOT store things on the device.

• Do NOT install, use, or service this device during a thunderstorm. There is a

remote risk of electric shock from lightning.

• Connect ONLY suitable accessories to the device.

• ONLY qualified service personnel should service or disassemble this device.

• Make sure to connect the cables to the correct ports.

• Place connecting cables carefully so that no one will step on them or stumble

over them.

• Always disconnect all cables from this device before servicing or disassem-

bling.

• Do not use the device outside, and make sure all the connections are indoors.

There is a remote risk of electric shock from lightning.

Switching • Maximum frame size: 1522 bytes including tag/

CRC

• Store and forward

Approvals FCC Part 15 of Class A & CE

Feature Specification

EM-422 User’s Guide

• This product is recyclable. Dispose of it properly.

8 Legal Information

Certifications

Federal Communications Commission (FCC) Interference

Statement

This device complies with Part 15 of FCC rules. Operation is subject to the

following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that

may cause undesired operations.

FCC Warning

This device has been tested and found to comply with the limits for a Class A

digital switch, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a commercial

environment. This device generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications. Operation of this

device in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

CE Mark Warning:

This is a class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

EM-422 User’s Guide

Taiwanese BSMI (Bureau of Standards, Metrology and Inspection)

A Warning:

Notices

Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du

Canada.

CLASS 1 LASER PRODUCT

APPAREIL A LASER DE CLASS 1

PRODUCT COMPLIES WITH 21 CFR 1040.10 AND 1040.11.

PRODUIT CONFORME SELON 21 CFR 1040.10 ET 1040.11.

Viewing Certifications

1Go to http://www.zyxel.com.

2Select your product on the ZyXEL home page to go to that product's page.

3Select the certification you wish to view from this page.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free

from any defects in materials or workmanship for a period of up to two years

from the date of purchase. During the warranty period, and upon proof of

purchase, should the product have indications of failure due to faulty

workmanship and/or materials, ZyXEL will, at its discretion, repair or replace

the defective products or components without charge for either parts or labor,

and to whatever extent it shall deem necessary to restore the product or

components to proper operating condition. Any replacement will consist of a

new or re-manufactured functionally equivalent product of equal or higher

value, and will be solely at the discretion of ZyXEL. This warranty shall not

apply if the product has been modified, misused, tampered with, damaged by

an act of God, or subjected to abnormal working conditions.
