ZKTeco ProBio User manual
ProBio Installation Guide 1
Safety Precautions
Before installation, please read the following safety precautions for user safety and to
prevent product damage.
Do not install the device in a place subject to direct sun light, humidity, dust or
soot.
Do not place a magnet near the product. Magnetic objects such as magnet,
CRT, TV, monitor or speaker may damage the device.
Do not place the device next to heating equipment.
Do not let liquid like water, drinks or chemical leak inside the device.
Do not let children touch the device without supervision.
`Do not drop or damage the device.
Do not disassemble, repair or alter the device.
Do not use the device for any purpose other than those specified.
Clean the device often to remove dust on it. While cleaning, do not splash
water on the device but wipe it out with smooth cloth or towel.
Contact your supplier in case of any problem!
ProBio Installation Guide 2

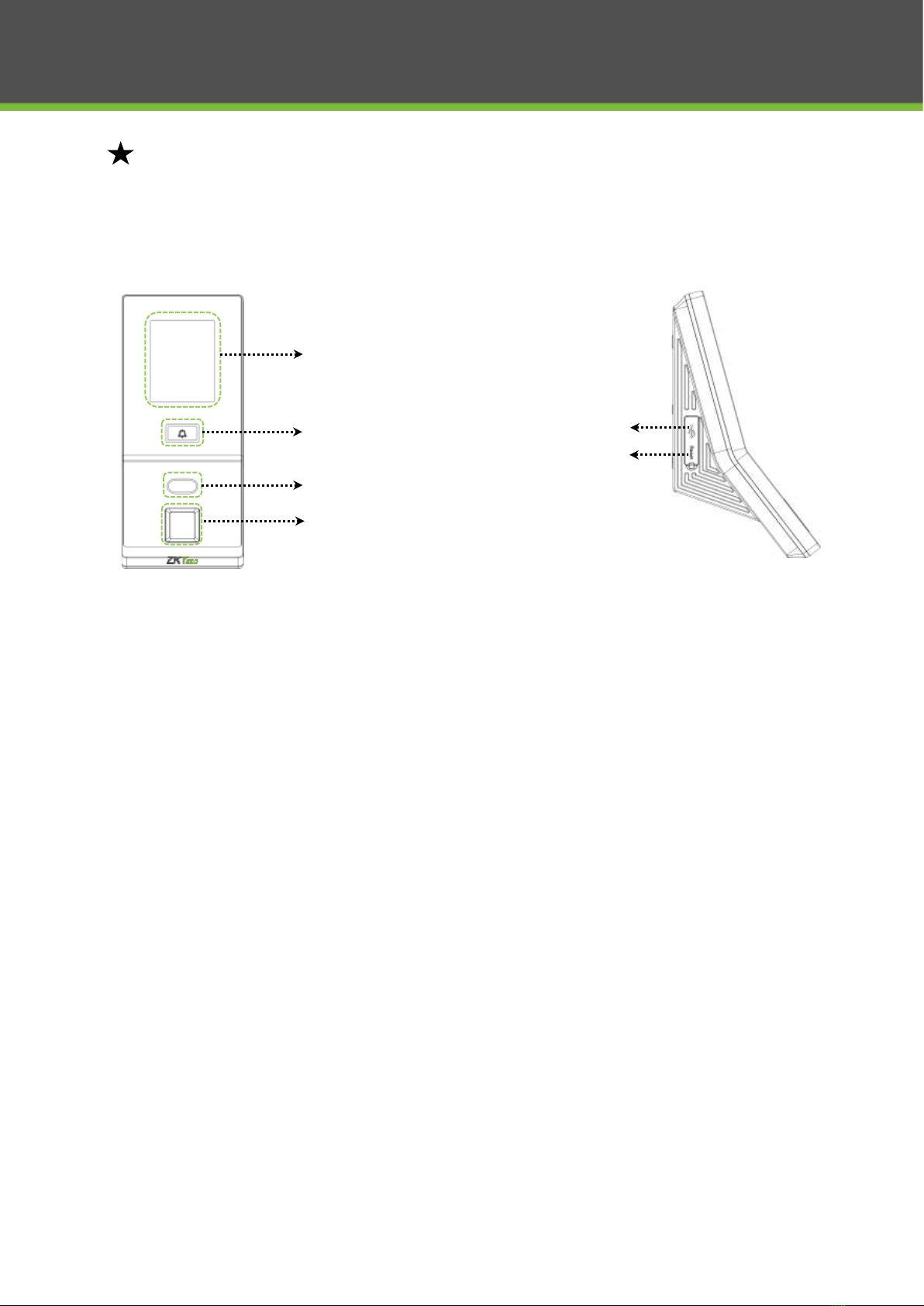

Device Overview
Not all products have a fingerprint or card function. The real product shall prevail.
ProBio
Front View Left Side View
USB Slot
Reset Button
Fingerprint Reader &
Card Reader Area
ProBio
Touch Screen
Door Bell
Camera
ProBio Installation Guide 3
Device Overview
Both ProBio devices have the same pin diagram which is provided below.
7 Pin Cable Connectors
8 Pin Cable Connectors
Tamper Alarm Button
2 Pin Cable Connectors
4 Pin Cable Connectors
12 Pin Cable Connectors
Power
Ethernet
Power Out
Wiegand In
LED
Beep
Wiegand Out
RS485
RS232
Auxiliary In
Bell
Sensor
Button
Lock
Alarm
ProBio Installation Guide 4

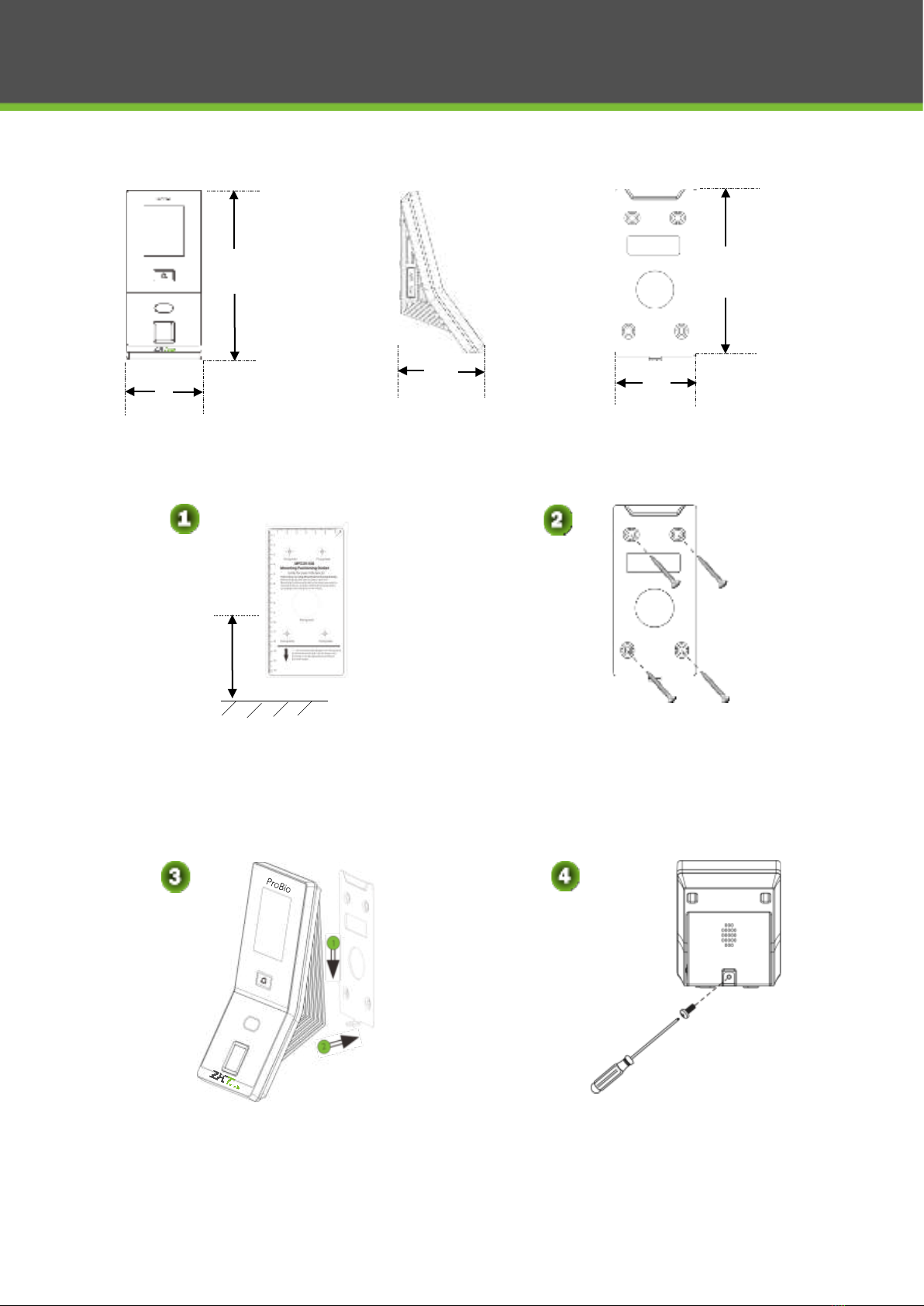

Product Dimensions & Installation
Product Dimensions
Mounting the Device on the Wall
7.51 in
(190.8 mm)
3.35 in
(85 mm)
5.08 in
(129 mm)
2.4 in
(61 mm)
4.05 in
(103 mm)
1.15m
Place the mounting template sticker onto
the wall, and drill holes according to the
mounting paper.
Fix the back plate onto the wall
using wall mounting screws.
Insert the device into back plate.
Use security screws to fasten
the device to back plate.
ProBio Installation Guide 5
Power Connection
Without UPS
With UPS (Optional)
Recommended Power Supply
GND
12V DC Adaptor
12V DC
UPS
GND
12V DC
12V±10%, at least 500mA (12V /3A is standard).
To share the power with other devices, use a power supply with higher current
ratings.
ProBio Installation Guide 6

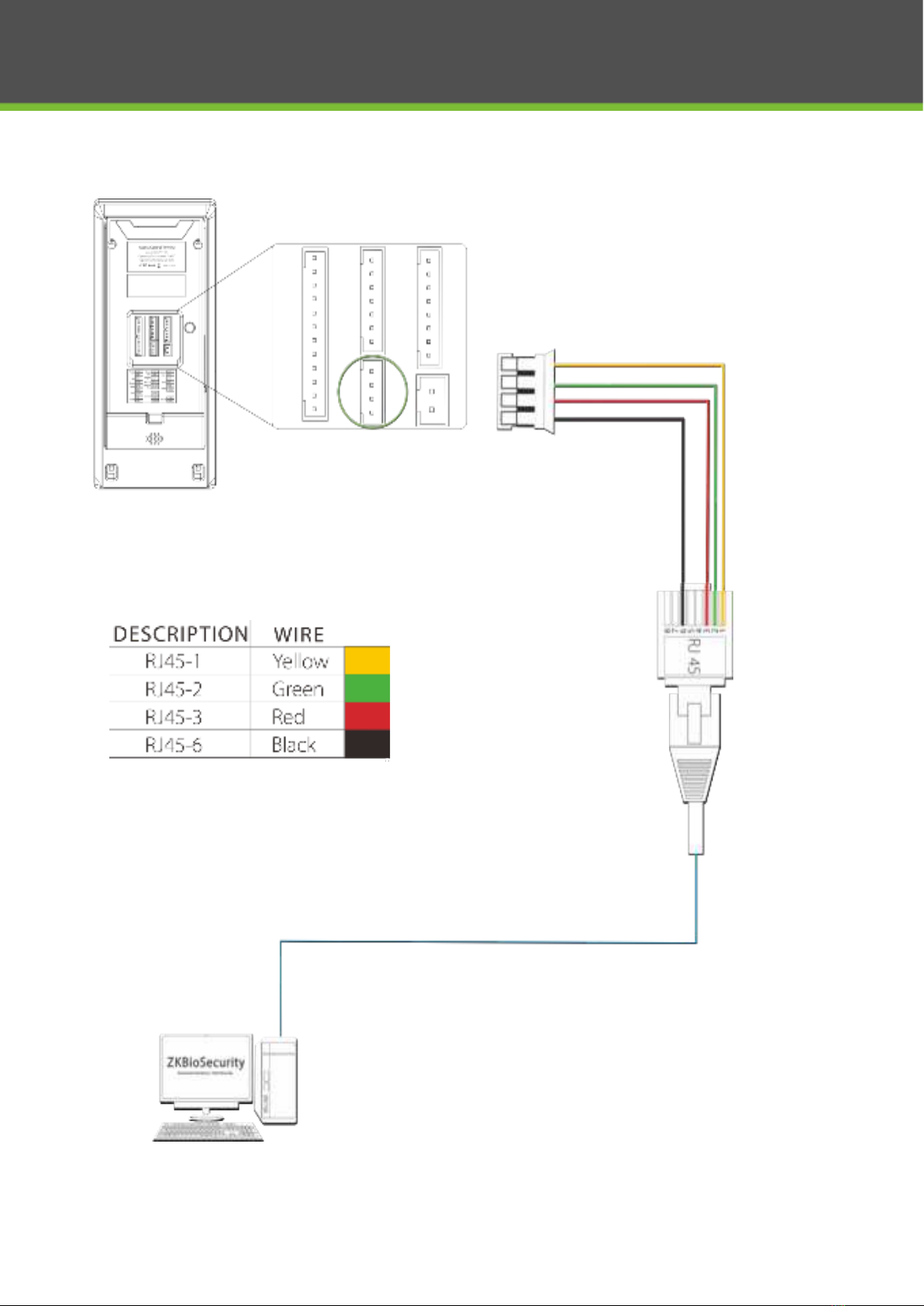

Ethernet Connection
LAN Connection
Note:
The device can be directly connected to PC by using Ethernet cable.
Ethernet Cable
Network Cable Adapter
ProBio Installation Guide 7
Direct Connection
Direct Connection
Ethernet Cable
Network Cable Adapter
ProBio Installation Guide 8

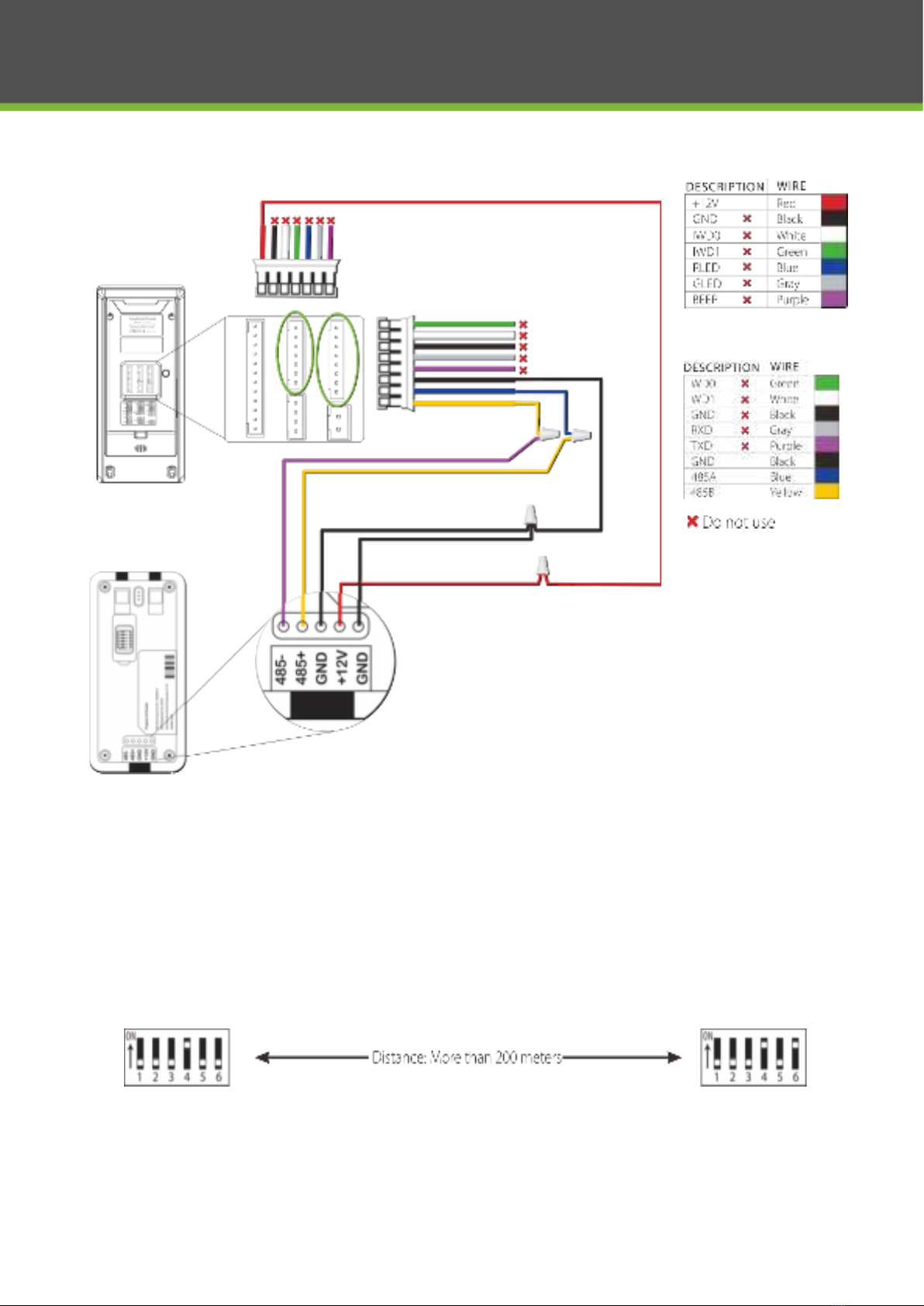

RS485 Connection
RS485 Fingerprint Reader Connection
DIP Settings
RS485 Fingerprint Reader
1.
There are six DIP switches on the back of RS485 fingerprint reader. Switches from 1-4 are
for RS485 address, switch 5 is reserved, and switch 6 is for reducing noise on long RS485
cable.
2. If RS485 fingerprint reader is powered from the terminal, the length of wire should be less
than 100 meters or 330 ft.
3. If the cable length is more than 200 meters or 600 ft., the number 6 switch should be ON
ProBio Installation Guide 9
Lock Relay Connection
Device Not Sharing Power with the Lock
Normally Closed Lock
Notes:
1. The system supports NO LOCK and NC LOCK. For example the NO LOCK (normally
opened at power ON) is connected with 'NO1' and 'COM1' terminals, and the NC
LOCK (normally closed at power ON) is connected with 'NC1'and 'COM1' terminals.
2. When electrical lock is connected to the Access Control System, you must parallel
one FR107 diode (equipped in the package) to prevent the self-inductance EMF
from affecting the system.
Do not reverse the polarities.
COM
12V
GND
12V DC Adaptor
Sensor
GND
NC1
FR107 Diode
GND
