Zip HydroTap G4 User manual
805846US v1.04 06.21 HydroTap G4 User Guide Page 1 of 32
Date of Installation:.............../.............../..............
Faucet operation ...........................................3
Touch-Free Wave................................................... 4
Classic Faucet.........................................................6
Celsius AIO, Arc, Cube ............................................8
Celsius AIO Mixer ................................................. 10
Touch Screen ................................................11
A Set language, units of measure.........................13
B System information .........................................13
C Install ............................................................. 14
D Service............................................................ 18
E Security .......................................................... 18
F Communication - WiFi (selected models) ........ 18
G Settings .......................................................... 19
Maintenance .............................................. 24
Cleaning...............................................................24
Water Filter ..........................................................24
Air inlet filter .......................................................26
Gas bottle change (sparkling models) .................. 27
Home menu icons ........................................29
HydroTap®G4
User guide
Scan QR Code
to download the
latest version of
this document.
English French
PRODUCT LABEL
Page 2 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
Thank you for purchasing a Zip HydroTap!
Enjoy instant filtered boiling, chilled and/or sparkling water from
the Zip HydroTap. The HydroTap Command Center, installed
under the bench, has a color touchscreen display, energy saving
mode and internal water filter.
This user manual has been written according to firmware version
023-B03.0.00.
For the latest user manual, please check us.zipwater.com
HydroTap Command Centers
Boiling/Chilled
Boiling/Chilled/Sparkling
Chilled/Sparkling
805846US v1.04 06.21 HydroTap G4 User Guide Page 3 of 32
Touch-Free Wave
page 4
Celsius All-in-One,
Arc & Cube
page 8
Faucet operation
Classic Faucet
page 6
Page 4 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
Touch-Free Wave
Boiling water
BC, BCS models
Touch-Free sensor control
Controls
Rear sensor: boiling
lock (boiling models)
Side sensor
(water type varies
with model)
Side sensor
(water type varies
with model)
Top sensor
(sparkling models)
Chilled/Ambient water
BC, BCS, CS models
Sparkling water
BCS, CS models
!
WARNING!
BOILING WATER
+
Indicator LED
Sensor range:
1 - 5cm
(½” - 2“)
Chilled Ambient
Side + Rear sensor: bottle fill
Sparkling
Top + Rear sensor: bottle fill
805846US v1.04 06.21 HydroTap G4 User Guide Page 5 of 32

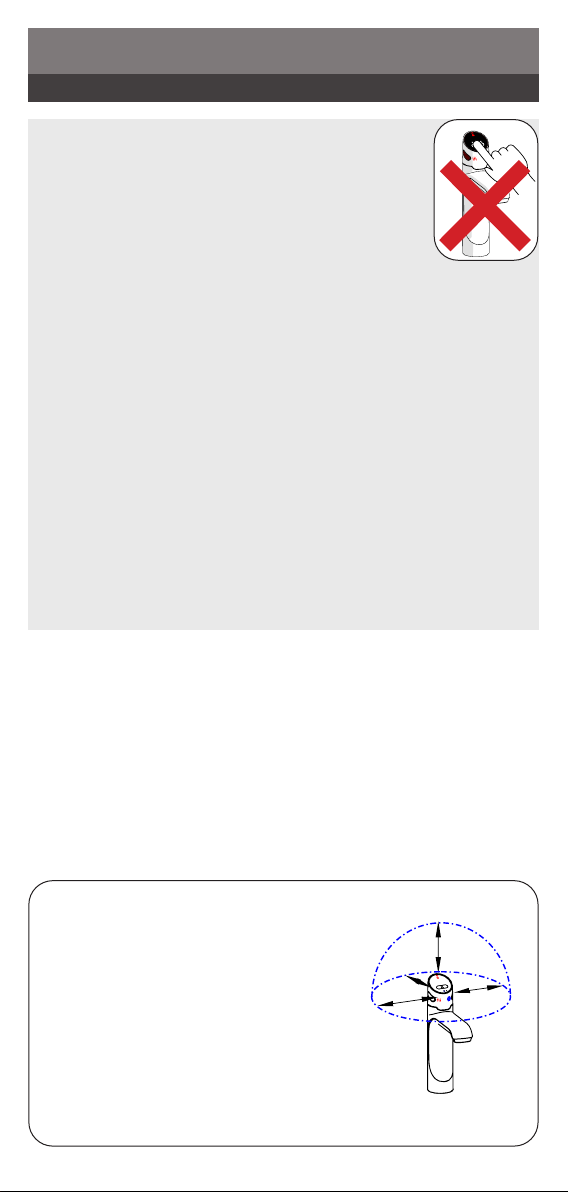

NOTE:
Ensure 100mm (4”) clearance around
the faucet sensors.
The Touch-Free Wave faucet will not
operate in temperatures below 10°C
(50°F).
Do not use abrasives to clean the
sensor lenses! This could cause
permanent malfunction and void
warranty.
Touch-Free Wave
Lights
To dispense, hold your hand within 1 to 5cm
(½” - 2”) of the sensors. The faucet will not
operate if the sensors are touched.
Indicator LED
RED: Boiling and safety sensors activated,
water dispensed.
BLUE: Chilled sensor activated, water dispensed.
WHITE: Sparkling sensor activated, water dispensed.
PURPLE: Lock mode on (when faucet is idle).
Flashing RED: Sensor activated incorrectly; your hand
may be too close to sensor, sensor has been touched or
covered.
Flashing alternately WHITE/BLUE/RED: Service or
maintenance required. Refer to the Command Center
LCD screen.
WHITE flashing rapidly: Sensors calibrating when power
is first applied. Allow 10 seconds.
Page 6 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
Boiling water
BC, BCS models
Press/Pull RED lever
+
Touch SAFETY
(if SAFETY ON - RECOMMENDED)
Chilled water
BC, BCS, CS models
Press/Pull BLUE lever
Sparkling water
BCS, CS models
Press/Pull BOTH levers
Classic Faucet
Controls
Press/Pull controls
Press to dispense
(auto return)
Pull for timed dispense
(manual return)
805846US v1.04 06.21 HydroTap G4 User Guide Page 7 of 32
Classic Faucet
Lights
Red lights on: Boiling water at set temperature
Flashing slowly: Boiling water below set temp
Flashing quickly: System fault - refer to LCD screen
Blue lights on: Chilled water at set temperature
Flashing slowly: Chilled water above set temp
Flashing quickly: System fault - refer to LCD screen
All lights flashing: System fault - refer to LCD screen
Filter light off: Filter within lifespan
Flashing: Filter change due (see page 24)
Safety lock sensor RED: Safety lock active
OFF: Safety lock is not active
At installation, recalibrate light sensor: Do not cover
safety lock sensor.
• In normal operating mode and safety enabled, turn the
power OFF.
• Pull both faucet levers to the forward position.
• Turn ON the power. The HydroTap will calibrate the
safety switch. Return the levers to the neutral position.
• To check calibration, dispense boiling water in normal
light conditions, with the safety enabled.
Page 8 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
Celsius AIO, Arc, Cube
Controls
Boiling water (BC, BCS)
Touch SELECT until RED.
Touch SAFETY 2x.
While lights flash RED, rotate
the control back or forward to
dispense.
Rotating control
Rotate back to dispense
(auto return)
Rotate forward for
timed dispense
(manual return)
Touch for water type:
BLUE chilled (default)
WHITE sparkling
RED boiling
SELECT
SAFETY
SAFETY
SELECT
x2
RED
Sparkling water (BCS, CS)
Touch SELECT until WHITE.
With WHITE light on, rotate control
back or forward to dispense.
SELECT
WHITE
Chilled water (BC, BCS, CS)
Touch SELECT until BLUE.
With BLUE light on, rotate control
back or forward to dispense.
SELECT
BLUE
805846US v1.04 06.21 HydroTap G4 User Guide Page 9 of 32
Celsius AIO,Arc, Cube
Lights
SAFETY light
RED: Safety lock on.
All three lights flashing, once every 10 seconds: Filter
change due
(see page 24)
SAFETY
SELECT light
BLUE (default): Chilled water at set temperature, ready to
dispense
- Flashing slowly: Chilled water above set temp
- Flashing quickly: System fault - refer to LCD screen
RED: Boiling water at set temperature
- Flashing slowly: Boiling water below set temp
- Flashing quickly, 2 secs: Ready to dispense boiling water
WHITE: Ready to dispense sparkling water
SELECT
Indicator light
ON (RED or BLUE): Water at set temperature
Page 10 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
To increase the flow rate, move the handle away from
the faucet. To decrease the flow rate, return the handle
towards the faucet.
To decrease temperature, move the handle towards the
BLUE mark. To increase temperature, move the handle
towards the RED mark. Final temperature will depend on
the temperature of the incoming cold water.
Celsius AIO Mixer
Controls
