Zerowatt XQB55-526 User manual

ZEROWATT

MODEL: XQB55-526

Service Manual

CONTENTS

1.PARTS & FEATURES

2.IMPORTANT SAFETY INSTRUCTIONS

3 .INSTALLATION INSTRUCTIONS

4.CONTROL PROGRAM

5.CIRCUIT DIAGRAM

6. HOW TO DISASSEMBLE THE UNIT

7. TROUBLESHOOTING

8.EXPLOSION VIEWS & PARTS LISTS

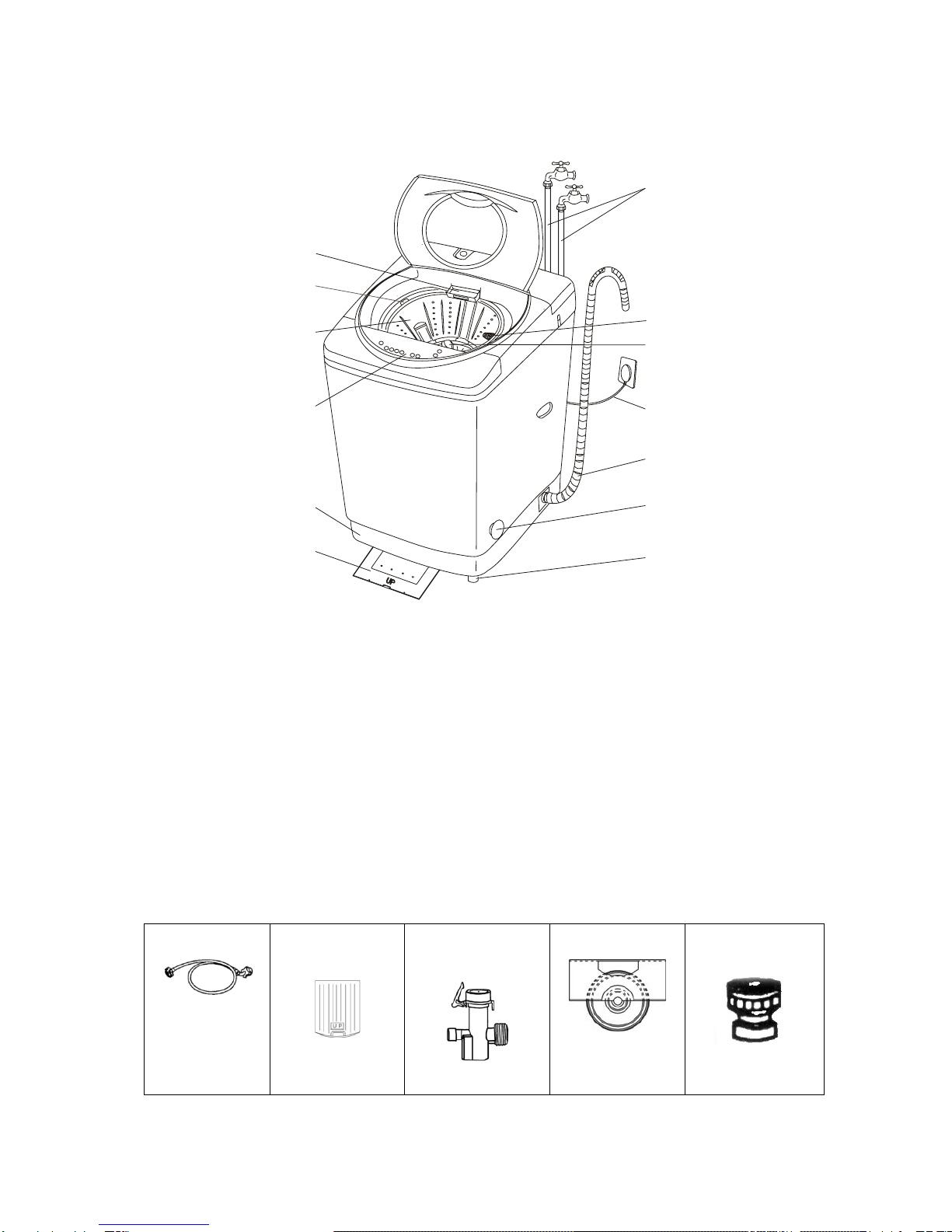

1.PARTS & FEATURES

ACCESSORIES

INLET HOSE

2 PIECES

NOISE PROOF

PLATE

1 PIECE

WATER INLET

QUICK CONNECT

ASSEMBLY

1 PIECES

CASTER

4 PIECES

CONNECTOR FOR

FAUCET

1 PIECES

1. DETERGENT CASE

2. SOFTENER DISPENSER

3. INNER TUB

4. CONTROL PANEL

5. BASE

6. NOISE PROOF PLATE

7. INLET HOSE (2 PCS)

8. LINT FILTER

9. PULSATOR

10. POWER SUPPLY CORD

11. DRAIN HOSE (1 PC)

12. LEVELADJUSTABLE KNOB

13. ADJUSTABLE FOOT

2.IMPORTANT SAFETY INSTRUCTIONS

aWARNINGa

To reduce the risk of fire, electrical shock, or injury

when using your portable washer, follow these basic

precautions:

•Read all instructions before using the portable washer.

•Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors

that could ignite or explode.

•Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash

water. These substances give off vapours that could ignite or explode.

•Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used

for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used

for such a period, before using a washing machine, turn on all hot-water faucets and let water flow

from each for several minutes. This will release any accumulated hydrogen gas. As the gas is

flammable, do not smoke or use an open flame during this time.

•DANGER or WARNING: Risk of child entrapment.

Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances

are still dangerous . . . even if they will “just sit in the garage a few days.”

•Before you throw away your old portable washer: Take off the lid.

•Never allow children to operate, play with, or crawl inside the portable washer. Close supervision of

children is necessary when the washer is used near children.

•Do not reach into the washer if the agitator or inner tub is moving.

•Do not tamper with controls.

•Do not repair or replace any part of the washer or attempt any servicing unless specifically

recommended in the user-maintenance instructions or in published user-repair instructions.

•Never clean portable washer parts with flammable fluids. The fumes can create a fire hazard or

explosion.

•Do not place the washer in steamy rooms or where the washer is directly exposed to rain. Moisture may

destroy the electrical insulation causing an electrical shock hazard.

•Do not store, use gasoline, or any other flammable vapors and liquids in the vicinity of this or any other

portable washer. The fumes can create a fire hazard or explosion.

•If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

-Save these instructions-

3.INSTALLATION INSTRUCTIONS

¾BEFORE USING YOUR PORTABLE WASHER

•Remove the exterior and interior packing.

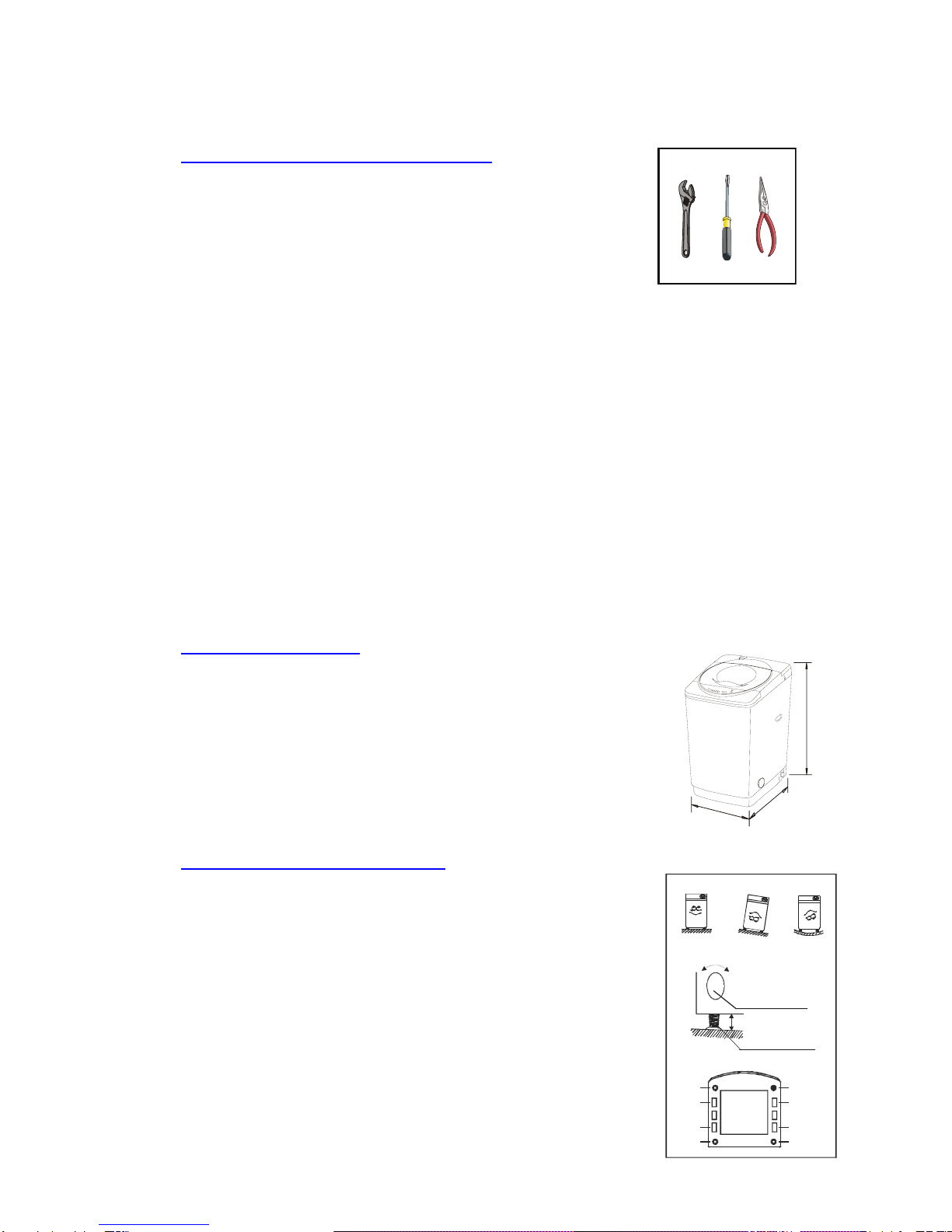

•You will need the following tools:

•Wrench

•Pliers

•Screwdriver

•Checktobesureyouhaveallofthefollowingparts:

2 Inlet Hoses

•1 Water Inlet Quick ConnectAssembly

•1 Connector For Faucet

•1 Noise Proof Plate With Screws

•4 Casters

•Remove shipping brace. Note - It should be saved and used (to prevent damage to washer

components) whenever washer is moved or transported to a new location.

•Clean the interior surface with lukewarm water using a soft cloth.

•Allow 2 inches of space between the back and sides of the appliance.

•Put your laundry into the washer evenly. Uneven laundry may cause noise or vibration.

•Don’t use excessively hot water (50°C or more). Plastic parts may be deformed or damaged.

Also, clothing may be deformed or bleached.

•Before washing, check all pockets. If nails or pins remain in pockets, they may damage the

washer or clothes.

•Never splash water on the control panel.

•Plug the washer into an exclusive properly installed-grounded wall outlet. Do not under any

circumstances cut or remove the third (ground) prong from the power cord. Any questions

concerning power and/or grounding should be directed toward a certified electrician or an

authorized Avanti Products service center.

¾SELECTING A LOCATION

Before you install the portable washer, select a location with the following

characteristics:

•A hard level surface (if the surface is uneven, see Adjusting TheAdjustable

Foot).

•Away from direct sunlight. Direct sunlight may affect the acrylic coating,

plastic and electrical components.

•Adequate ventilation.

•Away from sources of heat such as coal or gas. Make sure that the washing

machine does not stand on its power cord. Ventilation openings must not be

obstructed by carpeting when the portable washer is installed on a carpeted

floor.

¾ADJUSTING THE ADJUSTABLE FOOT

If the floor is uneven adjust the adjustable foot (do not insert pieces of wood, or

any other objects under the feet).

Loosen the adjustable foot by turning the level adjustable knob with your hand

until it is at the desired height.

Tighten the adjustable foot by turning the level adjustable knob in the reverse

direction.

Place the washer on a sturdy flat surface.

If the washer is placed on an uneven or weak surface, noise or vibration occurs

(Allowable is 1°).

For portable applications, the washing machine comes equipped with four

north/south casters that can easily be installed to assist in the movement of the

machine to and from the sink. Lay the unit on its back. Install the casters into

the bottom of the base as indicated.

WRENCH PLIERS

SCREWDRIVER

LOOSEN TIGHTEN

LEVEL

ADJUSTABLEKNOB

CORRECT INCORRECT INCORRECT

Fixed foot

Caster

Fixed foot

djustable foot

Caster

Fixed foot

ADJUSTABLEFOOT

939mm

544mm

538mm

Return the machine to the upright position. When the machine is positioned for operation set the height of

the adjustment foot slightly higher than the front caster to prevent movement of the machine during wash

and spin operation.

NOTE: Not all movement will be totally eliminated, this is normal.

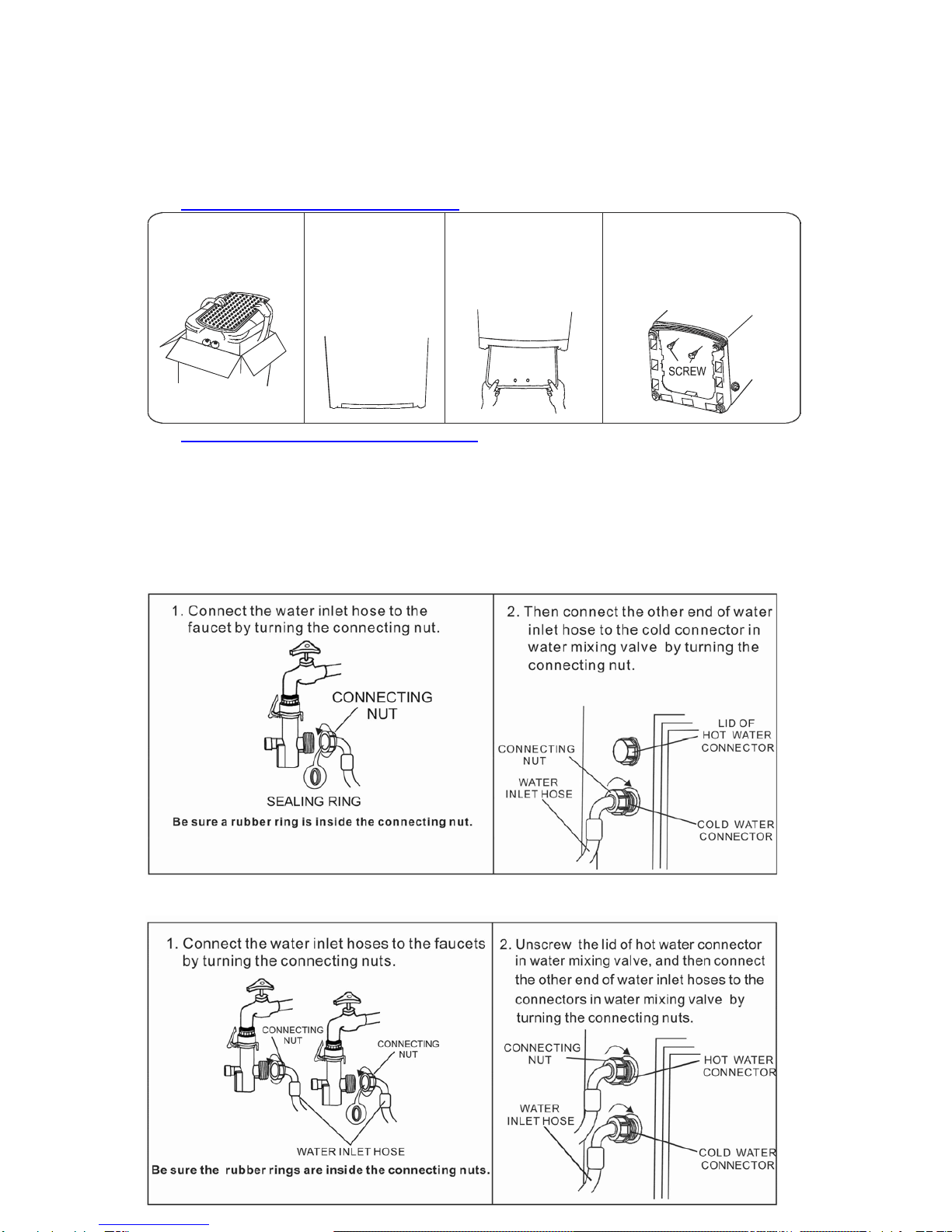

¾INSTALLING THE NOISE PROOF PLATE

Take the noise proof

plate out of the

package .

The opening of the

noise proof plate is

at the bottom of

the machine.

Insert the noise proof

plate into the washing

machine base.

Lay downthe machine

and secure the noise proof

plate by fastening the two

set screws.

¾CONNECTING THE WATER SUPPLY HOSE

The water supply hose must be connected to the washing machine at one end and to the water faucet

at the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to

move the water faucet, replace the hose with a longer, high-pressure hose.

Select appropriate faucet as shown in the figures below. If none of these faucets are available, use the

faucet adapter provided.

The end of faucet spout should be longer than 10mm (0.4”), or the connector cannot be fixed properly.

Water leakage could develop.

If you have both cold and hot water supplied, connect the inlet hoses by matching cold to cold and

hot to hot.

¾DISCONNECTING THE INLET HOSE

Dismantling the hose directly may cause water to splash due to the possible high water pressure in the

hose, even after the faucet has been turned off. Please take off the hose as per following steps, even if

the faucet is closed:

•Turn off the faucet.

•Turn on the power and let the machine run for about 5 seconds then turn it off.

•Remove the connecting nuts from the faucet and washing machine.

Note: If the washing machine is frequently used, it is not necessary to dismantle the inlet hose to

avoid possible damage to the screws.

¾POSITIONING THE DRAIN HOSE

Connect the drain hose to the water outlet of the washing machine then fasten it

with a pinchcork. Since only up drainage is available, drain hose can be hung in

the basin or bathtub.

NOTE: The highest point of the drain hose must be in the height of 0.7-1.2m

above floor level, otherwise, the washer cannot work normally.

¾ELECTRICAL CONNECTION

This portable washer should be properly grounded for your safety. The power cord of this portable

washer is equipped with a three-prong plug which mates with standard three prong wall outlets to

minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong

from the power cord supplied.

This portable washer requires a standard 110-120 Volts~A.C./60Hz

electrical outlet with three-prong ground.

The cord should be secured behind the portable washer and not left

exposed or dangling to prevent accidental injury.

Never unplug the portable washer by pulling the power cord. Always

grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is

too short, have a qualified electrician or service technician install an

outlet near the appliance.

0.7-1.2m

aWarninga

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is

damaged, have it replaced by an authorized Avanti Products service center.

STANDARD 120

VOLTS, 60 HERTZ,

3-WIRESOCKET

GROUND

120 12

V. A . C.

.A.C.

115 12

V. A . C.

L1 NEUTRAL

SIDE

ROUND

GROUNDING

PRONG

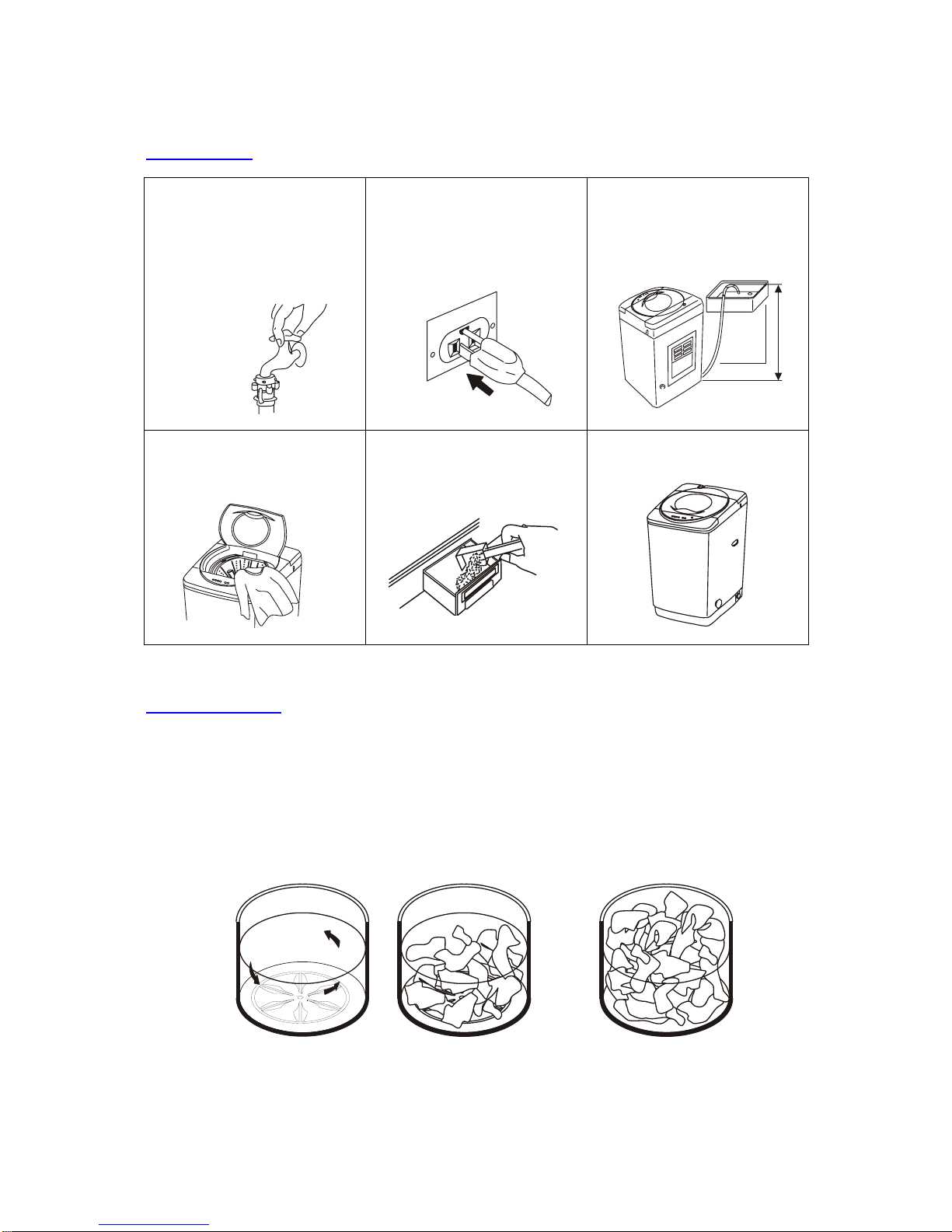

OPERATING YOUR PORTABLE WASHER

PREPARATION

1. Connect the water inlet hose

to the water faucet. Don’t

switch on the power if the

water pressure is lower than

0.05MPa and higher than

0.5MPa.

2. Open the water faucet.

3. Insert the plug into the

socket. For safety the plug

should have ground

connection.

4. Insert the end of drain hose

into the hook shelf, and hang

the drain hose over a drain

outlet.

5. Put the wash load into the tub

evenly.

6. Add the suitable quantity

detergent into the detergent

case.

7. Close the lid. Otherwise the

washer will not operate.

)

BEFORE WASHING

Prepare the wash load. Mix large and small articles in a load to get the best washing results.

Drop articles loosely into the inner tub. Do not pack articles in or wrap them. Articles should move freely

through the wash water for best cleaning results. Articles should rollover, sink and then reappear.

When washing very large articles, do not fill inner tub as full as with other loads. The water level in your

washer should fit the size of your wash load. Small load will use lower water levels. There must be

enough water in the inner tub to allow articles to move and turn over freely. Overloading the inner tub can

result in poor washing and rinsing. Overloading may also cause wrinkling and tearing of articles.

WATER LEVEL

WATER

LEVEL

Right Wrong

0.7m 1.2m

OPERATION INSTRUCTIONS

PRESS DOWN POWER BUTTON.

PRESS DOWN WATER LEVEL BUTTON.

Choose appropriate water level according to wash load quantity.

WATER TEMPERATURE CHOICE.

Press down the water temperature selection button, you can choose to inlet cold water or hot water. When

the cold-water indicator and the hot-water indicator turn on simultaneously, which means you chose the

warm water.

NOTE: The washer will provide a cold rinse in all TEMPERATURE settings.

IMPORTANT: A single cold hose system does not allow the washing machine to automatically (select)

regulate incoming water temperatures to match those listed on the control panel such as WARM or HOT.

PRESS DOWN WASH TIME SELECTION BUTTON.

Press down wash time selection button to select the wash time. You can also press the button to select soak.

NOTE: When all indicators are OFF, the wash cycle is finished.

PRESS DOWN RINSE TIMES SELECT BUTTON.

Press this button to select the times of rinse. When SPRAY RINSE is selected, the washing machine

will spray water to rinse firstly during rinse course.

NOTE: When all indicators are OFF, the rinse cycle is finished.

PRESS DOWN SPIN TIME SELECT BUTTON.

Press this button to select the time of spin.

NOTE: When all indicators are OFF, the spin cycle is finished.

IMPORTANT NOTE: You can select different WASH, RINSE and SPIN combinations according to

your needs.

PRESS DOWN PRESET BUTTON.

Press this button for delay start setting and children-proof setting.

PRESS DOWN FUNCTIONS SELECTION BUTTON.

Choose the desired function and then the corresponding indicator blink.

PRESS DOWN START/HOLD BUTTON ONCE AND THE MACHINE WILL BEGIN OPERATION.

Please press this button to stop the normal operation, if it continues to work, press it again.

Water level can be reset during the normal operation. If the higher water level is selected, the machine will

operate after refilling the water level selected.

AUTOMATIC WASH PROGRAMS

NORMAL – For normal laundry

•Press down the power button.

•The NORMAL indicator will be ON. (NORMAL is the default program)

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting. (The default water level is

HIGH)

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

SOAK – For dirty laundry

•Press down the power button.

•Press the functions button to select the SOAK function until the SOAK indicator is ON.

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting.

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

SPEEDY – For light dirty laundry

•Press down the power button.

•Press the functions button to select the SPEEDY function until the SPEEDY indicator is ON.

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting. Press the START/HOLD

to start the course. And the LED display will show the remaining time of the entire course.

JEANS – For massive laundry

•Press down the power button.

•Press the functions button to select the JEANS function until the JEANS indicator is ON.

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting.

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

GENTLE – For elaborate laundry

•Press down the power button.

•Press the functions button to select the GENTLE function until the GENTLE indicator is ON.

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting.

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

BLANKET – For big laundry

•Press down the power button.

•Press the functions button to select the BLANKET function until the BLANKET indicator is ON.

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting.

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

DELICATES – For small laundry

•Press down the power button.

•Press the functions button to select the DELICATES function until the DELICATES indicator is ON.

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting. (The default water level is

LOW-LEV2)

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

EXTRA RINSE – For children laundry

•Press down the power button.

•Press the functions button to select the EXTRA RINSE function until the EXTRA RINSE indicator is

ON.

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting.

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

MANUAL FUNCTIONS

WASH ONLY

•Press down the power button.

•Press the functions button to select the appropriate program.

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting.

•Press the wash button to select the wash time.

•Press the rinse button until all rinse indicators are OFF.

•Press the spin button until all spin indicators are OFF.

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

WASH AND RINSE

•Press down the power button.

•Press the functions button to select the appropriate program.

•Press the water supply button to select the water temperature.

•Press the water level button to select the appropriate water level setting.

•Press the wash button to select the wash time.

•Press the rinse button to select the rinse times.

•Press the spin button until all spin indicators are OFF.

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

RINSE AND SPIN

•Press down the power button.

•Press the water level button to select the appropriate water level setting.

•Press the wash button until all wash indicators are OFF.

•Press the rinse button to select the rinse times.

•Press the spin button to select the spin time.

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

SPIN ONLY

•Press down the power button.

•Press the wash button until all wash indicators are OFF.

•Press the rinse button until all rinse indicators are OFF.

•Press the spin button to select the spin time.

•Press the START/HOLD to start the course. And the LED display will show the remaining time of

the entire course.

FUNCTIONS

Each wash set is programmed in the computer; see the details in the wash program chart.

FUNCTION SOAK WASH RINSE SPIN TOTAL

TIME

(Approx.)

NORMAL 12 Min. 2 Cycles 5 Min. 46 Min.

SOAK 20

Min. 12 Min. 2 Cycles 5 Min. 66 Min.

SPEEDY 6 Min. 1 Cycle 3 Min. 27 Min.

JEANS 12 Min. 2 Cycles 5 Min. 46 Min.

GENTLE 12 Min. 2 Cycles 3 Min. 44 Min.

BLANKET 12 Min. 2 Cycles 5 Min. 46 Min.

DELICATES 6 Min. 2 Cycles 3 Min. 38 Min.

EXTR

RINSE 12 Min. 3Cycles 5 Min. 57 Min.

Table of contents

Other Zerowatt Washer manuals

Zerowatt

Zerowatt OZ 1D User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
