INSTALLING THE DUCTWORK:
INTERNAL BLOWER
NOTE: To reduce the risk of fire, use only
metal ductwork.
1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run using a minimum
6” round duct will allow the hood to perform
most efficiently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use
as few of them as possible.

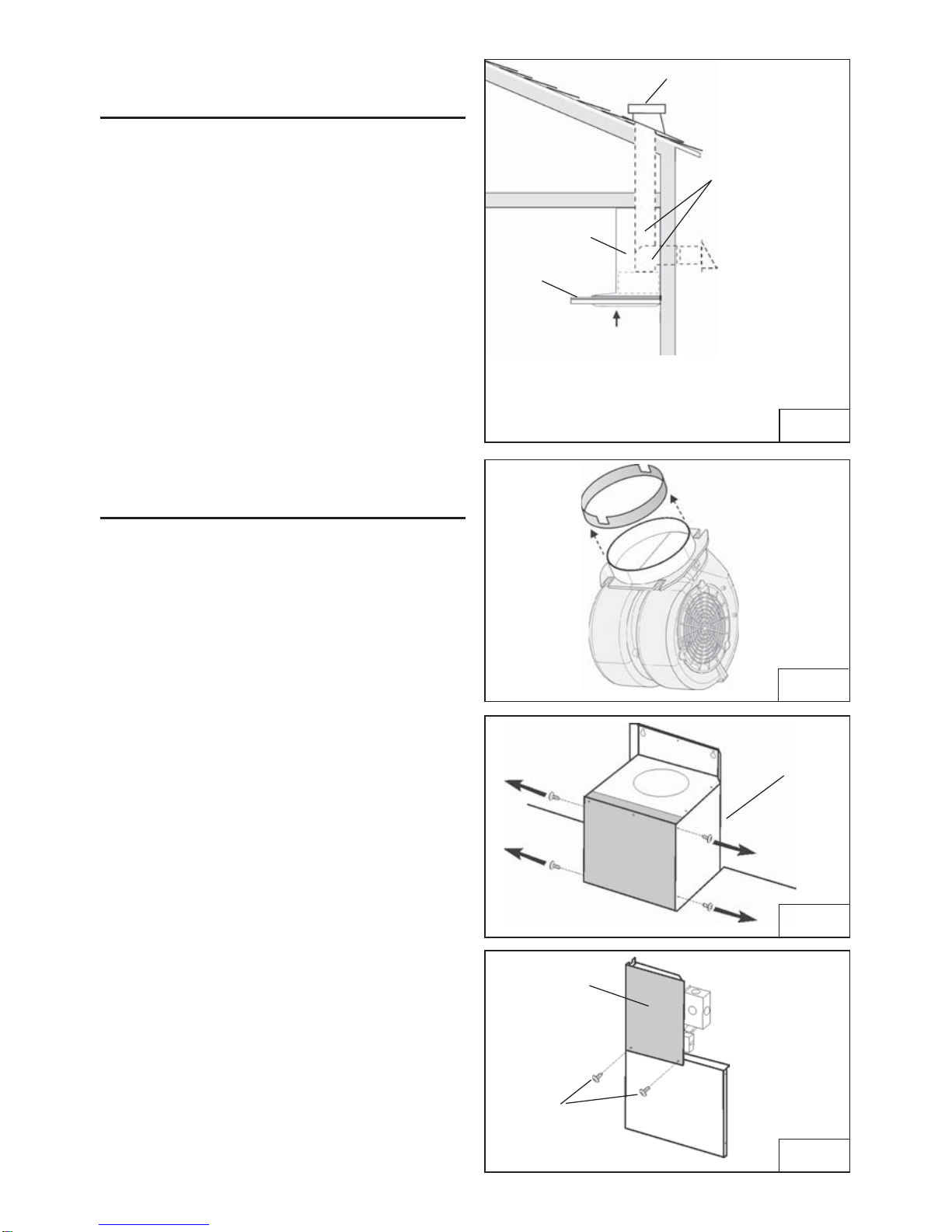

4. Install a roof or wall cap. Connect round
metal ductwork to cap and work back
towardshoodlocation.Useducttapetoseal
the joints between ductwork sections
(Fig.7). FIG. 7
ROOF CAP
DUCT COVER
HOOD
24” MINIMUM
ABOVE COOKING
SURFACE
WALL
CAP
6” ROUND DUCT
INSTALLING THE INTERNAL
BLOWER
NOTE: The following instructions are for
installingtheinternalblower only.
Installthisrangehoodonlywithinternalblower
model CBI-290A or CBI-600A.

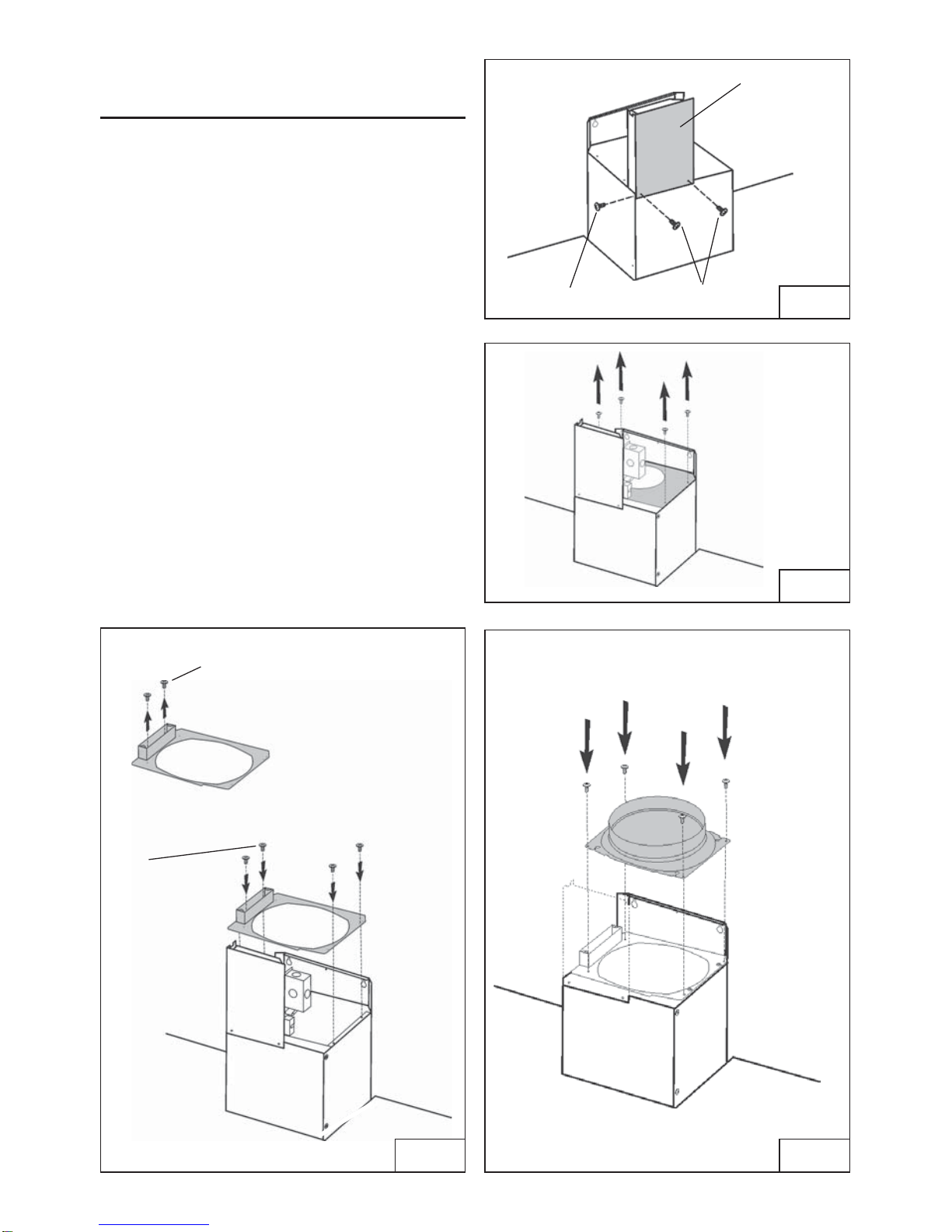

1. Remove the electrical system box from
chimney frame by removing duct tape.
2. Remove the 6” metallic flange provided on
the blower’s air outlet (the flange may
already be pre-installed) (Fig.8).
3. Remove the front plate from the metal
blower housing by unscrewing (4) 3.9x9.5
mm screws (Fig.9).
4. Attach electrical system box to front plate
using (2) 3.9 x 9.5 mm screws from
FIG. 8
FIG. 9
FIG. 10
(2) MOUNTING
SCREWS
3.9 x 9.5 mm
ELECTRICAL
SYSTEM BOX
METAL
BLOWER
HOUSING
- 16 -
FIG. 11
FIG. 13
FIG. 12
(4) MOUNTING SCREWS
(Supplied with the motor)
(4) MOUNTING SCREWS
(3.9 x 6 mm Flat Head)
hardware bag (Fig.10).

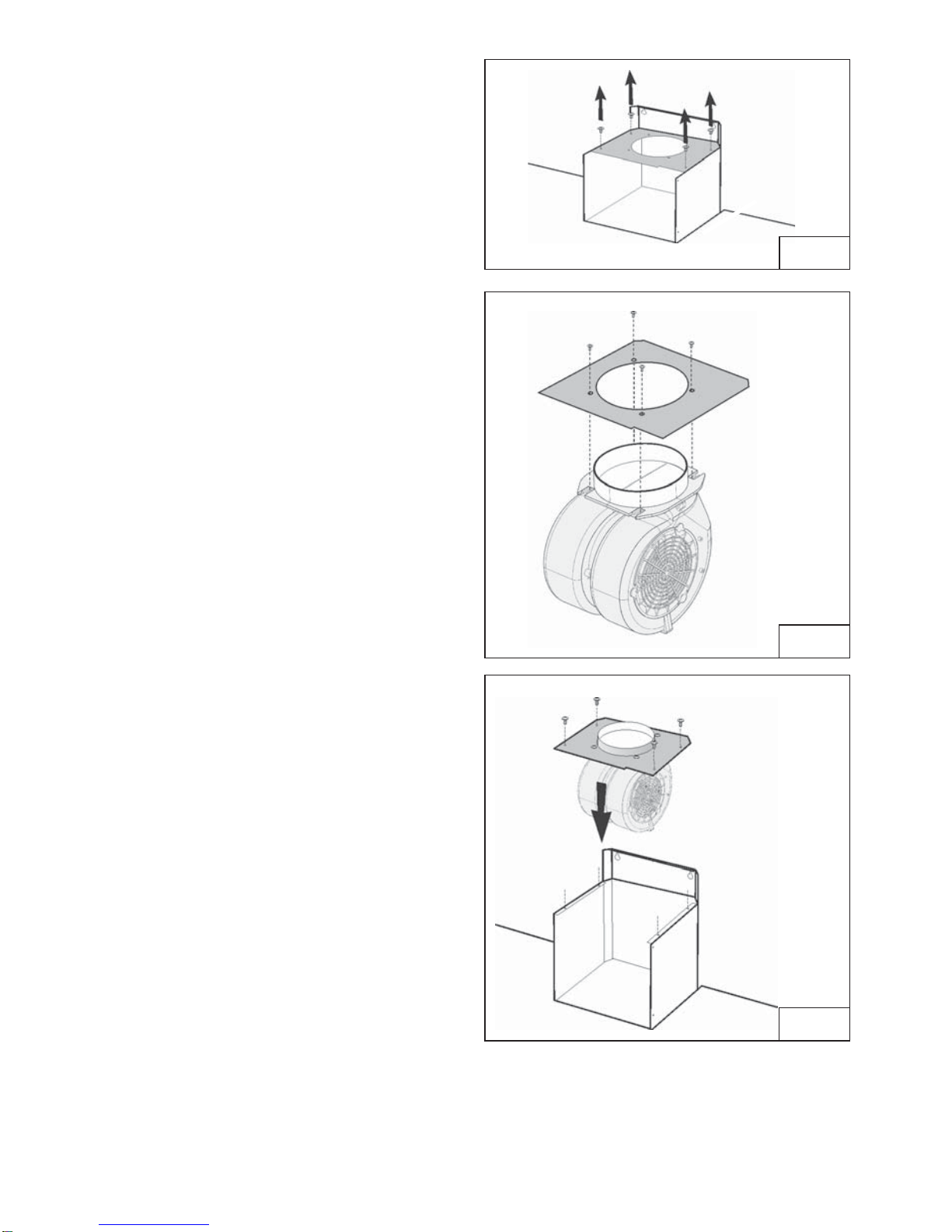

5. Remove the blower plate unscrewing the
(4) 3.9x9.5 mm screws (Fig.11).
6. Install internal blower into blower plate and
secure using (4) screws (supplied with the
internal blower) - See Fig.12.
7. Install blower using (4) 3,9 x 6mm mounting
screws (Fig.13).
- 17 -
FIG.14
INTERNAL BLOWER WIRING
Note: This range hood must be properly grounded. The unit should be installed by a
qualified electrician in accordance with all applicable national and local electrical codes.

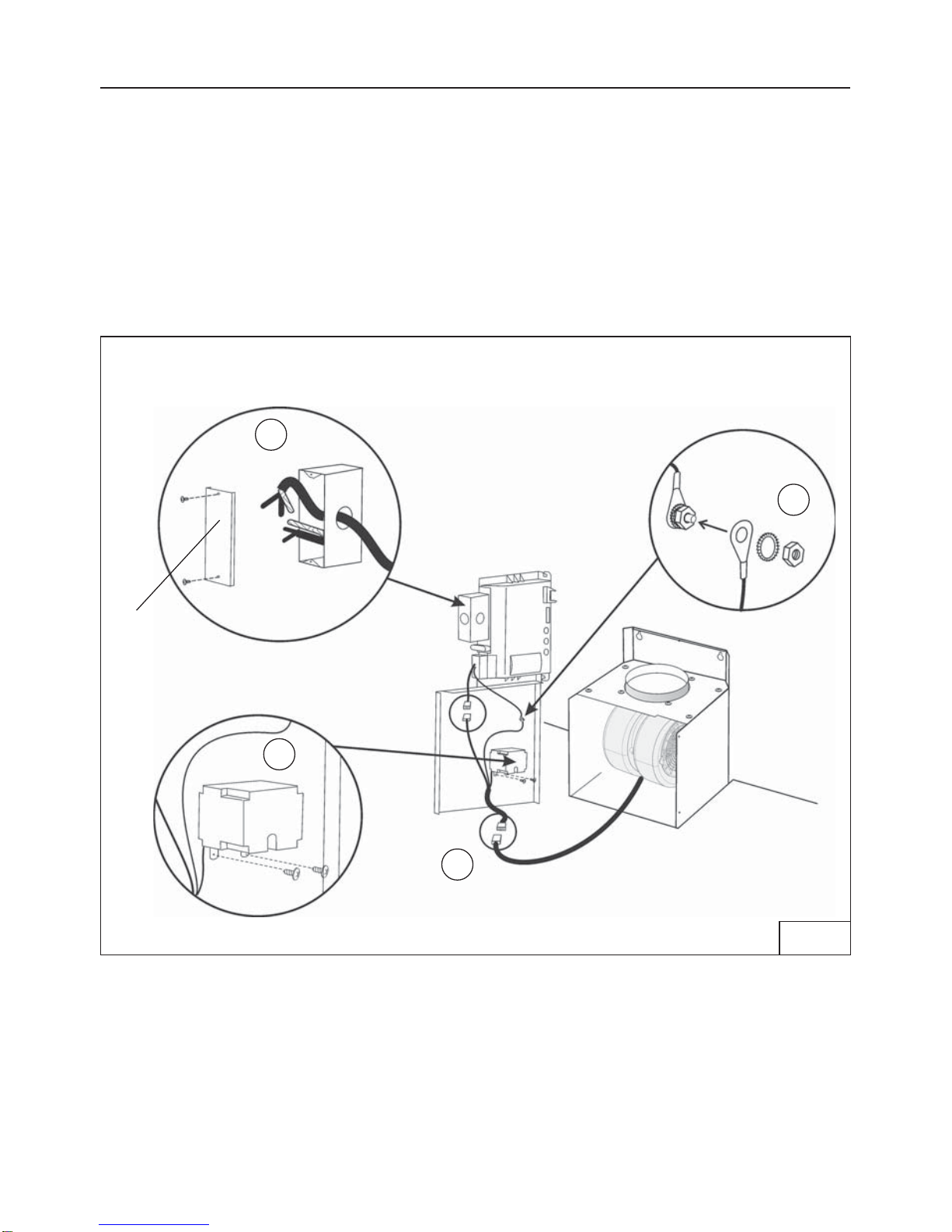

1. Make connections (A, B,C) (Fig.14).
2. Secure capacitor box screwing the (2) 3.9x9.5 mm screws (Fig.14D).
3. Remove the wiring box cover. Remove a knockout from the wiring box (Fig.14A).
4. Secure the conduit to the wiring box through a conduit connector.
5. Make electrical connections. Connect white to white, black to black and green to ground.
6. Replace wiring box cover and screws. Make sure that wires are not pinched between cover
and box.
WIRING BOX
COVER
A
D
B
C
GROUND
CONNECT:
WHITE-TO-WHITE,
BLACK-TO-BLACK,
GREEN-TO-GROUND.
- 18 -

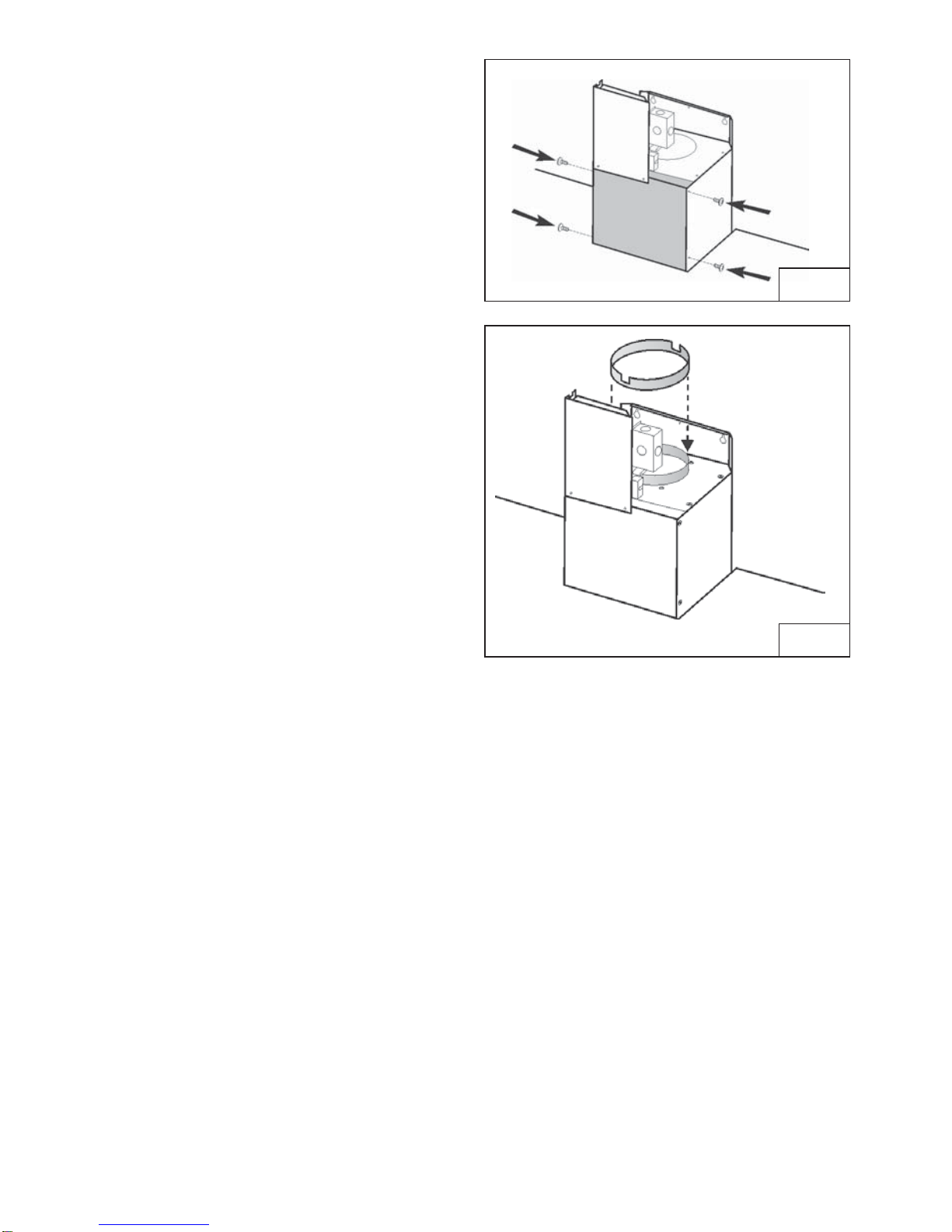

8. Install the front plate and electrical system
box using (4) 3.9x6 mm screws (Fig.15).
FIG. 15
FIG. 16
9. Place the 6” metallic flange provided on the
blower’s air outlet (Fig.16).
(4) MOUNTING SCREWS
(3.9 x 6 mm Flat Head)
- 19 -
REMOTE BLOWERS (EXTERNAL AND IN-LINE)
CAUTION: To reduce risk of fire and electric shock, install this range hood only with External
Blower Model CBE-1000, and In-Line Blower Model PBN-1000A. Other blowers cannot be
substituited.
INSTALLING THE DUCTWORK: REMOTE BLOWER
NOTE: To reduce the risk of fire, use only metal ductwork.

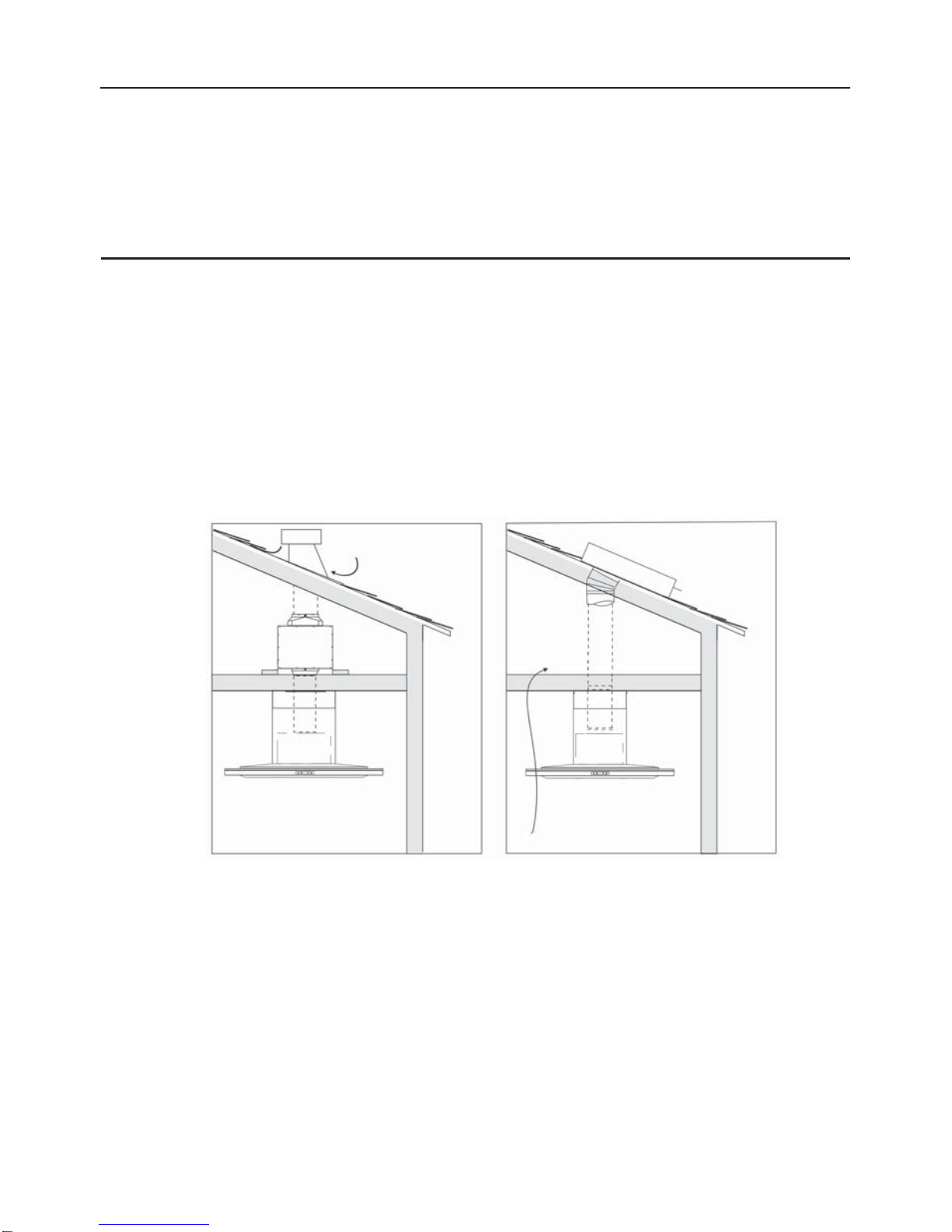

1. Choose the location where the External Blower or In-Line Blower will be mounted. See
illustrations below for mounting location suggestions and restrictions.
2. A straight, short duct run using a minimum 8” round duct will allow the hood to perform
most efficiently.
3. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as
few of them as possible. Larger ducting may be required for best performance with long
duct runs.
4. After the External or In-Line Blower has been installed, connect round metal ductwork
and work back towards the hood location. Use duct tape to seal joints between ductwork
sections.
Roof Pitch w/
Flashing & Cap
in-line
blower
(blower
housing) (blower
housing)
external blower
Attic or crawl space
- 20 -
INSTALLING THE REMOTE
BLOWER
NOTE: The following instructions are for
preparing the hood for use with external or
in-line blower models CBE-1000 or PBN-
1000A. For blower installation details refer
to manual included with the blower.
1. Remove the electrical system box from
chimney frame by removing duct tape.
2. Remove side screw (Fig.17) and mount
electricalsystem boxby means(2) 3,9x9,5
mm screws; re-fix the side screw.
3. Remove the blower plate unscrewing the
(4) 3.9x6 mm screws (Fig.18).
4. Remove (2) screws (Fig.19A), position the
external blower plate and remote blower
box over blower housing and fix using (4)
3.9x6 mm screws (Fig.19B).
5. Install 8” round blower collar to top of
blower housing screwing the (4) 3.9x6 mm
screws (Fig.20)
FIG. 18
FIG. 19 FIG. 20
FIG. 17
(4)
MOUNTING
SCREWS
(3.9x6mm
Flat Head)
(4)
MOUNTING
SCREWS
(3.9 x 6 mm
Flat Head)
ELECTRICAL
SYSTEM BOX
(2) SCREWS
3.9 x 9.5 mm
SIDE SCREW
A
B
- 21 -
REMOTE
BLOWER
BOX
FIG.21
REMOTE BLOWER WIRING
1. Remove the cover from the wiring box marked “120 Vac input”.
2. Remove one knockout from the (2) wiring boxes (box marked “120 Vac input” and box
marked “motor connection”).

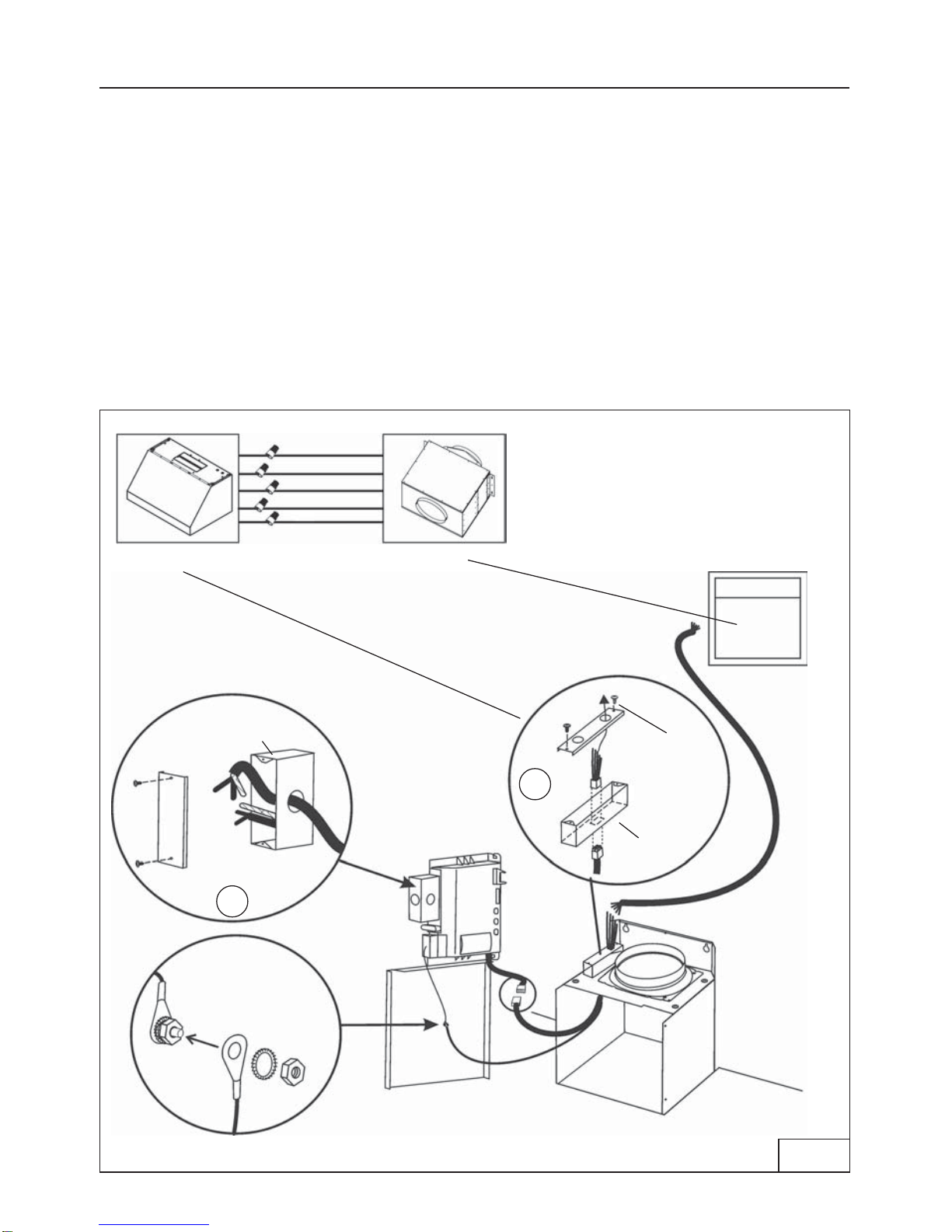

3. Run 4-wire plus ground power cable from the remote blower to the remote blower wiring
box marked “motor connection” (Fig.21B).
4. Feed6” of cablethrough the knockoutopening and securethe cable tothe wiring boxwith
an appropriate connector.
5. Make electrical connections at the hood (box marked 120 Vac input). Connect white-to-
white, black-to-black, green-to-ground (Fig.21A).
6. Make electrical connections (remote blower box marked “motor connection”). Connect
white-to-white, black-to-black, blue-to-blue, red-to-red, green-to-ground (Fig.21B).
7. Mount the wiring box covers and screws. Make sure wires are not pinched between the
cover and box.
External blower connection:
1. Make electrical connections at the remote blower (see instructions provided with the
remote blower).
B
REMOTE BLOWERHOOD WIRE
HARNESS
WHITE(COMMON)
BLACK(HIGH)
BLUE(MED)
RED(LOW)
GREEN(GROUND)
(2)
MOUNTING
SCREWS
3.9 x 9,5 mm
BOX MARKED
“120 VAC INPUT”
ACONNECT:
WHITE-TO-WHITE,
BLACK-TO-BLACK,
BLUE-TO-BLUE
RED-TO-RED
GREEN-TO-GROUND.
GROUND
CONNECT:
WHITE-TO-WHITE,
BLACK-TO-BLACK,
GREEN-TO-GROUND.
- 22 -
INSTALL THE HOOD
Remove the plastic protective film from all
exteriorsurfaces,ductcoversandfilters,prior
tofinalinstallation
1. Construct wood wall framing that is flush with
interior surface of wall studs (Fig.22/23).
Make sure:
a) the framing is centered over installation
location.
b) the height of the framing will allow the hood to
be secured to the framing within the
dimensions shown.
2. Determine desired height over cook top
and mark hood bottom line. Install drywall
anchors and 4,8x38mm screws per
dimensions shown in Fig. 22/23.
3. Hang the hood onto the screws.
4. Tighten mounting screws. Add additional
screws through hood body as needed for
additional support.
Notes:
a. Minimum hood distance above cook top
must not be less than 24”. A maximum of
36” above cook top is highly
recommended for best capture of cooking
impurities. Distances over 36” are at the
installer and the users discretion; and if
ceiling height and flue lenght permit.
FRAMING BEHIND WOOD
CROSS SUPPORT
WOOD CROSS
SUPPORT BEHIND
DRYWALL DRYWALL
8-1/4”
16-7/16” FROM
BOTTOM OF HOOD
HOOD
BOTTOM
FIG.22
FRAMING BEHIND WOOD
CROSS SUPPORT
WOOD CROSS
SUPPORT BEHIND
DRYWALL DRYWALL
FIG.23
Model Layers
8-1/4”
15-11/16” FROM
BOTTOM OF HOOD
HOOD
BOTTOM
Model Duo
- 23 -
MOUNTING SCREWS
(4.8 x 38mm)
(2) MOUNTING SCREWS
(3.9 x 6 mm Flat Head)
INSTALL DUCT COVER
MOUNTING BRACKET
DUCTED AND NON-DUCTED
1.Assembletheductcovermountingbracket,
adjusting outside width as shown. (Fig.24)
2.Carefully center the mounting bracket
directly over the range hood location.
3.Secure the bracket assembly to the ceiling
using(2)4.8x38mmmountingscrewsand
drywall anchors (Fig.25). Make sure the
bracket is pushed into the corner, tight
againstthewallifnecessary, andcentered
over the hood.
DRYWALL
ANCHORS
FIG.24
FIG.25
11
3/4
”
