Zanussi ZWI71201WA User manual

EN User manual

Washing Machine

ZWI 71201 WA

ZWI 71401 WA

Contents

Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2

Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3

Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 4

Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5

Washing programmes _ _ _ _ _ _ _ _ _ _ _ _ 8

Consumption values _ _ _ _ _ _ _ _ _ _ _ _ 11

Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ _ 11

First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13

Personalisation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13

Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13

Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 16

What to do if ... _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18

Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 21

Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 21

Building in _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 25

Environment concerns _ _ _ _ _ _ _ _ _ _ _ 28

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the

supplied instructions. The manufacturer is not responsible if an in-

correct installation and use causes injuries and damages. Always

keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sen-

sory, reduced mental functions or lack of experience and knowl-

edge use the appliance. They must have supervision or instruction

for the operation of the appliance by a person who is responsible

for their safety.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door when it is

open.

• If the appliance has a child safety device, we recommend you ac-

tivate it.

General Safety

• Before maintenance, deactivate the appliance and disconnect the

mains plug from the mains socket.

• Do not change the specification of this appliance.

www.zanussi.com

• Obey the maximum load volume of 8 kg (refer to the “Programme

chart” chapter).

• If the supply cord is damaged, it must be replaced by the manu-

facturer, its service agent or similarly qualified persons in order to

avoid a hazard.

• The operating water pressure (minimum and maximum) must be

between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)

• The ventilation openings in the base (if applicable) must not be

obstructed by a carpet.

• The appliance is to be connected to the water mains using the

new supplied hose-sets. Old hose sets must not be reused.

Safety instructions

Installation

• Remove all the packaging and the transit

bolts.

• Keep the transit bolts. When you move the

appliance again you must block the drum.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the

temperature is less than 0 °C or where it is

exposed to the weather.

• Obey the installation instruction supplied

with the appliance.

• Make sure that the floor where you install the

appliance is flat, stable, heat resistant and

clean.

• Do not install the appliance where the appli-

ance door can not be fully opened.

• Always be careful when you move the appli-

ance because it is heavy. Always wear safety

gloves.

• Make sure that there is air circulation be-

tween the appliance and the floor.

• Adjust the feet to have the necessary space

between the appliance and the carpet.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on

the rating plate agrees with the power sup-

ply. If not, contact an electrician.

• Always use a correctly installed shockproof

socket.

• Do not use multi-plug adapters and exten-

sion cables.

• Make sure not to cause damage to the mains

plug and to the mains cable. Contact the

Service or an electrician to change a dam-

aged mains cable.

• Connect the mains plug to the mains socket

only at the end of the installation. Make sure

that there is access to the mains plug after

the installation.

• Do not pull the mains cable to disconnect

the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains

plug with wet hands.

• This appliance complies with the E.E.C. Di-

rectives.

Water connection

• Make sure not to cause damage to the water

hoses.

www.zanussi.com

• The appliance is to be connected to the wa-

ter mains using the new supplied hose-sets.

Old hose sets must not be reused.

• Before you connect the appliance to new

pipes or pipes not used for a long time, let

the water flow until it is clean.

• The first time you use the appliance, make

sure that there is no leakage.

Use

Warning! Risk of injury, electrical shock,

fire, burns or damage to the appliance.

• Use this appliance in a household environ-

ment.

• Obey the safety instructions on the detergent

packaging.

• Do not put flammable products or items that

are wet with flammable products in, near or

on the appliance.

• Do not touch the glass of the door while a

programme operates. The glass can be hot.

• Make sure that you remove all metal objects

from the laundry.

• Do not put a container to collect possible

water leakage under the appliance. Contact

the Service to ensure which accessories can

be used.

Care and Cleaning

Warning! Risk of injury or damage to the

appliance.

• Do not use water spray and steam to clean

the appliance.

• Clean the appliance with a moist soft cloth.

Only use neutral detergents. Do not use

abrasive products, abrasive cleaning pads,

solvents or metal objects.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains

supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children

and pets to get closed in the appliance.

Product description

1Detergent dispenser drawer

2Control panel

3Door opening handle

4Rating plate

5Drain pump

6Adjustable feet

1 2

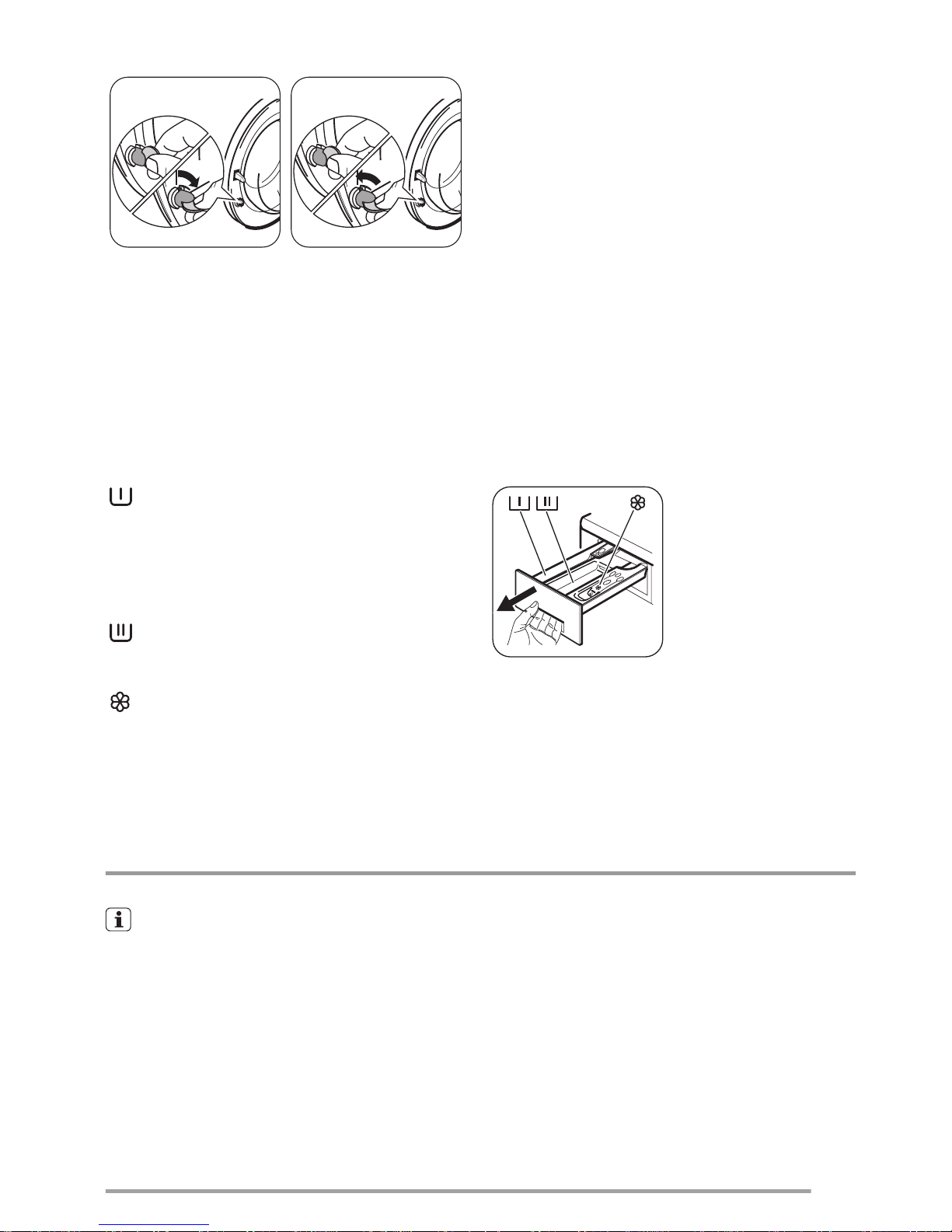

Child safety

Make sure that children or pets do not climb in-

to the drum. To prevent children and pets be-

coming trapped inside the drum this machine

incorporates a special feature.

www.zanussi.com

To activate this de-

vice, rotate the button

(without pressing it)

inside the door clock-

wise until the groove

is horizontal. If neces-

sary use a coin.

To disable this de-

vice and restore the

possibility of closing

the door, rotate the

button anti-clockwise

until the groove is

vertical.

Detergent dispenser drawer

Compartment for detergent used for pre-

wash and soak phase or for stain remover used

during the stain action phase (if available). The

prewash and soak detergent is added at the be-

ginning of the wash programme. The stain re-

mover is added during the stain action phase.

Compartment for powder or liquid detergent

used for main wash. If using liquid detergent

pour it just before starting the programme.

Compartment for liquid additives (fabric soft-

ener, starch).

Follow the product manufacturer’s recommendations on quantities to use and do not exceed the

«MAX» mark in the detergent dispenser drawer. Any fabric softener or starching additives must

be poured into the compartment before starting the wash programme.

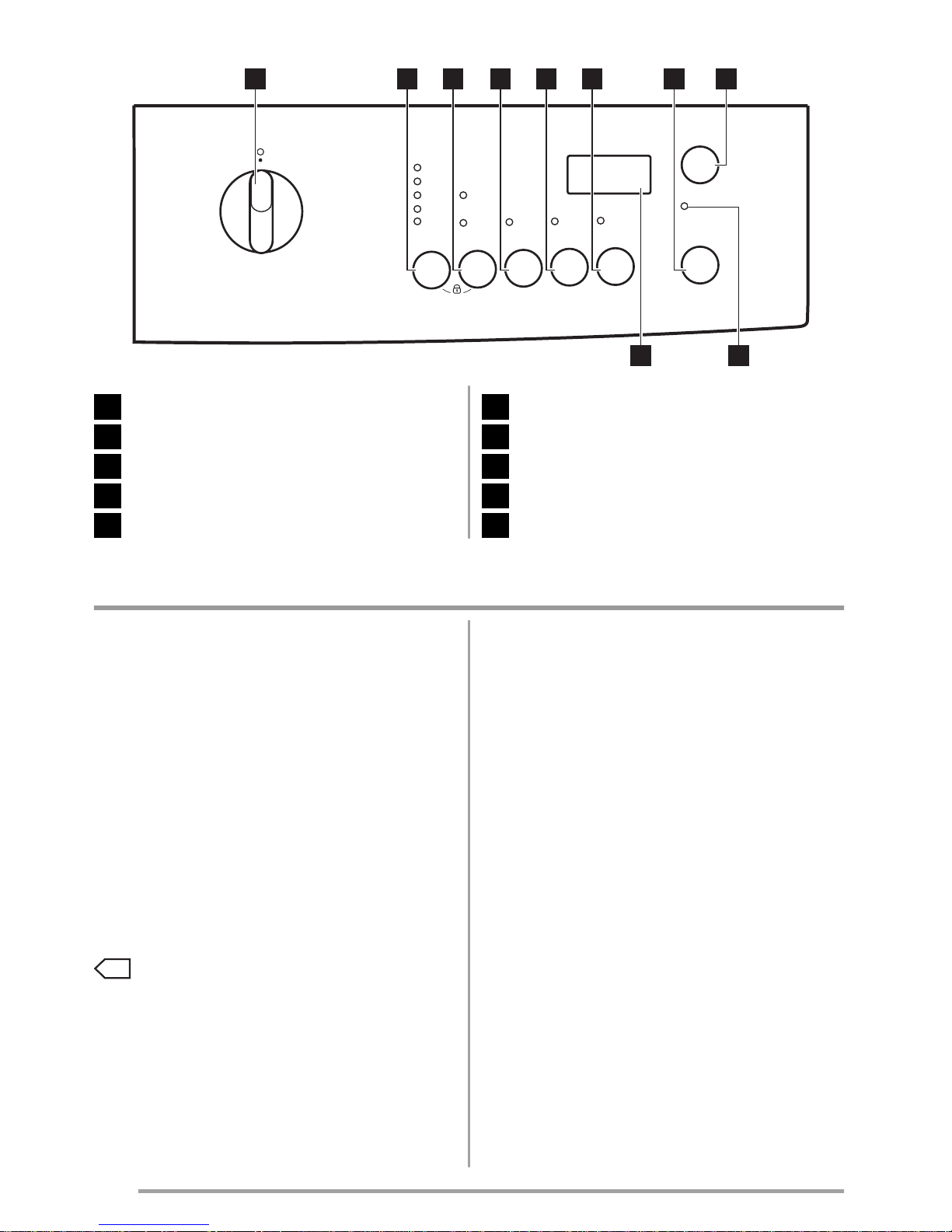

Control panel

On the following page there is a picture of the control panel. It shows the programme selector

dial as well as the buttons, pilot lights and the display. These are presented by relevant num-

bers on the following pages.

www.zanussi.com

1 32 4 5 6 7

910

1Programme selector dial

2SPIN reduction button

3OPTIONS button

4PREWASH button

5EASY IRON button

6EXTRA RINSE button

7START/PAUSE button

8DELAY START button

9DOOR LOCKED pilot light

10 Display

Programme selector dial, spin speed button and available

options

Programme Selector Dial

It allows you to switch the appliance on/off and/

or to select a programme.

Spin Reduction

By pressing this button you can change the

spin speed of the selected programme.

Rinse hold

By selecting this function the water of the last

rinse is not emptied out to prevent the fabrics

from creasing. Before opening the door it will

be necessary to empty out the water. To empty

out the water, please read the paragraph «At

the end of the programme».

Economy

Only for cottons and synthetic items lightly or

normally soiled at a temperature of 40°C or

higher. The washing time will be prolonged and

the washing temperature will be reduced. You

can use this option if you want to wash normally

soiled laundry and at the same time save ener-

gy.

Quick Wash

A very short cycle for lightly soiled items or for

laundry which needs only freshening up. We

recommend you to reduce the fabrics loading.

Prewash

By selecting this option the machine performs a

prewash cycle before the main wash phase.

The washing time will be prolonged. This option

is recommended for heavily soiled laundry.

Easy Iron

By selecting this option the laundry is gently

washed and spun to avoid any creasing. In this

way ironing is easier. Furthermore the machine

will perform some additional rinses in some

programmes. On cotton programmes the maxi-

mum spin speed is reduced automatically.

Extra Rinse

This appliance is designed to save energy. If it

necessary to rinse the laundry using an extra

quantity of water (extra rinse), select this option.

Some additional rinses will be performed. This

option is recommended for people who are al-

www.zanussi.com

lergic to detergents, and in areas where the

water is very soft.

Start Pause

This button allows you to start or to interrupt

the selected programme.

Delay Start

The programme can be delayed from 30 min -

60 min - 90 min, 2 hours and then by 1 hour up

to a maximum of 20 hours by means of this but-

ton.

Door locked pilot light

The pilot light 9illuminates when the pro-

gramme starts and indicates if the door can be

opened:

• light on: the door cannot be opened. The

machine is working or has stopped with wa-

ter left in the tub.

• light off: the door can be opened. The pro-

gramme is finished or the water has been

emptied out.

• light blinking: the door is opening in a few

minutes.

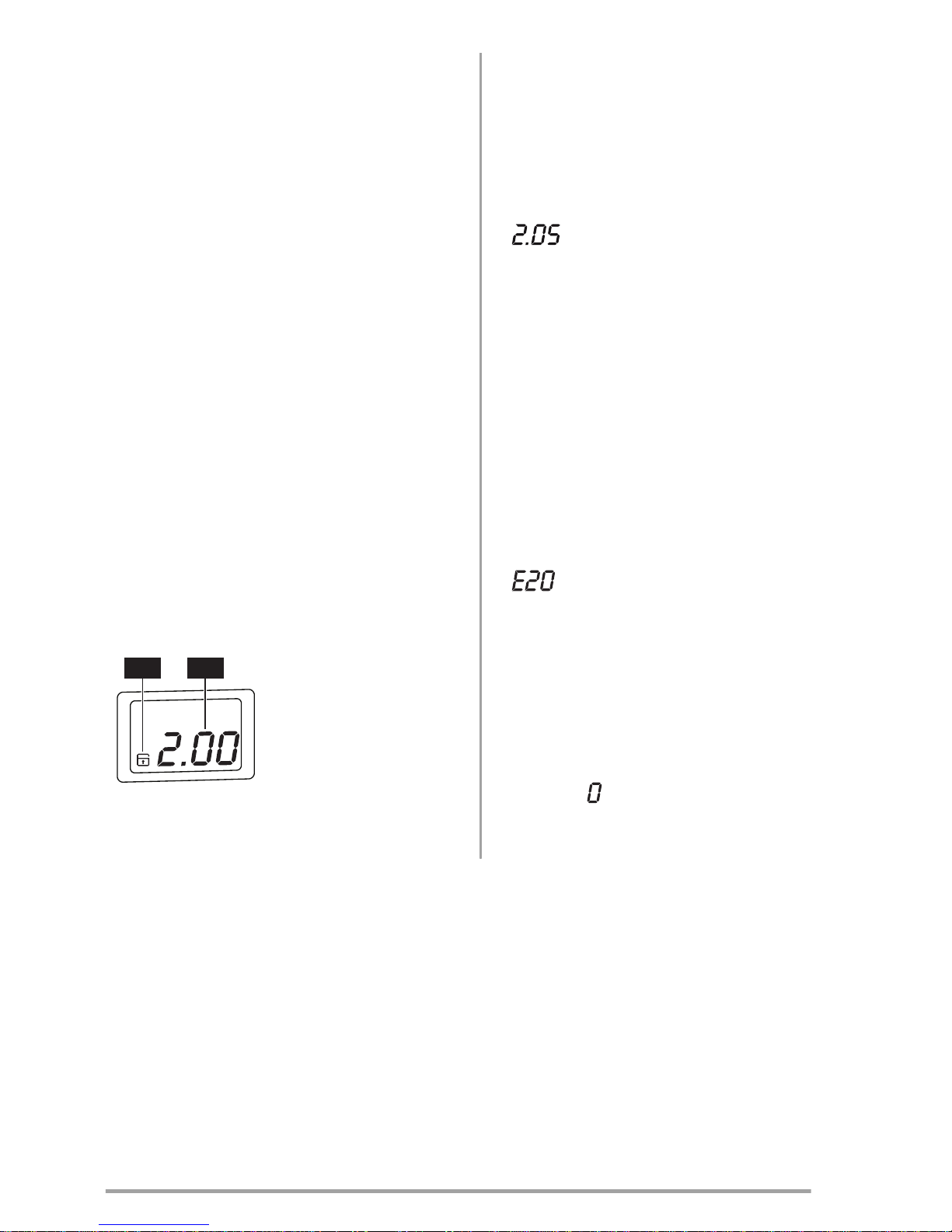

Display (10)

10.1 10.2

The display shows the following information:

10.1: Child safety lock

This device permits you to leave the appliance

unattended during it's functioning.

10.2:

•Duration of the selected programme

After selecting a programme, the duration is

displayed in hours and minutes (for example

). The duration is calculated automati-

cally on the basis of the maximum recom-

mended load for each type of fabric. After the

programme has started, the time remaining is

updated every minute.

•Delayed start

The Selected delay set by pressing the rele-

vant button appears on the display for a few

seconds, then the duration of the selected

programme is displayed again. The delay

time value decreases by one unit every hour

and then, when 1 hour remains, every minute.

•Alarm codes

In the event of operating problems, some

alarm codes can be displayed, for example

(see paragraph «What to do if...»).

•Incorrect option selection

If an option which is not compatible with the

set wash programme is selected, the mes-

sage Err is displayed at the bottom of the

display for a few seconds. The integrated red

light of button 7starts flashing.

•End of programme

When the programme has finished the flash-

ing zero ( ) is displayed. The pilot light 9

and the pilot light of button 7go out. The

door can be opened.

www.zanussi.com

Washing programmes

Programme

Maximum and Minimum Temperature

Cycle Description

Maximum Spin Speed

Maximum Fabrics Load

Type of Laundry

Options Detergent

Compartment

Cottons

1 – 2 – 3 – 4

90° - 30°

Main wash - Rinses

Maximum spin speed at 1200 rpm for model

ZWI71201WA

Maximum spin speed at 1400 rpm for model

ZWI71401WA

Max. load 7 kg - Reduced load 3 kg

White and coloured cotton (normally soiled items).

SPIN REDUCTION

RINSE HOLD

ECO

QUICK WASH

PREWASH

EASY IRON

EXTRA RINSE

Synthetics

5 – 6 – 7

60° - 30°

Main wash - Rinses

Maximum spin speed at 900 rpm

Max. load 3 kg - Reduced load 1.5 kg

Synthetic or mixed fabrics: underwear, coloured

garments, non-shrink shirts, blouses.

SPIN REDUCTION

RINSE HOLD

ECO

SUPER QUICK

PREWASH

EASY IRON

EXTRA RINSE

Delicates

8 – 9

40° - 30°

Main wash - Rinses

Maximum spin speed 700 rpm

Max. load kg 3 - Reduced load kg 1.5

Delicate fabrics: acrylics, viscose, polyester.

RINSE HOLD

PREWASH

SUPER QUICK

EXTRA RINSE

Handwash

10 – 11 – 12

40° - Cold

Main wash - Rinses

Maximum spin speed at 900 rpm

Max. load 2 kg

Special programme for delicate fabrics with «hand

washing» care symbol.

SPIN REDUCTION

RINSE HOLD

Wool

40°

Main wash - Rinses

Maximum spin speed at 900 rpm

Max. load 2 kg

Washing programme for machine washable wool as

well as for hand washable woollens and delicate fab-

rics. Note: A single or bulky item may cause imbal-

ance. If the appliance doesn’t perform the final spin

phase, add more items, redistribute the load manually

and then select the spinning programme.

SPIN REDUCTION

RINSE HOLD

www.zanussi.com

Programme

Maximum and Minimum Temperature

Cycle Description

Maximum Spin Speed

Maximum Fabrics Load

Type of Laundry

Options Detergent

Compartment

Specials

14 – Jeans

40°

Main wash - Rinses

Maximum spin speed at 1200 rpm

Max. load 3 kg

With this programme it is possible to wash items like

trousers, shirts or jackets in denim and also jersey real-

ized with hi-tech materials. (The Extra Rinse option will

be activated automatically).

SPIN REDUCTION

RINSE HOLD

PREWASH

EASY IRON

15 – Curtains

40°

Prewash - Main wash - Rinses

Maximum spin speed at 700 rpm

Max. load 2.5 kg

This programme it is possible to wash with an extra

water load. The machine will add automatically a pre-

wash phase before the main wash to eliminate the

dust. (Do not put any detergent in the prewash com-

partment).

RINSE HOLD

EXTRA RINSE

16 – Soak

30°

Prewash - Soak for about 40 minutes - Stop with wa-

ter in the tub

Max. load 7 kg

Special programme for heavily soiled laundry. The ma-

chine performs a soak at 30° C. At the end of this time

the machine will stop automatically with water left in

the tub.

Before starting a new washing phase, it is necessary to

empty out the water by:

•Draining only: turn the programme selector dial to

Drain programme. (Press the button 7).

•Draining and spinning: turn the programme se-

lector dial to programme Spin, reduce the spin

speed by pressing the button 2, and then press but-

ton 7.

Important! This programme cannot be used for very

delicate fabrics as silk or wool. Pour the detergent for

the soak programme into the appropriate compart-

ment. At the end of the soak (after having emptied out

the water) you can select the washing programme (first

turn the programme selector dial to , then to the

programme and press the button 5).

www.zanussi.com

Programme

Maximum and Minimum Temperature

Cycle Description

Maximum Spin Speed

Maximum Fabrics Load

Type of Laundry

Options Detergent

Compartment

17 – Mini 30’

Main wash - Rinses

Maximum spin speed at 700 rpm

Max. load 3 kg

Quick washing programme for cotton and synthetic

items which are lightly soiled or only need freshening

up.

Extra

18 – Rinse

Rinses

Maximum spin speed at 1200 rpm for model

ZWI71201WA (1400 rpm for model ZWI71401WA)

Maximum spin speed at 1400 rpm for model

ZWI71401WA

Max. load 7 kg

With this programme it is possible to rinse and spin

cotton garments which have been washed by hand.

The machine performs 3 rinses, followed by a final long

spin. The spin speed can be reduced.

SPIN REDUCTION

RINSE HOLD

EASY IRON

EXTRA RINSE

19 – Drain

Draining of water

Max. load 7 kg

For emptying out the water of the last rinse in pro-

grammes with stops with water in the drum.

20 – Spin

Drain and long spin

Maximum spin speed at 1200 rpm for model

ZWI71201WA (1400 rpm for model ZWI71401WA)

Maximum spin speed at 1400 rpm for model

ZWI71401WA

Max. load 7 kg

Separate spin for hand washed cotton garments and

after programmes with the Rinse Hold option set. You

can choose the spin speed by pressing the relevant

button to adapt it to the fabrics to be spun.

SPIN REDUCTION

For cancelling the programme which is running or to switch the machine off.

1) Standard programmes for the Energy Label consumption values.

According to regulation 1061/2010, the programmes “Cottons” at 60 °C + Eco option set and

“Cottons” at 40 °C + Eco option set, are respectively the “standard 60 °C cotton programme” and the

“standard 40 °C cotton programme”. They are the most efficient programmes in terms of combined energy

and water consumption for washing normally soiled cotton laundry.

2) This option is not active at a temperature lower than 40° C.

3) If you select the Super Quick option by pressing button 3, we recommend that you reduce the maximum

load as indicated. Full loading is possible however with somewhat reduced cleaning results.

4) Max. load with Easy iron option 1.5 kg

5) If using liquid detergents, a programme without PREWASH must be selected.

www.zanussi.com

This manual suits for next models

Table of contents

Other Zanussi Washer manuals

Zanussi

Zanussi ZWG 3101 User manual

Zanussi

Zanussi ZWY 1100 User manual

Zanussi

Zanussi ZWH 6125 User manual

Zanussi

Zanussi ZWN 6105 User manual

Zanussi

Zanussi FL 904 NN User manual

Zanussi

Zanussi ZWY 51024WI User manual

Zanussi

Zanussi ZWY 61024WI User manual

Zanussi

Zanussi Z919T Operating and safety instructions

Zanussi

Zanussi ZWG6120 P User manual

Zanussi

Zanussi TL572C User manual

Zanussi

Zanussi FLV954NN User manual

Zanussi

Zanussi TLS592C User manual

Zanussi

Zanussi ZWF 12380W User manual

Zanussi

Zanussi T803V User manual

Zanussi

Zanussi FC 1200W User manual

Zanussi

Zanussi IZ 141 S User manual

Zanussi

Zanussi FA568 User manual

Zanussi

Zanussi FLS804 User manual

Zanussi

Zanussi FLS874CN User manual

Zanussi

Zanussi TL1093V User manual

Zanussi

Zanussi FJ 1296 User manual

Zanussi

Zanussi TA1033V User manual

Zanussi

Zanussi ZWS77100SS User manual

Zanussi

Zanussi ZWF 16281 W User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
