Zanussi ZWF145W User manual

WASHING MACHINE USER MANUAL

ZWF145W

THE CONTENTS

SECTION 1:BEFORE USING

•Safety warnings

•Recommendations

SECTION 2:INSTALLATION

•Removal of transportation screws

•Adjustment of feet

•Electrical connection

•Water supply connection

•Water drain connection

SECTION 3:TECHNICAL SPECIFICATIONS

SECTION 4:CONTROL PANEL

•Start/Pause button

•Function indicator lights

•Function buttons

•Program knob

SECTION 5:WASHING YOUR LAUNDRY

•Before washing

•Running the machine

SECTION 6:MAINTENANCE AND CLEANING

•Water inlet filters

•Pump filter

•Detergent drawer

•Siphon plug

•The cabinet

•The drum

•Remove of your machine from lime

SECTION 7: PRACTICAL INFORMATION

SECTION 8:AVOIDING MINOR FAULTS

SECTION 9:AUTOMATIC FAILURE DETECTION SYSTEM

SECTION 10:INTERNATIONAL WASHING SIGNS

SECTION 1:BEFORE USING

SAFETY WARNINGS

•

••

•Do not use a multiple socket or extension cord.

•Do not insert a plug with damaged or broken cord into the socket.

•If the cord is damaged it should be replaced by the manufacturer or

appointed service agent in order to avoid a hazard.

•

••

•Never remove the plug from the socket by pulling from the cord

section. Remove the plug by holding.

•

••

•Do not plug the power supply with wet hands.

•

••

•Never touch the machine with wet hands or feet.

•

••

•Never open the detergent drawer while the device is running.

•

••

•Never force to open the door of the machine while the machine is

running.

•

••

•Since the machine can reach high temperatures while running, do not

touch the drain hose and water during draining.

•

••

•In case of any failure, first unplug the device and close the water tap.

Do not attempt to repair.Please apply to the nearest authorized

service station.

•

••

•Do not forget that the packing material of your machine may be

hazardous for children.

•

••

•Do not let your children play with the washing machine.

•

••

•Keep your pet away from your machine.

•

••

•Your machine should only be used by adults within the information

written in this manual.

•

••

•Your machine is designed for use in house environment. Warranty

will be invalid if you use it for commercial purposes.

•

••

•The appliance should not be put on a carpet which can block the air

ventilation on the bottom side.

RECOMMENDATIONS

•

••

•The detergent or softener in contact with air for a long time will dry

and stick to your detergent drawer.To avoid this put your detergent

and softener into the detergent drawer just before washing.

•

••

•It is recommended that you use pre-washing program for only very

dirty clothes.

•

••

•Please do not exceed the maximum loading capacity.

•

••

•If you will not use your machine for a long time, unplug your machine,

close the water supply and leave the door open in order to keep the

inside of the machine dry and for prevention from unpleasant odour.

•

••

•As a result of the quality control procedures, a certain amount of

water may remain in your machine. This is not harmful for your

machine.

SECTION 2: INSTALLATION

You must pay attention to the following issues before using your washing

machine.

REMOVAL OF TRANSPORTATION SCREWS

•

••

•Transportation screws, which are located at the back side of the

machine, must be removed before running the machine.

•

••

•Loosen the screws by rotating counterclockwise by a suitable wrench.

(DIAGRAM-1)

•

••

•Remove the screws by pulling them.(DIAGRAM-2)

•

••

•To the holes where the transport screws have been removed, insert

the plastic transport screw taps found in the accessories bag.

(DIAGRAM-3)

•

••

•The transportation screws, that have been removed from the machine

should be kept in hand for any other transportation necessities.

DIAGRAM-2

DIAGRAM-1 DIAGRAM-3

ADJUSTMENT OF FEET

•

••

•Do not install your machine on rugs or similar surfaces.

•

••

•For your machine to work silently and without any vibration, it should

be settled on a flat, non-slippery and tough ground.

•

••

•You can adjust the balance of your machine from its feet.

•

••

•First, loosen the plastic adjustment nut.

•

••

•Adjust by rotating the feet upwards or downwards.

•

••

•After the balance has been reached, tighten the plastic adjustment

nut again by rotating it upwards.

•

••

•Never put cartons, wooden blocks or similar materials under the

machine to balance the irregularities on the level of the ground.

ELECTRICAL CONNECTION

•

••

•Your washing machine works with 220-240V and 50Hz.

•

••

•A special grounded plug has been attached to the network cable of

your washing machine. This plug must definitely be inserted to a

grounded socket with 10 ampere. The fuse flow value of the

electricity line attached to this should also be 10 ampere. If you have

no such sockets and fuses in your house, let it be made by a qualified

electrician.

•Our company will not be responsible for any damages that may

occur as a result of usage without grounding.

WATER SUPPLY CONNECTION

•Your machine has a single water (cold) inlet.

•To prevent from the leakages on the connection joints, 1 seal is

included in the hose packing.(Fit this seal on the end of the water

inlet hose at the tap side.)

•Connect the end with bracket of the water inlet hose to the water inlet

valve at the rear of the machine and the other end to your tap. In

situations where you are not assured, let a qualified plumber make

the connection works.

•Water pressure of 1-10 bars from your tap will enable your machine

to work more efficiently.(1 bar pressure means water flow of more

than 8 liters in 1 minute from a fully opened tap).

•After connections are completed, check for the non-leakage of the

connection joints by turning on your tap completely.

•Be sure that water inlet hoses are not folded, broken or crushed.

•Mount the water inlet hoses to a 3”/4, geared water tap.

Cold water inlet (White filter valve)

WATER DRAIN CONNECTION

•Be sure that water inlet hoses are not folded, twisted, crushed or

elongated by stretching.

•Water drain hose should be mounted at a height of minimum 60 cm,

maximum 100 cm from the ground.

•The end of the water drain hose may directly be fitted to the dirty

water outlet hole or a special apparatus mounted on the outlet

bracket of the wash-stand.

•Never attempt to extend the water drain hose by adding extra parts.

SECTION 3:TECHNICAL SPECIFICATIONS

ZWF145W

Maximum dry laundry capacity (kg) 5

Recommended loading (kg) 4,5

Height (cm) 85

Width (cm) 59,6

Depth (cm) 51

Maximum spin cycle ( rpm ) 400

(*) Maximum spin cycles depend on the model you’ve chosen

1 2 3

1-Upper tray 5-Handle

2-Detergent drawer 6-Filter cover

3-Control panel 7-Kickplate

4-Door

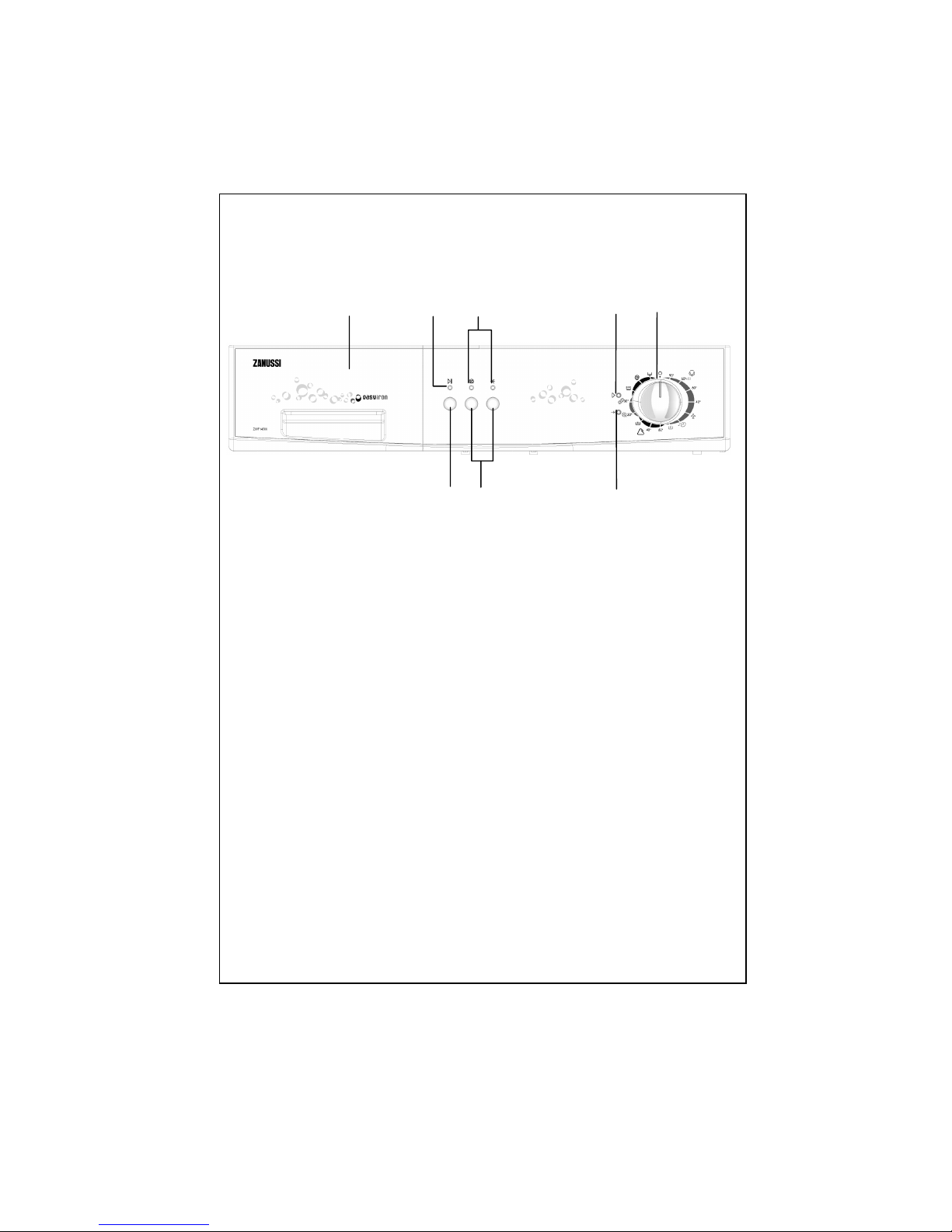

SECTION 4:CONTROL PANEL

1 2 3 4 5

6 7 8

1-Detergent drawer 5-Program knob

2-Start/pause light 6-Start/pause button

3-Function indicator lights 7-Function buttons

4-Program ready light 8-Program end light

START/PAUSE BUTTON

Used to start a selected program or pause during running.

WARNING!

It is required for the program knob to be brought to O(off)

position before selecting the program or changing a continuing

program.

FUNCTION INDICATOR LIGHTS

When the start/pause button or any function button is pressed,the

corresponding light turns on.The light turns off when the function

button or start/pause button is re-pressed, or when the process

the selected function is completed.

The function indicator lights are also used in failure detection system

mentioned in section 9.

FUNCTION BUTTONS

No spin

This program is recommended to be used for your sensitive

clothes on which no spinning should be done. By pressing this

function button, you can cancel the spinning process which is

included in the program.

Cold wash

When this button is pressed, your clothes are washed with cold

water. With this function, you can wash your slightly dirty clothes

using less energy and water.

WARNING!

Functions vary depending on the model you have chosen.If you

forgot to use additional function and your machine starts to wash

push the additional function button if the indicator light is on.

Additional function will be activated.If the indicator light is not

on,additional function will not be activated.

PROGRAM KNOB

With the program knob, you can select the program with which you desire to

wash your clothes. You can adjust the program selection process by turning

the program knob in both directions. You must be careful that the adjustment

sign of the program knob is exactly on the program you want to select. When

you bring the program knob to O(off) position, while your machine is running,

your program will remain incomplete.
