Zanussi TL653C User manual

INSTRUCTIONS MANUAL

WASHING MACHINE

TL 653 C

129832300

ZANUSSIANUSSI

ANUSSIANUSSI

ANUSSI

CONTENTS

For the user

Safety instructions 4/5

Description of the appliance 6

Use of your appliance 7

Operating instructions 8/9

Programme chart 10/11

Hints & Tips 12-14

Cleaning and maintenance 15

If something doesn't work 16/17

Service 18

For the installer

Technical information 19

Installation

Unpacking 19

Installation 20

Levelling 20

Moving of the appliance 20

Water connection 21

Electrical connection 21

Guide to use the instruction

The following symbols will be found in the text to guid you

throughout the instructions :

Safety instructions

Hints and tips

Environmental information

You must read the whole of this instruction book

before you use the appliance. Follow the advice

carefully. Keep the book for future reference. If

you sell or give away the appliance, make sure

that the book is passed to the new owner.

Thefollowingwarningsareprovidedintheinterest

of overall safety. You must read them before the

appliance is installed or used.

Use

This appliance is designed to be used by

adults.Childrenshouldnotbe allowedtotouch

the controls or play with the product.

It is dangerous to modify the specifications of

this appliance in any way.

Always unplug the appliance and turn off the

water after use.

Only wash fabrics with are designed to be

machinewashed.Ifindoubt,followtheinstruc-

tions you find on the label of the item itself.

Place small metal rings or edged plastic rings

in a net or bag.

Make sure that all pockets are empty. Hard,

sharpobjects suchascoins, safetypins,nails,

screwsorstonescancauseextensivedamage.

Do not machine wash fabrics which are

saturated with petroleum products. If volatile

cleaning fluids have been used, make sure

that they are thoroughly removed from the

fabricsbeforetheyareplacedintheappliance.

Small and delicate objects (e.g. baby socks,

stockings)can beeasilywashed insidea small

pillowcase with a zip fastener or in larger

socks.

Useonlythe recommendedquantitiesof fabric

conditioner.

Beforecleaning,careandmaintenance,ensure

that the machine is unplugged.

Installation

Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

Any plumbing work required to install this

appliance should be carried out by a qualified

plumber or competent person.

Make sure that the appliance does not stand

on its electrical supply cable.

This appliance is heavy. Care should be taken

when moving it.

Allpackagingandtransitboltsmustberemoved

before the appliance is used. Serious damage

may occur if this is not done.

Ifyour washing machineis in aroom subject to

temperatures below freezing, the water must

be removed from the machine. So, the

danger of freezing should be expected.

SAFETY INSTRUCTIONS

Read all instructions before using

the appliance and save them for

future reference.

Safeties

Lid : your washing machine is equipped with

asafety avoidingtheswitching oftheappliance

when the flapdoors of the drum are opened ;

the closure of the lid is so impossible. An

electromechanic safety prohibits the opening

ofthelidwhenthewashingmachineworksand

2 minutes after the end of the programme.

Washing motor : in case of mechanic

overloading, overvoltage, a thermic safety

protects automatically the motor.

Heating : the heating can only begin when

the water quantity necessary for the washing

is in the tub. This safety is useful when there is

a water break-up or if you forget to open the

water inlet hose.

Environmental information

All materials marked by the symbol are

biodegradable. They can be disposed of without

danger or burnt in rubbish incinerators.

In order to realize water and energy savings and

to act in an environmentally conscious manner,

we advice to follow the below instructions :

- use if possible the appliance with full loads

instead of partial loads. Take care to do not

overload the drum.

- Use only the programmes with prewash for very

soiled laundry.

- Savings on detergent and for the environment

may also be achieved if with medium to hard

water you add sufficient detergent for soft water

andthenaddseparatelyasoftener.Thisrelieves

our waters of a certain amount of chemicals.

When disposing of the machine in a proper

manner, destroy the door lock and cut off the

power supply cord.

DESCRIPTION OFTHE APPLIANCE

Detergent dispenser

Symbols

() Washing powder for programmes with

pre-wash (1).

() Washing powder or liquid detergent for

the main wash (2).

() Bleach compartment (3).

() Liquid additives (fabric softener and

conditioner...) (4).

($) Liquid detergent.

Control panel

1234

Lid

Handleforopeninglid

Trap door for lint filter

Lever for castors

Pushbuttons

Programme selector

USE OFYOUR APPLIANCE

The control panel

1 ON/OFF pushbutton " "

Press the ON/OFF pushbutton, the programme

starts : the control lamp lights on.

2 Control lamp

The control lamp lights on when the appliance is

working (on/off pushbutton " " pressed). It lights

off when the on/off pushbutton " " is pressed out.

3 Cold wash pushbutton " "

Ifpressedinatthebeginningofanyprogramme,it

allows to wash your laundry with cold water : the

water entering into the tub is not heated.

4 Half load pushbutton " "

If pressed in at the beginning of a wash pro-

gramme, it allows to wash economically small

quantities of laundry, up to 2,5 kg of resistant

laundry (cotton-linen).

This pushbutton is without effect on the synthetic,

delicate and wool programmes.

Never turn the programme selector when the appliance is working.

5 Programme selector

It enables to select the most adapted programme

tothe nature and degreeesof soil ofyour laundry.

Turn the programme selector clockwise to select

the chosen programme.

The programme selector indicates each pro-

gramme phase as it takes place.

At the end of the programme, the appliance stops

automatically on a position off "I" or on a position

"rinse hold".

Never turn the programme selector anticlockwise.

TL 653 C

2134 5

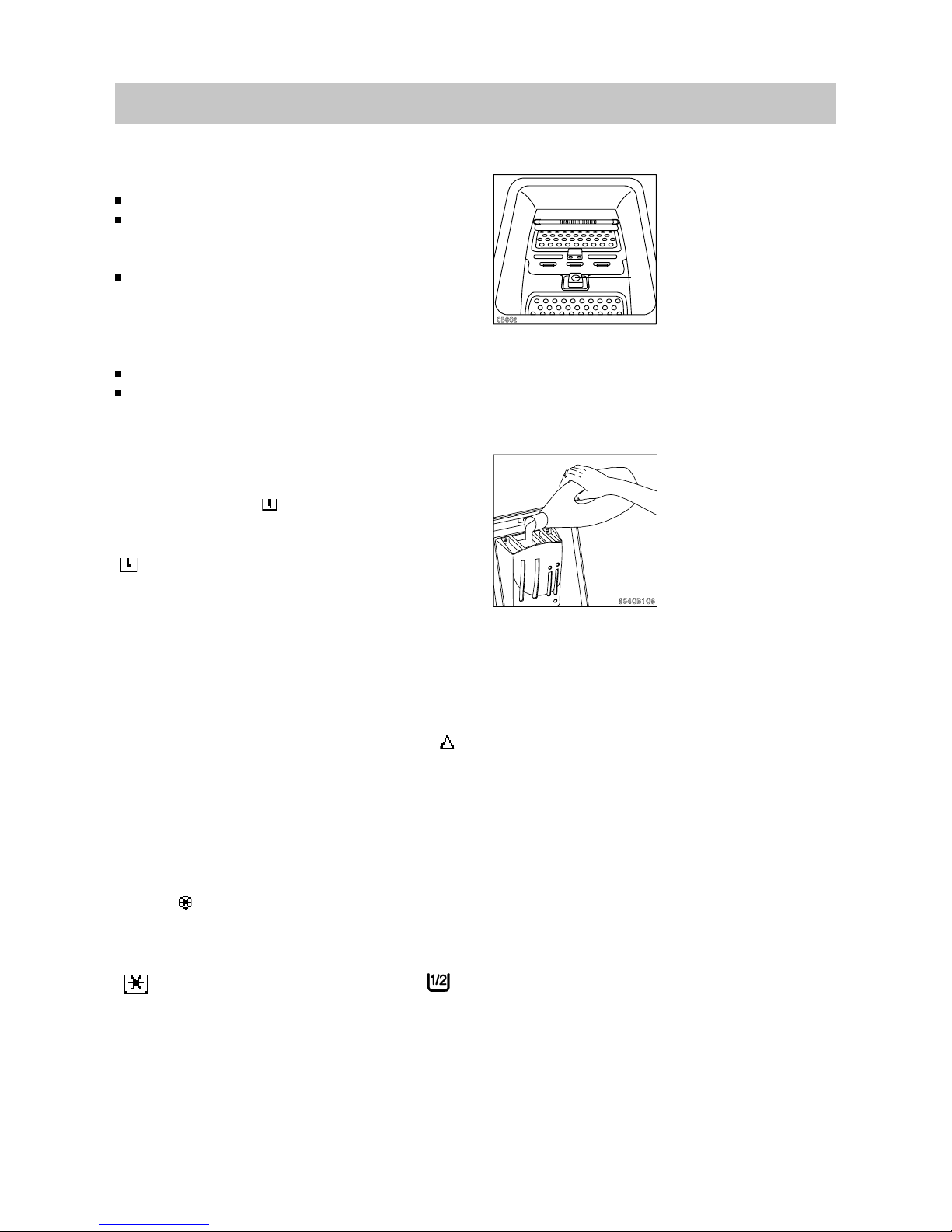

OPERATING INSTRUCTIONS

1. Place the laundry in the drum

lift up the lid of the machine.

open the drum with your two hands by pressing

the button Aand the two flapdoors till they

disengage.

introduce the laundry into the drum ; close the

drum and the lid of the machine.

Be careful : before closing the lid of your ma-

chine, make sure that the drum flapdoors are

correctly closed :

the two flapdoors fastened,

the button Apressed out.

2. Measure out the detergent

Measure out the amount of detergent

recommended by the manufacturer in the main

wash compartment ( ).

If you wish to carry out a prewash, pour the

amount required into the prewash compartment

().

Do not exceed the MAX level.

3. Add the bleach agent, if required

You may use a bleach agent in all the washing

programmes. However, make sure that the fabric

withstands the treatment. Bleach is automatically

washed down into the drum. Pour 1/4 to 1 glass

of 12° chl bleach into compartment marked ( )

before switching the machine on.

Make sure that the level of the liquid never

exceeds the MAX level.

4. Add the fabric softener

Pourthesoftener,ifrequired,intothecompartment

marked ( ). Do not exceed the MAX level.

5. Press the cold wash pushbutton

""orthehalfloadpushbutton" "

if required.

6. Select the programme

Choose the programme according to the nature

and the degree of soil of the laundry.

Turn the programme selector clockwise to select

the chosen programme.

7. Starting of the programme

The ON/OFF pushbutton " " enables to switch

on your machine. The control lamp lights on and

the programme begins.

8. At the end of the programme

When the selected programme is over, the ma-

chine stops automatically. The timer knob stops

onthe position"I"forthecotton programmes.The

synthetic,delicatesand woolprogrammes endby

a rinse hold " ". You can finish these program-

mes by a short spinning (programme 14) or a

draining (programme 15). Depress the on/off

pushbutton " " before doing your choice.

After each wash, depress the on/off pushbutton.

Press off the pushbuttons if necessary ; unplug

the machine from the wall socket ; turn off the

water tap.

PROGRAMMES CHART

Programmes

description Temperatures

(°C) Water

consumption

in liters

Time

in minutes

White with prewash

White

Coloured ( )

Delicate coloured

Rinsings (4)

Spinning

Detergent

dispensers

to use

Programmes for cotton/linen

Maximum load : 5 kg (cotton)

150

135

115

(*) If the laundry can withstand the bleaching treatment.

When the selected programme is over, the washing machine stops automatically. The timer knob stops

on the position "I" after a spinning phase.

BE CAREFUL :

THE LID CAN ONLY BE OPENED 90 SECONDS AFTER THE MACHINE HAS STOPPED.

Programmes

description Temperatures

(°C) Water

consumption

in liters

Time

in minutes

Synthetics with prewash

Synthetics

Synthetics short

Delicate

Wool

Rinsings (3)

Rinsing

Short spinning

Drain

Detergent

dispensers

to use

Programmes for synthetics/delicates/wool

Maximum loads : 2,5 kg (synthetics), 1 kg (wool).

When the selected programme is over, the washing machine stops automatically. The timer knob stops

on a position rinse hold. You can end these programmes with a short spinning (by setting the timer on

the programme 14) or with a draining (by setting the timer on the programme 15). Please depress the

ON/OFF pushbutton before doing your choice.

BE CAREFUL :

THE LID CAN ONLY BE OPENED 90 SECONDS AFTER THE MACHINE HAS STOPPED.

This manual suits for next models

Table of contents

Other Zanussi Washer manuals

Zanussi

Zanussi ZWF745B4PW User manual

Zanussi

Zanussi Z9282T Operating and safety instructions

Zanussi

Zanussi ZWY 61035SI User manual

Zanussi

Zanussi ZWY 71054SI User manual

Zanussi

Zanussi FLS 1002 V User manual

Zanussi

Zanussi FLS400C User manual

Zanussi

Zanussi ZWF 1415W User manual

Zanussi

Zanussi FL1001 User manual

Zanussi

Zanussi TJ1053 User manual

Zanussi

Zanussi ZWI 71401 WA User manual

Zanussi

Zanussi FLS1003 User manual

Zanussi

Zanussi FCS 825 C User manual

Zanussi

Zanussi ZWF1000M User manual

Zanussi

Zanussi FLS1000C User manual

Zanussi

Zanussi ZWH71046 User manual

Zanussi

Zanussi IZ 12 User manual

Zanussi

Zanussi ZWS 5883 User manual

Zanussi

Zanussi FJS 1386 User manual

Zanussi

Zanussi ZWF 0143BWH User manual

Zanussi

Zanussi ZAF824G1W User manual

Zanussi

Zanussi ZWF 10070 W User manual

Zanussi

Zanussi ZWF 81441W User manual

Zanussi

Zanussi ZWH7122J User manual

Zanussi

Zanussi ZWF 81463WR User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
