Part 1 - INSTALLATION INSTRUCTIONS

1 - GENERAL DATA

This hood has been designed to be wall-mounted above a cooking hob with one side resting against a

wall. It works either by suction (external outlet) or filter (internal recycling).

Because of the complexity and weight of the hood, its installation should be carried out by qualified

staff, taking care to respect all local regulations on air discharge.

The manufacturer cannot be found liable for any damage due to improper installation.

2 - COMPONENTS

The cooker hood is made up of the following components (fig. 1):

2.1 - No. 1 canopy Ccomplete with controls and worktop illumination;

2.2 - No. 1 telescopic chimney stack Acomplete with ducting fan unit;

2.3 - No. 1 flange Ø 120 or Ø 150 F;

2.4 - No. 1 venting grill G;

2.5 - No. 1 ducting spigot R;

2.6 - No. 1 support rod B;

2.7 - No. 1 fixing kit containing:

No. 1 wall bracket Sto fix the canopy hood;

No. 1 cover D, screws, rawl plugs and documentation.

3 - SAFETY WARNINGS

3.1- When used in the extraction mode the cooker hood ducting must not be connected to

a flue which is used for exhausting fumes from appliances supplied with energy other

than electric such as a central heating flue or water heating flue.

3.2- Before connecting to the mains supply ensure that the mains voltage corresponds with

the voltage on the rating plate inside the hood.

3.3- Connect the cooker hood to the mains via a double pole switch which has 3 mm

A03_01

clearance between the contacts.

3.4- The appliance must be earthed.

3.5- When installed, the hood must be positioned at least 65 cm above a cooking

appliance.

3.6- Never do flambé cooking under this cooker hood.

3.7- Never leave frying pans unattended during use as overheated fats and oils may catch

fire.

3.8- Before carring out any kind of maintenance or cleaning, disconnect the hood from

the mains supply.

3.9- If the room where the cooker hood is to be used contains a fuel burning appliance

such as a central heating boiler then this must be of the room sealed or balanced flue

type. If other types of flue or appliance are fitted ensure that there is an adequate

supply of air into the room. When the cooker hood is used in conjunction with other

appliances supplied with energy other than electric, the negative pressure in the room

must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the

cooker hood.

4 - INSTALLATION

The versatility of the ducting fan unit on this hood enables it to be installed in one of four different

ways:

1 - Air outlet directed upwards (ducting or recirculation fitting).

2 - Air outlet directed towards the wall (ducting fitting only).

3 - Air outlet directed to the right or left (ducting fitting only). For correct installation of the hood,

please proceed in the following stages:

4.1 - Selection of the type of installation

4.2 - Installation of the hood canopy C

4.3 - Installation of the chimney A

4.4 - Ducting or recirculation fitting

4.5 - Electrical connection and testing

4.1 - Selecting the type of installation

1 - Air discharge towards the top

In this case the hood can be used either in filter mode (fig. 2a) or in suction mode (fig. 2b).

2a 2b

S07_02

2 - Air discharge towards the wall (fig. 3)

In this case the hood can only be used in suction mode.

3 - Side air discharge, Lh or Rh (fig. 4a-b).

In this case the hood can only be used in suction mode.

4.2 - Installation of the hood canopy C

1 - Drilling the wall

a) Using the cardboard template provided, mark on the wall the centres of holes 1for fixing of the

hood canopy C. The centre of hole 2for fixing the chimney, (fig. 5a) air outlet directed upwards or

towards the wall, (fig. 5b-c) air outlet to the right or left hand side, must be marked at a distance X

from the line between holes 1, obtained by measuring the extension Zof the chimney required for

installation, plus 28 mm X=Z+35-7. Using a Ø8 mm drill bit, drill the points marked in this way.

b) When installed with the air outlet directed towards the wall (fig. 5a), it will be necessary to drill

an air ducting opening, measuring Ø120 or 150 mm, according to the diameter of the flange F

provided.

ø120

ø150

100 100 ø 8

650

105 105

A03_05

1 1

5a 5b 5c

S07_03

4a 4b

S07_04

R R

2 - Fitting the fixing elements

a) Insert the rawl plugs provided into holes 1 and 2.

b) Fit the eye bolts O (fig. 6).

c) Fix the wall bracket S in hole 2 using the screw V provided (fig. 7).

3 - Fitting the hood canopy Cto the

wall

a) Remove the metal grease filters

and the activated charcoal filter,

if there is any (see the paragraph on

Maintenance).

b) Fit the support rod Busing the

two screws K(3,5x9,5) provided

(fig. 8).

c) Hook the hood canopy Cto the eye bolts

Ofixed in holes 1 (fig. 9).

d) Adjust the support rod Bso that it pushes

against the wall (fig. 10).

e) Adjusting position (fig. 11). There are two

adjustable hooks at the rear of the hood,

which can be used to adjust its position as

follows:

- Turn the screws Luntil the position of

screws Ncoincides with the lower access

holes.

- Turn the screws Nto adjust the vertical and

horizontal position of the hood.

- Lock the screws L to fasten the hood

against the wall.

- Insert the plugs Tprovided in the holes

giving access to screws N.

A08_11

OA08_06

L = 44 mm

A08_07

A03_08

A03_09

A03_10

4.3 - Installation of the

chimney A

No matter which type of installation is

being used, any wooden shelves in the

area where the hood is to be fitted must

first be removed, drilled and later

replaced.

1 - Drilling the shelves:

a) Using the cardboard template provided,

and taking hole “B” as a point of reference,

drill the shelves along the central axis to

allow the passage of the chimney. The

chimney must be inserted into the shelves

before it is fixed to the hood canopy C(fig.

12).

b) When installing the ducting version with

the air outlet directed upwards, if the

ducting fan unit is positioned below the

line of shelves it will be necessary to drill a

suitable hole in the top shelf only, to allow

the air ducting pipe to pass through

(fig. 13).

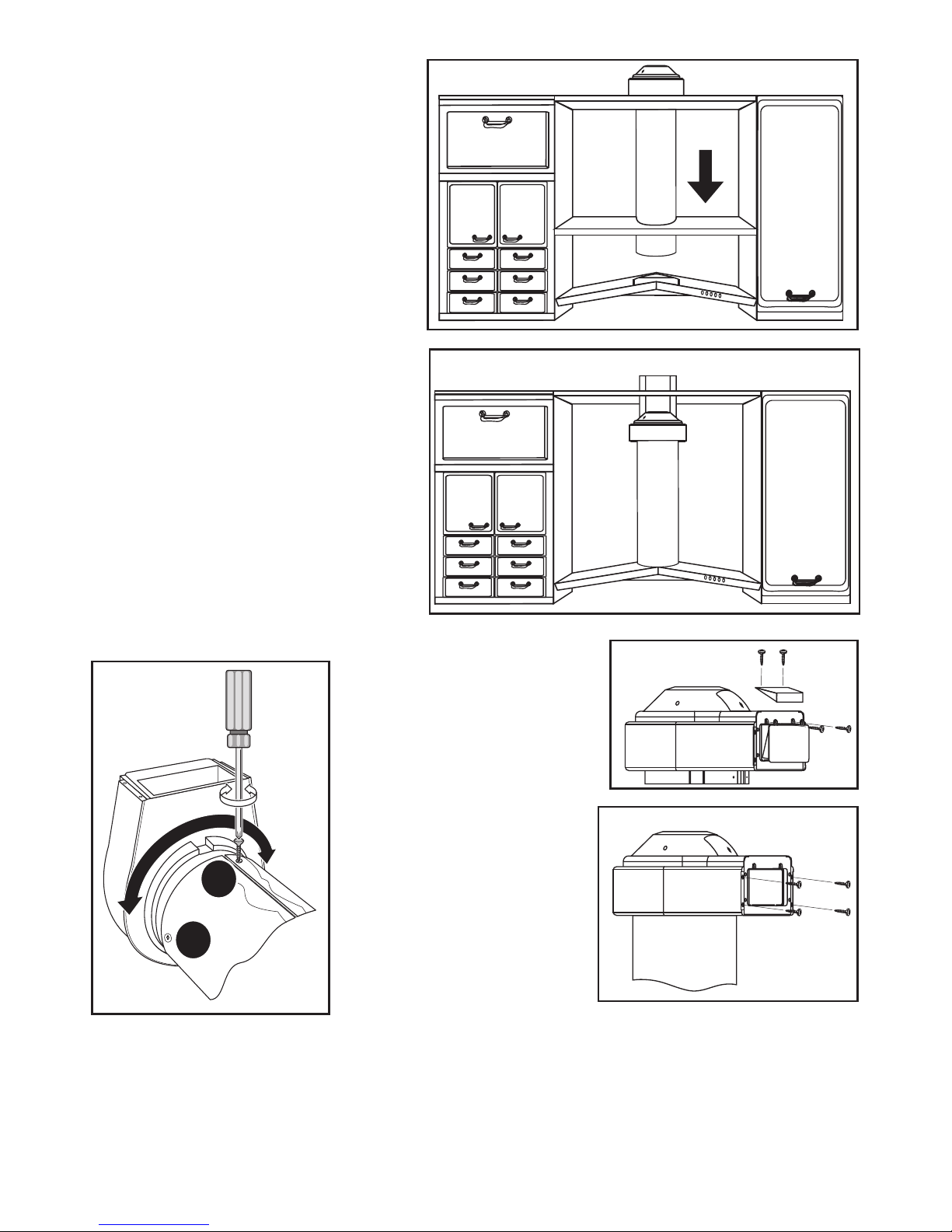

2 - Direction and position of the ducting

fan unit

a) The hood is normally supplied with the air outlet directed towards

the wall (fig. 3), if it is to be installed

with the air outlet directed to the

right or left (fig. 4a-b), it will be

necessary to change the direction of

the ducting fan unit,

proceeding as follows:

- Unscrew the screws U(fig. 14);

- Turn the ducting fan unit 60°to

the right or left;

- Replace the screws U.

b) The ducting fan unit air outlets

must be arranged according to the

type of installation to be carried

out.

· Air outlet directed upwards

(fig. 2a-b).

- Remove the plastic plug from the upper part of the venting grill and

replace it on the rear part (fig. 15).

· Air outlet directed towards the wall (fig. 3).

- Remove the plastic frame from the air outlet (fig. 16).

A08_14

S07_22

S07_14

A03_12

A03_13

- Remove the plug

from the upper part

of the ducting fan

unit (fig. 17), as it is

not possible to insert

the flange F with the

plug in place.

- Fit the

flange F

Ø120 or

150 mm (fig. 18), replace the plug.

· Air outlet directed to the right or

left hand side (fig. 4a-b).

- Remove the four screws fastening

the plastic frame, as shown in

fig. 16.

- Fit the ducting spigot R(fig. 19)

and replace the four screws removed

as above.

3 - Fixing the chimney

a) Loosen the screws Mfixing the

two parts of the chimney and pull

the inner section I(fig. 20) almost

all the way out. Remove the

protective film P.

b) Rest the lower section of the

chimney in its housing on the top of

the hood canopy. Lower the ducting

fan unit until it reaches the wall

bracket Sand fix it using the screw

Hprovided (fig. 21). Fit the cover D

(provided) on the wall bracket S(fig. 22).

c) Fix the chimney Ato the hood canopy Cusing the four screws

provided (fig. 23).

d) Insert the transparent seal Q(provided), so as to eliminate any

play between the two parts of the chimney (fig. 24). Lock the

screws M.

e) Remove the support rod B.

S07_16

S07_19

A08_20

A08_21

A08_23 23

A08_24

A08_22

4.4 - Ducting or recirculation fitting

1 - Ducting fitting.

This is possible for all forms of installation:

a) Connect the air outlet to the external ducting system.

b) Remove the activated charcoal filter (if there is one) inside the hood

canopy (see Maintenance).

2 - Recirculation fitting

This is only possible with the air outlet directed upwards. Fit the venting

grille Gonto the air outlet (Fig. 25). The activated charcoal filter should

be fitted inside the hood canopy after connection to the power supply.

4.5 -

Connection to power supply and checking of good working order

1 - It is absolutely necessary to follow the warnings 3.2, 3.3 and 3.4 of

paragraph 3, concerning safety measures.

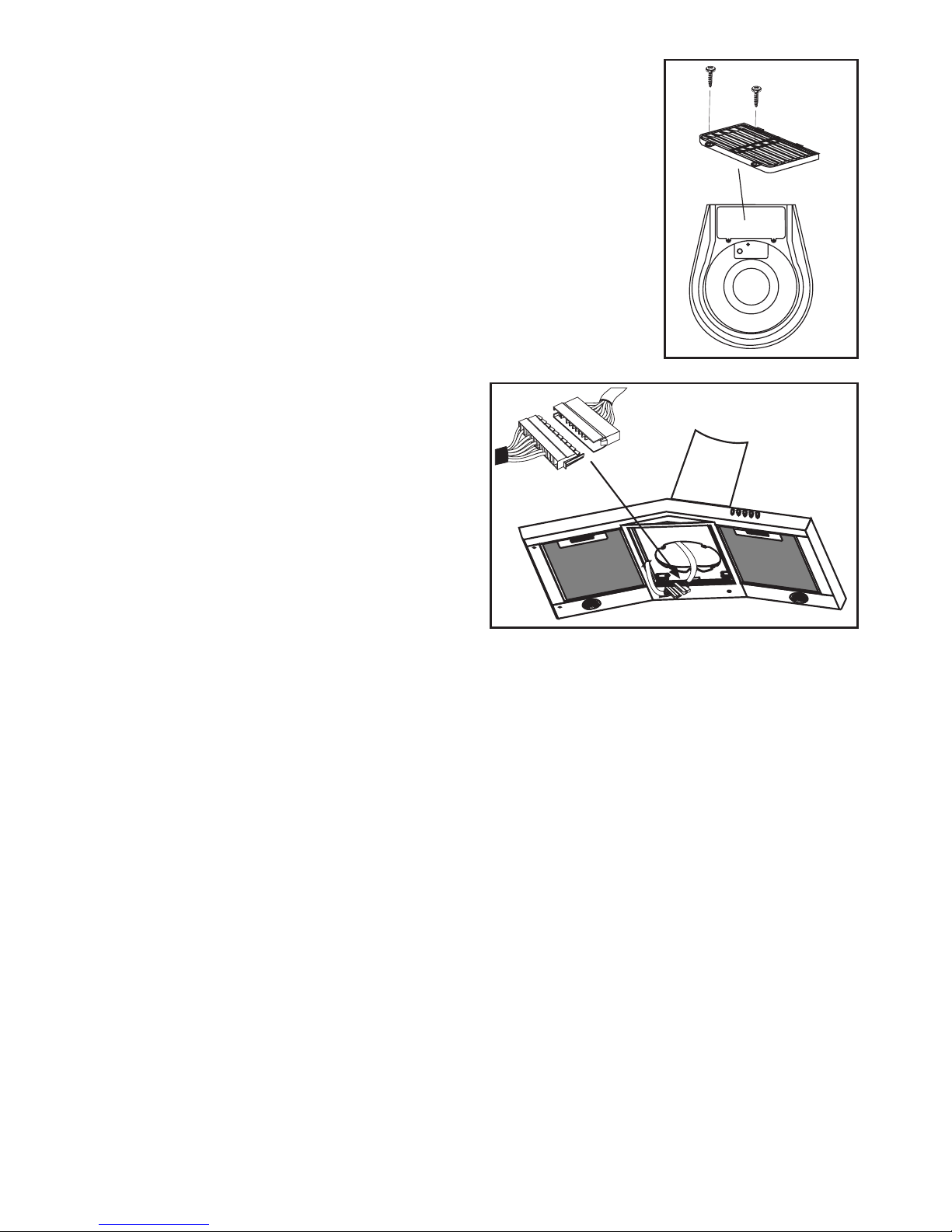

2 - Connect the hood connection to the engine

connection (fig.26).

3 - Once electrical connection has been carried out,

check that lights, engine and change of speed

work.

4 - Fit the antigrease filters and the activated carbon

filter (only for filter mode) (see Maintenance).

Part 2 -

USE AND MAINTENANCE INSTRUCTIONS

1 - SAFETY WARNINGS

It is most important that all the warnings shown in paragraph 3 of the Installation

Instructions are strictly observed.

Moreover, pay special attention to the following warnings during the use and maintenance of

the cooker hood:

1.1- The grease filters and charcoal filters should be cleaned or replaced as recommended

by the manufacturer or more frequently if the hood is used consistently (over 4 hours

per day).

1.2- When using a gas hob in connection with the cooker hood never leave the burners of

the hob uncovered while the hood is in use or when the pans have been removed.

Switch off the gas before removing the pan, or for just short periods and never leave

the hob unattended.

1.3- Always ensure that the flame is kept at the correct intensity to prevent the flame

from licking round from the bottom of the pan; this will save energy and will avoid a

dangerous concentration of heat.

1.4- Always ensure that the appliance is used in accordance with the manufacturer’s

instructions for the removal of contaminated air and odours during cooking.

S07_23

A03_26

2 - OPERATION

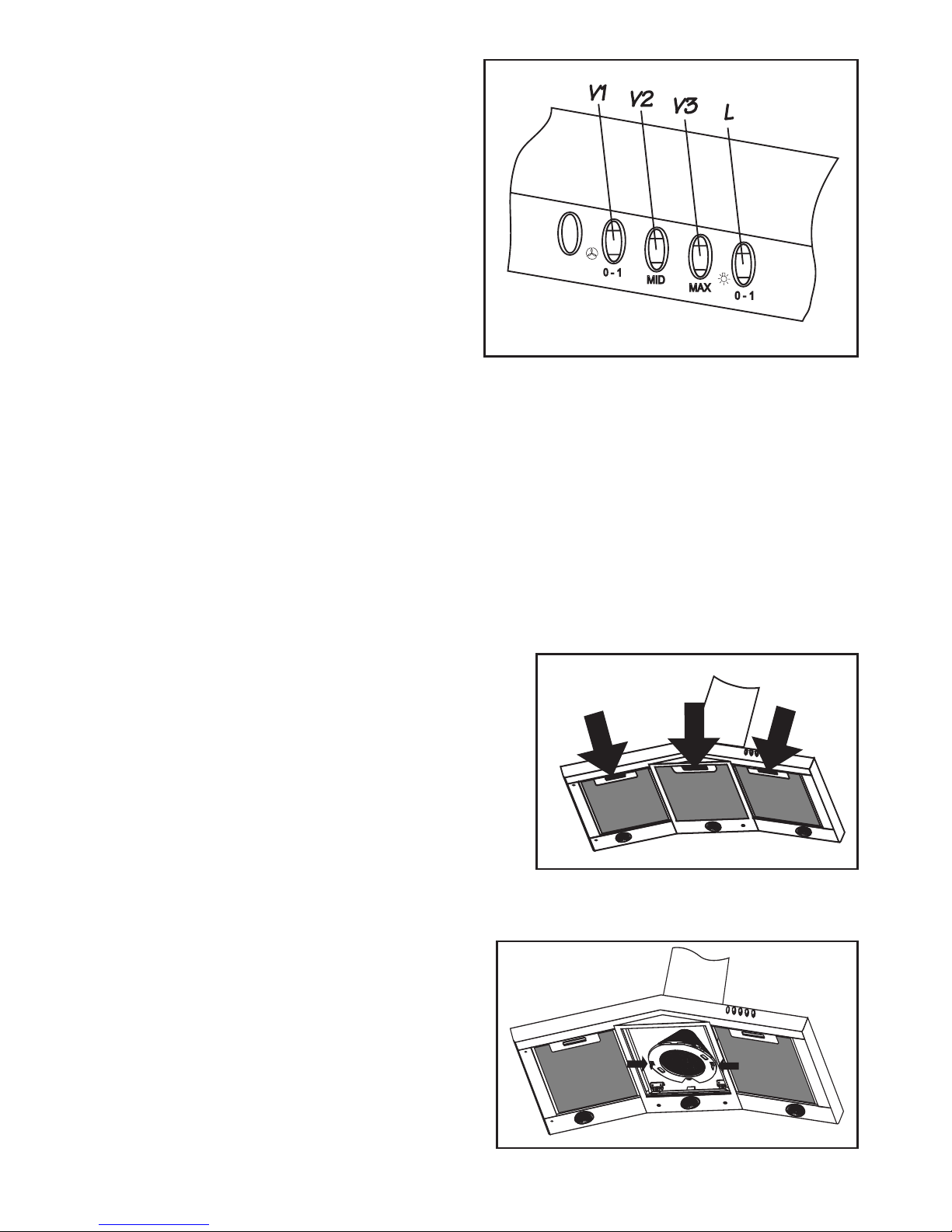

Control panel (fig. 27)

The cooker hood can be operated as follows:

SWITCH L= controls the worktop

illumination;

SWITCH V1 = controls the fan speed for low

speed, should be selected when

simmering or using only one

pan: the noise level is kept to the

minimum.

SWITCH V2 = medium speed, should be

selected for normal cooking. This

speed offers the best ratio between air capacity and noise level.

SWITCH V3 = top speed, should be selected when frying or cooking food with strong odours, even

for a long period.

3 - MAINTENANCE

Constant maintenance is a guarantee for long-lasting working order and efficiency.

Special care should be taken of the metal antigrease filter and activated carbon filter (for filter hoods

only).

3.1 - Metal antigrease filters

1 - Cleaning

It is necessary to wash these filters at least every two

months with a normal detergent; their compact size

enables them to be washed also in dishwasher.

2 - Replacement

The metal grease filters panels are easily removed, one

at a time, by applying slight inward pressure to the

actuators to release the securing bolts (fig. 28). Care

should be taken to support the filter with one hand

while releasing the securing bolts with the other hand.

3.2 - Activated carbon filters

1 - How they work

The activated carbon filter can hold odours until it

reaches total saturation. It is not washable nor can it

be re-used, but should be changed at least every 4

months or more often in case of intensive use.

2 - Replacement

Remove the antigrease filters and the activated

carbon filter from its seat by acting on the hooks

(fig. 29). Fit the new activated carbon filter and

the metal antigrease filters.

A03_27

A03_06

A03_27

WARNING: Maintenance or replacement periods should be respected to avoid any fire hazards when

the filters get saturated with grease.

3.3 - Light

1 - It consists of 2 20 W-halogen spotlights.

2 - Replacement (fig. 30)

Remove the two screws that lock the metal ring,

take the spotlight out of its holder by pulling

slightly. When replacing, make sure that both

pins are well inserted in the holder seat.

3.4 - Cleaning

Normal cleaning operation of the hood:

- Do not use any wet cloth or sponge or water-jet.

- Do not use diluents or alcohol, as they could make the painted surfaces opaque.

- Do not use abrasive products, especially on stainless steel surfaces.

We recommend the use of a damp cloth and any neutral liquid detergent.

S07_28

Table of contents

Other Zanussi Ventilation Hood manuals

Zanussi

Zanussi ZFI719A User manual

Zanussi

Zanussi ZHC 930 X Manual

Zanussi

Zanussi ZFC329X User manual

Zanussi

Zanussi ZHC75X User manual

Zanussi

Zanussi ZHC 62462 XA User manual

Zanussi

Zanussi ZFVX19K User manual

Zanussi

Zanussi Master 642155 User manual

Zanussi

Zanussi Supertredil 641266 User manual

Zanussi

Zanussi ZHG513G User manual

Zanussi

Zanussi ZH758 Instructions for use

Zanussi

Zanussi ZHI 623 Manual

Zanussi

Zanussi ZHB90460XA User manual

Zanussi

Zanussi Professional Master 642001 User manual

Zanussi

Zanussi ZHC600X User manual

Zanussi

Zanussi ZFG315S User manual

Zanussi

Zanussi ZHC72X User manual

Zanussi

Zanussi ZHC 925 User manual

Zanussi

Zanussi ZHC 935 User manual

Zanussi

Zanussi ZHT 920 Instructions for use

Zanussi

Zanussi ZHI622G User manual

Zanussi

Zanussi Block 642173 User manual

Zanussi

Zanussi ZFG816X User manual

Zanussi

Zanussi TH 500 User manual

Zanussi

Zanussi Professional Master 642068 User manual

Popular Ventilation Hood manuals by other brands

emmeti

emmeti RECUPA MED A-140 Installation and use manual

Nibe

Nibe F135 user manual

Kuppersberg

Kuppersberg INTRO 60 Technical Passport

Zephyr

Zephyr Spruce AK9834BS Use, care and installation guide

Hisense

Hisense MH6INBG manual

Miele

Miele DA 1255 Operating and installation instructions

Broan

Broan 46000 Specification sheet

GE Profile PV977 Owner's Manual & Installation Instructions

FALMEC

FALMEC FFRIA24W5FS Instruction booklet

Whirlpool

Whirlpool RH2600XL-1 SERIES installation instructions

Küppersbusch

Küppersbusch DX ISLA instruction manual

ETNA

ETNA AV360RVS Instructions for use

JUNO

JUNO JDF603E6 installation manual

Miele

Miele DA 6708 D Operating and installation instructions

Tricity Bendix

Tricity Bendix LE 150 Installation & operating instructions

AEG

AEG X68163BV1 user manual

AEG

AEG 125 D operating instructions

Smeg

Smeg KSEV97X instruction manual
