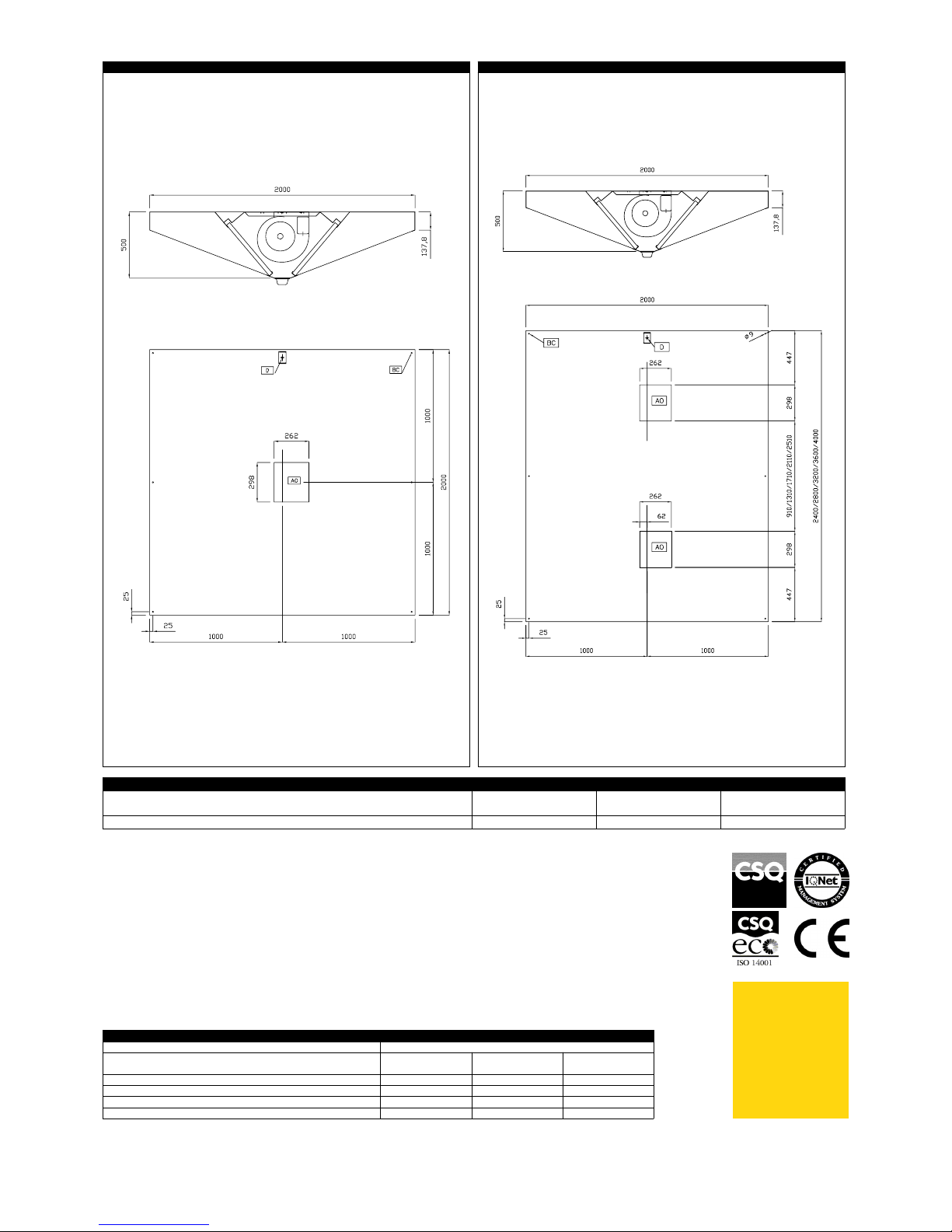

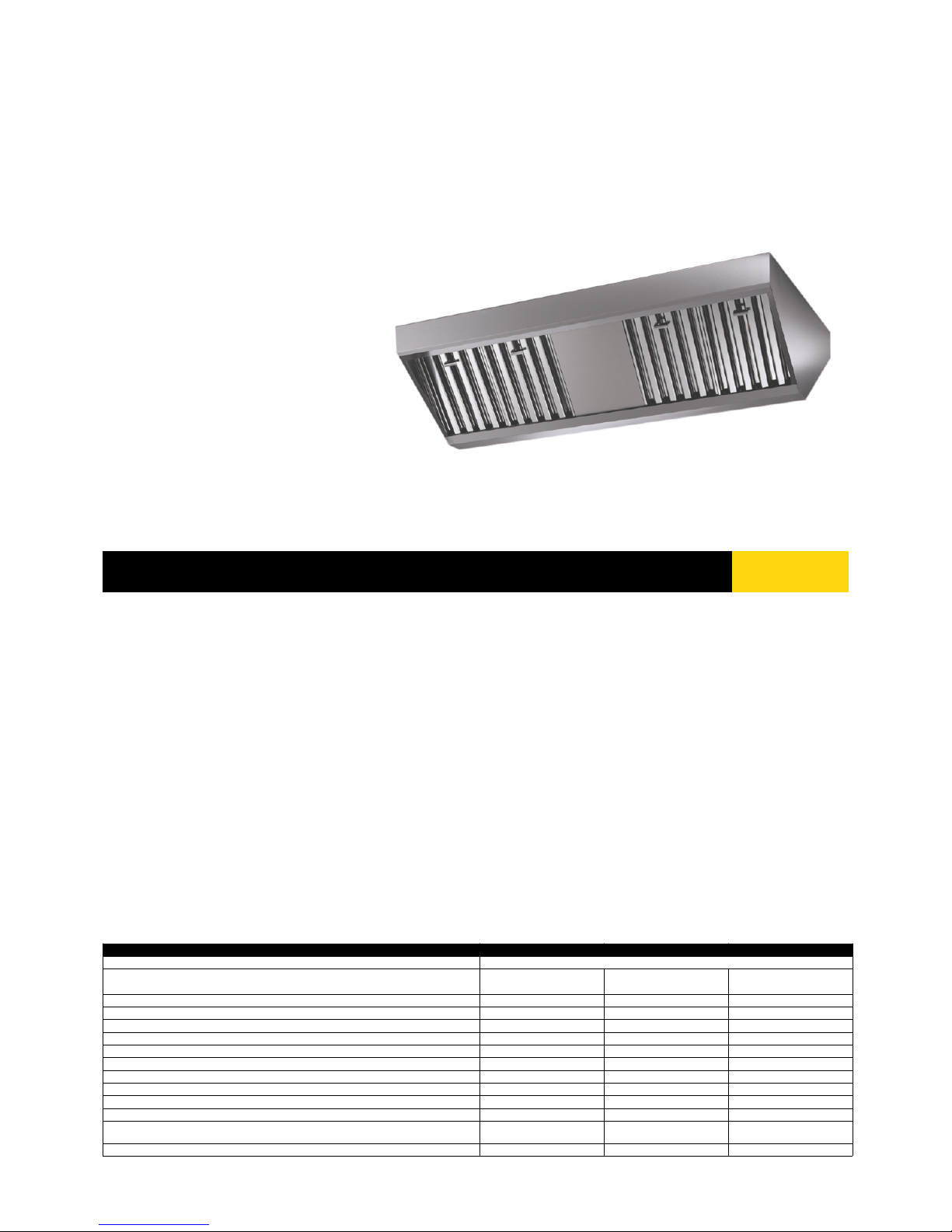

ZANUSSI

P R O F E S S I O N A L

304 AISI CENTRAL TYPE HOODS

MASTER - MV line - 2000 mm

642319

304 S/S LABYRINTH FILTER H=500 MM 6 8 10

INCLUDED ACCESSORIES

Supply voltage 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60

Net weight - kg. 71 80 89

installed-electric 1.1 1.1 1.1

Power - kW

Built-in fan - power W 550 550 550

Air Capacity - mc/h 7600 7600 7600

height 500 500 500

depth 2000 2000 2000

width 2000 2400 2800

External dimensions - mm

MCV2020DT

642319

MCV2024DT

642320

MCV2028DT

642321

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of central hoods used for

snack applications and on the N700

and N900 Series cooking units. Their

particular profile and the limited

installation height makes them

suitable for use in places with low

ceilings. The range consists of

hoods with 3 different lengths (2000,

2400 and 2800 mm) and a depth of

2000 mm.

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� Constructed entirely in 304 AISI

stainless steel.

� Labyrinth filters in 304 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Powerful internal fan(s) 550 W.

� Central drain pipe with drain hole

to transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HBBB4 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

SPEED VARIATOR FOR MOTORS UP TO 1.7 KW 640686 640686 640686

DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG 640409 640409 640409

36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680805

27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680804 680804

MCV2020DT

642319

MCV2024DT

642320

MCV2028DT

642321

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

EI - Electrical connection 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60

MCV2020DT

642319

MCV2024DT

642320

MCV2028DT

642321

LEGEND

642319 642320, 642321
