Zanussi Block 642345 User manual

ZANUSSI

P R O F E S S I O N A L

304 AISI CENTRAL TYPE HOODS

BLOCK - B line - 1400 mm

304 S/S LABYRINTH FILTER H=500 MM 4 4 8 8 10 12 12 14

304 S/S BLIND PANEL 400X500H MM 2 2 2 2 2

INCLUDED ACCESSORIES

Net weight - kg. 50 58 60 79 87 94 103 110

Air Capacity - mc/h 2200 2800 3500 4200 4900 5600 6400 7000

height 500 500 500 500 500 500 500 500

depth 1400 1400 1400 1400 1400 1400 1400 1400

width 1200 1600 2000 2400 2800 3200 3600 4000

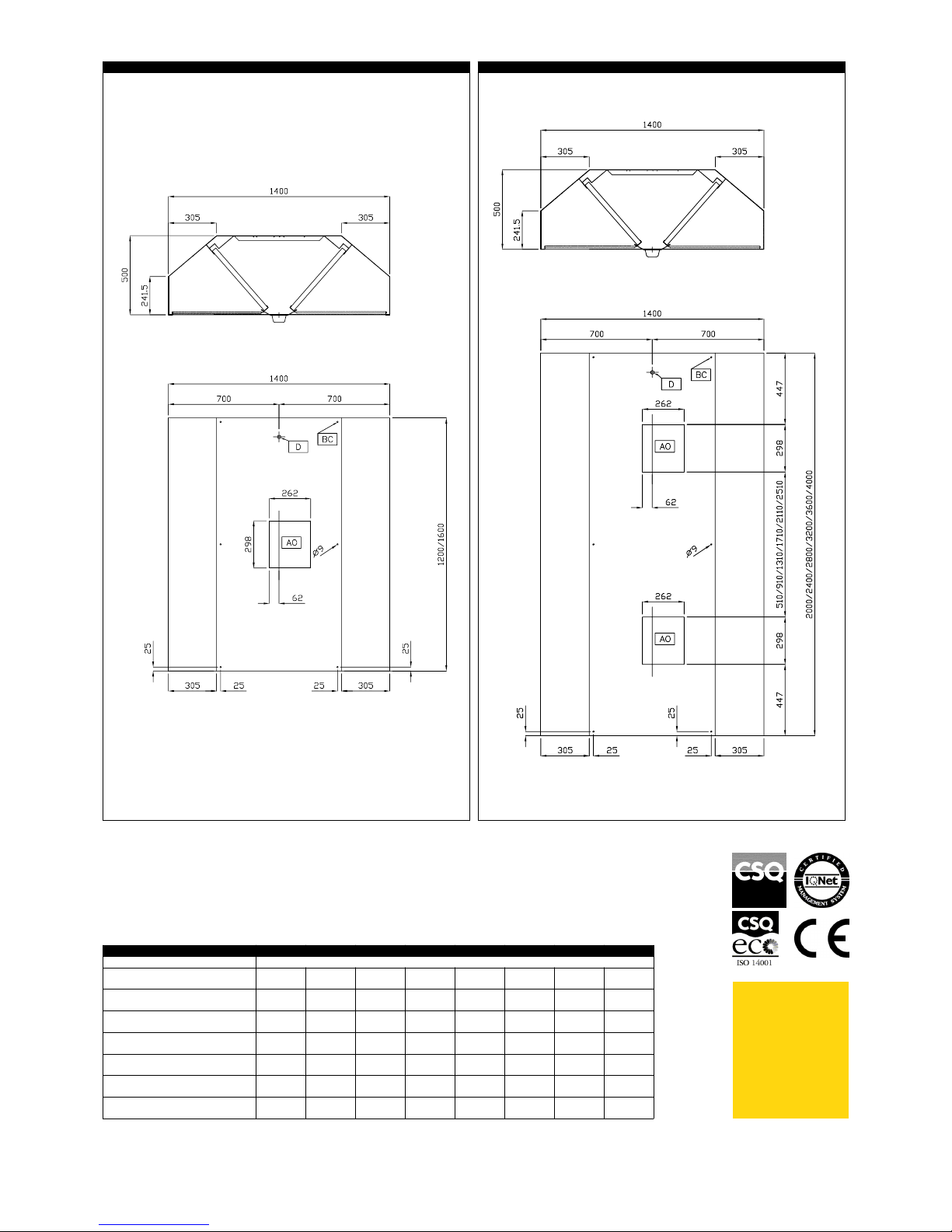

External dimensions - mm

BC1412DT

642345

BC1416DT

642346

BC1420DT

642347

BC1424DT

642348

BC1428DT

642349

BC1432DT

642350

BC1436DT

642351

BC1440DT

642352

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of central hoods

guaranteeing a rational and versatile

solution to extraction problems over

most cooking appliances. The

sloped front gives them a neat

appearance while taking up less

space, making them particularly

suitable for small kitchens. The

range consists of hoods with 8

different lengths (1200, 1600, 2000,

2400, 2800, 3200, 3600 and 4000

mm) and 1400 mm deep.

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� Constructed entirely in 304 AISI

stainless steel.

� Labyrinth filters in 304 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Perimetral gutter with drain hole to

transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HCAB4 2011-06-27 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

SPEED VARIATOR FOR MOTORS UP TO

1.7 KW

640686 640686 640686 640686 640686 640686

SPEED VARIATOR FOR MOTORS UP TO

1.17 KW

640076 640076

FAN FOR VENTIL HOODS+DUCTED

EXTRACT.UNIT

640748 640748 640748 640748 640748 640748 640748 640748

DRAIN FOR HOODS DIAM.1/2"(M) WITH

PLUG

640409 640409 640409 640409 640409 640409 640409 640409

36-WATT LIGHTING FIXTURE W/1

LAMP-IP 65

680805 680805 680805 680805 680805

27-WATT LIGHTING FIXTURE W/1

LAMP-IP 65

680804 680804 680804 680804 680804

BC1412DT

642345

BC1416DT

642346

BC1420DT

642347

BC1424DT

642348

BC1428DT

642349

BC1432DT

642350

BC1436DT

642351

BC1440DT

642352

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

642345, 642346 642347, 642352, 642351, 642350, 642349, 642348

This manual suits for next models
