Zanussi ZOPXE5X2 User manual
zanussi.com\register
ZOPXE5X2
EN User Manual | Oven
VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.zanussi.com/support
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 2
2. SAFETY INSTRUCTIONS.............................................................................. 4
3. INSTALLATION...............................................................................................7
4. PRODUCT DESCRIPTION............................................................................. 8
5. CONTROL PANEL.......................................................................................... 9
6. BEFORE FIRST USE......................................................................................9
7. DAILY USE....................................................................................................10
8. CLOCK FUNCTIONS.................................................................................... 11
9. USING THE ACCESSORIES........................................................................13
10. ADDITIONAL FUNCTIONS.........................................................................14
11. HINTS AND TIPS........................................................................................ 15
12. CARE AND CLEANING.............................................................................. 18
13. TROUBLESHOOTING................................................................................ 22
14. ENERGY EFFICIENCY...............................................................................23
15. ENVIRONMENTAL CONCERNS................................................................24
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
2 ENGLISH
be kept away from the appliance unless continuously
supervised.
• Children should be supervised to ensure that they do not
play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic
use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
• Only a qualified person must install this appliance and
replace the cable.
• Do not use the appliance before installing it in the built-in
structure.
• Disconnect the appliance from the power supply before
carrying out any maintenance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons to avoid an electrical hazard.
• WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
• WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements or the surface of the appliance cavity.
ENGLISH 3
• Always use oven gloves to remove or insert accessories or
ovenware.
• To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
• Before pyrolytic cleaning, remove all accessories and
excessive deposits/spills from the appliance cavity.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions supplied
with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable
place that meets installation requirements.
• Keep the minimum distance from other
appliances and units.
• Before mounting the appliance, check if
the appliance door opens without restraint.
• The appliance is equipped with an electric
cooling system. It must be operated with
the electric power supply.

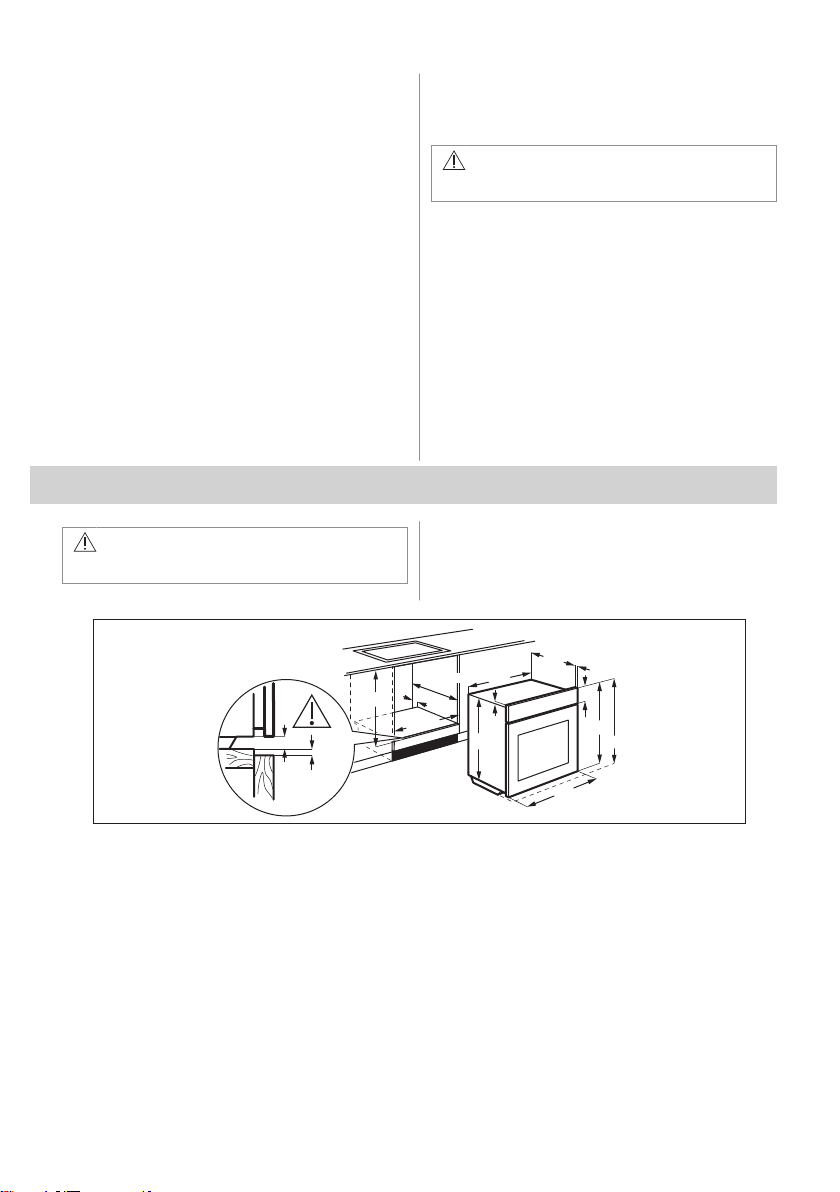

Cabinet minimum height
(Cabinet under the worktop
minimum height)
590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the
appliance
598 mm
Height of the back of the
appliance
579 mm
Width of the front of the ap‐
pliance
594 mm
Width of the back of the ap‐
pliance
558 mm
Depth of the appliance 561 mm
Built in depth of the appli‐
ance
540 mm
Depth with open door 1007 mm
Ventilation opening mini‐
mum size. Opening placed
on the bottom rear side
560x20 mm
Mains supply cable length.
Cable is placed in the right
corner of the back side
1100 mm
Mounting screws 4x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
4 ENGLISH
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Should
the mains cable need to be replaced, this
must be carried out by our Authorised
Service Centre.
• Do not let mains cables touch or come
near the appliance door or the niche below
the appliance, especially when it operates
or the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• Fully close the appliance door before you
connect the mains plug to the mains
socket.
• This appliance is supplied with a main
plug and a main cable.
Cable types applicable for installation or re‐
placement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05
V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total
power on the rating plate. You can also refer
to the table:
Total power (W) Section of the cable
(mm²)
maximum 1380 3x0.75
maximum 2300 3x1
maximum 3680 3x1.5
The earth cord (green / yellow cable) must be
2 cm longer than the brown phase and blue
neutral cables.
2.3 Use
WARNING!
Risk of injury, burns and electric shock or
explosion.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects
in the appliance directly on the bottom.
– do not put aluminium foil directly on
the bottom of cavity of the appliance.
ENGLISH 5
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance of
the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• Always cook with the appliance door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure the
door is never closed when the appliance
operates. Heat and moisture can build up
behind a closed furniture panel and cause
subsequent damage to the appliance, the
housing unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• If you use an oven spray, follow the safety
instructions on its packaging.
2.5 Pyrolytic cleaning
WARNING!
Risk of Injury / Fires / Chemical
Emissions (Fumes) in Pyrolytic Mode.
• Before carrying out the pyrolytic cleaning
and initial preheating remove from the
oven cavity:
– any excess food residues, oil or
grease spills / deposits.
– any removable objects (including
shelves, side rails, etc., provided with
the appliance) especially any non-stick
pots, pans, trays, utensils, etc.
• Read carefully all the instructions for
pyrolytic cleaning.
• Keep children away from the appliance
while the pyrolytic cleaning operates. The
appliance becomes very hot and hot air is
released from the front cooling vents.
• Pyrolytic cleaning is a high temperature
operation that can release fumes from
cooking residues and construction
materials, as such consumers are advised
to:
– provide good ventilation during and
after the pyrolytic cleaning.
– provide good ventilation during and
after the initial preheating.
• Do not spill or apply water on the oven
door during and after the pyrolytic cleaning
to avoid damaging the glass panels.
• Fumes released from all pyrolytic ovens /
cooking residues as described are not
harmful to humans, including children, or
persons with medical conditions.
• Keep pets away from the appliance during
and after the pyrolytic cleaning and initial
preheating. Small pets (especially birds
and reptiles) can be highly sensitive to
temperature changes and emitted fumes.
• Non-stick surfaces on pots, pans, trays,
utensils etc., can be damaged by the high
temperature pyrolytic cleaning operation of
all pyrolytic ovens and can be also a
source for low level harmful fumes.
2.6 Internal lighting
WARNING!
Risk of electric shock.
6 ENGLISH
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
• This product contains a light source of
energy efficiency class G.
• Use only lamps with the same
specifications.
2.7 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.8 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
appliance.
3. INSTALLATION
WARNING!
Refer to Safety chapters.

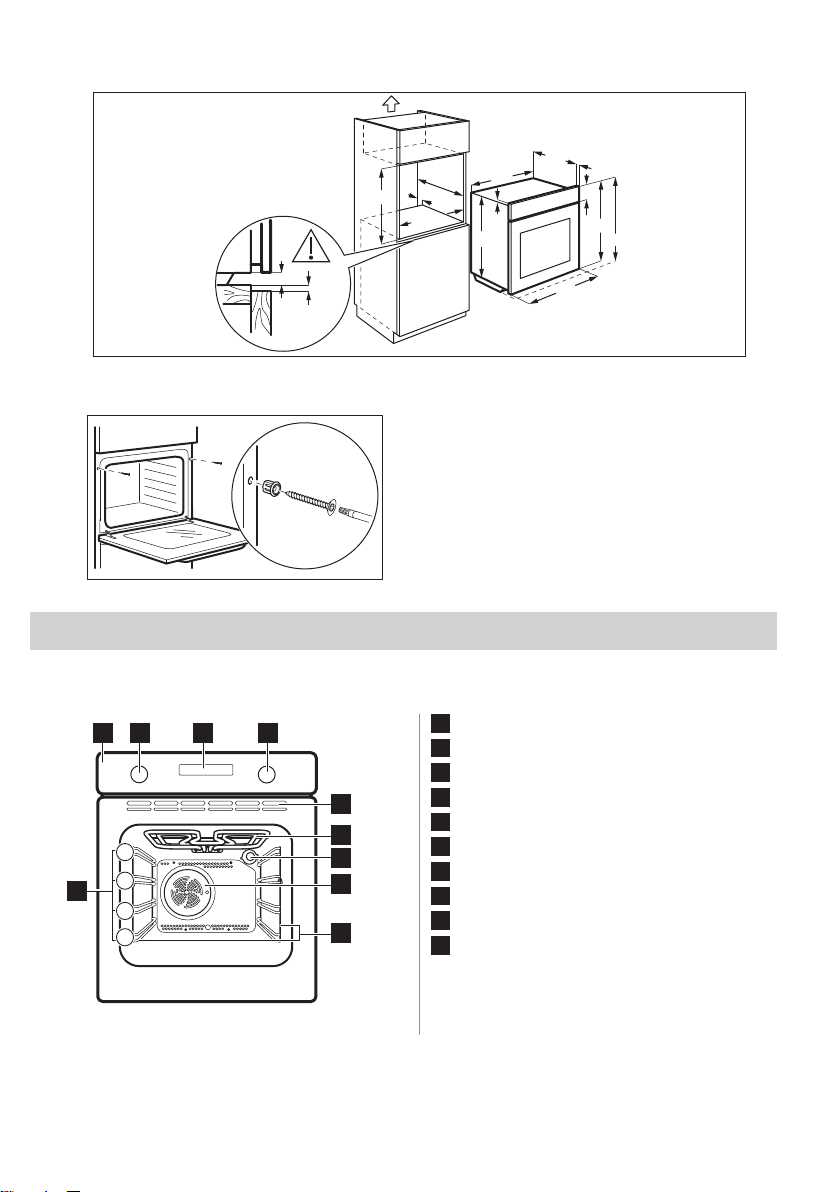

3.1 Building in
589
598
594
114
19
21540
570
558
min. 550
20
min. 560
3
9
600
(*mm)
ENGLISH 7
min. 550
20
590
min. 560 589
598
594
114
19
21540
570
558
3
9
(*mm)
3.2 Securing the oven to the cabinet
4. PRODUCT DESCRIPTION
4.1 General overview
1 3 42
5
6
7
8
9
4
3
2
1
10
1Control panel
2Knob for the heating functions
3Display
4Control knob (for the temperature)
5Air vents for the cooling fan
6Heating element
7Lamp
8Fan
9Shelf support, removable
10 Shelf positions
8 ENGLISH
4.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Grill- / Roasting pan
To bake and roast or as pan to collect fat.
•Telescopic runners
With the telescopic runners you can put in
and remove the shelves more easily.
5. CONTROL PANEL
5.1 Retractable knobs
To use the appliance press the knob. The
knob comes out.
5.2 Sensor fields / Buttons
To set the time.
To set a clock function.
To set the time.
5.3 Display
A B
DG EF C
A. Timer / Temperature
B. Heat-up and residual heat indicator
C. Food Sensor (selected models only)
D. Door lock (selected models only)
E. Hours / minutes
F. Demo Mode (selected models only)
G. Clock functions
6. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
Set the time before you use the oven.
6.1 Initial Cleaning
Step 1 Step 2 Step 3
Remove all accessories and remov‐
able shelf supports from the appli‐
ance.
Clean the appliance and the acces‐
sories only with a microfibre cloth,
warm water and a mild detergent.
Place the accessories and the re‐
movable shelf supports in the appli‐
ance.
6.2 Initial preheating
Preheat the empty oven before the first use.
ENGLISH 9
Step 1 Remove all accessories and removable shelf supports from the oven.
Step 2 Set the maximum temperature for the function: .
Let the oven operate for 1 h.
Step 3 Set the maximum temperature for the function: .
Let the oven operate for 15 min.
Step 4 Set the maximum temperature for the function: .
Let the oven operate for 15 min.
The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.
7. DAILY USE
WARNING!
Refer to Safety chapters.
7.1 How to set: Heating function
Step 1 Turn the knob for the heating functions
to select a heating function.
Step 2 Turn the control knob to select the tem‐
perature.
Step 3 When the cooking ends, turn the knobs
to the off position to turn off the oven.
7.2 Heat-up indicator
When the oven function operates, the bars in
the display appear one by one when the
temperature in the oven increases, and
disappear when it decreases.
7.3 Heating functions
Heating func‐
tion
Application
Off position
The oven is off.
True Fan Cooking
To bake on up to two shelf posi‐
tions at the same time and to dry
food.
Set the temperature 20 - 40 °C
lower than for Conventional
Cooking.
Heating func‐
tion
Application
Conventional
Cooking
To bake and roast food on one
shelf position.
Grill
To grill thin pieces of food and to
toast bread.
Fast Grilling
To grill thin pieces of food in
large quantities and to toast
bread.
Turbo Grilling
To roast large meat joints or
poultry with bones on one shelf
position. To make gratins and to
brown.
Bottom Heat
To bake cakes with crispy bot‐
tom and to preserve food.
Pizza Function
To bake pizza. To make inten‐
sive browning and a crispy bot‐
tom.
10 ENGLISH
Table of contents
Other Zanussi Oven manuals
Zanussi
Zanussi ZOHNA7X1 User manual
Zanussi
Zanussi ZOG21317XK User manual
Zanussi
Zanussi ZOB31471WK User manual
Zanussi
Zanussi ZOU362 User manual
Zanussi
Zanussi ZOB10401WK User manual
Zanussi
Zanussi ZOB140W User manual
Zanussi
Zanussi FM 55 User manual
Zanussi
Zanussi ZOHXF1X1 User manual
Zanussi
Zanussi ZBQ 365 User manual
Zanussi
Zanussi ZOU 666 User manual
Zanussi
Zanussi ZOU 851 User manual
Zanussi
Zanussi ZOB 332 User manual
Zanussi
Zanussi ZOU20612XU User manual
Zanussi
Zanussi ZOPKX6XN User manual
Zanussi
Zanussi FM 55 Quick reference guide
Zanussi
Zanussi ZBM930 User manual
Zanussi
Zanussi ZOP67902XU User manual
Zanussi
Zanussi ZHN 721 User manual
Zanussi
Zanussi FM 5231 User manual
Zanussi
Zanussi ZOF35517 User manual
