Zanussi DCH 327 X User manual
1
Model No. DCH 327 X
Product No 949 600 131
Serial No.
32587-6516Rev. 1-842
INSTRUCTION BOOK
ZANUSSI IRE
2
Contents Page no
I portant to know........................................................................................... 3
Operating instructions ..................................................................................... 6
Maintenance And Cleaning ............................................................................ 8
Tips on the use of the cera ic hob unit ........................................................ 10
Mounting .................................................................................................. 12
Electrical installation ..................................................................................... 14
Technical data ............................................................................................... 15
If the hob does not work ............................................................................... 16
Deep fat frying.............................................................................................. 17
It is i portant to know how the hob works, for which reason we would ask you to
read these instructions carefully before using it. Only then can we quarantee that
"your new kitchen aid" will fully eet your expectations and require ents that you
had when you chose your Zanussi syste .
Sincerely
Zanussi
3
Service and repair may only be
performed by the distributor, or by a
service organization approved by the
distributor. Only repair parts delivered
by the distributor may be used.
Please read the warranty.
Avoid pinching the cable.
The hob unit is intended for ordinary
household cooking purposes. Any
other use can result in damage to the
unit as well as personal injury.
Use only pots and pans with a rigid,
even contact surface - uneven contact
surface results not only in poor heat
conduction, but also increases the risk
of dangerous spills.
During deep-fat frying, sauteeing,
melting of butter, etc., one must always
remain near the unit, due to the danger
of fire. In the event of fire the unit
must be shut off immediately (and the
cooker hood as well, if in use).
Make sure that the unit is shut off
when not in use - the knob should rest
at “0”.
The unit becomes dangerously hot
during use, and remain so for a period
of time. They should therefore be
treated with due respect. Keep children
at a distance.
For safety's sake, turn pots and pans so
that handles do not protrude, thus
inviting accidents.
Never place plastic or paper, etc., on
the unit. If the unit should be switched
on by accident, the paper could burn,
plastic melt, etc.
For hygienic and safety reasons the
unit must be kept clean. Grease, oil
and food spills create unpleasant
odours when burnt, and can in some
cases result in open flames.
Read - and adhere to - the users
instructions, as well as any instructions
and warnings printed on the labels of
the cleaning agents used.
Help to avoid accidents; if the unit
should ever be discarded, render it
useless by removing the cable, or by
cutting the cable as close to the unit as
possible.
Areas if use
The hob is only intended for normal
household use. It is important that you
follow the advice given in these
instructions in order to avoid any risk
of damage to persons and objects.
Used for any other purpose invalidates
the guarantee as well as product
liability.
Important to know
4
Product liability
Our liability is limited to that which is
stipulated by law, and covers only
damage to persons and property, which
results from defects in materials and
workmanship of the unit itself.
This liability extends for a period of 10
years from the date of purchase as a
factory-new unit.
Reservations
Our liability does not apply in the
event that the damage in question is
due to any of the following conditions:
The unit has not been installed in
accordance with the instructions set
forth in this pamphlet.
That the safety rules in the instructions
have not been complied with.
That repair has been made by others
than an authorized service technician.
The unoriginal spare parts have been
used. That the damage is caused by
transport at a later date, for instance
during removal or resale.
That the damage is caused by any form
of use contrary to common sense.
Positioning
It is advisable to place the unit near an
out-of-the-way, or closed, corner, with
space on either side on which to rest
hot cooking utensils. The unit should
not be placed at a heavily-trafficked or
open corner, nor in at passageway.
Unpacking
Check to see whether the unit is
damaged.
Distribution damages
Any damages due to transportation by
us or by our representative must be
reported to the dealer not later than
one week after receipt of the unit.
Installation
Electrical installation must be
performed by an authorized electric
company. Electrical installation by a
novice can result in damage to persons
or to the unit.
Electrical parts must not be tampered
with.
Caution: In order to avoid a hazard this
appliance must be installed according
to these instructions for installasion.
Check
If you make a note of the model,
product and serial numbers on receipt
you will always have this information
to hand (See front page).
These numbers will be needed for any
service visits.
The model number plate is situated on
the bottom of the hob.
5
Before use
Before using the hob unit it is advised
to clean the ceramic surface with the
enclosed cleaning agent.
Use a clean, damp cloth or tissue. Dry
with a clean cloth.
The decorative pattern on the ceramic
surface can become scratched and
marred with use, depending upon how
one uses and maintains the unit, but
does not adversely affect performance.
Note! The warranty does not cover
such blemishes.
6
Operating instructions
pilot light
Switch symbols (to the left)
Switch for regulating the double
plate at the rear
Switch for regulating the small
plate at the front.
Regulating
The regulating of heat is graduation-free
for all plates on a scale from 1 to 12.
“1” Represents lowest heat
“12” Represents maximum heat.
“0” Represents “OFF”.
Small circle: When you switch on the
cooking section it will always be the
small circle that is switched on. Choose
the wanted temperature.
From small to big circle (both circles
are on): Turn the button past “12” to
stop. Turn back to the wanted
temperature.
From big to small circle: Turn the
button back to “0”. Switch on again and
choose the wanted temperature.
7
Pilot light
Pilot light is activated when either of
the zones are turned on, and will
remain on until the cooking zones are
switched off.
Residual-Heat indicator
Each plate has a residual heat
indicator which remains on as long as
the temperature of the cooking zone
exceeds 80˚C, even if the cooking zone
is switched off.
8
Maintenance and cleaning
Use Proper Cooking Utensils
Make the most of your new ceramic-
top hob unit by using proper utensils
of a good quality.
Only pots and pans which are
expressly intended for use on ceramic-
top hob units may be used. Utensils
must, as a minimum, cover the entire
circle which represents a given burner.
The underside, or bottom, of the
utensil must form a flat, even surface.
Ensure that both contact surfaces - the
utensil as well as the hob unit’s - are
absolutly dry.
Utensils with enamelled bottoms cause
excessive wear on the decorative
pattern of the ceramic surface. Utensils
with painted bottoms must not be used,
as the paint can be transferred to the
ceramic surface, where it will stick
permanently, causing a pocked surface.
Warning!
Utensils with aluminium bottoms can
cause light spots on the ceramic
surface. These can be removed with
the cleaning agent supplied with the
unit.
Cleaning of the ceramic
surface
The ceramic surface must be cleaned
each time that the unit has been in use.
Use a clean cloth, which has been
dipped in warm, soapy water
9
(use liqud AJAX or other diswashing
liquid), and well wrung.
All spills must be cleaned up
immediately, while the burner is still
warm. Use the cleaning agent supplied
with the unit.
Remove spots caused by utensils with
aluminium bottoms, or burned grease,
by polishing with the cleaning agent
supplied with the unit. In extreme
cases polishing may have to be
repeated several times in order to
remove the blemish entirely.
After clean-up of any of the burners,
the entire ceramic surface should be
polished, using the cleaning agent
supplied with the unit.
Cleaning of borders and edges
All borders and edges, including the
front control panel, should be cleaned
in the same manner, and with the same
cleaning agent for example, liquid
AJAX, as the ceramic surface.
Warning!
Never use scouring powder, scouring
sponges, steel wool, or any other
cleaning agent, which can scratch the
ceramic surface.
10
Tips on the use of the
ceramic ho unit

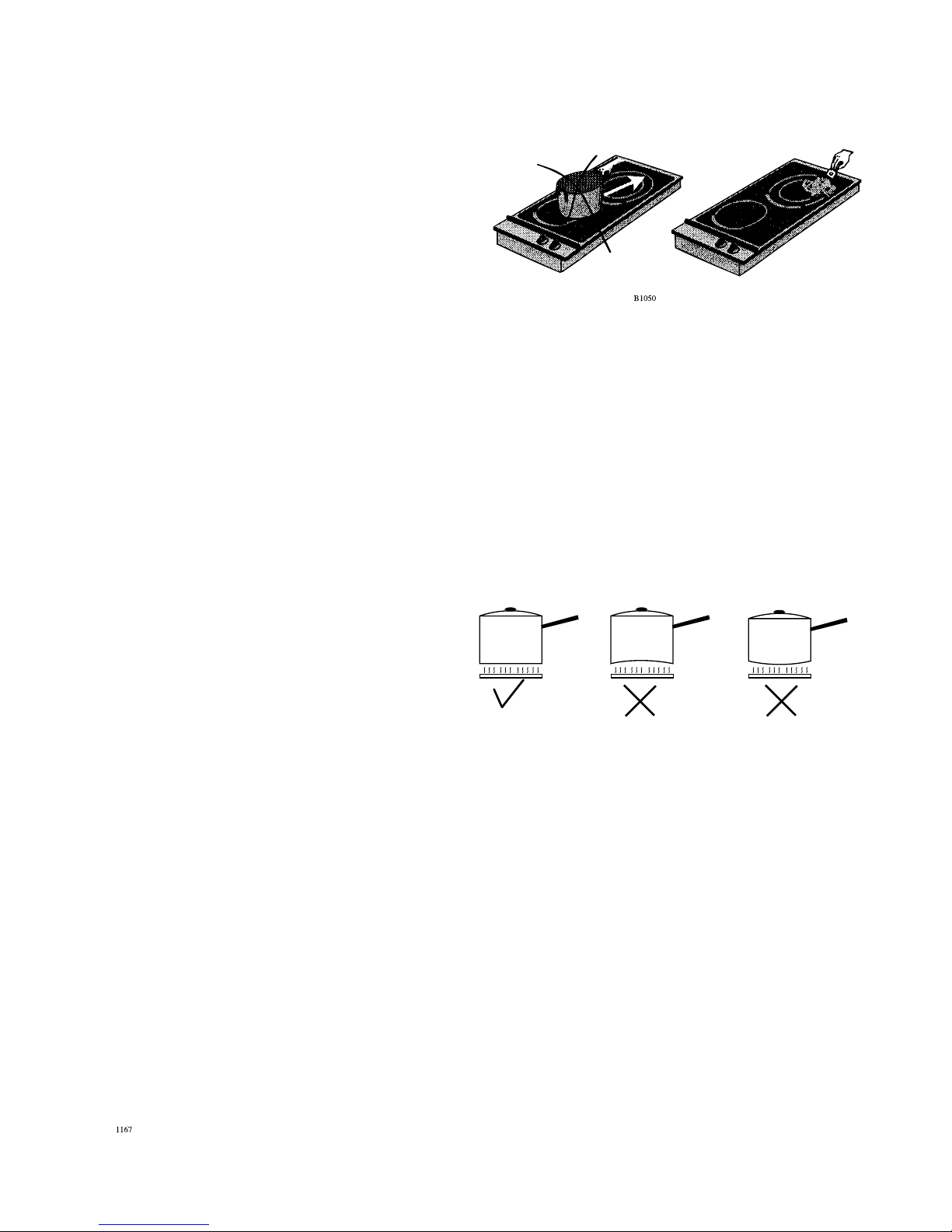

Do not slide saucepans across the
surface of the hob - always lift the pan
when placing it on, or removing it
from the ceramic surface.
Wipe the bottom surface of the pots
and pans with a clean dry cloth before
placing them on the ceramic surface.
This helps to reduce cleaning and
prevents scratching the hob glass.
Wipe off spills whilst the hob is warm.
Select the highest setting for the
cooking zones until the food is brought
to the boil, then reduce the setting.
Use saucepans with an even base. An
uneven based saucepan may increase
the electricity consumption by up to
50%.
The saucepan should match the
cooking zone or be slightly larger.
Use a tightly fitting lid on the saucepan
to reduce electricity consumption.
