Zanussi N 900 User manual
ZANUSSI
P R O F E S S I O N A L
GAS AUTOMATIC PASTA COOKERS
N 900
Model 200393
Supply voltage 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50
Net weight - kg. 165 212 337
Control panel - V 24 24 24
installed-electric 0.3 0.3 0.5
Power - kW
gas 23 30 46
Power - kW
Thermocople safety valve l l l
Basket load capacity - kg 15 20 15
height 550 465 410
depth 570 550 640
width 530 740 625
Usable well dimensions - mm
N° of wells 1 1 2
height adjustment 50 50 50
External dimensions - mm
height 33 7/16" 33 7/16" 33 7/16"
External dimensions - inch
height 850 850 850
depth 900 900 900
width 800 1200 1600
External dimensions - mm
Power supply Gas Gas Gas
NCPG800H
200393
NCPG1200H
200387
NCPG1210H
200390
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION

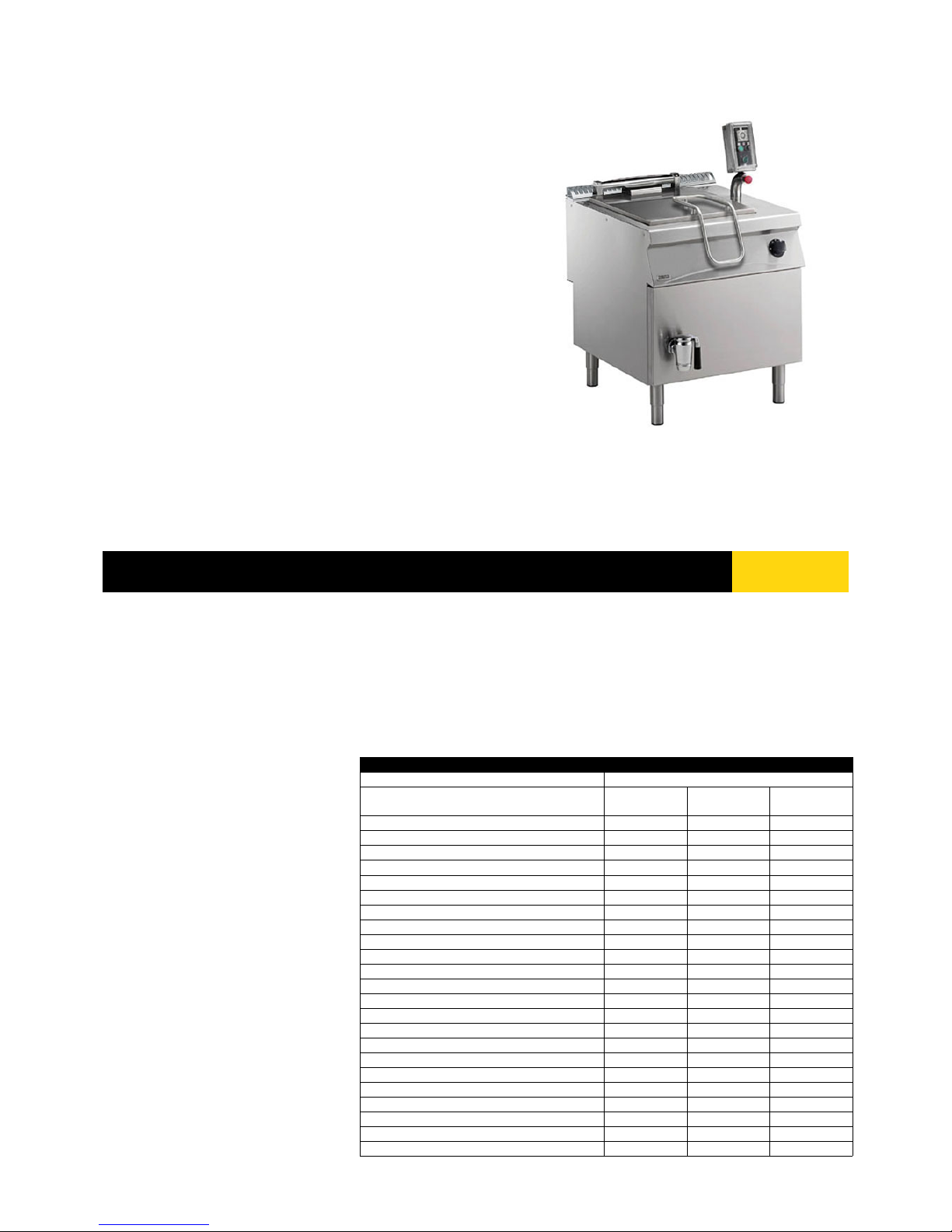

N 900: a range of over 150 models for the
professional caterer designed to guarantee
the highest level of performance, reliability,
energy saving, safety standards and
ergonomic operation. These concepts are
reflected in the total modularity of the range
that ensures innumerable configurations,
either free-standing, bridged or cantilever.
N900 demonstrates how advanced
technology can satisfy the needs of the
professional caterer.
The models detailed on this sheet are 3 gas
automatic pasta cookers with automatically
tilting baskets, with direct heating and with
one or two baskets, ideal for the cooking in
water of pasta rice, minestrones, boiled meat
etc.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Stainless steel burners, with combustion
chamber in stainless steel, pilot light, safety
valve and flame failure device.
� Load bearing frame in stainless steel.
� Front and side panels in stainless steel.
� Cooking basket and all other parts in
contact with water are made from 316 AISI
stainless steel
� Automatic water filling and automatic
water topping up.
� Automatic refilling of the evaporated water.
� Digital timer guaranteeing precise settings
of cooking parameter
� Cooking well with rounded corners in 316
AISI stainless steel with mirror finish, highly
resistant to salt corrosion. Combustion
chamber in 309 AISI stainless steel.
� Elevating basket which is automatically
tilted at the end of the cooking cycle by an
electromechanic linear activator fed at low
tension (24 V).
� Electrovalve with probe to prevent heating
in the case of no water. Automatic ignition
when water reaches minimum level.
� Electronic control end limit basket.
� Large drainage tap with insulated handle
positioned on the front of the appliance.
GAS AUTOMATIC PASTA COOKERS
N 900
BACT1 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
SIDE HANDRAIL-RIGHT/LEFT HAND 206165 206165 206165
REAR FLUE UPSTAND FOR LARGE CHIMNEY 206160 206160 206160
PASTA COOKER TROLLEY WITH TILTING TANK 921012 921012 921012
PASTA COOKER TROLLEY FOR 2-GN 1/1 CONT. 921011 921011 921011
MATCHING RING FOR FLUE CONDENSER 150DIAM 206133 206133 206133
KIT HACCP EKIS 922166 922166 922166
FRONTAL KICKING STRIP 800 MM 206176
FRONTAL KICKING STRIP 1600 MM 206179
FRONTAL KICKING STRIP 1200 MM 206178
FRONTAL HANDRAIL 800 MM 206167
FRONTAL HANDRAIL 1600 MM 206192
FRONTAL HANDRAIL 1200 MM 206191
FLUE CONDENSER FOR 1 MODULE DIAM.150MM 206156 206156 206156
DRAUGHT DIVERTER WITH 150 MM DIAMETER 206132 206132 206132
2 SIDE KICKING STRIPS 206180 206180 206180
2 SIDE COVERING PANELS H=700 D=900 206134 206134 206134
NCPG800H
200393
NCPG1200H
200387
NCPG1210H
200390
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
� Feet in stainless steel, adjustable up to a
height of 200 mm.
� Insulated lid and handle in stainless steel
fitted on hinges with counter-balancing
springs.
� Simple and functional control panel
provided with transparent plexiglass
protection.
� Well fitted with overflow pipe to eliminate
foam.
� Timer for programming cooking times.
� High productivity and quality due to high
thermal efficiency and automatically
controlled cooking times.
� The special design of the control knob
system guarantees against water infiltration.
� All models provided with service duct to
facilitate installation.
� IPX5 water protection.
* In accordance with H regulations for gas models
belonging to Class B11 (power over 14 kW), it is
necessary to install a chimney (if installed under a
hood) or chimney and draft diverter if the waste gases
are vented directly outside.
GAS AUTOMATIC PASTA COOKERS
N 900
BACT1 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L

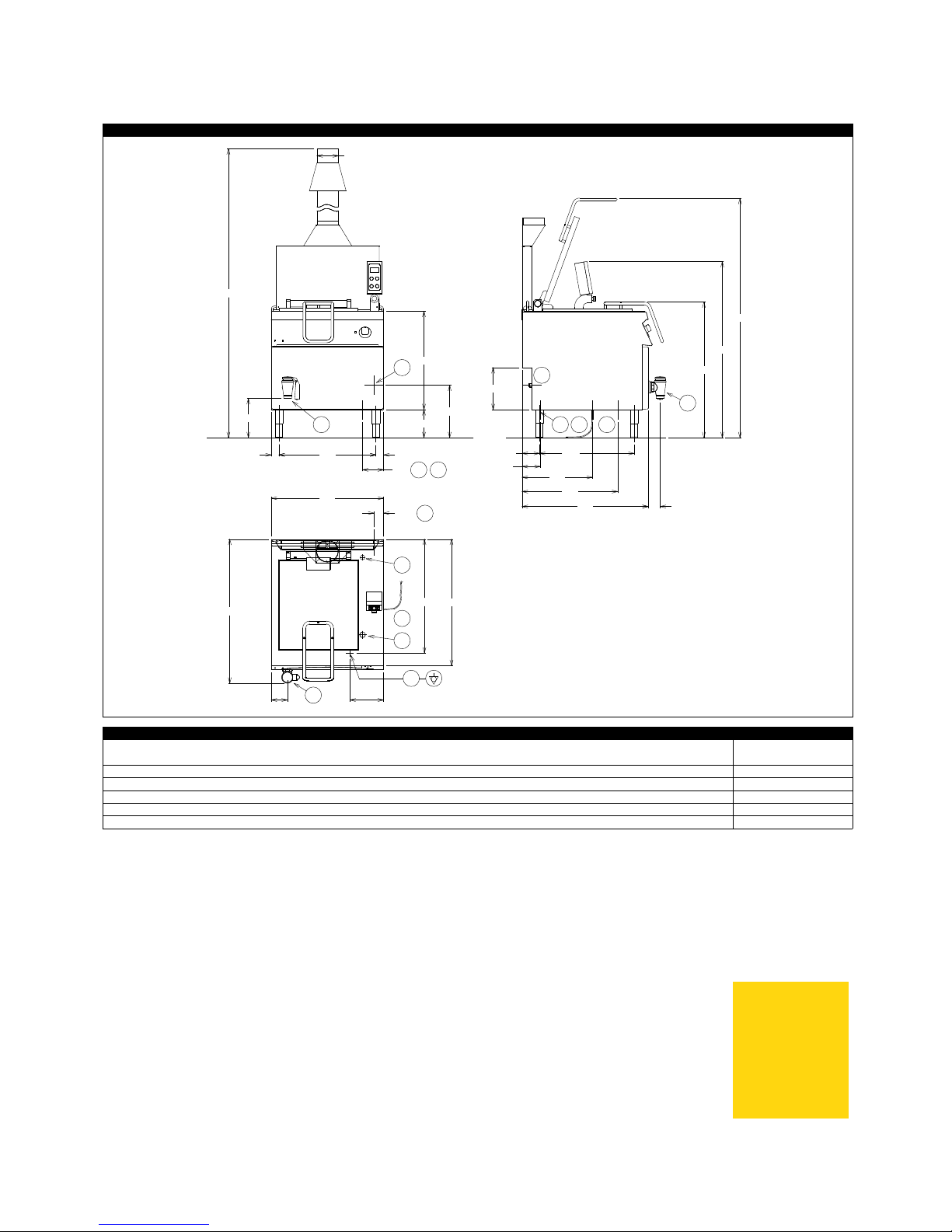

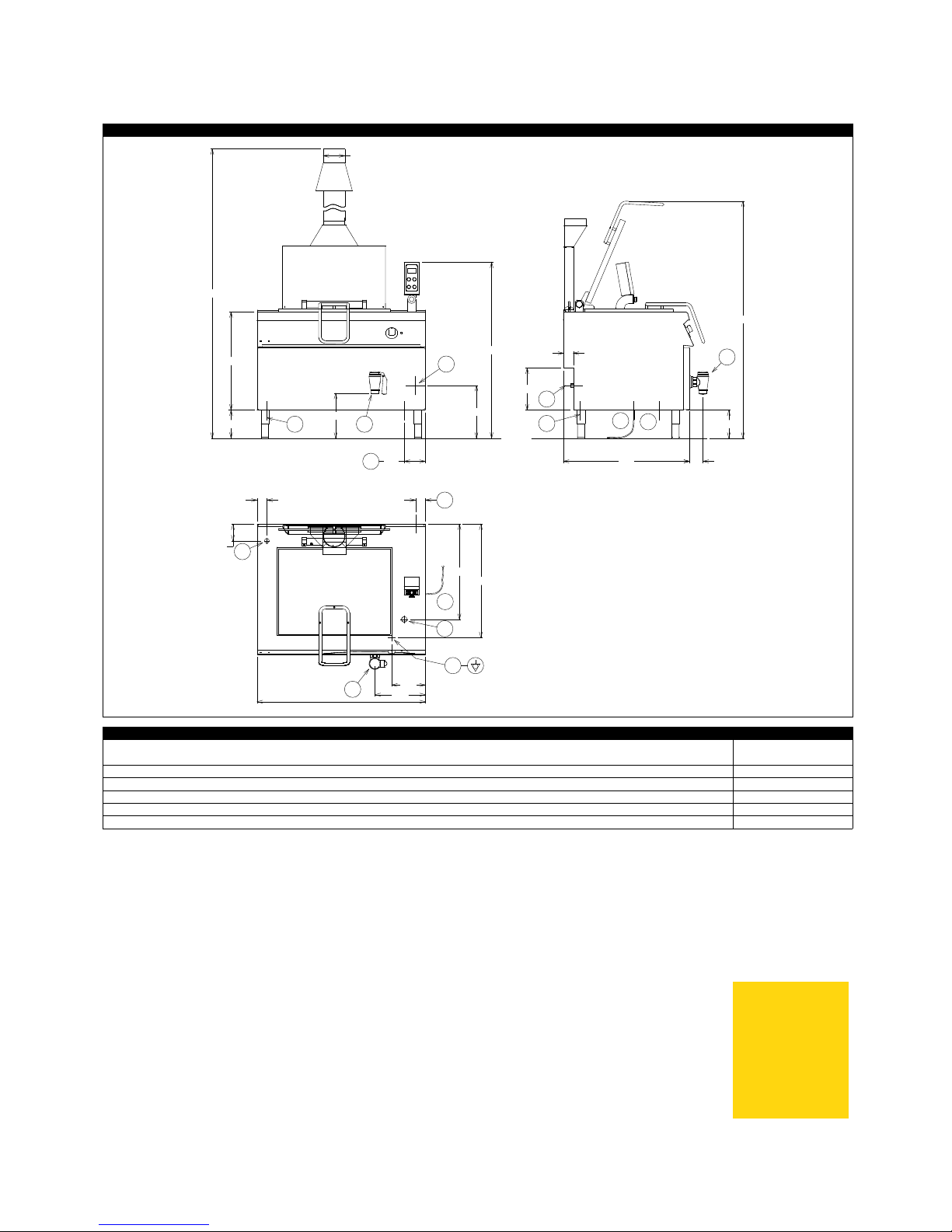

I - Electrical connection 230 V, 1N, 50
H - Gas connection 3/4"
D - Overflow drain pipe l
C - Water drain 2"
B - Cold water inlet 3/4"
NCPG800H
200393
LEGEND
200393
I
C
C
C
D
D
D
H
H
A
IH
A
A
015002800
Q
375
200
700
280
150
70
800
115
300
130
500
680
900 85
966
1255
Ø122
1704
2120
240
810 900
1025
55 690 55 124 674
GAS AUTOMATIC PASTA COOKERS
N 900
BACT1 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
I - Electrical connection 230 V, 1N, 50
H - Gas connection 3/4"
D - Overflow drain pipe l
C - Water drain 2"
B - Cold water inlet 3/4"
NCPG1200H
200387
LEGEND
200387
C
C
D
A
IH
A
D
I
H
A
C
Q
H
015003100
D
375
320
200
700
150
2120
1200 360
240
70
680
810
1255
1689
900
200
95
300
69
70
120
Ø122
GAS AUTOMATIC PASTA COOKERS
N 900
BACT1 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
I - Electrical connection 230 V, 1N, 50
H - Gas connection 3/4"
D - Overflow drain pipe l
C - Water drain 2"
B - Cold water inlet 3/4"
NCPG1210H
200390
LEGEND
200390
I
C
C
D
D
D
H
H
A
IH
A
HD
C C
H
D
A
C
Q
015003400
1700
810
240
1250
970
85
900
680
500
130
300
375
466
115
466
115
1600
70
70
2120
280280
150
150
Ø122 Ø122
