Zanussi Electrolux ZDF 411 User manual

User

manual

Dishwasher

ZDF 411

117984 99/0en 24-07-2007 12:21 Pagina 1

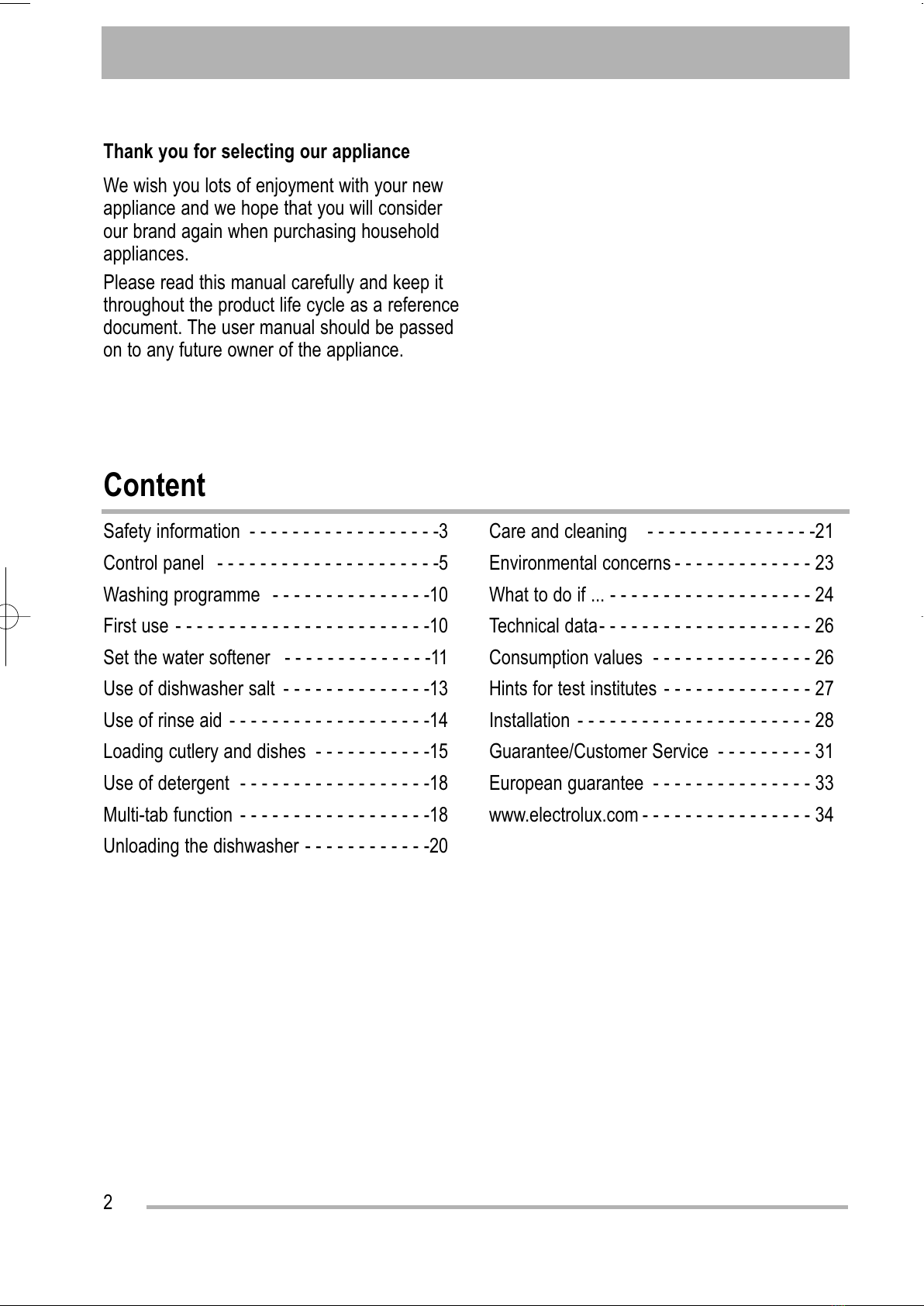

Content

Safety information - - - - - - - - - - - - - - - - - -3

Control panel - - - - - - - - - - - - - - - - - - - - -5

Washing programme - - - - - - - - - - - - - - -10

First use - - - - - - - - - - - - - - - - - - - - - - - -10

Set the water softener - - - - - - - - - - - - - -11

se of dishwasher salt - - - - - - - - - - - - - -13

se of rinse aid - - - - - - - - - - - - - - - - - - -14

Loading cutlery and dishes - - - - - - - - - - -15

se of detergent - - - - - - - - - - - - - - - - - -18

Multi-tab function - - - - - - - - - - - - - - - - - -18

nloading the dishwasher - - - - - - - - - - - -20

Care and cleaning - - - - - - - - - - - - - - - -21

Environmental concerns - - - - - - - - - - - - - 23

What to do if ... - - - - - - - - - - - - - - - - - - - 24

Technical data- - - - - - - - - - - - - - - - - - - - 26

Consumption values - - - - - - - - - - - - - - - 26

Hints for test institutes - - - - - - - - - - - - - - 27

Installation - - - - - - - - - - - - - - - - - - - - - - 28

Guarantee/Customer Service - - - - - - - - - 31

European guarantee - - - - - - - - - - - - - - - 33

www.electrolux.com - - - - - - - - - - - - - - - - 34

Thank you for selecting our appliance

We wish you lots of enjoyment with your new

appliance and we hope that you will consider

our brand again when purchasing household

appliances.

Please read this manual carefully and keep it

throughout the product life cycle as a reference

document. The user manual should be passed

on to any future owner of the appliance.

117984 99/0en 24-07-2007 12:21 Pagina 2

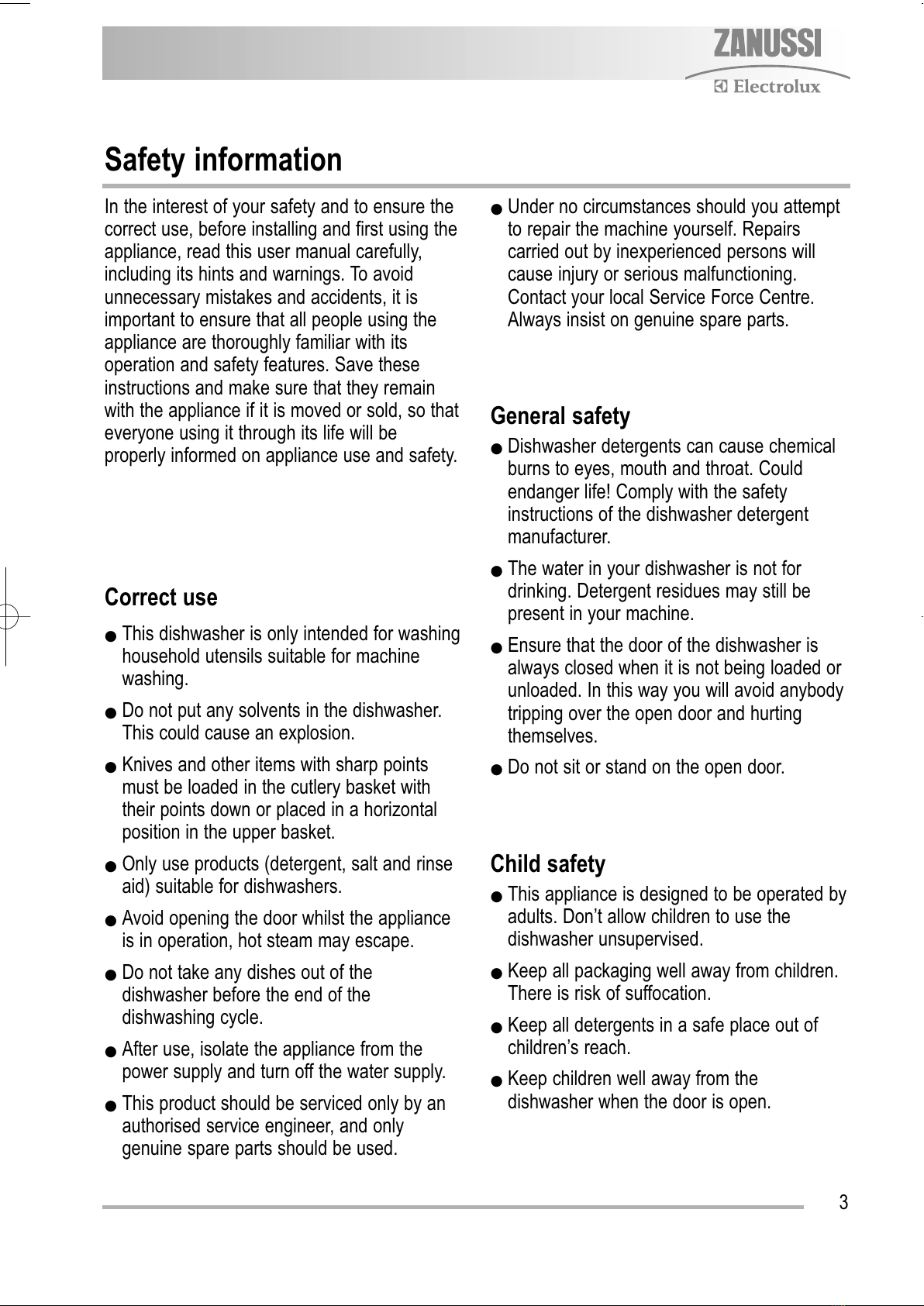

Safety information

Correct use

●This dishwasher is only intended for washing

household utensils suitable for machine

washing.

●Do not put any solvents in the dishwasher.

This could cause an explosion.

●Knives and other items with sharp points

must be loaded in the cutlery basket with

their points down or placed in a horizontal

position in the upper basket.

●Only use products (detergent, salt and rinse

aid) suitable for dishwashers.

●Avoid opening the door whilst the appliance

is in operation, hot steam may escape.

●Do not take any dishes out of the

dishwasher before the end of the

dishwashing cycle.

●After use, isolate the appliance from the

power supply and turn off the water supply.

●This product should be serviced only by an

authorised service engineer, and only

genuine spare parts should be used.

●nder no circumstances should you attempt

to repair the machine yourself. Repairs

carried out by inexperienced persons will

cause injury or serious malfunctioning.

Contact your local Service Force Centre.

Always insist on genuine spare parts.

General safety

●Dishwasher detergents can cause chemical

burns to eyes, mouth and throat. Could

endanger life! Comply with the safety

instructions of the dishwasher detergent

manufacturer.

●The water in your dishwasher is not for

drinking. Detergent residues may still be

present in your machine.

●Ensure that the door of the dishwasher is

always closed when it is not being loaded or

unloaded. In this way you will avoid anybody

tripping over the open door and hurting

themselves.

●Do not sit or stand on the open door.

Child safety

●This appliance is designed to be operated by

adults. Don’t allow children to use the

dishwasher unsupervised.

●Keep all packaging well away from children.

There is risk of suffocation.

●Keep all detergents in a safe place out of

children’s reach.

●Keep children well away from the

dishwasher when the door is open.

In the interest of your safety and to ensure the

correct use, before installing and first using the

appliance, read this user manual carefully,

including its hints and warnings. To avoid

unnecessary mistakes and accidents, it is

important to ensure that all people using the

appliance are thoroughly familiar with its

operation and safety features. Save these

instructions and make sure that they remain

with the appliance if it is moved or sold, so that

everyone using it through its life will be

properly informed on appliance use and safety.

117984 99/0en 24-07-2007 12:21 Pagina 3

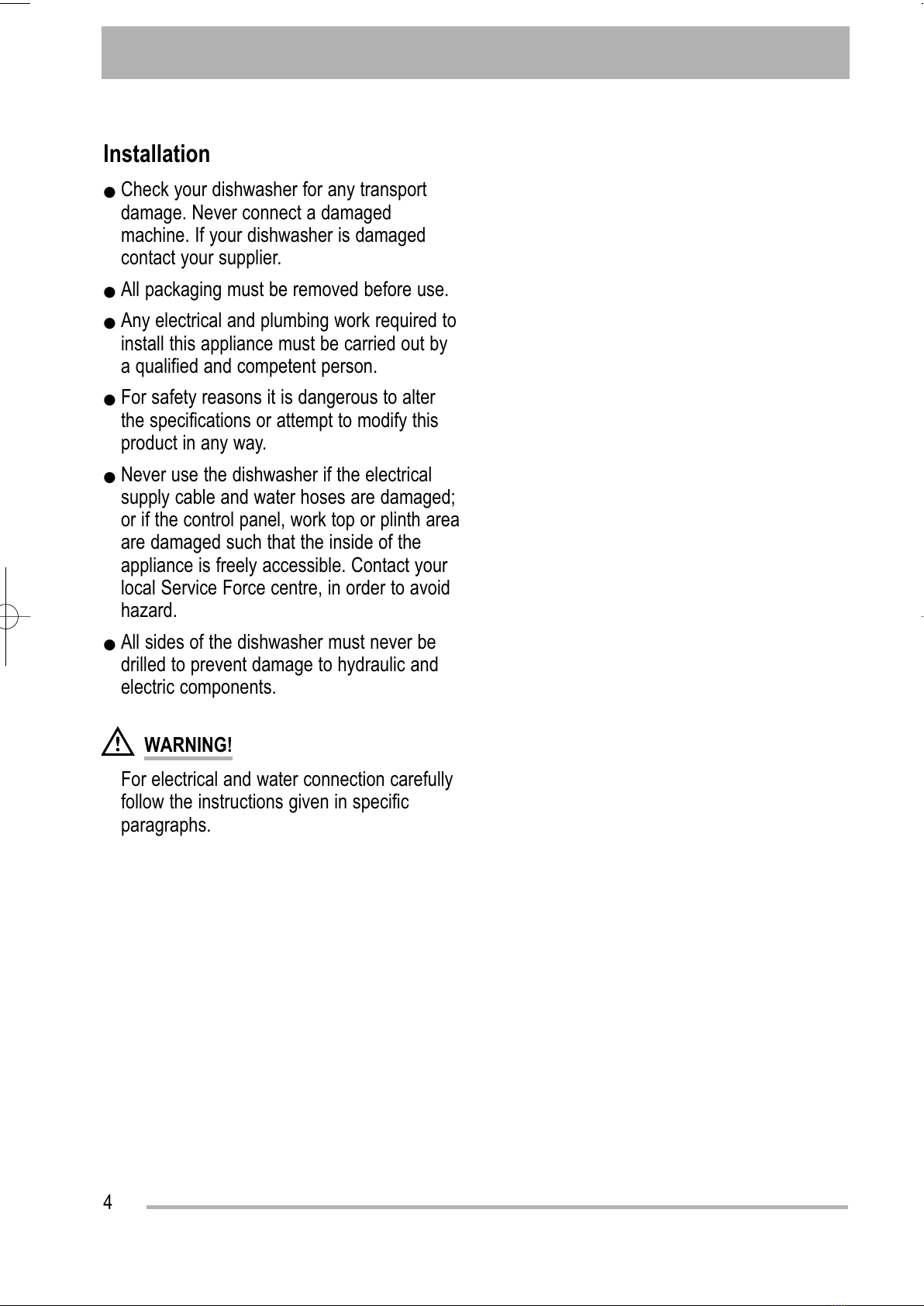

Installation

●Check your dishwasher for any transport

damage. Never connect a damaged

machine. If your dishwasher is damaged

contact your supplier.

●All packaging must be removed before use.

●Any electrical and plumbing work required to

install this appliance must be carried out by

a qualified and competent person.

●For safety reasons it is dangerous to alter

the specifications or attempt to modify this

product in any way.

●Never use the dishwasher if the electrical

supply cable and water hoses are damaged;

or if the control panel, work top or plinth area

are damaged such that the inside of the

appliance is freely accessible. Contact your

local Service Force centre, in order to avoid

hazard.

●All sides of the dishwasher must never be

drilled to prevent damage to hydraulic and

electric components.

WAR I G!

For electrical and water connection carefully

follow the instructions given in specific

paragraphs.

117984 99/0en 24-07-2007 12:21 Pagina 4

Control panel

1. On/Off button and On/Off indicator light

2. Programme selection buttons

3. Half load button

4. Delay start button

5. Indicator lights

6. Digital display

7. Function buttons

Function buttons

The following functions can be set with the help

of these buttons:

●setting the water softener,

●cancel a washing programme or a delay start

in progress,

●activation/deactivation of the Multi-tab

function,

●activation/deactivation of the rinse aid

dispenser when Multi-tab function is active.

117984 99/0en 24-07-2007 12:21 Pagina 5

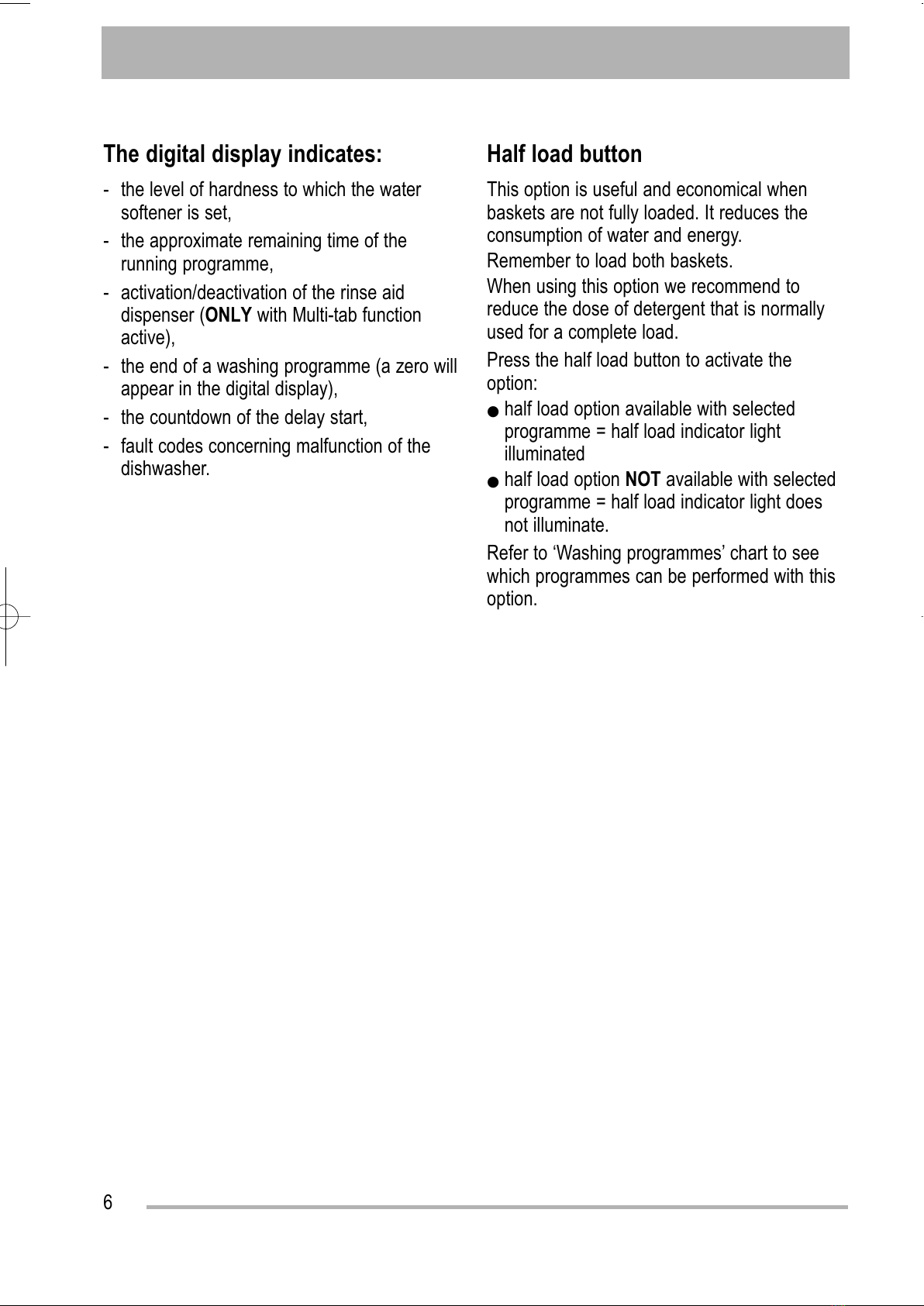

The digital display indicates:

- the level of hardness to which the water

softener is set,

- the approximate remaining time of the

running programme,

- activation/deactivation of the rinse aid

dispenser (O LY with Multi-tab function

active),

- the end of a washing programme (a zero will

appear in the digital display),

- the countdown of the delay start,

- fault codes concerning malfunction of the

dishwasher.

Half load button

This option is useful and economical when

baskets are not fully loaded. It reduces the

consumption of water and energy.

Remember to load both baskets.

When using this option we recommend to

reduce the dose of detergent that is normally

used for a complete load.

Press the half load button to activate the

option:

●half load option available with selected

programme = half load indicator light

illuminated

●half load option OT available with selected

programme = half load indicator light does

not illuminate.

Refer to ‘Washing programmes’ chart to see

which programmes can be performed with this

option.

117984 99/0en 24-07-2007 12:21 Pagina 6

Wash

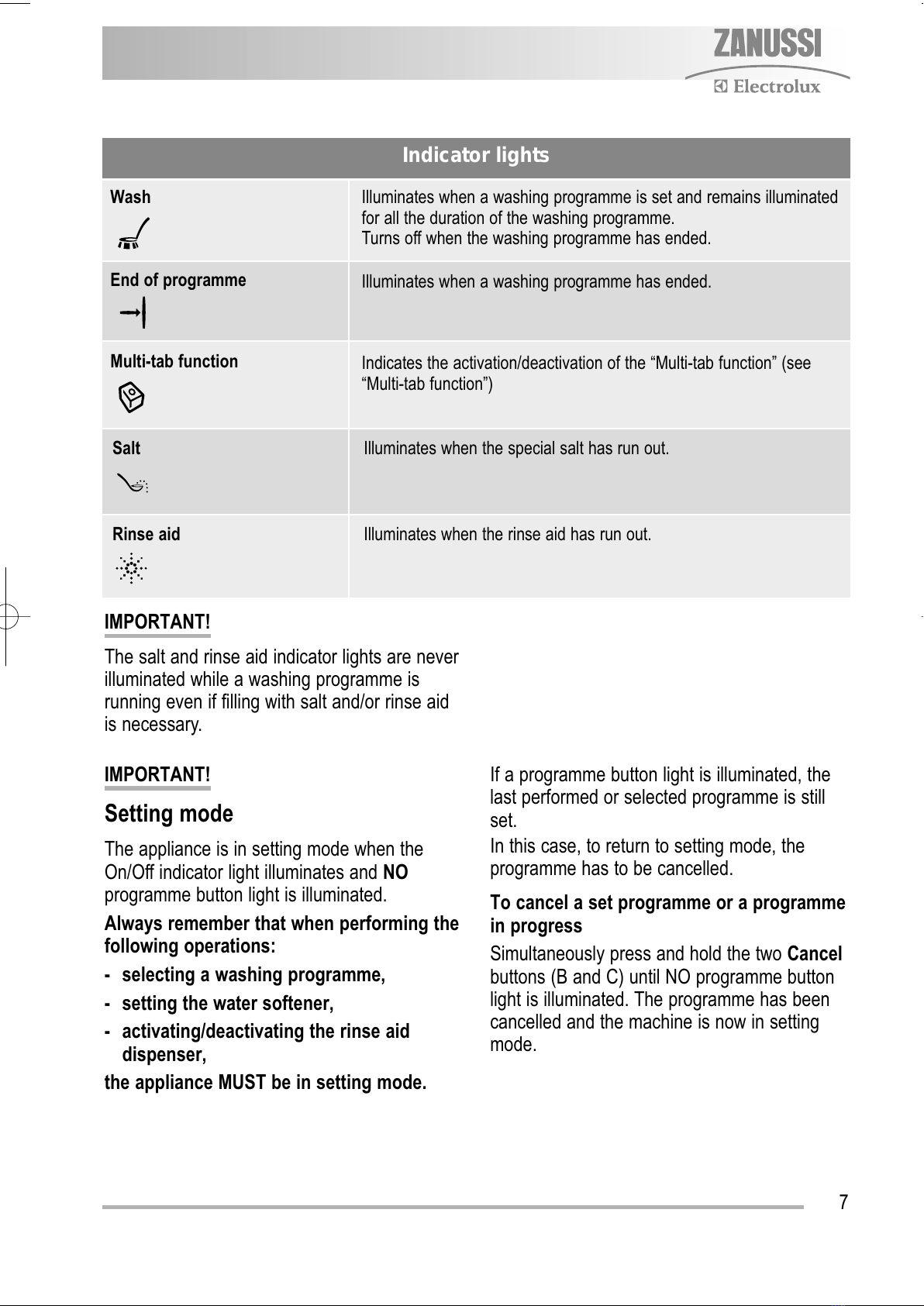

Indicator lights

Illuminates when a washing programme is set and remains illuminated

for all the duration of the washing programme.

Turns off when the washing programme has ended.

Multi-tab function Indicates the activation/deactivation of the “Multi-tab function” (see

“Multi-tab function”)

Rinse aid Illuminates when the rinse aid has run out.

End of programme Illuminates when a washing programme has ended.

Salt Illuminates when the special salt has run out.

IMPORTA T!

The salt and rinse aid indicator lights are never

illuminated while a washing programme is

running even if filling with salt and/or rinse aid

is necessary.

If a programme button light is illuminated, the

last performed or selected programme is still

set.

In this case, to return to setting mode, the

programme has to be cancelled.

To cancel a set programme or a programme

in progress

Simultaneously press and hold the two Cancel

buttons (B and C) until NO programme button

light is illuminated. The programme has been

cancelled and the machine is now in setting

mode.

IMPORTA T!

Setting mode

The appliance is in setting mode when the

On/Off indicator light illuminates and O

programme button light is illuminated.

Always remember that when performing the

following operations:

- selecting a washing programme,

- setting the water softener,

- activating/deactivating the rinse aid

dispenser,

the appliance MUST be in setting mode.

117984 99/0en 24-07-2007 12:21 Pagina 7

Select and start a washing

programme

IMPORTA T!

Select the washing programme and delay start

with the door slightly opened. The start of the

programme or the countdown of the delay start

will occur only after the closure of the door.

ntil then it is possible to modify the settings.

1. Check that the baskets have been loaded

correctly and that the spray arms are free to

rotate

2. Check that the water tap is opened

3. Press the On/Off button. The dishwasher

must be in setting mode.

4. Press the button corresponding to the

required programme (see ‘Washing

programmes’ chart).

When a programme has been selected the

corresponding light will illuminate.

The programme in progress indicator light

illuminates.

5. Close the dishwasher door, the programme

starts automatically.

The programme in progress indicator light

remains illuminated.

Setting and starting the programme

with delay start

1. After having selected the washing

programme, press the delay start button

until the flashing number of hours for the

delay start will appear in the digital display.

The commencement of the selected

washing programme can be delayed from 1

to 19 hours.

2. Close the dishwasher door, the countdown

starts automatically and the number in the

display stops flashing.

3. The countdown will decrease with steps of 1

hour.

4. The opening of the door will interrupt the

countdown. Close the door; the countdown

will continue from the point at which it was

interrupted.

5. Once the delay start has elapsed the

programme will start automatically.

IMPORTA T!

With the delay start function set, the

programme in progress indicator light is off.

Once the countdown of the delay start has

elapsed, the washing programme will start

automatically and the programme in progress

indicator light will illuminate.

IMPORTA T!

The selection of the washing programme and

delay start can also occur with the door closed.

Keep in mind that in this way, once a washing

programme button is pressed you have O LY

3seconds in which you can choose another

programme or select a delay start, after which

the selected programme will start automatically.

CAUTIO !

Interrupt or cancel a washing programme in

progress ONLY if it’s absolutely necessary.

Attention! Hot steam may escape when the

door is opened. Open the door carefully.

117984 99/0en 24-07-2007 12:21 Pagina 8

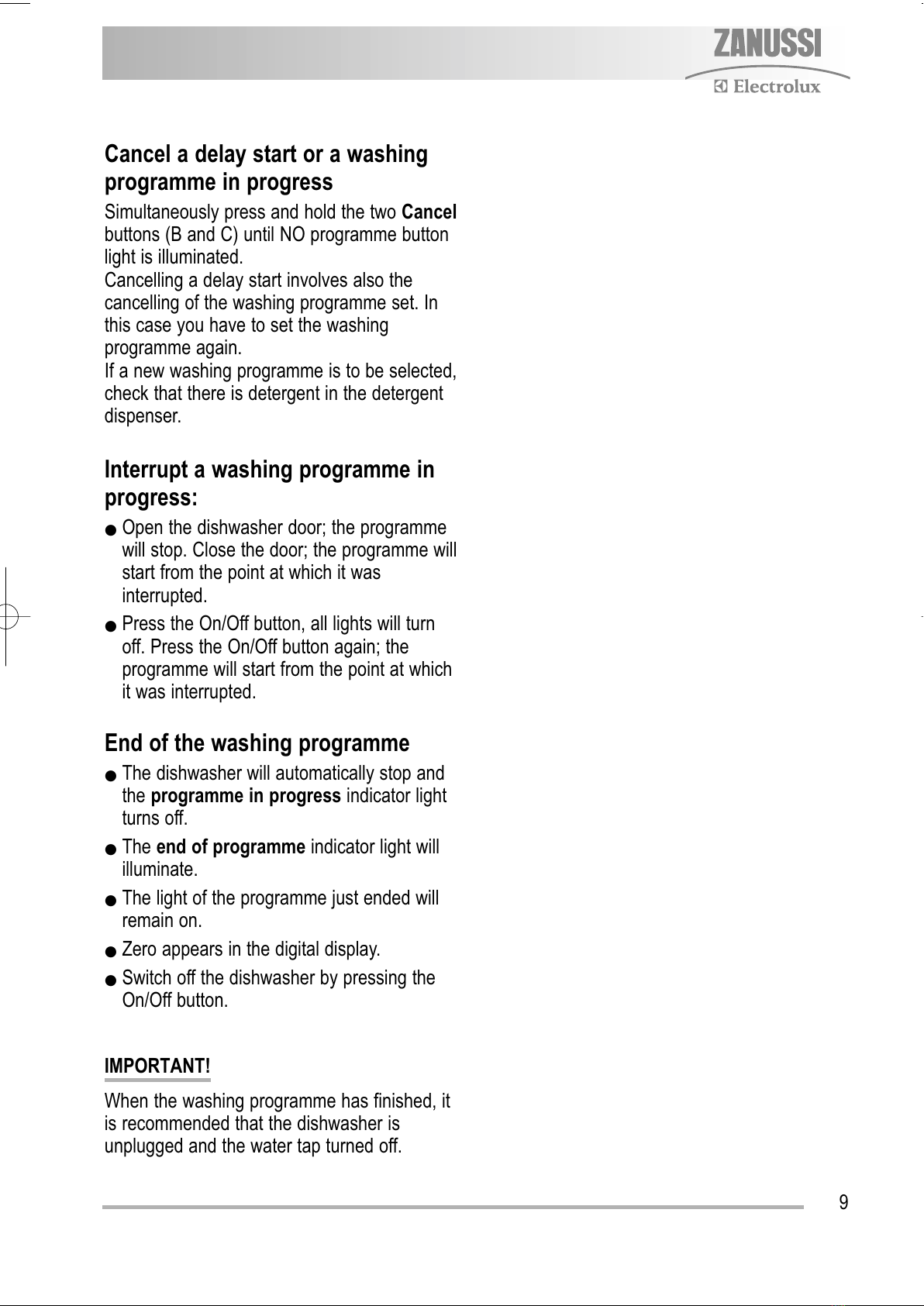

Cancel a delay start or a washing

programme in progress

Simultaneously press and hold the two Cancel

buttons (B and C) until NO programme button

light is illuminated.

Cancelling a delay start involves also the

cancelling of the washing programme set. In

this case you have to set the washing

programme again.

If a new washing programme is to be selected,

check that there is detergent in the detergent

dispenser.

Interrupt a washing programme in

progress:

●Open the dishwasher door; the programme

will stop. Close the door; the programme will

start from the point at which it was

interrupted.

●Press the On/Off button, all lights will turn

off. Press the On/Off button again; the

programme will start from the point at which

it was interrupted.

End of the washing programme

●The dishwasher will automatically stop and

the programme in progress indicator light

turns off.

●The end of programme indicator light will

illuminate.

●The light of the programme just ended will

remain on.

●Zero appears in the digital display.

●Switch off the dishwasher by pressing the

On/Off button.

IMPORTA T!

When the washing programme has finished, it

is recommended that the dishwasher is

unplugged and the water tap turned off.

117984 99/0en 24-07-2007 12:21 Pagina 9

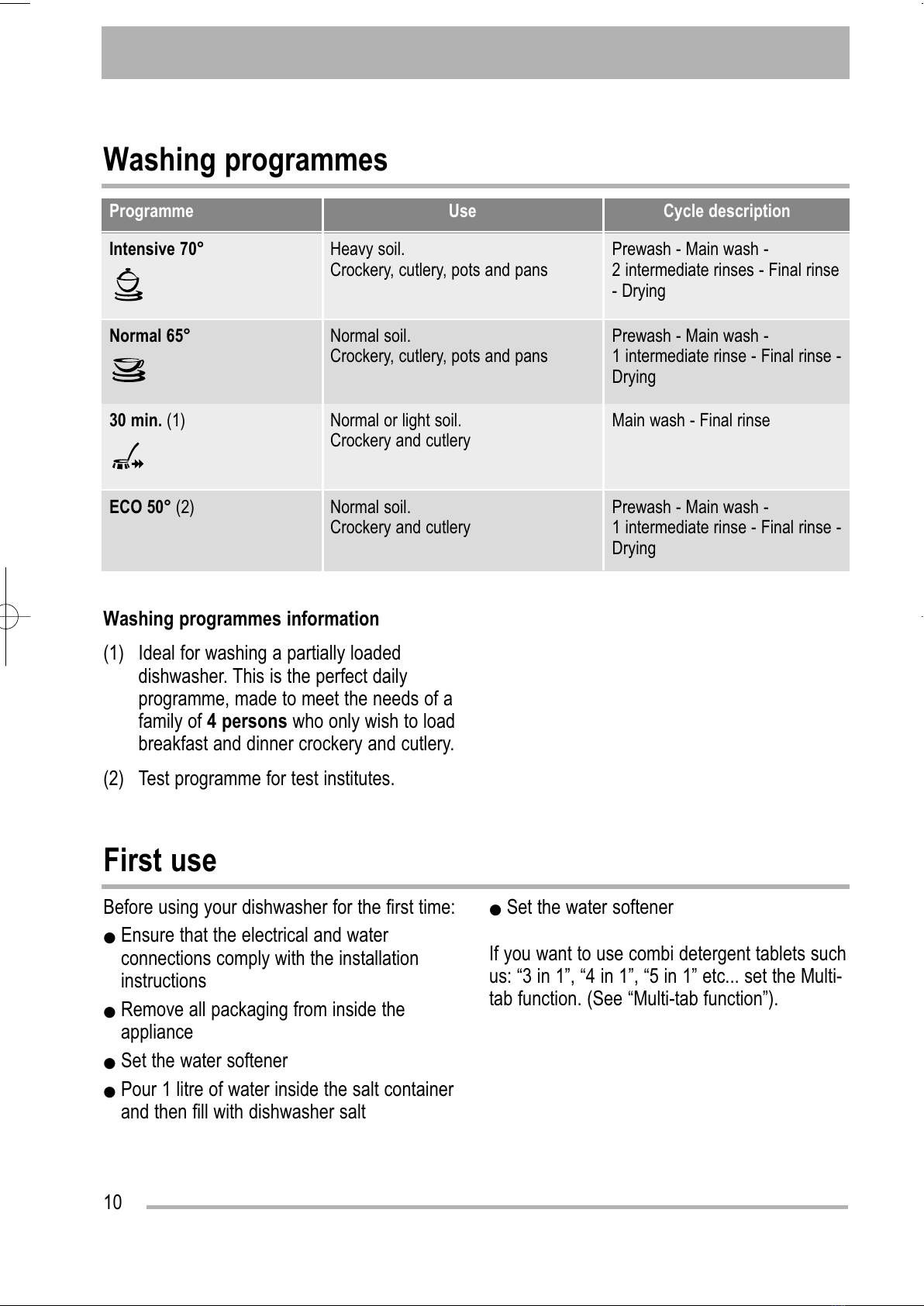

Washing programmes

Washing programmes information

(1) Ideal for washing a partially loaded

dishwasher. This is the perfect daily

programme, made to meet the needs of a

family of 4 persons who only wish to load

breakfast and dinner crockery and cutlery.

(2) Test programme for test institutes.

Programme

Intensive 70°

ormal 65° Normal soil.

Crockery, cutlery, pots and pans Prewash - Main wash -

1 intermediate rinse - Final rinse -

Drying

ECO 50° (2) Normal soil.

Crockery and cutlery Prewash - Main wash -

1 intermediate rinse - Final rinse -

Drying

30 min. (1) Normal or light soil.

Crockery and cutlery Main wash - Final rinse

Heavy soil.

Crockery, cutlery, pots and pans Prewash - Main wash -

2 intermediate rinses - Final rinse

- Drying

Use Cycle description

First use

Before using your dishwasher for the first time:

●Ensure that the electrical and water

connections comply with the installation

instructions

●Remove all packaging from inside the

appliance

●Set the water softener

●Pour 1 litre of water inside the salt container

and then fill with dishwasher salt

●Set the water softener

If you want to use combi detergent tablets such

us: “3 in 1”, “4 in 1”, “5 in 1” etc... set the Multi-

tab function. (See “Multi-tab function”).

117984 99/0en 24-07-2007 12:21 Pagina 10

Other manuals for ZDF 411

Table of contents

Other Zanussi Electrolux Dishwasher manuals

Zanussi Electrolux

Zanussi Electrolux DE6444 User manual

Zanussi Electrolux

Zanussi Electrolux ZSF 6126 User manual

Zanussi Electrolux

Zanussi Electrolux DE 4855 User manual

Zanussi Electrolux

Zanussi Electrolux DE 6865 User manual

Zanussi Electrolux

Zanussi Electrolux ZDF 301 User manual

Zanussi Electrolux

Zanussi Electrolux ZSF 6120 User manual

Zanussi Electrolux

Zanussi Electrolux DE 6554 User manual

Zanussi Electrolux

Zanussi Electrolux DX 6452 User manual

Zanussi Electrolux

Zanussi Electrolux ZDF 221 User manual

Zanussi Electrolux

Zanussi Electrolux DE 6754 User manual

Zanussi Electrolux

Zanussi Electrolux ZSF 6150 User manual

Zanussi Electrolux

Zanussi Electrolux DA4442 User manual

Zanussi Electrolux

Zanussi Electrolux ZSF 2400 User manual

Zanussi Electrolux

Zanussi Electrolux ZSF 4112 User manual

Zanussi Electrolux

Zanussi Electrolux DX 6453 User manual

Zanussi Electrolux

Zanussi Electrolux ZDF 511 User manual

Zanussi Electrolux

Zanussi Electrolux DE 540 X User manual

Zanussi Electrolux

Zanussi Electrolux ZDT 6053 User manual

Zanussi Electrolux

Zanussi Electrolux DA4143 User manual

Zanussi Electrolux

Zanussi Electrolux ZDF 501 User manual

Zanussi Electrolux

Zanussi Electrolux ZDF 121 User manual

Zanussi Electrolux

Zanussi Electrolux ZDF 131 User manual

Zanussi Electrolux

Zanussi Electrolux ZSF 2420 User manual

Zanussi Electrolux

Zanussi Electrolux ZDF 121 User manual

Popular Dishwasher manuals by other brands

Electrolux

Electrolux ESI5211LOX user manual

KitchenAid

KitchenAid KUDB230B Use and care guide

Brandt

Brandt BDJ424DB instruction manual

Asko

Asko DSD767UXXL.AU user manual

Beko

Beko DFN26210W instruction manual

NEFF

NEFF S153ITX00E INFORMATION FOR USE

Midea

Midea SV 4.45 wi manual

LG LDF7932 Specifications

Gorenje

Gorenje GV63214 instruction manual

Hotpoint

Hotpoint HDA1100ZWH Installation information

Blomberg

Blomberg LDFN2240W instruction manual

AEG

AEG FFB83836PM user manual

Cylinda

Cylinda DM3220RFD user manual

Atag

Atag DW8214MB manual

GE GLD8000 Series owner's manual

Siemens

Siemens SN23HI02KE INFORMATION FOR USE

Omega

Omega ODW717X instruction manual

BORETTI

BORETTI BVW-683 operating instructions
